T38CT7568GSM Handset

Discover Your Phone Philips continuously strives to improve itsproducts. Therefore, Philips reserves the rights torevise this user guide or withdraw it at any timewithout prior notice. Philips provides this userguide "as is" and does not accept, except as required by applicable la w, liability for any error, omission or discrepancy between this user guide and the product described. The device is meant to be connected to GSM/GPRS networks.How to... Alphanumeric keypad Microphone Navigation and , 65,000 colour main screen Pick up key Hang up, cancel and on/off key Back of the p hone: speaker & Charger/headset connector Left softkey Right Volume keys Camera key Switch the phone On/Off Long press ) . Enter your PIN code Enter your PIN code usingthe keypad and press OK or L to confirm. Make a call Enter the phone number onthe keypad and press ( to dial. End a call Press ) . Answer a call Press ( when your phone rings. Reject a call Press ) when your phone rings. Launch Secretary on the Go (for more information, see page 21) Press or , or tap on the screen the Busybutton with your stylus pen. i SoftkeysThe left and right soft keys - L and R - located at the top of the keypad allow you to select thecorresponding options that appear on the screenimmediately above them, including during calls.The functions associated with these keys will varyaccording to the current context. Touch ScreenWarning! The stylus pen supplied with yourproduct is the only tool that you can use whentapping the touch screen. Do NOT use any othertool on the touch screen.You mobile phone features a touch screen that canbe selected with the stylus pen. You can select anitem, move up and down or select a few itemssimultaneously.Mini-SD cardYour phone supports Mini-SD card. You can insertthe card and browse its contents or manage the fileswith your phone.However, please do not remove your Mini-SD cardwhile is active or when you are browsing files in the card, as this may result in data loss. To remove thecard, you must first end your current operation, thentap the SD card icon at the top of the screen with the stylus pen to disconnect it. You may then safelyremove the SD card after it has been disconnected. Adjust the earpiece volume Press the up or downvolume keys. Activate/deactivate the loudspeaker Long press ( during a call. Access the Names list Press - in idle mode. Access the Call list Press ( in idle mode. The Call list displays the Calls missed , the Calls received and the Calls dialled . Access the Main Menu Press OK or L Menu in idle mode. Go to previous menu Press R . Quickly return to idle Press ) . iiMain MenuThe Main Menu gives you access to all the differentfeatures of your mobile phone presented in the formof a grid. The table above summarises thearrangement of the Main Menu , the meanings of the various icons found there, and the page in thismanual where more detailed informationconcerning the subject can be found. Press , to access the Main Menu when in idle mode, then use the central navigation key - whichdirections are represented in the present guide withthe + , - , < or > signs - to browse the icons and lists. When navigating in a list, a scroll barlocated on the right hand side of the screen showsyour current position in th e list. Within lists, press , to access the options related to the selected item, press select R Back to go back one level. How to use this manualThe current manual is structured as follows: Business Multimedia Entertainment page 15 page 22 page 26 Operator Messages Settings page 29 page 32 page 45 Camera Contacts Call Info page 53 page 58 page 62 Discover your phone The current section. Presents anoverview of your mobile phone andinformation on th e most commonly used features. Chapter 1: Getting started Information on how to set up yourmobile phone for the first time:installation of the SIM card, battery, etc. Chapter 2: Calling Information on how to make andreceive calls. Chapter 3: Text entry Information on how to enter textusing the numeric keypad. iii Chapters 4 to 12 These chapters treat each elementof the Main Menu one at a time. Other sections After Chapter 12 appear thesections for Icons & Symbols,Precautions, Philips authenticaccessories, SAR information (ifavailable at publication, otherwiseincluded as a separate document),and finally the Limited Warranty. iv Table of contents 1. Getting Started ............................................1 Inserting the SIM card ......................................1Switching on the ph one ...................................2 Charging the battery ........................................3Setting Hotkeys .................................................3 2. Calling ................................................................4 Make a call ..........................................................4Answer and end a call ......................................4Call handsfree ....................................................4Options during a call ........................................5Adjust the earpiece volume ............................5 Quickcall .............................................................6MMS Foto talk ...................................................6Handling multiple calls .....................................6 3. Text Entry ......................................................9 T9® text input ...................................................9Basic text input ............................................... 10Handwriting recognition .............................. 11 4. Business ......................................................... 15 Calculator ........................................................ 15Money converter ........................................... 15Organiser ......................................................... 15 World clock .................................................... 16Sound recording ............................................. 17Alarm clock ...............................…

Text truncated - open the document above for the full version.

Section 1: Manufacturer Information Manufacturer Cellon(China)Co.,Ltd Address 13/F, Skyworth C Building, Gaoxin S.Ave1 ,Hi-Tech Industrial Park, Nanshan, Shenzhen Tel. +86-10-58270277 Fax +86-10-84568718 Contact Person Xinglan Yu E-mail [email protected] Section 2: Product Information Terminal product Model CT7568 Brand PHILIPS Project name On Touch Market name 9@9t Hardware Version PR3 Prototype name X1B Software Version 08460003 FCCID T38CT7568 Section 3: Product Description Philips X1B / On Touch difference list : − Philips On Touch reuse X1B RF module, both for schematics and layout; On Touch added MP3, Touch panel, Handwriting functions. − Philips On Touch use different LCD (Vendor is PMDS), with new driver (LDS 186). Same negative transmissive technology, same pixel number (128x160), same color definition (65K Color STN). − Philips On Touch added miniSD socket; add USB 1.1 connection. − Mechanical design of the two projects is different. On Touch is bar type; X1B is clam shell type. − Philips On Touch use white EL keypad backlight; while X1B use white LED backlight. Section 4: Test Standards 47 CFR Part 2 47 CFR Part 15, Subpart B 47 CFR Part 24, Subpart E FCC OET Bulletin 65, Supplement C Note : Detailed data please make reference to 6. FCC EMC Report.pdf & 6. FCC SAR Report.pdf

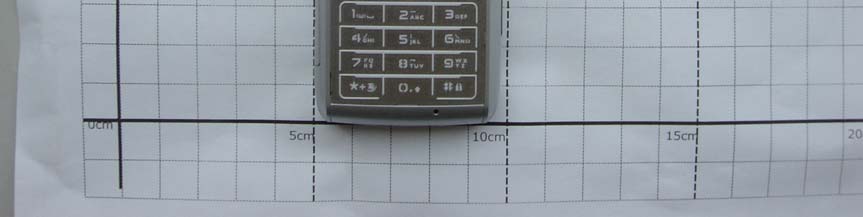

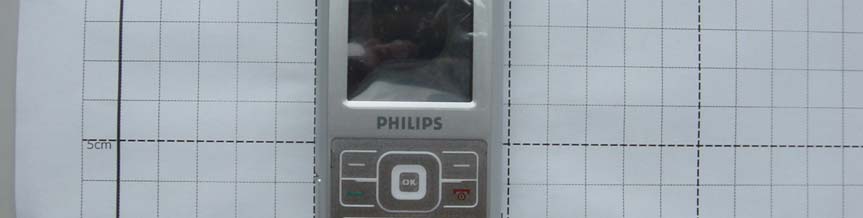

Photographs 1. 2. 3. 4. 5. 6. 7.

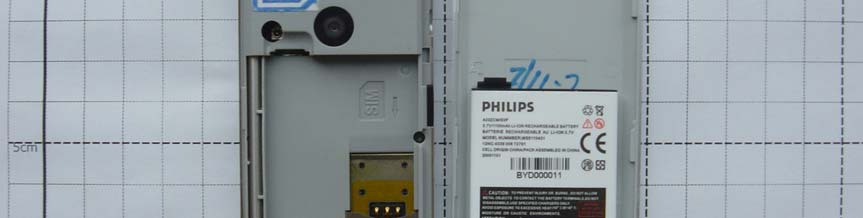

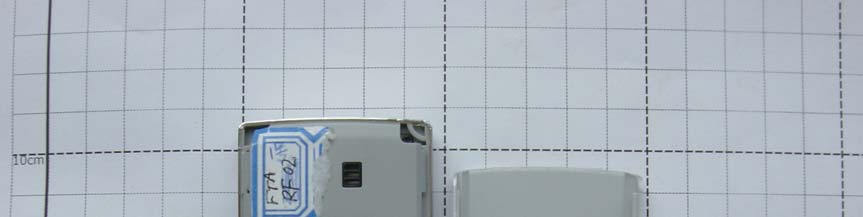

Internal Photos 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14.

No. SAR06-011A Page 3 of 83 Contents 1. GENERAL CONDITIONS 2. ADMINISTRATIVE DATA 2.1. Identification of the Responsible Testing Laboratory 2.2. Identification of the Responsible Testing Location(s) 2.3. Organization Item 2.4. Identification of Applicant 2.5. Identification of Manufacture 3. EQUIPMENT UNDER TEST (EUT) 3.1. Identification of the Equipment under Test 3.2. Identification of all used Test Sample of the Equipment under Test 4. OPERATIONAL CONDITIONS DURING TEST 4.1. Schematic Test Configuration 4.2. SAR Measurement System 5. CHARACTERISTICS OF THE TEST 5.1. Applicable Limit Regulations 5.2. Applicable Measurement Standards 6. LABORATORY ENVIRONMENT 7. TEST RESULTS 7.1. Dielectric Performance 7.2. Summary of Measurement Results 7.3. Conclusion 8. MEASUREMENT UNCERTAINTY 9. MAIN TEST INSTRUMENTS This Test Report consists of the following Annexes: Annex A: Accreditation Certificate Annex B: Test Layout Annex C: Sample Photographs Annex D: Graph Test Results Annex E: Additional Tests No. SAR06-011A Page 4 of 83 1ˊGENERAL CONDITIONS 1.1 This report only refers to the item that has undergone the test. 1.2 This report standalone dose not constitute or imply by its own an approval of the product by the certification Bodies or competent Authorities. 1.3 This document is only valid if complete; no partial reproduction can be made without written approval of Shenzhen Electronic Product Quality Testing Center. 1.4 This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of Shenzhen Electronic Product Quality Testing Center and the Accreditation Bodies, if it applies. No. SAR06-011A Page 5 of 83 2. Administrative Date 2.1. Identification of the Responsible Testing Laboratory Company Name: ShenZhen Electronic Product Quality Testing Center Department: Testing Department Address: Electronic Testing Building, ShaHe Road, NanShan District, ShenZhen, P. R. China Telephone: +86-755-26628676 Fax: +86-755-26627238 Responsible Test Lab Managers: Mr. Wang Keqin 2.2. Identification of the Responsible Testing Location(s) Company Name: ShenZhen Electronic Product Quality Testing Center Address: Electronic Testing Building, ShaHe Road, NanShan District, ShenZhen, P. R. China 2.3. Organization Item S.E.T Report No.: SAR06_011A S.E.T Project Leader: Mr. Li Sixiong S.E.T Responsible for accreditation scope: Mr. Wang Keqin Start of Testing: 2006-3-23 End of Testing: 2006-3-30 2.4. Identification of Applicant Company Name: Cellon(China)Co.,Ltd. Address: 13/F, Skyworth C Building, Gaoxin S.Ave1, Hi-Tech Industrial Park, Nanshan, Shenzhen Contact person: Yu xinglan Telephone: (+86) 10-58270277 Fax: (+86) 10-84568718 2.5. Identification of Manufacture Company Name: Cellon(China)Co.,Ltd. Address: 13/F, Skyworth C Building, Gaoxin S.Ave1, Hi-Tech Industrial Park, Nanshan, Shenzhen Contact person: Yu xinglan Telephone: (+86) 10-58270277 Fax: (+86) 10-84568718 Notes: This data is based on the information by the applicant. No. SAR06-011A Page 6 of 83 3. Equipment Under Test (EUT) 3.1. Identification of the Equipment under Test Brand Name: Philips Type Name: CT7568 Marking Name: CT7568 Test frequency GSM 900MHzǃ DCS 1800MHzǃ PCS1900MHz Battery Type A23ZCM/E0P Battery specification1100mAh 3.7V Li-ion Antenna type Build inside Operation mode Call established Modulation mode GSM, NO BLUETOOTH General description: Max. Power(EIRP) GSM 900: 0.385Watt(25.86dBm) DCS 1800: 0.282Watt(24.50dBm) PCS 1900: 0.224Watt(23.51dBm) 3.2. Identification of all used Test Sample of the Equipment under Test EUT Code Serial Number Hardware VersionSoftware Version IMEI 59000H01 N.A. PR3 08460003 358524000001047 No. SAR06-011A Page 7 of 83 4 OPERATIONAL CONDITIONS DURING TEST 4.1 Schematic Test Configuration During SAR test, EUT is in Traffic Mode (Channel Allocated) at Normal Voltage Condition. A communication link is set up with a System Simulator (SS) by air link, and a call is established. The Absolute Radio Frequency Channel Number (ARFCN) is allocated to 1, 62 and 124 respectively in the case of GSM 900 MHz, or to 512, 700 and 885 respectively in the case of DCS 1800 MHz, and to 512, 661 and 810 respectively in the case of PCS 1900 MHz. The EUT is commanded to operate at maximum transmitting power. The EUT shall use its internal transmitter. The antenna(s), battery and accessories shall be those specified by the manufacturer. The EUT battery must be fully charged and checked periodically during the test to ascertain uniform power output. If a wireless link is used, the antenna connected to the output of the base station simulator shall be placed at least 50 cm away from the handset. The signal transmitted by the simulator to the antenna feeding point shall be lower than the output power level of the handset by at least 35 dB. 4.2 SAR Measurement System The SAR measurement system being used is the IndexSAR SARA2 system, which consists of a Figure1. SAR Lab Test Measurement Set-up Mitsubishi RV-E2 6-axis robot arm and controller, IndexSAR probe and amplifier and SAM phantom No. SAR06-011A Page 8 of 83 Head Shape. The system is controlled remotely from a PC, which contains the software to control the robot and data acquisition equipment. The software also displays the data obtained from test scans. In operation, the system first does an area (2D) scan at a fixed depth within the liquid from the inside wall of the phantom. When the maximum SAR point has been found, the system will then carry out a 3D scan centred at that point to determine volume averaged SAR level. 4.2.1 Robot system specification The robot is used to articulate the probe to programmed positions inside the phantom head to obtain the SAR readings from the DUT. 4.2.2 Probe and amplifier specification IXP-050 Indexsar isotropic immersible SAR probe The probes are constructed using three orthogonal dipole sensors arranged on an interlocking, triangular prism core. The probes have built-in shielding against sta…

Text truncated - open the document above for the full version.

Report No. FCC06-8016 Page 2 of 44 Table of Contents 1 Test Report Certification ...............................................................................................................4 2 General Information ......................................................................................................................5 2.1 Description of EUT ...............................................................................................................5 2.2 Objective ...............................................................................................................................6 2.3 Test Standards and Results ....................................................................................................6 2.4 List of Equipments Used .......................................................................................................7 2.5 Test Facility ...........................................................................................................................7 2.6 Environmental conditions .....................................................................................................7 3 Conducted Emission Test ..............................................................................................................8 3.1 Limits of Conducted Emission..............................................................................................8 3.2 Test Procedure .......................................................................................................................8 3.3 Test Setup ..............................................................................................................................9 3.4 EUT Setup and Operating Conditions...................................................................................9 3.5 Test Results ...........................................................................................................................9 4 Radiated Emission Test ............................................................................................................... 11 4.1 Limits of Radiated Emission ............................................................................................... 11 4.2 Test Procedure ..................................................................................................................... 11 4.3 Test Setup ............................................................................................................................12 4.4 EUT Setup and Operating Conditions.................................................................................12 4.5 Test Results .........................................................................................................................12 5 Frequencies .................................................................................................................................14 5.1 Frequency Blocks Available for Broadband PCS ...............................................................14 5.2 Test Procedure .....................................................................................................................14 5.3 Test Setup ............................................................................................................................15 5.4 EUT Setup and Operating Conditions.................................................................................15 5.5 Test Results .........................................................................................................................16 6 Conducted RF Output Power Test...............................................................................................17 6.1 RF Power Output Test Requirement ...................................................................................17 6.2 Test Procedure .....................................................................................................................17 6.3 Test Setup ............................................................................................................................17 6.4 EUT Setup and Operating Conditions.................................................................................17 6.5 Test Results .........................................................................................................................18 Report No. FCC06-8016 Page 3 of 44 7 Occupied Bandwidth Test ...........................................................................................................20 7.1 Definition ............................................................................................................................20 7.2 Test Procedure .....................................................................................................................20 7.3 Test Setup ............................................................................................................................20 7.4 EUT Setup and Operating Conditions.................................................................................20 7.5 Test Results .........................................................................................................................21 8 Conducted Spurious Emission Test.............................................................................................23 8.1 Limits of Conducted Spurious Emission.............................................................................23 8.2 Test Procedure .....................................................................................................................23 8.3 Test Setup ............................................................................................................................23 8.4 EUT Setup and Operating Conditions.................................................................................23 8.5 Test Results ....................................................................................…

Text truncated - open the document above for the full version.

Test Set-up Photographs Index 1. Set-up for Radiated Emissions 2. Set-up for Radiated Spurious Emissions 3. Set-up for Conducted Spurious Emissions 4. Set-up for Conducted Emissions 1. Set-up for Radiated Emissions 2. Set-up for Radiated Spurious Emissions 3. Set-up for Conducted Spurious Emissions 4. Set-up for Conducted Emissions
