T38I1570DGSM/GPRS + Bluetooth Mobile phone

GLOBAL The Ultimate Callback Mobile Phone Preface Thank you for choosing this mobile phone. To guarantee that your mobile phone works properly please follow the instructions in this User Manual and safety information to avoid injury or damage to property. Contents 1 Introduction................................................................................4 1.1 T HE P HONE .................................................................................4 1.2 M AIN K EYS ..................................................................................4 1.3 D ISPLAY S YMBOLS .........................................................................5 2 Getting Started.............................................................................6 2.1 I NSERTING THE SIM C ARD AND THE BATTERY .........................................6 2.2 P OWER ON .................................................................................7 2.3 C HARGING THE B ATTERY ................................................................7 2.4 K EYPAD A UTO L OCK AND R ESET TO F ACTORY S ETTING ...........................7 3Keypad.......................................................................................8 3.1 I NPUT M ETHOD .............................................................................8 3.2 K EY I NPUT ...................................................................................8 4 Making Phone Calls......................................................................9 4.1 M AKING A C ALL ............................................................................9 4.2 A NSWERING A C ALL .......................................................................9 5 Menu Functions...........................................................................10 5.1 T HE P HONE M ENU ........................................................................10 U 5.2 SIM T OOL K IT (STK).....................................................................10 5.3 F ILEMANAGER ..............................................................................10 5.4 P HONEBOOK ...............................................................................10 5.5 F UN & G AMES .............................................................................11 5.6 C ALL CENTER ..............................................................................11 5.7 M ESSAGING .....................................................................................11 5.8 M ULTIMEDIA ....................................................................................12 5.9O RGANIZER .................................................................................14 5.10S ETTINGS .................................................................................14 5.11 S ERVICES .................................................................................17 5.12 U SERPROFILES ...........................................................................18 6 Safety Information and Notices..........................................................19 7 Important Safety Information........................................................22 1 Introduction 1.1 The Phone 1.2 Main Keys Key Function SIM1 Call key Answer a call to SIM 1 or SIM 2. Make a call by using SIM1. View call logs in standby mode. SIM2 Call key Make a call by using SIM2. Left Soft key Access the Menu in idle mode. End/P ower Key Press and hold to turn the phone on/off. End a call or reject an incoming call. Return to the idle mode. Right Soft Key Access the Phonebook in idle mode. Navig ationC enter Press to enter Main menu in idle mode. Press to confirm selection. Key Keypa d Enter numbers, letters or characters. Select a submenu item labeled with the corresponding number. Navig ation Key Press to access four functions in idle mode. Within a menu, press Up, Down, Left or Right to scroll through menu options. “Press” in this manual, means to press and release the key; “press and hold” means to press and hold the key for at least 2 seconds. 1.3 Display Symbols Symbole Description Network - Indicates signal strength (no bar indicates no signal, 4 bars indicate strongest). Battery - Indicates battery level. Message - Indicates you have one or more unread messages. Missed call - Indicates there is a missed call. Call Divert - Indicates that “Divert All Voice Calls” is activated. Lock- Indicates that the keypad is locked. Alarm-Indicates that the alarm clock is on. Headset-Indicates that headset profile is activated. Alert type is “Ring”. Vibrate – Indicates that the vibrator is on. Indicates your phone uses the alert type of “Vib. then ring” Indicates your phone uses the alert type of “Vib. and ring”. 2 Getting Started Please read the safety instructions in the "Safety Information and Notices" section before use. This section provides information about the Calback Services with this mobile phone when a Callback SIM card is installed. 2.1 Inserting the SIM Card and the battery Remove the back cover and the battery Make sure the phone is switched off. Hold the phone with the front facing downwards; lift the back cover p to remove it. Insert the SIM card Make sure that the metallic contacts are facing downwards. Insert the SIM card into SIM1 slot or into SIM2 slot or both. Install the battery With the metallic contacts of the battery facing the metallic contacts in the battery slot, press the battery down into its slot until it locks into place. Insert a T-Flash Card (Optional) Lift up the T-Flash card cover, with the metal contacts facing down, gently slide the T-Flash card into the slot. Press and push the cover to lock it. “Lock” will prompt you in the correct direction. 2.2 Power on To power on, press and hold the Power key. Enter the SIM PIN code if required. If you enter an incorrect PIN code 3 times in succession, your SIM card will be locked. To unlock it obtain the PUK code from your network operator. 2.3 Charging the Battery Ensure the battery is inserted i…

Text truncated - open the document above for the full version.

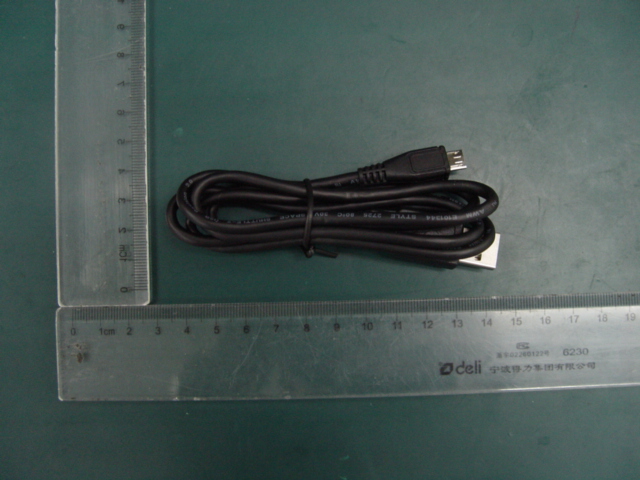

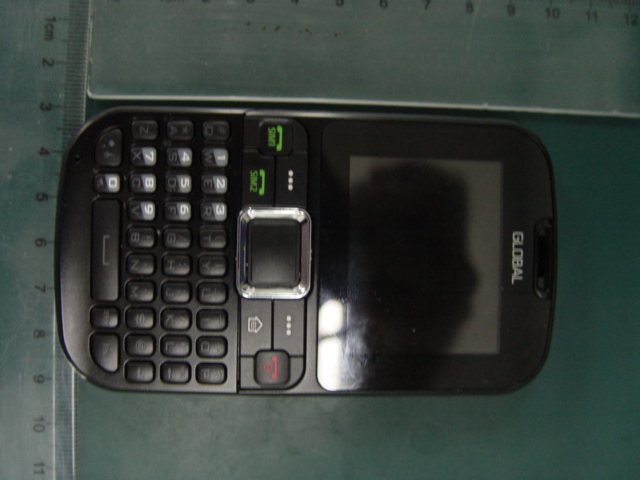

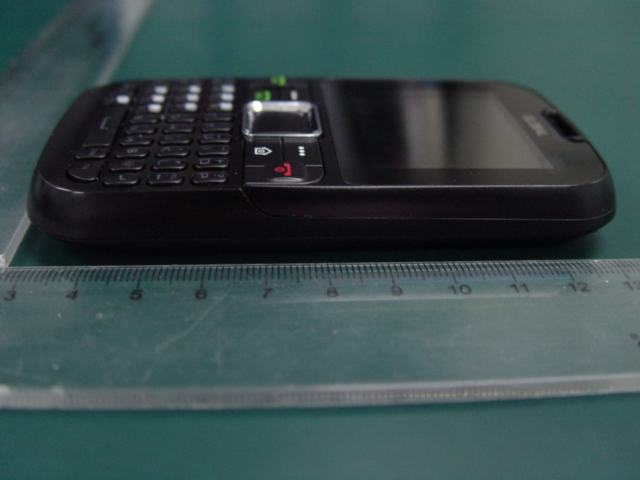

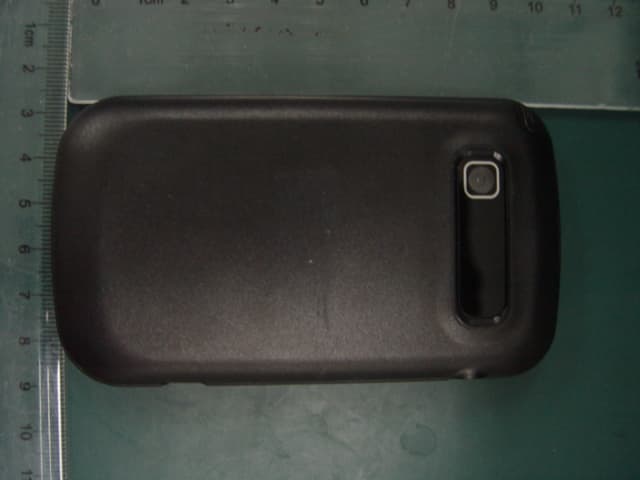

IAC Report No. : 20120626EP1 Page : 1 of 7 Version:1.0 Annex external Photographs IAC Report No. : 20120626EP1 Page : 2 of 7 Version:1.0 IAC Report No. : 20120626EP1 Page : 3 of 7 Version:1.0 IAC Report No. : 20120626EP1 Page : 4 of 7 Version:1.0 IAC Report No. : 20120626EP1 Page : 5 of 7 Version:1.0 IAC Report No. : 20120626EP1 Page : 6 of 7 Version:1.0 IAC Report No. : 20120626EP1 Page : 7 of 7 Version:1.0

IAC Report No. : 20120626EP3 Page : 1 of 2 Version:1.0 Annex Label exhibit IAC Report No. : 20120626EP3 Page : 2 of 2 Version:1.0

IAC Report No. : 20120626EP2 Page : 1 of 13 Version:1.0 Annex internal Photographs IAC Report No. : 20120626EP2 Page : 2 of 13 Version:1.0 IAC Report No. : 20120626EP2 Page : 3 of 13 Version:1.0 IAC Report No. : 20120626EP2 Page : 4 of 13 Version:1.0 IAC Report No. : 20120626EP2 Page : 5 of 13 Version:1.0 IAC Report No. : 20120626EP2 Page : 6 of 13 Version:1.0 IAC Report No. : 20120626EP2 Page : 7 of 13 Version:1.0 IAC Report No. : 20120626EP2 Page : 8 of 13 Version:1.0 IAC Report No. : 20120626EP2 Page : 9 of 13 Version:1.0 IAC Report No. : 20120626EP2 Page : 10 of 13 Version:1.0 IAC Report No. : 20120626EP2 Page : 11 of 13 Version:1.0 IAC Report No. : 20120626EP2 Page : 12 of 13 Version:1.0 IAC Report No. : 20120626EP2 Page : 13 of 13 Version:1.0

IAC Report No.:20120626SAR Page : 1 of 58 Version:1.0 SAR Test Report Product Name : GSM 850/900/1800/1900 GPRS\BT Mobile Phone Model No. : I1570D FCC ID : T38I1570D Prepared By: : Inventec Appliances(Pudong) Corporation Address: : No.789 Pu Xing Road,Shanghai,PRC Date of Receipt : 2012.06.26 Date of Test : 2012.06.26-2012.06.27 Report No. : 20120626SAR IAC Report No.:20120626SAR Page : 2 of 58 Version:1.0 Te s t Report Certification Date of Issue : Jul .02.2012 Report No. : 20120626SAR Product Name : GSM 850/900/1800/1900 GPRS\BT Mobile Phone Model No. : I1570D Trade Name : GLOBAL Applicant : Cellon Communications Technology (Shenzhen) Co.,Ltd. Address : 13/F, Skyworth C Building, Gaoxin S.Ave1, Hi-Tech Industrial Park, Nanshan District, Standard : FCC 47 CFR Part2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 supplement C FCC KDB 648474 D01 v01r05 FCC KDB 941225 D01 v02,FCC KDB 941225 D03 v01 FCC KDB 941225 D04 v01,FCC KDB 941225 D06 v01 FCC KDB 248227 D01 v01r02 Test Result : Head: 1.249W/kg(1g); 0.662W/kg(10g) Body: 1.012W/kg(1g); 0.660W/kg(10g) The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Inventec Appliances(Pudong) Corporation Documented By : Jul.02.2012 Kelly Lin/Engineer Tested By : Jul.02.2012 Byran Hung/Senior Engineer Approved By : Jul.02.2012 Jeff Huang/Director of Operations IAC Report No.:20120626SAR Page : 3 of 58 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ........................................................................................................................................ 4 1.1. APPLICANT ............................................................................................................................................................... 4 1.2. MANUFACTURER ...................................................................................................................................................... 4 1.3. TEST ENVIRONMENT ................................................................................................................................................ 4 2. SAR MEASUREMENT SYSTEM ............................................................................................................................... 5 2.1. ALSAS-10U SYSTEM DESCRIPTION ........................................................................................................................ 5 2.2. ISOTROPIC E-FIELD PROBE ...................................................................................................................................... 7 2.3. BOUNDARY DETECTION UNIT AND PROBE MOUNTING DEVICE ................................................................................ 8 2.4. DAQ-PAQ (ANALOG TO DIGITAL ELECTRONICS) ...................................................................................................... 9 2.5. AXIS ARTICULATED ROBOT ...................................................................................................................................... 9 2.6. ALSAS UNIVERSAL WORKSTATION ....................................................................................................................... 10 2.7. UNIVERSAL DEVICE POSITIONER ........................................................................................................................... 10 2.8. PHONTOM TYPES .................................................................................................................................................... 11 3. TISSUE SIMULATING LIQUID ............................................................................................................................... 12 3.1. THE COMPOSITION OF THE TISSUE SIMULATING LIQUID .......................................................................................... 12 3.2. TISSUE CALIBRATION RESULT ................................................................................................................................ 12 3.3. TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS .................................................................... 14 4. SAR MEASUREMENT PROCEDURE ..................................................................................................................... 15 4.1. SAR SYSTEM VALIDATION ..................................................................................................................................... 15 4.2. ARRANGEMENT ASSESSMENT SETUP ..................................................................................................................... 21 4.3. SAR MEASUREMENT PROCEDURE ......................................................................................................................... 24 5. SAR EXPOSURE LIMITS ......................................................................................................................................... 25 6. TEST EQUIPMENT LIST .......................................................................................................................................... 26 7. MEASUREMENT UNCERTAINTY ......................................................................................................................... 27 8. TEST RESULTS .......................................................................................................................................................... 29 8.1. SAR TEST RESULTS SUMMARY .............................................................................................................................. 29 8.2. CONDUCTED POWER(UNIT:DBM) ........................................................................................................................... 32 8.3. SAR MEASUREMENT DATA .................................................................................................................................... 35 IAC Report No.:20120626SAR Page : …

Text truncated - open the document above for the full version.

NCL CALIBRATION LABORATORIES Calibration File No.: 1364-1375 Client.: IAC C E R T I F I C A T E OF C A L I B R A T I O N It is certified that the equipment identified below has been calibrated in the NCL CALIBRATION LABORATORIES by qualified personnel following recognized procedures and using transfer standards traceable to NRC/NIST. Equipment: Miniature Isotropic RF Probe Record of Calibration Head and Body Manufacturer: APREL Laboratories Model No.: E-020 Serial No.: 500-00273 Calibration Procedure: D01-032-E020-V2, D22-012-Tissue, D28-002-Dipole Project No: ISL-E020-5612 Calibrated: 1 st October 2011 Released on: 5 th October 2011 Approved By: Stuart Nicol NCL CALIBRATION LABORATORIES 303 Terry Fox Drive, Suite 102 Division of APREL Kanata, Ontario TEL: (613) 435-8300 CANADA K2K 3J1 FAX: (613) 435-8306 NCL Calibration Laboratories Division of APREL Inc. Page 2 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Introduction This Calibration Report reproduces the results of the calibration performed in line with the references listed below. Calibration is performed using accepted methodologies as per the references listed below. Probes are calibrated for air, and tissue and the values reported are the results from the physical quantification of the probe through meteorgical practices. Calibration Method Probes are calibrated using the following methods. <1000MHz TEM Cell for sensitivity in air Standard phantom using temperature transfer method for sensitivity in tissue >1000MHz Waveguide* method to determine sensitivity in air and tissue *Waveguide is numerically (simulation) assessed to determine the field distribution and power The boundary effect for the probe is assessed using a standard flat phantom where the probe output is compared against a numerically simulated series of data points References o IEEE Standard 1528 (2003) including Amendment 1 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques o EN 62209-1 (2006) Human Exposure to RF Fields from hand-held and body-mounted wireless communication devices - Human models. instrumentation, and procedures-Part 1: Procedure to measure the Specific Absorption Rate (SAR) for hand-held mobile wireless devices o IEC 62209-2 Ed. 1.0 (2010-03) Human exposure to RF fields from hand-held and body-mounted wireless devices - Human models, instrumentation, and procedures - Part 2: specific absorption rate (SAR) for wireless communication devices (30 MHz - 6 GHz) o TP-D01-032-E020-V2 E-Field probe calibration procedure o D22-012-Tissue dielectric tissue calibration procedure o D28-002-Dipole procedure for validation of SAR system using a dipole o IEEE 1309 Draft Standard for Calibration of Electromagnetic Field Sensors and Probes, Excluding Antennas, from 9kHz to 40GHz NCL Calibration Laboratories Division of APREL Inc. Page 3 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Conditions Probe 500-00273 was a recalibration. **The probe was received in good working order, although at 1900MHz the uncertainty was higher than our standard (see note**) Ambient Temperature of the Laboratory: 22 °C +/- 1.5°C Temperature of the Tissue: 21 °C +/- 1.5°C Relative Humidity: < 60% Primary Measurement Standards Instrument Serial Number Cal due date Power meter Anritsu MA2408A 90025437 Nov.4, 2011 Power Sensor Anritsu MA2481D 103555 Nov 4, 2011 Attenuator HP 8495A (70dB) 1944A10711 Sept. 14, 2011 Network Analyzer Anritsu MT8801C MB11855 Feb. 8, 2012 Secondary Measurement Standards Signal Generator Agilent E4438C -506 MY55182336 June 7, 2012 Attestation The below named signatories have conducted the calibration and review of the data which is presented in this calibration report. NCL Calibration Laboratories Division of APREL Inc. Page 4 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Probe Summary Probe Type: E-Field Probe E020 Serial Number: 500-00273 Frequency: As presented on page 5 Sensor Offset: 1.56 Sensor Length: 2.5 Tip Enclosure: Composite* Tip Diameter: < 2.9 mm Tip Length: 55 mm Total Length: 289 mm *Resistive to recommended tissue recipes per IEEE-1528 Sensitivity in Air Channel X: 1.2 μV/(V/m) 2 Channel Y: 1.2 μV/(V/m) 2 Channel Z: 1.2 μV/(V/m) 2 Diode Compression Point: 95 mV NCL Calibration Laboratories Division of APREL Inc. Page 5 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Calibration for Tissue (Head H, Body B) Frequency Tissue Type Measured Epsilon Measured Sigma Calibration Uncertainty Tolerance Uncertainty for 5%* Conversion Factor 450 H Head X X X X X 450 B Body X X X X X 750 H Head X X X X X 750 B Body X X X X X 850 H Head 42.86 0.95 3.5 3.4 6.5 850 B Body 53.71 1.04 3.5 3.4 6.4 900 H Head 41.5 0.99 3.5 3.4 6.1 900 B Body 53.25 1.04 3.5 3.4 6.3 1450 H Head X X X X X 1450 B Body X X X X X 1500 H Head X X X X X 1500 B Body X X X X X 1640 H Head X X X X X 1640 B Body X X X X X 1750 H Head X X X X X 1750 B Body X X X X X 1800 H Head 36.85 1.35 3.5 2.7 5.5 1800 B Body 52.38 1.5 3.5 2.7 5.4 1900 H Head 38.21 1.46 3.5 2.7 5.7 1900 B Body 52.1 1.59 3.5 2.7 5.4 2000 H Head X X X X X 2000 B Body X X X X X 2100 H Head 39.8 1.49 3.5 2.9 5.0 2100 B Body 53.0 1.58 3.5 2.9 4.9 2300 H Head X X X X X 2300 B Body X X X X X 2450 H Head 38.2 1.84 3.5 3.5 4.65 2450B Body 50.63 1.99 3.5 3.5 4.4 2600 H Head X X X X X 2600 B Body X X X X X 3000 H Head X X X X X 3000 B Body X X X X X 3600 H Head X X X X X 3600 B Body X X X X X 5200 H Head X X X X X 5200 B Body X X X X X 5600 H Head X X X X X 5600 B Body X X X X X 5800 H Head X X X X X 5800 B Body X X X X X NCL Calibration Laboratories Division of APREL Inc. Page 6 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Boundary Effect: Uncertainty resulting from the boundary effect is less tha…

Text truncated - open the document above for the full version.

IAC Report No. 20120626FCC-D Page 1 of 49 Version:1.0 FCC RF Test Report FCC 47 CFR Part 2, 22(H), 24(E) Product Name : GSM 850/900/1800/1900 GPRS\BT Mobile Phone Model No. : I1570D FCC ID : T38I1570D Prepared By: : Inventec Appliances(Pudong) Corporation Address: : No.789 Pu Xing Road,Shanghai,PRC Date of Receipt : 2012.06.26 Date of Test : 2012.06.26-2012.06.29 Report No. : 20120626FCC-D IAC Report No. 20120626FCC-D Page 2 of 49 Version:1.0 Test Report Certification Date of Issue : Jul.02.2012 Report No. : 20120626FCC-D Product Name : GSM 850/900/1800/1900 GPRS\BT Mobile Phone Model No. : I1570D Trade Name : GLOBAL Applicant : Cellon Communications Technology (Shenzhen) Co.,Ltd. Address : 13/F, Skyworth C Building, Gaoxin S.Ave1, Hi-Tech Industrial Park, Nanshan District, Standard : FCC 47 CFR Part 2, 22(H), 24(E) Classification : PCS Licensed Transmitter Held to Ear (PCE) Test Result : Complied TX/RX Frequency Range : GSM/GPRS 850 : 824.2 ~ 848.8 MHz 869.2 ~ 893.8 MHz GSM/GPRS 1900:1850.2 ~ 1909.8 MHz 1930.2 ~ 1989.8 MHz The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Inventec Appliances(Pudong) Corporation Documented By : ,Jul.02.2012 Judy Ge/Engineer Tested By : ,Jul.02.2012 Alice Lee/Engineer Approved By : ,Jul.02.2012 Jeff Huang/Director of Operations IAC Report No. 20120626FCC-D Page 3 of 49 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................ 6 1.1 Applicant............................................................................................................................. 6 1.2 Manufacturer ..................................................................................................................... 6 1.3 Feature of Equipment Under Test ..................................................................................... 7 1.4 Applied Standards .............................................................................................................. 8 2. Test Configuration of Equipment Under Test ................................................................... 9 2.1 Conducted Power ............................................................................................................... 9 2.2 Test Mode ............................................................................................................................ 9 2.3 Connection Diagram of Test System ................................................................................ 10 3. Test Result ......................................................................................................................... 11 3.1 Conducted Output Power Measurement ......................................................................... 11 3.1.1 Description of the Conducted Output Power Measurement ........................................... 11 3.1.2 Measuring Instruments .................................................................................................... 11 3.1.3 Test Procedure .................................................................................................................. 11 3.1.4 Test Setup .......................................................................................................................... 11 3.1.5 Test Result of Conducted Output Power .......................................................................... 12 3.2 Effective Radiated Power and Effective Isotropic Radiated Power Measurement ........ 13 3.2.1 Description of the ERP/EIRP Measurement .................................................................. 13 3.2.2 Measuring Instruments .................................................................................................... 13 3.2.3 Test Procedure .................................................................................................................. 13 3.2.4 Test Setup ......................................................................................................................... 14 3.2.5 Test Result of ERP ........................................................................................................... 15 3.2.6 Test Result of EIRP .......................................................................................................... 16 3.3 Occupied Bandwidth Measurement ................................................................................. 17 3.3.1 Description of Occupied Bandwidth Measurement ........................................................ 17 3.3.2 Measuring Instruments .................................................................................................... 17 3.3.3 Test Procedure .................................................................................................................. 17 3.3.4 Test Setup .......................................................................................................................... 17 3.3.5 Test Result (Plots) of Occupied Bandwidth ..................................................................... 18 3.4 Band Edge Measurement ................................................................................................. 24 3.4.1 Description of Band Edge Measurement ........................................................................ 24 3.4.2 Measuring Instruments .................................................................................................... 24 3.4.3 Test Procedure .................................................................................................................. 24 3.4.4 Test Setup .......................................................................................................................... 24 3.4.5 Test Result (Plots) of Conducted Band Edge .................................................................. 25 3.5 Conducted Emission Measurement …

Text truncated - open the document above for the full version.

IAC Report No.:20120626EP6 Page 1 of 3 Version:1.0 APPENDIX C. SETUP PHOTOGRAPHS FCC Part 22H/24E Radiated Emission below 1GHz - Front -Rear IAC Report No.:20120626EP6 Page 2 of 3 Version:1.0 FCC Part 22H/24E Radiated Emission above 1GHz -F ro nt -Rear IAC Report No.:20120626EP6 Page 3 of 3 Version:1.0 ERP and EIRP Test Setup AC Conducted Emission Test Setup

IAC Report No.:20120626EP3 Page 1 of 8 Version:1.0 SAR Test Photographs Left Head (EUT Cheek) Left Head (EUT Tilt) IAC Report No.:20120626EP3 Page 2 of 8 Version:1.0 Right Head (EUT Cheek) Right Head (EUT Tilt) IAC Report No.:20120626EP3 Page 3 of 8 Version:1.0 Body face(1.5cm) Body back(1.5cm) IAC Report No.:20120626EP3 Page 4 of 8 Version:1.0 Body back+earphone (1.5cm) IAC Report No.:20120626EP3 Page 5 of 8 Version:1.0 Validation IAC Report No.:20120626EP3 Page 6 of 8 Version:1.0 Photo of Liquid Height for Head SAR Photo of Liquid Height for Body SAR IAC Report No.:20120626EP3 Page 7 of 8 Version:1.0 EUT IAC Report No.:20120626EP3 Page 8 of 8 Version:1.0
