T38PCD1011BMOBILE PHONE

1 C670 User Manual 2 YOUR PHONE ................................................................................................................................ 5 STANDBY MODE .............................................................................................................................. 6 GETTING STARTED ....................................................................................................................... 6 INSTALLING THE SIM CARD AND THE BATTERY ................................................................................... 6 INSTALLING A MICRO SD CARD ........................................................................................................ 7 CHARGING THE BATTERY ................................................................................................................. 8 SWITCHING THE PHONE ON AND OFF ................................................................................................. 8 CALL FUNCTIONS ......................................................................................................................... 8 MAKING A CALL ............................................................................................................................... 8 ANSWERING OR REJECTING AN INCOMING CALL ................................................................................. 8 CALL WAITING ................................................................................................................................ 9 INPUT METHOD ............................................................................................................................. 9 FILE MANAGER ........................................................................................................................... 12 PHONEBOOK ............................................................................................................................... 13 SEARCH ...................................................................................................................................... 13 ADD NEW CONTACT ..................................................................................................................... 13 CALLER GROUP ........................................................................................................................... 13 PHONEBOOK SETTINGS ................................................................................................................ 14 FUN & GAMES ............................................................................................................................. 19 CALL CENTER ............................................................................................................................... 9 CALL HISTORY ................................................................................................................................ 9 Missed Calls .............................................................................................................................................. 9 Dialed Calls ............................................................................................................................................ 10 Received Calls ......................................................................................................................................... 10 Delete call logs ....................................................................................................................................... 10 Call timers ............................................................................................................................................... 10 Call Cost ................................................................................................................................................. 10 Text message counter .............................................................................................................................. 10 GPRS Counter ......................................................................................................................................... 10 CALL SETTINGS ............................................................................................................................ 10 Advance settings ...................................................................................................................................... 11 MESSAGING ................................................................................................................................ 14 WRITE MESSAGE ......................................................................................................................... 14 INBOX .......................................................................................................................................... 14 DRAFTS ....................................................................................................................................... 15 OUTBOX ...................................................................................................................................... 15 SENT MESSAGES .......................................................................................................................... 15 DELETE MESSAGES ...................................................................................................................... 15 EMAIL .......................................................................................................................................... 15 GMAIL ......................................................................................................................................... 15 BROADCAST MESSAGE ................................................................................................................. 16 TEMPLATES .......................................................................................…

Text truncated - open the document above for the full version.

Cellon (Shenzhen) Co.,Ltd. Date: 02 Sep, 2010 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Cellon Communications Technology (Shenzhen) Co.,Ltd. , the undersigned, hereby authorizes Mr.Wu Xuewen from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Cellon Communications Technology (Shenzhen) Co.,Ltd. solely in matters relating to the application for an FCC equipment authorization for FCC ID #T38PCD1011B including the signing of documents in connection with this Application. Necessary acts carried out by Cellon Communications Technology (Shenzhen) Co.,Ltd. on our behalf of the Cellon Communications Technology (Shenzhen) Co.,Ltd. in connection with the Application shall have the same effect as acts of the Cellon Communications Technology (Shenzhen) Co.,Ltd.. The Cellon Communications Technology (Shenzhen) Co.,Ltd. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, David Tian Program director Communications Technology (Shenzhen) Co.,Ltd.

Cellon (Shenzhen) Co.,Ltd. Date: 02 Sep, 2010 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Cellon Communications Technology (Shenzhen) Co.,Ltd. FCC ID: T38PCD1011B FCC Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Cellon Communications Technology (Shenzhen) Co.,Ltd. requests that the following documents regarding this submission for FCC ID: T38PCD1011B be kept confidential: Exhibit Type File Name Block Diagram CONF APPENDIX T38PCD1011B_Block Diagram.pdf Schematics CONF APPENDIX T38PCD1011B_Schematics.pdf Operational Description CONF APPENDIX T38PCD1011B_Operational Description.pdf Part list CONF APPENDIX T38PCD1011B_BOM.pdf Tune-Up-Procedure CONF APPENDIX T38PCD1011B_Tune up procedure.pdf Those documents contain detailed system and equipment description and related information about the product which Cellon Communications Technology (Shenzhen) Co.,Ltd. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Cellon Communications Technology (Shenzhen) Co.,Ltd. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely, David Tian Program director Communications Technology (Shenzhen) Co.,Ltd.

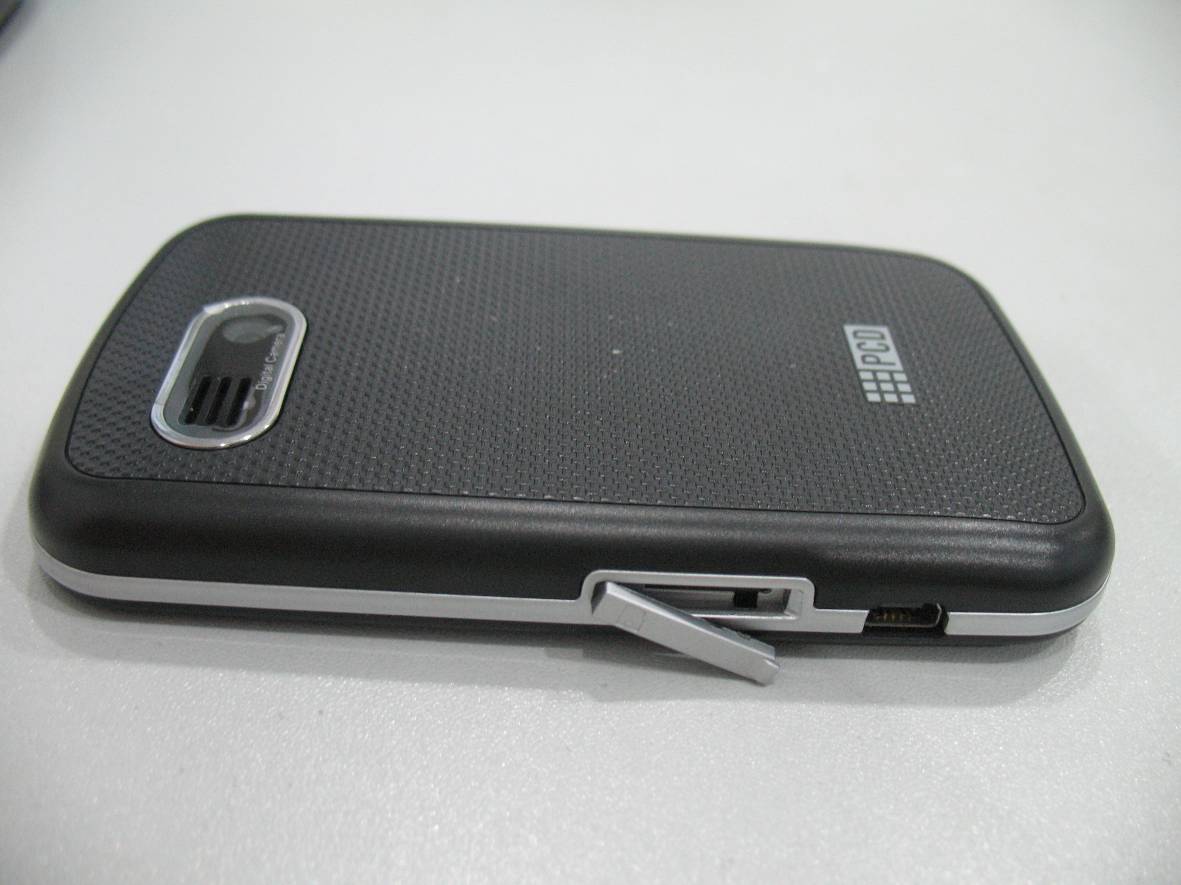

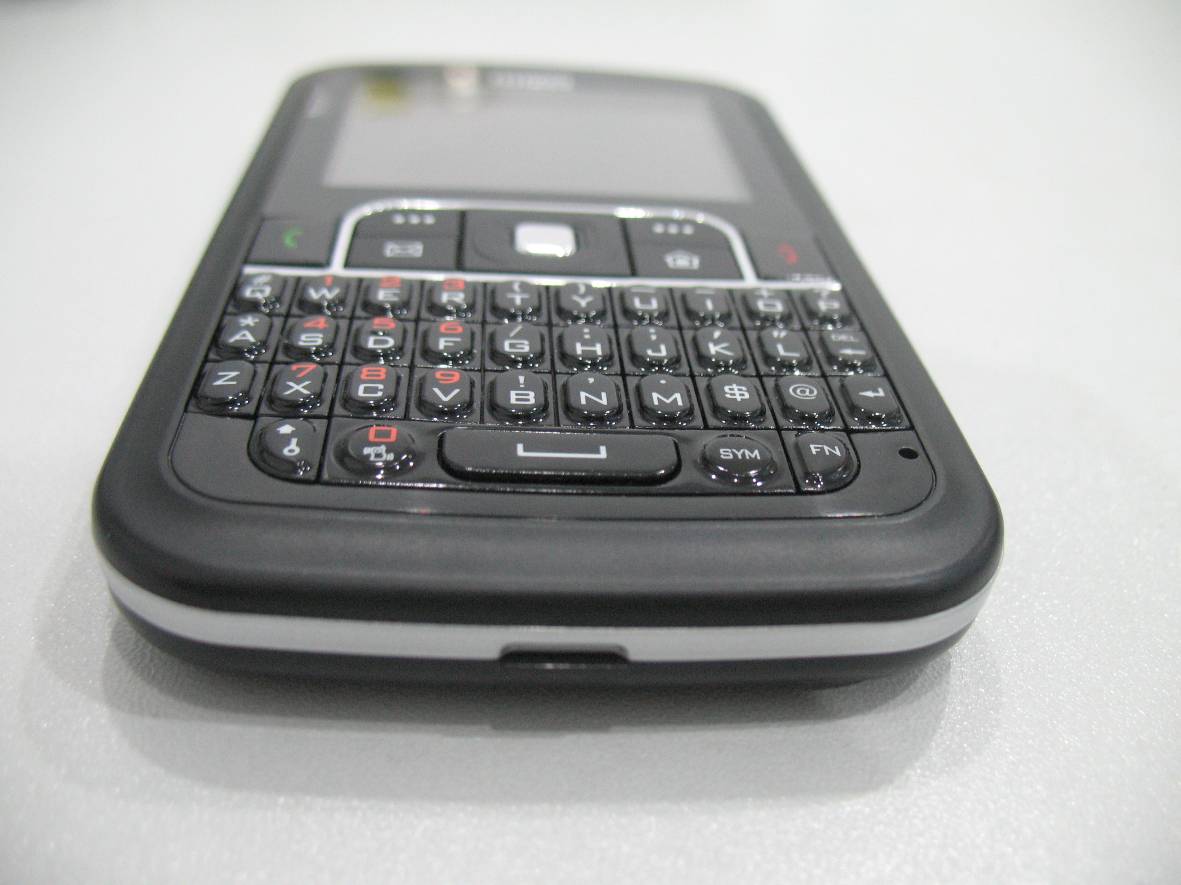

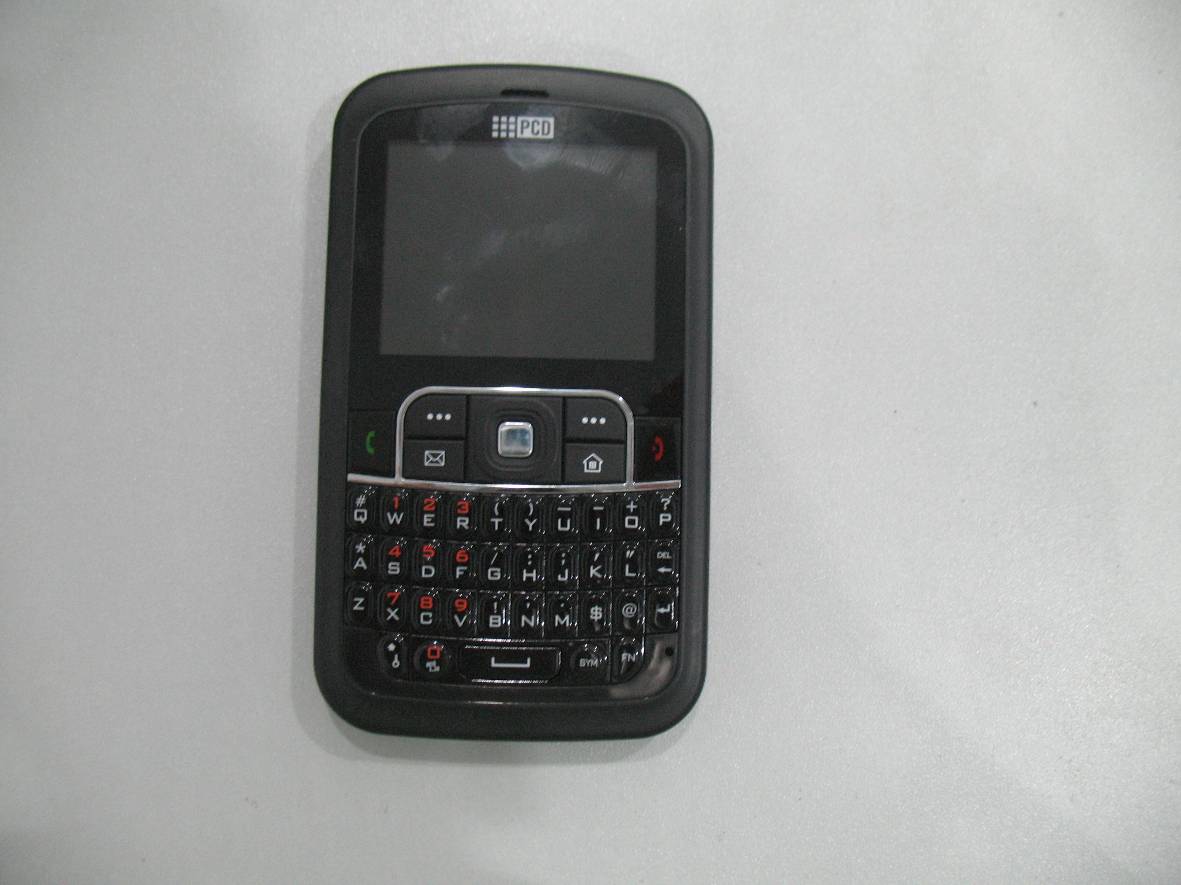

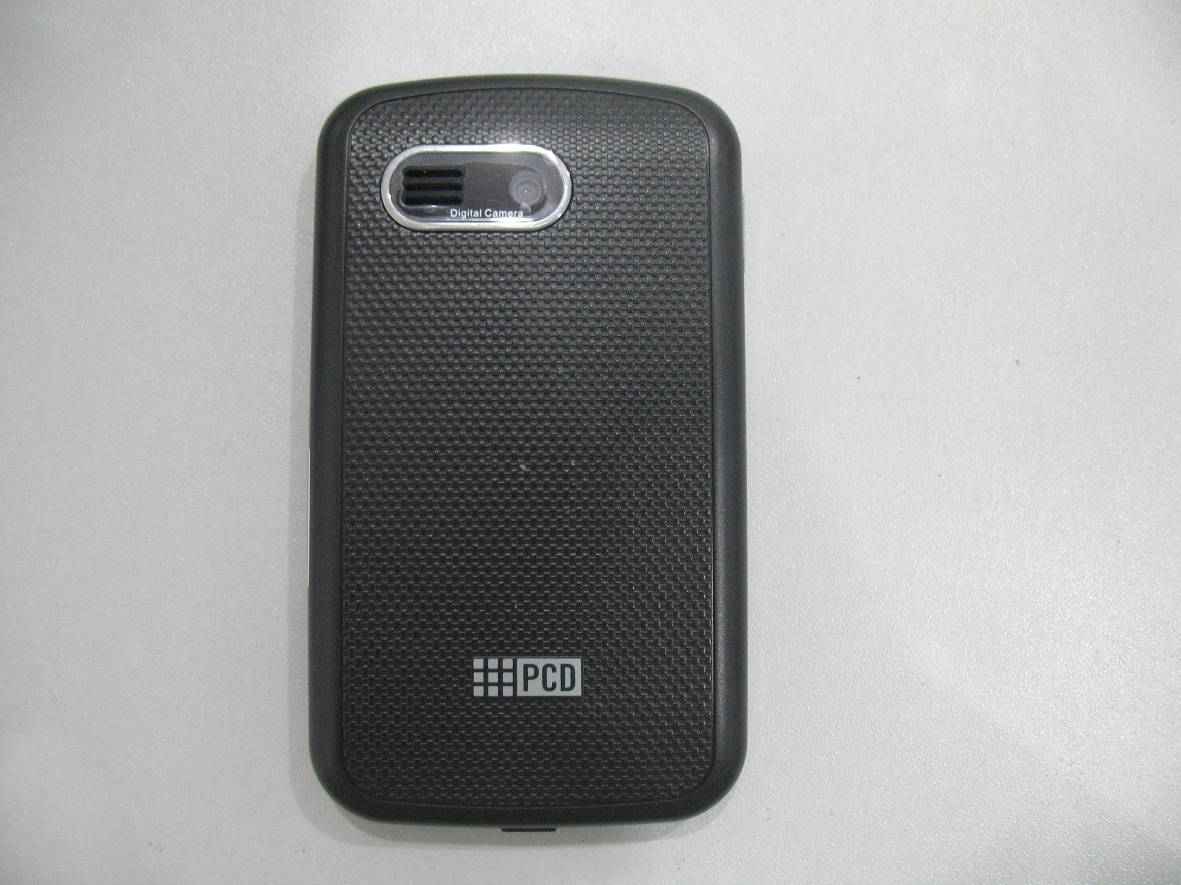

External Photos 1. Front View of EUT 2. Back View of EUT 3. Side View of EUT

Label Label Location

Cellon (Shenzhen) Co.,Ltd. Date: 02 Sep, 2010 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: T38PCD1011B Dear Sirs: Cellon Communications Technology (Shenzhen) Co.,Ltd. requests acceptance of the labeling proposal described below for cell phone bearing FCC identifier T38PCD1011B. The subject cell phone are compact handheld models as shown in figure 1, authorized under 47CFR Part 22H&24E for GSM mobile services. Figure 1. Because the majority of the cell phone housing is composed of display, speaker, operating controls and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, Cellon Communications Technology (Shenzhen) Co.,Ltd. proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Cellon (Shenzhen) Co.,Ltd. Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Cellon Communications Technology (Shenzhen) Co.,Ltd. will add the FCC identifier "T38PCD1011B" to the outside of the consumer "gift box" packaging. Thank you for your attention to this matter. Yours Sincerely, David Tian Program director Communications Technology (Shenzhen) Co.,Ltd.

Internal Photos

Report No.: SZ10080044S01 Page 2 of 143 Contents 1. GENERAL INFORMATION....................................................................................................3 1.1. Notes.........................................................................................................................................3 1.2. Organization item....................................................................................................................3 1.3. Conclusion................................................................................................................................3 2. TESTING LABORATORY.......................................................................................................4 2.1. Identification of the Responsible Testing Laboratory..........................................................4 2.2. Identification of the Responsible Testing Location..............................................................4 2.3. Accreditation Certificate........................................................................................................4 2.4. List of Test Equipments..........................................................................................................4 3. TECHNICAL INFORMATION ...............................................................................................4 3.1. Identification of Applicant......................................................................................................5 3.2. Identification of Manufacturer..............................................................................................5 3.3. Equipment Under Test (EUT)................................................................................................5 3.3.1. Photographs of the EUT..................................................................................................6 3.3.2. Identification of all used EUTs........................................................................................6 4. TEST RESULTS.........................................................................................................................6 4.1. Applied Reference Documents...............................................................................................6 4.2. Test Environment/Conditions................................................................................................7 4.3. Operational Conditions During Test.....................................................................................7 4.3.1. Informations On The Testing..........................................................................................8 4.3.2. The Measurement System.............................................................................................10 4.3.3. Uncertainty Assessment.................................................................................................12 4.4. MEASUREMENT PROCEDURES....................................................................................13 4.4.1. Procedures Used To Establish Test Signal....................................................................14 4.5. Items used in the Test Results List.......................................................................................15 4.6. Test Results List.....................................................................................................................16 ANNEX A ACCREDITATION CERTIFICATE..........................................................................17 ANNEX B PHOTOGRAPHS OF THE EUT ................................................................................19 ANNEX C GRAPH TEST RESULTS ...........................................................................................22 Report No.: SZ10080044S01 Page 4 of 143 2. Testing Laboratory 2.1. Identification of the Responsible Testing Laboratory Company Name: Shenzhen Morlab Communications Technology Co., Ltd. Department: Morlab Laboratory Address: 3/F, Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, 518055 P. R. China Responsible Test Lab Manager: Mr. Shu Luan Telephone: +86 755 86130268 Facsimile: +86 755 86130218 2.2. Identification of the Responsible Testing Location Name: Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory Address: 3/F, Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, 518055 P. R. China 2.3. Accreditation Certificate Accredited Testing Laboratory: No. CNAS L3572 (see 0) 2.4. List of Test Equipments No. Instrument Type Cal. Date Cal. Due 1 PC Dell (Pentium IV 2.4GHz, SN:X10-23533) 2 Network Emulator Rohde&Schwarz (CMU200, SN:105894) 2009-9-26 1year 3 Voltmeter Keithley (2000, SN:1000572) 2009-9-24 1year 4 Synthetizer Rohde&Schwarz (SML_03, SN:101868) 2009-9-24 1year 5 Amplifier Nucl udes (ALB216, SN:10800) 2009-9-24 1year 6 Power Meter Rohde&Schwarz (NRVD, SN:101066) 2009-9-24 1year 7 Probe Antennessa (SN:SN_3708_EP80) 2009-9-24 1year 8 Phantom Antennessa (SN:SN_36_08_SAM62) 2009-9-24 1year 9 Liquid Antennessa (Last Calibration:21 08 08)2010-8-21 1year Report No.: SZ10080044S01 Page 5 of 143 3. Technical Information Note: the following data is based on the information by the applicant. 3.1. Identification of Applicant Company Name: Cellon Communications Technology(ShenZhen)Co., Ltd. Address: 13/F, Skyworth Building C Gaoxin S. Ave. 1st, High-Tech industrial Park NanShan, ShenZhen 3.2. Identification of Manufacturer Company Name: Cellon Communications Technology(ShenZhen)Co., Ltd. Address: 13/F, Skyworth Building C Gaoxin S. Ave. 1st, High-Tech industrial Park NanShan, ShenZhen 3.3. Equipment Under Test (EUT) Brand Name: PCD/claro Type Name: PCD/claro Marking Name: PTT38,C1011B,C670 Hardware Version: P3 Software Version: V1.0 Frequency Bands: GSM 850MHz (channel 128:824.20MHz,channel 190:836.59MHz, channel 251:848.29MHz) PCS 1900MHz (channel 512:1850.19MHz,channel 661:1880.00MHz, channel 810:1909.80MHz) Modulation Mode: GMSK Antenna type: …

Text truncated - open the document above for the full version.

Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 1/26 Issue: A Date: 2009/10/06 1 COMOSAR E-FIELD PROBE CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 2/26 Issue: A Date: 2009/10/06 2 COMOSAR SEPT ISOTROPIC E-FIELD PROBE CALIBRATION REPORT DATE: 12/02/2009 REFERENCE: SN 37/08 EP80 OBJECT: COMOSAR SEPT ISOTROPIC E-FIELD PROBE MANUFACTURER: SATIMO SERIAL NUMBER: SN 37/08 EP80 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 24/09/200 9 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 3/26 Issue: A Date: 2009/10/06 3 PRODUCT DESCRIPTION Frequency Range 100 MHz - 30 GHz Probe length 330 mm Length of one dipole 4.5 mm Maximum external diameter 8 mm Probe extremity diameter 6.5 mm Distance between dipoles/probe extremity < 2.7 mm Resistance of the three dipole (at the connector) Dipole 1: R1=1.4382 MΩ Dipole 2: R2=1.4894 MΩ Dipole 3: R3=1.4683 MΩ Connector (HIROSE series SR30) 6 wire male (Hirose SR30series) The probe could be checked by measuring the resistance of the three dipoles. CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION Calibration bench CALISAR Multimeter Keithley 2000 Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 4/26 Issue: A Date: 2009/10/06 4 MEASUREMENT PROCEDURE Probe calibration is realized, in compliance with CENELEC EN 50361 and IEEE 1528 std, with CALISAR, Antennessa proprietary calibration system. The calibration is performed with the EN 50361 annexe technique using reference guide at the five frequencies. Where : P fw = Forward Power P bw = Backward Power a and b = Waveguide dimensions
= Skin depth Keithley configuration: Rate = Medium; Filter =ON; RDGS=10; FILTER TYPE =MOVING AVERAGE; RANGE AUTO After each calibration, a SAR measurement is performed on a validation dipole and compared with a NPL calibrated probe, to verify it. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 5/26 Issue: A Date: 2009/10/06 5 PROBE UNCERTAINTIES Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 6/26 Issue: A Date: 2009/10/06 6 1. Calibration at 450.00 MHz A. Calibration parameters. Label GSM450 Epsilon 43.33 Sigma 0.84 S/m Temperature 21°C Antenna gain 2.03 dB Antenna S11 -10.50 dB Low limit detection (CW) 0.72 V/m (0.47 mW/kg) Calibration curves ei=f(V) (i=1,2,3) allow to obtain E-field value using the formula: 2 3 2 2 2 1 **EEEE= The following tables represent the calibration curves linearization by curve segment in CW signal. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 7/26 Issue: A Date: 2009/10/06 7 Calibration coefficients for the three dipoles in CW: v1 e1 v2 e2 v3 e3 0.584004 419.557857 -0.696059 435.622023 0.541191 412.830715 0.467833 339.207465 -0.556278 351.381991 0.469757 336.297240 0.376994 276.348283 -0.452232 288.647980 0.378826 274.224190 0.302778 224.954643 -0.359005 232.397390 0.305842 224.365698 0.241038 182.154071 -0.286978 188.889931 0.246562 183.825274 0.192549 148.484090 -0.230386 154.650994 0.195712 148.993075 0.154033 121.674762 -0.185412 127.378480 0.157543 122.783107 0.123397 100.276479 -0.147311 104.193802 0.125866 100.956090 0.099878 83.770361 -0.118637 86.660489 0.101471 84.063863 0.081165 70.553219 -0.095250 72.263937 0.082289 70.694342 0.065166 59.152028 -0.076788 60.795323 0.066427 59.538957 0.051916 49.592416 -0.061280 51.041514 0.053353 50.232492 0.041968 42.297602 -0.048746 43.022565 0.042906 42.675214 0.033724 36.126757 -0.039149 36.748110 0.034686 36.605243 0.021855 26.962568 -0.024798 27.024723 0.022272 27.149463 0.018405 23.975145 -0.020856 24.085809 0.018755 24.141334 0.015467 21.515985 -0.017534 21.515985 0.015767 21.615299 0.013018 19.309065 -0.014750 19.398191 0.013276 19.487731 0.010938 17.408496 -0.012392 17.529166 0.011157 17.569575 0.009022 15.586953 -0.010228 15.658899 0.009215 15.676938 0.007353 13.956010 -0.008328 13.988181 0.007484 14.020428 0.005989 12.466979 -0.006801 12.495719 0.006111 12.567858 0.004890 11.214019 -0.005573 11.265779 0.005003 11.330818 0.004019 10.133541 -0.004570 10.121882 0.004099 10.168601 0.003279 9.094132 -0.003739 9.157170 0.003352 9.125596 0.002660 8.095827 -0.003041 8.293946 0.002769 8.265350 0.002126 7.324219 -0.002453 7.366500 0.002188 7.358024 0.001685 6.565400 -0.001947 6.580536 0.001724 6.542765 0.001300 5.784440 -0.001511 5.718225 0.001334 5.757862 0.001123 5.245191 -0.001307 5.269400 0.001174 5.275471 0.000891 4.701768 -0.001057 4.723470 0.000924 4.728912 0.000704 4.209798 -0.000850 4.226839 0.000736 4.243862 0.000574 3.790376 -0.000689 3.791428 0.000603 3.830551 0.000457 3.396200 -0.000570 3.434303 0.000483 3.421852 0.000365 3.050686 -0.000463 3.078014 0.000389 3.079630 0.000292 2.745766 -0.000369 2.726866 0.000311 2.759206 0.000236 2.486639 -0.000312 2.489933 0.000246 2.460514 0.000…

Text truncated - open the document above for the full version.

Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 1/6 Issue: B Date: 2009/10/05 1 DIPOLE 835 MHZ CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 2/6 Issue: B Date: 2009/10/05 2 DIPOLE 835 MHz CALIBRATION REPORT DATE: 19/02/2009 REFERENCE: SN 36/08 DIPC99 OBJECT: COMOSAR IEEE REFERENCE DIPOLE MANUFACTURER: SATIMO SERIAL NUMBER: SN 36/08 DIPC99 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 2 3/09/2009 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 3/6 Issue: B Date: 2009/10/05 3 PRODUCT DESCRIPTION Dimension: L=161 mm/ h=89.8mm / d=3.6 mm CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION DATE OF CALIBRATION Vector Network Analyzer HP8753D (SN: 5410A08882) 10-05-2009 MEASUREMENT PROCEDURE We placed the dipole under the flat part of SAM phantom fill with 835 MHz head liquid. Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 4/6 Issue: B Date: 2009/10/05 4 Calibration was performed according to IEEE Std P1528-2003 and OET bulletin 65 Supplement C (Ed. 01-01) VSWR at 835 MHz: -24.77 dB. -24,77 -40 -35 -30 -25 -20 -15 -10 -5 0 0,7350,8350,935 Frequency (GHz) S11 (dB) Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 5/6 Issue: B Date: 2009/10/05 5 SAR MEASUREMENT EQUIPEMENT Voltmeter Keithley (2000, SN:1000572) Date of calibration: 01-07-2009 Signal generator Rohde&Schwarz (SML_03, SN:101868) Date of calibration: 15-11-2008 Power amplifier Nuclétudes (ALB216, SN:10800) Date of calibration: 24-10-2008 Power meter Rohde&Schwarz (NRVD, SN:101066) Date of calibration: 04-07-200 9 Probe SATIMO Bretagne (SN:EP37) CF (30.41,29.18,32.33) Date of calibration: 19-06-2009 SAR MEASUREMENT CONDITION Software OpenSAR V3 Phantom SATIMO Bretagne (SN: SN_20_07_SAM42) Liquid SATIMO Bretagne (Last Calibration: 18 09 08) Head Liquid Values: eps’ : 41,20 sigma : 0,872 Distance between the center of the dipole and the liquid (set with a spacer) 15 mm Area scan resolution dx=8mm/dy=8mm Zoom scan resolution dx=8mm/dy=8m/dz=5mm Frequency 835 MHz Input power 30 dBm Expanded uncertainty (K=1) 8.09% SAR MEASUREMENT RESULT 10g 1g SAR measured Liquid : HL Input power : 1W 6,364 W/Kg + 2,64 % 9,805 W/Kg + 3,21 % Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 6/6 Issue: B Date: 2009/10/05 6 SAR MEASUREMENT PLOTS

Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 1/6 Issue: B Date: 2009/10/05 1 DIPOLE 1800 MHZ CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 2/6 Issue: B Date: 2009/10/05 2 DIPOLE 1800 MHz CALIBRATION REPORT DATE: 19/02/2009 REFERENCE: SN 36/08 DIPF101 OBJECT: COMOSAR IEEE REFERENCE DIPOLE MANUFACTURER: SATIMO SERIAL NUMBER: SN 36/08 DIPF101 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 2 3/09/2009 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 3/6 Issue: B Date: 2009/10/05 3 PRODUCT DESCRIPTION Dimension: L=72 mm/ h=41.7 mm / d=3.6 mm CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION DATE OF CALIBRATION Vector Network Analyzer HP8753D (SN: 5410A08882) 10-05-2009 MEASUREMENT PROCEDURE We placed the dipole under the flat part of SAM phantom fill with 1800 MHz head liquid. Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 4/6 Issue: B Date: 2009/10/05 4 Calibration was performed according to IEEE Std P1528-2003 and OET bulletin 65 Supplement C (Ed. 01-01) VSWR at 1800 MHz: -25.09 dB -25,09 -35 -30 -25 -20 -15 -10 -5 0 1,71,81,9 Frequency (GHz) S11 (dB) Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 5/6 Issue: B Date: 2009/10/05 5 SAR MEASUREMENT EQUIPEMENT Voltmeter Keithley (2000, SN:1000572) Date of calibration: 01-07-2009 Signal generator Rohde&Schwarz (SML_03, SN:101868) Date of calibration: 15-11-2008 Power amplifier Nuclétudes (ALB216, SN:10800) Date of calibration: 24-10-2008 Power meter Rohde&Schwarz (NRVD, SN:101066) Date of calibration: 04-07-2009 Probe SATIMO Bretagne (SN:EP37) CF (35.35,34.93,37.42) Date of calibration: 19-06-2009 SAR MEASUREMENT CONDITION Software OpenSAR V3 Phantom SATIMO Bretagne (SN: SN_20_07_SAM42) Liquid SATIMO Bretagne (Last Calibration: 19 09 08) Head Liquid Values: eps’ : 39,80 sigma : 1,45 Distance between the center of the dipole and the liquid (set with a spacer) 10 mm Area scan resolution dx=8mm/dy=8mm Zoom scan resolution dx=8mm/dy=8m/dz=5mm Frequency 1800 MHz Input power 30 dBm Expanded uncertainty (K=1) 8.09% SAR MEASUREMENT RESULT 10g 1g SAR measured Liquid : HL Input power : 1W 20,05 W/Kg + 1,24 % 39,32 W/Kg + 3,20 % Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 6/6 Issue: B Date: 2009/10/05 6 SAR MEASUREMENT PLOTS

Report No.: SZ100800…
