T38PCD1026GSM850/1900 mobile phone

1 Introduction 1.1 Phone Display 2
We continuously strive to improve our products. Therefore, we reserve the rights to revise this user manual or withdraw it at any time without prior notice. 1.2 Key Key Function Dial / Answer Key Press to answer a call or make a call after you enter a phone number. In idle mode, press to view the call log. End / Power Key Press to end a call. Press and hold to turn the phone on/off. Within a menu, press to return to idle mode. Left Soft Key In idle mode, press to enter the Main Menu . Press to access the option listed directly above it on the display. Right Soft Key In idle mode, press to access the Call logs . Press to access the option listed directly above it on the display. Within a menu, press to return to the previous screen. OK Key In idle mode, press to enter the Main menu . 3
Numeric key Press to enter the corresponding number, letter or symbol located on the key. Within a menu, press to access the corresponding menu option. *Key Press the * Key twice quickly to enter ‘+’ to make an international call. Press and hold the * Key to toggle between *, +, (pause character) P, and (wait character) W. Press to enter symbol when editing text. #Key In idle mode, press and hold to activate or deactivate the silent mode. Press to switch input modes when entering text. Navigation Key Within a menu, press Up, Down, Left or Right to scroll through menu options. Note: “Press” in this manual, means to press and release the key; “press and hold” means to press and hold the key for at least 2 seconds. 1.3 Icons & Symbols 4
Icon Description Network - The left portion indicates whether your phone is already registered with a network and the right portion indicates signal strength (from no signal to strongest). Battery - Indicates battery level. When charging, a scrolling icon will be displayed. The more bars, the stronger the charge. Message - Indicates you have one or more unread messages. Push Message-Indicates that you have received a new push message. Voicemail- Indicates voice messages that have not been heard. Missed Call - Indicates there is a missed call. Call Divert - Indicates that “Divert All Voice Calls” is activated. Alarm-Indicates that the alarm clock is on. Headset-Indicates that headset profile is activated. Alert type is “Ring”. 5
2 Getting Started Please read the safety instructions in the "Safety Information and Notices" section before use. 2.1 Inserting the SIM Card 2.1.1 Remove the back cover(1), remove the battery (2), and insert the SIM card (3) (1) (2) (3) 6
2.1.2 Install the battery and back cover (4) (5) 2.2 Turning the phone on To turn the phone on, press and hold the End / Power key. Enter the PIN code if required. 2.3 Charging the Battery 1. Ensure the battery is inserted in the handset. To charge the battery, plug in the charger connector at the bottom of your phone (USB interface) and then plug the other end into an AC power socket. 7
2. The battery symbol indicates the charging status. While charging, the charge indicators will scroll. When all the scroll bars are steady, the battery is fully charged. 3. Disconnect the charger from the phone. 4. Disconnect the charger from the AC power socket. Note: If the battery is powerless, the battery icon will reappear after a few minutes of charging. 2.4 Important Password Phone lock password is 1122. 8
3 Text Entry 3.1 Input Method During text editing, you can press the # Key to switch input modes or press the Left Soft Key [Options] and select Input method to select different input modes. 3.1.1 Entering Symbols In any input mode, press the * Key to open the symbols input screen. 3.2 Smart Input Method 2 to 9 Press to input letters. 1 Press to input symbol. 0 Press to input space. ◀ / ▶ Press to confirm the letter or word, or move the cursor to the left or right. ▲ / ▼ Press to browse the last or next available word. 9
Left Soft Key (Select) or the OK Key Press to confirm the letter or word. Right Soft Key (Clear) Press to clear a letter, press and hold to clear all entries. # Switch between input mode. * Press to activate punctuation mode Example: How to enter the word "HOME" 1. Press the # Key to switch to ABC ; 2. Press 4 6 6 3, the first word “GOOD” appears; 3. Press ▶ to browse and select “HOME”; 4. Press the Left Soft Key [Select] or OK Key to confirm “HOME”. 3.3 Multi-tap Input Using this mode requires you to press a key as many times as needed to enter the desired letter. To enter the word “casa” in Multi-tap input mode “ abc”, press key 2 (AB C ) three times, press 2 ( A BC) once, press key 7 (PQR S ) four times, press key 2 ( A BC) once. 3.4 Numeric Input Press the # Key to select " 123" then you can enter the numbers. 10
11
4 Calling 4.1 Making a Call Note: You can make a call only when the network name appears on the screen. 1. In idle mode,enter the phone number. 2. Press the Dial / Answer Key to dial the number. 3. Press the End / Power Key to end the call. Note: During a call, press the Navigation Key Up/Down to adjust the volume. You can press the Left Soft Key [Options] to choose Sound Recorder . Note: In most countries, recording telephone conversations is subject to legislation. We advise you to notify the caller if you intend to record your conversation and only do so if they agree. 4.2 Making an International Call 1. Press the * Key twice quickly until "+" appears on the screen. 2. Enter the country code. 12
3. Enter the area code (normally without the 0 before it) followed by the phone number. 4. Press the Dial / Answer Key to call directly. 4.3 Answering or Rejecting a incoming Call 1. Press the Dial / Answer Key to answer a call. 2. Press the End / Power key to reject a call. 13
5 Function Menu 5.1 Main Menu Messages Fun & Games Services Call logs FM radio Phonebook Profiles Organizer Settings 5.2 Messages 14
5.2.1 Creating a text message 1. Select Menu > Messages > Write message 2. Write a message, please refer to the Text entry section of …

Text truncated - open the document above for the full version.

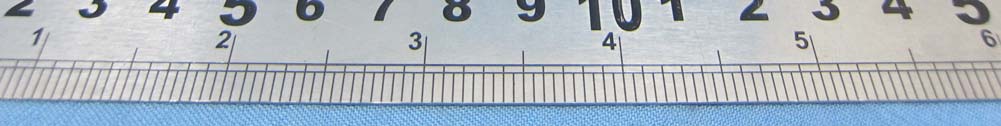

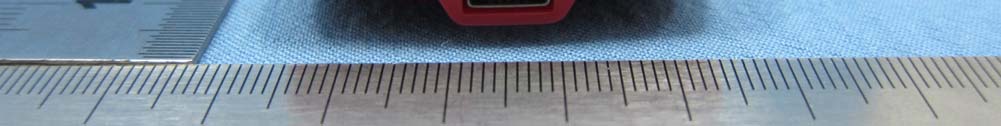

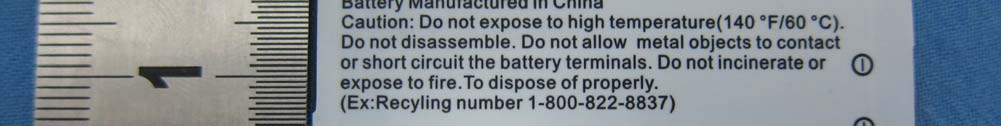

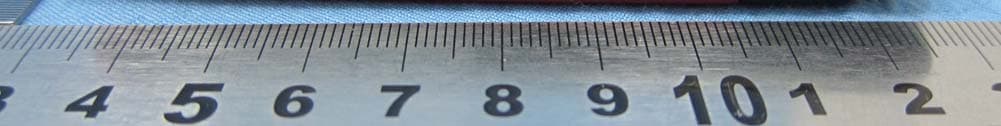

Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 1. External Photograph of EUT Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 List of Accessory: Specification of Accessory AC Adapter Brand Name PCD Model Name ATC002005 Battery Brand Name PCD Model Name BTR1031 Earphone Type 100cm non-shielded without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL11…

Text truncated - open the document above for the full version.

IMEI:123456789012345 S/N:AAGV21105300001 MADE IN CHINA MODEL:A1026 SW:CL114_1.0_CLARO FCC ID:T38PCD1026

Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 3. Internal Photograph of EUT Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 Photographs of EUT Report No.: EP213102 Brand Name: PCD / Model Name: A1026, PCD1133EC, P CD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133 PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 WWAN Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 FCC SAR Test Report Report No. : FA213102 FCC SAR Test Report APPLICANT : Cellon Communications Technology Co., Ltd EQUIPMENT : GSM850/1900 mobile phone BRAND NAME : PCD MODEL NAME : A1026, PCD1133EC, PCD1133ECR, CL1133EC, CL1133ECR, PCD1133, CL1133EN, CL1133, TE1133, PCD1133PE, PCD1133AL, PCD1133, CL, PCD1133PO, PCD1133MV, PCD1133OM, PCD1133MX, TE1133PE, AL1133AL, CL1133CL, CL1133PO, MV1133MV, TE1133MX; CL1133CA FCC ID : T38PCD1026 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Jan. 31, 2012 and completely tested on Feb. 06, 2012. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 FCC SAR Test Report Report No. : FA213102 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Device Under Test (DUT) .................................................................................................................6 3.2 Product Photos .......................................................................................................................................................7 3.3 Applied Standards ...................................................................................................................................................7 3.4 Device Category and SAR Limits ............................................................................................................................7 3.5 Test Conditions ........................................................................................................................................................7 4. Specific Absorption Rate (SAR) ....................................................................................................................................8 4.1 Introduction .............................................................................................................................................................8 4.2 SAR Definition .........................................................................................................................................................8 5. SAR Measurement System ............................................................................................................................................9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder .......................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. Uncertainty Assessment .............................................................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : A1 of A1 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 FCC SAR Test Report Report No. : FA213102 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 06.02.2012 System Check_Head_835MHz_120206 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_120206 Medium parameters used: f = 835 MHz; σ = 0.92 mho/m; ε r = 42.227; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.4 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(9.4, 9.4, 9.4); Calibrated: 16.11.2011 -Sensor-Surface: 4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 -Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 -Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.632 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.192 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.7590 SAR(1 g) = 2.47 mW/g; SAR(10 g) = 1.6 mW/g Maximum value of SAR (measured) = 2.659 mW/g 0 dB = 2.660mW/g = 8.50 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 06.02.2012 System Check_Body_835MHz_120206 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_120206 Medium parameters used: f = 835 MHz; σ = 0.978 mho/m; ε r = 54.403; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：21.4 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(9.72, 9.72, 9.72); Calibrated: 16.11.2011 -Sensor-Surface: 4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 -Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 -Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.587 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.078 V/m; Power Drift = -0.00013 dB Peak SAR (extrapolated) = 3.6330 SAR(1 g) = 2.39 mW/g; SAR(10 g) = 1.56 mW/g Maximum value of SAR (measured) = 2.579 mW/g 0 dB = 2.580mW/g = 8.23 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 06.02.2012 System Check_Head_1900MHz_120206 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_120206 Medium parameters used: f = 1900 MHz; σ = 1.415 mho/m; ε r = 40.527; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.2 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(8.36, 8.36, 8.36); Calibrated: 16.11.2011 -Sensor-Surface: 4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 -Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 -Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 10.694 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 86.819 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 18.4920 SAR(1 g) = 9.47 mW/g; SAR(10 g) = 4.79 mW/g Maximum value of SAR (measured) = 10.599 mW/g 0 dB = 10.600mW/g = 20.51 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 06.02.2012 System Check_Body_1900MHz_120206 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_120206 Medium parameters used: f = 1900 MHz; σ = 1.531 mho/m; ε r = 54.671; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(7.71, 7.71, 7.71); Calibrated: 16.11.2011 -Sensor-Surface: 4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 -Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 -Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.463 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 86.036 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 19.3060 SAR(1 g) = 10.5 mW/g; SAR(10 g) = 5.5 mW/g Maximum value of SAR (measured) = 11.747 mW/g 0 dB = 11.750mW/g = 21.40 dB mW/g SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : B1 of B1 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 FCC SAR Test Report Report No. : FA213102 Appendix B. Plots of SAR Measurement The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 06.02.2012 01 GSM850_Right Cheek_Ch251 DUT: 213102 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_120206 Medium parameters used: f = 849 MHz; σ = 0.933 mho/m; ε r = 42.075; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.4 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(9.4, 9.4, 9.4); Calibrated: 16.11.2011 -Sensor-Surface: 4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 -Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 -Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Ch251/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.923 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.708 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 1.1120 SAR(1 g) = 0.842 mW/g; SAR(10 g) = 0.589 mW/g Maximum value of SAR (measured) = 0.893 mW/g Test Laboratory: Sporton International Inc…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 21 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD1026 FCC Test Report Report No. : FD213102 FCC Test Report APPLICANT : Cellon Communications Technology Co., Ltd EQUIPMENT : GSM850/1900 mobile phone BRAND NAME : PCD MODEL NAME : A1026, PCD1133EC, PCD1133ECR, CL1133EC, CL1133ECR, PCD1133,…
