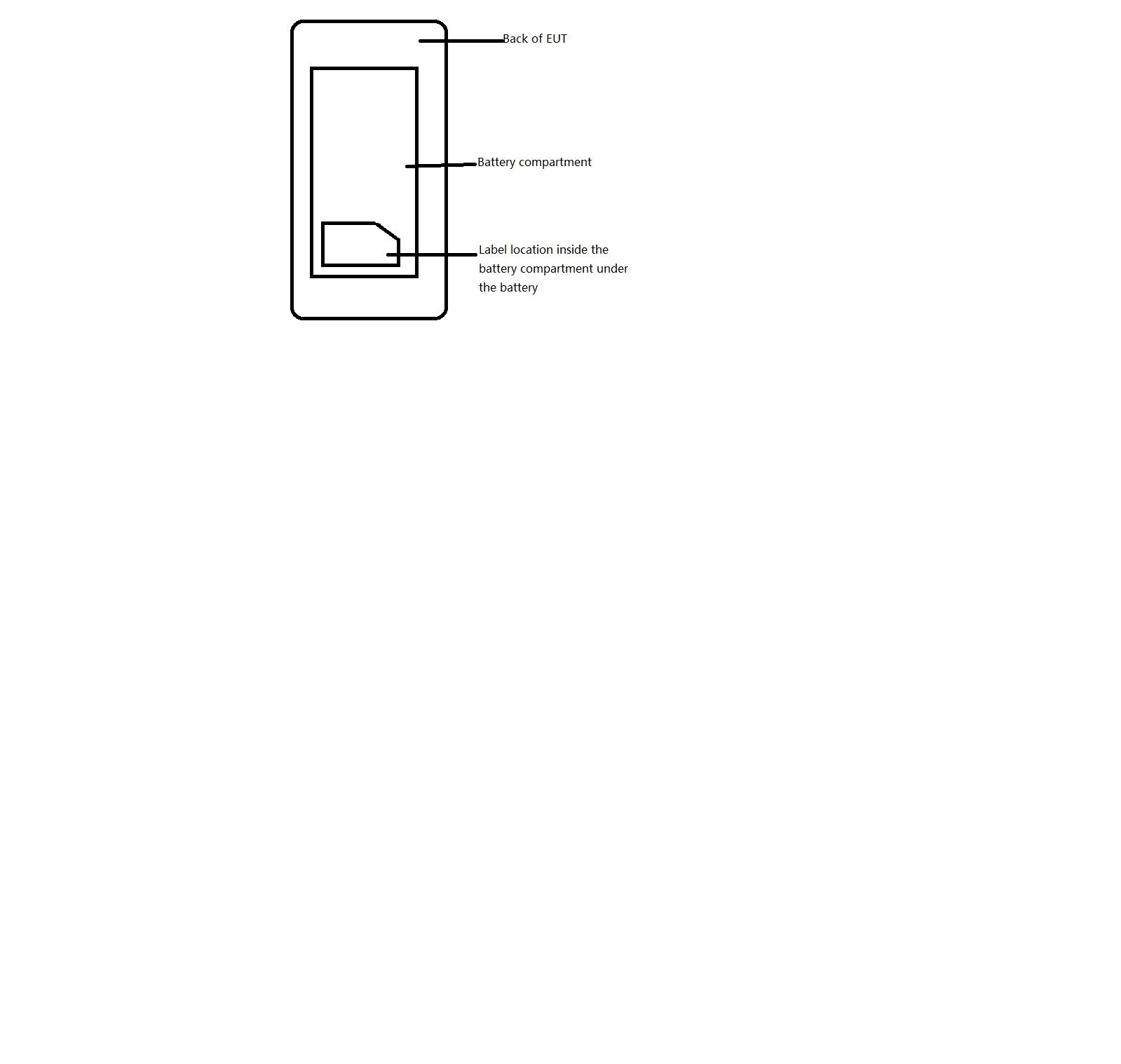

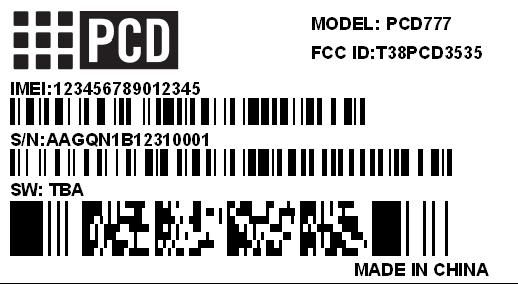

T38PCD3535GSM850/900/1800/1900 UMTS850/1900 GPRS, EDGE, BT, WIFI mobile phone

1 Introduction 1.1 Phone Display 1.2 Key Key Function Left/Right Soft Key Press to perform the function currently displayed in the bottom left/right corner of the screen. In idle mode, press Left Soft Key to access Main Menu. Home Key In idle mode, press to access Internet service. Navigation Key In idle mode, Navigation Key UP to access Messaging. Press the Navigation Key Down to access STK. Press the Navigation Key Left to access Phonebook. Press the Navigation Key Right to access Fun & Games. OK Key In idle mode, press to enter dialer. Press to confirm a selection. Dial/Answer Key Press to make/answer a call. In idle mode, press to display call list. End/Power Key Press to end a call. Press and hold to power on/off the phone. Facebook Key Press to access the Facebook. FN Key Activate FN mode to enter digits or characters printed on the top part of the keys. Press the FN Key once to activate it once. Press the FN Key twice to activate the FN mode all of the time. To deactivate the FN mode, press the FN key. 1.3 Icons and symbols Vertical bars indicate the signal strength of the GSM Indicates the battery charge level. Indicates your phone is locked. Indicates your phone uses the alert type of “Ring”. Indicates your phone uses the alert type of “Vibrate”. Indicates your phone uses the headsets profile Indicates the alarm clock is set. Indicates a missed call. Indicates new text message(s). Indicates new multimedia message(s). Indicates new voice mail message(s). Indicates WAP push messages. Indicates stopwatch is enabled. Indicates your phone has logged onto GPRS. Indicates a WIFI connection is set up. 2 Getting Started 2.1 Inserting the SIM Card 2.1.1 Remove the back cover(1), remove the battery (2), and insert the SIM card (3) (1) (2) (3) 2.1.2 Install the battery (4) and back cover (5) (4) (5) 2.1.3 Inserting a T-Flash Card 3 Text Entry 3.1 Input Method Your cellular phone supports several input methods, which include: ABC/Abc/abc/ES/Es/es Numeric (123) 3.1.1 Changing the input modes During text editing, you can press the Shift Key to switch input modes. Or press the Left Soft Key [Options] and choose Input Method to select different input modes. 3.1.2 Entering Symbols In any input mode, press the Symbol Key to open the symbols input screen. Use the Navigation key to choose the desired symbol and press the Ok key to select it. 3.2 Key Input Letters and symbols represented by each key are as follows: Key Function All related keys Press to input letters FN Key Activate FN mode to enter digits or characters printed on the top part of the keys, Press the FN Key once to activate it once, press the FN Key twice can activate FN mode all the time, in this case, to deactivate the FN mode, press the FN key. Space Key Press to input space Shift Key Press to switch input methods when entering text. Symbol Key Press to enter symbol screen Example: How to enter the word "Happy2010!" Press the Shift Key to activate the “ABC” mode, press the H Key to enter “H”. Press the Shift Key to activate the “abc” mode, press the a, p, p, y key to enter “appy”. Press the FN Key twice to activate FN mode, press the 2, 0, 1, 0, ! Key to enter “2010!”. 4 Call functions 4.1 Making a Call 1. In idle mode, enter the phone number. 2. Press the Dial / Answer Key to dial the number. 3. Press the End / Power Key to end the call. 4.2 Making an International Call 1. Press the + Key and "+" appears on the screen. 2. Enter the country code. 3. Enter the area code (normally without the 0 before it) followed by the phone number. 4. Press the Dial / Answer Key to call directly. 4.3 Answering or Rejecting an incoming Call 1. Press the Dial / Answer Key to answer a call. 2. Press the End / Power key to reject a call. 5 Using the Menus The phone offers a range of functions that allows you to tailor it to your needs. These functions are arranged in menus and submenus. You can scroll and access these menus by pressing Navigation Keys. 5.1.1 File Manager 1. Select Menu > File manager. 2. When you highlight one of them, the related memory information is displayed at the top of the screen, including total volume and free volume. Note: If you want to view the files in T-Flash card, please insert the T-Flash card first. 5.2 Phonebook 5.2.1 Search contact 1. Press Menu > Phonebook. 2. Enter the first few letters of the contact name to search. Note: You can also press the Navigation key Down to access the contact list. 5.2.2 Add New Contact To create a new SIM/phone contact: 1. Select Menu > Phonebook > Add new contact. 2. Enter all related information about the contact. 3. Press the OK Key to save the contact details. 5.2.3 Phonebook settings 1. Select Menu > Phonebook. If you select a contact, press the Left Soft Key [Options] can send message, call, edit, copy, move, and so on. 2. Select one item, press the Left Soft Key [Options] and select Phonebook settings. 3. Now you can set the speed dial, view the memory status, copy or move contacts, and so on. 5.3 Fun & Games Your cellular phone provides you with several games. You can also adjust the game settings when you enter the game menu. 5.4 Call center 5.4.1 View Call History 1. Select Menu > Call center > Call history. 2. Press the Navigation Key to view different call logs. 3. Choose a particular number and press the Dial Key to call the number directly. 4. Select Delete call logs if you want. 5. Select GPRS counter to view the GPRS volume you have used. 5.4.2 Call Settings 1. Select Menu > Call center > Call settings. 2. Press the Navigation Key to view different call settings. 5.5 Messaging 5.5.1 Creating a text message 1. Select Menu > Messaging > Write message >Text message. 2. Write a message, please refer to the Text entry section of this manual for detailed information. 3. After entering text, you can access the send options by pressing the Left Soft Key [Options] and then select Send to. 5.5.2 Creating a multimedia message 1. Select Menu > Messaging > Write message > Multimedia…

Text truncated - open the document above for the full version.

Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 1. External Photograph of EUT Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 List of Accessory: Specification of Accessory AC Adapter Brand Name PCD Model Name ASTC20-050065 Battery Brand Name PCD Model Name BTR380 Earphone Type 1.00m non-shielded without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 30 TE…

Text truncated - open the document above for the full version.

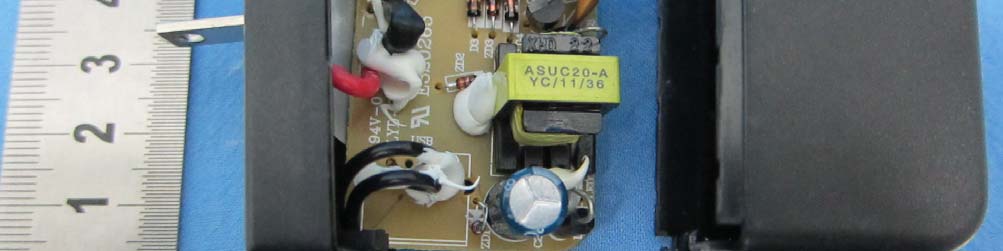

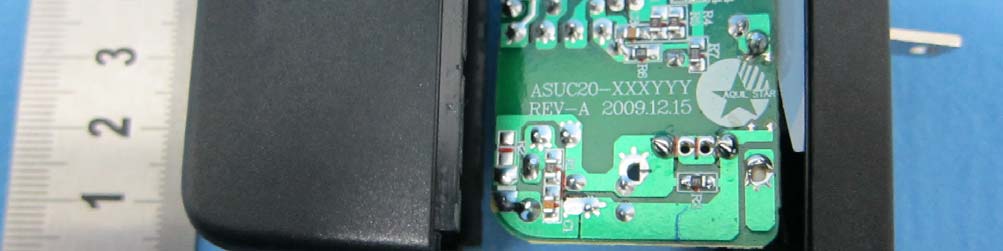

Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 3. Internal Photograph of EUT Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD7 77CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 Photographs of EUT Report No.: EP1D2801 Brand Name: PCD&Claro&Telcel / Model Name: A3535, PCD7 77, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD77 7CL, PCD777PO,…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 FCC SAR Test Report Report No. : FA1D2801 FCC SAR Test Report APPLICANT : Cellon Communications Technology Co., Ltd EQUIPMENT : GSM850/900/1800/1900 UMTS850/1900 GPRS、EDGE、 BT, WIFI mobile phone BRAND NAME : PCD&Claro&Telcel MODEL NAME : A3535, PCD777, CL777, TE777, PCD777EN PCD777PE, PCD777AL, PCD777CL, PCD777PO, PCD777MV, PCD777OM, PCD777MX, PCD777CA, TE777PE, AL777AL, CL777CL, CL777PO, MV777MV, TE777MX. PCD777CA, PCD777AR, PCD777BR, CL777TL FCC ID : T38PCD3535 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Dec. 28, 2011 and completely tested on Jan. 20, 2012. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 37 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 FCC SAR Test Report Report No. : FA1D2801 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Device Under Test (DUT) .................................................................................................................6 3.2 Product Photos .......................................................................................................................................................7 3.3 Applied Standards ...................................................................................................................................................7 3.4 Device Category and SAR Limits ............................................................................................................................7 3.5 Test Conditions ........................................................................................................................................................7 4. Specific Absorption Rate (SAR) ....................................................................................................................................8 4.1 Introduction .............................................................................................................................................................8 4.2 SAR Definition .........................................................................................................................................................8 5. SAR Measurement System ............................................................................................................................................9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder .......................................................................................................................................................14 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. Uncertainty Assessment ..............................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : A1 of A1 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 02, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38PCD3535 FCC SAR Test Report Report No. : FA1D2801 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 18.01.2012 System Check_Head_835MHz_120118 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_120118 Medium parameters used: f = 835 MHz; σ = 0.912 mho/m; ε r = 42.045; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.4, 9.4, 9.4); Calibrated: 16.11.2011 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.524 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.334 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 3.6060 SAR(1 g) = 2.36 mW/g; SAR(10 g) = 1.53 mW/g Maximum value of SAR (measured) = 2.556 mW/g 0 dB = 2.560mW/g = 8.16 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 19.01.2012 System Check_Body_835MHz_120119 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_120119 Medium parameters used: f = 835 MHz; σ = 0.975 mho/m; ε r = 54.285; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.72, 9.72, 9.72); Calibrated: 16.11.2011 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.580 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.078 V/m; Power Drift = -0.00013 dB Peak SAR (extrapolated) = 3.6230 SAR(1 g) = 2.39 mW/g; SAR(10 g) = 1.55 mW/g Maximum value of SAR (measured) = 2.572 mW/g 0 dB = 2.570mW/g = 8.20 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 19.01.2012 System Check_Head_1900MHz_120119 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_120119 Medium parameters used: f = 1900 MHz; σ = 1.448 mho/m; ε r = 39.15; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(8.36, 8.36, 8.36); Calibrated: 16.11.2011 -Sensor-Surface: 4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 -Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 -Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.090 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.512 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 20.4280 SAR(1 g) = 10.7 mW/g; SAR(10 g) = 5.51 mW/g Maximum value of SAR (measured) = 12.001 mW/g 0 dB = 12.000mW/g = 21.58 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 19.01.2012 System Check_Body_1900MHz_120119 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_120119 Medium parameters used: f = 1900 MHz; σ = 1.528 mho/m; ε r = 54.867; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(7.71, 7.71, 7.71); Calibrated: 16.11.2011 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.438 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 86.036 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 19.2660 SAR(1 g) = 10.5 mW/g; SAR(10 g) = 5.48 mW/g Maximum value of SAR (measured) = 11.722 mW/g 0 dB = 11.720mW/g = 21.38 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 20.01.2012 System Check_Head_2450MHz_120120 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_120120 Medium parameters used: f = 2450 MHz; σ = 1.829 mho/m; ε r = 40.081; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(7.33, 7.33, 7.33); Calibrated: 16.11.2011 -Sensor-Surface: 4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 -Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 -Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 15.415 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 79.090 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 28.0960 SAR(1 g) = 13 mW/g; SAR(10 g) = 5.95 mW/g Maximum value of SAR (measured) = 14.764 mW/g 0 dB = 14.760mW/g = 23.38 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 20.01.2012 System Check_Body_2450MHz_120120 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120120 Medium parameters used: f = 2450 MHz; σ = 1.976 mho/m…

Text truncated - open the document above for the full version.
