T38PCD3560A3560 is a mobile phone with GSM/GPRS/EDGE/WCDMA 850/1900, 802.11b/g, Bluetooth.

1 Introduction 1.1 Phone Display 1.2 Key Key Function Left/Right Soft Key Press to perform the function currently displayed in the bottom left/right corner of the screen. In idle mode, press Left Soft Key to access Main Menu. Home Key In idle mode, press to access Internet service. Navigation Key In idle mode, Navigation Key UP to access Write message. Press the Navigation Key Down to access STK. Press the Navigation Key Left to access Phonebook. Press the Navigation Key Right to access Fun & Games. OK Key In idle mode, press to access Camera. Press to confirm a selection. Dial/Answer Key Press to make/answer a call. In idle mode, press to display call list. End/Power Key Press to end a call. Press and hold to power on/off the phone. Facebook Key Press to access the Facebook. FN Key Activate FN mode to enter digits or characters printed on the top part of the keys. Press the FN Key once to activate it once. Press the FN Key twice to activate the FN mode all of the time. To deactivate the FN mode, press the FN key. 1.3 Icons and symbols Vertical bars indicate the signal strength of the GSM network signal. Indicates the battery charge level. Indicates your phone is locked. Indicates your phone uses the alert type of “Ring”. Indicates your phone uses the alert type of “Vibrate”. Indicates your phone uses the headsets profile settings. Indicates the alarm clock is set. Indicates a missed call. Indicates new text message(s). Indicates new multimedia message(s). Indicates new voice mail message(s). Indicates WAP push messages. Indicates stopwatch is enabled. Indicates your phone has logged onto GPRS. Indicates a WIFI connection is set up. 2 Getting Started 2.1 Inserting the SIM Card 2.1.1 Remove the back cover(1), remove the battery (2), and insert the SIM card (3) (1) (2) (3) 2.1.2 Install the battery (4) and back cover (5) (4) (5) 2.1.3 Inserting a T-Flash Card 3 Text Entry 3.1 Input Method Your cellular phone supports several input methods, which include: ABC/Abc/abc/ES/Es/es Numeric (123) 3.1.1 Changing the input modes During text editing, you can press the Shift Key to switch input modes. Or press the Left Soft Key [Options] and choose Input Method to select different input modes. 3.1.2 Entering Symbols In any input mode, press the Symbol Key to open the symbols input screen. Use the Navigation key to choose the desired symbol and press the Ok key to select it. 3.2 Key Input Letters and symbols represented by each key are as follows: Key Function All related keys Press to input letters FN Key Activate FN mode to enter digits or characters printed on the top part of the keys, Press the FN Key once to activate it once, press the FN Key twice can activate FN mode all the time, in this case, to deactivate the FN mode, press the FN key. Space Key Press to input space Shift Key Press to switch input methods when entering text. Symbol Key Press to enter symbol screen Example: How to enter the word "Happy2010!" Press the Shift Key to activate the “ABC” mode, press the H Key to enter “H”. Press the Shift Key to activate the “abc” mode, press the a, p, p, y key to enter “appy”. Press the FN Key twice to activate FN mode, press the 2, 0, 1, 0, ! Key to enter “2010!”. 4 Call functions 4.1 Making a Call 1. In idle mode, enter the phone number. 2. Press the Dial / Answer Key to dial the number. 3. Press the End / Power Key to end the call. 4.2 Making an International Call 1. Press the + Key and "+" appears on the screen. 2. Enter the country code. 3. Enter the area code (normally without the 0 before it) followed by the phone number. 4. Press the Dial / Answer Key to call directly. 4.3 Answering or Rejecting an incoming Call 1. Press the Dial / Answer Key to answer a call. 2. Press the End / Power key to reject a call. 5 Using the Menus The phone offers a range of functions that allows you to tailor it to your needs. These functions are arranged in menus and submenus. You can scroll and access these menus by pressing Navigation Keys. 5.1.1 File Manager 1. Select Menu > File manager. 2. When you highlight one of them, the related memory information is displayed at the top of the screen, including total volume and free volume. Note: If you want to view the files in T-Flash card, please insert the T-Flash card first. 5.2 Phonebook 5.2.1 Search contact 1. Press Menu > Phonebook. 2. Enter the first few letters of the contact name to search. Note: You can also press the Navigation key Down to access the contact list. 5.2.2 Add New Contact To create a new SIM/phone contact: 1. Select Menu > Phonebook > Add new contact. 2. Enter all related information about the contact. 3. Press the OK Key to save the contact details. 5.2.3 Phonebook settings 1. Select Menu > Phonebook. If you select a contact, press the Left Soft Key [Options] can send message, call, edit, copy, move, and so on. 2. Select one item, press the Left Soft Key [Options] and select Phonebook settings. 3. Now you can set the speed dial, view the memory status, copy or move contacts, and so on. 5.3 Fun & Games Your cellular phone provides you with several games. You can also adjust the game settings when you enter the game menu. 5.4 Call center 5.4.1 View Call History 1. Select Menu > Call center > Call history. 2. Press the Navigation Key to view different call logs. 3. Choose a particular number and press the Dial Key to call the number directly. 4. Select Delete call logs if you want. 5. Select GPRS counter to view the GPRS volume you have used. 5.4.2 Call Settings 1. Select Menu > Call center > Call settings. 2. Press the Navigation Key to view different call settings. 5.5 Messaging 5.5.1 Creating a text message 1. Select Menu > Messaging > Write message >Text message. 2. Write a message, please refer to the Text entry section of this manual for detailed information. 3. After entering text, you can access the send options by pressing the Left Soft Key [Options] and then select Send to. 5.5.2 Creating a multimedia message 1. Select Menu > Messagi…

Text truncated - open the document above for the full version.

Cellon Communications Technology (Shenzhen) Co.,Ltd. 13/F, Skyworth C Building, Gaoxin S.Ave1, Hi-Tech Industrial Park, Nanshan District,Shenzhen,PRC. Tel: 86 755 8636 5704 ; Fax: 86 755 8636 5686 Date (30/04/2012) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Cellon Communications Technology (Shenzhen) Co.,Ltd 13/F, Skyworth Building C Gaoxin S. Ave. 1st, High-Tech industrial Park NanShan, ShenZhen, China hereby authorize Shenzhen Institute of Telecommunications No.12 Building, Shangsha Innovation and Technology Park Futian District, Shenzhen 518048 P. R. China Du Zhaoxuan Phone: +86-755-33322000-8140 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C 862 because of conviction for possession or distribution of controlled substance. This authorization is application to product: Type of equipment: GSM QUAD BAND AND UMTS 850/1900 Model name: A3560 FCC ID: T38PCD3560 This authorization expires one year from the current date. Sincerely, Direcotr: David Tian Telephone Number: 0755-86365704 Fax: 0755-86365686

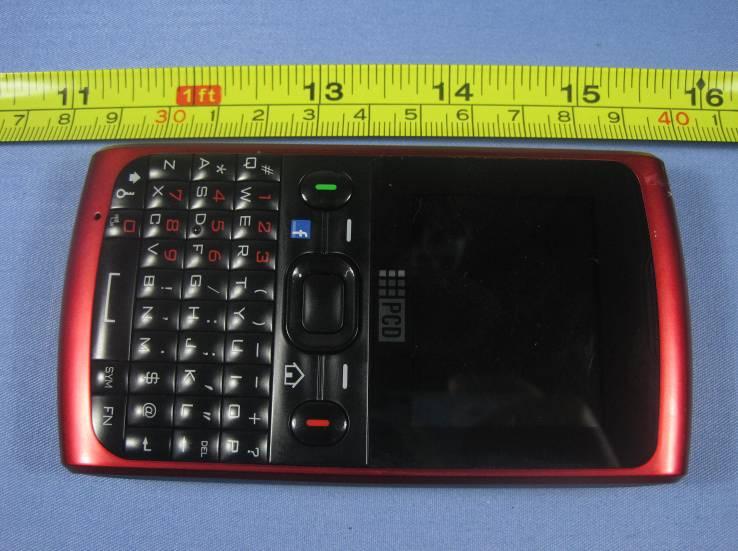

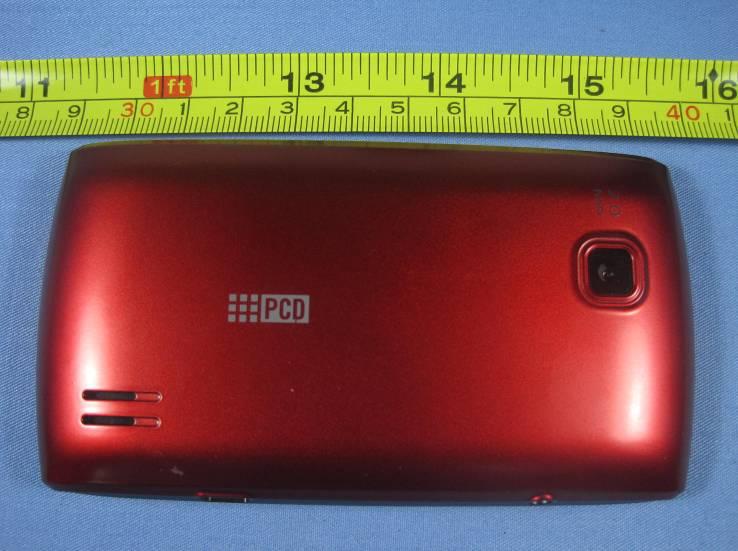

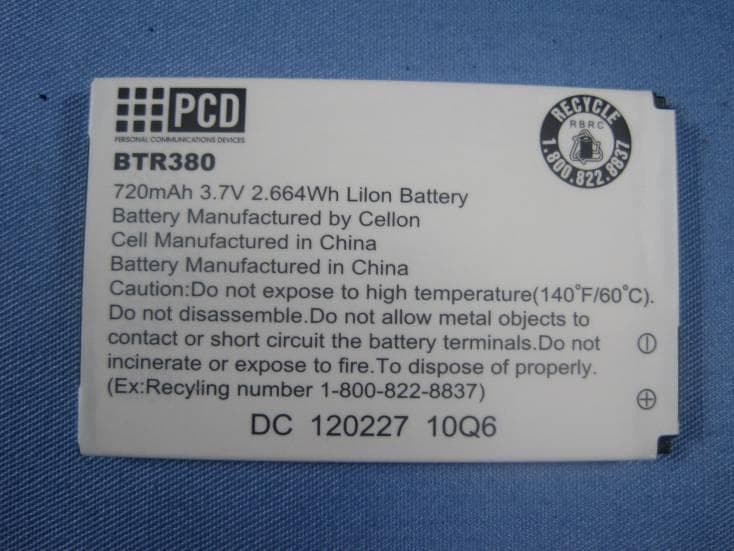

External photos FCC ID: T38PCD3560

FCC ID: T38PCD3560

Internal photos FCC ID: T38PCD3560

A3560 Operation Description 1. Overview: A3560 works on GSM 850/EGSM 900/DCS 1800/PCS 1900 and WCDMA Band II / Band V, CPU(MT6276W) chip runs up to 411MHz.The main IC include CPU (MT6276W) , FLASH (1Gb NAND Flash + 512Mb Mobile DDR SDRAM) , TRANSCEIVR（MT6162）, PA(SKY77551/ RF7242 / RF7245) , WIFI（MT5931A/B） 2.System diagram Overview: 2.1RF: RF (Radio Frequency) section is in charge of the signal transmit and receiving, signal modulation and demodulation. The following is the GSM (Figure 1) and WCDMA (Figure 2) transceiver block diagrams. Product technical parameters: GENERAL: Items Frequency allocation Channel band width Channel Modulation TX/RX channel space (Fn)Freq. calculating formula GSM 850 TX(Uplink) 824 – 849 MHz RX(Downlink) 869 – 894 MHz 200 KHz 128~251 GMSK,BT=0.345 MHz Fn = 824.2 + (0.2 x (n‐128)) n: channel NO. Unit: MHz GSM 900 TX(Uplink) 880 – 915 MHz RX(Downlink) 925 – 960 MHz 200 KHz 975~1023 0~124 GMSK,BT=0.345 MHz Fn = 890 + (0.2 x n) 0 <= n <= 124 Fn = 890 + (0.2 x (n – 1024)) 975 <= n <= 1023 n: channel NO. Unit: MHz DCS TX(Uplink) 1710 – 1785 MHz RX(Downlink) 1805 – 1880 MHz 200 KHz 512~885 GMSK,BT=0.395 MHz Fn = 1710.2 + (0.2 x (n – 512)) 512 < n < 885 n: channel NO. Unit: MHz PCS TX(Uplink) 1850 – 1910 MHz RX(Downlink) 1930 – 1990 MHz 200 KHz 512~810 GMSK,BT=0.380 MHz Fn= 1850.2 + (0.2 x (n – 512)) 512 < n < 810 n: channel NO. Unit: MHz WCDMA BAND II TX(Uplink) 1850 – 1910 MHz RX(Downlink) 1930 – 1990MHz 5 MHz TX(Uplink) 9262~9538 RX(Downlink) 9662~9938 TX(Uplink) BPSK RX(Downlink) QPSK 80MHz Fn = 1852.4 + (0.2 x (n – 9262)) 9262 ≤ n ≤ 9538 n: channel NO. Unit: MHz WCDMA BAND V TX(Uplink) 824 – 849 MHz RX(Downlink) 869 – 894 MHz 5 MHz TX(Uplink) 4132– 4233 RX(Downlink) 4357~4458 TX(Uplink) BPSK RX(Downlink) QPSK 45 MHz Fn = 826.4 + (0.2 x (n – 4132)) 4132 ≤ n ≤ 4233 n: channel NO. Unit: MHz 2.BB: BB (Base-Band) section is the control & management center of the mobile where OS (Operate System) running and provides the MMI for the mobile. A 32.768 KHz crystal oscillator which also connect to MT6276W provides a low frequency clock. This clock is used to keep the Real-Time Clock (RTC) block functioning, so that the platform can keep track of the time and date. Main Features: Items Characters Remark LCD 2.0“TFT 170*220 + 262K TFT TFT Memory 1Gb (64M x16) NAND Flash + 512Mb (32M x16) Mobile DDR SDRAM K521H12ACB Midi Up to 64 polyphonic SW Midi 3. Signal Flow and Circuit Description Brief of the mobile signal flow as below: 3.1. Transceiver Transceiver (MT6162 and SKY77559) dedicates to signal modulation and demodulation. MT6162 Figure 3 SKY77559 Figure 4 SKY77559: The SKY77559 is a complete triple band WCDMA transceiver offering unparalleled integration and feature set,With only a handful of external component, consisting of mostly passives for decoupling a full multi-band 3G transceiver can be implemented. For multi-mode applications, the SKY77559 is easily combined with Othello GSM/EDGE products, to produce a high performance compact radio solution.The SKY77559 reciever section direct conversion architecture is the ideal choice for highly integrated Wideband CDMA receivers, reducing the Bill of materials(BOM) by full integrating all interstage filtering.The front end includes three high performance single ended Low Noise Amplifiers(LNAs), allowing the device to support tri-band applications. The transmitter uses an innovative direct conversion modulator the achieves high modulation accuracy with exceptionally low noise eliminating the need for external transmit SAW filters. The device offers a fully integrated high precision TX power management system. This includes RMS power detector and PA DACs to support a variety of PAs. MT6162: The transmitter section consists of Base-band (BB) I/Q filters, I/Q modulators, frequency dividers, output buffers and a bias-core circuit. BB I/Q signals are fed into the one-pole RC low-pass filter first for better out-of-the-band noise performance. The I/Q modulators are responsible for translating the BB I/Q signals to the transmitting frequencies. The low-noise divided-by-2/4 frequency dividers provide the necessary carriers for frequency translation while minimizing VCO pulling effect. The output buffers are adopted to amplify the modulator output signals to an adequate level to fulfill Pin requirement of Power Amplifiers. 3.2. Receiver principle RX signal flow chart (Figure 5)： Figure 5 The aerial signal mobile received go to RF Connector, and then transmit to transceiver via the selected band in RF switcher & SAW filter. Four IQ signals input to CPU, Go through A/D, DSP, and D/A section in CPU, then output to receiver. 3.3. Transmitter principle 1) Audio signal input from Microphone.Microphone convert the voice signal to analog signal and input to CPU Microphone Circuit: 2) After A/D in CPU, then send the digital signal to DSP and finish IQ modulation. Then output from CPU to Transceiver I, IB, Q, QB. 3) Goes to Transceiver MT6162 4) After modulated and passed by Matching Circuit. Then to PA. 4.1) 2G part 4.2)3G part 5). Tx signals output from PA IC, RF-Connector to antenna. 3.4. Bluetooth and FM MT6276W is a highly integrated Bluetooth and FM IC. It includes powerful baseband processing capabilities with rich features and a high performance transceiver, all in a compact single package. Please do following testing operation for Bluetooth on the phone: 3.5 WiFi The A3560 used the highly integrated WiFi module MT5931, works at 2.4GHz~2.484GHz. 3.6 Power on/off Circuit After inserting the battery, press the power on/off switch (S700) about 2s at normal work status, CPU will detect the signal and start the power off/on program. 3.7 Charge Circuit MT6276W integrates the charger control circuit. When inserting the charging adapter, CHGIN detect high level, and start the charging program. When the charger is on, MT6276W controls the charging phase and turns on the appropriate LDOs according to the battery status. The battery voltage is co…

Text truncated - open the document above for the full version.

A3560 Specification Specification Function Specification Frequency Range GSM850 TX: 824.2 – 848.8 MHz Frequency (MHz) = 824.2 + (0.2 x (n-128)) where: 128 < n < 251 RX: 869.2 – 893.8 MHz Frequency (MHz) = 869.2 + (0.2 x (n-128)) where: 128 <= n <=251 Frequency Range GSM900 TX: 880.2 – 914.8 MHz Frequency (MHz) = 890 + (0.2 x n) where: 0 <= n <= 124 Frequency (MHz) = 890 + (0.2 x (n – 1024)) where: 975 <= n <= 1023 RX: 925.2 – 959.8 MHz Frequency (MHz) = 935 + (0.2 x n) where: 0 <= n <= 124 Frequency (MHz) = 935 + (0.2 x (n – 1024)) where: 975 <= n <= 1023 Frequency Range GSM1800 TX: 1710.2 to 1784.8 MHz Frequency (MHz) = 1710.2 + (0.2 x (n – 512)) where: 512 < n < 885 RX: 1805.2 to 1879.8 MHz Frequency (MHz) = 1805.2 + (0.2 x (n – 512)) where: 512 < n < 885 Frequency Range GSM1900 TX: 1850.2 to 1909.8 MHz Frequency (MHz) = 1850.2 + (0.2 x (n – 512)) where: 512 < n < 810 RX: 1930.2 to 1989.8 MHz Frequency (MHz) = 1930.2 + (0.2 x (n – 512)) where: 512 < n < 810 Frequency Range WCDMA Band II Tx (Uplink) :1850M~1910M Hz Frequency (MHz) = 1852.4 + (0.2 x (n – 9262)) where: 9262 ≤ n ≤ 9538 RX (Downlink) :1930M~1990M Hz Frequency (MHz) = 1932.4 + (0.2 x (n – 9662)) where: 9662 ≤ n ≤ 9938 Frequency Range WCDMA Band V Tx (Uplink) :824M~849M Hz Frequency (MHz) = 826.4 + (0.2 x (n – 4132)) where: 4132 ≤ n ≤ 4233 RX (Downlink) : 869M~894M Hz Frequency (MHz) = 871.4 + (0.2 x (n – 4357)) where: 4357 ≤ n ≤ 4458 Channel Spacing 200 kHz (GSM) 5MHz (WCDMA) A3560 Specification Channels 124 (GSM850), 174 (GSM900), 374 (DCS1800), 299 (PCS1900), 277 (BC II), 102 (BC V) Duplex Spacing 45 MHz (GSM850), 45MHz (GSM900), 95 MHz (DCS1800), 80 MHz (PCS1900), 80 MHz (BC II), 45 MHz (BC V) Modulation GMSK/8PSK (GSM850, GSM900, DCS1800, PCS1900) Uplink:BPSK (WCDMA) Downlink:QPSK (WCDMA) Transmitter Phase Accuracy 5 degrees RMS, 20 Degrees peak Frequency Error ± 0.1ppm Input/ Output Impedance 50 ohms (nominal) Nominal Operating Voltage +3.7 Vdc (Battery) Dimensions (xyz) 109.5x47x12.9mm Size 66cc Weight 71g Display LCD TFT 176*220 Pixels_2.0_inch Battery Life (910 mAh) GSM talk time:440 minutes (PCL10)/ WCDMA talk time:251 minutes(10dBm) GSM standby time: 650 hours (PP5)/WCDMA standby time:600hours(DRX=7) Nominal Operating Temperature Range -10º C to +55º C GSM System Functions Specification Speech Coding TypeFR / EFR / AMR / HR Bit Rate 13.0 kbps RF Power Output 32 dBm nominal GSM, 29 dBm nominal DCS / PCS Spurious Emissions -36 dBm from 0.1 to 1 GHz, -30 dBm from 1 to 4 GHz Receive Sensitivity -102 dBm GSM, -102 dBm DCS / PCS RX Bit Error Rate < 2% A3560 Specification WCDMA System Functions Specification Speech Coding TypeFR / EFR / AMR / HR Bit Rate 12.2 kbps RF Power Output 23 dBm Spurious Emissions -36 dBm from 0.1 to 1 GHz, -30 dBm from 1 to 12.75 GHz Receive Sensitivity -105 dBm Band II、 Band V RX Bit Error Rate < 0.1%

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0165SAR01R1 Page 1 of 180 TESTING No. L2264 OET 65 TEST REPORT Product Name GSM QUAD BAND AND UMTS 850/1900 Model A3560 Marketing Name A3560,HSD787,HSD787PE,HSD787AL,HSD787CL,HSD787EC, HSD787MV,HSD787OM.HSD787MX,HSD787CR,PCD787PE,PCD787AL, PCD787CL,PCD787EC,PCD787MV,PCD787OM,PCD787MX,PCD787CR, TE787PE, AL787AL,CL787CL,CL787EC, MV787MV,TE787MX,CL787CR FCC ID T38PCD3560 Client Cellon Communications Technology(ShenZhen)Co., Ltd. TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.:RXA1205-0165SAR01R1 Page 2 of 180 GENERAL SUMMARY Product Name GSM QUAD BAND AND UMTS 850/1900 Model A3560 Report No. RXA1205-0165SAR FCC ID T38PCD3560 Client Cellon Communications Technology(ShenZhen)Co., Ltd. Manufacturer Cellon Communications Technology(ShenZhen)Co., Ltd. Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radiofrequency Electromagnetic Fields, 3 kHz to 300 GHz. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438, published June 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. KDB941225 D01 SAR test for 3G devices v02: SAR Measurement Procedures CDMA 20001x RTT, 1x Ev-Do, WCDMA, HSDPA/HSPA KDB 941225 D06 Hot Spot SAR v01 SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities KDB 648474 D01 SAR Handsets Multi Xmiter and Ant, v01r05: SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: May 21 th , 2012 Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.:RXA1205-0165SAR01R1 Page 3 of 180 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report.......................................................................................................5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT................................................................................................................ 7 1.6. The Maximum SAR 1g Values ................................................................................................ 9 1.7. Test Date .............................................................................................................................. 9 2. SAR Measurements System Configuration ................................................................................ 10 2.1. SAR Measurement Set-up .................................................................................................. 10 2.2. DASY4 E-field Probe System ............................................................................................. 11 2.2.1. EX3DV4 Probe Specification ....................................................................................... 11 2.2.2. E-field Probe Calibration .............................................................................................. 12 2.3. Other Test Equipment .........................................................................................................12 2.3.1. Device Holder for Transmitters .................................................................................... 12 2.3.2. Phantom...................................................................................................................... 13 2.4. Scanning Procedure........................................................................................................... 13 2.5. Data Storage and Evaluation .............................................................................................. 15 2.5.1. Data Storage................................................................................................................ 15 2.5.2. Data Evaluation by SEMCAD ...................................................................................... 15 3. Laboratory Environment............................................................................................................. 17 4. Tissue-equivalent Liquid ............................................................................................................ 18 4.1. Tissue-equivalent Liquid Ingredients................................................................................... 18 4.2. Tissue-equivalent Liquid Properties .................................................................................... 20 5. System Check ............................................................................................................................ 21 5.1. Description of System Check .............................................................................................. 21 5.2. System Check Results ...........................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.:RXA1205-0165SAR01R1 Page 82 of 180 GSM 1900 GPRS (3Txslots) Front Side Low Date/Time: 5/6/2012 11:32:01 AM Communication System: PCS 1900+GPRS(3Up); Frequency: 1850.2 MHz;Duty Cycle: 1:2.767 Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.51 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(7.51, 7.51, 7.51); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM000 T01; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Front Side Low/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.578 mW/g Front Side Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.6 V/m; Power Drift = 0.038 dB Peak SAR (extrapolated) = 0.839 W/kg SAR(1 g) = 0.540 mW/g; SAR(10 g) = 0.333 mW/g Maximum value of SAR (measured) = 0.574 mW/g Figure 37 Body, Front Side, GSM 1900 GPRS (3Txslots) Channel 512 TA Technology (Shanghai) Co., Ltd. Test Report Report No.:RXA1205-0165SAR01R1 Page 83 of 180 GSM 1900 GPRS (3Txslots) Left Edge Low Date/Time: 5/6/2012 1:31:15 PM Communication System: PCS 1900+GPRS(3Up); Frequency: 1850.2 MHz;Duty Cycle: 1:2.767 Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.51 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(7.51, 7.51, 7.51); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM000 T01; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Left Edge Low/Area Scan (31x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.156 mW/g Left Edge Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.70 V/m; Power Drift = 0.040 dB Peak SAR (extrapolated) = 0.226 W/kg SAR(1 g) = 0.146 mW/g; SAR(10 g) = 0.091 mW/g Maximum value of SAR (measured) = 0.157 mW/g Figure 38 Body, Left Edge, GSM 1900 GPRS (3Txslots) Channel 512 TA Technology (Shanghai) Co., Ltd. Test Report Report No.:RXA1205-0165SAR01R1 Page 84 of 180 GSM 1900 GPRS (3Txslots) Right Edge Low Date/Time: 5/6/2012 1:44:02 PM Communication System: PCS 1900+GPRS(3Up); Frequency: 1850.2 MHz;Duty Cycle: 1:2.767 Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.51 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(7.51, 7.51, 7.51); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM000 T01; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Right Edge Low/Area Scan (31x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.282 mW/g Right Edge Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.8 V/m; Power Drift = 0.043 dB Peak SAR (extrapolated) = 0.393 W/kg SAR(1 g) = 0.253 mW/g; SAR(10 g) = 0.155 mW/g Maximum value of SAR (measured) = 0.273 mW/g Figure 39 Body, Right Edge, GSM 1900 GPRS (3Txslots) Channel 512 TA Technology (Shanghai) Co., Ltd. Test Report Report No.:RXA1205-0165SAR01R1 Page 85 of 180 GSM 1900 GPRS (3Txslots) Bottom Edge Low Date/Time: 5/6/2012 2:20:29 PM Communication System: PCS 1900+GPRS(3Up); Frequency: 1850.2 MHz;Duty Cycle: 1:2.767 Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.51 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(7.51, 7.51, 7.51); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM000 T01; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Bottom Edge Low/Area Scan (31x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.331 mW/g Bottom Edge Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.3 V/m; Power Drift = 0.056 dB Peak SAR (extrapolated) = 0.478 W/kg SAR(1 g) = 0.304 mW/g; SAR(10 g) = 0.178 mW/g Maximum value of SAR (measured) = 0.332 mW/g Figure 40 Body, Bottom Edge, GSM 1900 GPRS (3Txslots) Channel 512 TA Technology (Shanghai) Co., Ltd. Test Report Report No.:RXA1205-0165SAR01R1 Page 86 of 180 GSM 1900 EGPRS (3Txslots) Back Side Low Date/Time: 5/6/2012 2:35:39 PM Communication System: PCS 1900+EGPRS(3Up); Frequency: 1850.2 MHz;Duty Cycle: 1:2.767 Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.51 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(7.51, 7.51, 7.51); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM000 T01; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Back Side Low/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.746 mW/g Back Side Low/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.3 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 1.15 W/kg SAR(1 g) = 0.613 mW/g; SAR(10 g) = 0.358 mW/g Maximum value of SAR (measured) = 0.731 mW/g Back Side Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.3 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 1.13 W/kg SAR(1 g) = 0.662 mW/g; SAR(10 g) = 0.379 mW/g Maximum value of SAR (measured) = 0.731 mW/g Figure 41 Body, Back Side, GSM 1900 EGPRS (3Txslot…

Text truncated - open the document above for the full version.

2012EEB00187-BT Page1 of 55 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No. 2012EEB00187-BT For Cellon Communications Technology(ShenZhen)Co., Ltd. GSM QUAD BAND AND UMTS 850/1900 Model Name: A3560 Market Name: A3560, HSD787, HSD787PE, HSD787AL, HSD787CL, HSD787EC, HSD787MV, HSD787OM, HSD787MX, HSD787CR, PCD787PE, PCD787AL, PCD787CL, PCD787EC, PCD787MV, PCD787OM, PCD787MX, PCD787CR, TE787PE, AL787AL, CL787CL, CL787EC, MV787MV, TE787MX, CL787CR With Hardware Version: A3560_MB_P1B Software Version: A3560_1.0_Lab_Test_Only FCC ID: T38PCD3560 Issued Date: Apr 20 th , 2012 Test Laboratory: FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191 Tel:+86(0)10-62304633-2678 , Fax:+86(0)10-62304633-2504 Email:[email protected]. www.emcite.com 2012EEB00187-BT Page2 of 55 CONTENTS CONTENTS .................................................................................................................................................. 2 1. TEST LABORATORY ......................................................................................................................... 5 1.1. TESTING LOCATION .............................................................................................................. 5 1.2. TESTING ENVIRONMENT ...................…
