T39SLC-10200RFID CF Type Reader

-1 RFID CF Type Reader User’s Guide Model Name: SLC-10200 Version: 1.0 Date: 2006.09.20 -2 Content No. Item Page 1 Hardware environment 3 2 Demo software environment 4 3 How to contact us 12 Notice: In order to avoid misuse or any unexpected damage, please read this guide first. -11 1. Hardware environment (1) Product introduction Sunlit’s RFID CF type reader is based on Hitachi μ-solution to develop. It was operated at microwave 2.45GHz frequency band. This is small and light, can be easily install to PDA, tablet PC. (2) Specification Power Supply DC 3.3V +/-5% Operating Environment 0°C ~45°C Storage Environment 0°C ~60°C Storing Humidity 5-85% RH Static Consumption 90 mW Dimensions 130 x 60 x 47 (mm) Interface CF Type II RF Output Power 20dBm Frequency Range 2435-2465 MHz Total Channel 31 channels Modulation FHSS Reading Distance 5 - 7 cm @PVC card Connector U.FL connector Frequency Range 2.4-2.4835 GHz Impedance 50 ohm nominal Gain 0dBi Radiation Direction Polarization Semi circular Antenna Beam Degree 90° -4 (3) System requirement Item Condition Quantity Hardware requirement PDA support CF interface1 Platform requirement Windows Pocket PC 20031 (4) How to install reader Face the side with LED up, and insert it into PDA CF slot as shown in picture. Normally always insert CF reader by put LED side up, but some PDA put CF slot at reverse side, it means user needs to insert CF reader at back side. (LED down) -5 2. Demo software environment (1) Demo software introduction This demo program can build a database include TAG ID、TAG information and picture. It can be use to demo ex. material manager、In/out control for people... etc. (2) Block diagram Main Program Tag ID Data base PictureInformation (3) Demo program operation System requirement Item Condition Quantity PDA Support CF interface 64MB Flash ROM 64 MB RAM 1 System platform Windows Pocket PC 20031 RFID CF reader 1 Tag Include Hitachi μ-chip inlet1 -6 Demo software contents Item Description Development tool Microsoft Visual Studio 2005 Traditional Edition WinceDEMO.exe Main program sunlitrfidppc.dll Dynamic Link Library file Database.txt ID database file after ID saved File contents PIC [Folder] A picture file includes different pictures which correlated with each individual ID Main Program Window Function Description Function Description ID Display Tag ID when Tag be read. Delete Delete registered database Information Edit information about Tag ID Mode Select scan mode ON/OFF Open/Close comport of reader Picture Select picture correct with ID Mute ON/Off reading sound Clear Clear text of ID & Message window Read Trigger reader to scan Tag Database Display registered database Save Save registered database Message Display status of reader -7 Demo program operation (a) Copy demo program files “WinceDEMO.exe” & “sunlitrfidppc.dll” to PDA and store at same directory. (b) Plug reader in CF slot of PDA -8 (c) Click file “WinceDEMO.exe” and click “ON/OFF” to open device(Reader) (d) Create a ID data base Be sure the Mode is “Passive” Put the tag on front side of reader, click “Read” to scan Tag ID and checking ID number is showing on ID window. Click “Picture”→ “Folder” to open location of picture that you want to correct with Tag ID.Click ”Type” to select file type that you want than click picture file ※ Operation mode: Passive: Click Read once and reader will scan once. Active: Click Read once and reader will scan continuously. It mean open device successful 1 2 Cancel Folder File type 3 4 5 -9 (e) Editing information about the ID number on “Information” window. Click “Save” and check “Tag DataBase” window to complete the data base created procedure. (f) You can follow the step (d) (e) to create some data base that you want. (g) When you created the data base, the system was created 1 folder and 1 text file: Item Description Database.txt [text file] ID database file after ID saved PIC [Folder] A picture file storage folder about correlate with ID database after picture saved. Caution: Every PDA are different resolution so the picture is showed different size. If you want it to be matched, you should modify the source code of the project. And showing picture is Windows API,but it is not stable. Showing picture seveval times may cause the Demo AP crashes. 1 2 It mean database created successful -11 DataBase.txt (h) Set Mute function Follow the figure click the” Mute” function check box, the mute function will enable. -11 (i) Set Operation mode Mode: Active Click the “Mode” combo box and select “Active” item to enable active function Click “Read”, if tag scanned by reader and the scan procedures will continuously. Mode: Passive Click “Mode” combo box select “Passive” item to enable passive function Click “Read” and the reader scanning just only once. Continue Scanning 1 2 -12 (j) Delete data base Click data you want to delete on Tag DataBase window Click “Delete” and select “Yes” to delete data. (k) Clear function If click “Clear” than the text message on the ID and Message window will be clear. (l) Disable device(Reader) To confirm device is open. Click “ON/OFF” to disable device. 1 2 3 -13 3. How to contact us For further information or in case of difficulties please contact Sunlit System Technology Corp. www.sunlitcorp.com 8F1, NO19, LANE.120, SEC.1, Neihu Rd., Neihu Chiu Taipei Taiwan 114 R.O.C. [email protected] TEL: 886-2-6600-6351 FAX: 886-2-6600-6765 -14 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular …

Text truncated - open the document above for the full version.

Sunlit System Technology Corp. FCC ID.: T39SLC-10200 8F., No. 19, Land 120, Sec. 1, Neihu Rd, Taipei Taiwan 114, R.O.C..Tel : 886-2-6600-6351#151 Federal Communications Commission Sep. 29, 2006 Authorization and Evaluation Division ATTESTATION FCC ID: T39SLC-10200 Product: RFID CF TYPE READER Model: SLC-10200 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, Eric Chang / Engineer Sunlit System Technology Corp.

Sunlit System Technology Corp. FCC ID.: T39SLC-10200 8F., No. 19, Land 120, Sec. 1, Neihu Rd, Taipei Taiwan 114, R.O.C. Tel : 886-2-6600-6351#151 Sunlit System Technology Corp. 8F., No. 19, Land 120, Sec. 1, Neihu Rd, Taipei Taiwan 114, R.O.C. Tel : 886-2-6600-6351#151 Fax: 886-2-6600-6765 Federal Communications Commission Sep. 29, 2006 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics, Block Diagram The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Eric Chang / Engineer Sunlit System Technology Corp.

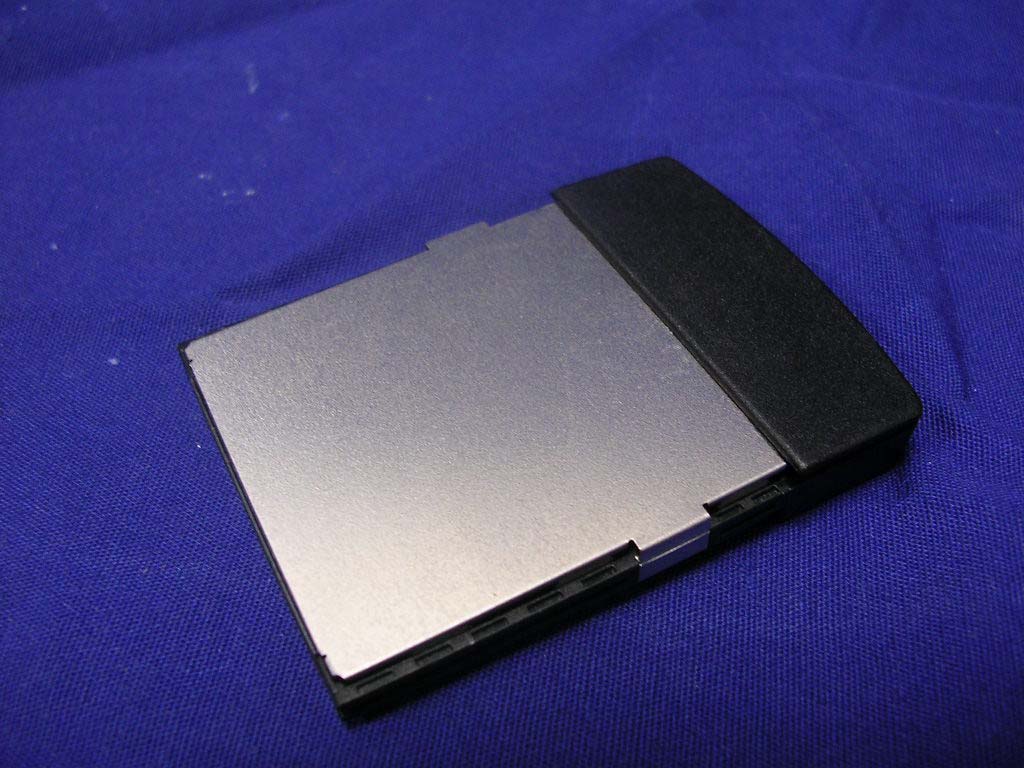

Report No.: 05AL172FI Page : 1 of 5 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Sunlit System Technology Corp. FCC ID.: T39SLC-10200 8F., No. 19, Land 120, Sec. 1, Neihu Rd, Taipei Taiwan 114, R.O.C..Tel : 886-2-6600-6351#151 FCC ID The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Product : RFID CF TYPE READER Model : SLC-10200 FCC ID : T39SLC-10200 Made in China

Report No.: 05AL172FI Page : 2 of 5 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 05AL172FI Page : 3 of 5 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 05AL172FI Page : 4 of 5 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 05AL172FI Page : 5 of 5 Version:1.0 (9) EUT Photo

Report No. 05AL172FI Page : 5 of 30 Version:1.0 1.2. Operation Description The EUT is RFID CF TYPE READER. The operation frequency is 2.435GHz to 2.465GHz. Thirty-one channels are built in the EUT. The signals modulated by FHSS / GFSK are transmitted from the printed antenna on the PCB of the EUT. DC 5V (via CF card socket) shall be provided for EUT operation.

Report No. 05AL172FI Page : 1 of 29 Version:1.0 Test Report Product Name : RFID CF TYPE READER Model No. : SLC-10200 FCC ID. : T39SLC-10200 Applicant : Sunlit SystemTechnology Corp. Address : 8F., No. 19, Land 120, Sec. 1, Neihu Rd., Taipei 114, Taiwan R.O.C. Date of Receipt : Oct. 24, 2005 Issued Date : Sep. 26, 2006 Report No. : 05AL172FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 05AL172FI Page : 2 of 29 Version:1.0 Test Report Certification Issued Date: Sep. 26, 2006 Report No. : 05AL172FI Product Name : RFID CF TYPE READER Applicant : Sunlit SystemTechnology Corp. Address : 8F., No. 19, Land 120, Sec. 1, Neihu Rd., Taipei 114, Taiwan R.O.C. Manufacturer : Sunlit SystemTechnology Corp. Model No. : SLC-10200 Rated Voltage : AC 120V/60Hz Working Voltage : DC 5V (via CF card socket) Trade Name : Applicable Standard : FCC Part 15 Subpart C Paragraph 15.249: 2005 ANSI C63.4: 2003 Test Result : Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Genie Chang ) Tested By : ( Tom Hsieh ) Approved By : (Georte Chen ) 0914 Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 05AL172FI Page : 3 of 29 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...............................................................................................................4 1.1. EUT Description ...................................................................................................................4 1.2. Operation Description...........................................................................................................5 1.3. Tested System Details ...........................................................................................................5 1.4. Configuration of Test System ...............................................................................................5 1.5. EUT Exercise Software ........................................................................................................6 1.6. Test Facility ..........................................................................................................................7 2. Conducted Emission ..............................................................................................................................8 2.1. Test Equipment .....................................................................................................................8 2.2. Test Setup..............................................................................................................................8 2.3. Limits....................................................................................................................................8 2.4. Test Procedure ......................................................................................................................9 2.5. Uncertainty ...........................................................................................................................9 2.6. Test Result of Conducted Emission ....................................................................................10 3. Radiated Emission ...............................................................................................................................12 3.1. Test Equipment ...................................................................................................................12 3.2. Test Setup............................................................................................................................12 3.3. Limits..................................................................................................................................13 3.4. Test Procedure ....................................................................................................................14 3.5. Uncertainty .........................................................................................................................14 3.6. Test Result of Radiated Emission .......................................................................................15 4. Band Edge ............................................................................................................................................20 4.1. Test Equipment ...................................................................................................................20 4.2. Test Setup............................................................................................................................20 4.3. Limit ...................................................................................................................................21 4.4. Test Procedure ....................................................................................................................21 4.5. Uncertainty .........................................................................................................................21 4.6. Test Result of Band Edge....................................................................................................22 5. EMI Reduction Method During Compliance Testing.......................................................................27 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs Report No. 05AL172FI Page : 4 of 29 Version:1.0 1. GENERAL INFORMATION 1.1. EUT Description Product Name : RFID CF TYPE READER Trade Name : FCC ID. : T39SLC-10200 Model No. : SLC-10200 Frequency Range : 2435 – 2465MHz Number of Channels : 31 Channel Separati…
