T4F16963N16964Temperature and Relative Humidity Sensor

750 North Royal Avenue, Gays Mills, WI 54631 USA Tel: +1-608-735-4800 • Fax: +1-608-735-4804 • E-mail:[email protected] • www.bapihvac.com Building Automation Products, Inc. Upgrade to BAPI. 100% Compatible. Guaranteed. Sensors for HVAC/R — Temperature • Humidity • Pressure • Air Quality FCC ID: T4F16963N16964 Installation and Operation Instructions for the Wireless Temperature and Relative Humidity Sensor. Building Automation Products, Inc. Wireless Temperature and Relative Humidity Sensor Installation and Operation Instructions Description The Building Automation Products, Inc. Wireless Temperature and Relative Humidity Sensor, Model BA/BS2- WTHT, is a battery operated, wall mounted sensor with a 418 MHz radio transmitter. The BA/BS2-WTHT is designed to require very little energy; the two internal 3.6 Volt Lithium batteries will operate the sensor for 5 to 8 years in normal operation The BA/BS2-WTHT enclosure is designed to mount directly onto a drywall surface or onto a standard 2”x4” J- box. The enclosure is supplied with a ‘foam-back’ to minimize the effects of wall temperature on the device. The enclosure is also provided with security screws to lock the cover and base together to prevent tampering. The BA/BS2-WTHT has one internal push-button which allows for easy training and identification of the transmitter. The push-button is used when linking the transmitter to any Analog Output Module. See BAPI’s INS/OPS for details. The BA/BS2-WTHT also has an internally mounted LED. The LED will flash briefly when the sensor transmits a data packet using the 418 MHz radio. This happens roughly about once every 10 seconds or shortly after the use of the push-button. WARNING: Changes or modifications not expressly approved by the manufacturer for compliance could void the user’s authority to operate the equipment. FCC ID: T4F16963N16964 MADE IN USA THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES, OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESERED OPERATION

750 North Royal Avenue, Gays Mills, WI 54631 USA Tel: +1-608-735-4800 • Fax: +1-608-735-4804 • E-mail:[email protected] • www.bapihvac.com Building Automation Products, Inc. Upgrade to BAPI. 100% Compatible. Guaranteed. Sensors for HVAC/R — Temperature • Humidity • Pressure • Air Quality April 05, 2006 Federal Communications Commission Equipment Approval Services re: FCC ID: T4F16963N16964 Gentlemen: Enclosed please find the Building Automation Products, Inc. application for FCC Certification of the Building Automation Products, Inc. wireless Temperature and Relative Humidity Sensor. The test data submitted as part of this application were prepared by dBi Corporation, 216 Hillsboro Ave., Lexington, Kentucky 40511-2105. DBi Corporation has A2LA accreditation for EMC testing. Certificate number 1985-01, valid to September 30, 2006. The facility used for radiated measurements is owned by Lexmark International, Inc. and was recognized by the Commission as meeting the requirements of section 2.948 of the Rules via a letter dated December 10, 2001. We submit the information in this application pursuant to the requirements of section 2.1033 and Part 15 of the Federal Communications Commission Rules and Regulations. We request that the Commission grant equipment authorization as soon as it is determined that the attached Application for Equipment Authorization is acceptable. We further request that the schematics and block diagrams of the Building Automation Products, Inc. Model BA/BS2-WTHT, be treated as confidential information as provided for in 47 CFR Section 0.459 (d) (2). Building Automation Products, Inc. considers this information to be a trade secret. The schematics and block diagrams are in .PDF files (included with this application) and are listed as BS2-WTHT(Schematics).pdf and BS2-WTHT(Block-Diag).pdf respectively. Thank you in advance for your assistance. If further information is required concerning this application, please do not hesitate to contact me. Sincerely Robert Novak Design Engineer, Building Automation Products, Inc.

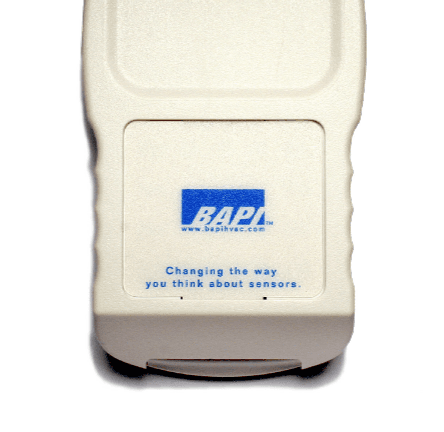

BA/BS2-WTHT exterior

BA/BS2-WTHT interior Without Batteries With Batteries Back Under Antenna

BA/BS2-WTHT FCC Label

FCC ID: T4F16963N16964 Operational description of the 418 mHz. battery operated temperature/humidity sensor. Description of the circuit functions, ground system and antenna of the BAPI, BA/BS2-WTHT Wireless transmitter The BAPI, BA/BS2-WTHT Wireless transmitter is a lithium battery operated, microprocessor based, 418 MHz. transmitter that transmits temperature and relative humidity and a unique 30-bit serial number. The microprocessor is brought up from a power down state every 1/60 second by an internal timer in the microprocessor. The microprocessor gathers data from either a digital sensor or the on board thermistor temperature sensor. The microprocessor converts this information to digital data and then combines the counts and with the serial number data from an onboard stored unique serial number and then transmits the entire data packet serially with a Linx Technologies TXM-418-LC-R 418 MHz. Transmitter module. The microprocessor then powers down into a quiescent state to wait for the next interrupt from the on board timer. The PC board bottom layer is a ground plane and the antenna is a 1/4-wave loop that has been etched in PC board material and placed into the ABS enclosures cover.

dBi Corporation FCC Certification Test Report BAPI Temperature/Humidity Sensor Report Number 06dBi004a (this test report replaces test report 06dBi004) Laboratory Certificate Number 1985-01 dBi Corporation 06dBi004a Page 2 of 21 ADMINISTRATIVE INFORMATION Historical record: Because dBi Corporation is a testing entity, and not a manufacturer, this original test report of the Temperature/Humidity Sensor is being transmitted to the manufacturer, Building Automation Products, Inc. (BAPI) . dBi will keep a copy for its historical records and to satisfy A2LA-Audit requirements. We strongly recommend archiving the unit that we tested to facilitate answering future inquiries regarding this product. Retention of records: The FCC requires the records for a Class A or Class B product to be retained by the responsible party for at least two years after the manufacture of said product has been permanently discontinued. These records should include the original certification or verification product report, quality audit data, and the test procedures used. The European Union requires the Declaration of Conformity (DoC) and all supporting data for a product bearing the CE Mark to be retained, and available for inspection by enforcement authorities, for 10 years after placing the product on the market. Australia and New Zealand require the Declaration of Conformity, test reports, a description of the product, documentation that clearly identifies the product, and paperwork showing the product’s brand name, model number, etc. to be kept for at least five years after the product ceases to be supplied to Australia or New Zealand. Measurement uncertainties: The Lexmark Electromagnetic Compatibility Laboratory (EMC Lab) has a documented calculation of the measurement uncertainties associated with tests performed at the Lexmark site. Ongoing compliance: This report applies only to the sample tested. The manufacturer has full responsibility for ensuring that the production models of the Temperature/Humidity Sensor comply with the FCC and CE Mark requirements, and continue to comply throughout their manufacturing life. The manufacturer should check all changes to the product that could change its interference profiles. A2LA approval: dBi Corporation has been accredited by the American Association for Laboratory Accreditation (A2LA) for Radiated Emissions and Conducted Emissions, Electromagnetic Interference, and Electrostatic Discharge testing. Copies of our Accreditation Certificate and Scope of Accreditation follow. The Federal Communications Commission (FCC) recognized the Lexmark site as meeting the requirements of section 2.948 of the FCC Rules in a letter dated December 10, 2001. This information is on file with the FCC under Registration No. 949691. Please note: This report may be copied as needed, as long as it is copied in its entirety. dBi Corporation 06dBi004a Page 3 of 21 dBi Corporation 06dBi004a Page 4 of 21 dBi Corporation 06dBi004a Page 5 of 21 dBi Corporation 06dBi004a Page 6 of 21 ADMINISTRATIVE DATA Manufacturer: Building Automation Products, Inc. 750 North Royal Avenue Gays Mills, WI 54631 Appliance/Product: Temperature/Humidity Sensor Model/Type Number: BA/BS2-WTHT FCC ID: T4F16963N16964 Rating: 3.6Vdc (Lithium batteries) Measurement Equipment used: see attached sheets. Measurements According to, and Sample Unit Complies with: FCC 47 CFR Part 15-2005, using ANSI C63.4-2003 Report Prepared By: John R. Barnes KS4GL, PE, NCE, NCT, ESDC Eng, ESDC Tech, PSE, SM IEEE Testing Performed by: dBi Corporation 216 Hillsboro Avenue Lexington, KY 40511-2105, USA Testing Performed on: March 22-25, 2006 Testing Performed at: Lexmark International, Inc. Development Lab. Lexington, KY 40550, USA Suppression Components: see attached sheet. Reviewed and Approved by: John R. Barnes KS4GL, PE, NCE, NCT, ESDC Eng, ESDC Tech, PSE, SM IEEE SIGNED_______________________________DATE__April 14, 2006__ John R. Barnes, PRESIDENT dBi Corp. dBi Corporation 06dBi004a Page 7 of 21 INFORMATION RELATING TO PRODUCT RF INTERFERENCE Appliance/Product: Temperature/Humidity Sensor Model/Type Number: BA/BS2-WTHT FCC ID: T4F16963N16964 Rating: 3.6Vdc (Lithium batteries) Suppression Components: none Clock Frequencies: 8MHz and 418MHz Cables: none Electronic Printed Circuit Boards: SM060116 Size of Product: 71mm x 27mm x 115mm high Weight of Product: 110g dBi Corporation 06dBi004a Page 8 of 21 Radiated Emissions 30-4,180 MHz (Internal Battery) Radiated Emission Standards: FCC 47 CFR Part 15-2005, using ANSI C63.4-2003; section 15.231(e) limits for 418MHz. Appliance/Product: Temperature/Humidity Sensor Model/Type Number: BA/BS2-WTHT FCC ID: T4F16963N16964 Rating: 3.6Vdc (Lithium batteries) Serial Number: 60357000 Host and Other Peripherals: None Name of Test: Radiated Interference Test Procedure: ANSI C63.4-2003 Test Location: 10m and 5m semianechoic chambers Test Distance: 3m Test Instrumentation: See attached sheets Note: Transmitting at 1 second intervals to speed up testing. For measurements under 1,000MHz we used a 20dB attenuator at the antenna to prevent signal compression. At the highest orientation/ azimuth/height based on quasipeak measurements, we measured peak, quasipeak, and average values with 0dB, 10dB, 20dB, and 30dB attenuators. The differences between the 20dB and the 30dB-attenuation values were approximately 10dB, showing that 20dB attenuation was enough. Average and peak measurements below 1,000MHz were made with the receiver in manual mode with a 100ms sample time, watching the display to catch the highest value. Because we could only catch the top two digits, we added 0.99dB to the measured value to be conservative. Test Results: Tables 1 and 2, and the Transmitted Bandwidth Data show that this unit meets the radiated interference requirements of FCC Part 15 for an intentional radiator licensed to operate at 418MHz under Section 15.231(e). . Under Section 15.231(e), the average limit for the fundamental is calcula…

Text truncated - open the document above for the full version.

750 North Royal Avenue, Gays Mills, WI 54631 USA Tel: +1-608-735-4800 • Fax: +1-608-735-4804 • E-mail:[email protected] • www.bapihvac.com Building Automation Products, Inc. Upgrade to BAPI. 100% Compatible. Guaranteed. Sensors for HVAC/R — Temperature • Humidity • Pressure • Air Quality To Whom It May Concern: TheBuilding Automation Products, Inc. Wireless Temperature and combination Temperature and Relative Humidity transmitter model BA/BS2- WTHTtransmits a 15-16 millisecond packet once each 600-10 seconds. This is identical to the data packet timing of a previously certified “M5ZWOW”. Thepacket consists of transmitter-on/transmitter-off timing that represents the serial number and vibration data. The duty cycle is approximately 50%. The packet time can vary with serial number between 14-16milliseconds. The packet data is controlled by a microprocessor whosetiming is based on a ceramic resonator that is very stable. The packetbelow (figure #2) illustrates a typical data packet, the worst case,16 milliseconds, cannot be shown because serial number would have to be forced to make this so. Figure #1 illustrates the overall timing; a packetis sent each 10 seconds in this worst case. Thebatteryused during the tests was new and was a standard 3.6 Volt Lithium cell. The battery is a 3.6 Volt Lithium chemistry, which has a flatdischarge curve from new to about 90% used. In this application the battery requires about 3 years to discharge to the point that it cannot be used.Thebattery was used for no other purpose and had operated in the testunit for only a short time when the test was performed. The label adhesive is permanent. RobertM. Novak P.E. Engineering, Building Automation Products, Inc. 750 North Royal Avenue, Gays Mills, WI 54631 USA Tel: +1-608-735-4800 • Fax: +1-608-735-4804 • E-mail:[email protected] • www.bapihvac.com Building Automation Products, Inc. Upgrade to BAPI. 100% Compatible. Guaranteed. Sensors for HVAC/R — Temperature • Humidity • Pressure • Air Quality Figure #1 Overall timing Figure #2 Packet Timing

Temperature/Humidity Sensor Test Setup Photos FCC MAXIMUM-RADIATED-EMISSIONS TEST CONFIGURATIONS TEMPERATURE/HUMIDITY SENSOR 10m SEMIANECHOIC CHAMBER LEXMARK INTERNATIONAL, LEXINGTON KY. FCC 30-1,000MHz RADIATED EMISSIONS TEST CONFIGURATION TEMPERATURE/HUMIDITY SENSOR 5m SEMIANECHOIC CHAMBER LEXMARK INTERNATIONAL, LEXINGTON KY. FCC 1,000-4,180MHz RADIATED EMISSIONS TEST CONFIGURATION TEMPERATURE/HUMIDITY SENSOR 10m SEMIANECHOIC CHAMBER LEXMARK INTERNATIONAL, LEXINGTON KY. FCC TRANSMITTED BANDWIDTH TEST CONFIGURATION TEMPERATURE/HUMIDITY SENSOR 10m/5m SEMIANECHOIC CHAMBER CONTROL ROOM LEXMARK INTERNATIONAL, LEXINGTON KY.
