T4K-5888UVVEHICLE RADIO

Dual Band FM Transceiver USER'S MANUAL 5888UV Mobile Radio Applicable Software: QPS5888UV Model Apply To This Manual: 5888UV Mobile radio Nice Housing, Stoutness & Stability, Advanced and Reliable functions, Perfect & Valuable. Approval. 5888UV mobile radio especially designs for drivers and it pursues company philosophy of innovation and practicality. NOTE 5888UV Precautions Thank you for choosing this mobile transceiver, which always provide high quality products, and this transceiver is no exception 5888UV is a ruggedly-built, high quality Dual Band FM transceiver providing 50 Watts of power output on the VHF band and 40 Watts on the UHF band. It owns many advanced characters like cross band repeat function, built with a direct-flow heat sink and thermostatically-controlled cooling fan maintaining a safe temperature for the transceiver's circuit. 5888UV has four independent receiving bands, consist of UU, UV,VU,VV for dual receive and dual output, plus receiving for AM/FM signal of air band, marine band, PMR, etc.also able to receive FM/TV radio and analogue TV signal. It owns 758 memory channels, full duplex operation with independent volume and squelch controls, optional compander and builtin CTCSS/ DCS, DTMF, 5TONE,2TONE signaling, detachable front panel for flexible installation. Though friendly design for user, this transceiver is technically complicated and some features may be new to you. Consider this manual to be a personal tutorial from the designers,allow the manual to guide you through the learning process now, then act as a reference in the coming years. Please observe the following precautions to prevent fire, personal injury, or transceiver damage: Do not attempt to configure your transceiver while driving,it is dangerous. This transceiver is designed for a 13.8V DC power supply. Don't use a 24V battery to power on the transceiver. Do not place the transceiver in excessively dusty, humid or wet areas, nor unstable surfaces. P l e a s e k e e p i t a w a y f r o m interferential devices (such as TV, generator etc.) Do not expose the transceiver to long periods of direct sunlight nor place it close to heating appliances. If an abnormal odor or smoke is detected coming from the transceiver, turn OFF the power immediately. Contact an Anytone service station or your dealer. Do not transmit with high output power for extended periods; the transceiver may overheat. CONTENTS New and Innovative Features ...................................................1 Frequency Range ...................................................................1 Supplied Accessories/Optional Accessories ..........................2 Supplied Accessories ..............................................................2 Optional Accessories ..............................................................2 Initial Installation .......................................................................3 Mobile installation ...................................................................3 DC Power Cable Connection ..................................................4 Antenna Connection ...............................................................6 Accessories Connections ........................................................7 Getting Acquainted ...................................................................8 Front panel ..............................................................................8 Rear panel ..............................................................................9 DISPLAY .................................................................................9 microphone ...........................................................................10 Basic Operations .....................................................................11 Switching The Power On/Off .................................................11 Adjusting The Volume ..........................................................11 Switch between VFO and Channel mode .............................11 Adjusting Frequency .............................................................11 Adjusting Channel .................................................................11 Switch Between Main Band and Sub band ...........................12 Selecting the frequency band ...............................................12 Receiving ..............................................................................12 Squelch Off/Squelch Off Momentary .....................................12 Transmitting ..........................................................................12 Shortcut Operations ................................................................13 Squelch level Setup ..............................................................13 Transmit DTMF/2TONE/5TONE signaling ............................13 High/Mid/Low Power Switch .................................................13 Frequency Reverse ...............................................................13 Band-width Selection ............................................................13 HOME Channel .....................................................................13 Super channel select ............................................................13 Dual Watch............................................................................14 Emergency Alarm ..................................................................14 Channel/Frequency Scan .....................................................14 Channel Scan Skip ...............................................................14 Channel Edit .........................................................................14 Scan range Limit ..................................................................14 Channel Copy .......................................................................14 Channel Delete .....................................................................15 General Setting ..........................................…

Text truncated - open the document above for the full version.

Nov.20, 2012 Federal Communication Commission Authorization and Evaluation Division FCC ID: T4K-5888UV Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List 5:Tune Up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Qixiang Electron Science & Technology Co., Ltd Ken Xu /General Manager

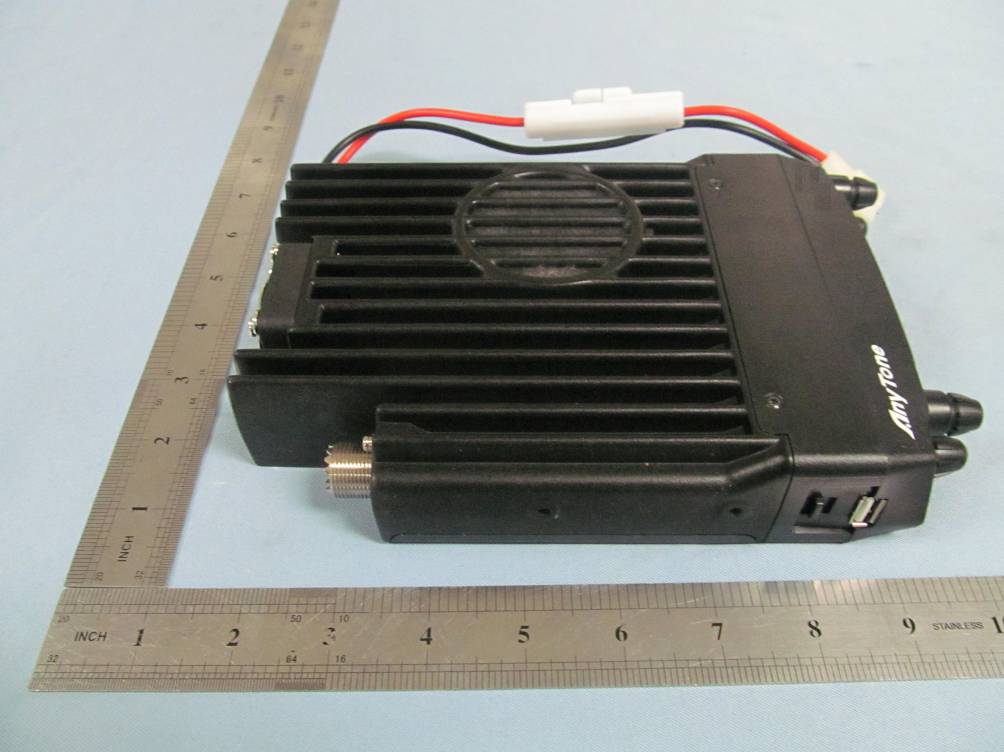

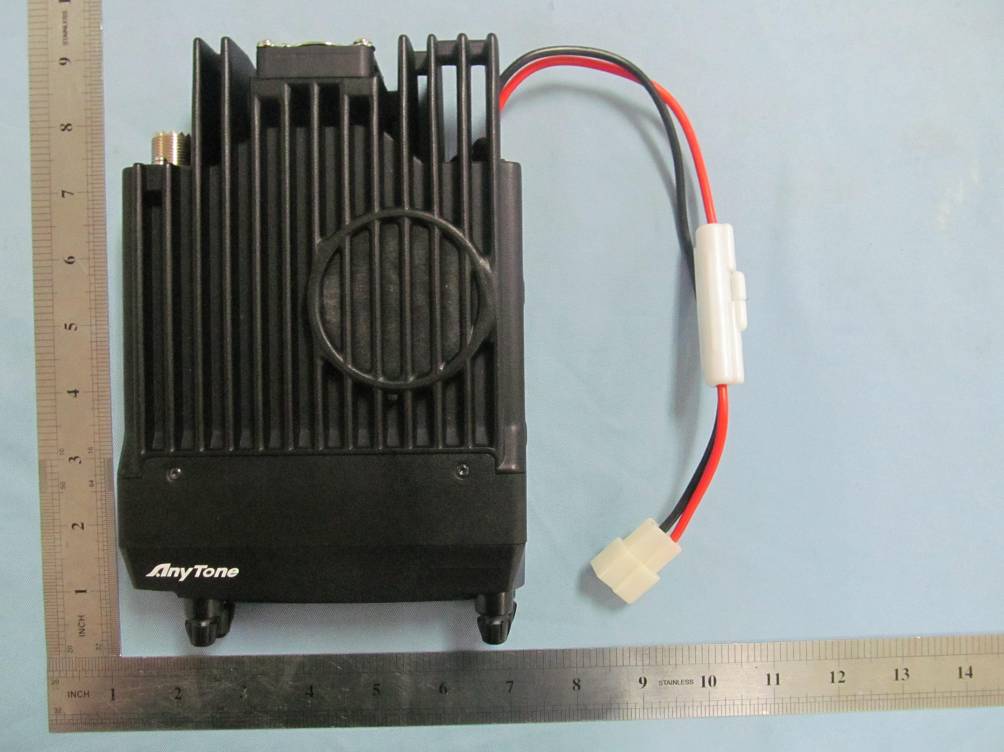

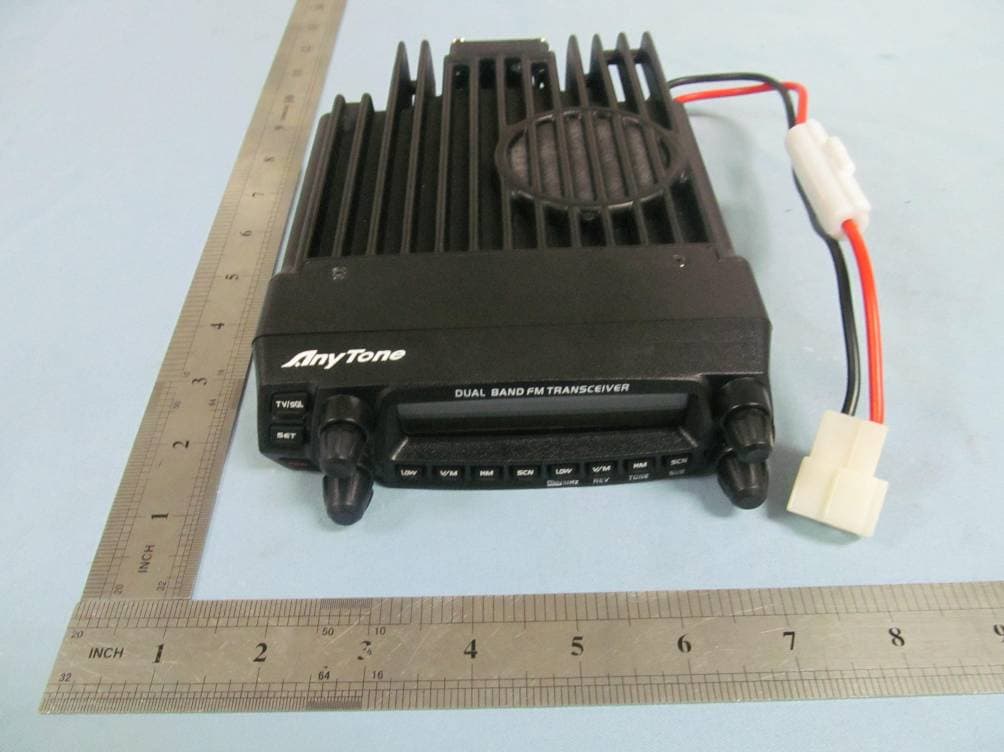

TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location Land Mobile Radio FCC ID: T4K-5888UV Brand: Anytone Model : 5888UV 5889UV, 5888UV1, 5888UV2, 5888UV3, 5888UV4, 5888UV5, 5888UV6, 5888UV7, 5888UV8, 5888UV9, 588UV, DB‐750X, HR‐2040, DB‐50M

OPEN VIEW1 OF EUT OPEN VIEW2 OF EUT OPEN VIEW3 OF EUT INTERNAL VIEW OF EUT – 1 INTERNAL VIEW OF EUT - 2 INTERNAL VIEW OF EUT – 3 INTERNAL VIEW OF EUT - 4 INTERNAL VIEW OF EUT – 5 INTERNAL VIEW OF EUT - 6 INTERNAL VIEW OF EUT - 7 INTERNAL VIEW OF EUT - 8

OET Bulletin 65 (MPE) Test Report Report No.: AGC02X121101‐1F7 FCC ID : T4K‐5888UV PRODUCT DESIGNATION : Land Mobile Radio BRAND NAME : Anytone MODEL NAME : 5888UV,5889UV,5888UV1, 5888UV2, 5888UV3,5888UV4, 5888UV5, 5888UV6, 5888UV7, 5888UV8, 5888UV9,588UV, DB‐750X, HR‐2040,DB‐50M CLIENT : Qixiang Electron Science & Technology Co., Ltd DATE OF ISSUE : Nov. 17, 2012 STANDARD(S) : OET Bulletin 65 Attestation of Global Compliance Co., Ltd. 1. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC02X121101-1F7 Page 1 of 7 TABALE OF CONTENTS TABALE OF CONTENTS .................................................................................................................................. 1 1. TEST RESULT CERTIFICATION ................................................................................................................. 2 2. TECHNICAL INFORMATION....................................................................................................................... 3 2.1 EUT DESCRIPTION ..................................................................................................................................... 3 3. RF EXPOSURE MEASUREMENT .............................................................................................................. 4 3.1 INTRODUCTION .......................................................................................................................................... 4 3.2 FCC LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE(MPE) .............................................................. 5 4. CLASSIFICATION OF THE ASSESSMENT METHODS ............................................................................... 6 Report No.: AGC02X121101-1F7 Page 2 of 7 1. TEST RESULT CERTIFICATION Applicant Name: Qixiang Electron Science &Technology Co., Ltd Address: Qixiang Building, Tangxi Industrial Zone, Luojiang District, Quanzhou, Fujian, China Manufacturer Name: Qixiang Electron Science & Technology Co. Ltd Address: Qixiang Building, Tangxi Industrial Zone, Luojiang District, Quanzhou, Fujian, China Product Description: Land Mobile Radio Brand Name: Anytone Model Number: 5888UV,5889UV,5888UV1, 5888UV2, 5888UV3,5888UV4, 5888UV5, 5888UV6, 5888UV7, 5888UV8, 5888UV9,588UV, DB-750X, HR-2040,DB-50M Model Difference: All the same except for appearance. test model is 5888UV. Test Standard OET Bulletin 65 (Edition 97-01) Supplement C (Edition 01-01) File Number: AGC02X121101-1F2 Date of Test: Nov.12,2012~Nov.17,2012 We (AGC), Attestation of Global Compliance Co., Ltd. for compliance with the requirements set forth in the European Standard OET Bulletin 65 (Edition 97-01) Supplement C (Edition 01-01) The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By Bart Xie Nov. 17, 2012 Reviewed By Forrest Lei Nov. 17, 2012 Approved By Solger Zhang Nov. 17, 2012 Report No.: AGC02X121101-1F7 Page 3 of 7 2. TECHNICAL INFORMATION Note: the following data is based on the information by the applicant. 2.1 EUT DESCRIPTION Communication Type Voice / Tone only Modulation FM Emission Type F3E Channel Separation: 12.5KHz Emission Bandwidth 10.633KHz Peak Frequency Deviation 1.82KHz Audio Frequency Response 10.71dB Maximum Transmitter Power 46.87dBm Antenna Designation Detachable Power Supply DC13.8V/10A Limiting Voltage DC 10.2V Operation Frequency Range and Channel Frequency Range: 136~174MHz and 400~ 520MHz Channel Separation: 12.5KHz 136 to 174MHz, Bottom Channel:136.025MHz Centre Channel:155.225 Top Channel:173.975 400MHz to 520MHz Bottom Channel: 400.025MHz, Centre Channel: 435.325MHz, Top Channel: 519.975MHz, Frequency Tolerance 1.862ppm Antenna Gain 2dBi Note: 1. For more details, please refer to the User’s manual of the EUT. Report No.: AGC02X121101-1F7 Page 4 of 7 3. RF EXPOSURE MEASUREMENT 3.1 INTRODUCTION Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 2.5 cm or more from persons. The 1992 ANSI/IEEE standard (See Listed limit table) specifies a minimum separation distance of 1cm for performing reliable field measurements to determine adherence to MPE limits. If the minimum separation distance between a transmitter and nearby persons is more than 2.5 cm under normal operating conditions, compliance with MPE limits may be determined at such distance from the transmitter. When applicable, operation instructions and prominent warning labels may be used to alert the exposed persons to maintain a specified distance from the transmitter or to limit their exposure durations and usage conditions to ensure compliance. Report No.: AGC02X121101-1F7 Page 5 of 7 3.2 FCC LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE(MPE) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f=Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirements for mobile and portable transmitters. Report No.: AGC02X121101-1F7 Page 6 of 7 4. CLASSIFICATION OF THE ASSESSMENT METHODS The antenna of the product, under normal use condition is at least 2m away from the body of the user. Warning statement to the…

Text truncated - open the document above for the full version.

FCC Part 90 Test Report Report No.: AGC02X121101‐1F2 TEST NAME : FCC Part 90 FCC ID : T4K‐5888UV PRODUCT DESIGNATION : Land Mobile Radio BRAND NAME : Anytone MODEL NAME : 5888UV,5889UV,5888UV1, 5888UV2, 5888UV3,5888UV4, 5888UV5, 5888UV6, 5888UV7, 5888UV8, 5888UV9,588UV, DB‐750X, HR‐2040,DB‐50M CLIENT : Qixiang Electron Science & Technology Co., Ltd DATE OF ISSUE : Nov. 17, 2012 STANDARD(S) : FCC Part 90 Rules Attestation of Global Compliance (Shenzhen) Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC02X121101-1F2 Page 1 of 64 VERIFICATION OF COMPLIANCE Applicant: Qixiang Electron Science & Technology Co., Ltd Qixiang Building, Tangxi Industrial Zone, Luojiang District, Quanzhou, Fujian, China Manufacturer: Qixiang Electron Science & Technology Co., Ltd Qixiang Building, Tangxi Industrial Zone, Luojiang District, Quanzhou, Fujian, China Product Description: Land Mobile Radio Brand Name: Anytone Model Name: 5888UV,5889UV,5888UV1,5888UV2,5888UV3,5888UV4,5888UV5,5888UV6, 5888UV7,5888UV8,5888UV9,588UV,DB-750X,HR-2040,DB-50M Model Difference: All the same except for appearance. test model is 5888UV. File Number: AGC02X121101-1F2 Date of Test: Nov.12,2012~Nov.17,2012 We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C 63.4:2003 and TIA/EIA 603. The sample tested as described in this report is in compliance with the FCC Rules Part 90 requirements. The test results of this report relate only to the tested sample identified in this report. Tested By Bart Xie Nov. 17, 2012 Reviewed By Forrest Lei Nov. 17, 2012 Approved By Solger Zhang Nov. 17, 2012 Report No.: AGC02X121101-1F2 Page 2 of 64 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................. 4 1.1 PRODUCT DESCRIPTION ....................................................................................................................... 4 1.3 TEST METHODOLOGY ........................................................................................................................... 5 1.4 TEST FACILITY ........................................................................................................................................ 5 1.5 SPECIAL ACCESSORIES ....................................................................................................................... 5 1.6 EQUIPMENT MODIFICATIONS ............................................................................................................... 5 2. SYSTEM TEST CONFIGURATION ................................................................................. 6 2.1 EUT CONFIGURATION ............................................................................................................................ 6 2.2 EUT EXERCISE ........................................................................................................................................ 6 2.3 GENERAL TECHNICAL REQUIREMENTS............................................................................................. 6 2.4 CONFIGURATION OF TESTED SYSTEM ............................................................................................. 6 3. SUMMARY OF TEST RESULTS .................................................................................... 7 4. DESCRIPTION OF TEST MODES .................................................................................. 8 5. CONDUCTED LIMITS ..................................................................................................... 9 5.1 PROVISIONS APPLICABLE .................................................................................................................... 9 5.2 MEASUREMENT PROCEDURE .............................................................................................................. 9 5.3 TEST SETUP BLOCK DIAGRAM .......................................................................................................... 10 5.4 TEST EQUIPMENT USED ..................................................................................................................... 10 5.5 TEST RESULT ........................................................................................................................................ 11 6. FREQUENCY TOLERANCE ......................................................................................... 12 6.1 PROVISIONS APPLICABLE .................................................................................................................. 12 6.2 MEASUREMENT PROCEDURE ............................................................................................................ 12 6.3 TEST SETUP BLOCK DIAGRAM .......................................................................................................... 13 6.4 TEST EQUIPMENT USED: .................................................................................................................... 13 6.5 TEST RESULT ........................................................................................................................................ 14 7. EMISSION BANDWIDTH .............................................................................................. 18 7.1 PROVISIONS APPLICABLE .................................................................................................................. 20 7.2 MEASUREMENT PROCEDURE ............................................................................................................ 20 7.3 TEST SETUP BLOCK DIAGRAM .......................................................................................................... 20 7.4 MEASUREMENT EQUIPMENT USED: ..............…

Text truncated - open the document above for the full version.

RADIATED TEST SETUP
