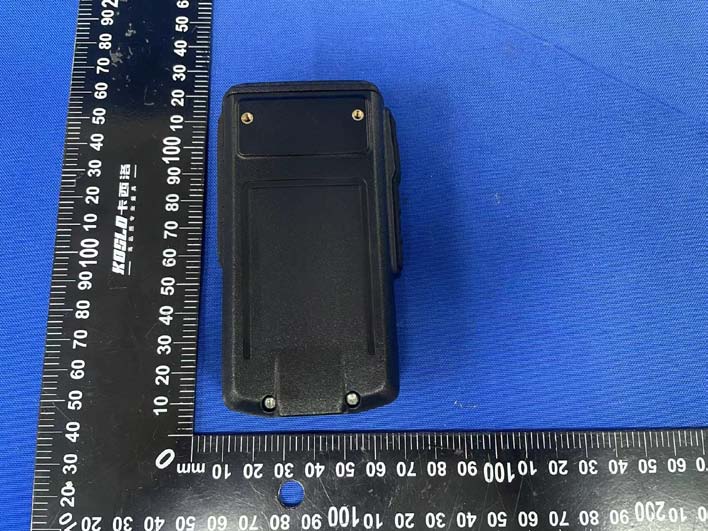

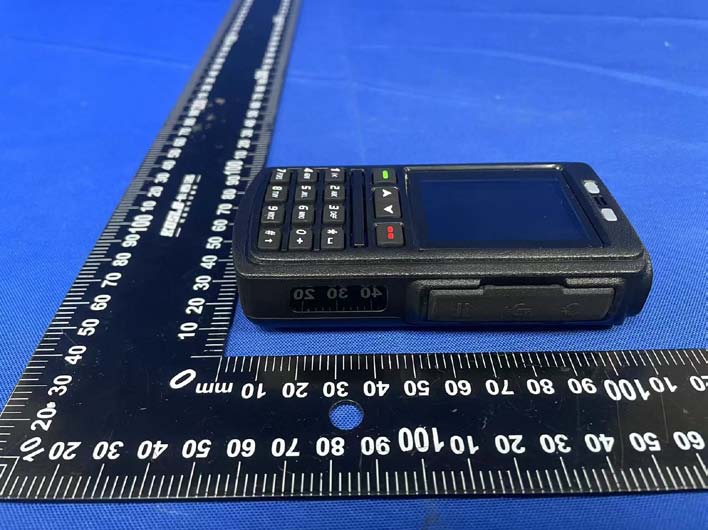

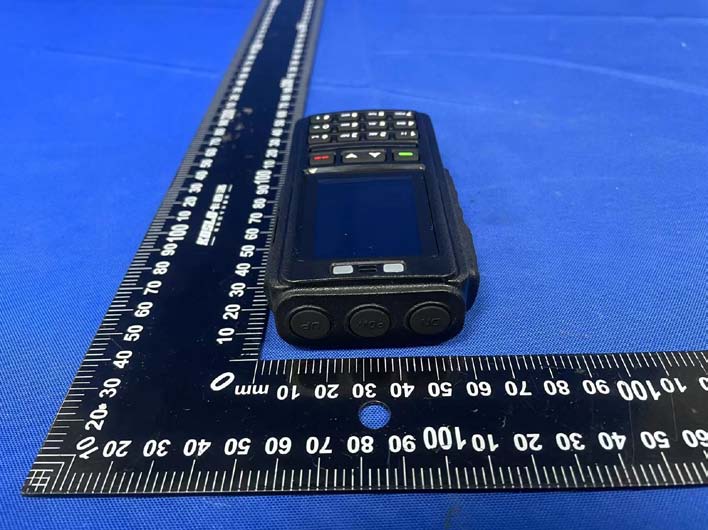

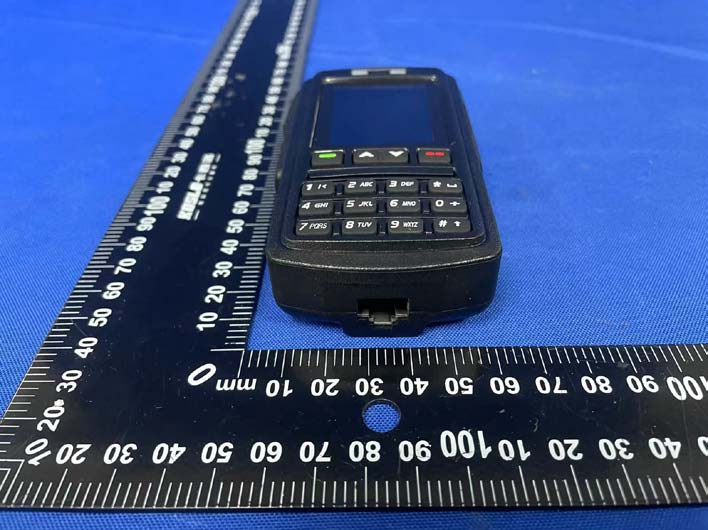

T4K-BT01Bluetooth Microphone

A1.221 111 www .anytone.net BT01 Us er Guide Bl uetooth Microphone 1 Precautions P lease read the following regulations carefully before using this product. The following regulations will help you understand and fulfill your obligations in the warranty terms. 1. Without permission, please do not try to disassemble or modify the BT01 Bluetooth Microphone. The handling of the Bluetooth Microphone by non-professionals may cause damage. 2. Please don't put the Bluetooth Microphone in a dusty or damp place. 3. Please abide by the walkie-talkie usage rate of 1 minute for transmission and 4 minutes for reception. Long-term transmission or continuous use in high-power mode will cause the AT-D578UV mobile radio to heat up. 4. Please charge the BT01 Bluetooth Microphone before using it. 5. After the BT01 Bluetooth Microphone is turned on, it will automatically enter the pairing state. Before use, please turn on the Bluetooth function of the AT-D578UV mobile radio, and pair it with the BT01 Bluetooth microphone. Thank you for purchasing Anytone BT01 Bluetooth Microphone. This product uses a dedicated master-slave Bluetooth module to realize wireless talk and wireless operation settings for all functions of the AT-D578UV DMR mobile radio. Combined with the noise reduction function, it can effectively reduce background noise and ambient noise to achieve high-definition intercom. 2 When you receive the BT01 microphone, please access the AT- D578UV Menu-Setting-Device Info to check the version first, make sure the radio is upgraded to the latest version to get the BT-01 microphone working correctly. Latest firmware is available for download on https://www.anytone. net/download page. APPLICABLE MODELS BT MODECABLE MODE A T-D578UV/ AT-D578UVIII No GPS, No BT A T-D578UV PRO/ AT-D578UVIII PRO With GPS and BT A T-D578UV PLUS/ AT-D578UVIII PLUS With GPS and BT Model Name Firmware SCT3258 BT module Software APRS board AT-D578UV/ AT-D578UVIII No GPS, No BT D578UV Ver1.17 or higher V2.01.07BF or higher N/AN/A AT-D578UV PRO/ AT-D578UVIII PRO With GPS and BT D578UV Ver1.17 or higher V2.01.07BF or higher ET12_AQQX_ V10043 or higher N/A AT-D578UV PLUS/ AT-D578UVIII PLUS With GPS and BT D578UVII Ver2.04 or higher V2.01.07BF or higher ET12_AQQX_ V10043 or higher V1.06 or higher 3 1.Accessories 2.Charge The Battery Charging Instructions 1. Insert the USB plug of the charging cable into the power adapter. 2. Plug the power adapter into the AC power outlet. 3. Insert the other end of the charging cable into the charging/ upgrade interface of the radio. 4. The red charging indicator of the BT01 Bluetooth Microphone is on. 5. When the red charging indicator of the BT01 Bluetooth microphone goes out, the charging is complete. Belt Clip WWZZ-0005 User's Manual » US B Adaptor and Cigarette light charger must be 5V voltage and ≥1A current output. 4 3.Getting Started Indicator Instructions Indicator Colo rStatus Left light redTransmit Right light red Charge the battery Right light greenReceive Right light red blinkingBattery voltage is low PTT PF2 PF1 PF3 MIC Headset Jack USB charge/ Firmware upgrade Speaker RJ45 connector Indicator UPPOWDN 5 » To make the BT MODE work correctly, make sure the AT- D578UV firmware is 2.04 or higher version. And the BT software shall be V10043 or higher version. » Only the AT-D578UV PRO/AT-D578UVIII PRO, AT-D578UV PLUS/AT-D578UVIII PLUS with built-in bluetooth module, are able to work at BT mode. 4.Basic Operation 4.1- Power ON Pre ss the top [POW] button on microphone, the right green indicator light on, later the screen displays "Select Port", press or to choose the connect mode: BT MODE: Connect the BT01 microphone to AT-D578UV mobile radio through Bluetooth. CABLE MODE: Connect the BT01 microphone to AT-D578UV mobile radio through 4m cable. Click on "confirm" to select the connect mode. 4.2- BT MODE connect to AT-D578UV After select "BT MODE " on microphone, it will display BT NAME and "NO DEVICE CONNECTED" when no radio is connected. In this state, the BT pairing shall be done on AT-D578UV. a.Enter into AT-D578UV radio Menu Bluetooth BT On/Off, set it ON. b.Switch to AT-D578UV radio Menu Bluetooth BT Pairing, select "Seek BT". c.AT-D578UV radio displays "Seeking BT", it will take some time to do the pairing. d.AT-D578UV radio displays "ALL DATA CHECKING", the display content of the AT-D578UV radio will be mapped to the Bluetooth microphone. 6 » O nce the BT pairing is done, the BT microphone will automatically connect to AT-D578UV radio after reboot. 4.3- CABLE MODE connect to AT-D578UV Af ter select "CABLE MODE" on microphone, it will display "NO DEVICE CONNECTED" when no radio is connected. Use the 4m cable to connect the microphone to radio, AT-D578UV displays "ALL DATA CHECKING", the display content of the AT- D578UV radio will be mapped to the Bluetooth microphone. A T-D578UV radio displays "EXTERNAL CABLE MODE" on the screen, BT01 microphone is able to access the radio menu and do communications now. In Cable mode, the BT01 microphone is being charged when the channel is free. 4.4- Power Off P ress and hold the top [POW] button on microphone to turn off the microphone. AT-D578UV radio will be powered off automatically when BT microphone is off. 4.5- Adjust The Volume In s tandby state, press the top [POW] button to switch the [CH-] / [CH+] button for volume adjust use. When screen shows "UpDn Key: Vol Set " , press [CH-] to reduce the volume, press [CH+] to increase the volume. e.AT-D578UV radio displays "EXTERNAL BT MODE" on the screen, the pairing is done. BT0 1 microphone is able to access the radio menu and do communications now. 7 » If the volume is adjusted to the maximum and you still consider it is not loud enough. » In BT MODE, you can enter into Menu ->Bluetooth->RfBT SPK Gain to adjust the Bluetooth gain level and increase the volume. 4.7- Select a Channel P ress the assigned [VFO/MR] key to switch the radio into channel mode, and then press the top [POW] button to switch t…

Text truncated - open the document above for the full version.

QA-FR-170-B Qixiang Electron Science& Technology Co., Ltd Add: Qixiang Building, Tangxi Industrial Zone, Luojiang, Quanzhou, Fujian, 362011 China Tel: 86-592-22652998 Fax: 86-595-22656927 Email: [email protected] FCC Authorization Date: 2022-10-09 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Qixiang Electron Science& Technology Co., Ltd, Hereby authorizes Shenzhen Accurate Technology Co., Ltd. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co., Ltd. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Ken Xu Title: Manager

QA-FR-171-A Qixiang Electron Science& Technology Co., Ltd Add: Qixiang Building, Tangxi Industrial Zone, Luojiang, Quanzhou, Fujian, 362011 China Tel: 86-592-22652998 Fax: 86-595-22656927 Email: [email protected] FCC Confidential Authorization Date: 2022-10-09 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: T4K-BT01 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Qixiang Electron Science& Technology Co., Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Ken Xu Title: Manager

Qixiang Electron Science& Technology Co., Ltd Add: Qixiang Building, Tangxi Industrial Zone, Luojiang, Quanzhou, Fujian, 362011 China Tel: 86-592-22652998 Fax: 86-595-22656927 Email: [email protected] DECLARATION OF SIMILARITY Date: 2022-10-09 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: We, Qixiang Electron Science& Technology Co., Ltd, hereby declare that the product: Bluetooth Microphone, FCC ID: T4K-BT01. Model: BT02, BT03, BT04, BT05, BT06are electrically identical with the model: BT01 which was tested by Shenzhen Accurate Technology Co., Ltd. with the same electromagnetic emissions and electromagnetic compatibility characteristics. A description of the differences between those models and that are declared similar are as follows: They are the same product, and just the different model name, the rest are the same. Please contact me should there be need for any additional clarification or information. Best Regards, Signature: Printed Name: Ken Xu Title: Manager
