T4K-QZQX3318Two Way Radio

A1.0-12/07 A1.0-13/03 DU AL BAND HANDHELD RADIO IN STRUCTION MANUAL TWO WAY RADIO FCC ID:T4K-QZQX3318 THANK YOU! transceiver introduces innovative DSP digital signal processing technology, high degree integration, it is including kinds of professional function, best stability and great reliability as well as exterior smooth lines, novel, fashionable, sturdy and durable. The transceiver is including plenty of TX, RX channels, as well as UU,VV and UV standby modes which is able to realize cross band function (Version C), 51 groups of CTCSS encode/decode and 1 group of user-defined CTCSS encode/decode, 1024 groups of DCS encode/decode, 5TONE/2TONE encode/ decode(optional), DTMF encode/decode, built-in FM radio functions, etc.. It is a meticulous build functional and Multi frequency band radio for radio amateur. Versions To meet different requirements of users, we provide A,B,C,D four versions with different frequency bands, convenient for user optional. Version A: Dual frequency, dual standby, dual display, dual band, single receive channel. Version B: Dual frequency, dual standby, dual display, tri band, 350-390MHz is able to combine with UHF or VHF be dual frequency to receive signal at same time. Version C: Dual frequency, dual standby, dual display, dual band, dual receive channel, main band and sub band can receive signal at same time. Version D: Dual frequency, dual standby, dual display, multi band, dual receive channel, air band and 4 band FM. MODELS APPLY TO THIS MANUAL PROGRAM CAUTIONS When programming the transceiver, read the factory initial data first, then rewrite the frequency and signaling etc., other wise errors may occur because of different frequency band etc. transceiver will provide you with reliable, clear and efficient communication service. The The 3318UV FM transceiver 3318UV(Version A,C,D) programming software: QPS3318UV 3318UV(Version B) programming software: QPS3318UV_B CAUTIONS performing your obligation under warranty and understanding the safety of transceiver usage. 1. Keep the transceiver and accessories away from children. 2 .Please do not try to open or modify the transceiver without permission, non-professionals operation may also cause damage. 3.Please use assorted battery and charger to avoid damage. 4.Please use assorted antenna to ensure the communication distance. 5.Please avoid exposing the radio under the sunshine for a long time or storing it in too hot places. High temperature will shorten the life of electronic devices. 6.Please avoid storing the radio in the dusty, dirty and damp areas. 7.Please keep the radio dry. Do not wash radio with ardent chemicals and detergents. 8.Do not transmit without antenna. 9.When using this transceiver, we recommend transmitting for 1 minute then receiving for 4 minutes. continuously transmitting for long time or working in high power will heat the back of the transceiver. Do not place the transceiver's hot back close to any plastics. 10.If any abnormal smell or smoke coming from the transceiver, please turn off the power instantly and take off the battery and its case. Then contact local dealers. NOTE： All the above tips apply for your transceivers' accessories. If any device can not operate normally, please contact with local dealers. If you use any accessories made by other companies, company does not guarantee the operability and safety of the transceiver. transceiver is excellent designed with advanced technology. The following tips will be helpful for you in The I TABLE OF CONTENTS UNP ACKING ................................................................................................................................................................................................01 Supplied Accessories ......................................................................................................................................................................... 01 ST ANDARD ACCESSORIES/ADDITIONAL ACCESSORIES ...............................................................................02 Standard Accessories ..........................................................................................................................................................................02 Additional Accessories ........................................................................................................................................................................02 OPERATION MODE (AMATEUR TRANSCEIVER OR PROFESSIONAL TRANSCEIVER) ......... 03 WORKING MODE (AMATEUR TRANSCEIVER OR PROFESSIONAL TRANSCEIVER) ..............04 BATTERY INFORMATION ................................................................................................................................................................. 05 Charging Operation ..............................................................................................................................................................................05 Battery Charger Type ...........................................................................................................................................................................05 Notice for Charging Battery ..............................................................................................................................................................05 How to Charge ........................................................................................................................................................................................06 Charging Prompt ....................................................................................................................................................................................08 How to Store the Battery ....................................................................................................................................................................08 INST ALLATION & CONNECTION ................…

Text truncated - open the document above for the full version.

Qixiang Electron Science& Technology Co., Ltd Qixiang Building, Tangxi Industrial Zone, Luojiang Quanzhou, Fujian, China Tel: 86-592-22652998 Fax: 86-595-22656927 Apr.22.2014 To: Federal Communication Commission Authorization and Evaluation Division Subject: Attestation statement regarding the Land Mobile Radio frequency TYPE OF QEUIPMENT: Licensed Non-Broadcast Transmitter Held to Face FCC ID: T4K-QZQX3318 Dear Sir or Madam I attest that the product could program the frequence on computer through interface by manufacturer, is incapable of tuning, or readily being altered, by the end-user. Please contact the undersigned if you have any questions or need any further information. Regards Qixiang Electron Science& Technology Co., Ltd Signature: Name, Job Title and Dept.: Ken Xu / General Manager

Feb.25, 2014 Federal Communication Commission Authorization and Evaluation Division FCC ID: T4K-QZQX3318 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List 5.Tune Up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Qixiang Electron Science& Technology Co., Ltd Contact person: Ken Xu Title: General manager

Feb.25, 2014 Federal Communication Commission Authorization and Evaluation Division Subject: FCC ID: T4K‐QZQX3318 Justification Letter for Expanded Frequency Range 136‐174MHz&400‐480MHz Gentlemen; You have asked Qixiang Electron Science& Technology Co., Ltd for justification to have the freq range 136‐174MHz&400‐480MHz appears on the face of the FCC Grant of Certification for a FCC Part 90 Certification. This frequency range is regarded as usual & customary by United States Federal Government and its various departments, user organizations and the military to appear on the face of the equipment Grant of Certification. Sincerely, Qixiang Electron Science& Technology Co., Ltd Ken Xu /General Manager

Qixiang Electron Science& Technology Co., Ltd Qixiang Building, Tangxi Industrial Zone, Luojiang Quanzhou, Fujian Date: Feb.25, 2014 Statement We, Qixiang Electron Science& Technology Co., Ltd states that our device, FCC ID: T4K‐QZQX3318 , has no space to put the label except the battery compartment of this device. It is visible to the users as they purchase the products and install the battery. Regards Company: Qixiang Electron Science& Technology Co., Ltd Contact Person: Ken Xu Title: General Manager

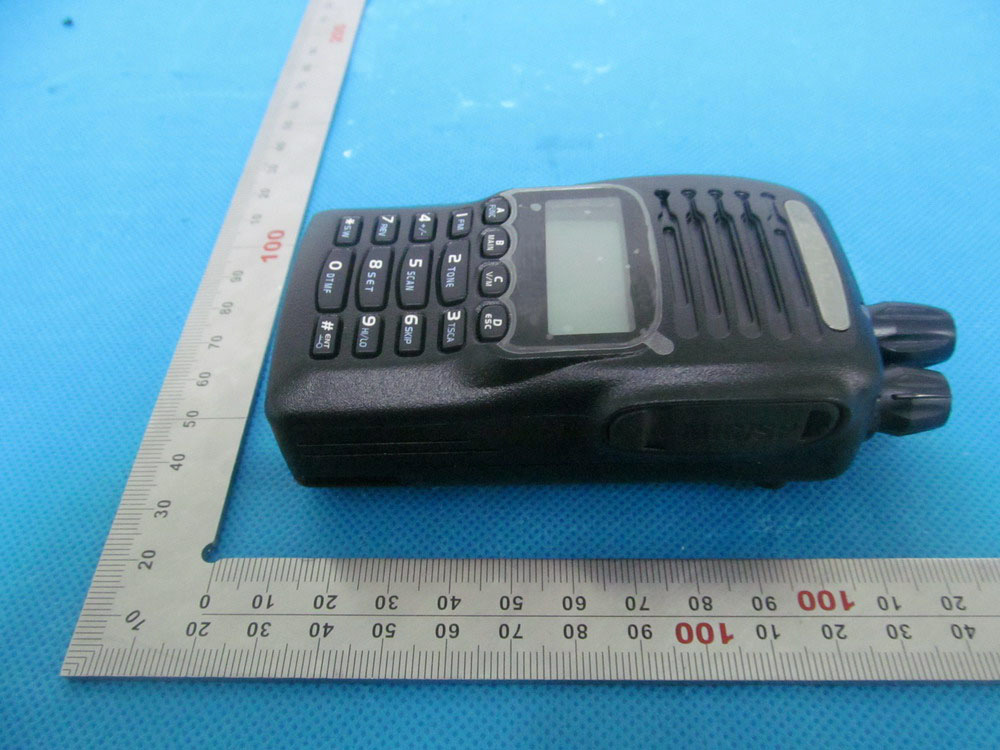

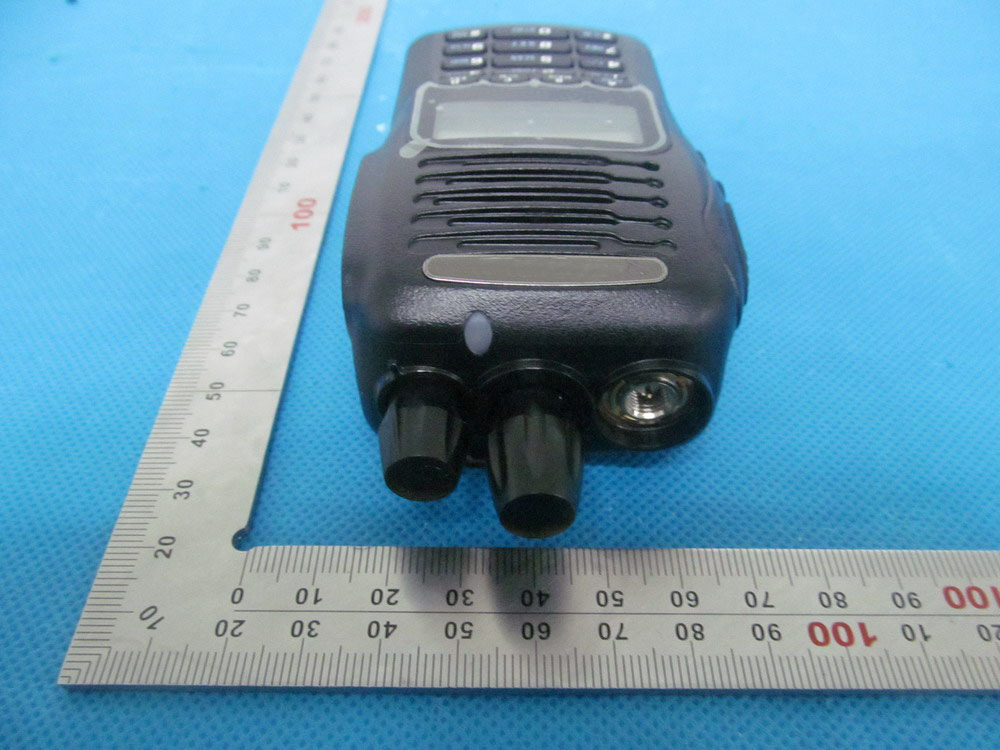

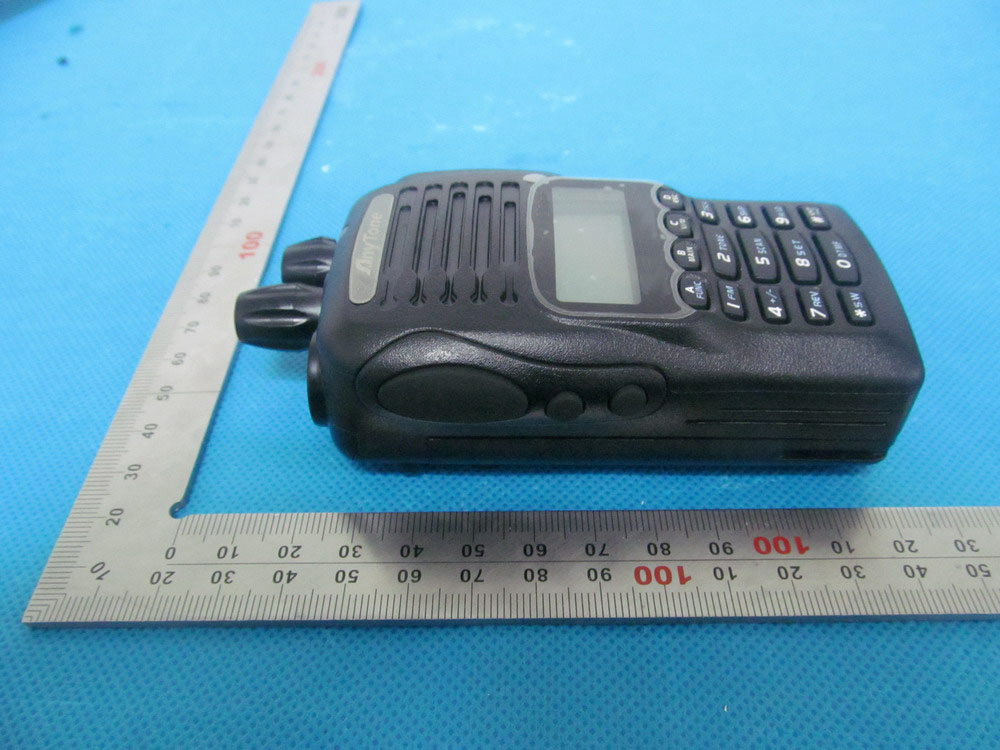

External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC RF Warning Label TWO WAY RADIO Model: 3318UV FCC ID: T4K-QZQX3318 398UV,938UV,318UV ,518UV,3208UV

Internal Photos OPEN VIEW-1 OF EUT OPEN VIEW-2 OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT
