T4K-SMARTCB Radio

1.KNOW ABOUT THIS RADIO2.HOW TO USE THIS RADIO 12 CB RADIO SMART Instruction Manual 1 Squelch control, SQ, ASQ switch key 2 Mode/Scan key 3 RF Gain control 4 CH9/CH19/Keypad lock/VOX control/VOX setting 5 Power On/Off Volume control 6 LCD 7 External speaker Jack 8 Antenna Jack 8 7 2.4 Squelch level control(O.F to 3.4 level available) ........................... 2.5 ASQ control(A.1-A.9 level available) .............................................. 1. Short press , until LCD displays SQ and then displays X.X, X.X stands for SQ level, the bigger value stands for high squelch level. 2. Short press [ UP ] or [ DN ] to change SQ level. 3. Hold [ UP ] or [ DN ] can fast change SQ level. 4. Short press or wait for 3 seconds to store and exit. » » Note：The»higher»SQ»level»selected,»the»stronger»signal»required»to» open»speaker»and»hear»the»calling. 1. Hold key, until LCD displays AQ, the ASQ function turned on. The LCD will displays "A.X", "X" stands for the ASQ level, the bigger value stands for high squelch level. 2. Short press microphone [ UP ] or [ DN ] to change ASQ level 3. Hold microphone [ UP ] or [ DN ] can fast change ASQ level. 4. Short press or wait for 3 seconds to store and exit. » » Note：The»higher»ASQ»level»selected,»the»stronger»signal»required»to» open»speaker»and»hear»the»calling. 2.3 Channel Control .................................................................................. 1. Short press microphone [ UP ] or [ DN ] to change working channel. 2. Hold microphone [ UP ] or [ DN ] can fast change working channel. 2.1 Power On/Off the Radio .................................................................... 2.2 Volume control .................................................................................... 1. Turn VOL switch clockwise to power on the radio, the LCD displays the Norms and then displays channel number. 2. Turn VOL switch anti-clockwise, until hear Ka Ta, the radio is powered off. Turn clockwise to increase volume, anti-clockwise to decrease volume. Qixiang Electon Science & Technoloyg Co.,Ltd. www.anytone.net VOX 6 123 4 5 Note: Ant : Tx/ Rx 26.965-27.405Mhz , To get the best range from the external whip antenna (50 ) should be used. 0 dBi nominal (3dBi Max) 3.SPECIFICATION2.HOW TO USE THIS RADIO2.HOW TO USE THIS RADIO 345 A1.210308 GENERAL Modulation Mode AM Frequency Range 26.965-27.405MHz Frequency Tolerance±5.0ppm Input Voltage12V Dimensions140x161.5x41mm Weight608g Operating Temperature Range-20°C to +50°C Current Drain Transmit3A MAX ReceiveSquelched 0.3A VOL Max0.7A Antenna ConnectorUHF, SO-239 TRANSMITTER Power Output4 Watts AM Transmission interferenceinferior to 4nW Frequency Response300-3000Hz Modulated signal distortioninferior to 5% Output Impedance50 ohms RECEIVER SensitivityLess than 1uV for 10dB(S+N)/N Image Rejection70dB Adjacent Channel Rejection60dB IF Frequencies 1st 10.695MHz 2nd 455KHz Automatic Gain Control(AGC) Less than 10dB change in audio Output for inputs from 10 to 50000uV Squelchless than 1uV Audio Output Power1Watts at 8Ω less than 10% distortion Frequency Response300-3000Hz » » Note：When»RFG»function»is»on»the»LCD»displays»RFG,»if»RFG»level»is»6» means»the»attenuation»»is»6dBm. » » Note：In»lock»Mode»all»keys»except»PTT»is»valid. 2.7 RF Gain contro .................................................................................... 2.8 Emergency Channel .......................................................................... 2.9 Keypad Lock ........................................................................................ 1. Short press key, LCD displays RFG and the present RF gain level flashes. 2. Short press microphone [ UP ] or [ DN ] to change level. 3. Short press [PTT] switch to exit RF gain level control. 1. Short press key to choose CH9, the channel number flashes. 2. Short press key again to choose CH19, the channel number flashes. 3. Short press key third time to return to last normal channel. 1. Hold key for over 3 seconds to lock the keys, LCD displays "". 2. Hold key for over 3 seconds again to unlock the keys, "" disappears form LCD. 2.10 VOX control ........................................................................................ 1. Press and hold [PTT] switch; 2. Short press key to activate or deactivate the VOX function. "" is displayed when the function is active. » » Note：The»VOX»function»allows»transmitting»by»speaking»into»the» original»microphone»without»pressing»the»PTT»switch. » » In»order»to»prevent»the»VOX»function»from»being»triggered»by»mistake,» the»radio»will»automatically»turn»off»the»VOX»function»after»it»is»powered» off. 2.11 VOX Setting ........................................................................................ 1. Turn on the power while pressing key enter the VOX function setting. " " flashes in the LCD. 2. Short press key to choose wanted setting. LX: stands for sensitivity level. allows the adjustment of the microphone for an optimum transmission quality. Adjustable level form 1 (high sensibility) to 9 (low sensibility) tX: stands for delay time. allows avoiding the sudden cut of the transmission by adding a delay at the end of speaking. The level is adjustable form 1 (short time delay) to 9 (long time delay) 3. Short press microphone [ UP ] or [ DN ] to set desired level. 4. Hold key to store and exit setting. 2.12 Scan function ..................................................................................... 2.13 Norms control .................................................................................... 2.14 Install external speaker ................................................................... 2.15 Resume factory default .................................................................... 1. Hold to start scan function, "SC" falshes in the LCD; 2. Press microphone [ UP ] or [ DN ] to change scan direction during scan; 3. Hold or short press [PTT] switch to exit scan function. 1. Hold to power on radio, until LCD displays the norms; 2. Pres…

Text truncated - open the document above for the full version.

Qixiang Electron Science & Technology Co., Ltd. ___________________________________________________________________________________________ Date: 2021-05-07 Declaration Letter FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Declaration of compliance to the requirements of §15.121 FCC ID: T4K-SMART Dear Sir/Madam, We declare that, this scanning receiver is incapable of operating (tuning), or readily being altered by the users to operate, within the frequency bands allocated to the Cellular Radiotelephone Service in part 22 of this chapter (cellular telephone bands). This device will not be able to receive transmissions in the cellular telephone bands by means of clipping the leads of, or installing, a simple component such as a diode, resistor or jumper wire; replacing a plug-in semiconductor chip; or programming a semiconductor chip using special access codes or an external device, such as a personal computer. This device is also incapable of converting digital cellular communication transmissions to analog voice audio. This device is designed so that the tuning, control and filtering circuitry is inaccessible. Any attempts to modify the equipment to receive transmissions from the Cellular Radiotelephone Service will render the receiver inoperable. This scanning receiver rejects any signals from the Cellular Radiotelephone Service frequency bands that are 38 dB or lower based upon a 12 dB SINAD measurement. We are aware that the modification of this device to receive transmissions from Cellular Radiotelephone Service frequency bands will be considered to constitute manufacture of such equipment. This includes any individual, individuals, entity or organization that modifies one or more scanners. Any modification to receive transmissions from the Cellular Radiotelephone Service frequency bands voids the certification of the scanning receiver, regardless of the date of manufacture of the original unit. Sincerely Yours, Signature: ___________________________ Ken Xu

Qixiang Electron Science & Technology Co., Ltd. Apr.29, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : T4K-SMART Model Number: SMART, SMART I To Whom It May Concern: We, The Qixiang Electron Science & Technology Co., Ltd. hereby declare that the model : SMART I is identical with the model : SMART, except the model name. Except for the different above, no other modification is performed. Sincerely, Signature: Qixiang Electron Science & Technology Co., Ltd. Contact person: Ken Xu

Qixiang Electron Science & Technology Co., Ltd. Agent Authorization Company: Qixiang Electron Science & Technology Co., Ltd. Address: Qixiang Building, Tangxi Industrial Zone, Luojiang District, Quanzhou, Fujian, China Product Name: CB Radio Model Number(s): SMART, SMART I Product Description: CB Radio We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-05-07 Name: Ken Xu Company: Qixiang Electron Science & Technology Co., Ltd.

Qixiang Electron Science & Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-04-29 Subject; Request for Confidentiality FCC ID: T4K-SMART To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Qixiang Electron Science & Technology Co., Ltd. Contact person: Ken Xu

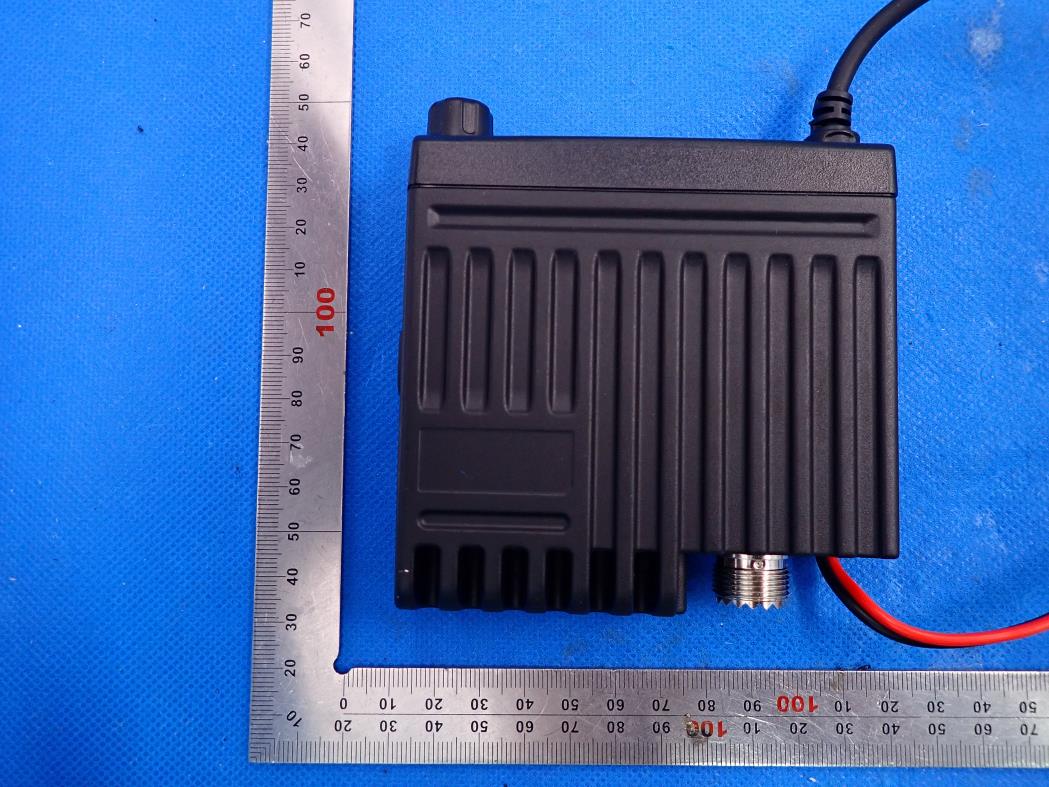

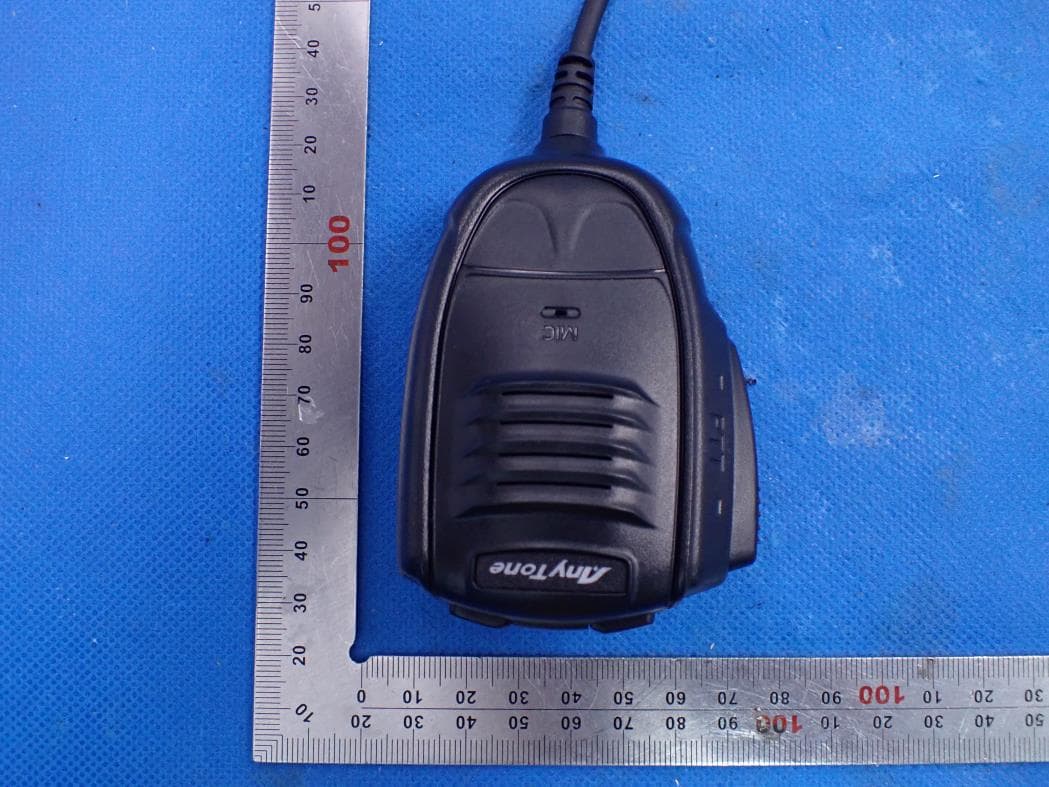

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT Antenna Port BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT Hand microphone TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location 20mm&40mm FCC ID: T4K-SMART

Internal Photos OPEN VIEW- OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT INTERNAL VIEW-9 OF EUT INTERNAL VIEW-10 OF EUT INTERNAL VIEW-11 OF EUT Hand microphone OPEN VIEW 1- OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT

Page 1 of 26 FCC Test Report Report No.: AGC01284210303FE08 FCC ID : T4K-SMART PRODUCT DESIGNATION : CB Radio BRAND NAME : AnyTone MODEL NAME : SMART, SMART I APPLICANT : Qixiang Electron Science & Technology Co., Ltd. DATE OF ISSUE : Apr. 21, 2021 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC01284210303FE08 Page 2 of 26 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Apr. 21, 2021 Valid Initial Release Report No.: AGC01284210303FE08 Page 3 of 26 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................................................................... 4 2. PRODUCT INFORMATION ........................................................................................................................... 5 3. IDENTIFICATION OF THE RESPONSIBLE TESTING LOCATION .............................................................. 6 4. SUPPORT EQUIPMENT LIST ....................................................................................................................... 7 5. SYSTEM DESCRIPTION ............................................................................................................................... 8 6. MEASUREMENT UNCERTAINTY................................................................................................................. 9 7. SUMMARY OF TEST RESULTS ................................................................................................................. 10 8. FCC RADIATED EMISSION TEST .............................................................................................................. 11 8.1 PROVISIONS APPLICABLE ............................................................................................................... 11 8.2 TEST SETUP BLOCK DIAGRAM ....................................................................................................... 11 8.3 TEST PROCEDURE ........................................................................................................................... 13 8.4 TEST RESULT .................................................................................................................................... 14 9. FCC CONDUCTED EMISSION TEST ......................................................................................................... 17 9.1 PROVISIONS APPLICABLE ............................................................................................................... 17 9.2 TEST SETUP BLOCK DIAGRAM ....................................................................................................... 17 9.3 TEST PROCEDURE ........................................................................................................................... 18 9.4 TEST RESULT .................................................................................................................................... 19 10. ANTENNA CONDUCTED POWER FOR RECEIVERS ............................................................................. 20 10.1 PROVISIONS APPLICABLE ............................................................................................................. 20 10.2 TEST SETUP BLOCK DIAGRAM ..................................................................................................... 20 10.3 TEST PROCEDURE ......................................................................................................................... 20 10.4 TEST RESULT .................................................................................................................................. 21 11. SANNING RECEIVERS AND FREQUENCY CONVERTERS USED WITH SANNING RECEIVERS ....... 23 11.1 PROVISIONS APPLICABLE ............................................................................................................. 23 11.2 TEST SETUP BLOCK DIAGRAM ..................................................................................................... 23 11.3 TEST PROCEDURE ......................................................................................................................... 23 11.4 TEST RESULT .................................................................................................................................. 24 APPENDIX I PHOTOGRAPHS OF TEST SETUP ........................................................................................... 25 APPENDIX II: PHOTOGRAPHS OF EUT ........................................................................................................ 26 Report No.: AGC01284210303FE08 Page 4 of 26 1. VERIFICATION OF COMPLIANCE Applicant: Qixiang Electron Science & Technology Co., Ltd. Address: Qixiang Building,Tangxi Industrial Zone,Luojiang District,Quanzhou,Fujian,China Manufacturer: Qixiang Electron Science & Technology Co., Ltd. Address: Qixiang Building,Tangxi Industrial Zone,Luojiang District,Quanzhou,Fujian,China Factory: Qixiang Electron Science & Technology Co., Ltd. Address: Qixiang Building,Tangxi Industrial Zone,Luojiang District,Quanzhou,Fujian,China Product Designation: CB Radio Brand Name: AnyTone Test Model: SMART Series Model SMART I Difference Description All the same except the model name. Measurement Procedure: ANSI C63.4: 2014 Deviation: No any deviation from the test method. Date of Test: Mar. 22, 2021~Apr. 21, 2021 Condition of Test Sample: Normal Test Result: Pass Report Template: AGCRT-US-PTT/EMC The above equipment was tested by Attestation Of Global Compliance (Shenzhen) Co., Ltd. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, the measurement procedure according to ANSI C63.4:2014. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified i…
