T4K-SMT02Smart 10 Meter Ham Radio

C 1. 210705 Qixiang Electon Science & Technoloyg Co.,Ltd. www.qxdz.cn SMART 10 METER AMATEUR MOBILE RADIO USER'S MANUAL KNOW ABOUT THIS RADIO 1 Squelch control, SQ, ASQ switch key 2 Mode/Scan key 3 RF Gain control 4 CH9/CH19/Keypad lock 5 Power On/Off Volume control 6 LCD 7 External speaker Jack 8 Antenna Jack 6 222 4 5 8 7 Squelch Level Control (O.F to 2.8 level available) ASQ Control(A.1-A.9 level available) Short press 11 , until LCD displays SQ and then displays X.X, X.X stands for SQ level, the bigger value stands for high squelch level. Short press [ 21 UP ] or [ DN ] to change SQ level. Hold [ 31 UP ] or [ DN ] can fast change SQ level. Hold 41 or wait for 3 seconds to store and exit. Hold 11 key, until LCD displays AQ, the ASQ function turned on. The LCD will displays "A.X", "X" stands for the ASQ level. Short press microphone [ 21 UP ] or [ DN ] to change SQ level Hold microphone [ 31 UP ] or [ DN ] can fast change ASQ level. Hold 41 or wait for 3 seconds to store and exit. Channel Control Short press [ 11 UP ] or [ DN ] to change working channel. Hold [ 21 UP ] or [ DN ] can fast change working channel. HOW TO USE THIS RADIO Power On/Off the radio Volume Control Turn VOL switch clockwise to power on the radio, the LCD 11 displays the Norms and then displays channel number. Turn VOL switch anti-clockwise, until hear Ka Ta, the radio is 21 powered off. Turn clockwise to increase volume, anti-clockwise to decrease volume. Mode Control Note：When RFG function is on, the LCD displays R. If RFG level is 6 means the attenuation is 6dBm. Note：In lock Mode all keys except PTT is valid. Short press 11 key to switch between AM /FM mode. The LCD displays the selected mode. 21 Scan Function RF Gain Control Emergency Channel Keypad Lock Hold 11 to start scan function, "SC" falshes in the LCD; Press [ 21 UP ] or [ DN ] to change scan direction during scan; Press 31 or [PTT] key to exit scan function. Short press 11 key, LCD displays R and the present RF gain level flashes. Short press microphone [ 21 UP ] or [ DN ] to change level. Short press 31 key to exit RF gain level control. Short press 11 key to choose CH9, the channel number flashes. Short press 21 key again to choose CH19, the channel number flashes. Short press 31 key third time to return to last normal channel. Hold 11 key for over 2 seconds to lock the keys, LCD displays "LC". Hold 21 key for over 2 seconds again to unlock the keys, LCD displays OF. Band Control High/Low Control Install External Speaker Resume Factory Default Hold 11 to power on radio, until LCD displays the bands; Press [ 21 UP ] or [ DN ] to choose wanted bands; Power off and power on again. 31 Hold 11 and PTT key to power on; Press [ 21 UP ] or [ DN ] to choose wanted power level, PH is 8W, PL is 4W; Power off and power on again. 31 Choose a 8Ω external speaker with 3.5mm mono connector. Hold 11 key to power on radio, until the LCD displays "RT". All channel and function setting will resume factory default 21 after above operation. SPECIFICATION GENERAL Modulation Mode AM/FM Frequency Range 28.000-29.700MHz Frequency Tolerance±5.0ppm Input Voltage13.2V Dimensions 109x104x25mm Weight421g Ferquency ControlPLL Synthesizer Operating Temperature Range-20 °C ~ +50 °C Current Drain Transmit2A MAX ReceiveSquelched 0.3A VOL Max0.8A Antenna ConnectorUHF,SO-239 TRANSMITTER Power Output8 Watts FM/AM Transmission interferenceinferior to 4nW(-54dBm) Frequency Response300-3000Hz Modulated signal distortioninferior to 5% Output Impedance50 ohms RECEIVER SensitivityLess than 1uV for 10dB(S+N)/N Image Rejection70dB Adjacent Channel Rejection60dB IF Frequencies 1st 10.695MHz 2nd 455KHz Automatic Gain Control(AGC) Less than 10dB change in audio Output for inputs from 10 to 50000uV Squelchless than 1uV Audio Output Power1Watts Frequency Response300-3000Hz #"/%
*%)")#)$)%)&)')()) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $) $)…

Text truncated - open the document above for the full version.

Qixiang Electron Science & Technology Co.,Ltd Office of Engineering Technology Date: 3 August 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA FCC ID: T4K-SMT02 Subject: Declaration of compliance to the requirements of §15.121 We declare that, this scanning receiver is incapable of operating (tuning), or readily being altered by the users to operate, within the frequency bands allocated to the Cellular Radiotelephone Service in part 22 of this chapter (cellular telephone bands). This device will not be able to receive transmissions in the cellular telephone bands by means of clipping the leads of, or installing, a simple component such as a diode, resistor or jumper wire; replacing a plug-in semiconductor chip; or programming a semiconductor chip using special access codes or an external device, such as a personal computer. This device is also incapable of converting digital cellular communication transmissions to analog voice audio. This device is designed so that the tuning, control and filtering circuitry is inaccessible. Any attempts to modify the equipment to receive transmissions from the Cellular Radiotelephone Service will render the receiver inoperable. This scanning receiver rejects any signals from the Cellular Radiotelephone Service frequency bands that are 38 dB or lower based upon a 12 dB SINAD measurement. We are aware that the modification of this device to receive transmissions from Cellular Radiotelephone Service frequency bands will be considered to constitute manufacture of such equipment. This includes any individual, individuals, entity or organization that modifies one or more scanners. Any modification to receive transmissions from the Cellular Radiotelephone Service frequency bands voids the certification of the scanning receiver, regardless of the date of manufacture of the original unit. If you have any questions, please feel free to contact me. Thank you. Sincerely, Signatory Qixiang Electron Science & Technology Co.,Ltd Contact person: Ken Xu

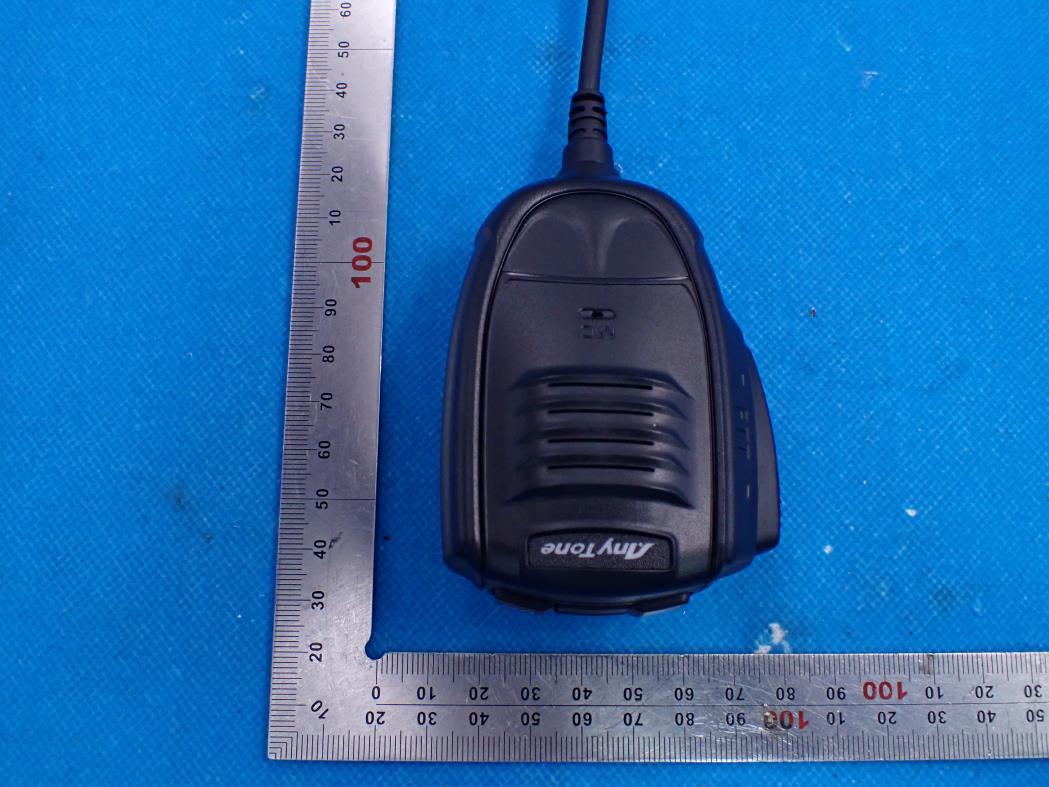

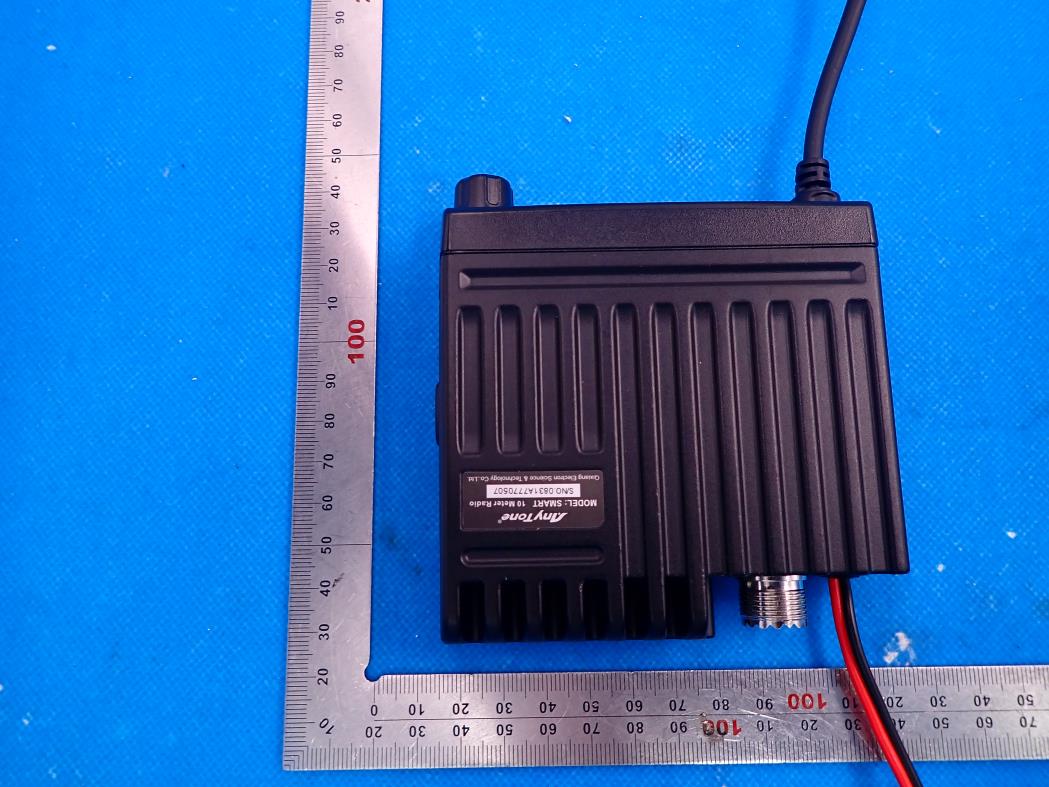

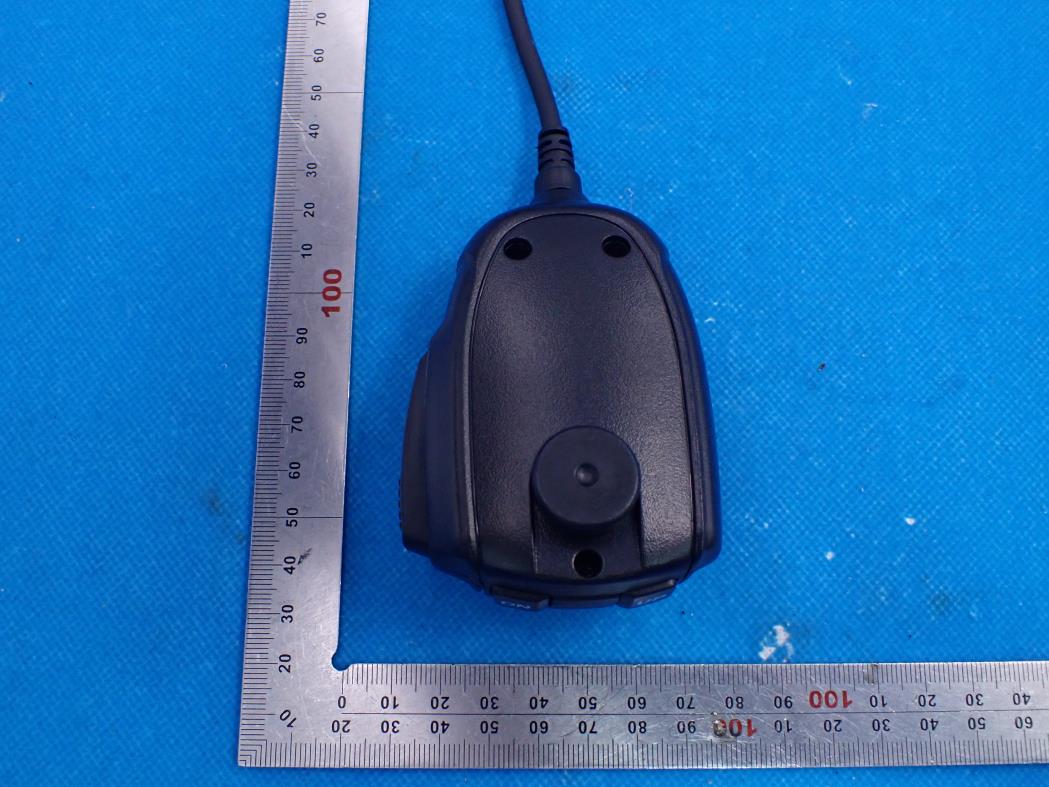

External Photos ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT Antenna Port BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT Hand microphone TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location 20mm&35mm FCC ID: T4K-SMT02

Internal Photos OPEN VIEW-1 OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT INTERNAL VIEW-9 OF EUT INTERNAL VIEW-10 OF EUT INTERNAL VIEW-11 OF EUT Hand microphone OPEN VIEW OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT

Page 1 of 24 FCC Test Report Report No.: AGC12816210701FE08 FCC ID : T4K-SMT02 PRODUCT DESIGNATION : Smart 10 Meter Ham Radio BRAND NAME : AnyTone MODEL NAME : SMT-02 APPLICANT : Qixiang Electron Science & Technology Co.,Ltd DATE OF ISSUE : Aug. 02, 2021 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V 1.1 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC12816210701FE08 Page 2 of 24 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jul. 13, 2021 Invalid Initial Release V1.1 1 st Aug. 02, 2021 Valid Add SCANNING RECEIVERS Report No.: AGC12816210701FE08 Page 3 of 24 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ................................................................................................................. 4 2. PRODUCT INFORMATION .............................................................................................................................. 5 3. IDENTIFICATION OF THE RESPONSIBLE TESTING LOCATION ............................................................... 6 4. SUPPORT EQUIPMENT LIST ......................................................................................................................... 7 5. SYSTEM DESCRIPTION .................................................................................................................................. 7 6. MEASUREMENT UNCERTAINTY ................................................................................................................... 8 7. SUMMARY OF TEST RESULTS ..................................................................................................................... 8 8. FCC RADIATED EMISSION TEST .................................................................................................................. 9 8.1 PROVISIONS APPLICABLE ................................................................................................................... 9 8.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................... 9 8.3 TEST PROCEDURE .............................................................................................................................. 11 8.4 TEST RESULT ....................................................................................................................................... 12 9. FCC CONDUCTED EMISSION TEST ............................................................................................................ 16 9.1 PROVISIONS APPLICABLE ................................................................................................................. 16 9.2 TEST SETUP BLOCK DIAGRAM ......................................................................................................... 16 9.3 TEST PROCEDURE .............................................................................................................................. 17 9.4 TEST RESULT ....................................................................................................................................... 17 10. ANTENNA CONDUCTED POWER FOR RECEIVERS ............................................................................... 18 10.1 PROVISIONS APPLICABLE ............................................................................................................... 18 10.2 TEST SETUP BLOCK DIAGRAM ....................................................................................................... 18 10.3 TEST PROCEDURE ............................................................................................................................ 18 10.4 TEST RESULT ..................................................................................................................................... 19 11. SCANNING RECEIVERS AND FREQUENCY CONVERTERS USED WITH SCANNING RECEIVERS .. 21 11.1 PROVISIONS APPLICABLE ............................................................................................................... 21 11.2 TEST SETUP BLOCK DIAGRAM ....................................................................................................... 21 11.3 TEST PROCEDURE ............................................................................................................................ 21 11.4 TEST RESULT ..................................................................................................................................... 22 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................................. 23 APPENDIX II: PHOTOGRAPHS OF TEST EUT................................................................................................ 24 Report No.: AGC12816210701FE08 Page 4 of 24 1. VERIFICATION OF COMPLIANCE Applicant: Qixiang Electron Science & Technology Co.,Ltd Address: Qixiang Building, Tangxi Industrial Zone, Luojiang, Quanzhou, Fujian,362011 Manufacturer: Qixiang Electron Science & Technology Co.,Ltd Address: Qixiang Building, Tangxi Industrial Zone, Luojiang, Quanzhou, Fujian,362011 Factory: Qixiang Electron Science & Technology Co.,Ltd Address: Qixiang Building, Tangxi Industrial Zone, Luojiang, Quanzhou, Fujian,362011 Product Designation: Smart 10 Meter Ham Radio Brand Name: AnyTone Test Model: SMT-02 Measurement Procedure: ANSI C63.4: 2014 Deviation: No any deviation from the test method. Date of Test: Jul 07, 2021~Jul. 13, 2021 Condition of Test Sample: Normal Test Result: Pass Report Template； AGCRT-US-PTT/EMC The above equipment was tested by Attestation Of Global Compliance (Shenzhen) Co., Ltd. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, the measurement procedure according to ANSI C63.4:2014. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. The test results of this report rela…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP-BELOW 1GHZ RADIATED EMISSION TEST SETUP-ABOVE 1GHZ
