T4K289GTwo Way Radio

Qixiang Electron Science& Technology Co., Ltd

Click to zoom

Application Details

Equipment Class: TNF - Licensed Non-Broadcast Transmitter Held to Face
Date of Grant: Jun 06, 2013
Application Purpose: Original Equipment
Date of Application: Jun 06, 2013
Equipment Note: Two Way Radio
Frequency Range: 136.00000000 - 174.00000000
Company: Qixiang Electron Science& Technology Co., Ltd
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

TWO WAY RADIO Model Name: 289G Fcc ID:T4K289G THANK YOU! Thank you very much for choosing our transceiver. transceiver provides you ZLWKUHOLDEOHFOHDUDQGHI¿FLHQWFRPPXQLFDWLRQVHUYLFH The transceiver introduces innovative DSP (Digital Signal Processing) baseband processing system WRDFKLHYHKLJK¿GHOLW\YRLFHSURFHVVLQJDQGHQFU\SWLRQ,WERD VWVQRYHOW\EHVWVWDELOLW\ great reliability, nice timbre and long distance communication as well as fashionable design and smooth exterior lines. AT-289 is a cost-effective and multi-functional professional transceiver which meets needs of every walk RIOLIH,WLVFRQYLQFHGWKDW\RXZLOOEHVDWLV¿HGZLWKWKLVWU DQVFHLYHU¶VTXDOLW\DQGIXQFWLRQV)RU\RXUIXOO comprehension of the various excellent functions and maintenance, please read the user manual before use. /05&8IFOQSPHSBNNJOHUIFUSBOTDFJWFS SFBEUIFGBDUPSZJOJUJBMEBUB GJSTU UIFOSFXSJUFUIFGSFRVFODZBOE TJHOBMJOHFUD PUIFSXJTFFSSPSTNBZPDDVSCFDBVTFPGEJGGFSFOU GSFRVFODZCBOEFUD 8VHU0DQXDO$SSOLHGWR$79+))07UD QVFHLYHU Programming Software: QPS289 SAFETY INFORMATION FOR USER transceiver is excellently designed with advanced technology. Please observe the following precautions to perform your obligation, prevent personal injury and ensure the safety of transceiver usage. Keep the transceiver and accessories away from children. 1. Please do not try to open or modify the transceiver without permission, non-professionals process 2. may also cause damage.Please use assorted battery and charger to avoid damage. 3. Please use assorted antenna to ensure the communication distance. 4. Please do not expose the transceiver to long period of direct sunlight, nor place it close to heat 5. appliances.Please do not put the transceiver in excessively dusty or humid areas. 6. Do not use harsh chemicals, cleaning solvents to clean the transceiver. 7. Do not transmit without antenna. 8. When using this transceiver, we recommend transmitting for 1 minute then receiving for 4 minutes. 9. Continuous transmitting for long time or working in high power will heat the back of the transceiver. 'RQRWSODFHWKHWUDQVFHLYHU¶VKRWEDFNFORVHWRDQ\VXUIDFHRI SODVWLF ,IDQ\DEQRUPDORGRURUVPRNHGHWHFWHGFRPLQJIURPWKHWUDQVFHL YHUWXUQRIIWKHSRZHUDQGWDNH 10. off the battery pack and its case. Then contact local dealers. "55&/5*0/"MMUJQTBCPWFBQQMZUPBDDFTTPSJFTPGZPVS USBOTDFJWFS*GBOZEFWJDFDBOOPUXPSLOPSNBMMZ QMFBTFDPOUBDUMPDBM EFBMFST *GZPVVTFBOZBDDFTTPSJFTNBEFCZPUIFSDPNQBOJFT $PNQBOZEPFTOPUHVBSBOUFFUIF PQFSBCJMJUZBOETBGFUZPGUIFUSBOTDFJWFS Professional FM Transceiver , UNPACKING ...................................................................................................................... .1 Supplied Accessories ........................................................................................................ ................. 1 STANDARD ACCESSORIES/OPTIONAL ACCESSORIES ............................................... 2 Standard Accessories ........................................................................................................... .............. 2 Optional Accessories ........................................................................................................... ............... 2 BATTERY INFORMATION .................................................................................................. 3 Charging Operation.............................................................................................................. ............... 3 Charger Applied ................................................................................................................ .................. 3 Notice for Charging Battery.................................................................................................... ............. 3 How to Charge .................................................................................................................. .................. 4 Normal Charging Tips ........................................................................................................... .............. 6 How to Store the Battery....................................................................................................... .............. 6 PREPARATION ................................................................................................................... 8 ,QVWDOOLQJ5HPRYLQJWKH%DWWHU\ ........................................................................................................ 8 ,QVWDOOLQJ5HPRYLQJWKH$QWHQQD ...................................................................................................... 8 ,QVWDOOLQJ5HPRYLQJWKH%HOW&OLS ...................................................................................................... 9 ,QVWDOOLQJWKH$GGLWLRQDO6SHDNHU0LFURSKRQH 2SWLRQDO .................................................................. 9 ,QVWDOOLQJ5HPRYLQJWKH+DQG6WUDS 2SWLRQDO .................................................................................. 10 CONTENTS ProfessionalFM Transceiver ,, GETTING ACQUAINTED.................................................................................................... 11 ,QGLFDWRU6WDWXVDQG%HHS .................................................................................................................. 13 >3)@ >3)@.H\'HIDXOW ................................................................................................................... 13 BASIC OPERATIONS......................................................................................................... 14 6ZLWFKRQRII7UDQVFHLYHU .................................................................................................................. 14 Adjusting Volume ........................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

May 29, 2013 Federal Communication Commission Authorization and Evaluation Division FCC ID: T4K289G Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List 5: Tune Up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Qixiang Electron Science& Technology co., Ltd. Quanzhou Contact person: Ken Xu Title: General Manager

External Photos

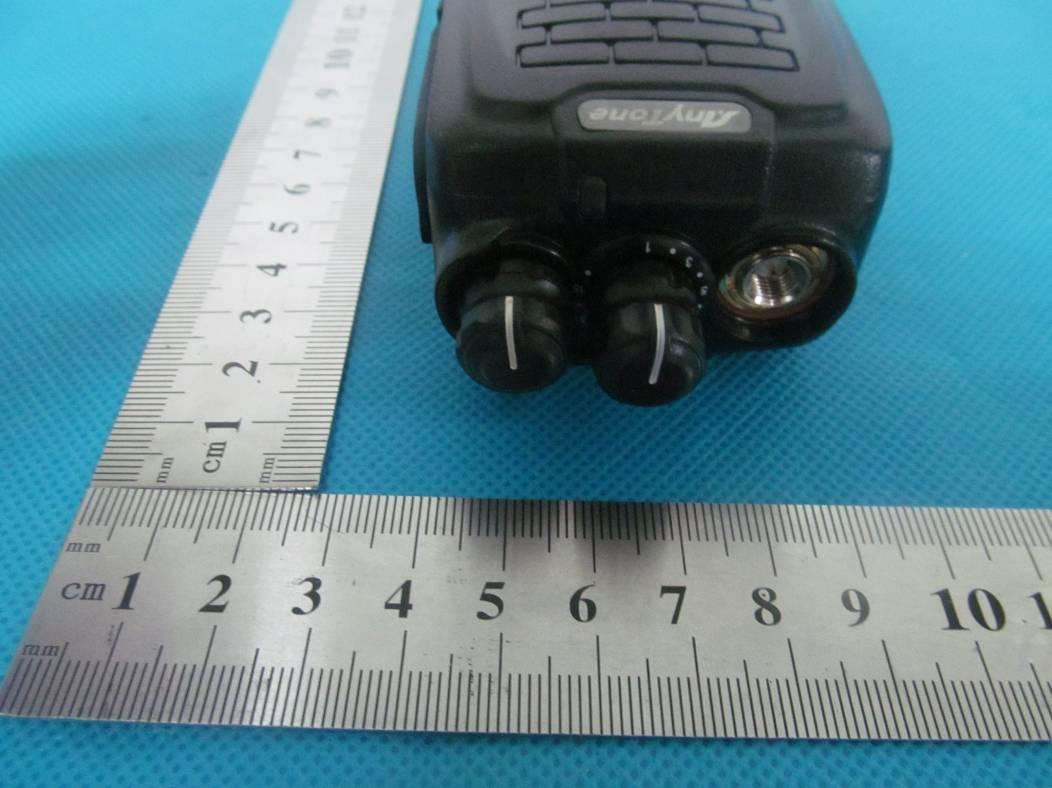

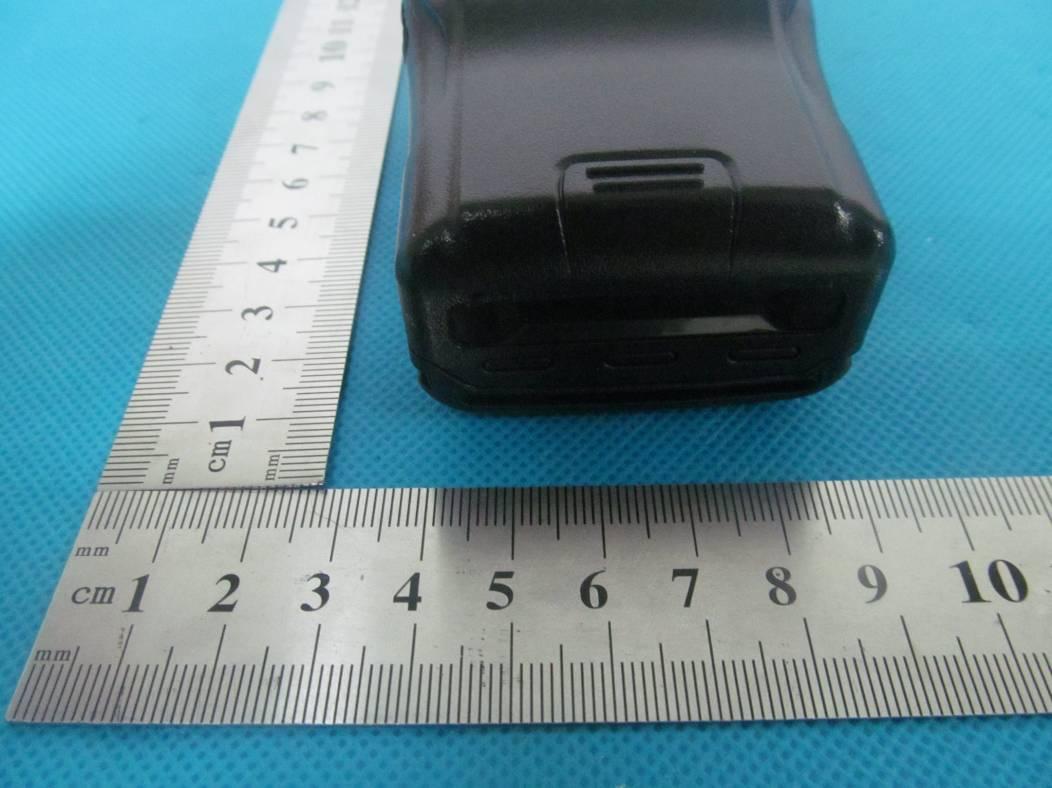

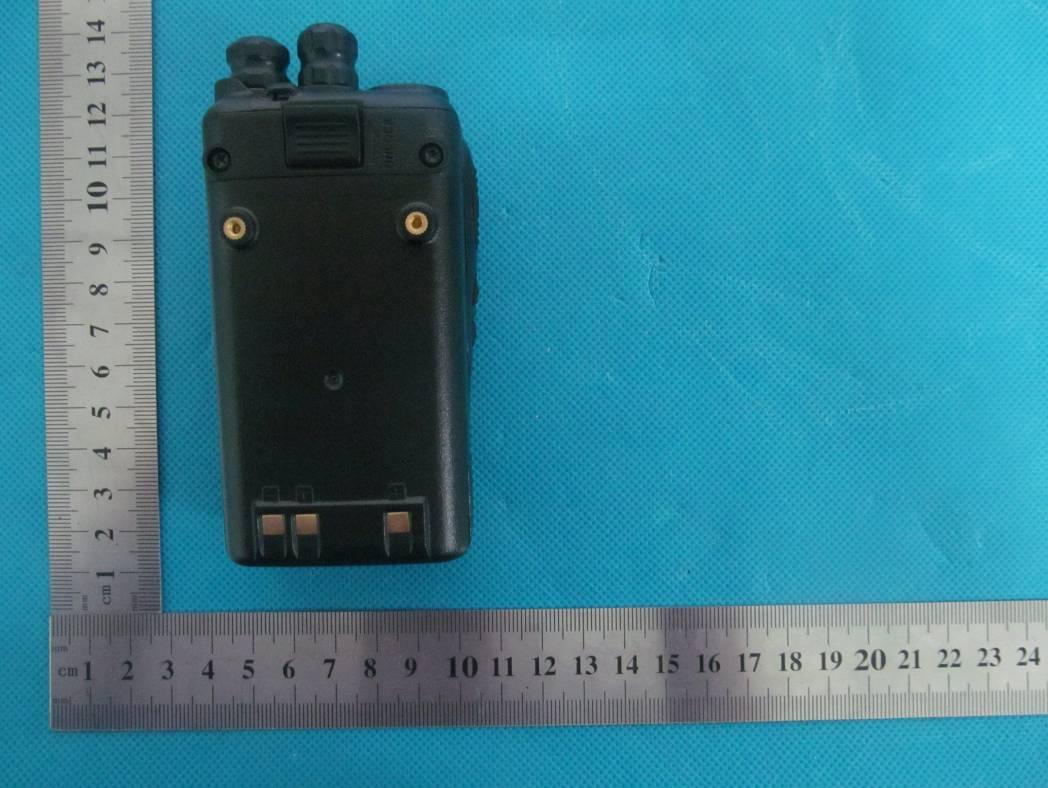

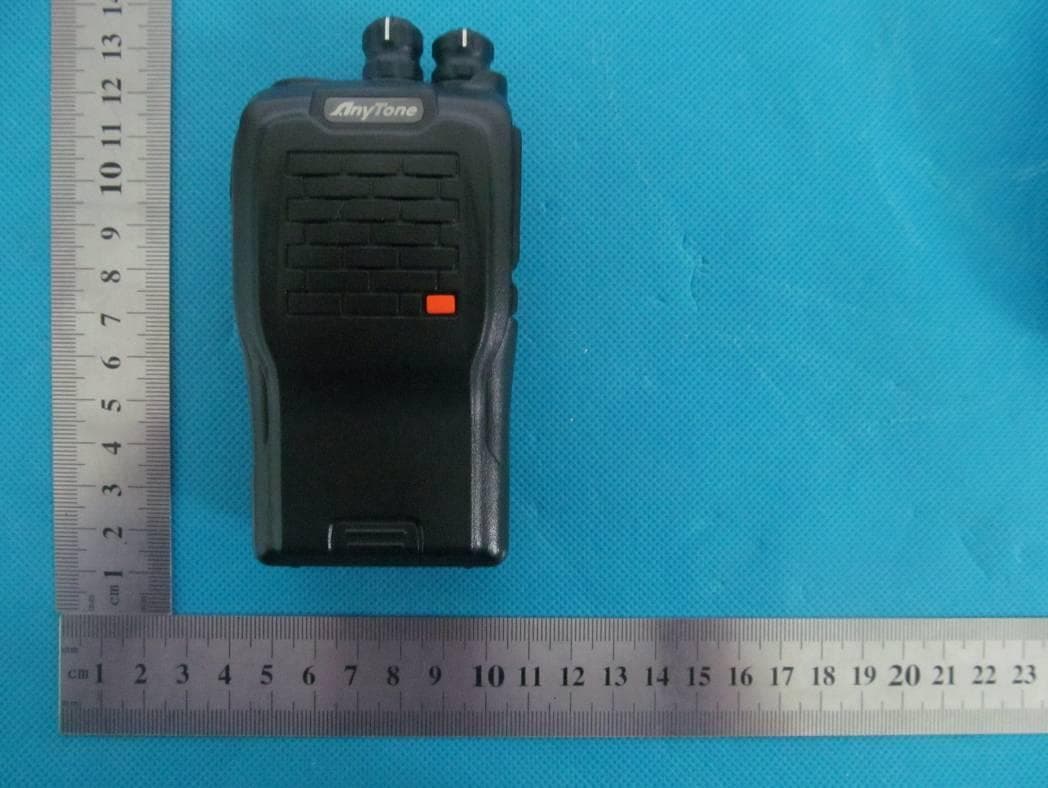

289G_External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT View of EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

ID Label/Location Info

FCC ID Label Location FCC RF Warning Label VHF FM HANDHELD TRANSCEIVER FCC ID: T4K289G Model : 289G Frequency Range:136MHz to 174MHz 289, 289P, 3317, 258,268 278, 298, 299, 898, 889 X-500V, X-5000V, X-2000V, 289G1

ID Label/Location Info

Qixiang Electron Science & Technology Co., Ltd. Quanzhou Qixiang Building, Tangxi Industrial Zone, Luojiang District, Quanzhou,Fujian,China Date: May 29, 2013 Statement We, Qixiang Electron Science & Technology Co., Ltd. Quanzhou states that our device, FCC ID: T4K289G, has no space to put the label except the battery compartment of this device. It is visible to the users as they purchase the products and install the battery. Regards, Company: Qixiang Electron Science & Technology Co., Ltd. Quanzhou Contact Person: Ken Xu

Internal Photos

289G_Internal Photos OPEN VIEW-1 OF EUT OPEN VIEW-2 OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT

RF Exposure Info

Report No.:AGC00589130504FH01 Page 1 of 64 SAR Test Report Report No.: AGC00589130504FH01 FCC ID : T4K289G Product Designation : TWO WAY RADIO Brand Name : N/A Model Name : 289, 289G, 289P, 3317, 258, 268, 278, 298, 299, 898, 889, X-500V, X-5000V, X-2000V, 289G1 Client : Qixiang Electron Science & Technology Co., Ltd. Quanzhou Date of Issue : May 28, 2013 STANDARD(S) : FCC OET65 Supplement C June 2001 IEEE Std.1528-2003 47CFR§2.1093 REPORT VERSION : V1.0 Attestation of Global Compliance(Shenzhen) Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.:AGC00589130504FH01 Page 2 of 64 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 28, 2013 Valid Original Report Report No.:AGC00589130504FH01 Page 3 of 64 Test Report Certification Applicant Name Qixiang Electron Science & Technology Co., Ltd. Quanzhou Applicant Address Qixiang Building, Tangxi Industrial Zone, Luojiang District, Quanzhou, Fujian, China Manufacturer Name Qixiang Electron Science & Technology Co., Ltd. Quanzhou Manufacturer Address Qixiang Building, Tangxi Industrial Zone, Luojiang District, Quanzhou, Fujian, China Product Name TWO WAY RADIO Brand Name N/A Model Name 289, 289G, 289P, 3317, 258, 268, 278, 298, 299, 898, 889, X-500V, X-5000V, X-2000V, 289G1 Difference Description All the models are the same, only different in model names. The test model is 289. EUT Voltage DC7.4V by battery Applicable Standard FCC OET65 Supplement C June 2001 IEEE Std.1528-2003 47CFR§2.1093 Test Date May 28, 2013 Test Results MAX SAR MEASUREMENT(1g) (with 50% duty cycle) Head: 0.266 W/Kg Body: 0.544 W/Kg (Maximum Scaling SAR=0.545 W/Kg) Performed Location Attestation of Global Compliance (Shenzhen)Co., Ltd. 2F, Building 2, No.1-No.4, Chaxi Sanwei Technical Industrial Park, Gushu, Xixiang Street, Bao'an District, Shenzhen, China Report Template AGCRT-EC-PPT4/SAR (2013-03-01) Documented By Vivi Zeng May 28, 2013 Checked By Angela Li May 28, 2013 Authorized By Solger Zhang May 28, 2013 Report No.:AGC00589130504FH01 Page 4 of 64 TABLE OF CONTENTS 1. GENERAL INFORMATION .............................................................................................................................. 5 1.1. EUT Description ....................................................................................................................................... 5 1.2. Test Procedure ......................................................................................................................................... 6 1.3. Test Environment ..................................................................................................................................... 6 2. SAR MEASUREMENT SYSTEM........................................................................................................................ 7 2.1. COMOSAR System Description ............................................................................................................... 7 2.2. COMOSAR E-Field Probe ........................................................................................................................ 9 2.3 Robot ........................................................................................................................................................ 9 2.4. Video Positioning System ....................................................................................................................... 10 2.5. Device Holder ........................................................................................................................................ 10 2.6. Elliptic Phantom ..................................................................................................................................... 11 3. TISSUE SIMULATING LIQUID ....................................................................................................................... 12 3.1. The composition of the tissue simulating liquid ....................................................................................... 12 3.2. Tissue Calibration Result ........................................................................................................................ 13 3.3. Tissue Dielectric Parameters for Head and Body Phantoms .................................................................. 14 4. SAR MEASUREMENT PROCEDURE ............................................................................................................ 15 4.1. SAR System Validation .......................................................................................................................... 15 4.2. SAR Measurement Procedure ............................................................................................................... 17 5. SAR EXPOSURE LIMITS ............................................................................................................................... 18 6. TEST EQUIPMENT LIST ................................................................................................................................ 19 7. MEASUREMENT UNCERTAINTY .................................................................................................................. 20 8. CONDUCTED POWER MEASUREMENT....................................................................................................... 21 9. TEST RESULTS ............................................................................................................................................. 22 APPENDIX A. SAR SYSTEM VALIDATION DATA ............................................................................................ 24 APPENDIX B. SAR MEASUREMENT DATA ...................................................................................................... 26 APPENDIX C. TEST SETUP PHOTOGRAPHS &EUT PHOTOGRAPHS .........…

Text truncated - open the document above for the full version.

Test Report

Report No.: AGC00589130504F2 Page 1 of 54 FCC Part 90 Test Report Report No.: AGC00589130504F2 FCC ID : T4K289 PRODUCT DESIGNATION : TWO WAY RADIO BRAND NAME : N/A MODEL NAME : See Page 3, Model Name CLIENT : Qixiang Electron Science & Technology Co., Ltd. Quanzhou DATE OF ISSUE : May 23, 2013 STANDARD(S) : FCC Part 90 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00589130504F2 Page 2 of 51 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 23, 2013Valid Original Report Report No.: AGC00589130504F2 Page 3 of 51 VERIFICATION OF COMPLIANCE Applicant: Qixiang Electron Science & Technology Co., Ltd. Quanzhou Qixiang Building, Tangxi Industrial Zone, Luojiang District, Quanzhou, Fujian, China Manufacturer: Qixiang Electron Science & Technology Co., Ltd. Quanzhou Qixiang Building, Tangxi Industrial Zone, Luojiang District, Quanzhou, Fujian, China Product Designation: TWO WAY RADIO Brand Name: N/A Model Name: 289G, 289, 289P, 3317, 258, 268, 278, 298, 299, 898, 889, X-500V, X-5000V, X-2000V, 289G1 Model Difference: All the same except for the model name and appearance. Report No.: AGC00589130504F2 Date of Test: May 18, 2013 to May 22, 2013 WE HEREBY CERTIFY THAT: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C 63.4:2003. The sample tested as described in this report is in compliance with the FCC Rules Part 90 requirements The test results of this report relate only to the tested sample identified in this report. Tested by Wall Huang May 23, 2013 Checked By Forrest Lei May 23, 2013 Authorized By Solger Zhang May 23, 2013 Report No.: AGC00589130504F2 Page 4 of 51 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................. 6 1.1 PRODUCT DESCRIPTION ............................................................................................................. 6 1.3 TEST METHODOLOGY ................................................................................................................. 7 1.4 TEST FACILITY .............................................................................................................................. 7 1.5 SPECIAL ACCESSORIES .............................................................................................................. 7 1.6 EQUIPMENT MODIFICATIONS ..................................................................................................... 7 2. SYSTEM TEST CONFIGURATION ..................................................................................................... 8 2.1 EUT CONFIGURATION .................................................................................................................. 8 2.2 EUT EXERCISE ............................................................................................................................. 8 2.3 GENERAL TECHNICAL REQUIREMENTS .................................................................................... 8 2.4 CONFIGURATION OF TESTED SYSTEM .................................................................................... 9 3. SUMMARY OF TEST RESULTS ....................................................................................................... 10 4. DESCRIPTION OF TEST MODES ..................................................................................................... 11 5. CONDUCTED LIMITS ........................................................................................................................ 12 5.1 PROVISIONS APPLICABLE ......................................................................................................... 12 5.2 MEASUREMENT PROCEDURE .................................................................................................. 12 5.3 TEST SETUP BLOCK DIAGRAM ................................................................................................. 13 5.4 TEST EQUIPMENT USED ............................................................................................................ 13 5.5 TEST RESULT .............................................................................................................................. 14 6. FREQUENCY TOLERANCE .............................................................................................................. 16 6.1 PROVISIONS APPLICABLE ......................................................................................................... 16 6.2 MEASUREMENT PROCEDURE .................................................................................................. 16 6.3 TEST SETUP BLOCK DIAGRAM ................................................................................................. 17 6.4 TEST EQUIPMENT USED: ........................................................................................................... 17 6.5 TEST RESULT .............................................................................................................................. 18 7. EMISSION BANDWIDTH ................................................................................................................... 21 7.1 PROVISIONS APPLICABLE ......................................................................................................... 21 7.2 MEASUREMENT PROCEDURE .................................................................................................. 21 7.3 TEST SETUP BLOCK DIAGRAM ................................................................................................. 21 7.4 MEASUREMENT EQUIPMENT USED: .............…

Text truncated - open the document above for the full version.

Test Setup Photos

289G_Test Set up Photos CONDUCTED EMISSION TEST SETUP RADIATED EMISSION TEST SETUP

Contact Information

Applicant

Ken Xu

[email protected]86-592-22652998Fax: 86-595-22656927

Test Firm

Attestation of Global Compliance Shenzhen Co. Ltd.Forrest Lei

[email protected]86-755-29081966Fax: 86-755-26008484

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	90	136 MHz - 174 MHz	4.97 W	10K0F3E	0.6000000000 ppm

Confidentiality

Long Term

Grant Notes

Certification is approved pursuant to FCC Order 13-431. Power output listed is conducted. This device must be restricted to work-related operations only in an Occupational/Controlled RF exposure environment and must operate with a duty factor not exceeding 50%. This transmitter may operate with the antenna(s) documented in this filing in Push-to-Talk and body-worn configurations. RF exposure compliance is limited to the specific belt-clip and accessory configurations as documented in this filing and the separation distance between user and the device or its antenna shall be at least 2.5 cm. All qualified end-users of this device must have the knowledge to control their exposure conditions and/or duration to comply with Occupational/Controlled Exposure limit and requirements. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting Occupational Exposure Requirements. The highest reported SAR values for Face held and Body-worn accessory are 0.27 W/Kg and 0.55 W/Kg respectively when operating at 50% duty cycle.
