T54DV70E2.4GHz digital wireless receiver with SD card recorder

2.4GHz digital wireless receiver with SD card recorder User’s Manual Model: DV70E, ADW280 FCC ID: T54DV70E Brochure 1. Product description 1.1 Appearance 1.2 Key Description There are 10 keys and 1 switch on the receiver,one key on the camera. Generated by Foxit PDF Creator © Foxit Software http://www.foxitsoftware.com For evaluation only. 1.3 Electrical Continuity 1.3.1 Just connect power adapter and the antenna to receiver/connect the power adapter to camera. 1.3.2 Connect the AV cable To receiver and TV. 2．Operation desciption 2.1 Scan Mode（调节音量、亮度） In this mode,user can control Sound by pressing ,and control Brightness by pressing ;If put A SD card in the receiver,press Will start recording,and press It twice will stop;user can view The data in SD card by pressing Key. User can get to one channel by pressing . 2.2 Graphical User Interface User can enter this mode by pressing ,and pressing To choose the icon,pressing for sure,and choose Exit icon to quit. Generated by Foxit PDF Creator © Foxit Software http://www.foxitsoftware.com For evaluation only. 2.2.1 Pairing Menu Camera need to be paired with Receiver to start working. 2.2.2 Record Menu User can set the time stamp on/off Or enable SD card overwrite Function in this mode. 2.2.3 Playback Menu User can view the data in SD card in this mode. 2.2.4 Setting Menu User can set time,recording Time, contrast, saturation etc. In this mode. Generated by Foxit PDF Creator © Foxit Software http://www.foxitsoftware.com For evaluation only. IMPORTANT REGULATORY INFORMATION This device complies with Part 15 of the FCC Rules: Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference that is received, including any interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Care should be taken that, in order to comply with FCC OET 65 Health Requirements, please always make sure that keep the device 25 cm away from the body while it is working.

April 18, 2012 Federal Communication Commission Authorization and Evaluation Division FCC ID: T54DV70E Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Wang Gang AnJieLun Electronic Techology Limited

Date: 28 Apr. 2012 Subject: Unique RF Connector Declaration FCC ID: T54DV70E To Whom it may concern, This device use irregular RF Connector, thread spacing is smaller than standard SMA, it can’t be easily changed to a different antenna. Please contact the one signed below or the authorized agent for this filing. Thank you. Sincerely, Name:Wang Gang Company:AnJieLun Electronic Techology Limited Adress: 2F, 12st, LONGBI INDUSTRIAL PARK, BANTIAN VILLAGE, BUJI TOWN, SHENZHEN, GUANG DONG PROVIDENCE, CHINA Tel:15013662056 Fax:0755-84193006 E-mail:[email protected]

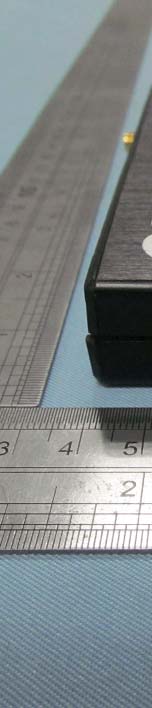

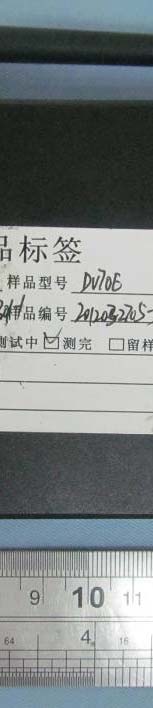

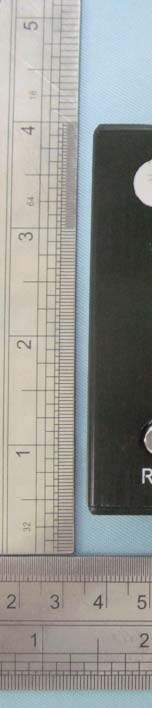

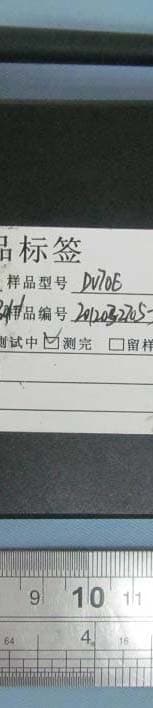

BOTTO TOP VIE OM VIEW OF S EW OF SAMPL SAMPLE LE RIGHT LEFT VIEW T VIEW OF SA W OF SAMPL AMPLE LE FRONT BACK T VIEW OF SA K VEIW OF SA AMPLE AMPLE ALL VVIEW OF SAMMPLE
