T82-HRF24032.4 GHz Wireless Module

‐HERUTU ELECTRONICS CORPORATION‐ User manual (Installation manual) This module should be installed in the host device according to the interface specification (installation procedure). For the details about this module, please refer to the specification sheet of module. The following information must be indicated on the host device of this module; [for FCC] Contains FCC ID: T82-HRF2403 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. * If it is difficult to describe this statement on the host product due to the size, please describe in the User's manual. [for IC] Contains IC: 10608A-HRF2403 The following statements must be described on the user manual of the host device of this module; [for FCC] FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that is deemed to comply without maximum permissive exposure evaluation (MPE). This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that is deemed to comply without testing of specific absorption rate(SAR). ‐HERUTU ELECTRONICS CORPORATION‐ [for IC] This device complies with Industry Canada’s applicable licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage; 2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that is deemed to comply without maximum permissive exposure evaluation (MPE). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée comme conforme sans évaluation de l’exposition maximale autorisée (MPE). This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that is deemed to comply without testing of specific absorption rate (SAR). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée comme conforme sans évaluation du débit d’absorption spécifique (DAS). The following statement is for host manufacturer, therefore isn’t described on the user manual of the host device. This radio transmitter (10608A-HRF2403) identify the device by certification number or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Antenna type:1/4λ Monopole chip antenna Gain: Layout A 0.55dBi / Layout B 0dBi Antenna type:1/2λ Dipole PIFA Gain: 0.9dBi Antenna type:1/2λ Dipole antenna Gain: 2.0dBi Le présent émetteur radio (10608A-HRF2403) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal. Les types d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur. Type d’antenne:1/4λ Monopole chip antenna Gain: Layout A 0.55dBi / Layout B 0dBi Type d’antenne:1/2λ Dipole PIFA Gain: 0.9dBi Type d’antenne:1/2λ Dipole antenna Gain: 2dBi ‐HERUTU ELECTRONICS CORPORATION‐ 1. PCB layout (unit:mm) ① Footprint dimensions on PCB layout (Layout A) Layout A : Small footprint. Mounted in the smallest area. ‐HERUTU ELECTRONICS CORPORATION‐ ② Footprint dimensions on PCB layout (Layout B) Layout B : The footprint is exposed on the outside of the module. Although the mounting area is large, input / output can be checked with a tester. ‐HERUTU ELECTRONICS CORPORATION‐ 2. Stencil Openings (unit:mm) ① Layout A ‐HERUTU ELECTRONICS CORPORATION‐ ② Layout B ‐HERUTU ELECTRONICS CORPORATION‐ 3. About antenna installation Note: The antenna cannot be used except for ① to ③ below. ① 1/4λ Monopole Chip Antenna ・The chip antenna is mounted on the board on which the module is mounted. ・Chip antenna is mounted in either layout A or layout B ・Layout A requires a large clearance area but has a higher gain than Layout B. ・Layout B can have a narrower clearance area, but the gain is smaller than Layout A.  Antenna Information Item Layout A Layout B Part Number ACA-5036-A2-CC-S Manufacture INP…

Text truncated - open the document above for the full version.

Intertek Japan K.K. 1283 Yadoriki, Matsuda, Ashigarakami-gun, Kanagawa 258-0001 Japan Tel +81 465 89 2316 / Fax +81 465 89 2160 December 16, 2020 Intertek Japan K.K. 1283 Yadoriki, Matsuda, Ashigarakami-gun, Kanagawa-ken 258-0001 Japan FCC ID: T82-HRF2403 To whom it may concern, We, Intertek Japan K.K., hereby declare that 2.4GHz Wireless module of HERUTU ELECTRONICS CORPORATION is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(v06). KDB 447498D01(v06) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1 g SAR and ≤ 7.5 for 10 g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 2.478 GHz and distance = 5 mm (minimum separation distance: 5mm was used in the calculation) and the maximum average output power was 2.3 mW So for this device: 2.3 mW[maximum average output power]/5 mm[minimum separation distance]*√2.478 = 0.72 *This is less than 3.0, so no SAR is required. Even taking into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Hideaki Kosemura Technical Manager Intertek Japan K.K.

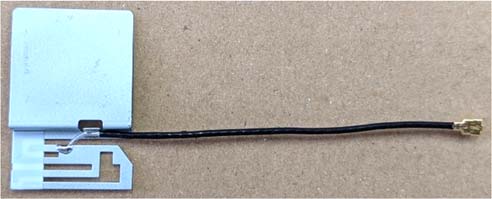

1/2 HERUTU ELECTRONICS CORPORATION  External Photos FCC ID : T82-HRF2403 IC : 10608A-HRF2403 Model : HRF-2403 Applicant : Herutu Electronics Corporation 2/2 HERUTU ELECTRONICS CORPORATION  Antenna Photos <Chip Antenna> <PIFA> <Dipole Antenna>

Sample Label / Label Location Since there is no space to put the FCC ID / IC on the label at product, the following contents are described in the user manual and package. FCC ID: T82-HRF2403 IC: 10608A-HRF2403 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation.  Sample Label on the package  Sample Location The Label is permanently affixed on the package with an adhesive.

Explanation about our product labeling FCC ID : T82-HRF2403 Model : HRF-2403 Applicant : Herutu Electronics Corporation We would like to declare that there is no space for printing the FCC ID on the product. We will show the dimension of our product size as below. If we try to write FCC ID on this module, the minimum character size is 4pt and it will be as shown in the figure below and will be out of the label. It is physically impossible to display the FCC ID code in 4pt, 1 line on the shield cover due to the small product size. The FCC ID code will be displayed on the product packaging and in the user's manual in accordance with the provisions of FCC Part 2, 2.925 (f).

1/1 HERUTU ELECTRONICS CORPORATION  Internal Photos FCC ID : T82-HRF2403 IC : 10608A-HRF2403 Model : HRF-2403 Applicant : Herutu Electronics Corporation

© 2019 Intertek Japan K.K. Page 1 of 62 LFT-FJP-TE054 / Effective Date: 15 Nov 2019 TEST REPORT REGULATIONS : FCC Part15 C §15.247 RSS-247 Issue 2 Applicant Testing Laboratory HERUTU ELECTRONICS CORPORATION 62-1 Toyooka-cho Kita-ku Hamamatsu-shi Japan 433-8103 Tel.: +81-53-438-3511 Intertek Japan K.K. Matsuda Laboratory (Open area test site) 1283 Yadoriki, Matsuda-machi, Ashigarakami-gun, Kanagawa-ken, 258-0001 Japan Tel.: +81 465 89 2316 URL: http://www.japan.intertek-etlsemko.com Equipment Type 2.4GHz Wireless module Trademark HERUTU Model(s) HRF-2403 Serial No. A000330 / A000331 FCC ID T82-HRF2403 IC 10608A-HRF2403 PMN HRF-2403 HVIN V1.00 FVIN V1.00 Test Result Complied Report Number 20090329JMA-001 Original Issue Date January 13, 2021 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Approved by Tested by Hideaki Kosemura [ Reviewer ] Yoshiaki Yoneyama [ Engineer ] Naohei Murakami [ Engineer ] VLAC-008 NVLAP LAB CODE 600234-0 NVLAP accreditation are valid for RSS-247. FCC Part15C is outside the NVLAP scope. This report contains data that are not covered by the NVLAP accreditation. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. Report No. : 20090329JMA-001 Original: January 13, 2021 FCC ID: T82-HRF2403 IC: 10608A-HRF2403 © 2019 Intertek Japan K.K. Page 2 of 62 LFT-FJP-TE054 / Effective Date: 15 Nov 2019 TABLE OF CONTENTS Page SECTION 1. GENERAL INFORMATION .................................................................................................... 3 SECTION 2. SUMMARY OF TEST RESULTS ............................................................................................ 4 SECTION 3. EQUIPMENT UNDER TEST ................................................................................................... 5 SECTION 4. SUPPORT EQUIPMENT ........................................................................................................ 6 SECTION 5. USED CABLE(S) .................................................................................................................... 7 SECTION 6. TEST CONFIGURATION ........................................................................................................ 8 SECTION 7. OPERATING CONDITION .................................................................................................... 10 SECTION 8. UNCERTAINTY ...................................................................................................................... 11 SECTION 9. TEST DATA ........................................................................................................................... 12 9.1 6dB Bandwidth and 99 % Occupied Bandwidth ....................................................................... 12 9.2 Maximum Peak Output Power .................................................................................................. 13 9.3 Radiated Spurious Emissions and Band Edge of Restricted Band .......................................... 14 9.4 Band Edge of Authorized Frequency Band .............................................................................. 24 9.5 Spurious RF Conducted Emissions .......................................................................................... 26 9.6 AC Conducted Emissions ......................................................................................................... 27 9.7 Receiver Spurious Emissions ................................................................................................... 31 SECTION 10. LIST AND DIAGRUM OF MEASURING INSTRUMENTS ................................................... 38 ANNEX .................................................................................................................................................. 44 A. HARD COPY OF SPECTRUM PLOTS ............................................................................................. 45 Report No. : 20090329JMA-001 Original: January 13, 2021 FCC ID: T82-HRF2403 IC: 10608A-HRF2403 © 2019 Intertek Japan K.K. Page 3 of 62 LFT-FJP-TE054 / Effective Date: 15 Nov 2019 SECTION 1. GENERAL INFORMATION Test Performed EUT Received December 9, 2020 Date of Test From December 10, 2020, to January 8, 2021 FCC IC Standard Applied FCC Part15 C §15.247 RSS-247 Issue 2 Test methods ANSI C63.10-2013 KDB 558074 D01 DTS Meas Guidance v05r02 RSS-Gen Issue 5 ANSI C63.10-2013 Deviation from Standard(s) None Qualifications of Testing Laboratory (Matsuda Lab.) Accreditation Scope Lab. Code Remarks VLAC Wireless / EMC Testing VLAC-008-3 JAPAN NVLAP Wireless / EMC Testing 600234-0 USA FCC Wireless / EMC Testing JP0009 USA ISED Wireless Testing JP0004(CABID) CANADA BSMI EMC Testing SL2-IN-E-6009 TAIWAN SABS EMC Testing N/A South Africa Filing VCCI EMC Testing A-0127 JAPAN Abbreviations EUT Equipment Under Test DoCDeclaration of Conformit y AMN Artificial Mains Network ISNImpedance Stabilization Network LISN Line Impedance Stabilization Network Q-PQuasi-Peak AMP Amplifier AVGAverage ATT Attenuator PKPeak ANT Antenna CalCalibration BBA Broadband Antenna…

Text truncated - open the document above for the full version.

Report No. : 20090329JMA-001 Original: December 16, 2020 FCC ID: T82-HRF2403 IC: 10608A-HRF2403 © 2019 Intertek Japan K.K. Page 1 of 10 LFT-FJP-TE054 / Effective Date: 15 Nov 2019 B. PHOTOGRAPHS OF EMISSION SET-UP Report No. : 20090329JMA-001 Original: December 16, 2020 FCC ID: T82-HRF2403 IC CN: 10608A-HRF2403 © 2019 Intertek Japan K.K. Page 2 of 10 LFT-FJP-TE054 / Effective Date: 15 Nov 2019 B.1 EUT Axis (Chip Antenna) X (worst) Y Z Report No. : 20090329JMA-001 Original: December 16, 2020 FCC ID: T82-HRF2403 IC CN: 10608A-HRF2403 © 2019 Intertek Japan K.K. Page 3 of 10 LFT-FJP-TE054 / Effective Date: 15 Nov 2019 Report No. : 20090329JMA-001 Original: December 16, 2020 FCC ID: T82-HRF2403 IC CN: 10608A-HRF2403 © 2019 Intertek Japan K.K. Page 4 of 10 LFT-FJP-TE054 / Effective Date: 15 Nov 2019 B.2 EUT Axis (1/2λ Dipole PIFA) X Y (worst) Z Report No. : 20090329JMA-001 Original: December 16, 2020 FCC ID: T82-HRF2403 IC CN: 10608A-HRF2403 © 2019 Intertek Japan K.K. Page 5 of 10 LFT-FJP-TE054 / Effective Date: 15 Nov 2019 B.3 EUT Axis (1/2λ Dipole antenna) 0° X Y (worst) Z Report No. : 20090329JMA-001 Original: December 16, 2020 FCC ID: T82-HRF2403 IC CN: 10608A-HRF2403 © 2019 Intertek Japan K.K. Page 6 of 10 LFT-FJP-TE054 / Effective Date: 15 Nov 2019 45° X Y Z Report No. : 20090329JMA-001 Original: December 16, 2020 FCC ID: T82-HRF2403 IC CN: 10608A-HRF2403 © 2019 Intertek Japan K.K. Page 7 of 10 LFT-FJP-TE054 / Effective Date: 15 Nov 2019 90° X Y Z Report No. : 20090329JMA-001 Original: December 16, 2020 FCC ID: T82-HRF2403 IC CN: 10608A-HRF2403 © 2019 Intertek Japan K.K. Page 8 of 10 LFT-FJP-TE054 / Effective Date: 15 Nov 2019 B.4 Radiated Spurious Emissions below 1 GHz Report No. : 20090329JMA-001 Original: December 16, 2020 FCC ID: T82-HRF2403 IC CN: 10608A-HRF2403 © 2019 Intertek Japan K.K. Page 9 of 10 LFT-FJP-TE054 / Effective Date: 15 Nov 2019 B.5 Radiated Spurious Emissions above 1 GHz Report No. : 20090329JMA-001 Original: December 16, 2020 FCC ID: T82-HRF2403 IC CN: 10608A-HRF2403 © 2019 Intertek Japan K.K. Page 10 of 10 LFT-FJP-TE054 / Effective Date: 15 Nov 2019 B.6 AC Conducted Emissions
