T82-TW800TPOKAYOKE TRANSMITTER

Wireless Communication TW-800 Please use this operation manual correctly on reading well. Please keep it carefully to be able to read immediately, when required. Contents ■General outline ...................................................... 1 ■Main part and accessories .................................... 2 ■Safety concerns ..................................................... 3 ■Name and function of each part ........................... 5 ■Installation .............................................................. 7 ■Setting .................................................................. 11 ■How to use ........................................................... 14 ■Specification ........................................................ 16 ■Dimensional drawing ........................................... 17 ■After service and Warranty ................................. 19 CAUTION ■Common text for TW-800T and TW-800R Information about FCC Standard. FCC CAUTION Change or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interface, and (2) This device must accept any interface received, including interface that may cause undesired operation: Information about FCC Standard and IC standard. This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux la partie 15des règles de la FCC et CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. TW-800 1 ■General outline TW-800 is constituted by a Transmitter[TW-800T] and a Receiver [TW-800R] Once the TW-800T is mounted on the Torque wrench a tool of others with Limit switch (LS), the tightening completion signal of Torque wrench can be transmitted to each series of our TWF-800R. <Feature> ◆Reliable communication TW-800 can communicate automatically by selecting the channel from 78ch in 2.4GHz bandwidth. TW-800 transmits the signal reliably by 2way communication.(You can look see the communication OK/NG by LED lighting and flashing.) ◆TW-800T has the function of remaining battery level notice.(At using test switch) If remaining battery level is low at using test switch, you can look see the LED situation of TW-800T and TW-800R. ◆TW-800T uses CR2032 type of battery for small size and light weight.(Size is same as TW-510T) ◆The case of TW-800T is used polypropylene for protecting broken the case. ◆TW-800 uses the communication band which can be used worldwide. ◆TW-800T has test switch for test communication and battery remaining check. ◆It is easy to set the registry of TW-800T and TW-800R. It is easy to do ”Pairing” with TW-800T and TW-800R.It is not necessary to manage the channel and ID. ◆TW-800R can be set various setting 1.Buzzer: On/Off 2.Buzzer volume:2 kinds Small/Big 3.Output time of Photo-Mos relay: 4kinds 50ms/200ms/400ms/1s 4.Double-count protect time: 4 kinds 10ms/200ms/1s/2s ◆The power source of TW-800R is DC24V. The power source of TW-800R that is often connected with controlled equipment is DC24V. It can be used AC100-240V by using AC adapter of option ※For the cause of transmitter ”TW-800T” and receiver “TW-800R” recognize both sides by pairing, equipment configuration is set to 1to 1.It can’t be used two or more sets of transmitter for one set receiver. TW-800 2 ■Main part and accessories Transmitter TW-800T Receiver TW-800R Coin battery CR 2032×1 Screw for fitiing M4×L5×4 TW-800T ×1 (Screw for fitting a mainpart, Limit switch) Fitting plate×1 TW-800R ×1 TW-800 3 ■Safety concerns Safety concerns (Be sure to read) To prevent human injury of user or damage in property from occurring, be sure to observe the precautions shown below. ■ The degree in safety hazard and damage generated by the wrong usage while ignoring the descriptions is classified by the following displays. Using in an improper way while ignoring this pictorial symbol might cause a death or serious human injury. Using in an improper way while ignoring this pictorial symbol might cause a human injury or property damage. ■The type of descriptions you should observe is classified by the following pictorial symbols. This pictorial symbol indicates a “Reminder” to attract an attention. This pictorial symbol indicates a “Prohibition” to prohibit a certain action. ■ For the usage to be commonly applied in all the models: ●Avoid using in a place with a plenty of humidity or dust. Otherwise, absorbing a dust or water contents may cause machine trouble, fire or electrical shock. ■For handling this machine: ●This is the electronic devise or wireless radios composed of the precision parts. Do not overhaul/remodel. It may cause accident or machine trouble. ■ For handling this machine: ●Do not use this product for the application needing the high reliability related to human lives. ●Do not use this product in a place where it is uncertain about whether or not radio waves reach. Warning ! Caution ! ! ! Warning ! TW-800 4 ■For handling the power source: Be sure to observe the following precautions to prevent the AC adapter and Power cord from being heated, damaged, or ignited. ●Do not approximate the AC adapter and Power cord to a fire, or do not put them into a fire. The AC adapter and Power cord can be broken or ignited, resulting in an accident. ●You can use the AC adapter and m…

Text truncated - open the document above for the full version.

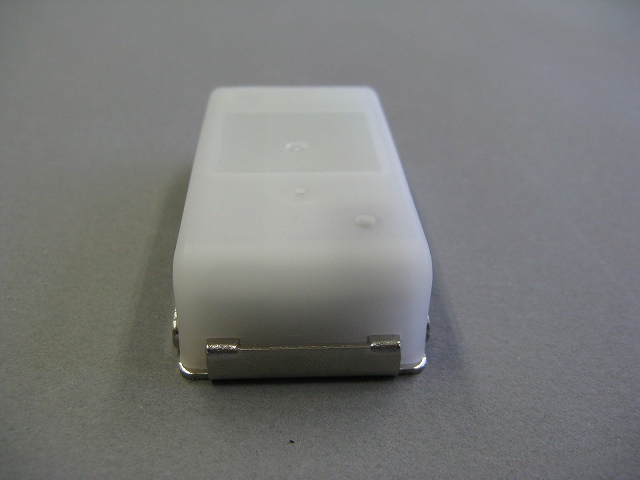

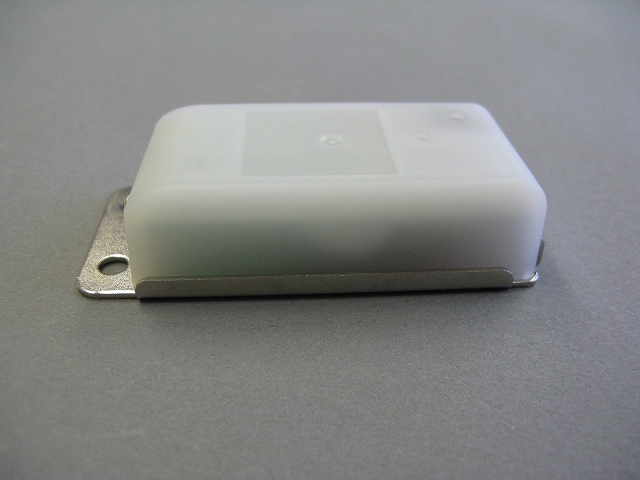

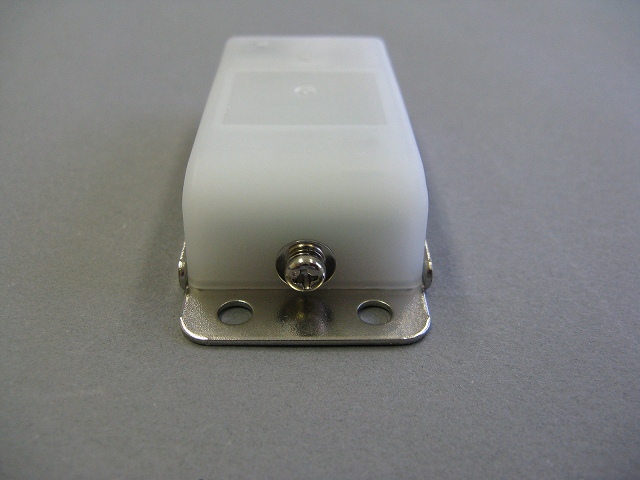

External Photo Herutu Electronics Corporation POKAYOKE TRANSMITTER [Model: TW-800T] Top Bottom External Photo Herutu Electronics Corporation POKAYOKE TRANSMITTER [Model: TW-800T] Front Rear External Photo Herutu Electronics Corporation POKAYOKE TRANSMITTER [Model: TW-800T] Side 1 Side 2

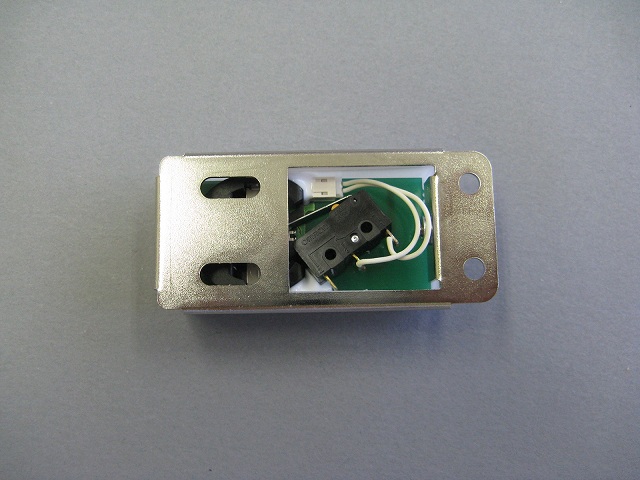

Internal Photo Herutu Electronics Corporation POKAYOKE TRANSMITTER [Model: TW-800T] Top Bottom

Test report No. : 32LE0115-HO-01-A Page : 2 of 18 Issued date : October 29, 2012 FCC ID : T82-TW800T UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ·············································································· 3 SECTION 2: Equipment under test (E.U.T.) ···································································· 3 SECTION 3: Test specification, procedures & results························································· 4 SECTION 4: Operation of E.U.T. during testing ······························································· 7 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 8 SECTION 6: 20dB Bandwidth and 99% Occupied Bandwidth ············································· 9 APPENDIX 1: Data of EMI test ·················································································· 10 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 10 20dB Bandwidth ............................................................................................................................... 13 Duty Cycle ........................................................................................................................................ 14 99% Occuqied Bandwidth ................................................................................................................ 15 APPENDIX 2: Test Instruments ·················································································· 16 APPENDIX 3: Photographs of test setup ······································································· 17 Radiated Emission ............................................................................................................................ 17 Worst Case Position (Horizontal: Z-axis/ Vertical:Y-axis) .............................................................. 18 Test report No. : 32LE0115-HO-01-A Page : 3 of 18 Issued date : October 29, 2012 FCC ID : T82-TW800T UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : HERUTU ELECTRONICS CORPORATION Address : 62-1 TOYOOKA-CHO,KITA-KU,HAMAMATSU-SHI SHIZUOKA- KEN, 433-8103 JAPAN Telephone Number : +81-53-438-3555 Facsimile Number : +81-53-438-3411 Contact Person : TAKASHI IKEGAYA SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : POKAYOKE TRANSMITTER Model No. : TW-800T Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 3.0V (CR2032 coin-type lithium battery) Receipt Date of Sample : September 7, 2012 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: TW-800T (referred to as the EUT in this report) is the POKAYOKE TRANSMITTER. General Specification Clock frequency(ies) in the system : 16MHz Radio Specification Equipment Type : Transceiver Frequency of Operation : 2403MHz - 2478MHz Channel Spacing : 1MHz Modulation : GFSK Antenna Type : PWB Pattern antenna (1/4λ Monopole) Antenna Gain : -3dBi Method of Frequency Generation : Synthesizer Test report No. : 32LE0115-HO-01-A Page : 4 of 18 Issued date : October 29, 2012 FCC ID : T82-TW800T UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : Test specification: FCC Part 15 Subpart C: 2012, final revised on August 13, 2012 and effective September 12, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.249 Operation within the bands 902-928MHz, 2400-2483.5MHz, 5725-5875MHz and 24.0-24.25GHz 3.2 Procedures and results No. Item Test Procedure SpecificationDeviationWorst margin Results 1 Conducted Emission ANSI C63.4:2003 7. AC powerline conducted emission measurements [FCC] Section 15.207(a) N/A N/A N/A *1) [IC] RSS-Gen 7.2.4 2 Electric Field Strength of Fundamental Emission ANSI C63.4:2003 13. Measurement of intentional radiators [FCC] Section 15.249(a)(e) N/A 7.7dB 2441.000MHz, Horizontal, PK with Duty factor Complied [IC] RSS-210 A2.9 3 Electric Field Strength of Spurious Emission ANSI C63.4:2003 13. Measurement of intentional radiators [FCC] Section 15.205(a)(b) Section 15.209(a) Section 15.249(a)(d)(e) N/A 5.2dB 2400.00MHz, Horizontal, PK with Duty factor Complied [IC] RSS-210 2.5 RSS-210 A2.9 4 20dB Bandwidth ANSI C63.4:2003 Reference N/A N/A Complied 5 Frequency Tolerance ANSI C63.4:2003 [FCC] Section 15.249(b) N/A N/A N/A *2) [IC] RSS-210 A2.9 Note: UL Japan, Inc.’s EMI Work Procedures No. 13-EM-W0420 and 13-EM-W0422. *1) The test is not applicable since the EUT is not the device that is designed to be connected to the public utility (AC) power line. *2) The test is not required since this EUT does not operate with 24.05GHz to 24.25GHz. *In case any questions arise about test procedure, ANSI C63.4: 2003 is also referred. FCC 15.31 (e) The test was performed with the New Battery (DC3.0V) and the stable voltage was supplied to the EUT during the tests. Therefore, the EUT complies with the requirement. FCC Part 15.203/212 Antenna requirement The antenna is not removable from the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203 Test report No. : 32LE0115-HO-01-A Page : 5 of 18 Issued date : October 29, 2012 FCC ID : T82-TW800T UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.3 Addition to standard I…

Text truncated - open the document above for the full version.

Test report No. : 32LE0115-HO-01-A Page : 17 of 18 Issued date : October 29, 2012 FCC ID : T82-TW800T UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Emission Photo 1 Photo 2 Test report No. : 32LE0115-HO-01-A Page : 18 of 18 Issued date : October 29, 2012 FCC ID : T82-TW800T UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: Z-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis End of Report
