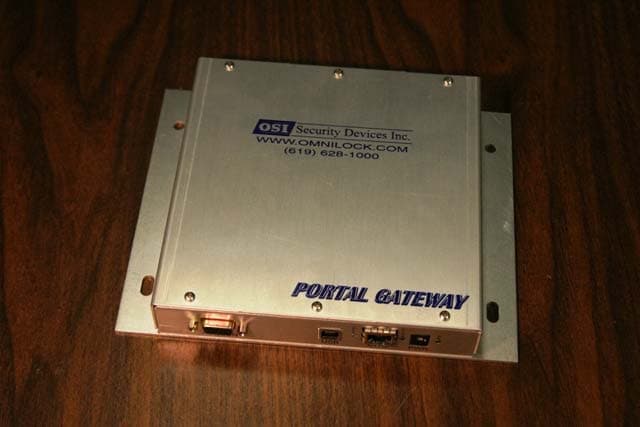

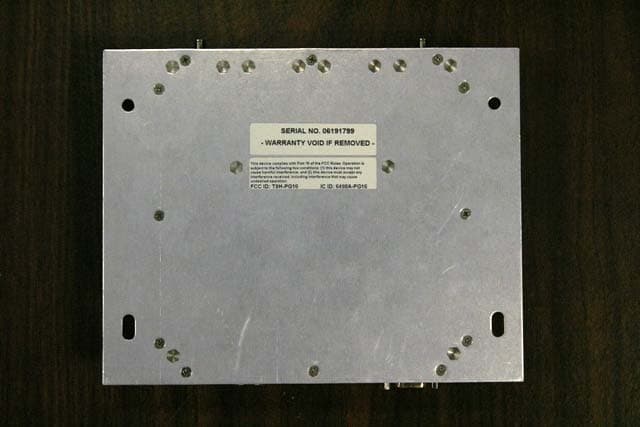

T8H-PG16Wireless Access Management System Portal Gateway

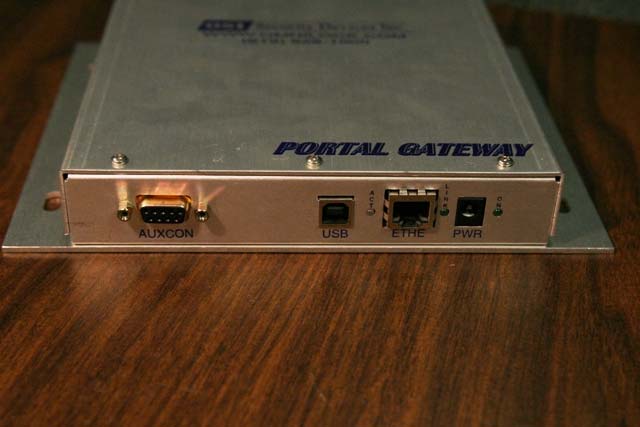

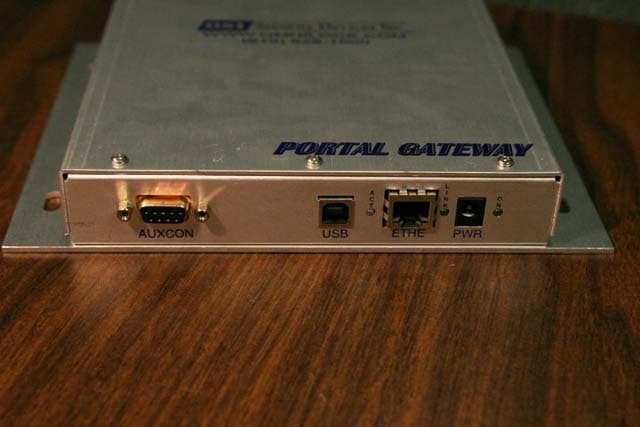

POWER INDICATOR LINK INDICATOR ACTIVITY INDICATOR POWER ETHERNET USB SCREW MOUNTING LOCATIONS ANTENNAS PORTAL GATEWAY WARNING: THIS PRODUCT IS NOT WARRANTED FOR OUTDOOR USE! WARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY OSI SECURITY DEVICES COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. SECURITY DEVICES OMNILOCK ® ACCESS CONTROL SYSTEMS INSTALLATION INSTRUCTIONS FOR PORTAL GATEWAY PG-B SERIES a. Refer to the WAMS Installation Guide to determine the optimum location for mounting the Portal Gateway. b. Insure that a 120VAC power outlet and an Ethernet connection are available. c. Mount the Portal Gateway in the selected location using the mounting screws provided. 1. Wood Screw, pan head, #10- Recommended pilot hole 1/8 inch diameter. 2. Drywall Anchor- Recommended pilot hole 3/8 inch diameter. 3. Concrete Screw- Recommended pilot hole 5/32 inch diameter. d. Connect the furnished 12VDC Power Supply to the 120VAC outlet and connect the 12VDC connector to the Portal Gateway. Observe that the “Power” indicator is on. e. Connect the Ethernet to the Portal Gateway. Observe that the “Link” indicator is on. f. After approximately 30 seconds, observe that the “Activity” indicator is flashing. SECTION 1: CHECK OPERATION Verify proper operation of the Portal Gateway as specified in the Wireless Access Management System (WAMS) Installation Guide. SECTION 2: INSTALL THE PORTAL GATEWAY MOUNTING SCREW SECURITY DEVICES 1580 JAYKEN WAY CHULA VISTA, CALIFORNIA 91911 (619) 628-1000 FAX (619) 628-1001 (Website: WWW.OMNILOCK.COM) Copyright ©2003 OSI Security Devices Inc. All Rights Reserved. OMNILOCK is a Registered Trademark of OSI Security Devices Inc. 12833 Rev.A

FRONT PORTAL I/O PORTAL RF

PORTAL INSIDE PORTAL INSIDE PORTAL INSIDE PORTAL INSIDE PORTAL INSIDE

Report No. SC602037-08 Page 1 of 32 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 MEASUREMENT AND TECHNICAL REPORT OSI SECURITY DEVICES 1580 Jayken Way San Diego, CA 91911 DATE: 22 May 2006 This Report Concerns: Original Grant: X Class II Change: Equipment Type: Portal Gateway, Model PG-B-16, S/N 06191799 Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes: Defer until: No: X Company Name agrees to notify the Commission by: N/A of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes: No: X* (*) FCC Part 15, Paragraph(s) 15.247(a), 15.247(b), 15.247(c), 15.247(d), 15.107(a), 15.207(a), and 15.209(a) Report Prepared by: TÜV AMERICA, INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 Fax: 858 546 0364 Report No. SC602037-08 Page 2 of 32 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 TABLE OF CONTENTS Pages 1.0 GENERAL INFORMATION 3 - 6 1.1 Product Description 3 - 4 1.2 Related Submittal Grant 5 1.3 Tested System Details 5 1.4 Test Methodology 5 1.5 Test Facility 6 2.0 SYSTEM TEST CONFIGURATION 7 2.1 Justification 7 2.2 EUT Exercise Software 7 2.3 Special Accessories 7 2.4 Equipment Modifications 7 2.5 Configuration of Test System 7 3.0 BAND EDGE EQUIPMENT/DATA BANDWIDTH EQUIPMENT/DATA RF OUTPUT POWER EQUIPMENT/DATA RF CONDUCTED SPURIOUS EMISSIONS EQUIPMENT/DATA RADIATED SPURIOUS EMISSIONS EQUIPMENT/DATA POWER SPECTRAL DENSITY EQUIPMENT/DATA RADIATED EMISSIONS EQUIPMENT/DATA 8 - 31 4.0 ATTESTATION STATEMENT 32 Report No. SC602037-08 Page 3 of 32 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 1.0 GENERAL INFORMATION 1.1 Product Description Please complete each section. Enter N/A if field is not applicable. Applicant Company Name & Contact: OSI Security Devices Address (Street): 1580 Jayken Way Address (: City: Chula Vista State: California Country: USA Zip: 91911 Person to Receive Report: Chris McGill Title Engineer Phone: (619)628-1000 Fax: (619)628-1001 E-mail Address: [email protected] General Equipment Description: EUT Description: Wireless Access Management System access point. EUT Name: Portal Gateway Model No.: PG-B-16 Serial No.: 06191799 Product Options: N/A Configurations and modes to be tested: Typical Operation EUT Specifications Length : 8 inches Width: 8 inches Height: 1.5 inches Weight: 1.5 pounds Report No. SC602037-08 Power Requirements ( Regulations require testing to be performed at typical power ratings in the countries of intended use. (i.e., European power is typically 230 VAC 50 Hz or 400 VAC 50 Hz, single and three phase, respectively)) Voltage: 120 Volts (If battery powered, make sure battery life is sufficient to complete testing.) # of Phases: 1 Phase Current (Amps/phase(max)): .5 Amps Current (Amps/phase(nominal)): .1 Amps EUT Power Cable Permanent OR X Removable Shielded OR X Unshielded Not Applicable X Length (in meters): 2 M EUT Interface Ports and Cables Interface Shielding Type Type Termination Connector Type Port Termination EXAMPLE: RS232 X 2 X Foil over braid Coaxial Metallized 9- pin D-Sub Characteristic Impedance 6 X Ethernet 1 X Cat 5 RJ45 Shrouded RJ45 75 ohms 2 X EUT Operating Modes to be Tested -- list the operating modes to be used during test. It is recommended the equipment be tested while operating in a typical operation mode. FCC testing of personal computers and/or peripherals requires that a simple program generate a complete line of upper case H’s. Provide a general description of all software, firmware, and PLD algorithms used in the equipment. List all code modules as described above, with the revision level used during testing. Typical Operation. Page 4 of 32 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 Report No. SC602037-08 Page 5 of 32 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 1.2 Related Submittal Grant None 1.3 Tested System Details The FCC ID’s for all equipment, plus descriptions of all cables used in the tested system are: None 1.4 Test Methodology Purpose of Test: To demonstrate compliance with the following tests. Test Summary Summary of Results Test Description Paragraph Number Low Channel Mid Channel High Channel Pass/Fail Band Edge 15.247(a)(1) No Emissions Detected -- No Emissions Detected Pass Bandwidth 15.247(a)(2) 2.665 MHz 2.690 MHz 2.690 MHz Pass RF Output Power 15.247(b) 14.46 dBm 14.82 dBm 14.53 dBm Pass RF Conducted Spurious Emissions 15.247(c) -31 dB -32 dB -35 dB Pass Radiated Spurious Emissions – Restricted Bands (1GHz to 25GHz) 15.247(c)/ 15.209(a) -7.15 dB @ 7217.68 MHz -10.3 dB @ 7335.7 MHz -12 dB @ 4960.4 MHz Pass Power Spectral Density 15.247(d) -8.0 dB -8.0 dB -9.0 dB Pass Conducted Emissions 15.107(a) -19.2 dB @ 0.295 MHz -- -- Pass Conducted Emissions 15.207(a) -19.3 dB @ 0.285 MHz -- -- Pass Radiated Emissions (30 to 1000 MHz) 15.209(a) -6.3 dB @ 660 MHz -- -- Pass Testing was performed according to the procedures in FCC/ANSI C63.4 and CSA 108.8-M1983. Report No. SC602037-08 Page 6 of 32 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 1.5 Test Facility The open area test site and conducted measurement data were tested by: TÜV AMERICA, INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 Fax: 858 546 0364 The Test Site Data and performance comply with ANSI C63.4 and are registered with the FCC, 7435 Oakland Mills Road, Columbia Maryland 21046. All Measurement Data is acquired according to the content of FCC Measurement Procedure and ANSI C63.4, unless supplemented with additional requirements as noted in the test report. Report No. SC602037-08 Page 7 of 32 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 9212…
