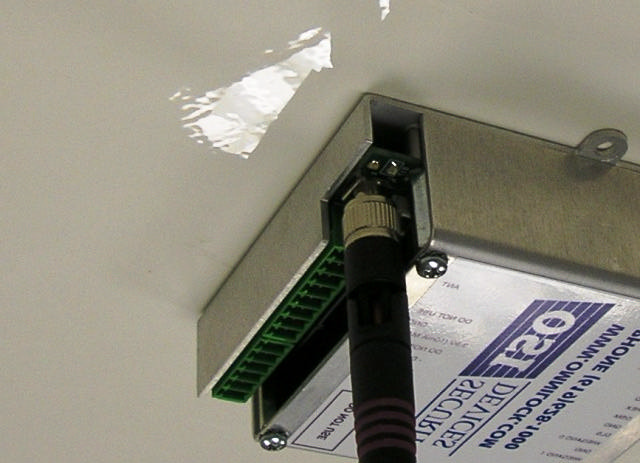

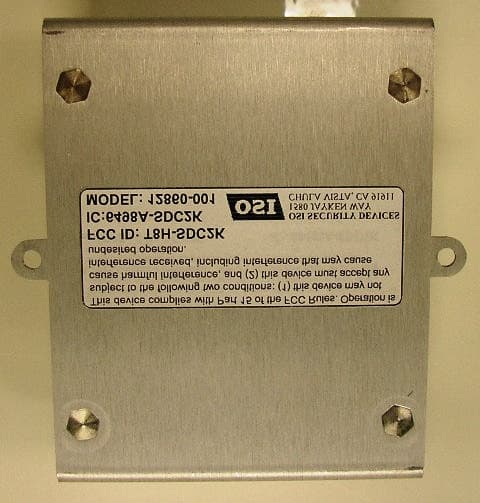

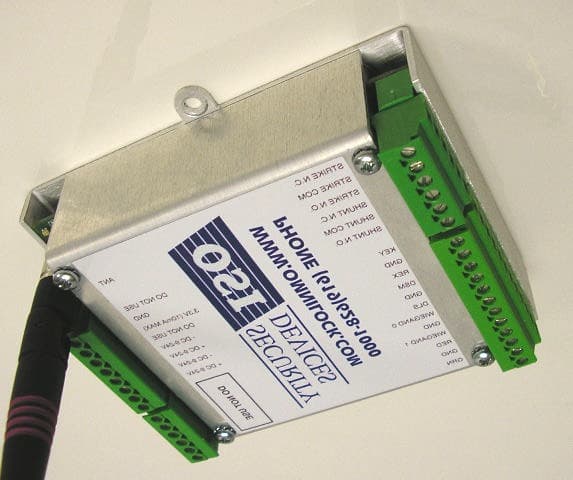

T8H-SDC2KSingle Door Controller

USER’S GUIDE Version 2.0 1/29/2008 WIRELESS ACCESS MANAGEMENT SYSTEM ii - USER’S GUIDE OSI SECURITY DEVICES, INC 1580 Jayken Way Chula Vista, Ca. 91911-4644 Phone: (619) 628-1000 Fax: (619) 628-1001 E-mail: [email protected] Website: http://www.omnilock.com/ OSI Portal Gateways have been approved for use under FCC ID T8H-PG16, and IC: 6498A- PG16. Operation is subject to conditional use. “This device complies with Part 15 of the FCC Rules. Operation is subject to the followoing two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” ©2008 OSI Security Devices, Inc. All rights reserved. OMNILOCK is a Registered Trademark of OSI Security Devices, Inc. Microsoft, Windows, Windows XP, and Secure Socket Layer (SSL) are registered trademarks of Microsoft Corporation. All other Trademarks used or referenced in this document are the property of their respective owners. WIRELESS ACCESS MANAGEMENT SYSTEM USER’S GUIDE - 3 Contents FCC Certification .................................................................................................................5 SOFTWARE OVERVIEW .......................................................................................................5 WAMS Users .....................................................................................................................6 User Types.....................................................................................................................6 USING WAMS CONFIGURATOR ...........................................................................................7 Launching WAMS Configurator ............................................................................................7 Display Options ..................................................................................................................8 Tab Options .......................................................................................................................8 Facility Tab......................................................................................................................8 Readers Tab ..................................................................................................................9 Timezones Tab .............................................................................................................10 Users Tab ....................................................................................................................10 Adding Users to the Facility ...............................................................................................10 Before You Begin ..........................................................................................................11 Users Tab Overview .......................................................................................................12 ID..................................................................................................................................13 Name ...........................................................................................................................13 User Defined Fields .......................................................................................................13 Associations .................................................................................................................13 Credential Settings..........................................................................................................15 Settings ........................................................................................................................21 Reader Control...............................................................................................................22 USING WAMS TRANSACTIONS..........................................................................................23 WAMS Transactions Overview ...........................................................................................23 Reader and Portal Controls ............................................................................................23 Transactions Tab ..........................................................................................................23 Alarms Tab....................................................................................................................24 Transaction Types ............................................................................................................25 Organizing and Sorting Transactions ..................................................................................25 Display by Timespan.......................................................................................................25 Sort by Column Header .................................................................................................26 View Transactions in Tree Levels ...................................................................................26 Responding to Alarms .......................................................................................................27 WAMS Statistics Monitor....................................................................................................29 USING WAMS REPORTS ....................................................................................................29 Reports Overview .............................................................................................................29 Creating Reports in WAMS ................................................................................................29 Configure Report Settings ...............................................................................................30 Generating a Report .......................................................................................................31 Gener…

Text truncated - open the document above for the full version.

18 – USER’S GUIDE WIRELESS ACCESS MANAGEMENT SYSTEM Reader
You can use a local reader to scan the card credentials. Select Reader, and then use the drop-down list to navigate to the reader where the card will be scanned. When you are ready to scan the card, select the Scan button. You will have 30 seconds to scan the card. When recognized, the number will display in the Credential Number text box.
Select Finish and return to the Credential Setup dialog box. NOTE: You may need to expand the drop-down list to view all available readers. Use the highlighted area in the lower right corner. To register a Prox Card Credential: 1. Select Prox Card from the list on the left. The User Prox Card Credential Number dialog box opens. 2. Enter a Credential Number manually (must be less than 16 characters, zeros will be prepended) or select a scan device: USB Card Reader
If you have a USB Card reader connected to your computer, select USB Card Reader.
When you are ready to scan the card, select the Scan button. You will have 30 seconds to scan the card. When recognized, the number will display in the Credential Number text box.
Select Finish and return to the Credential Setup dialog box. Serial Card Reader
If you have a Serial Card Reader connected to your computer, select Serial Card Reader and then select the appropriate com port from the drop-down list.
When you are ready to scan the card, select the Scan button. You will have 30 seconds to scan the card. When recognized, the number will display in the Credential Number text box.
Select Finish and return to the Credential Setup dialog box. USER’S GUIDE- 19 WIRELESS ACCESS MANAGEMENT SYSTEM Reader
You can use a local reader to scan the card credentials. Select Reader, and then use the drop-down list to navigate to the reader where the card will be scanned.
When you are ready to scan the card, select the Scan button. You will have 30 seconds to scan the card. When recognized, the number will display in the Credential Number text box.
Select Finish and return to the Credential Setup dialog box. NOTE: You may need to expand the drop-down list to view all available readers. Use the highlighted area in the lower right corner. 3. In the Proximity Card category, review the Prox Card Type. If the default entry is not the one you will use, select the field and use the down-arrow to select the correct type from the list. 4. Select Finish and return to the Credential Setup dialog box. To register a Smart Card credential: 1. Select Smart Card from the list on the left. The Users Smart Card Credential Number dialog box opens. 2. Enter a Credential Number manually (must be less than 16 characters, zeros will be prepended) or select a scan device: Card Reader
If you have a scanning device connected to your computer, select Card Reader. When you are ready to scan the card, select the Scan button. You will have 30 seconds to scan the card.
When recognized, the number will display in the Credential Number text box.
Select Finish and return to the Credential Setup dialog box. Reader
You can use a local reader to scan the card credentials. Select Reader, and then use the drop-down list to navigate to the reader where the card will be scanned.
When you are ready to scan the card, select the Scan button. You will have 30 seconds to scan the card. When recognized, the number will display in the Credential Number text box.
Select Finish and return to the Credential Setup dialog box. 20 – USER’S GUIDE WIRELESS ACCESS MANAGEMENT SYSTEM Adding a Credential Type At least one credential type must be defined for the system. The default credential type in WAMS is Keypad. If you use other then keypad credential types, you can add them to the User Credentials Setup dialog box. For example, if your facility will use Smart cards, you can add Smart Card to the list. To add a card type to the list: 1. In the Users Credentials Setup dialog box, select the Add button. The Add Credential to User dialog box opens. 2. Select the Credential Type from the drop-down list. 3. Select Finish. The User <Smart Card> Credential Number Setting dialog box opens. The default Credential Number displays in the text box at the top. 4. If you selected a user before you added the new type, you can enter or scan in the credential number. If you did not select a user, select Finish to return to the User Credentials Setup dialog box. The new credential type will display in the list of types. USER’S GUIDE- 21 WIRELESS ACCESS MANAGEMENT SYSTEM PIN You can add a level of security by requiring PIN numbers in addition to credentials for all users, or for specific Timezone Intervals. The default displays the PIN number as asterisks in the fields; however you can choose to show the actual PIN numbers. To add a PIN Number for a User: 1. Under Credential Settings, click in the field next to PIN. The Set Personal Identification Number dialog box opens. 2. Select the Show PINs check box if you wish to view the numbers instead of asterisks as you type them in. 3. Enter a PIN number for the user. 4. Click Finish to save the PIN and exit the dialog box. Settings Each facility user will be assigned a user type and access type, depending on the tasks they perform and the access mode needed to perform those tasks. The system supports four different types of users: General Users, Managers, Programmers, and Service users. You can have up to 65,000 individual users in the system and they can be of any User Type. User types are briefly described in the following paragraphs. General Users The majority of users will be assigned as General Users. They are allowed entry only when the access level is set to ID Required. General Users never have access when the reader is in Lockout. To assign User Type: 1. In the Settings category, select the field next to User Type. 2. Select a User Type from the drop-down list. Manager Managers are one of the most useful types of IDs. This User Type provides the capabi…

Text truncated - open the document above for the full version.

Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification FCC ID: T8H-SDC2K IC: 6498A-SDC2K Product: Single Door Control 12860-001 Authority to Act as Agent On our behalf, I appoint Alan Laudani of Nemko USA Inc., 11696 Sorrento Valley Rd, San Diego, CA, USA to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communication Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with OSI Security Devices of .1580 Jayden Way, Chula Vista, CA. Agency agreement expiration date: April 1, 2008 Dated this 9th day of November, 2007 By: Chris McGill Junior Engineer

22 August 2007 Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F San Diego, CA 92121-1024 Re: FCC ID T8H-SDC2K Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics, Block Diagram, and Operating Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Chris McGill Junior Engineer (619)628-1000

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power --Conducted12.61dBm 0.018(W) Antenna gain(typical):2.20(dBi) Maximum antenna gain:1.66(numeric) Prediction distance:20.00(cm) Prediction frequency:2445.20(MHz) Limit from table below:1(mW/cm^2) Power density at prediction frequency:0.006(mW/cm^2) EUT complies FCC/LSGAC Local Official’s Guide to RF A LOCAL GOVERNMENT OFFICIAL'S GUIDE TO TRANSMITTING ANTENNA RF EMISSION SAFETY: RULES, PROCEDURES, AND PRACTICAL GUIDANCE 2 4R PG S π =

Nemko USA, Inc. 11696 Sorrento Valley Rd., Suite F San Diego, CA 92121-1024 Phone (858) 755-5525 Fax (858) 452-1810 FCC Part 15 Subpart C, 15.247 : 12/02/2008 CERTIFICATION TEST REPORT Report Number: 2007 086393 EMC Project Number: 6963-1 Applicant: OSI Security Devices 1580 Jayken Way Chula Vista, CA 91911 Equipment Under Test (EUT): Single Door Controler Model: 12860-001 FCC ID: T8H-SDC2K IC: 6498A-SDC2K In Accordance With: FCC Part 15 Subpart C, 15.247 RSS-210, Issue 7, June 2007 Tested By: Nemko USA Inc. 11696 Sorrento Valley Road, Suite F San Diego, CA 92121 Authorized By: Michael T. Krumweide, EMC Supervisor Date: August 24, 2007 Total Number of Pages: 56 Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F, San Diego, CA 92121 Phone (858) 755-5525 Fax (858) 452-1810 6498A-SDC2K Report Number: 2007 086393 EMC T8H-SDC2K Specification: FCC Part 15 Subpart C, 15.247 Page 2 of 57 Summary of Test Results General All measurements are traceable to national standards These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15; Subpart C. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: Single Door Controler Model 12860-001 Specification: FCC Part 15 Subpart C, 15.247 Date Received in Laboratory: August 20, 2007 Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: REVISION DATE COMMENTS - February 12, 2008 Prepared By: Alan Laudani - February 12, 2008 Initial Release: Mike T. Krumweide Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F, San Diego, CA 92121 Phone (858) 755-5525 Fax (858) 452-1810 6498A-SDC2K Report Number: 2007 086393 EMC T8H-SDC2K Specification: FCC Part 15 Subpart C, 15.247 Page 3 of 57 Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko USA Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. TESTED BY: Date: February 12, 2008 Alan Laudani, EMC Test Engineer Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F, San Diego, CA 92121 Phone (858) 755-5525 Fax (858) 452-1810 6498A-SDC2K Report Number: 2007 086393 EMC T8H-SDC2K Specification: FCC Part 15 Subpart C, 15.247 Page 4 of 57 TABLE OF CONTENTS Summary of Test Results.........................................................................................................2 Equipment Under Test..............................................................................................................5 1.1. Product Identification..............................................................................................................5 1.2. Theory of Operation................................................................................................................5 1.3. Technical Specifications of the EUT.........................................................................................6 Test Conditions..........................................................................................................................7 1.4. Specifications.........................................................................................................................7 1.5. Deviations From Laboratory Test Procedures...........................................................................7 1.6. Test Environment...................................................................................................................7 1.7. Test Equipment......................................................................................................................8 Observations...............................................................................................................................9 1.8. Modifications Performed During Assessment............................................................................9 1.9. Record Of Technical Judgements............................................................................................9 1.10. EUT Parameters Affecting Compliance....................................................................................9 1.11. Tests Deleted.........................................................................................................................9 1.12. Additional Observations..........................................................................................................9 Results Summary.....................................................................................................................10 5.1 Test Results.........................................................................................................................10 Appendix A: Test Results......................................................................................................11 1.13. 20dB Bandwidth...................................................................................................................11 1.14. Out-of-band Emissions / Radiated Emissions within Restricted Bands......................................15 1.15. Minimum 6dB RF Bandwidth.................................................................................................18 1.16. Maximum peak output power.......................................................................…
