wionics r esear ch http://www.realtek.com.tw 1 All Rights Reserved by Wionics Research Realtek/Intel UWB Dongle Demo Board User’s Guide Revision A wionics r esear ch wionics r esear ch http://www.realtek.com.tw 2 All Rights Reserved by Wionics Research Table of Contents 1 Introduction ............................................................................................................ 3 2 System Description ................................................................................................. 3 2.1 UWB PHY .................................................................................................. 3 2.2 Intel MAC ................................................................................................... 4 2.3 EEPROM.................................................................................................... 4 3 Software.................................................................................................................. 4 3.1 Driver/Application Installation .................................................................... 4 3.1.1 Setup ....................................................................................................... 4 3.1.2 Driver Installation.................................................................................... 7 3.1.2.1 USB Dongle ............................................................................................ 7 3.1.2.1.1 DFU Driver.......................................................................................... 7 3.1.2.1.2 Control Driver ................................................................................... 10 3.1.2.1.3 HWA(Host Wire Adapter) Driver ...................................................... 14 3.1.2.1.4 WiNet Driver ..................................................................................... 19 3.1.3 Application Operation............................................................................ 23 4 Hardware Interfaces .............................................................................................. 26 4.1 USB Interface ............................................................................................ 26 5 Instruction to The User.......................................................................................... 26 6 Document History ................................................................................................. 27 wionics r esear ch http://www.realtek.com.tw 3 All Rights Reserved by Wionics Research 1 Introduction This document describes the operations, interfaces, and software installation of the Realtek/Intel UWB USB Dongle Demo Board. 2 System Description Figure 1 shows the system block diagram of the Realtek/Intel UWB USB Dongle Demo Board. UWB PHY UWB PHY Intel MAC Intel MAC ANT1 MPI_PHY USB Interface USB Interface 512Kb EEPROM 512Kb EEPROM 24MHz Xtal 24MHz Xtal 66MHz Xtal 66MHz Xtal Figure 1 System Block Diagram The demo system mainly consists of two main chips – (i) UWB PHY, (ii) Intel MAC. A serial EEPROM is required to store proper data/commands for the PHY chip and MAC chip. To make the system work properly, the EEPROM should be loaded with proper content by using proper EEPROM writing equipment through I2C interface. Two basic clock frequencies are used in the system – 24MHz for MAC and 66MHz for PHY. Some more details of the components are shown in the following sections. 2.1 UWB PHY This chip integrates the RF and baseband functions of a UWB PHY defined by the standard. This version of PHY chip is packaged in 48-pin QFN form factor. The analog/RF section requires 1.65V and 3.3V to operate. The digital core operates with 1.4V and the I/O voltage can support a range of 1.8V~3.3V. wionics r esear ch http://www.realtek.com.tw 4 All Rights Reserved by Wionics Research 2.2 Intel MAC This MAC chip(Rhondda-M, 144-pin BGA) is from Intel which has a standard MPI interface to communicate with a standard UWB PHY, as well as a standard USB 2.0 interface to connect directly to a PC. This chip requires voltages of 1.5V and 3.3V. 2.3 EEPROM This chip is a serial EEPROM from Atmel with a capacity of 512Kb. It is used by the MAC to store the initialization data and command sequence required by the MAC and PHY on start up. This chip requires 2.7V~5V. On the application circuit, it’s powered by 3.3V. 3 Software 3.1 Driver/Application Installation 3.1.1 Setup
Microsoft .NET Frame 2.0 should be installed before installing the software. Please download it from Microsoft web site.
Make sure the HWA USB dongle is not connected to the PC/Laptop. Execute FCC_setup.exe wionics r esear ch http://www.realtek.com.tw 5 All Rights Reserved by Wionics Research
Accept license agreement
Enter user information
Installed directory wionics r esear ch http://www.realtek.com.tw 6 All Rights Reserved by Wionics Research
Install the program o The programs and drivers are install in the directory C:\Program Files\Intel\UWB
Installed directory
Copy all files in the Drivers directory of the software package into the installed directory and overwrite every files, i.e., C:\Program Files\Intel\UWB\Drivers.
Copy all files in the App directory of the software package into the installed directory and overwrite all files, i.e., C:\Program Files\Intel\UWB\App. wionics r esear ch http://www.realtek.com.tw 7 All Rights Reserved by Wionics Research 3.1.2 Driver Installation 3.1.2.1 USB Dongle 3.1.2.1.1 DFU Driver
Plug in the dongle, wait for the following dialog
Install the drivers from the specified location(C:\Program Files\Intel\UWB\Drivers) manually wionics r esear ch http://www.realtek.com.tw 8 All Rights Reserved by Wionics Research
Don’t search...
Click “Next>”
Choose “Have Disk...” wionics r esear ch http://www.realtek.com.tw 9 All Rights Reserved by Wionics Research
Install the drivers from C:\Program Files\Intel\UWB\Drivers
Click “Next>”
Click “Continue Anyway” wionics r esear ch http://www.r…

Text truncated - open the document above for the full version.

Figure 6.6.1: Block diagram of an integrated UWB OFDM PHY tone and symbol deinterl . conv. encoder Viterbi dec . demap QPSK DCM overlap and add 128- point FFT RF TX/RX MAC- PHY inter- face packet detection, frame synch., freq.-off. estimation tone and symbol interl . channel est. and phase tracking A DC D A C map QPSK DCM inverse 128- point FFT + zero prefix upsample and LP filter add pilot tones, add channel est. symbols RSSI AGC, f-hop,... control f-hop,... PLL 1 0 90 PLL 2 0 90 PLL 3 0 90 MUX LPFLPF DAC DAC LPFLPF ADCADC 5 55 5 IV IV RF TUNED Band Select REF Figure 6.6.2: Block diagram of a direct-conversion transceiver L 1 SEL 1 G M L 2 L 3 SEL 2 V LO+ V DD V LO- V LO+ V BB+ V BB- V OUT- V OUT+ From other channel From other channel Figure 6.6.4: Simplified modulator circuit (one channel) and inductive load

Request for Confidentiality Mar. 30, 2007 Chief, Authorizations Branch Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: W ionics Certification Application FCC ID: T8YDGLR7CV1 To W hom It May Concern: 16269 Laguna Canyon Rd. #100 Irvine, California 92618, U.S.A Tel.: (949) 753-5028 Fax.: (949) 753-1329 W ionics Research considers the following materials in its application for certification to be confidential:
Schematics
Bill of Materials These technical items we consider to be proprietary and as such any disclosure would be detrimental to our business and our position in the market place. Sincerely, Ted Lin Senior System Engineer

Letter Of Authorization Feb. 20, 2007 Chief, Authorizations Branch Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: W ionics Certification Application FCC ID: T8YDGLR7CV1 To W hom It May Concern: 16269 Laguna Canyon Rd. #100 Irvine, California 92618, U.S.A Tel.: (949) 753-5028 Fax.: (949) 753-1329 Please be advised that W ionics Research authorizes TDK R&D Corporation to act on our behalf, until otherwise notified, for the above mentioned application submitted to the Federal Communications Commission (FCC) regarding Ultra-W ideband (UW B) products. W e certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Sincerely, Ted Lin Senior System Engineer

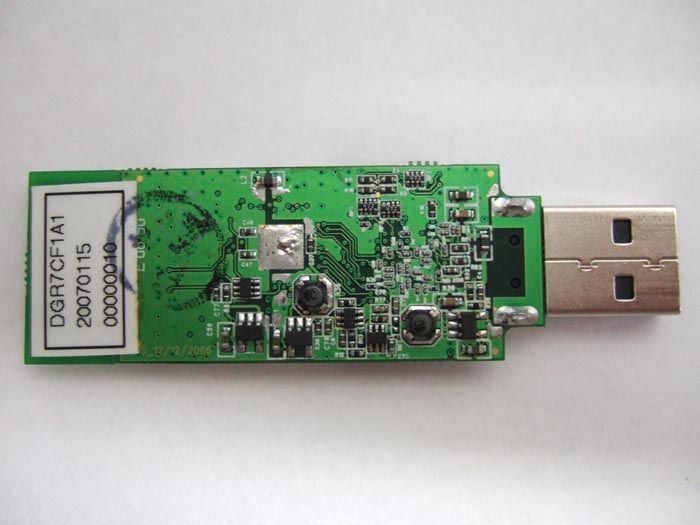

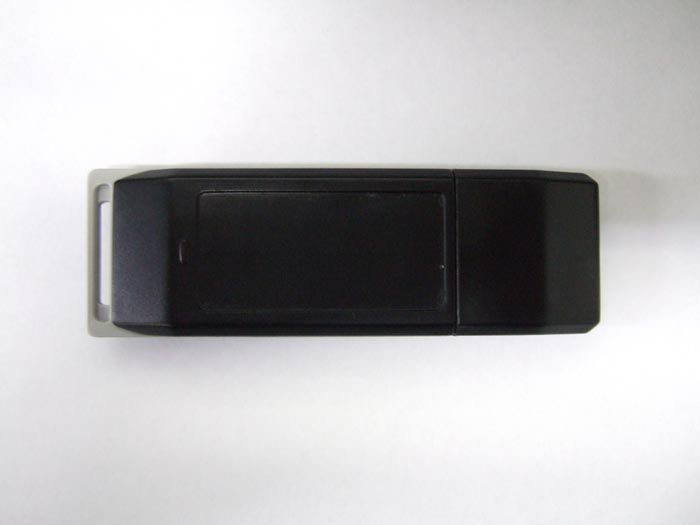

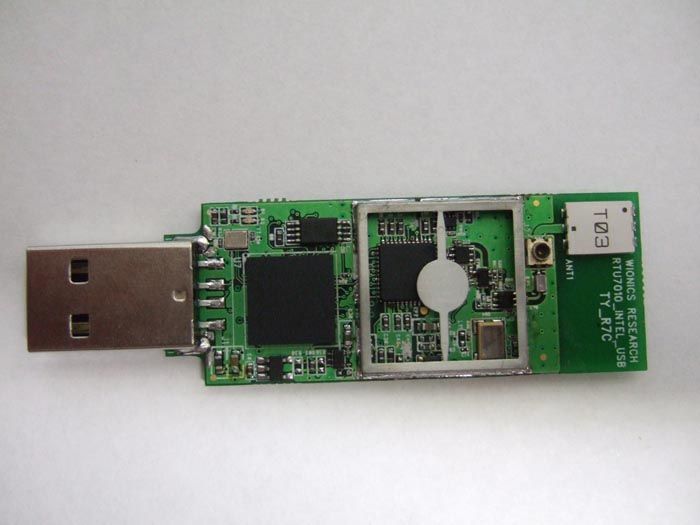

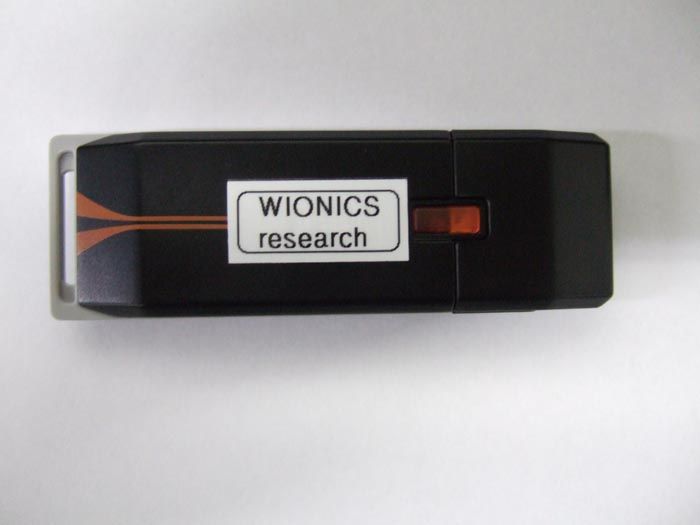

wionics r esear ch http://www.realtek.com.tw - 1 - All Rights Reserved by Wionics Research 1. FCC Label Location The dimensions of the USB dongle is 88(L)*23(W)*12(H) mm. The labels are placed in the center of both top and bottom sides. Both labels are 28(L)*18(W) mm. 1.1 Top 1.1 Bottom wionics r esear ch http://www.realtek.com.tw - 2 - All Rights Reserved by Wionics Research 2. Label 2.1 Top Label (28(L)*18(W)mm) 2.2 Bottom Label (28(L)*18(W)mm)

Wionics Research, Realtek Group, Irvine, CA 1 Theory of Operations [1] The transceiver is described in the block diagram of Figure 1. In receive mode, I and Q baseband signals are digitized at 528 MS/s by 5b ADCs. The packet detection and frame synchronization sequence is detected, and appropriate gain settings are provided to the RF transceiver. Channel estimation, phase tracking, and signal demapping is performed after transformation by a 128-point FFT. Different data rates are implemented through variations in the coding rate, coding type, and modulation. Convolutional codes with rates of 1/3, 1/2, 5/8, and 3/4 are supported, along with Dual-Carrier Modulation (DCM) and QPSK modulation. In addition, tone and symbol interleaving improve performance in fading channels. Soft decisions from the demapper are resolved by the Viterbi decoder and the decoded data is output at the MAC/PHY interface. For transmission, the process is reversed, except that I and Q signals sent to the 5b DACs are up-sampled to 1056 MS/s. A clock generation circuit provides clock signals for the digital PHY and data converters. In frequency-hopping mode, a band-select signal provides indication to the RF transceiver of the appropriate operating frequency A block diagram of the direct-conversion RF transceiver is shown in Figure 2. In order to enable agile frequency hopping, this design utilizes three separate RF blocks for each operating frequency in Band Group #1 [2]. Each block consists of a tuned amplifier stage, I/Q mixers, and integer-N frequency synthesizer. In frequency-hopping mode, the appropriate RF block is selected for each OFDM symbol, as indicated by the Band Select signal. Each mixer shares a common output connection to the RX baseband circuitry. Direct-conversion receivers are sensitive to LO carrier leakage. In addition, 13 on-chip linear voltage regulators are employed to provide circuit isolation and further limit coupling through package bondwires. Each voltage regulator design has a programmable output voltage, requires no external components, and occupies 0.007mm 2 . The receiver baseband circuitry is comprised of 5 th -order channel selection filters, PGAs, RSSI circuitry, and DC offset compensation. The fast-frequency hopping in this system places additional constraints on the design of a direct-conversion receiver. AC coupling cannot be employed reliably because DC offsets are in part carrier-frequency dependent, and the fast settling requirement of 9ns in the system prevents resettling of AC coupling circuitry. Furthermore, different frequency bands have different RF path loss parameters, resulting in different receiver gain settings. Therefore, any DC offset correction must remain effective for different gain and carrier frequency settings. The transmitter section employs many of the same concepts as the receiver for implementing frequency hopping. Figure 3 shows a simplified circuit diagram of the modulator circuit (one channel), and the shared switched-inductor load. Capacitors tuned with MOS switches result in high-Q tuning elements, but at the expense of additional parasitic capacitance at the output node. In this system, the 528-MHz channel bandwidth makes the use of high-Q resonant circuits undesirable. The balanced switch configuration used in this design allows the use of a smaller switch for a given parasitic resistance. Furthermore, the parasitic capacitance of the switch is partially transformed by the inductor when referred to the output node. The use of switched inductors also allows Wionics Research, Realtek Group, Irvine, CA 2 each inductor to be optimized separately, potentially allowing a wider operating range than a single inductor, switched-capacitor method. References [1] T. Aytur, et al., ìA Fully Integrated UWB PHY in 0.13 um CMOS,î Proc. ISSCC Conf., San Francisco, pp. 124-125, Feb. 2006 [2] B. Razavi, et al., ìA 0.13-mm CMOS UWB Transceiver,î ISSCC Dig. Tech. Papers, pp. 216-217, Feb. 2005. Figure 1: Block diagram of an integrated UWB OFDM PHY tone and symbol deinterl . conv. encoder Viterbi dec . demap QPSK DCM overlap and add 128- point FFT RF TX/RX MAC- PHY inter- face packet detection, frame synch., freq.-off. estimation tone and symbol interl . channel est. and phase tracking A DC D A C map QPSK DCM inverse 128- point FFT + zero prefix upsample and LP filter add pilot tones, add channel est. symbols RSSI AGC, f-hop,... control f-hop,... PLL 1 0 90 PLL 2 0 90 PLL 3 0 90 MUX LPFLPF DAC DAC LPFLPF ADCADC 5 55 5 IV IV RF TUNED Band Select REF Figure 2: Block diagram of a direct-conversion transceiver L 1 SEL 1 G M L 2 L 3 SEL 2 V LO+ V DD V LO- V LO+ V BB+ V BB- V OUT- V OUT+ From other channel From other channel Figure 3: Simplified modulator circuit (one channel) and inductive load

All services undertaken are subject to the following general policy. Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of TDK R&D Corporation. This report must not be used to claim product endorsement by A2LA, NVLAP nor any other agency of the US Government. Compliance Report of Wionics Research DGLR7CV1 Customer: Wionics Research Date: March 15, 2007 TDK Report: TTS-TR-T111-111 Test performed by: TDK R&D Corporation 1101 Cypress Creek Rd Cedar Park, TX 78613 Technician Checked by Radiated 30 MHz to 40 GHz A. Medina K. Yata Report A. Medina K. Yata This document contains confidential information and cannot be disclosed outside of Wionics or any affiliated company in whole or in part without the express written permission of TDK R&D Corporation. TTS-TR-T111-111 page 2 of 48 1. Executive Summary An EMC evaluation to determine compliance of the Wionics Research DGLR7CV1 with requirements of FCC 47 CFR Part 15, Subpart F Section 15.519 was conducted. All references are to the most current version of the Code of Federal Regulations 47 that are currently in effect. In accordance with §2.1033, the following data is presented in support of the Certification of the WUSB Dongle reference design. The client should retain a copy of this document on file for at least 5 years after the manufacturing of the product has been discontinued. Test Description FCC 47 CFR Section Compliance Operational Limitations 15.519(a) The client has been notified of these limitations. In normal operating mode the transmitter will only send data when associated with a receiver. See section 5 for detail UWB Bandwidth 15.519(b) Yes Radiated Emissions 15.519(c), 15.209 Yes Radiated Emissions in GPS Bands 15.519(d) Yes Peak Emissions within a 50 MHz Bandwidth 15.519(e) Yes Labelling Requirements 15.19 Yes Report prepared by Approved by Armando Medina Kunio Yata March 15, 2007 March 28, 2007 Page 3 of 48 2. Task Description 2.1. Scope Reference FCC ET Docket No. 98-153, FCC 02-48 First R&O; FCC 47 CFR, Part 15, Subpart A; FCC 47 CFR, Part 15, Subpart B; FCC 47 CFR, Part 15, Subpart C; FCC 47 CFR, Part 15, Subpart F FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) Title Revision of Part 15 of the Commission’s Rules Regarding Ultra-Wideband Transmissions Systems; Code of Federal Regulations, Part 15 Subpart A: General Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation Purpose of Test To gain FCC Certification for technical requirements for Handheld UWB Systems operating between 3.1 GHz and 10.6 GHz. Test Procedures The tests were conducted in accordance with the following documents: FCC ET Docket 98-153, FCC 02-48 First R&O ANSI C63.4: 2003: Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC Code of Federal Regulations 47, Part 15 Subpart A: General FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) General Procedures FCC Code of Federal Regulations 47, Part 2 Frequency Allocations and Radio Treaty Matter: General Rules and Regulations Classification of EUT Hand Held Ultra-Wideband System Page 4 of 48 2.2. Related Submittal(s)/Grant(s) None 2.3. Test Plan Reference Publication Year Title FCC 47 CFR, Part 15, Subpart A 10/2004 Code of Federal Regulations, Part 15 Subpart A: General FCC 47 CFR, Part 15, Subpart B 10/2004 Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators FCC 47 CFR, Part 15, Subpart C 10/2004 Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators FCC 47 CFR, Part 15, Subpart F 10/2004 Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation FCC ET Docket 98-153, FCC 02-48 First R&O 04/2002 Revision of Part 15 of the Commission’s Rules Regarding Ultra- Wideband Transmissions Systems: First Report & Order ANSI C63.4 01/2004 Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC ET Docket No. 04- 352 3/2005 Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG 2.4. Client Information APPLICANT Name: Wionics Research Address: 16269 Laguna Canyon Road, #100, Irvine, CA 92618 Contact Person: Ted Lin MANUFACTURER Name: Wionics Research Address: 16269 Laguna Canyon Road, #100, Irvine, CA 92618 Contact Person: Ted Lin Page 5 of 48 2.5. Equipment Under Test (EUT) The following information (with the exception of the date information) has been supplied by the applicant. The test results in this report pertain only to the item tested. General Brand Name Wionics Research Product Name Wireless USB 2.0 Adapter Model Name or Number DGLR7CV1 Serial Number DGLRSN0001 Type of Equipment Wireless USB dongle Input Power Supply Type USB port Classification Hand held Ultra-Wideband system Technical Power Supply Requirements Powered through USB port of host PC RF Output Rating -42 dBm EIRP @ 3 meters Operating Frequency Range 3100 MHz to 4800 MHz RF Output Impedance 50 Ω Channel Spacing N/A Pulse Width N/A Pulse Repetition Frequency N/A 10 dB Bandwidth >500 MHz Modulation/Constellation Multiband OFDM Oscillators’ Frequencies 24MHz, 66MHz EUT Ports USB Antenna Connector Type Internal Antenna Description Linear polarized ceramic Logistics EUT Receive Date February 26, 2007 EUT Receive Condition Good Test Start Date March 05, 2007 Test Completion Date March 09, 2007 Page 6 of 48 2.5.1.Support Equipment Description MFGR Model No. Serial No. FCC …
