T8YP0029BOne-Port DWA (Device Wire Adapter)

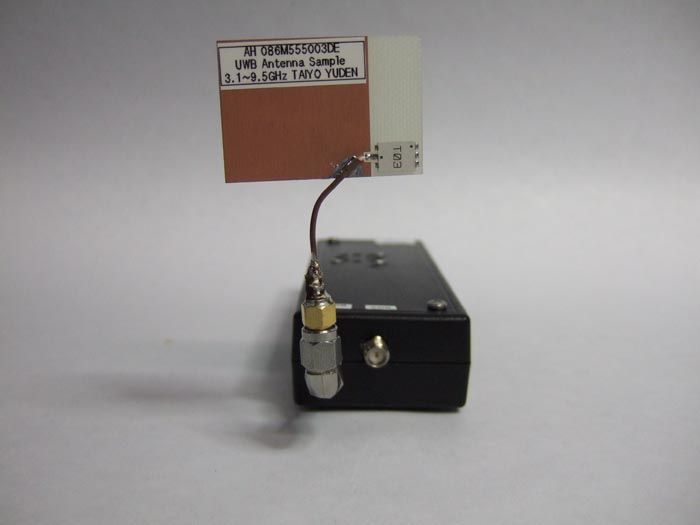

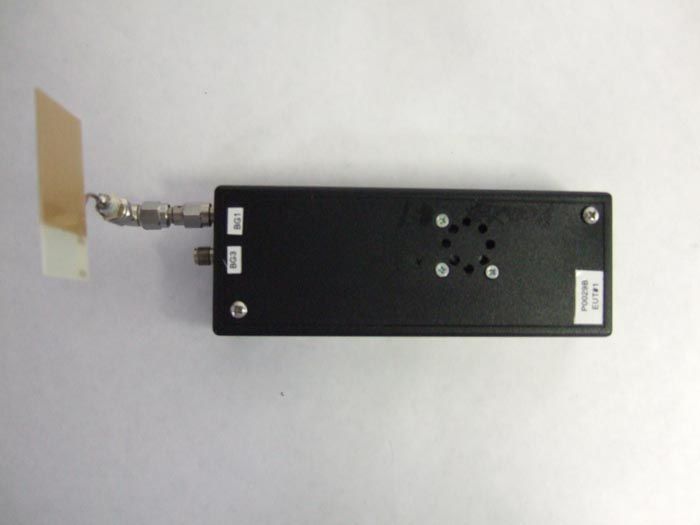

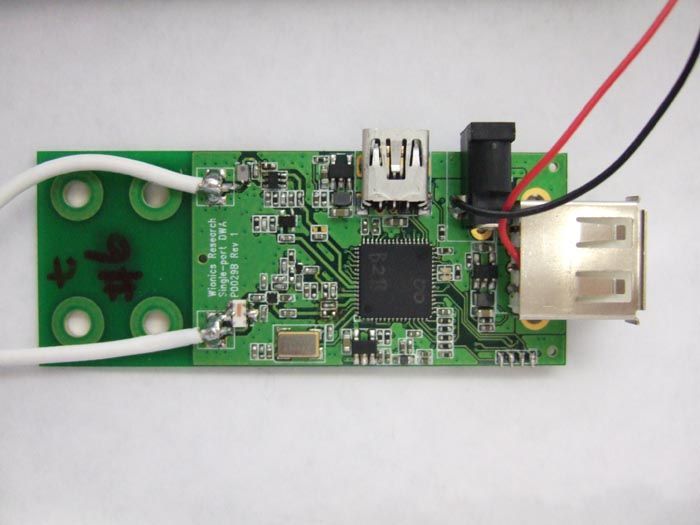

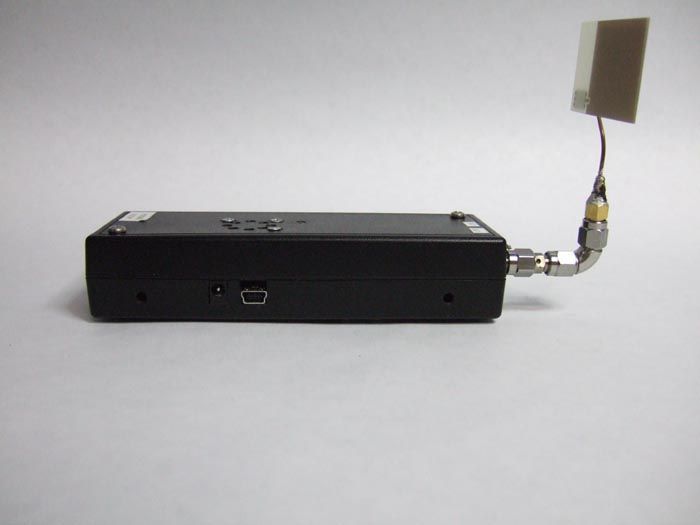

P0029BUser'sManual_R2.doc 1 All Rights Reserved by Wionics Research P0029B User’s Manual Rev 2 Child K. Sun P0029BUser'sManual_R2.doc 2 All Rights Reserved by Wionics Research 1 Introduction This document describes the system operation of P0029B – a one-port DWA (Device Wire Adapter), as well as driver installation and the use of control software. 2 System Operation 2.1 General Description P0029B is a one-port DWA to which a USB device can be attached. It converts the wired interface of the device to Wireless USB over UWB (Ultra-wideband). 2.2 System Block Diagram The following figure shows the system block diagram of P0029B. It accepts +5V from a power adapter and converts it to various voltages required by the MAC-PHY chip. Only one crystal is used in the system, which is of 66MHz. The system is designed to support both BG1 and BG3 UWB bands as defined in the WiMedia standard. MAC- PHY Chip 66MHz External USB Device USB connector External Power Adapter Power socket BG3 Antenna BG1 Antenna SMA connector SMA connector Power Management P0029BUser'sManual_R2.doc 3 All Rights Reserved by Wionics Research 2.3 Connector Location BG3 antenna SMA port BG1 antenna SMA port Top View Side View 5V Socket USB Connector 3 Driver Installation 1. Setup the USB connection between the PC and P0029B. 2. Power up P0029B by inserting the 5V power jack into the socket. 3. When prompted to install driver for the newly found device by Windows, use “Advanced” mode to locate the driver provided. Choose the driver manually by choosing “Have disk...” and select “trident.inf” as the target to install. Windows should prompt the installation of “RealTek Trident USB Device”. Select this driver and click Next button to install the driver. Please ignore all the warning messages generated by Windows and keep installing the driver. 4. Once the previous driver has been installed, Windows will prompt to install another driver for “Generic Cable Association Device for WUSB”. Please cancel the installation of this driver. It is not required for the control software. 4 The Control Software 4.1 Startup procedure of the control software – TridentTest 1. Setup the USB connection between the PC and P0029B. 2. Power up P0029B by inserting the 5V power jack into the socket. 3. Wait for Windows to prompt to install driver for “Generic Cable Association Device for WUSB”. Please cancel the installation of such a driver. 4. Activate TridentTest by double-clicking the “TridentTest.exe” icon. The following window should pop up showing the proper execution of TridentTest. P0029BUser'sManual_R2.doc 4 All Rights Reserved by Wionics Research 4.2 Control procedure for BG1 or BG3 1. Set “TX PAYLOAD” to 4095. 2. Set “TX IFS” to 6. 3. Select proper options for “TX TFC” (Valid: 1~7) and “TX RATE”. 4. Click “TX/RX Parameters” field’s “Apply” button to activate the above settings. 5. Select “Band Group 1”/ “Band Group 3” option, depending on which BG is being tested, and proper EUT number (according to the marking on the EUT) in the “Band Group Init” field. Then click “Init” button to initialize the EUT. 6. Click “TX” button once to start the transmission.

P0029BUser'sManual_R2.doc 1 All Rights Reserved by Wionics Research P0029B User’s Manual Rev 2 Child K. Sun P0029BUser'sManual_R2.doc 2 All Rights Reserved by Wionics Research 1 Introduction This document describes the system operation of P0029B – a one-port DWA (Device Wire Adapter), as well as driver installation and the use of control software. 2 System Operation 2.1 General Description P0029B is a one-port DWA to which a USB device can be attached. It converts the wired interface of the device to Wireless USB over UWB (Ultra-wideband). 2.2 System Block Diagram The following figure shows the system block diagram of P0029B. It accepts +5V from a power adapter and converts it to various voltages required by the MAC-PHY chip. Only one crystal is used in the system, which is of 66MHz. The system is designed to support both BG1 and BG3 UWB bands as defined in the WiMedia standard. MAC- PHY Chip 66MHz External USB Device USB connector External Power Adapter Power socket BG3 Antenna BG1 Antenna SMA connector SMA connector Power Management P0029BUser'sManual_R2.doc 3 All Rights Reserved by Wionics Research 2.3 Connector Location BG3 antenna SMA port BG1 antenna SMA port Top View Side View 5V Socket USB Connector 3 Driver Installation 1. Setup the USB connection between the PC and P0029B. 2. Power up P0029B by inserting the 5V power jack into the socket. 3. When prompted to install driver for the newly found device by Windows, use “Advanced” mode to locate the driver provided. Choose the driver manually by choosing “Have disk...” and select “trident.inf” as the target to install. Windows should prompt the installation of “RealTek Trident USB Device”. Select this driver and click Next button to install the driver. Please ignore all the warning messages generated by Windows and keep installing the driver. 4. Once the previous driver has been installed, Windows will prompt to install another driver for “Generic Cable Association Device for WUSB”. Please cancel the installation of this driver. It is not required for the control software. 4 The Control Software 4.1 Startup procedure of the control software – TridentTest 1. Setup the USB connection between the PC and P0029B. 2. Power up P0029B by inserting the 5V power jack into the socket. 3. Wait for Windows to prompt to install driver for “Generic Cable Association Device for WUSB”. Please cancel the installation of such a driver. 4. Activate TridentTest by double-clicking the “TridentTest.exe” icon. The following window should pop up showing the proper execution of TridentTest. P0029BUser'sManual_R2.doc 4 All Rights Reserved by Wionics Research 4.2 Control procedure for BG1 or BG3 1. Set “TX PAYLOAD” to 4095. 2. Set “TX IFS” to 6. 3. Select proper options for “TX TFC” (Valid: 1~7) and “TX RATE”. 4. Click “TX/RX Parameters” field’s “Apply” button to activate the above settings. 5. Select “Band Group 1”/ “Band Group 3” option, depending on which BG is being tested, and proper EUT number (according to the marking on the EUT) in the “Band Group Init” field. Then click “Init” button to initialize the EUT. 6. Click “TX” button once to start the transmission.

16269 Laguna Canyon Rd., Suite 100, Irvine, California 92618, U.S.A. Tel.: 949-753-5028 Fax 949-753-1329 9/7/07 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 2l046 Gentlemen: This is a letter of authorization to accept TDK RF Solutions as an Agent for Wionics Research located at 16269 Laguna Canyon Road Suite 100, Irvine, CA 92618, for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following Wionics Research product: UWB One-port DWA under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part l5 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither Wionics Research nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti- Drug-Abuse act of 1988,21 U.S.C. 853(a). In addition, Wionics Research will notify the Federal Communications Commission if, at any time, the situation changes causing Wionics Research to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at 949-753-5028 x122. Sincerely, ______________________________ Child K. Sun Senior System Engineer

16269 Laguna Canyon Rd., Suite 100, Irvine, California 92618, U.S.A. Tel.: 949-753-5028 Fax 949-753-1329 Confidential and Proprietary Information of Wionics Research Request for Confidentiality Sep 7, 2007 Chief, Authorizations Branch Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Wionics Certification Application FCC ID: T8YP0029B To Whom It May Concern: Wionics Research considers the following materials in its application for certification to be confidential: • Schematics • Bill of Materials These technical items we consider to be proprietary and as such any disclosure would be detrimental to our business and our position in the market place. Sincerely, Child Sun Senior System Engineer

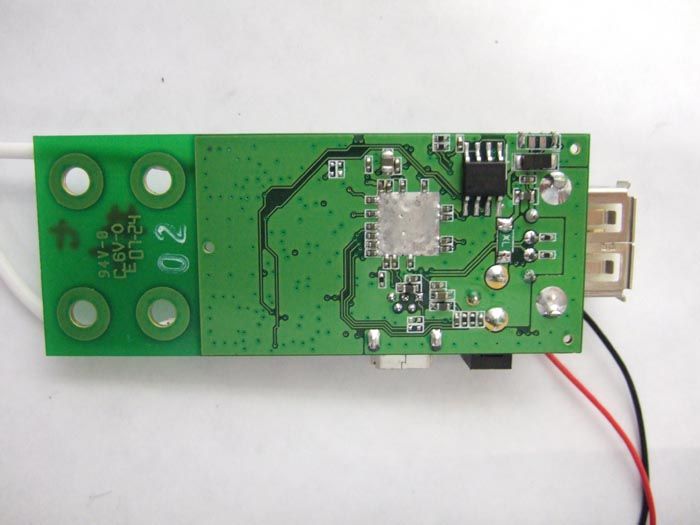

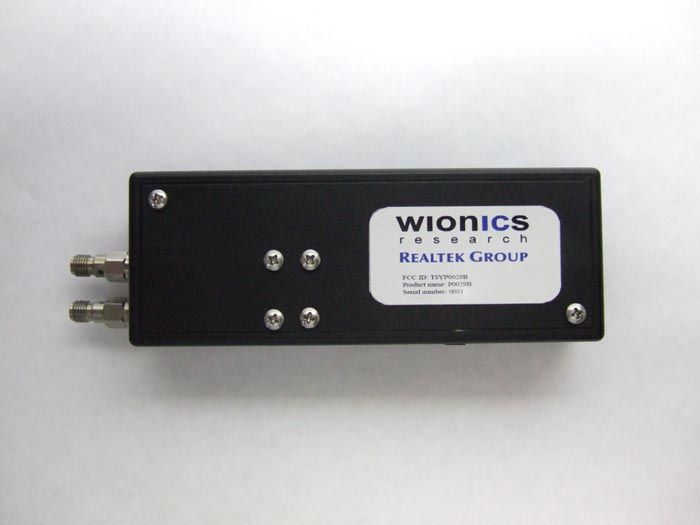

FCC ID: T8YP0029BProduct name: P0029BSerial number: 0001 2.00” 1.00”

P0029BUser'sManual_R2.doc 1 All Rights Reserved by Wionics Research P0029B User’s Manual Rev 2 Child K. Sun P0029BUser'sManual_R2.doc 2 All Rights Reserved by Wionics Research 1 Introduction This document describes the system operation of P0029B – a one-port DWA (Device Wire Adapter), as well as driver installation and the use of control software. 2 System Operation 2.1 General Description P0029B is a one-port DWA to which a USB device can be attached. It converts the wired interface of the device to Wireless USB over UWB (Ultra-wideband). 2.2 System Block Diagram The following figure shows the system block diagram of P0029B. It accepts +5V from a power adapter and converts it to various voltages required by the MAC-PHY chip. Only one crystal is used in the system, which is of 66MHz. The system is designed to support both BG1 and BG3 UWB bands as defined in the WiMedia standard. MAC- PHY Chip 66MHz External USB Device USB connector External Power Adapter Power socket BG3 Antenna BG1 Antenna SMA connector SMA connector Power Management P0029BUser'sManual_R2.doc 3 All Rights Reserved by Wionics Research 2.3 Connector Location BG3 antenna SMA port BG1 antenna SMA port Top View Side View 5V Socket USB Connector 3 Driver Installation 1. Setup the USB connection between the PC and P0029B. 2. Power up P0029B by inserting the 5V power jack into the socket. 3. When prompted to install driver for the newly found device by Windows, use “Advanced” mode to locate the driver provided. Choose the driver manually by choosing “Have disk...” and select “trident.inf” as the target to install. Windows should prompt the installation of “RealTek Trident USB Device”. Select this driver and click Next button to install the driver. Please ignore all the warning messages generated by Windows and keep installing the driver. 4. Once the previous driver has been installed, Windows will prompt to install another driver for “Generic Cable Association Device for WUSB”. Please cancel the installation of this driver. It is not required for the control software. 4 The Control Software 4.1 Startup procedure of the control software – TridentTest 1. Setup the USB connection between the PC and P0029B. 2. Power up P0029B by inserting the 5V power jack into the socket. 3. Wait for Windows to prompt to install driver for “Generic Cable Association Device for WUSB”. Please cancel the installation of such a driver. 4. Activate TridentTest by double-clicking the “TridentTest.exe” icon. The following window should pop up showing the proper execution of TridentTest. P0029BUser'sManual_R2.doc 4 All Rights Reserved by Wionics Research 4.2 Control procedure for BG1 or BG3 1. Set “TX PAYLOAD” to 4095. 2. Set “TX IFS” to 6. 3. Select proper options for “TX TFC” (Valid: 1~7) and “TX RATE”. 4. Click “TX/RX Parameters” field’s “Apply” button to activate the above settings. 5. Select “Band Group 1”/ “Band Group 3” option, depending on which BG is being tested, and proper EUT number (according to the marking on the EUT) in the “Band Group Init” field. Then click “Init” button to initialize the EUT. 6. Click “TX” button once to start the transmission.

P0029BTheoryOfOperation_R1.doc 1 All Rights Reserved by Wionics Research P0029B Theory of Operation Rev 1 Child K. Sun P0029BTheoryOfOperation_R1.doc 2 All Rights Reserved by Wionics Research 1 Introduction This document describes how the system operates as a UWB (Ultra-wideband) device. 2 System Operation 2.1 General Description P0029B is a one-port DWA (Device Wire Adater) to which a USB device can be attached. It converts the wired interface of the device to Wireless USB over UWB. 2.2 System Block Diagram The following figure shows the system block diagram of P0029B. It accepts +5V from a power adapter and converts it to various voltages required by the MAC-PHY chip. Only one crystal is used in the system, which is of 66MHz. The system is designed to support both BG1 (Band Group 1) and BG3 (Band Group 3) UWB bands as defined in the WiMedia standard. MAC- PHY Chip 66MHz External USB Device USB connector External Power Adapter Power socket BG3 Antenna BG1 Antenna SMA connector SMA connector Power Management 2.3 Operation The one-port DWA can operate in both BG1 and BG3. Only one of the band groups will be operating at a given time and this is determined by the MAC-PHY chip. It searches for WiMedia standard-compliant UWB hosts that have associated relationship with it. Once such a host is found, the communication link will be set up and the USB device, e.g. a flash drive, attached to the one-port DWA can be accessed by the host (computer).

All services undertaken are subject to the following general policy. Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of TDK R&D Corporation. This report must not be used to claim product endorsement by A2LA, NVLAP nor any other agency of the US Government. Compliance Report of Wionics P0029B Customer: Wionics Research Date: August 26, 2007 TDK Report: TTS-TR-T112-119 Test performed by: TDK R&D Corporation 1101 Cypress Creek Rd Cedar Park, TX 78613 Technician Checked by Radiated 30 MHz to 40 GHz A. Medina K. Yata Conducted 150 KHz to 30 MHz A. Medina K. Yata Report A. Medina P. Carson This document contains confidential information and cannot be disclosed outside of Wionics Research or any affiliated company in whole or in part without the express written permission of TDK R&D Corporation. TTS-TR-T112-119 page 2 of 51 1. Executive Summary An EMC evaluation to determine compliance of the Wionics P0029B with requirements of FCC 47 CFR Part 15, Subpart F Section 15.517 was conducted. All references are to the most current version of the Code of Federal Regulations 47 that are currently in effect. In accordance with §2.1033, the following data is presented in support of the Certification of the P0029B reference design. The client should retain a copy of this document on file for at least 5 years after the manufacturing of the product has been discontinued. Test Description FCC 47 CFR Section Compliance Operational Limitations 15.517(a) The client has been notified of these limitations. In normal operating mode the transmitter will only send data when associated with a receiver. See section 5 for detail UWB Bandwidth 15.517(b) Yes Radiated Emissions 15.517(c), 15.209 Yes Radiated Emissions in GPS Bands 15.517(d) Yes Peak Emissions within a 50 MHz Bandwidth 15.517(e) Yes Labelling Requirements 15.517(f) Yes Report prepared by Approved by Armando Medina Kunio Yata August 26, 2007 September 18, 2007 Page 3 of 51 2. Task Description 2.1. Scope Reference FCC ET Docket No. 98-153, FCC 02-48 First R&O; FCC 47 CFR, Part 15, Subpart A; FCC 47 CFR, Part 15, Subpart B; FCC 47 CFR, Part 15, Subpart C; FCC 47 CFR, Part 15, Subpart F; FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) Title Revision of Part 15 of the Commission’s Rules Regarding Ultra-Wideband Transmissions Systems; Code of Federal Regulations, Part 15 Subpart A: General Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation Purpose of Test To gain FCC Certification for technical requirements for Indoor UWB Systems operating between 3.1 GHz and 10.6 GHz. Test Procedures The tests were conducted in accordance with the following documents: FCC ET Docket 98-153, FCC 02-48 First R&O ANSI C63.4: 2003: Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC Code of Federal Regulations 47, Part 15 Subpart A: General FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) General Procedures FCC Code of Federal Regulations 47, Part 2 Frequency Allocations and Radio Treaty Matter: General Rules and Regulations Classification of EUT Indoor Ultra-Wideband System Page 4 of 51 2.2. Related Submittal(s)/Grant(s) None 2.3. Test Plan Reference Publication Year Title FCC 47 CFR, Part 15, Subpart A 10/2004 Code of Federal Regulations, Part 15 Subpart A: General FCC 47 CFR, Part 15, Subpart B 10/2004 Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators FCC 47 CFR, Part 15, Subpart C 10/2004 Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators FCC 47 CFR, Part 15, Subpart F 10/2004 Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation FCC ET Docket 98-153, FCC 02-48 First R&O 04/2002 Revision of Part 15 of the Commission’s Rules Regarding Ultra- Wideband Transmissions Systems: First Report & Order ANSI C63.4 01/2004 Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC ET Docket No. 04- 352 3/2005 Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG 2.4. Client Information APPLICANT Name: Wionics Research Address: 16269 Laguna Canyon Road, #100, Irvine, CA 92618 Contact Person: Child Sun MANUFACTURER Name: Wionics Research Address: 16269 Laguna Canyon Road, #100, Irvine, CA 92618 Contact Person: Child Sun Page 5 of 51 2.5. Equipment Under Test (EUT) The following information (with the exception of the date information) has been supplied by the applicant. The test results in this report pertain only to the item tested. General Brand Name Wionics Research Product Name P0029B Model Name or Number N/A Serial Number 0001 Type of Equipment 1-port DWA (Device Wire Adapter) Input Power Supply Type External power adaptor Classification Indoor Ultra-Wideband system Technical Power Supply Requirements AC mains, 100 – 240Vac 1.8A, 50 – 60 Hz RF Output Rating -42 dBm EIRP @ 3 meters Operating Frequency Range 3150 MHz to 4800 MHz and 6300MHz to 8000 MHz RF Output Impedance 50 Ω Channel Spacing N/A Pulse Width N/A Pulse Repetition Frequency N/A 10 dB Bandwidth >500 MHz Modulation/Constellation Multiband OFDM Oscillators’ Frequencies 66MHz EUT Ports 5 Vdc, Miniature USB, BG1-Antenna, and BG3-Antenna Antenna Connector Type External reverse SMA female Antenna Description Linear polarized ceramic Logistics EUT Receive Date June 18, 2007 EUT Receive Condition Good Test Start Date June 18, 200…
