TDA-FMC200Wireless speaker-microphone for two-way radios

FreeLinc™ FreeMic™ 200 Product User Guide ™ Warranty I. What this warranty covers and for how long: a. Radeum, Inc., doing business as FreeLinc (“FreeLinc”), war- rants to Purchaser that its FreeLinc manufactured products (“Product”) will substantially conform to FreeLinc’s published specifications, as of the date of the Purchaser’s purchase of the Product, and for one (1) year from the date of purchase (the “Warranty Period”). b. Rechargeable batteries will be replaced during the warranty period if the battery develops leakage. c. FreeLinc, at its option, will at no charge either repair, replace, or refund the purchase price for warranted Product during the warranty period provided it is returned in accordance with the terms of this warranty to the place of purchase. Repair, at FreeLinc’s option, may include the replacement of parts or boards with functionally equivalent reconditioned or new parts or boards. Replaced parts or boards are war - ranted only for the balance of the original Warranty Period. All replaced parts or Product shall become the property of FreeLinc. d. This express limited warranty is extended by FreeLinc to the original end user purchaser only and is not assignable or transferable to any other party. This is the complete warranty for Product manufactured by FreeLinc. FreeLinc assumes no obligations or liability for additions or modifications to this warranty unless made in writing and signed by an officer of FreeLinc. Unless made in a separate written agreement be - tween FreeLinc and the original end user purchaser, FreeLinc does not warrant the installation, maintenance or service of warranted Product. e. FreeLinc is not responsible in any way for any ancillary equip - ment not furnished by FreeLinc which is attached to or used in connection with Product, or for operation of the Product with any ancillary equipment and all such equipment is expressly excluded from this warranty. Because each system which may use the Product is unique, FreeLinc disclaims liability for range, coverage, or operation of the system as a whole under this warranty. II. What this warranty does not cover: a. Defects or damage resulting from use of the Product in other than its normal and customary manner. b. Defects or damage from misuse, accident, water or neglect. c. Defects or damage from improper testing, operation, mainte - nance, installation, alteration, modification, or adjustment. d. A Product subjected to unauthorized Product modifications, disassemblies, or repairs. e. Product which has had the serial number removed or made illegible. f. Rechargeable batteries if the damage or defect is caused by charging or using the battery in equipment or service other than the Product for which it is specified. g. Freight costs related to Product returned for warranty claims. h. A product which, due to illegal or unauthorized alteration of the software/firmware in the Product, does not function in accordance with FreeLinc’s published specifications or the FCC type acceptance labeling in effect for the Product at the time the Product was purchased. III. How to get warranty service: a. Purchaser shall notify FreeLinc of any nonconformance during the warranty period, and obtain a written return material authorization (“RMA”) and an RMA number for the Warranty and FCC Compliance nonconforming Product from FreeLinc. b. Purchaser shall return the nonconforming Product to the place of purchase freight prepaid. IV. Limitation of Liability: a. This warranty sets forth the full extent of FreeLinc’s responsi - bilities regarding the Product. Repair, replacement, or refund of the purchase price, at FreeLinc’s option, is the exclusive remedy. b. THE FOREGOING WARRANTIES ARE THE SOLE WARRANTIES, EXPRESS OR IMPLIED, GIVEN BY FREELINC IN CONNECTION WITH THE PRODUCT, AND FREELINC DISCLAIMS ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTIBILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NONINFRINGEMENT OF THIRD-PARTY RIGHTS. c. FREELINC SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDEN - TAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PRODUCT, EVEN IF FREELINC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. d. EXCEPT FOR CLAIMS FOR BODILY INJURY (including death) AND CLAIMS FOR DAMAGE TO REAL PROPERTY AND TANGIBLE PERSONAL PROPERTY, FREELINC’S LIABILITY FOR ALL OTHER CLAIMS SHALL NOT EXCEED THE AMOUNT PAID TO FREELINC FOR THE PRODUCT GIVING RISE TO FREELINC’S LIABILITY. THIS LIMIT OF LIABILITY ALSO APPLIES TO OUR MANUFACTURERS AND DISTRIBUTORS. IT IS THE MAXIMUM AMOUNT FOR WHICH WE ARE COLLECTIVELY RESPONSIBLE. FCC Compliance This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to pro - vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause interference harmful to radio communications. This device complies with part 15 of the FCC Rules. Op - eration is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. There is no guarantee however, that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by comparing the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equip - ment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your supplier or an experienced radio/ TV technician for assistance…

Text truncated - open the document above for the full version.

1(1) Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality Applicant: Radeum, Inc. FCC ID: TDA-FMC200 under project number 3091276 To whom it may concern, Request is hereby submitted by Radeum, Inc. (DBA FreeLinc) to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: Radeum, Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. The fee for confidentiality has been submitted along with the fee for certification. If you have questions or need further information, please contact the undersigned. Sincerely, John Lair President Radeum, Inc. (DBA FreeLinc)

From: Roland Gubisch ES-Box Sent: Thursday, April 27, 2006 5:53 PM To: 'John Lair ([email protected])' Cc: Terre Wolak ES-Atl Subject: RE: TCB Certification Review, FCC: TDA-FMC200 Importance: High John, Review of this application is complete and the only two points to be addressed before certification are the two noted below: (1) Revised Request for Confidentiality, and (2) Additional photo of PCB showing shield removed. Thank you, Roland -----Original Message----- From: Roland Gubisch ES-Box Sent: Thursday, April 27, 2006 5:23 PM To: 'John Lair ([email protected])' Cc: Terre Wolak ES-Atl Subject: RE: TCB Certification Review, FCC: TDA-FMC200 Importance: High John, As the review progresses I note that the "electronics photos" (exhibit 7a) show a PCB with a shield covering part of it. FCC requires an additional photo showing the components on the PCB with the shield removed. You are welcome to provide the additional photo separately. Thank you, Roland -----Original Message----- From: Roland Gubisch ES-Box Sent: Thursday, April 27, 2006 2:21 PM To: John Lair ([email protected]) Cc: Terre Wolak ES-Atl Subject: TCB Certification Review, FCC: TDAFMC200 John, Review of this application is underway and no major issues are foreseen. However to expedite the Grant, I would like to raise one point prior to completion of the review. The Request for Confidentiality asks that internal photos be kept confidential, among other items. The FCC asks for additional justification in the case of internal photos, on the grounds that usually anyone can purchase the product and open it to obtain this information. The FCC accepts the following as suitable justifications for keeping the internal photos confidential: 1) The device is sealed (no screws or other removable fasteners) and would be damaged or destroyed by the attempt to open it; and/or 2) The device is potted, and any attempt to examine the interior would damage or destroy it; or 3) The device is professionally installed, and access is limited to authorized personnel only. Please re-submit the Request for Confidentiality, citing in addition to its existing text the added applicable statements (1) and/or (2) above; or, delete "Internal photos" from the list of exhibits to be held confidential. Thank you, Roland This e-mail transmission is strictly confidential and is intended solely for the identified person at the identified organization to whom it is addressed. This e-mail may contain privileged and confidential information. If you are not the intended recipient you must not copy, print, distribute or take any action in reliance upon this e-mail. If you have received this e-mail in error then please notify us as soon as possible and delete this e-mail. Although Intertek ETL SEMKO believes this e-mail and any attachments to be free of any virus or other defect which may affect your computer, it is the responsibility of the recipient to ensure that it is virus free and Intertek ETL SEMKO does not accept any responsibility for any loss or damage arising in any way from its use.

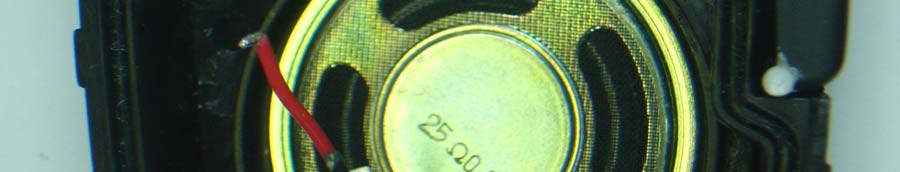

Request for new FCC Certification for FCC ID: TDA-FMC200 under project number 3091276 Exhibit 7b: Housing Photographs: Section 1: Housing Exterior, Assembled Section 2: Housing Interior, Unassembled Section 3: Housing Assembly

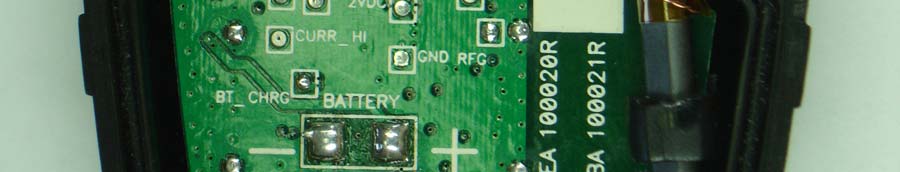

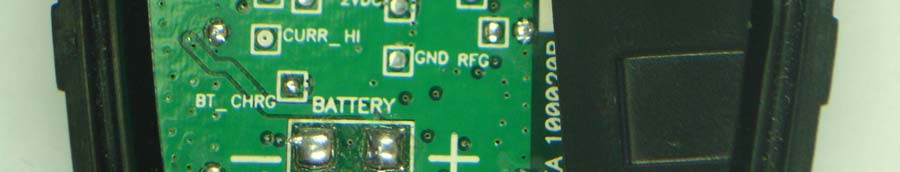

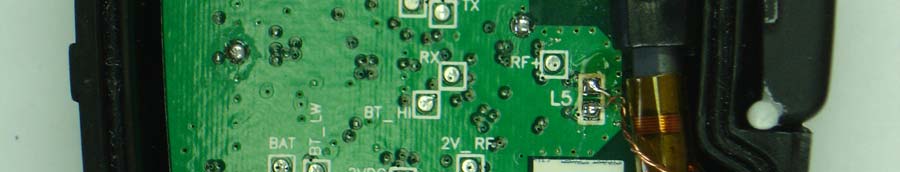

Request for new FCC Certification for FCC ID: TDA-FMC200 under project number 3091276 Exhibit 7a: Electronics Photographs:

Report Number 3091276BOX.001 Page 2 of 18 1.0 Job Description 1.1 Client Information This EUT has been tested at the request of Company: Freelinc 2144 S. Highland Drive Suite #160 Salt Lake City, UT, 84106 Contact: John Lair Telephone: Fax: 801-467-1199 801-467-6099 1.2 Equipment Under Test Equipment Type: Wireless Microphone Model Number(s): FREE MIC 200 Wireless Microphone Unit Serial number(s): A & B Manufacturer: Freelinc EUT receive date: 02/14/2006 EUT received condition: Prototype in Good condition Test start date: 02/15/2006 Test end date: 02/22/2006 1.3 Test Plan Reference: Tested according to the standards listed and ANSI C63.4-2003. 1.4 Test Configuration 1.4.1 Block Diagram The EUT set must be in the proximity of another EUT set in order to trigger transmission at 13.956 MHz in addition to the normal 13.56 MHz transmission. The Wireless Microphone and Relay must be ~1.1 meters apart maximum, and the two systems must be ~0.5 meters apart. Free MIC Turntable Free MIC Relay Relay Report Number 3091276BOX.001 Page 3 of 18 1.4.2 Cable List: Cable Shielding Connector Length (m) Qty. Charger AC Mains None Mini-USB 1.5 1 1.4.3 Support Equipment: Name: Model No.: Serial No.: Freelinc Adapter Relay Freelinc Wireless Headset System A Name: Model No.: Serial No.: Freelinc Adapter Relay Freelinc Wireless Headset System B Name: Model No.: Serial No.: Freelinc Charger S003BU0600030 N/L 1.5 Mode of Operation: The EUT was activated from a fresh, charged battery in transmit mode, communicating with the adapter relay. The nominal battery voltage is 3.7V. The battery operating end point is 2.9V. The EUT software disables transmission while in charge mode, so this mode was not tested to the transmitter requirements. Report Number 3091276BOX.001 Page 4 of 18 2.0 Test Summary TEST STANDARD RESULTS FCC Part 15 Subpart C 15.225 SUB-TEST TEST PARAMETER COMMENT FCC Parts 15.205, 15.209, 15.215, 15.225 RF Output Power and Radiated and Restricted Band Emissions Emissions below specified limits Pass FCC Part 15.207 Line-Conducted Emissions Emissions below specified limits Pass FCC Parts 15.225 Frequency Stability Frequency drift must not exceed ±0.01% Pass Report Number 3091276BOX.001 Page 5 of 18 3.0 Sample Calculations The field strength is calculated by adding the Antenna Factor and Cable Factor, and subtracting the Amplifier Gain (if any) from the measured reading. The basic equation with a sample calculation is as follows: FS = RA + AF + CF - AG Where FS = Field Strength in dBμV/m RA = Receiver Amplitude (including preamplifier) in dBμV CF = Cable Attenuation Factor in dB AF = Antenna Factor in dB AG = Amplifier Gain in dB In the following table(s), the reading shown on the data table reflects the preamplifier gain. An example for the calculations in the following table is as follows. Assume a receiver reading of 52.0 dBμV is obtained. The antenna factor of 7.4 dB and cable factor of 1.6 dB is added. The amplifier gain of 29 dB is subtracted, giving a field strength of 32 dBμV/m. This value in dBμV/m was converted to its corresponding level in μV/m. RA = 52.0 dBμV AF = 7.4 dB/m CF = 1.6 dB AG = 29.0 dB FS = 32 dBμV/m Level in μV/m = [10( 32 dBμV/m)/20] = 39.8 μV/m The following is how net line-conducted readings were determined: NF = RF + LF + CF + AF Where NF = Net Reading in dBμV RF = Reading from receiver in dBμV LF = LISN Correction Factor in dB CF = Cable Correction Factor in dB AF = Attenuator Loss Factor in dB To convert from dBμV to μV or mV the following was used: UF = 10 (NF / 20) where UF = Net Reading in μV Example: NF = RF + LF + CF + AF = 28.5 + 0.2 + 0.4 + 20.0 = 49.1 dBμV UF = 10 (48.1 dBμV / 20) = 254 μV/m Report Number 3091276BOX.001 Page 6 of 18 3.1 Measurement Uncertainty Compliance of the product is based on the measured value. However, the measurement uncertainty is included for informational purposes. The expanded uncertainty (k = 2) for radiated emissions from 30 to 1000 MHz has been determined to be: ±3.5 dB at 10m, ±3.8 dB at 3m The expanded uncertainty (k = 2) for mains conducted emissions from 150 kHz to 30 MHz has been determined to be: ±2.6 dB The expanded uncertainty (k = 2) for telecom port conducted emissions from 150 kHz to 30 MHz has been determined to be: ±3.2 for ISN and voltage probe measurements ±3.1 for current probe measurements Report Number 3091276BOX.001 Page 7 of 18 3.2 Site Description Test Site(s): 2, Parking lot by Site 2 Our OATS are 3m and 10m sheltered emissions measurement ranges located in a light commercial environment in Boxborough, Massachusetts. They meet the technical requirements of ANSI C63.4-2003 and CISPR 22:1993/EN 55022:1994 for radiated and conducted emission measurements. The shelter structure is entirely fiberglass and plastic, with outside dimensions of 33 ft x 57 ft. The structure resembles a quonset hut with a center ceiling height of 16.5 ft. The testing floor is covered by a galvanized sheet metal groundplane that is earth-grounded via copper rods around the perimeter of the site. The joints between individual metal sheets are bridged with a 2 inch wide metal strips to provide low RF impedance contact throughout. The sheets are screwed in place with stainless steel, round-head screws every three inches. Site illumination and HVAC are provided from beneath the ground reference plane through flush entry ports, the port covers are electrically bonded to the ground plane. A flush metal turntable with 12 ft. diameter and 5000 lb. load capacity (12,000 lb. in Site 3) is provided for floor-standing equipment. A wooden table 80 cm high is used for table-top equipment. The turntable is electrically connected to the ground plane with three copper straps. The straps are connected to the turntable at the center of it with ground braid. The copper strap is directly connected to the groundplane at the edges of the turntable. The turntable is located on the south end of the structure and the antennas are mounted 3 and 10 meters away to the nort…

Text truncated - open the document above for the full version.

Report Number 3091276BOX.001 Page 10 of 18 Setup Photos Report Number 3091276BOX.001 Page 11 of 18 Report Number 3091276BOX.001 Page 12 of 18 Report Number 3091276BOX.001 Page 13 of 18 Report Number 3091276BOX.001 Page 16 of 18 Setup Photos Report Number 3091276BOX.001 Page 17 of 18
