TE7AX20V2AX1800 Dual-Band Wi-Fi 6 Router

©2020 TP-Link 1910012919 REV2.0.0 User Guide AX1800 Dual-Band Wi-Fi 6 Router Archer AX20 Contents About This Guide .........................................................................................................1 Chapter 1. Get to Know About Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2. 1. Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2. 2. Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2. 2. 1. Top Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2. 2. 2. The Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Chapter 2. Connect the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2. 1. Position Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2. 2. Connect Your Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Chapter 3. Log In to Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Chapter 4. Set Up Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 4. 1. Use Quick Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 4. 2. Quick Setup Via TP-Link Tether App. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 4. 3. Manually Set Up Your Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 4. 4. Set Up the Router as an Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 4. 5. Set Up an IPv6 Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Chapter 5. TP-Link Cloud Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 5. 1. Register a TP-Link ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 5. 2. Change Your TP-Link ID Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 5. 3. Manage the User TP-Link IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 5. 3. 1. Add TP-Link ID to Manage the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 5. 3. 2. Remove TP-Link ID(s) from Managing the Router . . . . . . . . . . . . . . . . . . . . . . 24 5. 4. Manage the Router via the TP-Link Tether App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Chapter 6. Guest Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 6. 1. Create a Network for Guests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 6. 2. Customize Guest Network Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Chapter 7. USB Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 7. 1. Access the USB Storage Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 7. 1. 1. Access the USB Device Locally . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 7. 1. 2. Access the USB Device Remotely . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 7. 1. 3. Customize the Access Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 7. 2. Media Sharing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 7. 3. Time Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Chapter 8. Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 8. 1. Setting Up Access Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 8. 2. Monitoring Internet Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Chapter 9. QoS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Chapter 10. OneMesh with Seamless Roaming . . . . . . . . . . . . . . . . . . . . . . 46 10. 1. Set Up a OneMesh Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47 10. 2. Manage Devices in the OneMesh Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Chapter 11. Network Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 10. 1. Protect the Network from Cyber Attacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 10. 2. Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 10. 3. IP & MAC Binding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Chapter 12. NAT Forwarding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 11. 1. Share Local Resources on the Internet by Port Forwarding . . . . . . . . . . . . . . . . . . 58 11. 2. Open Ports Dynamically by Port Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 11. 3. Make Applications Free from Port Restriction by DMZ . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

TP-Link Technologies Co., Ltd. Authority to Act as Agent Date: 2020-11-5 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: BTL Inc./Rose Liu is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 2021-11-05 By: __________________ _______Jing Huang________ (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Technologies Co., Ltd. (Company Name) Telephone: 75521534921 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Technologies Co., Ltd. Request for Confidentiality Date: 2020-11-05 Subject: Confidentiality Request for: TE7AX20V2 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual TP-Link Technologies Co., Ltd.____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. TP-Link Technologies Co., Ltd. By: Regulatory Compliance Manager ______Jing Huang__________ (Signature/Title 3 ) (Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Technologies Co., Ltd. Wi-Fi Channel 12 and 13 Declaration Letter Date: 2020-11-05 We, the undersigned company Company Name: TP-Link Technologies Co., Ltd. Address: Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen,518057 China Declare that: Product description: AX1800 Dual-Band Wi-Fi 6 Router Type designation: Archer AX20, Archer AX21, Archer AX1800 Brand: tp-link FCC ID: TE7AX20V2 Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: ________________________ Name: Jing Huang Tel: 75521534921 Email: [email protected]

Model Declaration Letter We, the undersigning company Company Name: TP-Link Technologies Co., Ltd. Address: Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Hereby confirm that the following products: Product description: AX1800 Dual-Band Wi-Fi 6 Router Type designation: Archer AX20, Archer AX21, Archer AX1800 Trademark: tp-link That All versions of the Model Archer AX20, Archer AX21 and Archer AX1800 are electrically equal except the following difference: 1. Only different in model name between model Archer AX20 and model Archer AX1800. 2. The model name and shell are difference between model Archer AX20 and Archer AX21. Date: 2020-11-05 Name: carina huang Telephone: 21534921 E-mail: [email protected] Signature:

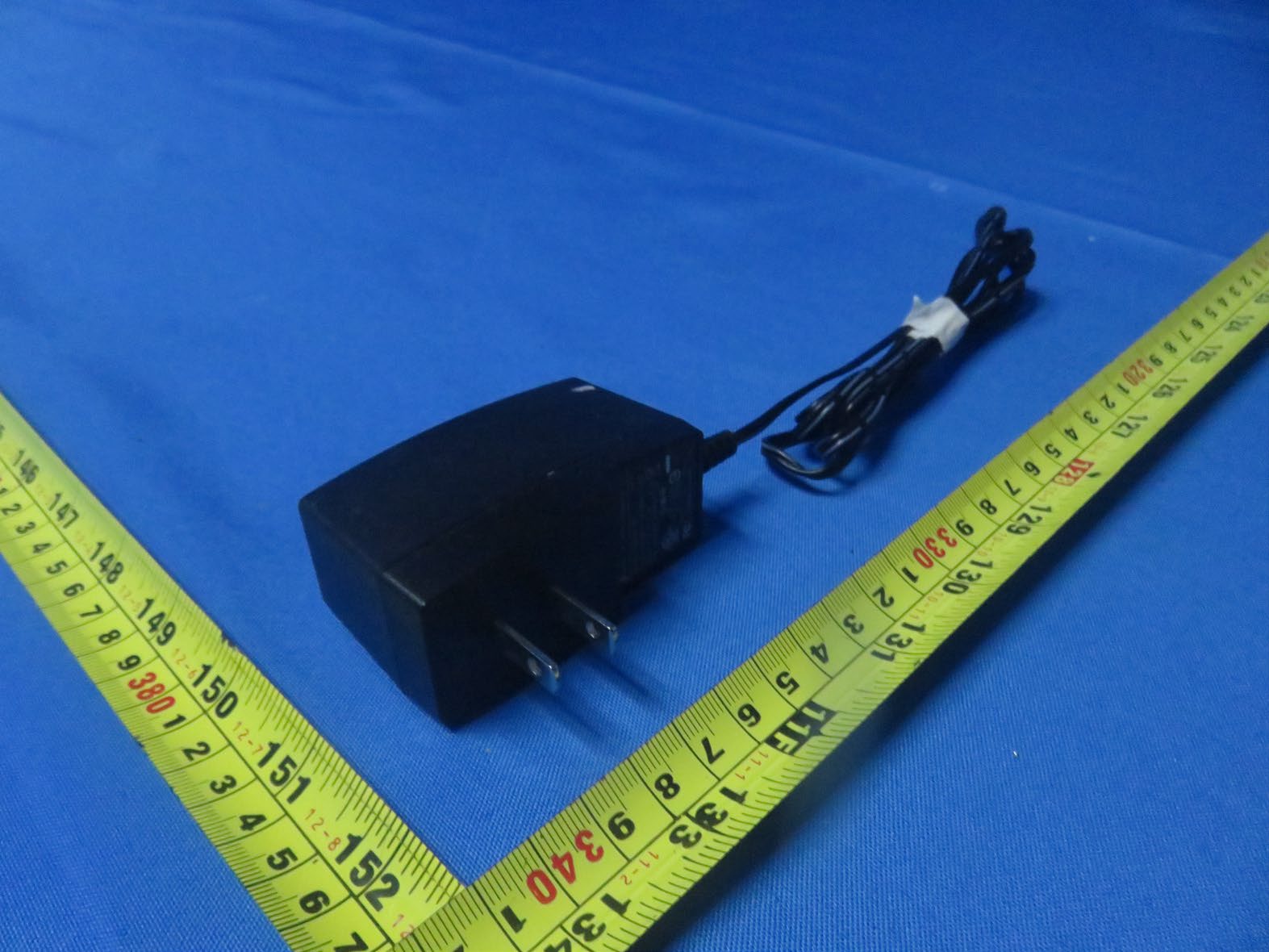

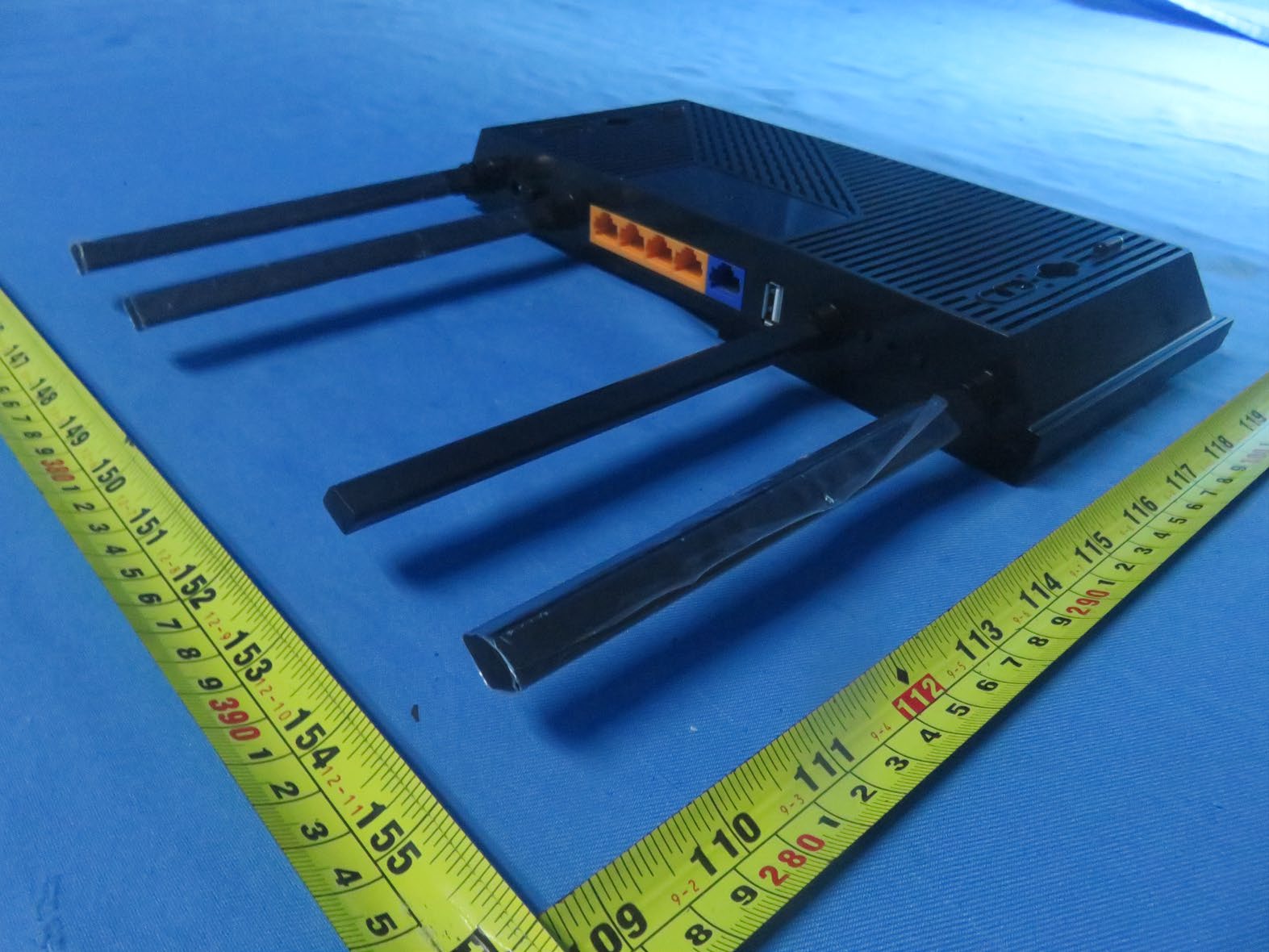

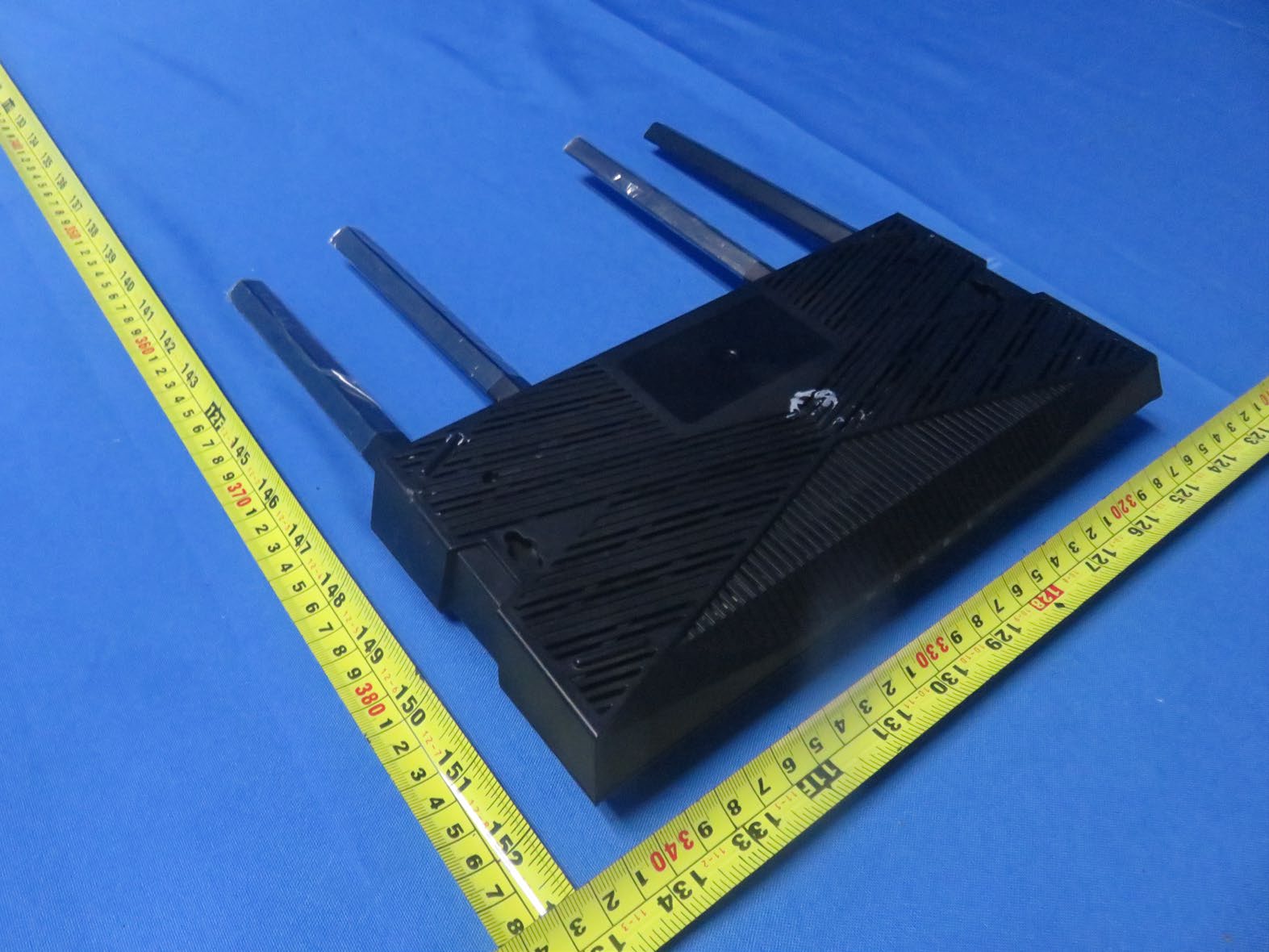

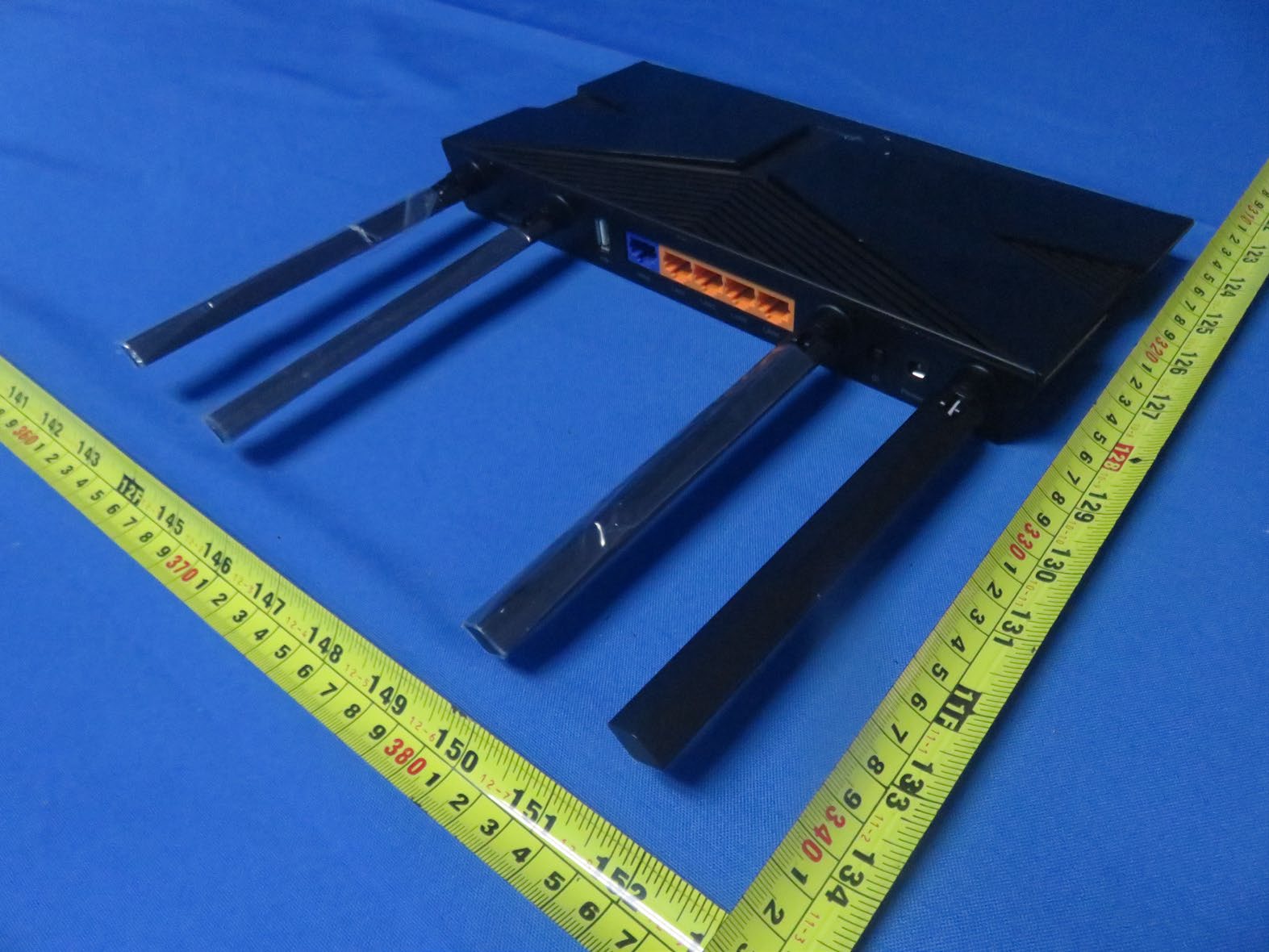

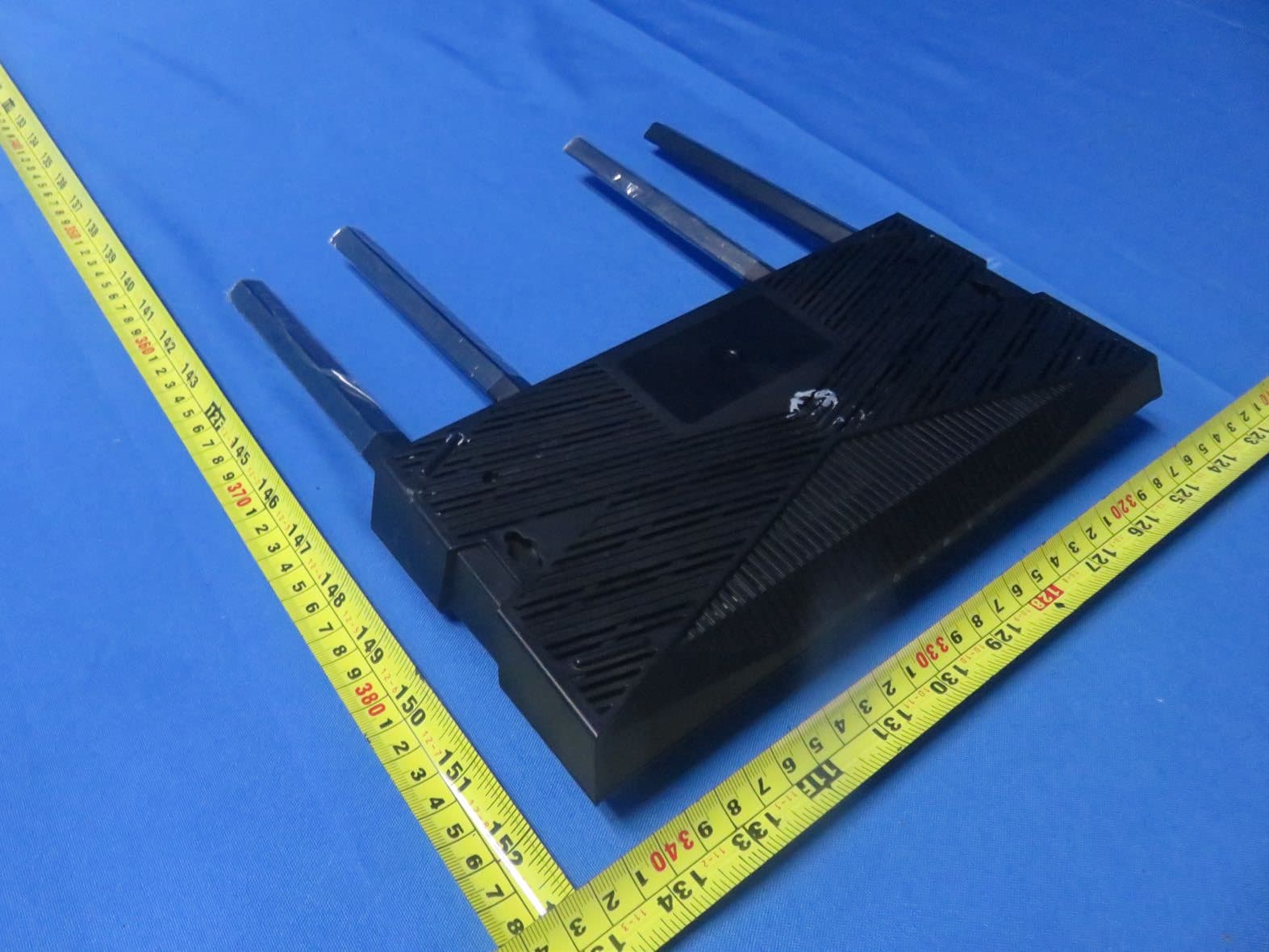

Report No.: 2008C188 Page 2 of 16 Archer AX20 Report No.: 2008C188 Page 3 of 16 Report No.: 2008C188 Page 4 of 16 Report No.: 2008C188 Page 5 of 16 Report No.: 2008C188 Page 15 of 16 Archer AX21 Report No.: 2008C188 Page 16 of 16

69.7*38.2mm, R3.5, C2, ᐞޜ ±0.2mm ᮽᆍ䖢ᴨ㓵 CBA 1 2 C 3 4 56 7 8 B E D DA 9 ᯏਭφ 1 2 3 4 5 фрж⡾Ⲻ॰ࡡ E 6 7 8 9 仒㢨 ੃〦⡾ᵢᶆ䍞′′′′ޭ ᵰශ⡾ᵢਭ ORJRᓋ㢨ᮽᆍᆹެ 㔉ᶺᐛぁᐾ⺢Ԭᐛぁᐾӝ૷ᐛぁᐾᒩ䶘䍕䍙Ӱ 䇦ᖋ ᇂᡆᰛᵕ䇴䇗 3mm 3mm 3mm ԄᜉΙ᠎᡺ᡰὉNN᣸ᡰὉNN Model: Archer AX20(US) Ver:2.0 S/N:XXXXXXXXXXXXX MAC: XX-XX-XX-XX-XX-XX Wireless Password/PIN :XXXXXXXX SSID:TP-Link_XXXXSSID:TP-Link_XXXX_5G JOIN PRESET WI-FI Model: Archer AX20 AX1800 Dual-Band Wi-Fi 6 Router HVIN: Archer AX20V2 FCC ID: TE7AX20V2 IC: 8853A-AX20V2 TP-Link Corporation Limited Suite 901, New East Ocean Centre, Tsim Sha Tsui, Hong Kong This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may no t cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operat ion. Power: 12V 1.5A Default Access: KWWSWSOLQNZLƮQHW MADE IN CHINA 8.8mm 31.7mm R-NZ

Report No.: 2008C188 Page 6 of 16 5G Ant. 2 2.4G Ant. 1 2.4G Ant. 2 5G Ant. 1 Report No.: 2008C188 Page 7 of 16 Report No.: 2008C188 Page 8 of 16 Report No.: 2008C188 Page 9 of 16 Report No.: 2008C188 Page 10 of 16 Report No.: 2008C188 Page 11 of 16 Report No.: 2008C188 Page 12 of 16 Report No.: 2008C188 Page 13 of 16 Report No.: 2008C188 Page 14 of 16

Report No.: BTL-FCCP-3-2008C188 Page 1 of 6 FCC RF EXPOSURE REPORT FCC ID: TE7AX20V2 Project No. : 2008C188 Equipment : AX1800 Dual-Band Wi-Fi 6 Router Brand Name : tp-link Test Model : Archer AX20 Series Model : Archer AX21, Archer AX1800 Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Aug. 31, 2020 Date of Test : Sep. 02, 2020 ~ Oct. 20, 2020 Issued Date : Dec. 10, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG2020090140 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Simon Ling Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-2008C188 Page 2 of 6 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Dec. 10, 2020 Report No.: BTL-FCCP-3-2008C188 Page 3 of 6 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: For 2.4GHz: Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 tp -link 3101502647 Dipole Weld 3.82 2 tp -link 3101502557 Dipole Weld 3.82 Note: 1) This EUT supports CDD, and all antennas have the same gain, Directional gain = G ANT +Array Gain. For power measurements, Array Gain=0dB (N ANT ≤4), so the Directional gain=3.82. For power spectral density measurements, N ANT =2, N SS = 1. So the Directional gain=G ANT +Array Gain=G ANT +10log(N ANT / N SS )dBi=3.82+10log(2/1)dBi=6.83. Then, the power spectral density limit is 8-(6.83-6)=7.17. 2) Beamforming Gain: 3 dB. So Directional gain = 3+3.82=6.82. Then, the power limit is 30-(6.82-6)=29.18. For Non Beamforming: Operating Mode TX Mode 2TX IEEE 802.11b V (Ant. 1 + Ant. 2) IEEE 802.11g V (Ant. 1 + Ant. 2) IEEE 802.11n (HT20) V (Ant. 1 + Ant. 2) IEEE 802.11n (HT40) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE20) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE40) V (Ant. 1 + Ant. 2) Report No.: BTL-FCCP-3-2008C188 Page 4 of 6 For Beamforming: Operating Mode TX Mode 2TX IEEE 802.11n (HT20) V (Ant. 1 + Ant. 2) IEEE 802.11n (HT40) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE20) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE40) V (Ant. 1 + Ant. 2) For 5GHz: Ant. Brand P/N Antenna Type Connector Gain (dBi) Note 1 tp -link 3101503061 Dipole I-PEX 2.17 UNII-1 2 tp -link 3101502648 Dipole I-PEX 2.17 1 tp -link 3101503061 Dipole I-PEX 2.94 UNII-3 2 tp -link 3101502648 Dipole I-PEX 2.94 Note: 1) This EUT supports CDD, and all antennas have the same gain, Directional gain = G ANT +Array Gain. For power measurements, Array Gain=0dB (N ANT ≤4), so the UNII-1 Directional gain=2.17, the UNII-3 Directional gain=2.94. For power spectral density measurements, N ANT =2, N SS = 1. So the UNII-1 Directional gain=G ANT +Array Gain=G ANT +10log(N ANT / N SS )dBi= 2.17+10log(2/1)dBi=5.18, the UNII-3 Directional gain=G ANT +Array Gain=G ANT +10log(N ANT / N SS )dBi =2.94+10log(2/1)dBi=5.95. 2) Beamforming Gain: 3 dB. So the UNII-1 Directional gain = 3+2.17=5.17, the UNII-3 Directional gain = 3+2.94=5.94. For Non Beamforming: Operating Mode TX Mode 2TX IEEE 802.11a V (Ant. 1 + Ant. 2) IEEE 802.11n (HT20) V (Ant. 1 + Ant. 2) IEEE 802.11n (HT40) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT20) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT40) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT80) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE20) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE40) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE80) V (Ant. 1 + Ant. 2) Report No.: BTL-FCCP-3-2008C188 Page 5 of 6 For Beamforming: Operating Mode TX Mode 2TX IEEE 802.11n (HT20) V (Ant. 1 + Ant. 2) IEEE 802.11n (HT40) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT20) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT40) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT80) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE20) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE40) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE80) V (Ant. 1 + Ant. 2) Report No.: BTL-FCCP-3-2008C188 Page 6 of 6 3. TEST RESULTS For 2.4GHz Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3.82 2.4099 29.36 862.9785 0.26493 1 Complies For 2.4GHz Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6.82 4.8084 29.17 826.0379 0.50598 1 Complies For 5GHz UNII-1 Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.17 1.6482 29.27 845.2788 0.17747 1 Complies For 5GHz UNII-1 Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5.17 3.2885 28.36 685.4882 0.28716 1 Complies For 5GHz UNII-3 Non Beamforming: Directional Gain (dBi) Directional Gain (numeric…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2008C188 Page 1 of 145 FCC Radio Test Report FCC ID: TE7AX20V2 This report concerns: Original Grant Project No. : 2008C188 Equipment : AX1800 Dual-Band Wi-Fi 6 Router Brand Name : tp-link Test Model : Archer AX20 Series Model : Archer AX21, Archer AX1800 Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Aug. 31, 2020 Date of Test : Sep. 02, 2020 ~ Oct. 20, 2020 Issued Date : Nov. 10, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG2020090140 for conducted, DG2020090141 for radiated. Standard(s) : FCC Part15, Subpart C (15.247) ANSI C63.10-2013 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Simon Ling Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2008C188 Page 2 of 145 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2008C188 Page 3 of 145 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 12 2.3 PARAMETERS OF TEST SOFTWARE 15 2.4 DUTY CYCLE 16 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 18 2.6 SUPPORT UNITS 18 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 19 3.1 LIMIT 19 3.2 TEST PROCEDURE 19 3.3 DEVIATION FROM TEST STANDARD 19 3.4 TEST SETUP 20 3.5 EUT OPERATION CONDITIONS 20 3.6 TEST RESULTS 20 4 . RADIATED EMISSIONS TEST 21 4.1 LIMIT 21 4.2 TEST PROCEDURE 22 4.3 DEVIATION FROM TEST STANDARD 22 4.4 TEST SETUP 23 4.5 EUT OPERATION CONDITIONS 24 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 24 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 24 4.8 TEST RESULTS - ABOVE 1000 MHZ 24 5 . BANDWIDTH TEST 25 5.1 LIMIT 25 5.2 TEST PROCEDURE 25 5.3 DEVIATION FROM STANDARD 25 5.4 TEST SETUP 25 Report No.: BTL-FCCP-1-2008C188 Page 4 of 145 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 25 5.6 TEST RESULTS 25 6 . MAXIMUM AVERAGE OUTPUT POWER TEST 26 6.1 LIMIT 26 6.2 TEST PROCEDURE 26 6.3 DEVIATION FROM STANDARD 26 6.4 TEST SETUP 26 6.5 EUT OPERATION CONDITIONS 26 6.6 TEST RESULTS 26 7 . CONDUCTED SPURIOUS EMISSIONS 27 7.1 LIMIT 27 7.2 TEST PROCEDURE 27 7.3 DEVIATION FROM STANDARD 27 7.4 TEST SETUP 27 7.5 EUT OPERATION CONDITIONS 27 7.6 TEST RESULTS 27 8 . POWER SPECTRAL DENSITY TEST 28 8.1 LIMIT 28 8.2 TEST PROCEDURE 28 8.3 DEVIATION FROM STANDARD 28 8.4 TEST SETUP 28 8.5 EUT OPERATION CONDITIONS 28 8.6 TEST RESULTS 28 9 . MEASUREMENT INSTRUMENTS LIST 29 10 . EUT TEST PHOTO 31 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 36 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 39 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 44 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 47 APPENDIX E - BANDWIDTH 108 APPENDIX F - MAXIMUM AVERAGE OUTPUT POWER 115 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 126 Report No.: BTL-FCCP-1-2008C188 Page 5 of 145 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 139 Report No.: BTL-FCCP-1-2008C188 Page 6 of 145 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Nov. 10, 2020 Report No.: BTL-FCCP-1-2008C188 Page 7 of 145 1. SUMMARY OF TEST RESULTS Te s t procedures according to the technical standard(s): FCC Part15, Subpart C (15.247) Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ------ 15.247(b)(3) Maximum Average Output Power APPENDIX F PASS ------ 15.247(…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2008C188 Page 112 of 145 Test Mode TX N-40M Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 03 2422 36.36 500 Complies 06 2437 36.48 500 Complies 09 2452 36.48 500 Complies CH03 CH06 CH09 Channel Frequency (MHz) 99 % Emission Bandwidth (MHz) Result 03 2422 36.96 Complies 06 2437 36.96 Complies 09 2452 36.80 Complies CH03 CH06 CH09 Report No.: BTL-FCCP-1-2008C188 Page 113 of 145 Test Mode TX AX-20M Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 01 2412 19.02 500 Complies 06 2437 19.01 500 Complies 11 2462 19.06 500 Complies CH01 CH06 CH11 Channel Frequency (MHz) 99 % Emission Bandwidth (MHz) Result 01 2412 19.20 Complies 06 2437 19.36 Complies 11 2462 19.20 Complies CH01 CH06 CH11 Report No.: BTL-FCCP-1-2008C188 Page 114 of 145 Test Mode TX AX-40M Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 03 2422 37.56 500 Complies 06 2437 37.72 500 Complies 09 2452 37.75 500 Complies CH03 CH06 CH09 Channel Frequency (MHz) 99 % Emission Bandwidth (MHz) Result 03 2422 37.76 Complies 06 2437 37.92 Complies 09 2452 37.60 Complies CH03 CH06 CH09 Report No.: BTL-FCCP-1-2008C188 Page 115 of 145 APPENDIX F - MAXIMUM AVERAGE OUTPUT POWER Report No.: BTL-FCCP-1-2008C188 Page 116 of 145 Non Beamforming Test Mode TX B Mode_Ant. 1 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 25.65 0.22 25.81 30.00 1.0000 Complies 06 2437 25.72 0.22 25.94 30.00 1.0000 Complies 11 2462 25.62 0.22 25.84 30.00 1.0000 Complies Test Mode TX B Mode_Ant. 2 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 26.19 0.22 26.41 30.00 1.0000 Complies 06 2437 25.85 0.22 26.07 30.00 1.0000 Complies 11 2462 26.04 0.22 26.26 30.00 1.0000 Complies Test Mode TX B Mode_Total Channel Frequency (MHz) Average Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 29.16 30.00 1.0000 Complies 06 2437 29.02 30.00 1.0000 Complies 11 2462 29.07 30.00 1.0000 Complies Report No.: BTL-FCCP-1-2008C188 Page 117 of 145 Test Mode TX G Mode_Ant. 1 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 20.54 0.23 20.77 30.00 1.0000 Complies 06 2437 25.94 0.23 26.17 30.00 1.0000 Complies 11 2462 23.57 0.23 23.80 30.00 1.0000 Complies Test Mode TX G Mode_Ant. 2 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 20.36 0.23 20.59 30.00 1.0000 Complies 06 2437 25.77 0.23 26.00 30.00 1.0000 Complies 11 2462 23.39 0.23 23.62 30.00 1.0000 Complies Test Mode TX G Mode_Total Channel Frequency (MHz) Average Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 23.69 30.00 1.0000 Complies 06 2437 29.09 30.00 1.0000 Complies 11 2462 26.72 30.00 1.0000 Complies Report No.: BTL-FCCP-1-2008C188 Page 118 of 145 Test Mode TX N-20M Mode_Ant. 1 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 19.76 0.23 19.99 30.00 1.0000 Complies 06 2437 25.99 0.23 26.22 30.00 1.0000 Complies 11 2462 19.58 0.23 19.81 30.00 1.0000 Complies Test Mode TX N-20M Mode_Ant. 2 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 19.57 0.23 19.80 30.00 1.0000 Complies 06 2437 25.82 0.23 26.05 30.00 1.0000 Complies 11 2462 19.34 0.23 19.57 30.00 1.0000 Complies Test Mode TX N-20M Mode_Total Channel Frequency (MHz) Average Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 22.91 30.00 1.0000 Complies 06 2437 29.15 30.00 1.0000 Complies 11 2462 22.70 30.00 1.0000 Complies Report No.: BTL-FCCP-1-2008C188 Page 119 of 145 Test Mode TX N-40M Mode_Ant. 1 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 16.94 0.43 17.37 30.00 1.0000 Complies 06 2437 20.66 0.43 21.09 30.00 1.0000 Complies 09 2452 17.72 0.43 18.15 30.00 1.0000 Complies Test Mode TX N-40M Mode_Ant. 2 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 16.81 0.43 17.24 30.00 1.0000 Complies 06 2437 20.51 0.43 20.94 30.00 1.0000 Complies 09 2452 17.53 0.43 17.96 30.00 1.0000 Complies Test Mode TX N-40M Mode_Total Channel Frequency (MHz) Average Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 03…
