TE7KP303V2Kasa Smart Wi-Fi Power Strip, 3-Outlet

User Guide Kasa Smart Wi-Fi Power Strip, 3-Outlet KP303 © 2020 TP-Link 1910012924 REV2.0.0 Contents About This Guide ····················································1 Introduction ·······························································2 Appearance ·······························································3 Set Up Your Smart Wi-Fi Power Strip ···········4 Main Device Controls ···········································5 Configure Your Smart Wi-Fi Power Strip ····6 Create Scenes··························································8 Discover Kasa ···························································9 Authentication ························································10 1 About This Guide This guide provides a brief introduction to Kasa Smart Wi-Fi Power Strip and the Kasa Smart app, as well as regulatory information. Please note that features of Kasa Smart Wi-Fi Power Strip may vary slightly depending on the model and software version you have, and on your location, language and internet service provider. All images, steps, and descriptions in this guide are only examples and may not reflect your actual experience. Conventions In this guide, the following convention is used: Convention Description Teal Key information appears in teal, including management page text such as menus, items, buttons and so on. Underline Hyperlinks are in teal and underlined. You can click to redirect to a website. More Info • Specifications can be found on the product page at https://www.tp-link.com. • Our Technical Support and troubleshooting information can be found at https://www.tp-link.com/support/. 2 Introduction With independent control of 3 smart outlets and always-on USB ports to charge 2 others, the Kasa Smart Wi-Fi Power Strip is ideal for family rooms, home offices and small businesses. Control 3 smart outlets from anywhere with the Kasa Smart app. Surge ProtectionNo Hub RequiredControl from Anywhere Scheduling Individual Control • 3 Smart Outlets - Independently control 3 smart outlets with the Kasa Smart app. • Surge Protection - Surge protection shields electronics from power surges. • 2 USB Ports - Charge your tablet, smartphone, or other devices using the always-on USB ports. • No Hub Required - Connect to your existing Wi-Fi router. • Scheduling - Set a schedule to automatically turn devices on and off. • Voice Control - Use simple voice commands with Alexa and Google Assistant to control your devices. Supported Load Types: Coffee Maker: 800 W Heater: 1500 W Toaster: 850 W Desk Lamp: 235.2 W Humidifier: 260 W Tower Fan: 50 W LCD: 270 W Iron: 1500 W 3 Appearance Smart Wi-Fi Power Strip has 3 individual smart outlets, with control buttons to turn on/off devices plugged in, and LEDs to show you the current status. SYS and Protected LEDs change color according to its status. See the explanation below: *KP303 (US version) is used for demonstration in this guide. Protected LED Lit up when it is under surge protection. Smart Outlet (1-3 from left to right) Plug in your device and control it from your smartphone. Each outlet is independent. LED of Smart Outlet (1-3 from left to right) Lit up when the corresponding smart outlet is on. Control Button (1-3 from left to right) Press the control button to turn on or off the corresponding outlet. Press and hold a control button for 5s to reenable setup mode. Press and hold a control button for 10s to restore your Smart Power Strip to factory default settings. USB Port Charge your tablet, smartphone or other devices. Output: 5V/2.4A each; 5V/2.4A total Blinking Orange Resetting. Blinking Green Searching for Wi-Fi. Red No Wi-Fi connection. Blinking Orange and Green Setup mode initiated. SYS Wi-Fi LED Orange Rebooting. White Connected to Wi-Fi network successfully. 1 3 45 2 6 4 Set Up Your Smart Wi-Fi Power Strip Follow the steps below to set up your Smart Wi-Fi Power Strip via Kasa Smart app. 1. Install Kasa Smart app Get the Kasa Smart app from Google Play or the Apple App Store, or scan the QR code below to download it. 2. Log in or sign up with TP-Link ID Open the Kasa Smart app and log in with your TP-Link ID. If you don’t have an account, create one first. 3. Add Device Tap the button in the Kasa Smart app, select Device >Smart Plugs > Smart Power Strip and then follow step-by-step app instructions to complete the setup. 5 Main Device Controls After you successfully set up your Smart Wi-Fi Power Strip, you will see the home page of the Kasa Smart app. Here you can view and manage all devices that you've added to Kasa. Tap a smart power strip to control and manage it. Home Page Device Status 6 Configure Your Smart Wi-Fi Power Strip On Device Status page, you can set Schedule, preset Away Mode, set Timer, check Usage and change the settings of your smart outlet. Set Schedule Tap to set a schedule for your smart outlet to simplify your daily routine by creating automatic On/Off action. Preset Away Mode Tap to preset the Away Mode and your smart outlet will be randomly turned on/off during this time. 7 Set Timer Tap to set the timer and your smart outlet will automatically be turned on/off after the time ends. Device Settings Tap to view and change the settings of your smart outlet. Check Usage Tap to view and keep track of device runtime. 8 Create Scenes A scene is a preset group of smart devices that can be programmed, customized and activated simultaneously at the touch of a button from your smartphone or tablet, allowing you to easily set your mood, activity or fit any special occasion. This page allows you to preset how your smart home devices should act automatically at special occasions. 9 Discover Kasa Use the Kasa Smart app to pair your Smart Wi-Fi Power Strip with Amazon Alexa or Google Home Assistant, and enjoy a full hands-free experience. Kasa helps manage the rest of your smart home too, working with Samsung SmartThings to trigger changes when you arrive home or leave for the day. Launch the Kasa Smart app and go …

Text truncated - open the document above for the full version.

TP-Link Technologies Co., Ltd. Wi-Fi Channel 12 and 13 Declaration Letter Date: 2020-11-26 We, the undersigned company Company Name: TP-Link Technologies Co., Ltd. Address: Building 24 (floors 1,3,4,5) and 28 (floors1-4), Central Science and Technology Park,Nanshan Shenzhen,518057 China Declare that: Product description: Kasa Smart Wi-Fi Power Strip, 3-Outlet Type designation: KP303 Brand: tp-link FCC ID: TE7KP303V2 Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: ________________________ Name: Jing Huang Tel: 75521534921 Email: [email protected]

TP-Link Technologies Co., Ltd. Authority to Act as Agent Date: 2020-11-26 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: BTL Inc./Rose Liu is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 2021-11-26 By: __________________________ ________Jing Huang________ (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Technologies Co., Ltd. (Company Name) Telephone: 75521534921 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Technologies Co., Ltd. Request for Confidentiality Date: 2020-11-26 Subject: Confidentiality Request for: TE7KP303V2 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual TP-Link Technologies Co., Ltd.____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager ______Jing Huang__________ 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. TP-Link Technologies Co., Ltd. (Signature/Title 3 ) (Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

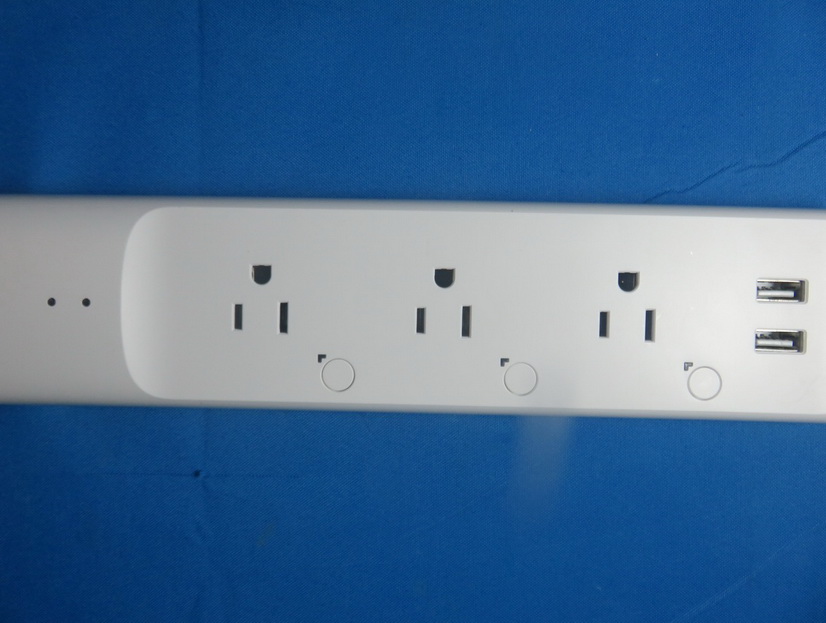

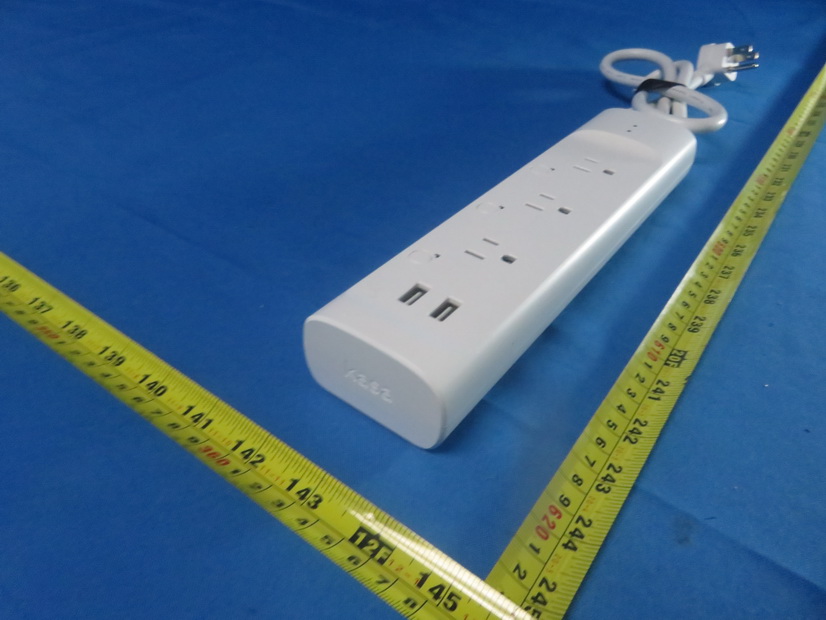

Report No.: 2010C041 Page 1 of 6 ATTACHMENT PHOTOGRAPHS OF EUT Report No.: 2010C041 Page 2 of 6 Report No.: 2010C041 Page 3 of 6

陈博博 菲林图 KP303(US) 2.0底壳镭雕 A2 KP303(US) 2.0 星光-260 2020-11-26 注塑镭雕 尺寸图 260±0.01 63.41±0.01 效果图 外销镭雕 外销镭雕尺寸：28.508*10.916 mm *图示条码仅供示意，具体以软件生成为准；机 型版本号以实际为准 颜色：PANTONE Cool Gray 3C 颜色：PANTONE Cool Gray 3C 注塑镭雕尺寸： 199.964*45.587mm FCC ID: TE7KP303V2IC: 8853A�KP303V2HVIN: KP303V2

Report No.: 2010C041 Page 4 of 7 Report No.: 2010C041 Page 5 of 7 Antenna Report No.: 2010C041 Page 6 of 7 Antenna Report No.: 2010C041 Page 7 of 7 Antenna

Report No.: BTL-FCCP-2-2010C041 Page 1 of 3 FCC RF EXPOSURE REPORT FCC ID: TE7KP303V2 Project No. : 2010C041 Equipment : Kasa Smart Wi-Fi Power Strip, 3-Outlet Brand Name : tp-link Test Model : KP303 Series Model : N/A Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Oct. 14, 2020 Date of Test : Oct. 14, 2020 ~ Nov. 17, 2020 Issued Date : Nov. 26, 2020 Report Version : R01 Test Sample : Engineering Sample No.: DG2020101446 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Peggy Zhu Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2010C041 Page 2 of 3 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Nov. 24, 2020 R01 1. Changed the applicant and manufacturer information. 2. Updated the FCC ID. Nov. 26, 2020 Report No.: BTL-FCCP-2-2010C041 Page 3 of 3 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 tp -link 6035500079 Internal N/A 2.98 3. TEST RESULTS Antenna Gain (dBi) Antenna Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.98 1.9861 21.30 134.8963 0.05333 1 Complies Note: The calculated distance is 20 cm. Output power including tune up tolerance. End of Test Report

Report No.: BTL-FCCP-1-2010C041 Page 1 of 116 FCC Radio Test Report FCC ID: TE7KP303V2 This report concerns: Original Grant Project No. : 2010C041 Equipment : Kasa Smart Wi-Fi Power Strip, 3-Outlet Brand Name : tp-link Test Model : KP303 Series Model : N/A Applicant : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Manufacturer : TP-Link Technologies Co., Ltd. Address : Building 24(floors1,3,4,5) and 28(floors1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Date of Receipt : Oct. 14, 2020 Date of Test : Oct. 14, 2020 ~ Dec. 07, 2020 Issued Date : Dec. 11, 2020 Report Version : R03 Test Sample : Engineering Sample No.: DG2020101446 for conducted, DG2020101447 for radiated. Standard(s) : FCC Part15, Subpart C (15.247) ANSI C63.10-2013 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Peggy Zhu Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2010C041 Page 2 of 116 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2010C041 Page 3 of 116 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 11 2.3 DUTY CYCLE 13 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 14 2.5 SUPPORT UNITS 14 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 15 3.1 LIMIT 15 3.2 TEST PROCEDURE 15 3.3 DEVIATION FROM TEST STANDARD 15 3.4 TEST SETUP 16 3.5 EUT OPERATION CONDITIONS 16 3.6 TEST RESULTS 16 4 . RADIATED EMISSIONS TEST 17 4.1 LIMIT 17 4.2 TEST PROCEDURE 18 4.3 DEVIATION FROM TEST STANDARD 18 4.4 TEST SETUP 19 4.5 EUT OPERATION CONDITIONS 20 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 20 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 20 4.8 TEST RESULTS - ABOVE 1000 MHZ 20 5 . BANDWIDTH TEST 21 5.1 LIMIT 21 5.2 TEST PROCEDURE 21 5.3 DEVIATION FROM STANDARD 21 5.4 TEST SETUP 21 Report No.: BTL-FCCP-1-2010C041 Page 4 of 116 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 21 5.6 TEST RESULTS 21 6 . MAXIMUM AVERAGE OUTPUT POWER TEST 22 6.1 LIMIT 22 6.2 TEST PROCEDURE 22 6.3 DEVIATION FROM STANDARD 22 6.4 TEST SETUP 22 6.5 EUT OPERATION CONDITIONS 22 6.6 TEST RESULTS 22 7 . CONDUCTED SPURIOUS EMISSIONS 23 7.1 LIMIT 23 7.2 TEST PROCEDURE 23 7.3 DEVIATION FROM STANDARD 23 7.4 TEST SETUP 23 7.5 EUT OPERATION CONDITIONS 23 7.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY TEST 24 8.1 LIMIT 24 8.2 TEST PROCEDURE 24 8.3 DEVIATION FROM STANDARD 24 8.4 TEST SETUP 24 8.5 EUT OPERATION CONDITIONS 24 8.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 10 . EUT TEST PHOTO 27 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 32 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 35 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 40 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 43 APPENDIX E - BANDWIDTH 104 APPENDIX F - MAXIMUM AVERAGE OUTPUT POWER 108 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 110 Report No.: BTL-FCCP-1-2010C041 Page 5 of 116 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 114 Report No.: BTL-FCCP-1-2010C041 Page 6 of 116 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Nov. 24, 2020 R01 1. Changed the applicant and manufacturer information. 2. Updated the FCC ID. Nov. 26, 2020 R02 1. Updated the data of AC Power Line Conducted Emissions and Radiated Emissions below 1GHz. 2. Updated the test photos of AC Power Line Conducted Emissions and Radiated Emissions below 1GHz. 3. Added the description in section 2.2. Dec. 07, 2020 R03 Added the data of Radiated Emissions Above 1GHz. Dec. 11, 2020 Report No.: BTL-FCCP-1-2010C041 Page 7 of 116 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15,…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2010C041 Page 113 of 116 Test Mode TX N-20M Mode Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2010C041 Page 114 of 116 APPENDIX H - POWER SPECTRAL DENSITY Report No.: BTL-FCCP-1-2010C041 Page 115 of 116 Test Mode TX B Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -4.69 8 Complies 06 2437 -4.10 8 Complies 11 2462 -3.57 8 Complies CH01 CH06 CH11 Test Mode TX G Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -11.14 8 Complies 06 2437 -8.09 8 Complies 11 2462 -6.67 8 Complies CH01 CH06 CH11 Report No.: BTL-FCCP-1-2010C041 Page 116 of 116 Test Mode TX N-20M Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -10.30 8 Complies 06 2437 -6.37 8 Complies 11 2462 -7.61 8 Complies CH01 CH06 CH11 End of Test Report

Report No.: BTL-FCCP-1-2010C041 Page 27 of 101 10. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-1-2010C041 Page 28 of 101 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-2010C041 Page 29 of 101 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-1-2010C041 Page 30 of 101 Radiated Emissions Test Photos Above 1 GHz Report No.: BTL-FCCP-1-2010C041 Page 31 of 101 Conducted Test Photos
