TEB-HUNTSU864FOCUS AX Modular Gridstream

Landis+Gyr Confidential Information98-9112 Rev AA3 High Speed FOCUS AX Modular Gridstream RF Endpoint Data Sheet General The FOCUS AX Modular Gridstream RF endpoint is designed to accommodate Landis+Gyr FOCUS AX meters for use in residential and light industrial services. The FOCUS AX Advanced Function meter is an Active Energy kWh/kW/TOU Meter. The meter features Digital Multiplication Measurement Technique, meets ANSI standards for performance and utilizes ANSI C12.19 protocol (between meter and AMR device). Figure 1 - 1. The FOCUS AX Modular Gridstream RF Endpoint Module and the Landis+Gyr FOCUS AX Meter FCC Compliance Information Model: FASY-0864 FCCID: TEB-HUNTSU864 IC: 5931A-HUNTSU864 500158E2 Hunt Technologies Model 0864 CONTAINS FCC ID: TEB-HUNTSU864 CONTAINS IC: 5931A-HUNTSU864 RF GRIDSTREAM High Speed FOCUS AX Modular Gridstream RF Endpoint Data SheetLandis+Gyr 498-9112 Rev AALandis+Gyr Confidential Information Compliance Statement (Part 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Landis+Gyr for compliance could void the user’s authority to operate the equipment. Endpoint Location To comply with FCC’s RF exposure limits for general population/uncontrolled exposure, the antenna(e) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. Endpoint Usage The FOCUS AX Modular Gridstream RF endpoint will be used: •for residential and commercial metering applications. •at homes and businesses. The FOCUS AX Modular Gridstream RF endpoint requires professional installation by qualified personnel. RF Interference This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the meter off, the user is encouraged to try to correct the interference by one or more of the following measures: •Re-orient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Consult Landis+Gyr or an experienced radio/TC technician for help. Required Software To work with the endpoint, you need one of the following software tools: Landis+GyrHigh Speed FOCUS AX Modular Gridstream RF Endpoint Data Sheet Landis+Gyr Confidential Information98-9112 Rev AA5 •Command Center 4.1 or greater. •RadioShop. •Network Configuration Manager. •Landis+Gyr 1132Prog application. •Endpoint Testing Manager. •Endpoint Implementation Manager. Specifications Table 1-1. FOCUS AX Modular Gridstream RF Endpoint Specifications CategorySpecificationValue or Range Compatible Meters Landis+Gyr FOCUS AX Supported Meter Forms FOCUS AXFOCUS AX-SD FormClassFormClass 1S1001S100 2S2002S200 2SE32012S200 2K48025S200 3S 120V10/20 3S 240V10/20 4S10/20 12S/25200 12SE/25320 16S200 16SE320 36(6)S20 9(8)S20 45S20 ElectricalVoltage9-16V (from meter’s power supply) PowerMax: 1.0W Typical: 0.6W RF 900 MHzOutput Power+26 dBm +/-1 dBm Adjacent Channel Power39 dBc Nominal Transmit Frequency902 to 928 MHz ISM unlicensed (FCC Part 15) Communication ProtocolGrid Stream Protocol for Command Center Receive Sensitivity -108 dBm Nominal High Speed FOCUS AX Modular Gridstream RF Endpoint Data SheetLandis+Gyr 698-9112 Rev AALandis+Gyr Confidential Information RF ZigBeeOutput Power+20 dBm +/- Adjacent Channel Power40 dBc Nominal Transmit Frequency2405-2480 MHz Communication ProtocolZigBee Protocol Receive Sensitivity -104 dBm Minimum Standards Compliance FCC Title 47 CFR Part 15Radiated and Conducted Emissions (incl. intentional radiators) IEC 61000 4-2,3,4,5,11,12Electromagnetic Compatibility ANSI C12.19Compatible with Utility Industry End Device Tables ANSI C12.20National Standard for Electricity Meters - 0.2 and 0.5 Accuracy Classes ANSI C12.21Code for Electricity Metering ANSI C37.90.1 (1989)Standard Surge Withstand Capability (SWC) Tests Environment al General EnvironmentalOutdoor, rain-protected, sunlight-exposed Operating Temperature Range-40 to +70 C (under meter glass) Humidity0 to 95% relative humidity, non-condensing MechanicalSize3.242 L x 5.315 W x .094 inches, typical Weight2.0 ounces (56.7 g), typical Table 1-1. FOCUS AX Modular Gridstream RF Endpoint Specifications CategorySpecificationValue or Range

Exhibit A: External Photos TEB-HUNTSU864 Photo of FOCUS AX Universal RF endpoint model 864 The FOCUS AX Universal RF endpoint model 864 mounts inside a Landis+Gyr Focus AX meter. The FCC/IC label is located on the outside of the meter enclosure. FCC/IC Label Location

2.8 .75 LAYOUT PROVIDED BY HUNT. R .05 (OPTIONAL). DO NOT PRINT BORDER. 5 6 4 A B 321 A B C D 4 C 32 D 1 ANGLE TOLERENCE DOES NOT APPLY TO IMPLIED 90 ANGLES TOLERENCES ON: DIMENSIONS ARE AFTER FINISH IS APPLIED 2 PL ± .02 AC REVISION: THIRD ANGLE PROJECTION LANDIS+GYR CONFIDENTIAL INFORMATION: THIS DOCUMENT CONTAINS INFORMATION PROPRIETARY TO LANDIS + GYR FAMILY OF COMPANIES.(WHICH INCLUDES THE COMPANIES FORMERLY KNOWN AS HUNT AND CELLNET) ANY USE OR DISCLOSURE WITHOUT WRITTEN PERMISSION IS PROHIBITED. SHEET: 1 OF 1 23-0043 3 PL ± .005 SIZE: DATED: DATED: TITLE: DIMENSIONS ARE IN INCHES [MM] BREAK ALL SHARP EDGES. DRAWN BY: APPROVED BY: 1 PL ± .1 ± 1/64 ±1 DECIMAL FRACTION ANGLE UNLESS OTHERWISE SPECIFIED: MUST BE FREE FROM FLASH AND BURRS. ( ) DENOTES REFERENCE ONLY. DO NOT SCALE DRAWING DRAWING NO. T. HANNAH 02/22/10 02/22/10 S. O'BRYAN C LABEL, 0864 FCC IC RFID EXTERIOR BARCODE NOTES: 1. DESCRIPTION: SERIALIZED BAR CODE LABEL. 2. MATERIAL: 2 MIL POLYMIDE, TYPE TS866. 3. DIGITAL INKING SYSTEM FOR TEXT & BAR CODE TO BE PERMANENT BLACK, U.V. RESISTANT. 4. ARTWORK LAYOUT TO BE LOCATED AS SHOWN, AND TO BE APPROVED BY HUNT ENGINEERING. 5. 8 DIGIT HEXIDECIMAL SERIAL NO. TO BE IMPRINTED IN HUMAN READABLE FORM ABOVE THE 8 DIGIT SERIAL NUMBER INFORMATION IN CODE 39 WITH NO SPACES. (BARCODE HEIGHT TO BE .150 MIN). THE BAR CODE CAN RUN OFF THE BOTTOM OF THE LABEL. 6. FCC I.D. NUMBER TO BE LISTED ACROSS THE TOP OF THE LABEL. 7. -DELETED- 8. LABEL MANUFACTURER: WHEN EACH PURCHASE ORDER IS COMPLETED, PROVIDE THE VERIFIED RANGE & DATE COMPLETED TO HUNT TECHNOLOGIES MANUFACTURING ENGINEER OR PURCHASING. 9. NARROW BAR IS 10 MIL. 10. THIS LABEL SHALL BE PRINTED BY THE CONTRACT MANUFACTURER AS PART OF THE MODULE MANUFACTURING PROCESS. IT WILL BE INCLUDED WITH EACH MODULE WHEN SHIPPED TO THE METER MANUFACTURER FOR METER INTEGRATION. THIS LABEL WILL BE PLACED ON THE OUTSIDE OF THE METER HOUSING DURING METER ASSEMBLY. THE SERIAL NUMBER ON THIS LABEL MUST MATCH THAT OF THE LABEL OF THE MODULE INSTALLED IN THE METER.

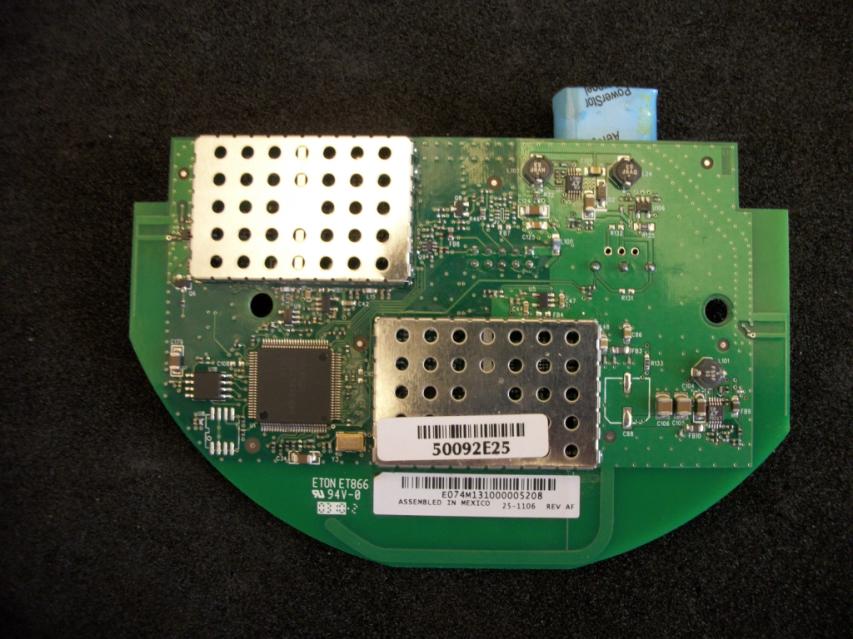

Exhibit B: Internal Photos TEB-HUNTSU864 Front Back FCC/IC Compliance Information

Exhibit F: Operational Statement TEB-HUNTSU864 This device is a daughter board module, manufactured by Hunt Technologies, LLC, that plugs into a Landis+Gyr Focus AX metrology circuit board. The daughter board contains two separate radios: a 900 MHz ISM band frequency-hopping spread spectrum (FHSS) transceiver and a 2.4 GHz ISM band transceiver employing 802.15.4/ZigBee. The 900 MHz radio circuit reads data from the metrology circuit board and transmits Gaussian Frequency Shift Keying (GFSK) signals to compatible receivers. It’s transmit frequency is based on a table of fifty preset pseudo-random frequencies stored in EEPROM. This table ensures that each of the frequencies are used the same number of times. The frequency synthesizer uses a crystal oscillator circuit as its reference to produce a frequency between 902.1 and 927.9 MHz, which is turned on and off by the modulator to produce a GFSK signal. The 2.4 GHz radio circuit reads data from the metrology and 900 MHz radio circuits and transmits Offset Quadrature Phase Shift Keying (O-QPSK) signals, based on the 802.15.4/ZigBee standards, to various in- home ZigBee-enabled devices. The radio will also receive data from these devices. The radio employs sixteen channels between 2.405 and 2.480 GHz and utilizes Direct Sequence Spread Spectrum (DSSS) coding with a 2 Mchip/s rate in accordance with the 802.15.4/ZigBee standards. The 2.4 GHz radio also utilizes antenna diversity to increase the effective range of the device. Antenna diversity is achieved in this circuit via two identical etched PCB inverted-F antennas placed on opposite ends of the PCB, about five inches apart. One antenna is selected at any given time to transmit or receive from based on an algorithm designed to choose the best-performing antenna at that moment.

Exhibit Q: RF Exposure TEB-HUNTSU864 General Information Applicant: Hunt Technologies, LLC FCC ID: TEB-HUNTSU864 Device Category: Mobile Environment: General Population/Uncontrolled Exposure Technical Information 900 MHz Antenna Type: PCB Inverted F ¼-Wave Monopole Antenna Gain: 5.15 dBi (Theoretical maximum) Transmitter Conducted Power: 27.48 dBm Maximum System EIRP: 32.63 dBm Operating Configuration: Fixed mounted Exposure Conditions: Greater than 20 centimeters Technical Information 2400 MHz ZigBee Antenna Type: PCB Inverted F ¼-Wave Monopole Antenna Gain: 5.15 dBi (Theoretical maximum) Transmitter Conducted Power: 21.20 dBm Maximum System EIRP: 26.35 dBm Operating Configuration: Fixed mounted Exposure Conditions: Greater than 20 centimeters MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: Where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) MPE CALCULATIONS FOR MOBILE EQUIPMENT Transmit Frequency (MHz) Conducted Power (dBm) Conducted Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) Distance (cm) Power Density (mW/cm 2 ) Power Density Limit (mW/cm 2 ) 902.1 27.48 559.76 5.15 3.273 20 0.364 0.60 2405 21.20 131.83 5.15 3.273 20 0.0858 1.00 Installation Guidelines “Exhibit D - Product Ship Sheet.pdf” contains the following text advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: Endpoint Location To comply with FCC’s RF exposure limits for general population/uncontrolled exposure, the antenna(e) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure, and the general population.

Test Report FCC ID: TEB-HUNTSU864 Page 1 of 18 Hunt Technologies, LLC 4/14/2010 6436 County Rd. 11 Pequot Lakes, MN 56472 FCC Part 15.247 Transmitter Certification 2.4 GHz ISM Band Direct Sequence Spread Spectrum Transmitter Test Report FCC ID: TEB-HUNTSU864 FCC Rule Part: 15.247 Test Begin Date: 1/18/2010 Test End Date: 2/2/2010 Report Issue Date: 4/13/2010 Test Report FCC ID: TEB-HUNTSU864 Page 2 of 18 Hunt Technologies, LLC 4/14/2010 6436 County Rd. 11 Pequot Lakes, MN 56472 Table of Contents 1.0 GENERAL .................................................................................................................. 3 1.1 PURPOSE ...................................................................................................................... 3 1.2 PRODUCT DESCRIPTION ................................................................................................. 3 1.2.1 General ........................................................................................................................... 3 1.2.2 Intended Use .................................................................................................................. 3 2.0 STATEMENT OF COMPLIANCE .................................................................................. 3 3.0 APPLICABLE STANDARD REFERENCES ..................................................................... 5 4.0 LIST OF TEST EQUIPMENT ....................................................................................... 5 5.0 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ................................................ 6 6.0 SUMMARY OF TESTS ................................................................................................. 6 6.1 FREQUENCIES TO BE EXAMINED [§15.31(M)] .................................................................. 6 6.2 ANTENNA REQUIREMENT [§15.203] ............................................................................... 7 6.3 ANTENNA CHARACTERISTICS [§15.204] ......................................................................... 7 6.3.1 Antenna Type ................................................................................................................. 7 6.3.2 Antenna Manufacturer ................................................................................................... 7 6.3.3 Antenna Gain .................................................................................................................. 7 6.4 POWER LINE CONDUCTED EMISSIONS [§15.207] ............................................................ 7 6.4.1 Test Methodology ........................................................................................................... 7 6.4.2 Test Results .................................................................................................................... 7 6.5 RADIATED EMISSIONS [§15.109] AND RADIATED SPURIOUS EMISSIONS (RESTRICTED BANDS) [§15.205] ............................................................................................................. 7 6.5.1 Test Methodology ........................................................................................................... 7 6.5.2 Calculation of allowed limit for Radiated Spurious Emissions ...................................... 8 6.5.3 Test Results .................................................................................................................... 8 6.6 PEAK OUTPUT POWER – [§15.247(B)(3)] ...................................................................... 9 6.6.1 Test Methodology (Conducted Method) ........................................................................ 9 6.6.2 Test Results .................................................................................................................. 10 6.6.3 De Facto EIRP Limit ..................................................................................................... 11 6.6.4 RF Exposure Compliance Requirements ...................................................................... 11 6.7 6-DB BANDWIDTH [§15.247(A)(2)] ........................................................................... 11 6.7.1 Test Methodology ......................................................................................................... 11 6.7.2 Test Results .................................................................................................................. 11 6.8 PEAK POWER SPECTRAL DENSITY [§15.247(E)] ............................................................ 13 6.8.1 Test Methodology ......................................................................................................... 13 6.8.2 Test Results .................................................................................................................. 13 6.9 BAND-EDGE COMPLIANCE AND SPURIOUS EMISSIONS [§15.247(D)] ............................... 14 6.9.1 Band-Edge Compliance of RF Emissions ...................................................................... 14 6.9.1.1 Test Methodology ................................................................................................. 14 6.9.1.2 Test Results........................................................................................................... 14 6.9.2 RF Conducted Spurious Emissions ............................................................................... 15 6.9.2.1 Test Methodology ................................................................................................. 15 6.9.2.2 Test Results........................................................................................................... 15 7.0 CONCLUSION .......................................................................................................... 18 Test Report FCC ID: TEB-HUNTSU864 Page 3 of 18 Hunt Technologies, LLC 4/14/2010 6436 County Rd. 11 Pequot Lakes, MN 56472 Additional Exhibits Included In Filing Exhibit A - External Photos Exhibit J - Conducted Emissions Exhibit …

Text truncated - open the document above for the full version.

Exhibit I: Software Defined Radio Statement TEB-HUNTSU864 The Hunt Technologies, LLC. TEB-HUNTSU864 is not considered a software defined radio (SDR) because the end-user will not have the ability to change/alter any of the following parameters: 1. Frequency Range 2. Modulation Type 3. Maximum Output Power

CONDUCTED EMISSIONS Test Report #: WC1000616 Run 7 Test Area: LTS EUT Model #: 864 Date: 1/26/2010 EUT Serial #: 92C72 EUT Power: 14VDC Temperature: 23.0 °C Test Method: FCC Part 15 B Air Pressure: 98.0 kPa Customer: Landis & Gyr Rel. Humidity: 18.0 % EUT Description: 2.4 GHz Transmitter Notes: Data File Name: 0616.dat Page: 1 of 5 Tested by: Robert J Behringer Printed Signature Reviewed by: Dennis E Maloney Printed Signature List of measurements for run #: 7 FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV) EUT Lead DELTA1 FCC B Qp DELTA2 FCC B Avg Start of Conducted Scan 155.0 kHz 1.99 Qp 0.11 / 0.29 / 0.0 / 0.0 2.38 N -63.35 n/a 270.0 kHz -0.51 Qp 0.11 / 0.1 / 0.0 / 0.0 -0.3 N -61.42 n/a 545.0 kHz 10.55 Qp 0.12 / 0.1 / 0.0 / 0.0 10.77 N -45.23 n/a 1.02 MHz 5.87 Qp 0.15 / 0.06 / 0.0 / 0.0 6.08 N -49.92 n/a 1.77 MHz 1.09 Qp 0.18 / 0.0 / 0.0 / 0.0 1.27 N -54.73 n/a 3.06 MHz 0.97 Qp 0.22 / 0.0 / 0.0 / 0.0 1.19 N -54.81 n/a 7.15 MHz 13.01 Qp 0.3 / 0.0 / 0.0 / 0.0 13.31 N -46.69 n/a 10.04 MHz 14.93 Qp 0.33 / 0.2 / 0.0 / 0.0 15.46 N -44.54 n/a 8.66 MHz 19.23 Qp 0.31 / 0.09 / 0.0 / 0.0 19.64 N -40.36 n/a 16.565 MHz 8.59 Qp 0.39 / 0.27 / 0.0 / 0.0 9.24 N -50.76 n/a 29.11 MHz 0.23 Qp 0.51 / 1.03 / 0.0 / 0.0 1.77 N -58.23 n/a 155.0 kHz -7.02 Av 0.11 / 0.29 / 0.0 / 0.0 -6.63 N n/a -62.36 270.0 kHz -6.58 Av 0.11 / 0.1 / 0.0 / 0.0 -6.37 N n/a -57.49 545.0 kHz -6.92 Av 0.12 / 0.1 / 0.0 / 0.0 -6.7 N n/a -52.7 1.02 MHz 6.65 Av 0.15 / 0.06 / 0.0 / 0.0 6.86 N n/a -39.14 1.77 MHz -0.51 Av 0.18 / 0.0 / 0.0 / 0.0 -0.33 N n/a -46.33 3.06 MHz -7.32 Av 0.22 / 0.0 / 0.0 / 0.0 -7.1 N n/a -53.1 7.15 MHz 3.07 Av 0.3 / 0.0 / 0.0 / 0.0 3.37 N n/a -46.63 8.66 MHz -7.91 Av 0.31 / 0.09 / 0.0 / 0.0 -7.5 N n/a -57.5 10.04 MHz 1.65 Av 0.33 / 0.2 / 0.0 / 0.0 2.18 N n/a -47.82 16.565 MHz -7.38 Av 0.39 / 0.27 / 0.0 / 0.0 -6.73 N n/a -56.73 29.11 MHz -7.97 Av 0.51 / 1.03 / 0.0 / 0.0 -6.43 N n/a -56.43 155.0 kHz 1.87 Qp 0.11 / 0.29 / 0.0 / 0.0 2.26 L1 -63.47 n/a 270.0 kHz -2.43 Qp 0.11 / 0.1 / 0.0 / 0.0 -2.22 L1 -63.34 n/a 545.0 kHz 10.65 Qp 0.12 / 0.1 / 0.0 / 0.0 10.87 L1 -45.13 n/a 1.02 MHz -3.47 Qp 0.15 / 0.06 / 0.0 / 0.0 -3.26 L1 -59.26 n/a 1.77 MHz -4.25 Qp 0.18 / 0.0 / 0.0 / 0.0 -4.07 L1 -60.07 n/a CONDUCTED EMISSIONS Test Report #: WC1000616 Run 7 Test Area: LTS EUT Model #: 864 Date: 1/26/2010 EUT Serial #: 92C72 EUT Power: 14VDC Temperature: 23.0 °C Test Method: FCC Part 15 B Air Pressure: 98.0 kPa Customer: Landis & Gyr Rel. Humidity: 18.0 % EUT Description: 2.4 GHz Transmitter Notes: Data File Name: 0616.dat Page: 2 of 5 Tested by: Robert J Behringer Printed Signature Reviewed by: Dennis E Maloney Printed Signature List of measurements for run #: 7 FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV) EUT Lead DELTA1 FCC B Qp DELTA2 FCC B Avg 3.06 MHz 8.11 Qp 0.22 / 0.0 / 0.0 / 0.0 8.33 L1 -47.67 n/a 7.15 MHz 15.25 Qp 0.3 / 0.0 / 0.0 / 0.0 15.55 L1 -44.45 n/a 8.66 MHz 25.67 Qp 0.31 / 0.09 / 0.0 / 0.0 26.08 L1 -33.92 n/a 10.04 MHz 23.4 Qp 0.33 / 0.2 / 0.0 / 0.0 23.93 L1 -36.07 n/a 16.565 MHz 11.73 Qp 0.39 / 0.27 / 0.0 / 0.0 12.38 L1 -47.62 n/a 29.11 MHz 5.75 Qp 0.51 / 1.03 / 0.0 / 0.0 7.29 L1 -52.71 n/a 155.0 kHz -8.02 Av 0.11 / 0.29 / 0.0 / 0.0 -7.63 L1 n/a -63.36 270.0 kHz -7.75 Av 0.11 / 0.1 / 0.0 / 0.0 -7.54 L1 n/a -58.66 545.0 kHz -6.97 Av 0.12 / 0.1 / 0.0 / 0.0 -6.75 L1 n/a -52.75 1.02 MHz -6.44 Av 0.15 / 0.06 / 0.0 / 0.0 -6.23 L1 n/a -52.23 1.77 MHz -8.42 Av 0.18 / 0.0 / 0.0 / 0.0 -8.24 L1 n/a -54.24 3.06 MHz -8.66 Av 0.22 / 0.0 / 0.0 / 0.0 -8.44 L1 n/a -54.44 7.15 MHz -8.72 Av 0.3 / 0.0 / 0.0 / 0.0 -8.42 L1 n/a -58.42 8.66 MHz -3.46 Av 0.31 / 0.09 / 0.0 / 0.0 -3.05 L1 n/a -53.05 10.04 MHz 5.36 Av 0.33 / 0.2 / 0.0 / 0.0 5.89 L1 n/a -44.11 16.565 MHz -6.68 Av 0.39 / 0.27 / 0.0 / 0.0 -6.03 L1 n/a -56.03 29.11 MHz -8.6 Av 0.51 / 1.03 / 0.0 / 0.0 -7.06 L1 n/a -57.06 End of Scan. CONDUCTED EMISSIONS Test Report #: WC1000616 Run 7 Test Area: LTS EUT Model #: 864 Date: 1/26/2010 EUT Serial #: 92C72 EUT Power: 14VDC Temperature: 23.0 °C Test Method: FCC Part 15 B Air Pressure: 98.0 kPa Customer: Landis & Gyr Rel. Humidity: 18.0 % EUT Description: 2.4 GHz Transmitter Notes: Data File Name: 0616.dat Page: 3 of 5 Tested by: Robert J Behringer Printed Signature Reviewed by: Dennis E Maloney Printed Signature Measurement summary for limit1: FCC B Qp (Qp) FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV) EUT Lead DELTA1 FCC B Qp 8.66 MHz 25.67 Qp 0.31 / 0.09 / 0.0 / 0.0 26.08 L1 -33.92 10.04 MHz 23.4 Qp 0.33 / 0.2 / 0.0 / 0.0 23.93 L1 -36.07 7.15 MHz 15.25 Qp 0.3 / 0.0 / 0.0 / 0.0 15.55 L1 -44.45 545.0 kHz 10.65 Qp 0.12 / 0.1 / 0.0 / 0.0 10.87 L1 -45.13 16.565 MHz 11.73 Qp 0.39 / 0.27 / 0.0 / 0.0 12.38 L1 -47.62 3.06 MHz 8.11 Qp 0.22 / 0.0 / 0.0 / 0.0 8.33 L1 -47.67 1.02 MHz 5.87 Qp 0.15 / 0.06 / 0.0 / 0.0 6.08 N -49.92 29.11 MHz 5.75 Qp 0.51 / 1.03 / 0.0 / 0.0 7.29 L1 -52.71 1.77 MHz 1.09 Qp 0.18 / 0.0 / 0.0 / 0.0 1.27 N -54.73 270.0 kHz -0.51 Qp 0.11 / 0.1 / 0.0 / 0.0 -0.3 N -61.42 155.0 kHz 1.99 Qp 0.11 / 0.29 / 0.0 / 0.0 2.38 N -63.35 CONDUCTED EMISSIONS Test Report #: WC1000616 Run 7 Test Area: LTS EUT Model #: 864 Date: 1/26/2010 EUT Serial #: 92C72 EUT Power: 14VDC Temperature: 23.0 °C Test Method: FCC Part 15 B Air Pressure: 98.0 kPa Customer: Landis & Gyr Rel. Humidity: 18.0 % EUT Description: 2.4 GHz Transmitter Notes: Data File Name: 0616.dat Page: 4 of 5 Tested by: Robert J Behringer Printed Signature Reviewed by: Dennis E Maloney Printed Signature Measurement summary for limit2: FCC B Avg (Av) FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV) EUT Lead DELTA2 FCC B Avg 1.02 MHz 6.65 Av 0.15 / 0.06 / 0.0 / 0.0 6.86 N -39.14 10.04 MHz 5.36 Av 0.33 / 0.2 / 0.0 / 0.0 5.89 L1 -44.11 1.77 MHz -0.51 Av 0.18 / 0.0 / 0.0 / 0.0 -0.33 N -46.33 7.15 MHz 3.07 Av 0.3 / 0.0 / 0.0 / 0.0 3.37 N -46.63 545.0 kHz -6.92 Av 0.12 / 0.1 / 0.0 / 0.0 -6.7 N -52.7 8.66 MHz -3.46 Av 0.31 / 0.09 / 0.0 / 0.0 -3.05 L1 -53.05 3.06 MHz -7.32 Av 0.22 / 0.0 / 0.0 / 0.0 -7.1 N -53.1 16.565 …

Text truncated - open the document above for the full version.

RADIATED EMISSIONS Test Report #: WC1000616 Run 6 Test Area: LTS EUT Model #: 864 Date: 1/26/2010 EUT Serial #: 92C72 EUT Power: 14VDC Temperature: 23.0 °C Test Method: FCC Part 15 B Air Pressure: 98.0 kPa Customer: Landis & Gyr Rel. Humidity: 18.0 % EUT Description: 2.4 GHz Transmitter Notes: Data File Name: 0616.dat Page: 1 of 3 Tested by: Robert J Behringer Printed Signature Reviewed by: Dennis E Maloney Printed Signature List of measurements for run #: 6 FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV / m) POL / HGT / AZ (m)(DEG) DELTA1 FCC-B <1GHz 3m DELTA2 Start of Scan 30 - 1000 MHz in Receive Mode. 110.413 MHz 32.45 Qp 0.81 / 9.52 / 29.62 / 0.0 13.16 V / 1.00 / 0 -30.34 n/a 133.165 MHz 31.85 Qp 0.87 / 8.43 / 29.59 / 0.0 11.56 V / 1.00 / 0 -31.94 n/a 220.029 MHz 30.95 Qp 1.1 / 10.88 / 29.5 / 0.0 13.42 V / 1.00 / 0 -32.58 n/a 306.849 MHz 31.35 Qp 1.25 / 13.64 / 29.43 / 0.0 16.82 V / 1.00 / 0 -29.18 n/a 328.552 MHz 32.0 Qp 1.28 / 14.23 / 29.48 / 0.0 18.04 V / 1.00 / 0 -27.96 n/a Maxed. 328.672 MHz 33.97 Qp 1.28 / 14.24 / 29.48 / 0.0 20.01 V / 1.00 / 243 -25.99 n/a End of Scan 1 - 1000 MHz. RADIATED EMISSIONS Test Report #: WC1000616 Run 6 Test Area: LTS EUT Model #: 864 Date: 1/26/2010 EUT Serial #: 92C72 EUT Power: 14VDC Temperature: 23.0 °C Test Method: FCC Part 15 B Air Pressure: 98.0 kPa Customer: Landis & Gyr Rel. Humidity: 18.0 % EUT Description: 2.4 GHz Transmitter Notes: Data File Name: 0616.dat Page: 2 of 3 Tested by: Robert J Behringer Printed Signature Reviewed by: Dennis E Maloney Printed Signature Measurement summary for limit1: FCC-B <1GHz 3m (Qp) FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV / m) POL / HGT / AZ (m)(DEG) DELTA1 FCC-B <1GHz 3m 328.672 MHz 33.97 Qp 1.28 / 14.24 / 29.48 / 0.0 20.01 V / 1.00 / 243 -25.99 328.552 MHz 32.0 Qp 1.28 / 14.23 / 29.48 / 0.0 18.04 V / 1.00 / 0 -27.96 306.849 MHz 31.35 Qp 1.25 / 13.64 / 29.43 / 0.0 16.82 V / 1.00 / 0 -29.18 110.413 MHz 32.45 Qp 0.81 / 9.52 / 29.62 / 0.0 13.16 V / 1.00 / 0 -30.34 133.165 MHz 31.85 Qp 0.87 / 8.43 / 29.59 / 0.0 11.56 V / 1.00 / 0 -31.94 220.029 MHz 30.95 Qp 1.1 / 10.88 / 29.5 / 0.0 13.42 V / 1.00 / 0 -32.58 RADIATED EMISSIONS Test Report #: WC1000616 Run 6 Test Area: LTS EUT Model #: 864 Date: 1/26/2010 EUT Serial #: 92C72 EUT Power: 14VDC Temperature: 23.0 °C Test Method: FCC Part 15 B Air Pressure: 98.0 kPa Customer: Landis & Gyr Rel. Humidity: 18.0 % EUT Description: 2.4 GHz Transmitter Notes: Data File Name: 0616.dat Page: 3 of 3 Tested by: Robert J Behringer Printed Signature Reviewed by: Dennis E Maloney Printed Signature Graph: 10MHz100MHz1GHz amplitude in dBuV/m 10 15 20 25 30 35 40 45 50 55 FCC-B <1GHz 3m Qp-measurements

RADIATED EMISSIONS Test Report #: WC1000616 Run 5 Test Area: LTS EUT Model #: 864 Date: 1/26/2010 EUT Serial #: 92C72 EUT Power: 14VDC Temperature: 23.0 °C Test Method: FCC Part 15 B Air Pressure: 98.0 kPa Customer: Landis & Gyr Rel. Humidity: 18.0 % EUT Description: 2.4 GHz Transmitter Notes: Data File Name: 0616.dat Page: 1 of 1 Tested by: Robert J Behringer Printed Signature Reviewed by: Dennis E Maloney Printed Signature List of measurements for run #: 5 FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV / m) POL / HGT / AZ (m)(DEG) DELTA1 FCC B >1G 3 M peak DELTA2 FCC B >1GHz 3m av Start of Scan in Receive Mode. No emissions detected in the vertical or horizontal polarization. End of Scan 1 – 10GHz.

RADIATED EMISSIONS Test Report #: WC1000616 Run 3 Test Area: LTS EUT Model #: 864 Date: 1/26/2010 EUT Serial #: 92C72 EUT Power: 14VDC Temperature: 23.0 °C Test Method: FCC Part 15 B Air Pressure: 98.0 kPa Customer: Landis & Gyr Rel. Humidity: 18.0 % EUT Description: 2.4 GHz Transmitter Notes: Data File Name: 0616.dat Page: 1 of 3 Tested by: Robert J Behringer Printed Signature Reviewed by: Dennis E Maloney Printed Signature List of measurements for run #: 3 FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV / m) POL / HGT / AZ (m)(DEG) DELTA1 FCC-B <1GHz 3m DELTA2 Start of Spurious Scan 30 - 1000 MHz. Low Channel 2.405GHz. No significant emissions detected in the vertical or horizontal polarization. Mid Channel 2.445 GHz. No significant emissions detected in the vertical or horizontal polarization. High Channel 2.48 GHz. 332.765 MHz 32.9 Qp 1.28 / 14.39 / 29.48 / 0.02 19.11 V / 1.00 / 0 -26.89 n/a 211.233 MHz 32.95 Qp 1.07 / 10.66 / 29.51 / 0.01 15.18 V / 1.00 / 0 -28.32 n/a Maxed. 332.765 MHz 35.64 Qp 1.28 / 14.39 / 29.48 / 0.02 21.85 V / 1.50 / 250 -24.15 n/a End of Scan 30 - 1000 MHz. RADIATED EMISSIONS Test Report #: WC1000616 Run 3 Test Area: LTS EUT Model #: 864 Date: 1/26/2010 EUT Serial #: 92C72 EUT Power: 14VDC Temperature: 23.0 °C Test Method: FCC Part 15 B Air Pressure: 98.0 kPa Customer: Landis & Gyr Rel. Humidity: 18.0 % EUT Description: 2.4 GHz Transmitter Notes: Data File Name: 0616.dat Page: 2 of 3 Tested by: Robert J Behringer Printed Signature Reviewed by: Dennis E Maloney Printed Signature Measurement summary for limit1: FCC-B <1GHz 3m (Qp) FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV / m) POL / HGT / AZ (m)(DEG) DELTA1 FCC-B <1GHz 3m 332.765 MHz 35.64 Qp 1.28 / 14.39 / 29.48 / 0.02 21.85 V / 1.50 / 250 -24.15 211.233 MHz 32.95 Qp 1.07 / 10.66 / 29.51 / 0.01 15.18 V / 1.00 / 0 -28.32 RADIATED EMISSIONS Test Report #: WC1000616 Run 3 Test Area: LTS EUT Model #: 864 Date: 1/26/2010 EUT Serial #: 92C72 EUT Power: 14VDC Temperature: 23.0 °C Test Method: FCC Part 15 B Air Pressure: 98.0 kPa Customer: Landis & Gyr Rel. Humidity: 18.0 % EUT Description: 2.4 GHz Transmitter Notes: Data File Name: 0616.dat Page: 3 of 3 Tested by: Robert J Behringer Printed Signature Reviewed by: Dennis E Maloney Printed Signature Graph: 10MHz100MHz1GHz amplitude in dBuV/m 15 20 25 30 35 40 45 50 55 FCC-B <1GHz 3m Qp-measurements

RADIATED EMISSIONS Test Report #: WC1000616 Run 4 Test Area: LTS EUT Model #: 864 Date: 1/26/2010 EUT Serial #: 92C72 EUT Power: 14VDC Temperature: 23.0 °C Test Method: FCC Part 15 B Air Pressure: 98.0 kPa Customer: Landis & Gyr Rel. Humidity: 18.0 % EUT Description: 2.4 GHz Transmitter Notes: Data File Name: 0616.dat Page: 1 of 5 Tested by: Robert J Behringer Printed Signature Reviewed by: Dennis E Maloney Printed Signature List of measurements for run #: 4 FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV / m) POL / HGT / AZ (m)(DEG) DELTA1 FCC B >1G 3 M peak DELTA2 F…
