S911 Lola User Manual Version 1.10 September 6, 2012 (Preliminary) Copyright 2012 by Laipac Technology Inc. Laipac Technology Inc. 20 Mural Street, Unit 5, Richmond Hill Ontario L4B 1K3 Canada Tel: 905-762-1228 | Fax: 905-763-1737 | E-mail: [email protected] | http://www.laipac.com 2 Federal Communications Commission (FCC) Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The portable device is designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA). These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the body is 0.754W/kg W/kg,Head is 0.919 W/kg. EU regulatory conformance (CE) Laipac Technology Inc hereby declares that this tracking device is in compliance with the essential requirements and other relevant provision of Directive 1999/5/EC. Additional regulatory conformance Specific details about compliance to the following standards and regulatory bodies may be obtained from Laipac Technology Inc. • PCS Type Certification Review Board (PTCRB) Laipac Technology Inc. 20 Mural Street, Unit 5, Richmond Hill Ontario L4B 1K3 Canada Tel: 905-762-1228 | Fax: 905-763-1737 | E-mail: [email protected] | http://www.laipac.com 3 • Based on Cellular Telecommunications and Internet Association (CTIA) Over the Air (OTA) performance tests • EN 301 511, EN 300 440, EN 62311, EN 301 489-1-3-7 and 60950-1 testing. CONTENTS Chapter 1: For Your Safety 1.1 About Your Device 1.2 Network Services 1.3 Care and Maintenance Chapter 2: Introduction 2.1 Welcome 2.2 Main Features Chapter 3: Specification 3.1 Electrical & Environmental Specs 3.2 GPS Engine Specification 3.3 GSM Module Specification Chapter 4: SIM Card and Its Installation 4.1 Requirement for SIM Card 4.2 Installation of SIM Card Chapter 5: Configuration, Upgrading and Utility 5.1 Introduction to Laipac Suite 5.2 Usage of Laipac Suite Chapter 6: Operation Instructions 6.1 Knowing about your Lola 6.2 Function Button and Its Related Operation 6.3 LED Indicators and Lola’s Working Status - Chapter 1 - For Your Safety Laipac Technology Inc. 20 Mural Street, Unit 5, Richmond Hill Ontario L4B 1K3 Canada Tel: 905-762-1228 | Fax: 905-763-1737 | E-mail: [email protected] | http://www.laipac.com 5 Read these simple guidelines below. Not following them may be dangerous or illegal. Read the complete user guide for further information. Road Safety Comes First Do not use the device for talk and text when wireless phone use is prohibited or when it may cause danger. Interference All wireless devices may be susceptible to interference, which could affect performance. Switch Off In Hospitals Switch the device off near medical equipment. Switch Off In Aircraft Follow any restrictions. Wireless devices can cause interference in aircraft. Switch Off When Refuelling Do not use the device at a refueling point. Do not use near fuel or chemicals. Switch Off Near Blasting Follow any restrictions. Do not use the device where blasting is in progress. Qualified Service Only qualified personnel may open or repair this product. Batteries Use only approved batteries. Do not connect to incompatible products. Back Up Copies It is recommended to save important settings. Connecting To Other Devices When connecting to any other device, read its user guide for detailed safety instructions. Do not connect with incompatible products. Emergency Calls Ensure the phone function of the device is switched on and in service. 1.1 About Your Device The wireless device described in this guide is approved for using GSM 850/900/1800/1900 networks. Contact your service provider for more information about which GSM frequency your service provider is using. When using the features in this device, obey all laws, respect privacy, and the legitimate rights of others. 1.2 Network Services In order to use the S-911 Lola, you must have GSM/GPRS service from a wireless service provider and subscribe with LocationNow. Many of the features in this device depend on the features of the GSM provider to function. These network services may not be available with all providers. It means you may h…

Text truncated - open the document above for the full version.

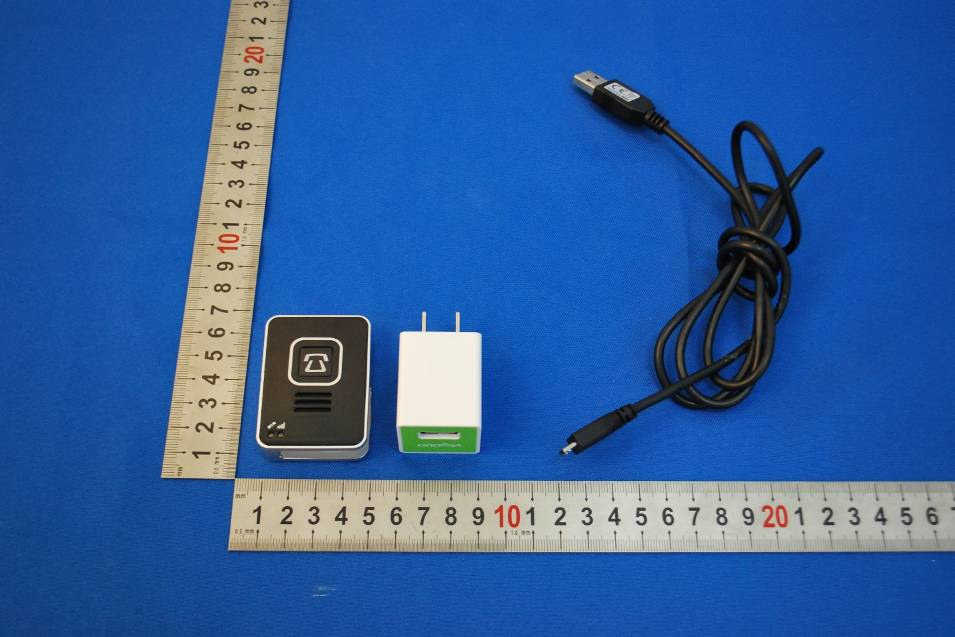

1 Photographs - EUT Constructional Details(Test Model No.: S911 Lola)

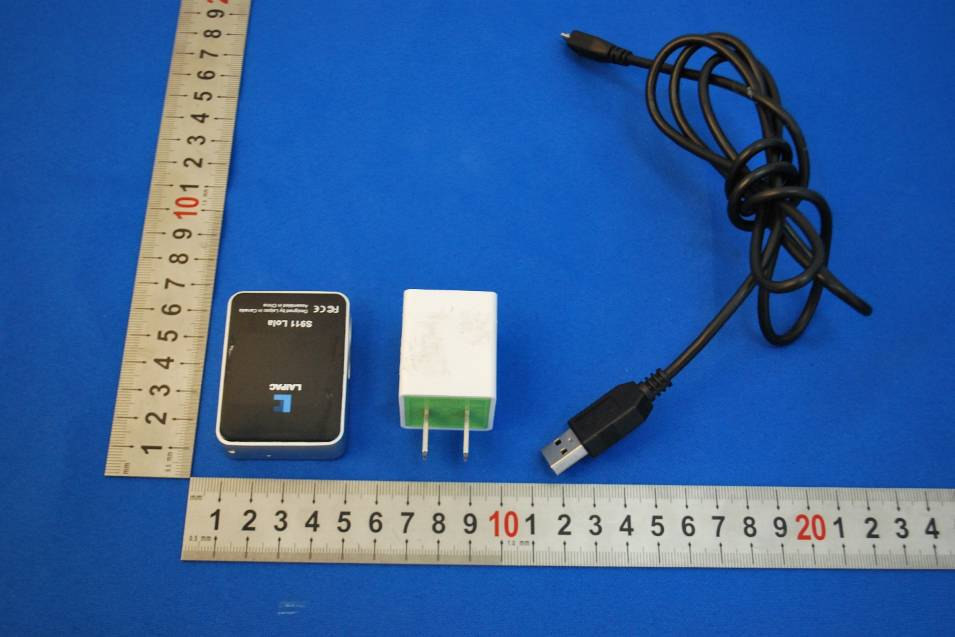

1 Photographs - EUT Constructional Details(Test Model No.: S911 Lola)

Report No.: SHEM120900142610 Issue Date: 10-22, 2012 Page 1 of 93 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/terms_and _conditions.htm. And, for electronic format documents to Terms and Conditions for Electronic Documents at www.sgs.com/terms e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained heron reflects the company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligation under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only SHEMC SGS-CSTC Standards Technical Services(Shanghai) Co, Ltd.. No. 588, West Jindu Road, Shanghai, China 201612 t (86 -21) 61915664 f (86 -21)61915678 ww.cn.sgs.com Testing Center-EMC Laboratory 中国•上海•松江区金都西路路588号 邮编: 201612 t (86 -21) 61915664 f (86 -21) 61915678 [email protected] Member of the SGS Group (Société Générale de Surveillance) Attention: To check the authenticity of testing / i nspection report & certificate, pls. contact tel: ( 86 - 755)83071443 email:[email protected] Full SAR Test Report Applicant Name: Telit Commuications.S.p.A Applicant Address: Via Stazione di Prosecco 5/B, 34D10 Sgonica (TS), Italy The following samples were submitted and identified on behalf of the client as: Sample Description S911 Lola integrates Telit GSM/GPRS module, and using GSM 850/900/1800/1900 networks to provide GSM/ GPRS service. Model Number S911 Lola Market Name S911 Lola Final Software Version Tested 01.10.14 Final Hardware Version Tested V2 FCC ID TET-S911LOLA Date Initial Sample Received 09-26,2012 Testing Start Date 10-07,2012 Testing End Date 10-10,2012 Report No.: SHEM120900142610 Issue Date: 10-22, 2012 Page 2 of 93 SHEMC SGS-CSTC Standards Technical Services(Shanghai) Co, Ltd.. No. 588, West Jindu Road, Shanghai, China 201612 t (86 -21) 61915664 f (86 -21)61915678 ww.cn.sgs.com Testing Center-EMC Laboratory 中国•上海•松江区金都西路路588号 邮编: 201612 t (86 -21) 61915664 f (86 -21) 61915678 [email protected] Member of the SGS Group (Société Générale de Surveillance) According to: FCC 47CFR § 2.1093, IEEE Std C95.1-2005,IEEE Std C95.3-2005 IEEE1528-2003, OET Bulletin 65 Supplement C Comments/ Conclusion: The configuration tested complied to the certification requirements specified in this report. Signed for on behalf of SGS Prepared approved Report No.: SHEM120900142610 Issue Date: 10-22, 2012 Page 3 of 93 SHEMC SGS-CSTC Standards Technical Services(Shanghai) Co, Ltd.. No. 588, West Jindu Road, Shanghai, China 201612 t (86 -21) 61915664 f (86 -21)61915678 ww.cn.sgs.com Testing Center-EMC Laboratory 中国•上海•松江区金都西路路588号 邮编: 201612 t (86 -21) 61915664 f (86 -21) 61915678 [email protected] Member of the SGS Group (Société Générale de Surveillance) Table of Contents Change History.............................................................................................................................. 4 1. Report Overview.................................................................................................................... 5 2. Test Lab Declaration or Comments ..................................................................................... 5 3. Applicant Declaration or Comments ................................................................................... 5 4. Full Test Report ..................................................................................................................... 5 5. Partial Test Report................................................................................................................. 5 6. Measurement Uncertainty..................................................................................................... 5 7. Testing Environment ............................................................................................................. 7 8. Primary Test Laboratory ....................................................................................................... 7 9. Details of Applicant ............................................................................................................... 7 10. Details of Manufacturer ........................................................................................................ 7 11. Other testing Locations ........................................................................................................ 7 12. Referenced Documents ........................................................................................................ 8 13. Primary Laboratory Accreditation Details ........................................................................... 9 14. Test Equipment Information ............................................................................................... 10 14.1 SPEAG DASY4........................................................................................................... 10 14.2 The SAR Measurement System.................................................................................11 14.3 Isotropic E-field Probe ES3DV3............................................................................... 13 14.4 SAM Twin Phantom................................................................................................... 14 14.5 Device Holder for T…

Text truncated - open the document above for the full version.

Report No.: SHEM120900142610 Issue Date: 10-22, 2012 Page 41 of 93 SHEMC SGS-CSTC Standards Technical Services(Shanghai) Co, Ltd.. No. 588, West Jindu Road, Shanghai, China 201612 t (86 -21) 61915664 f (86 -21)61915678 ww.cn.sgs.com Testing Center-EMC Laboratory 中国•上海•松江区金都西路路588号 邮编: 201612 t (86 -21) 61915664 f (86 -21) 61915678 [email protected] Member of the SGS Group (Société Générale de Surveillance) 16.5.20 GSM 1900-BodyWorn-Back-High Date/Time: 2012-10-10 19:02:25 Test Laboratory: SGS-GSM S911 Lola GSM 1900 BodyWron Back High DUT: S911 Lola; Type: GSM; Serial: / Communication System: PCS1900-GSM Mode; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: HSL1900-Body Medium parameters used (interpolated): f = 1909.8 MHz; σ = 1.61 mho/m; ε r = 50; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ES3DV3 - SN3088; ConvF(4.8, 4.8, 4.8); Calibrated: 2011-11-23 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn569; Calibrated: 2011-11-16 • Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1283 • Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Back High/Area Scan (51x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.440 mW/g Back High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.3 V/m; Power Drift = -0.284 dB Peak SAR (extrapolated) = 0.520 W/kg SAR(1 g) = 0.398 mW/g; SAR(10 g) = 0.257 mW/g Maximum value of SAR (measured) = 0.442 mW/g 0 dB = 0.442mW/g Report No.: SHEM120900142610 Issue Date: 10-22, 2012 Page 42 of 93 SHEMC SGS-CSTC Standards Technical Services(Shanghai) Co, Ltd.. No. 588, West Jindu Road, Shanghai, China 201612 t (86 -21) 61915664 f (86 -21)61915678 ww.cn.sgs.com Testing Center-EMC Laboratory 中国•上海•松江区金都西路路588号 邮编: 201612 t (86 -21) 61915664 f (86 -21) 61915678 [email protected] Member of the SGS Group (Société Générale de Surveillance) 16.5.21 GSM 1900-BodyWorn-Back-Low Date/Time: 2012-10-10 19:41:35 Test Laboratory: SGS-GSM S911 Lola GSM 1900 BodyWron Back Low DUT: S911 Lola; Type: GSM; Serial: / Communication System: PCS1900-GSM Mode; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: HSL1900-Body Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.55 mho/m; ε r = 50.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ES3DV3 - SN3088; ConvF(4.8, 4.8, 4.8); Calibrated: 2011-11-23 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn569; Calibrated: 2011-11-16 • Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1283 • Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Back Low/Area Scan (51x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.638 mW/g Back Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.0 V/m; Power Drift = -0.283 dB Peak SAR (extrapolated) = 0.747 W/kg SAR(1 g) = 0.566 mW/g; SAR(10 g) = 0.367 mW/g Maximum value of SAR (measured) = 0.640 mW/g 0 dB = 0.640mW/g Report No.: SHEM120900142610 Issue Date: 10-22, 2012 Page 43 of 93 SHEMC SGS-CSTC Standards Technical Services(Shanghai) Co, Ltd.. No. 588, West Jindu Road, Shanghai, China 201612 t (86 -21) 61915664 f (86 -21)61915678 ww.cn.sgs.com Testing Center-EMC Laboratory 中国•上海•松江区金都西路路588号 邮编: 201612 t (86 -21) 61915664 f (86 -21) 61915678 [email protected] Member of the SGS Group (Société Générale de Surveillance) 16.5.22 GSM 1900+GPRS 2TS-BodyWorn-Back-Low Date/Time: 2012-10-10 20:35:36 Test Laboratory: SGS-GSM S911 Lola GPRS 1900 2TS BodyWron Back Low DUT: S911 Lola; Type: GSM; Serial: / Communication System: PCS1900-GPRS Mode(4 ts); Frequency: 1850.2 MHz;Duty Cycle: 1:4.15 Medium: HSL1900-Body Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.55 mho/m; ε r = 50.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ES3DV3 - SN3088; ConvF(4.8, 4.8, 4.8); Calibrated: 2011-11-23 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn569; Calibrated: 2011-11-16 • Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1283 • Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Back Low/Area Scan (51x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.876 mW/g Back Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.5 V/m; Power Drift = -0.329 dB Peak SAR (extrapolated) = 0.923 W/kg SAR(1 g) = 0.754 mW/g; SAR(10 g) = 0.496 mW/g Maximum value of SAR (measured) = 0.834 mW/g Report No.: SHEM120900142610 Issue Date: 10-22, 2012 Page 44 of 93 SHEMC SGS-CSTC Standards Technical Services(Shanghai) Co, Ltd.. No. 588, West Jindu Road, Shanghai, China 201612 t (86 -21) 61915664 f (86 -21)61915678 ww.cn.sgs.com Testing Center-EMC Laboratory 中国•上海•松江区金都西路路588号 邮编: 201612 t (86 -21) 61915664 f (86 -21) 61915678 [email protected] Member of the SGS Group (Société Générale de Surveillance) Report No.: SHEM120900142610 Issue Date: 10-22, 2012 Page 45 of 93 SHEMC SGS-CSTC Standards Technical Services(Shanghai) Co, Ltd.. No. 588, West Jindu Road, Shanghai, China 201612 t (86 -21) 61915664 f (86 -21)61915678 ww.cn.sgs.com Testing Center-EMC Laboratory 中国•上海•松江区金都西路路588号 邮编: 201612 t (86 -21) 61915664 f (86 -21) 61915678 [email protected] Member of the SGS Group (Société Générale de Surveillance) 16. Identification of Samples Product Definition Production Unit Device Type Portable Product Name S911 Lola Mode Name S911 Lola Brand Name S911 Lola Final Hardware Version V2 Final Software Version 01.10.14 Lion Battery Battery Type 3.7V Antenna Type Inner antenna Tx: 824~849MHz GSM850 Rx: 869~894MHz Tx:1850~1910MHz GSM Frequency Bands PCS1900 Rx:1930~1990MHz Modulation Mode GMSK GSM850 4 GSM / GPRS/EGPRS Power Class PCS1900 1 GPRS Multislot class 10 EGPRS Multislot class Not supported IMEI NA Date of receipt 09-26,2012 Date of Testing Start 10-07,2012 Date of Testing End 10-10,2012 Report No.: …

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM120700427301 Page: 1 of 66 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1207004273RF Applicant: Laipac Technology Inc. Manufacturer: Laipac Technology Inc. Product Name: S911 Lola Mode No.(EUT): S911 Lola FCC ID: TET-S911LOLA Standards: 47 CFR Part 2(2011) 47 CFR Part 22 subpart H(2011) 47 CFR Part 24 subpart E(2011) Date of Receipt: 2012-09-19 Date of Test: 2012-10-10 to 2012-11-21 Date of Issue: 2012-12-05 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM120700427301 Page: 2 of 66 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item FCC Requirement Test method Result 850 Conducted output power Part 2.1046(a)/Part 22.913(a) TIA-603-C-2004 Clause 2.2.1 PASS Effective Radiated Power of Transmitter(ERP) Part 2.1046(a)/Part 22.913(a) TIA-603-C-2004 Clause 2.2.17 PASS 99% Occupied Bandwidth Part 2.1049(h) Part 22.917(b) RSS-Gen clause 4.6.1 PASS Band Edge at antenna terminals Part 2.1051 Part 22.917(a)(b） RSS-132 clause 4.5 PASS Spurious emissions at antenna terminals Part 2.1051 Part 2.1057 Part 22.917(a)(b） TIA-603-C-2004 RSS-132 clause 4.5 RSS-Gen clause 4.9 PASS Field strength of spurious radiation Part 2.1053/ Part 2.1057/ Part 22.917(a)(b) TIA-603-C-2004 Clause 2.2.12 PASS Frequency stability Part 2.1055 Part 22.355 TIA-603-C-2004 RSS-132 clause 4.3 RSS-Gen clause 4.7 PASS 1900 Conducted output power Part 2.1046(a) /Part 24.232(c) TIA-603-C-2004 Clause 2.2.1 PASS Effective Radiated Power of Transmitter(EIRP) Part 2.1046(a) / Part 24.232(c) TIA-603-C-2004 Clause 2.2.17 PASS 99% Occupied Bandwidth Part 2.1049(h) Part 24.238(b) RSS-Gen clause 4.6.1 PASS Band Edge at antenna terminals Part 2.1051 Part 24.238(a)(b) RSS-133 clause 6.5 PASS Spurious emissions at antenna terminals Part 2.1051/ Part 2.1057/ Part 24.238(a)(b) TIA-603-C-2004 RSS-133 clause 6.5 RSS-Gen clause 4.9 PASS Field strength of spurious radiation Part 2.1053 /Part 2.1057 / Part 24.238(a)(b) TIA-603-C-2004 Clause 2.2.12 PASS Frequency stability Part 2.1055/Part 24.235 TIA-603-C-2004 Clause 2.2.2 PASS SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM120700427301 Page: 3 of 66 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format document…

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup (Test Model No.: S911 Lola) 1.1 Radiated Spurious Emission Test Setup 1.2 Conducted Peak Output Power Test Setup 1.3 Frequency Stability V.S. Voltage Measurement Test Setup 1.4 Conducted Spurious Output Power Test Setup
