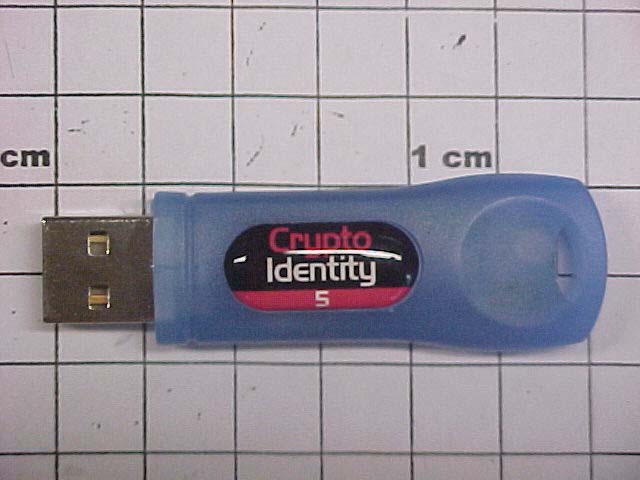

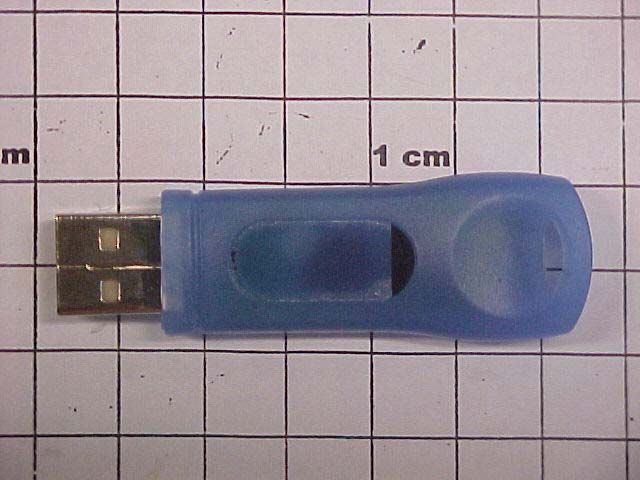

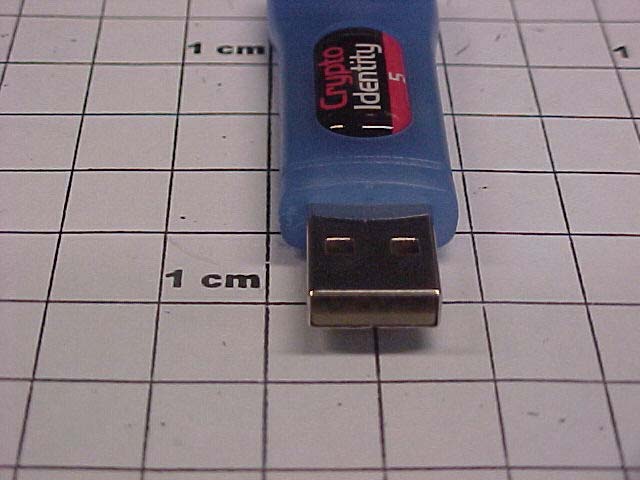

TFC-AAAUSB KEY CRYPTO IDENTITY

© Copyright 2006 by Eutron Infosecurity S.r.l. – Italy – 24048 Treviolo BG Via Gandhi, 12 © 2006 Eutron Infosecurity S.r.l. All rights reserved The names of the other products mentioned are trademarks of their respective owners. This hardware key is in compliance with the following test specification: CEI EN 61000-4-2; CEI EN 61000-4-3; CISPR22 as required by : CEI EN 61000-6-1, CEI EN 61000-6-2, CEI EN 61000-6-3, CEI EN 61000-6-4 which are specified for the following test: • “ESD Immunity test” • “Radiated radio-frequency and electromagnetic field immunity test” • “Radiated Emission Verification” In compliance with the “Essential Requisites” for the EMC Directive 89/336/EEC. FCC ID: TFC-AAA EUTRON Infosecurity S.r.l. CryptoIdentity (1) Supply: 5V DC Absorption: 20 mA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT REMARKS Due to the limited space on the product shell, all FCC certification references are on this technical manual. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CONFORMITY APPROVAL TO EN60529 (IP67) This hardware key is in compliance with essential evaluation elements for the conformity approval to EN 60529 (IP67) concerning safety (EN 60529:1991-10 + EN 60529 corr:1993-05 + EN 60529/A1:2000-02) as required by LVD directive. 1 The models subjected to this mark are the following: CryptoIdentity 5, CryptoIdentity ITSEC and CryptoIdentity FIPS. CryptoIdentity User Guide – Index INDEX 1 INTRODUCTION TO CRYPTOIDENTITY AND CRYPTOKIT ..........................................5 1. 1 WHAT IS CRYPTOIDENTITY............................................................................................... 5 1. 1. 2 CRYPTOIDENTITY MODELS....................................................................................... 6 1. 1. 3 CRYPTOIDENTITY DEFAULT PINs ............................................................................ 7 1. 1. 4 CRYPTOIDENTITY DEFAULT CONFIGURATION ................................................... 8 1. 1. 5 CRYPTOIDENTITY REQUIREMENTS ...................................................................... 10 1. 2 WHAT IS CRYPTOKIT.........................................................................................................10 1. 2. 1 CRYPTOKIT REQUIREMENTS .................................................................................. 10 2. GETTING STARTED WITH CRYPTOIDENTITY...........................................................11 2. 1 INSTALLING AND MAINTAINING CRYPTOKIT ........................................................... 11 2. 1. 1 INSTALLING CRYPTOKIT ......................................................................................... 11 2. 1. 2 MAINTAINING AND REPAIRING CRYPTOKIT ...................................................... 16 2. 1. 3 UNINSTALLING CRYPTOKIT.................................................................................... 18 3 WORKING WITH CRYPTOIDENTITY UTILITIES ..........................................................19 3. 1 ARGENIE ............................................................................................................................... 19 3. 2 PASSWORD CHANGE UTILITY ........................................................................................ 21 3. 3 INIT TOKEN .......................................................................................................................... 22 3. 4 IMPORTPKCS12.................................................................................................................... 26 3. 5 TOKEN SERIAL NUMBER .................................................................................................. 28 4. MANAGING DIGITAL CERTIFICATES WITH CRYPTOIDENTITY ..............................29 4. 1 STORING CERTIFICATES INTO CRYPTOIDENTITY .................................................... 29 4. 1. 1 CERTIFICATES ISSUED BY CAs ............................................................................... 29 4. 1. 1. 1 VERISIGN .............................................................................................................. 29 4. 1. 1. 2 THAWTE................................................................................................................ 33 4. 1. 2 CERTIFICATES IMPORTED FROM FILE.................................................................. 34 4. 1. 2. 1 IMPORTING THROUGH NETSCAPE................................................................. 35 4. 1. 2. 2 IMPORTING THROUGH IMPORTPKCS12........................................................ 38 4. 2 VIEWING DIGITAL CERTIFICATES ................................................................................. 38 4. 2. 1 VIEWING CERTIFICATES THROUGH MICROSOFT CERTIFICATES STORE ... 38 4. 2. 2 VIEWING CERTIFICATES THROUGH ARGENIE UTILITY .................................. 41 4. 3 SUGGESTED POLICY FOR BACKUP OF DIGITAL CREDENTIALS ............................ 42 4. 3. 1 HOW TO BACKUP DIGITAL CREDENTIALS .......................................................... 42 5. WORKING WITH CRYPTOIDENTITY AND APPLICATIONS ......................................48 5. 1 MAIL CLIENTS ..................................................................................................................... 48 5. 1. 1 OUTLOOK EXPRESS 5.x / 6 ........................................................................................ 48 5. 1. 1. 1 OUTLOOK EXPRESS CONFIGURATIONS ....................................................... 48 5. 1. 1. 2 SECURE EMAIL-S WITH OUTLOOK EXPRESS .............................................. 51 5. 1. 2 MICROSOFT OUTLOOK 2000 ..........................................................................…

Text truncated - open the document above for the full version.

SAMPLE CONFIDENTIALITY FORM January 30, 2005 EUTRON Infosecurity S.r.l. Via Gandhi, 12 24048 Treviolo (BG) – Italy tel.: +39-035697011 fax.: +39-035697093 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Eutron Infosecurity S.r.l. would like the following documents regarding this submission for FCC ID: TFC-AAA to be kept confidential. Documents: 1. Block diagram 2. Operational description 3. Schematic diagrams The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Dr. Eng. Gianluca Maffioli Responsible of R&D Electronic Reliability Laboratory

FCC.TR. TEST REPORT 05.356 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 1.0 Issue date: 22/08/05 sheet 1 of 19 EQUIPMENT UNDER TEST : APPARECCHIO IN PROVA : USB KEY CRYPTO IDENTITY model 5 DERIVED MODELS : APPARECCHI DERIVATI: Model ITSEC / Model FIPS (Itsec-I, Itsec-P) REFERENCE STANDARDS : NORME DI RIFERIMENTO : FCC 47 CFR Part 15 CUSTOMER: RICHIEDENTE: • Dept. / Firm : Ente / Società’: EUTRON INFOSECURITY S.r.l. • Mr.: Sig.: GIANLUCA MAFFIOLI • Address: Indirizzo: VIA GANDHI, 12 – 24048 TREVIOLO (BG) - ITALY • Tel. : Telefono : ++39 035/697005 • Telefax Fax : ++39 035/697093 • E-mail: e-mail [email protected] Site of test execution: Via Campagna, 92 - 22020 Gaggino Faloppio (CO) - Italy Località esecuzione prove: Date of test samples receipt: 23/05/05 Date of start test: 23/05/05 Data ricevimento campioni: Data inizio prove: Date of end test: 23/05/05 Data fine prove: Witness to the test: Presenti alle prove: Signature of the engineers: Firma esecutore prove: Signature of the Laboratory Director: Firma Direttore Laboratori: Mr. Maffioli ......................................................... .......................................................... R. Radice .......................................................... R. Furfari The test results recorded in this Test Report are exclusively referred to the tested samples. I risultati del presente rapporto di prova si riferiscono esclusivamente al campione sottoposto a prova. Reproduction of this EMC-Test Report in whole or in part is prohibited without the written authorization of the Laboratory Director La riproduzione di questo Rapporto in modo parziale o totale è PROIBITO senza l’autorizzazione scritta della Direzione del Laboratorio FCC.TR. TEST REPORT 05.356 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 1.0 Issue date: 22/08/05 sheet 2 of 19 0. CONTENTS Page Rev Date 0. CONTENTS ................................................................................................. 1. TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) ........ 1.1 Identification ......................................................................................... 1.2 Technical data ...................................................................................... 1.3 Modifications incorporated in E.U.T...................................................... 1.4 Derived models..................................................................................... 1.5 Auxiliary equipment .............................................................................. 2. TEST CONDITIONS .................................................................................... 2.1 Operating test modes and test conditions ............................................ 2.2 Test overview ....................................................................................... 3. REFERENCE STANDARD FOR PERFORMED TESTS ............................. 4. Summary of test results ............................................................................... 4.1 Emission tests ...................................................................................... 5. TEST RESULTS .......................................................................................... 6. EUT TECHNICAL DOCUMENTATION........................................................ 6.1 Wiring diagrams.................................................................................... 6.2 Technical manual ................................................................................. 6.3 Photographic documentation ................................................................ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 22/08/05 22/08/05 22/08/05 22/08/05 22/08/05 22/08/05 22/08/05 22/08/05 22/08/05 22/08/05 22/08/05 22/08/05 22/08/05 22/08/05 22/08/05 22/08/05 22/08/05 22/08/05 FCC.TR. TEST REPORT 05.356 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 1.0 Issue date: 22/08/05 sheet 3 of 19 1. TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) 1.1 Identification Brand name: EUTRON INFOSECURITY Manufacturer: EUTRON INFOSECURITY Equipment : USB KEY Model name or No. : CRYPTO IDENTITY mod. 5 Derived models: CRYPTO IDENTITY mod. ITSEC and CRYPTO IDENTITY mod. FIPS Serial number : Not present FCC ID : TFC-AAA Country of manufacturer: ITALY 1.2 Technical data FCC class: Unintentional radiators, Class B Supply voltage: +5 V dc supplied by USB PC connector Input Power / Current : 20 mA max. Maximum internal frequency generated by EUT 12 MHz Typical usage : Document crypting EUT single or system: Single EUT dimensions : 6,2 x 1,9 x 0,9 cm 1.3 Modifications incorporated in E.U.T. The following items are the modifications introduced in the equipment under test : • None FCC.TR. TEST REPORT 05.356 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 03199130…
