TFC-AAJWEB OPT TIME

1 WebOTP Developer’s Manual v1.2 2 © Copyright 2007 Eutronsec Spa - Via Gandhi, 12 - 24048 Treviolo (BG) – Italy. All rights reserved. The names of the other products mentioned are trademarks of their respective owners. The WebOTPtime hardware key is in compliance with the following test specification: EN 61000-4-2; EN 61000-4-3; CISPR22 as required by: EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 which are specified for the following test: “ESD Immunity test” “Radiated radio-frequency and electromagnetic field immunity test” “Radiated Emission Verification” in compliance with the “Essential Requisites” for the EMC Directive 89/336/EEC & 2004/108/EEC FCC ID: TFC-AAJ Eutronsec Spa WebOTPtime Supply: 5V DC Absorption: 20 mA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Caution: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IMPORTANT REMARKS Due to the limited space on the product shell, all FCC certification references are on this technical manual. 3 Table of contents 1 PREFACE ................................................................................................................................................................. 5 1.1 A BOUT THIS MANUAL .......................................................................................................................................... 5 1.2 H OW TO USE THIS MANUAL .................................................................................................................................. 5 1.3 A SSUMPTIONS ...................................................................................................................................................... 5 1.4 F ONT CONVENTIONS ............................................................................................................................................ 5 1.5 M ATERIAL SUPPLIED ........................................................................................................................................... 5 1.5.1 Hardware components ................................................................................................................................ 6 1.5.2 Software components .................................................................................................................................. 6 1.5.3 Documentation ............................................................................................................................................6 1.6 F EEDBACK ........................................................................................................................................................... 7 2 INTRODUCTION .................................................................................................................................................... 8 2.1 W HAT IS W EB OTP? ............................................................................................................................................ 8 2.2 U SE CASE ............................................................................................................................................................. 8 2.3 F EATURES ............................................................................................................................................................ 8 2.4 O PERATION .......................................................................................................................................................... 8 2.4.1 One Time Password .................................................................................................................................... 8 2.4.2 Challenge Response .................................................................................................................................... 8 2.4.3 SMS ............................................................................................................................................................. 9 2.5 M ULTI - FACTOR AUTHENTICATION ....................................................................................................................... 9 3 GETTING STARTED ............................................................................................................................................ 10 3.1 SDK INSTALLATION .......................................................................................................................................... 10 3.2 F IRST OPERATION .............................................................................................................…

Text truncated - open the document above for the full version.

SAMPLE CONFIDENTIALITY FORM February 15, 2008 EUTRONSEC SpA Via Gandhi, 12 24048 Treviolo (BG) – Italy tel.: +39-035697080 fax.: +39-035697092 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Eutronsec SpA would like the following documents regarding this submission for FCC ID: TFC-AAJ to be kept confidential. Documents: 1. Block diagram 2. Operational description 3. Schematic diagrams The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Mr. Nicola Albergati Head of Quality & Product Engineering - - 2

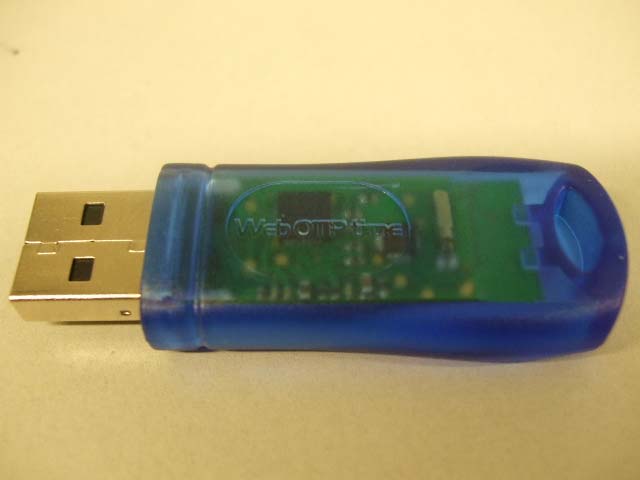

EXTERNAL PHOTOGRAPH FRONT WIEV EXTERNAL PHOTOGRAPH REAR WIEV

Formato Approvato: Committente: A4 Trattamento termico : Materiale: N. Disegno Data: Disegnato: Data: Descrizione: STAMPO N° Scala 3.2 12.5 = ~ Grezzo = Sgrossato = Lisciato = Rettificato = Lappato = Lav. speciale 0.8 0.2 A Segni di lavorazione ind. 1 Finitura superficiale: Ritiro: modifica Firma Data mod.quota 29/11/05 Lanfranchi Mat. da stampare: Colore: Rigamonti spa via Provinciale 57 23846 Garbagnate Monastero (LC) Italia www.rigamonti-spa.it Disegno di proprietà della Rigamonti spa che si riserva i diritti a termine di legge Scostamenti +/- in mm per quote senza tolleranze preciso fino a 6 oltre 6 fino a 30 oltre 30 fino a 120 oltre 120 fino a 315 oltre 315 0.050.1 0.15 0.2 0.3 angolari gradi 0.35 SCALE 3 : 1 SCALE 1 : 1 ETICHETTA ADESIVA

INTERNAL PHOTOGRAPH FRONT WIEV INTERNAL PHOTOGRAPH REAR WIEV

FCC.TR. TEST REPORT 07.1288 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 1.0 Issue date: 25/09/2007 sheet 1 of 19 EQUIPMENT UNDER TEST : APPARECCHIO IN PROVA : USB ELECTRONIC KEY MODEL: WEB OTP TIME REFERENCE STANDARDS : NORME DI RIFERIMENTO : FCC 47 CFR Part 15 CUSTOMER: RICHIEDENTE: • Dept. / Firm : Ente / Società’: EUTRONSEC S.P.A. • Mr.: Sig.: GIANLUCA MAFFIOLI • Address: Indirizzo: VIA GANDHI, 12 – 24048 TREVIOLO (BG) - ITALY • Tel. : Telefono : ++39 035/697005 • Telefax Fax : ++39 035/697090 • E-mail: e-mail [email protected] Site of test execution: Via Campagna, 92 - 22020 Gaggino Faloppio (CO) Località esecuzione prove: Date of test samples receipt: 25/09/2007 Date of start test: 25/09/2007 Data ricevimento campioni: Data inizio prove: Date of end test: 25/09/2007 Data fine prove: Witness to the test: Presenti alle prove: Signature of the engineers: Firma esecutore prove: Approved by: Approvato da: Sig. Gianluca Maffioli ......................................................... .......................................................... Andrea Bortolotti ......................................................... Massimo Maltempi The test results recorded in this Test Report are exclusively referred to the tested samples. I risultati del presente rapporto di prova si riferiscono esclusivamente al campione sottoposto a prova. Reproduction of this EMC-Test Report in whole or in part is prohibited without the written authorization of the Laboratory Director La riproduzione di questo Rapporto in modo parziale o totale è PROIBITO senza l’autorizzazione scritta della Direzione del Laboratorio FCC.TR. TEST REPORT 07.1288 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 1.0 Issue date: 25/09/2007 sheet 2 of 19 0. CONTENTS Page Rev Date 0. CONTENTS ............................................................................................ 2 1. TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) ... 3 1.1 Identification .................................................................................... 3 1.2 Technical data ................................................................................. 3 1.3 Modifications incorporated in E.U.T................................................. 3 1.4 Auxiliary equipment......................................................................... 4 2. TEST CONDITIONS ............................................................................... 5 2.1 Operating test modes and test conditions....................................... 5 2.2 Test overview .................................................................................. 5 3. REFERENCE STANDARD FOR PERFORMED TESTS ........................ 6 4. Summary of test results .......................................................................... 7 4.1 Emission tests ................................................................................. 7 5. TEST RESULTS ..................................................................................... 8 6. EQUIPMENT LIST................................................................................ 16 6.1 Equipment list used for EUT testing .............................................. 16 7. EUT TECHNICAL DOCUMENTATION................................................. 17 7.1 Wiring diagrams............................................................................. 17 7.2 Technical manual.......................................................................... 17 7.3 Photographic documentation ......................................................... 18 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 25/09/07 25/09/07 25/09/07 25/09/07 25/09/07 25/09/07 25/09/07 25/09/07 25/09/07 25/09/07 25/09/07 25/09/07 25/09/07 25/09/07 25/09/07 25/09/07 25/09/07 25/09/07 25/09/07 25/09/07 FCC.TR. TEST REPORT 07.1288 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 1.0 Issue date: 25/09/2007 sheet 3 of 19 1. TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) 1.1 Identification Brand name: EUTRONSEC S.P.A. Manufacturer: EUTRONSEC S.P.A. Equipment : USB KEY Model name or No. : WEB OTP TIME Serial number : Not present FCC ID : TFC-AAJ Country of manufacturer: ITALY 1.2 Technical data FCC class: Unintentional radiators, Class B Supply voltage: +5 V dc supplied by USB PC connector Input Power / Current : 20 mA max. Maximum internal frequency generated by EUT Oscillator: 25 MHz Typical usage : Web Authentication EUT single or system: Single EUT dimensions : 55 x 21 x 10 mm 1.3 Modifications incorporated in E.U.T. The following items are the modifications introduced in the equipment under test : • None FCC.TR. TEST REPORT 07.1288 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 1.0 Issue date: 25/09/2007 sheet 4 of 19 Ports identification This section contains descriptions of all signal…
