TFC-AAIUSB SMART KEY

1 SmartKey User Manual v11.7 2 © Copyright 2007 Eutronsec Spa - Via Gandhi, 12 - 24048 Treviolo (BG) – Italy. All rights reserved. The names of the other products mentioned are trademarks of their respective owners. This hardware key is in compliance with the following test specification: EN 61000-4-2; EN 61000-4-3; CISPR22 as required by: EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 which are specified for the following test: “ESD Immunity test” “Radiated radio-frequency and electromagnetic field immunity test” “Radiated Emission Verification” in compliance with the “Essential Requisites” for the EMC Directive 89/336/EEC & 2004/108/EEC CONFORMITY APPROVAL TO EN60529 (IP67) This hardware key is in compliance with essential evaluation elements for the conformity approval to EN 60529 (IP67) concerning safety (EN 60529:1991-10 + EN 60529 corr:1993-05 + EN 60529/A1:2000-02) as required by LVD directive. FCC ID: TFC-AAI Eutronsec Spa SmartKey 4 Supply: 5V DC Absorption: 30 mA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Caution: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IMPORTANT REMARKS Due to the limited space on the product shell, all FCC certification references are on this technical manual. 3 Index 1 INTRODUCTION .................................................................................................................................................... 8 1.1 O BJECTIVES OF THE MANUAL ................................................................................................................................ 8 1.2 T O WHOM THE MANUAL IS ADDRESSED ................................................................................................................. 8 1.3 H OW TO CONTACT E UTRONSEC ............................................................................................................................. 8 2 WHY SHOULD I PROTECT SOFTWARE? ........................................................................................................ 9 2.1 T HE MENACE OF PIRACY INCREASES THE NEED FOR PROTECTION .......................................................................... 9 2.2 C OMMERCIAL REASONS FOR PROTECTING SOFTWARE ........................................................................................... 9 2.3 P IRACY ? R UINOUS TO THE SOFTWARE INDUSTRY .................................................................................................. 9 2.4 A HISTORY OF SOFTWARE PROTECTION SYSTEMS ................................................................................................ 10 2.5 E UTRONSEC PAVES THE WAY FOR A NEW SOFTWARE PROTECTION ERA ............................................................... 10 3 INTRODUCING SMARTKEY ............................................................................................................................. 11 3.1 W HO NEEDS S MART K EY ? ................................................................................................................................... 12 3.2 W HAT ARE S MART K EY ' S CHARACTERISTICS ? .....................................................................................................12 3.3 H OW DOES S MART K EY WORK ? ........................................................................................................................... 13 3.4 H OW MUCH TIME IS NEEDED TO PROTECT A PROGRAM ? ...................................................................................... 13 3.5 W HAT IS S MART K EY ' S DEGREE OF SECURITY ? .................................................................................................... 13 3.6 P ROGRAMS FOR S MART K EY ................................................................................................................................ 14 3.7 S MART K EY FOR L INUX AND M AC OS X. ............................................................................................................ 14 3.8 G ETTING S TARTED .............................................................................................................................................. 14 3.8.1 Installation ................................................................................................................................................ 14 4 SMARTKEY MODELS ......................................................................................................................................... 15 4.1 FX.........................................................................................................................................…

Text truncated - open the document above for the full version.

EUTRONSEC S.p.A - Key Solutions for IT Security email: [email protected] web: www.eutronsec.com Registered office: Via A. Cantore 8 H – I-16149 Genova Tel.: +39010.642011 Fax: +39010.6590756 Administrative, commercial and productive premises: Via Gandhi 12 – I-24048 Treviolo, BG Tel.: +39035.697080 Fax: +39035.697092 Fiscal code, VAT number and registration in the R. C. Genoa IT 016 3614 099 6 – f.p. corporate capital Euro 130,000.00 - REA GE 424111 Eutronsec S.p.A. is a company managed and coordinated by Selesta S.p.A. (fiscal code IT 02825520105) SAMPLE CONFIDENTIALITY FORM September 5, 2007 EUTRONSEC SpA Via Gandhi, 12 24048 Treviolo (BG) – Italy tel.: +39-035697080 fax.: +39-035697092 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Eutronsec SpA would like the following documents regarding this submission for FCC ID: TFC-AAI to be kept confidential. Documents: 1. Block diagram 2. Operational description 3. Schematic diagrams The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Mr. Nicola Albergati Head of Quality & Product Engineering

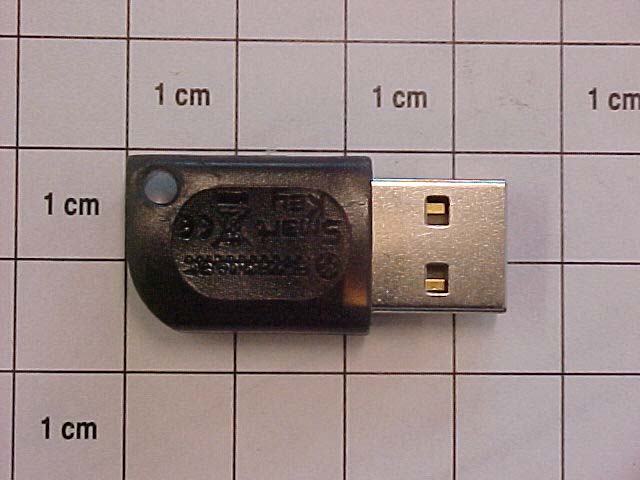

EXTERNAL PHOTOGRAPH FRONT WIEV EXTERNAL PHOTOGRAPH REAR WIEV

Formato Approvato: Committente: A4 Trattamento termico : Materiale: N. Disegno Data: Disegnato: Data: Descrizione: STAMPO N° Scala 3.2 12.5 = ~ Grezzo = Sgrossato = Lisciato = Rettificato = Lappato = Lav. speciale 0.8 0.2 A Segni di lavorazione ind. 1 Finitura superficiale: Ritiro: modifica Firma Data mod.quota 29/11/05 Lanfranchi Mat. da stampare: Colore: Rigamonti spa via Provinciale 57 23846 Garbagnate Monastero (LC) Italia www.rigamonti-spa.it Disegno di proprietà della Rigamonti spa che si riserva i diritti a termine di legge Scostamenti +/- in mm per quote senza tolleranze preciso fino a 6 oltre 6 fino a 30 oltre 30 fino a 120 oltre 120 fino a 315 oltre 315 0.050.1 0.15 0.2 0.3 angolari gradi 0.35 SCALE 4 : 1 SCALE 1 : 1

INTERNAL PHOTOGRAPH INTERNAL PHOTOGRAPH

FCC.TR. TEST REPORT 07.1121 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 1.0 Issue date: 06/08/2007 sheet 1 of 17 EQUIPMENT UNDER TEST : APPARECCHIO IN PROVA : USB ELECTRONIC KEY MODEL: SMARTKEY REFERENCE STANDARDS : NORME DI RIFERIMENTO : FCC 47 CFR Part 15 CUSTOMER: RICHIEDENTE: • Dept. / Firm : Ente / Società’: EUTRONSEC S.P.A. • Mr.: Sig.: GIANLUCA MAFFIOLI, NICOLA ALBERGATI • Address: Indirizzo: VIA GANDHI, 12 – 24048 TREVIOLO (BG) - ITALY • Tel. : Telefono : ++39 035/697005 • Telefax Fax : ++39 035/697090 • E-mail: e-mail [email protected] Site of test execution: Via Campagna, 92 - 22020 Gaggino Faloppio (CO) Località esecuzione prove: Date of test samples receipt: 06/08/2007 Date of start test: 06/08/2007 Data ricevimento campioni: Data inizio prove: Date of end test: 06/08/2007 Data fine prove: Witness to the test: Presenti alle prove: Signature of the engineers: Firma esecutore prove: Approved by: Approvato da: Sig. Gianluca Maffioli Sig. Nicola Albergati ......................................................... .......................................................... Luca Casiraghi ......................................................... Massimo Maltempi The test results recorded in this Test Report are exclusively referred to the tested samples. I risultati del presente rapporto di prova si riferiscono esclusivamente al campione sottoposto a prova. Reproduction of this EMC-Test Report in whole or in part is prohibited without the written authorization of the Laboratory Director La riproduzione di questo Rapporto in modo parziale o totale è PROIBITO senza l’autorizzazione scritta della Direzione del Laboratorio FCC.TR. TEST REPORT 07.1121 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 1.0 Issue date: 06/08/2007 sheet 2 of 17 0. CONTENTS Page Rev Date 0. CONTENTS ....................................................................................................... 2 1. TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) .............. 3 1.1 Identification ............................................................................................... 3 1.2 Technical data ............................................................................................ 3 1.3 Modifications incorporated in E.U.T. .......................................................... 3 1.4 Auxiliary equipment .................................................................................... 4 2. TEST CONDITIONS .......................................................................................... 5 2.1 Operating test modes and test conditions .................................................. 5 2.2 Test overview ............................................................................................. 5 3. REFERENCE STANDARD FOR PERFORMED TESTS ................................... 6 4. Summary of test results ..................................................................................... 7 4.1 Emission tests ............................................................................................ 7 5. TEST RESULTS ................................................................................................ 8 6. EUT TECHNICAL DOCUMENTATION ............................................................ 15 6.1 Wiring diagrams ....................................................................................... 15 6.2 Technical manual ..................................................................................... 15 6.3 Photographic documentation.................................................................... 16 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 06/08/07 06/08/07 06/08/07 06/08/07 06/08/07 06/08/07 06/08/07 06/08/07 06/08/07 06/08/07 06/08/07 06/08/07 06/08/07 06/08/07 06/08/07 06/08/07 06/08/07 FCC.TR. TEST REPORT 07.1121 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 1.0 Issue date: 06/08/2007 sheet 3 of 17 1. TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) 1.1 Identification Brand name: EUTRONSEC S.P.A. Manufacturer: EUTRONSEC S.P.A. Equipment : USB KEY Model name or No. : SMARTKEY Serial number : Not present FCC ID : TFC-AAI Country of manufacturer: ITALY 1.2 Technical data FCC class: Unintentional radiators, Class B Supply voltage: +5 V dc supplied by USB PC connector Input Power / Current : 30 mA max. Maximum internal frequency generated by EUT Oscillator: 16 MHz Typical usage : Software protection EUT single or system: Single EUT dimensions : 34 x 16 x 6 mm 1.3 Modifications incorporated in E.U.T. The following items are the modifications introduced in the equipment under test : • None FCC.TR. TEST REPORT 07.1121 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 1.0 Issue date: 06/08/2007 sheet 4 of 17 Ports identification This section contains descriptions of all signal port…
