TFC-AAECLASS B COMPUTING DEVICE PERIPHERAL

Overview version 1.0.1 EUTRON Infosecurity - Key Solutions for IT Security Tel. +39 035 - 6970.80 Fax: +39 035 - 6970.92 Via Gandhi 12 - I-24048 Treviolo (Bergamo) e-mail: [email protected] web: www.eutron.com/infosecurity © Copyright 2006 by Eutron Infosecurity S.r.l.- Italy - 24048 Treviolo BG Via Gandhi, 12 © 2006 Eutron Infosecurity S.r.l. All rights reserved The names of the other products mentioned are trademarks of their respective owners. This hardware key is in compliance with the following test specification: CEI EN 61000-4-2; CEI EN 61000-4-3; CISPR22 as required by: CEI EN 61000-6-1, CEI EN 61000-6-2, CEI EN 61000-6-3, CEI EN 61000-6-4 which are specified for the following test: • “ESD Immunity test” • “Radiated radio-frequency and electromagnetic field immunity test” • “Radiated Emission Verification” In compliance with the “Essential Requisites” for the EMC Directive 89/336/EEC. FCC ID: TFC-AAE EUTRON Infosecurity S.r.l. OTPSign ( 1 ) Supply: 5V DC Absorption: 30 mA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Caution: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 1 The models subjected to this mark are the following: OTPSign ITSEC-I, OTPSign ITSEC-P and OTPSign FIPS. EUTRON Infosecurity - Key Solutions for IT Security Tel. +39 035 - 6970.80 Fax: +39 035 - 6970.92 Via Gandhi 12 - I-24048 Treviolo (Bergamo) e-mail: [email protected] web: www.eutron.com/infosecurity IMPORTANT REMARKS Due to the limited space on the product shell, all FCC certification references are on this technical manual. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. EUTRON Infosecurity - Key Solutions for IT Security Tel. +39 035 - 6970.80 Fax: +39 035 - 6970.92 Via Gandhi 12 - I-24048 Treviolo (Bergamo) e-mail: [email protected] web: www.eutron.com/infosecurity 1. Introduction OTPSign is the new USB token realized by applying the innovatory EUTRON-VASCO hybrid technology that combines the advantages of OTP authentication with the potential offered by PKI technology. OTPSign is a device that enables accessing the digital services quickly and safely through the telephone, mobile and Internet channels, besides allowing secure and non- repudiable transactions; it is therefore an extremely flexible, inexpensive and simple solution. This product is ideal for all those entities and organizations that intend to offer their customers secure multichannel accesses to corporate archives, bank data, financial services, health services et cetera. OTPSign is an M2 secure device: multichannel and multipurpose: • Multichannel, thanks to the OTP USB hybrid technology that allows secure access from the fixed and mobile telephone network, from the Internet and via Internet through the USB token • Multipurpose, thanks to the EUTRON «all-in-one» technology which combines the OTP component with the smart card cryptography function and the smart card reader. 2. Main functionalities OTP Functionalities • One-Time-Password authentication • Button-operated OTP generation • OTP Encryption: Time synchronous / Time and Event synchronous • Compatibility with the whole Digipass VASCO family PKI Functionalities • Signature and on-board generation of the 1024 bit RSA key pair • X 509 v3 certificates and secure key storage • PIN for private key protection EUTRON Infosecurity - Key Solutions for IT Security Tel. +39 035 - 6970.80 Fax: +39 035 - 6970.92 Via Gandhi 12 - I-24048 Treviolo (Bergamo) e-mail: [email protected] web: www.eutron.com/infosecurity 3. Models • ITSEC-I with 32K EEPROM, RSA 1024 bit cryptography, INFINEON SLE66CX322P cryptographic chip, CardOS 4.01A (ITSEC E4 High certified) or CardOS M4.2B (CC EAL 4+certified) or CardOS M4.3B (CC EAL 4+ certified) Siemens - chip CC EAL 5+ certified • ITSEC-I-64 with 64K EEPROM, RSA 2048 bit cryptography, INFINEON SLE66CX642P cryptographic chip, CardOS M4.3B Siemens mask – Chip CC EAL 5+ certified and mask CC EAL 4+ certified • ITSEC-P with 32K EEPROM, RSA 1024 bit cryptography, PHILIPS P8WE5032 cryptographic chip, G&D StarCOS SPK 2.3 mask – Chip and mask ITSEC E4 High certified • FIPS with 32K EEPROM, RSA 1024 bit cryptography, PHILIPS P8WE5032 cryptographic chip, G&D StarCOS SPK 2.4 mask 4. Specifications Standard ISO 7816 3-4, PKCS#11 v2.11, PC/SC, Microsoft CAPI, S/MIME, IPSec/IKE, X.509 v3 Operating systems Microsoft Windows 98/ME/2000/XP and LINUX Interoperability Microsoft Internet Explorer, Microsoft Outlook, Lotus Notes 6.0x, Adobe Acrobat, VPN clients and with all applications using the reported standards …

Text truncated - open the document above for the full version.

EUTRONSEC S.p.A - Key Solutions for IT Security email: [email protected] web: www.eutronsec.com Registered office: Via A. Cantore 8 H – I-16149 Genova Tel.: +39010.642011 Fax: +39010.6590756 Administrative, commercial and productive premises: Via Gandhi 12 – I-24048 Treviolo, BG Tel.: +39035.697080 Fax: +39035.697092 Fiscal code, VAT number and registration in the R. C. Genoa IT 016 3614 099 6 – f.p. corporate capital Euro 130,000.00 - REA GE 424111 Eutronsec S.p.A. is a company managed and coordinated by Selesta S.p.A. (fiscal code IT 02825520105) DICHIARAZIONE / EUTRONSEC SpA Subject: Cover removing for FCC ID: TFC-AAE As FCC ID is printed near the USB connector and it may be topped with a covering. Eutronsec SpA declares that the cover is removed from the electronic key TFC- AAE to allow the FCC ID is visible to the customer whenever it is sold. For Eutronsec SpA – Buisness Unit Manager March 9, 2007 Ruggero Gissi

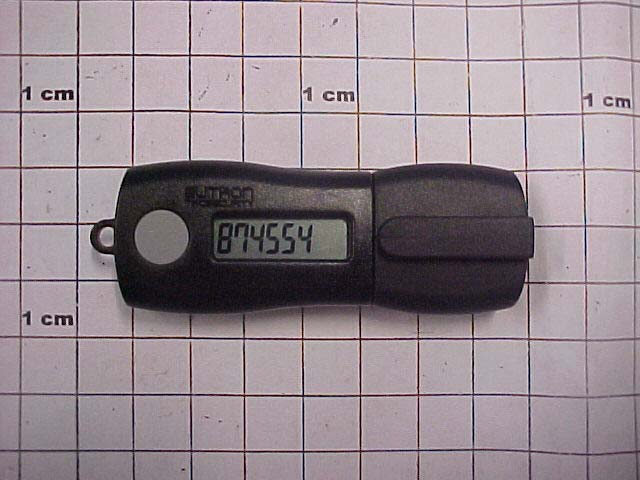

EXTERNAL PHOTOGRAPH FRONT WIEV REAR WIEV

INTERNAL PHOTOGRAPH FRONT WIEV REAR WIEV INTERNAL PHOTOGRAPH RADIO MODULE INTERNAL WIEV (Senza eventuale schermo di protezione)

FCC.TR. TEST REPORT 06.1237 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 1.0 Issue date: 27/09/06 sheet 1 of 18 EQUIPMENT UNDER TEST : APPARECCHIO IN PROVA : USB KEY OTP SIGN (Model ITSEC-I) DERIVED MODELS : APPARECCHI DERIVATI: Model ITSEC-P / Model FIPS REFERENCE STANDARDS : NORME DI RIFERIMENTO : FCC 47 CFR Part 15 CUSTOMER: RICHIEDENTE: • Dept. / Firm : Ente / Società’: EUTRON INFOSECURITY S.r.l. • Mr.: Sig.: GIANLUCA MAFFIOLI • Address: Indirizzo: VIA GANDHI, 12 – 24048 TREVIOLO (BG) - ITALY • Tel. : Telefono : ++39 035/697005 • Telefax Fax : ++39 035/697093 • E-mail: e-mail [email protected] Site of test execution: Via Campagna, 92 - 22020 Gaggino Faloppio (CO) - Italy Località esecuzione prove: Date of test samples receipt: 27/09/06 Date of start test: 27/09/06 Data ricevimento campioni: Data inizio prove: Date of end test: 27/09/06 Data fine prove: Witness to the test: Presenti alle prove: Signature of the engineers: Firma esecutore prove: Signature of the Laboratory Director: Firma Direttore Laboratori: Mr. Gianluca Maffioli ......................................................... .......................................................... Andrea Bortolotti .......................................................... Roberto Furfari The test results recorded in this Test Report are exclusively referred to the tested samples. I risultati del presente rapporto di prova si riferiscono esclusivamente al campione sottoposto a prova. Reproduction of this EMC-Test Report in whole or in part is prohibited without the written authorization of the Laboratory Director La riproduzione di questo Rapporto in modo parziale o totale è PROIBITO senza l’autorizzazione scritta della Direzione del Laboratorio FCC.TR. TEST REPORT 06.1237 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 1.0 Issue date: 27/09/06 sheet 2 of 18 0. CONTENTS Page RevDate 0. CONTENTS.............................................................................................. 2 1. TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT)..... 3 1.1 Identification...................................................................................... 3 1.2 Technical data................................................................................... 3 1.3 Modifications incorporated in E.U.T................................................... 3 1.4 Derived models.................................................................................. 4 1.5 Auxiliary equipment........................................................................... 5 2. TEST CONDITIONS................................................................................. 6 2.1 Operating test modes and test conditions......................................... 6 2.2 Test overview.................................................................................... 6 3. REFERENCE STANDARD FOR PERFORMED TESTS.......................... 7 4. Summary of test results............................................................................ 8 4.1 Emission tests................................................................................... 8 5. TEST RESULTS....................................................................................... 9 6. EUT TECHNICAL DOCUMENTATION................................................... 16 6.1 Wiring diagrams............................................................................... 16 6.2 Technical manual............................................................................ 16 6.3 Photographic documentation........................................................... 17 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 27/09/06 27/09/06 27/09/06 27/09/06 27/09/06 27/09/06 27/09/06 27/09/06 27/09/06 27/09/06 27/09/06 27/09/06 27/09/06 27/09/06 27/09/06 27/09/06 27/09/06 27/09/06 FCC.TR. TEST REPORT 06.1237 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 1.0 Issue date: 27/09/06 sheet 3 of 18 1. TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) 1.1 Identification Brand name: EUTRON INFOSECURITY Manufacturer: EUTRON INFOSECURITY Equipment : USB KEY Model name or No. : OTP SIGN mod. ITSEC-I Derived models: OTP SIGN mod. ITSEC-P and OTP SIGN mod. FIPS Serial number : Not present FCC ID : TFC-AAE Country of manufacturer: ITALY 1.2 Technical data FCC class: Unintentional radiators, Class B Supply voltage: +5 V dc supplied by USB PC connector Input Power / Current : 30 mA max. Maximum internal frequency generated by EUT 12 MHz Typical usage : Document encrypting (One Time Password generator included) EUT single or system: Single EUT dimensions : 7,4 x 2,6 x 1,4 cm 1.3 Modifications incorporated in E.U.T. The following items are the modifications introduced in the equipment under test : • None FCC.TR. TEST REPORT 06.1237 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 0319913…

Text truncated - open the document above for the full version.
