TFJBEZEL8-SBEZEL8-S Credit card Reader

B8-S manual Page 1 UIC BEZEL8-S BEZEL8-S Credit card Reader Specification: Specification Processor Microchip SAMA5D23 Memory DDR3 256MB Storage QSPI-Flash 32MB Display Graphic LCD @ 128 x 64 OS Linux Audio Buzzer≧70dB @ 10cm Reader Magnetic Card Reader Bi-directional, support triple tracks ISO7811 Speed 5 to 40 IPS 1,000,000. swipe times Smart Card Reader ISO7816, T=0 , T=1 EMV Level 1, Support 5V/3V 500,000. inserted times Contactless Support ISO 14443 Type A/B and Mifare with 4 LEDs, EMV contactless L1 I/O RS-232/USB USB(VCOM) or RS232, Cable-select AUX RS232, as auxiliary port LAN 10BASE-T/100BASE-T ethernet DC in 5V, 500mA SAM x 1 Debug console Special cable through auxiliary port LED indicator x 4 for RFID, 1 set for MSR, 1 set for ICC Buttons Rubber button x 2 Communication Ethernet x 1 (Optional) Environment Operating Temperature -20°C to +70°C Storage Temperature -30°C to +80°C Humidity 5% to 90% Reliability Requirements MTBF 50,000 hours ESD Contact：+/- 8KV Air：+/-15KV Centurion/ Metal card：+/- 8KV(insert half of the card) Button 1M times B8-S manual Page 2 IP Level IP54 IK Level IK06 UV UV exposure resistance Installation guide(RS232 Interface) 1 Plug the RS232 cable to the port of PC or system 2 The reader will boot up automatically Photos: B8-S manual Page 3 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

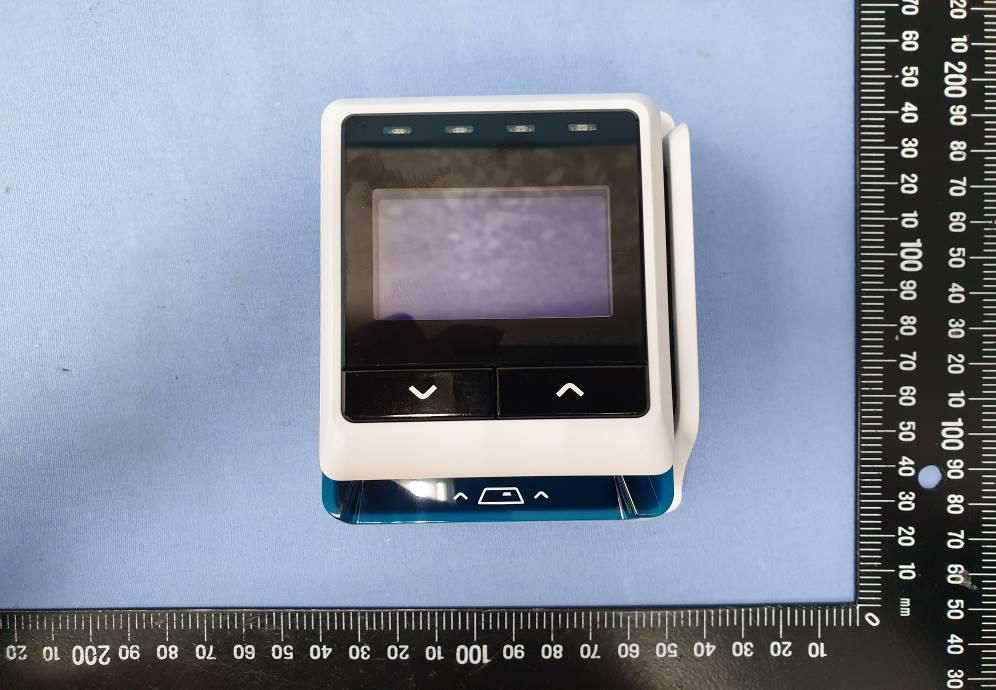

Page 1 of 5 External Photos Trade Name: UIC Model Number: BEZEL8-S Page 2 of 5 EUT Photo (1) EUT Photo (2) Page 3 of 5 EUT Photo (3) EUT Photo (4) Page 4 of 5 EUT Photo (5) EUT Photo (6) Page 5 of 5 EUT Photo (7)

Label_Loc ationn

Page 1 of 16 Internal Photos Trade Name: UIC Model Number: BEZEL8-S Page 2 of 16 EUT Photo (1) EUT Photo (2) Page 3 of 16 EUT Photo (3) EUT Photo (4) Page 4 of 16 EUT Photo (5) EUT Photo (6) Page 5 of 16 EUT Photo (7) EUT Photo (8) Page 6 of 16 EUT Photo (9) EUT Photo (10) Page 7 of 16 EUT Photo (11) EUT Photo (12) Page 8 of 16 EUT Photo (13) EUT Photo (14) Page 9 of 16 EUT Photo (15) EUT Photo (16) Page 10 of 16 EUT Photo (17) EUT Photo (18) Page 11 of 16 EUT Photo (19) EUT Photo (20) Page 12 of 16 EUT Photo (21) EUT Photo (22) Page 13 of 16 EUT Photo (23) EUT Photo (24) Page 14 of 16 EUT Photo (25) EUT Photo (26) NFC ANT. Page 15 of 16 EUT Photo (27) EUT Photo (28) Page 16 of 16 EUT Photo (29)

Operational Description For RFID RFID reader use ST25R3911B, is member of a new family of highly integrated reader ICs for contactless communication at 13.56 MHz. This reader IC family utilizes an outstanding modulation and demodulation concept completely integrated for all kinds of passive contactless communication methods and protocols at 13.56 MHz. The ST25R3911B supports all layers of the ISO14443 including the type A and type B communication scheme. Modulation type: ASK. It uses a directly matched antenna to work. The antenna components have three parts: 1. A receiving circuit to receive data sent by the Tag. 2. A filtering and impedance transformation circuit suppresses higher harmonics and optimizes the power transmission to the reader antenna. 3. A matching circuit for the antenna coil to achieve the best performance and the antenna coil itself has to be designed. The data transform by TTL232 to RS232 interface. The transmitter of the EUT is powered by DC5V from power adapter or system 5V.The antenna used in thic product is LOOP antenna. The other instruction, please have a look at the users manual. Figure1 show the circuit block diagram of the Bezel8-S. Antenna Specification RFID Antenna：13.56 MHz Type: Loop Antenna Trade name: UIC Model: B8-S

55 44 33 22 11 D D C C B B A A sam-ba interface_type sam-ba VO-VO+ USB_P-wifiUSB_M-wifi USB_P-wifiUSB_M-wifi BAR_LED1 PB1_usb_sel PB1_usb_sel interface_type 3.3V 3.3V Vbat_3V 3.3V +5V 3.3V 3.3V D_PLUSD_MINUS interface_type_out 7 Ethernet_LED2 7 Ethernet_LED1 7 Ethernet_RXIP 7 Ethernet_RXIN 7 Ethernet_TXOP 7 Ethernet_TXON 7 D_MINUS D_PLUS OTG 7 UTXD3_A 4 URXD3_A 4 UTXD2_C 4 URXD2_C 4 UTXD1_B 4 URXD1_B 4 RFID_SPK_1500Hz 3 RFID_SPK_EN 3 RFID_SPK_750Hz 3 I2C_TWCK0 2 I2C_TWD0 2 USART_TXD0 2USART_SCK0 2 Buzzer 3 SAM_IRQN 2 VO+ 3 VO- 3 USB_OTG_D- 7 USB_OTG_D+ 7 WIFI_USB_DM 8 WIFI_USB_DP 8 BAR_LED1 8 TitleSize Document Number Rev Sheet of Design By Approve By Date Date Uniform Industrial Corp. Bezel 8+ SAM board Connector Thomas Liu James Chiu 1 8 Monday, October 26, 2020 2013/10/4 A.1 TitleSize Document Number Rev Sheet of Design By Approve By Date Date Uniform Industrial Corp. Bezel 8+ SAM board Connector Thomas Liu James Chiu 1 8 Monday, October 26, 2020 2013/10/4 A.1 TitleSize Document Number Rev Sheet of Design By Approve By Date Date Uniform Industrial Corp. Bezel 8+ SAM board Connector Thomas Liu James Chiu 1 8 Monday, October 26, 2020 2013/10/4 A.1 To Main board 1:RS2320:USB Interface type from MSR head FG A:RJ50B:RJ11 consoleC:RJ11 aux100M Link /ACTLINK 20190711-1505 改 20190711-1505 改 5710571000-R 5710573000-R speaker D2BAV99LT1SOT23-123-190D2BAV99LT1SOT23-123-190 R310KR0402R310KR0402 CV4 NC/STV1005C1 C0402 CV4 NC/STV1005C1 C0402 C5100nFC0402C5100nFC0402 D3BAV99LT1SOT23-123-190D3BAV99LT1SOT23-123-190 C1100nFC0402C1100nFC0402 FG4 NUT-CT197B115D115 FG4 NUT-CT197B115D115 1 R70(NP)R0402R70(NP)R0402 CV3 NC/STV1005C1 C0402 CV3 NC/STV1005C1 C0402 J2CON2(NP)J2CON2(NP) 12 CV1 NC/STV1005C1 C0402 CV1 NC/STV1005C1 C0402 R413KR0402R413KR0402 C71nFC0402C71nFC0402 J5 HEADER 5x2/SM HE-S-2X5-FDL1H5_5-127 J5 HEADER 5x2/SM HE-S-2X5-FDL1H5_5-127 2468 10 13579 S1S2 R1120R0603R1120R0603 L1 GTHW-3216-P-900T GTHW-3216 L1 GTHW-3216-P-900T GTHW-3216 21 34 J3 NC/5710339000-R J3 NC/5710339000-R 12 X1 X2 C3100nFC0402C3100nFC0402 C81nF(NP)C0402C81nF(NP)C0402 C9NCC0402C9NCC0402 C61nFC0402C61nFC0402 C10NCC0402C10NCC0402 D11N4148(NP) MINIMELF-1N4148 D11N4148(NP) MINIMELF-1N4148 12 R210kR0603R210kR0603 J4CON2(NP)J4CON2(NP) 12 FG2SMD195X235FG2SMD195X235 1 R527KR0402R527KR0402 J1HEADER 25x2/SMHE-S-2X25-FDL1H5_5-127J1HEADER 25x2/SMHE-S-2X25-FDL1H5_5-127 2468 101214161820222426283032343638404244464850 135791113151719212325272931333537394143454749 S1S2 CV2 NC/STV1005C1 C0402 CV2 NC/STV1005C1 C0402 C4100nFC0402C4100nFC0402 C2100nFC0402C2100nFC0402 R60(NP)R0402R60(NP)R0402 L2 GTHW-3216-P-900T GTHW-3216 L2 GTHW-3216-P-900T GTHW-3216 21 34 55 44 33 22 11 D D C C B B A A TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode> <Title> C 1 1 Monday, October 26, 2020 TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode> <Title> C 1 1 Monday, October 26, 2020 TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode> <Title> C 1 1 Monday, October 26, 2020 1.0 Revision History Rev. Code Date Description By 2019-07-23 1 release to layout 1 RJ50 pin3,4 and ... disconected from chassis gnd . 2.0 2019-11-15 2 release to layout carloscarlos 55 44 33 22 11 D D C C B B A A I2C_TWCK0 INTAUX-1I2C_TWD0I2C_TWCK0IOUC1-1CLKIN1-1 DCDC_LX-1 I2C_TWD0SAM_IRQNUSART_SCK0 USART_TXD0USART_SCK0 USART_TXD0 DCDC_Vup-1 IOUC2-1 C1_PSCR1-3-VCC C1_PSCR1-3-VCC C7_IO3 C3_PSCR1-3-CKC7_PSCR1-3-IO I2C_TWD0I2C_TWCK0SAM_IRQN C2_RST3 C2_PSCR1-3-RST C1_VCC3C3_CK3 SPRES-1 IC2_ID_8026 CLKIN2-1 SIM2_SDW_8026 USART_TXD0USART_SCK0 SAM_IRQN DCDC_OFF-1 STAP3 C3_CK3C2_RST3 C7_IO3 C1_VCC3 STAP3 C2_RST3C3_CK3C7_IO3 IC2_ID_8026IC2_ID_8026 V33_8026-1 V33_8026-1 V33_8026-1 V33_8026-1 V33_8026-1 V33_8026-1V33_8026-1 3.3V V33_8026-1 I2C_TWCK0 1 I2C_TWD0 1 USART_TXD0 1 USART_SCK0 1 SAM_IRQN 1 TitleSize Document Number Rev Sheet of Design By Approve By Date Date Uniform Industrial Corp. Bezel 8+ SAM board SAM TDA8026 Thomas Liu KEVINLAI C 2 8 Monday, October 26, 2020 20190918 1 TitleSize Document Number Rev Sheet of Design By Approve By Date Date Uniform Industrial Corp. Bezel 8+ SAM board SAM TDA8026 Thomas Liu KEVINLAI C 2 8 Monday, October 26, 2020 20190918 1 TitleSize Document Number Rev Sheet of Design By Approve By Date Date Uniform Industrial Corp. Bezel 8+ SAM board SAM TDA8026 Thomas Liu KEVINLAI C 2 8 Monday, October 26, 2020 20190918 1 I2C Low Address 48H C1910uF,10V,0603C1910uF,10V,0603 R21 0,5%,0402 R0402 R21 0,5%,0402 R0402 R25 0,5%,0402 R0402 R25 0,5%,0402 R0402 R170,5%,0402 R0402 R170,5%,0402 R0402 R23NC R0402 R23NC R0402 C2010uF,10V,0603C0603C2010uF,10V,0603C0603 R13 10K,5%,0402 R13 10K,5%,0402 C1110uF,10V,0603C1110uF,10V,0603 C21 0.1uF,10V,0402 C21 0.1uF,10V,0402 L4300OHM2000mAL4300OHM2000mA 1 2 R16 0,5%,0402 R0402 R16 0,5%,0402 R0402 C18 0.1uF,10V,0402 C18 0.1uF,10V,0402 R1010K,5%,0402R1010K,5%,0402 L5 300OHM2000mA L5 300OHM2000mA 1 2 C23100nFC0402C23100nFC0402 C22 220P C0402 C22 220P C0402 C25 0.1uF,10V,0402 C0402C25 0.1uF,10V,0402 C0402 R1910K,5%,0402R1910K,5%,0402 R20 10K,5%,0402 R20 10K,5%,0402 R28100KR28100K 12 R26 NC/0,5% R0402 R26 NC/0,5% R0402 R270(NP)R270(NP) C27 0.1uF,10V,0402 C0402C27 0.1uF,10V,0402 C0402 C24 47P C0402 C24 47P C0402 R11 10K,5%,0402 R11 10K,5%,0402 R1210K,5%,0402R1210K,5%,0402 R220,5%,0402 R0402 R220,5%,0402 R0402 C1610uF,10V,0603C0603C1610uF,10V,0603C0603 R240,5%,0402 R0402 R240,5%,0402 R0402 C171uF,10V,0402C171uF,10V,0402C26 220P C0402 C26 220P C0402 SAM1CON10IC-567SAM1CON10IC-567 1 C1 2 C2 3 C3 4 C4 5 C5 6 C6 7 C7 8 C8 9 SW1 10 SW2 R9 0,5%,0402 R9 0,5%,0402 D4SL24-MHSOD-123HD4SL24-MHSOD-123H AC C28 470nF,16,0402 C0402 C28 470nF,16,0402 C0402 L3TSB3D16-100M-10uHL-CDRH3D16L3TSB3D16-100M-10uHL-CDRH3D16 1 2 R14 0,5%,0402 R0402 R14 0,5%,0402 R0402 U1 TDA8026BGA-64P-080 U1 TDA8026BGA-64P-080 PORADJ A8 DCDC_OFF B8 SDWNN A5 VDD_INTF A4 SCL B2 SDA C2 IRQN E2 A0 E1 INTAUX D2 IOUC1 C4 IOUC2 C5 CLKIN1 C3 CLKIN2 B3 SPRES H1 TESTMODE A3 INHIB H7 TST1 A2 TST2 A1 GND2 D3 GND3 D4 GND4 D5 GND5 E4 GND6 E5 GND7 F3 GND8 F4 GND9 F5 GND10 H8 VDD_IN…

Text truncated - open the document above for the full version.

Note: 1.The test results are valid only for samples provided by customers and under the test conditions described in this report. 2.This report shall not be reproduced except in full, without the written approval of A Test Lab Technology Corporation. 3.The relevant information is provided by customers in this test report. According to the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. RF Test Report Applicant ： Uniform Industrial Corp. Product Type ： BEZEL8-S Credit card Reader Trade Name ： UIC Model Number ： BEZEL8-S Applicable Standard ： FCC 47 CFR PART 15 SUBPART C ANSI C63.10:2013 Received Date ： Feb. 03, 2021 Test Period ： Feb. 20, 2021 ~ Feb. 21, 2021 Issued Date ： Mar. 17, 2021 Issued by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade District, Taoyuan City 33465, Taiwan (R.O.C.) Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Frequency Range : 9 kHz to 40 GHz Test Firm MRA designation number: TW0010 Report Number2102FR23 Rev.01 Page 1 of 31 Revision History Rev. Issued Date Revisions Revised By 00 Mar. 16, 2021 Initial Issue Yu Chiang 01 Mar. 17, 2021 Revised 3.4 chapter(P.11) Yu Chiang Report Number2102FR23 Rev.01 Page 2 of 31 Verification of Compliance Applicant : Uniform Industrial Corp. Product Type : BEZEL8-S Credit card Reader Trade Name : UIC Model Number : BEZEL8-S FCC ID : TFJBEZEL8-S EUT Rated Voltage : DC 5 V, 500 mA Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 15 SUBPART C ANSI C63.10:2013 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade District, Taoyuan City 33465, Taiwan (R.O.C.) Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm A Test Lab Techno Corp. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by A Test Lab Techno Corp. based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved By ： (Manager) (Ken Yang) Report Number2102FR23 Rev.01 Page 3 of 31 TABLE OF CONTENTS 1 General Information ................................................................................................... 5 1.1. Summary of Test Result ....................................................................................... 5 1.2. Measurement Uncertainty .................................................................................... 6 2 EUT Description ......................................................................................................... 7 3 Test Methodology ...................................................................................................... 8 3.1. Mode of Operation ............................................................................................... 8 3.2. EUT Test Step ...................................................................................................... 8 3.3. Configuration of Test System Details ................................................................... 9 3.4. Test Instruments ................................................................................................ 11 3.5. Test Site Environment ........................................................................................ 12 4 Measurement Procedure ......................................................................................... 13 4.1. AC Power Line Conducted Emission Measurement .......................................... 13 4.2. Radiated Emission Measurement ...................................................................... 15 4.3. Frequency Stability Measurement ...................................................................... 19 4.4. 20 dB Bandwidth Measurement ......................................................................... 20 4.5. Antenna Requirement ........................................................................................ 21 5 Test Results ............................................................................................................. 22 Annex A. Conducted Emission ................................................................................... 22 Annex B. Conducted Test Results .............................................................................. 24 Annex C. Radiated Emission Measurement .............................................................. 26 Report Number2102FR23 Rev.01 Page 4 of 31 1 General Information 1.1. Summary of Test Result Standard Item Results Remark 15.203 Antenna Requirement Meet Require --- 15.207(a) Conducted Emissions Voltage PASS --- 15.225 (a), (b), (c), (d) 15.209 Radiated Emission Limits PASS --- 15.225(e) Frequency Stability PASS --- 15.215(c) 20 dB Bandwidth ----- --- CFR 47 Part 15.225 / ANSI C63.10:2013 Standard Description CFR47, Part 15, Subpart C Intentional Radiators ANSI C63. 10: 2013 American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices Decision Rule ■ Uncertainty is not included. □ Uncertainty is included. Report Number2102FR23 Rev.01 Page 5 of 31 1.2. Measurement Uncertainty Test Item Frequency Range Uncertainty Conducted Emission 150 kHz ~ 30 MHz 2.68 Radiated Emission 9 kHz ~ 30 MHz 2.14 30 MHz ~ 1000 MHz 4.99 1000 MHz ~ 18000 MHz 4.99 18000 MHz ~ 26500 MHz 4.23 26500 MHz ~ 40000 MHz 4.39 RF Bandwidth 4.79 % Frequency Stability 4.1 x 10^-8 Report Number2102FR23 Rev.01 Page 6 of 31 2 EUT Description Applicant Uniform Industrial Corp. 2901 Bayview Dr, Fremont, CA 94538 Manufacturer Uniform Industrial Corp. 2901 Bayview Dr, …

Text truncated - open the document above for the full version.

Test Setup Photographs Conducted Emissions Test Configuration: Front View Rear View 晶 復 科 技 股 份 有 限 公 司 A Test Lab Techno Corp. Report Number2102FR23 Rev.00 1 3 Radiated Emissions Test Configuration: 9 kHz ~ 30 MHz _ Front View 9 kHz ~ 30 MHz _ Rear View 晶 復 科 技 股 份 有 限 公 司 A Test Lab Techno Corp. Report Number2102FR23 Rev.00 2 3 30 MHz ~ 1 GHz _ Front View 30 MHz ~ 1 GHz _ Rear View 晶 復 科 技 股 份 有 限 公 司 A Test Lab Techno Corp. Report Number2102FR23 Rev.00 3 3
