TFJNPOSJUNIORMobile POS Tablet

Page 1 Mobile POS Tablet nPOS Junior This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. FCC ID:TFJNPOSJUNIOR Specific absorption rate (SAR): This PocketBoo k Color meets the government’s requirements for exposure to radio waves. The guidelines are based on standards developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a margin of safety designed to ensure the safety of all people regardless of their age or health. The FCC Statement of Exposure to RF and the SAR limit for the United States (FCC) is 1.6 W/kg average for each gram of tissue. This device was tested for typical operations of use on the body, with the back of the phone at 0 mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a distance of 0 mm between the user’s body and the back of the phone. The use of belt clips, covers and similar accessories must not contain metallic components in their assembly. The use of accessories that do not meet these requirements may not meet FCC RF exposure requirements and should be avoided. Functioning in the body Page 2 This device was tested for typical operations of use in the body. To comply with RF exposure requirements, a minimum separation distance of 0mm must be maintained between the user’s body and the telephone, including the antenna. Third-party accessories such as belt clips. covers and similar accessories used with this device should not contain metallic components, accessories that do not meet these RF exposure requirements and should be avoided from use on the body. Use only the supplied antenna or an approved antenna. Specification model name nPOS JR Dimensions 257.9*173.3*25.6mm CPU Z8350 Display 10.1" 1280*800, IPS TP Capacitive 10 Points, >=6H Memory LPDDR3 4GB EMMC 64GB Rear Camera >=2M Battery >=26.6Wh Wifi >2.4G 2.4GH/5GHz, 802.11a/b/g/n/ac Bluetooth BT >= 4.2 Speaker *1 Microphone *1 USB OUTPUT >=5V/1A Adapter 5V/4A Drop test 60cm drop pass on concrete floor Page 3 OS Windows 10 IOT/Windows 10 Pro 64bit (Default) ESD System – 4KV contact / 8KV air; Payment reader – 8KV contact / 15KV air Installation guide 1 Take tablet out of box 2 Press the power button to turn on your tablet. 3. Windows starts and guides you through the setup process. During setup you’ll connect to a wireless network and choose a language, color scheme, and name for your tablet. Basic operation Lock screen When you wake your tablet, the battery status appears in the lower-right corner of the lock screen Desktop taskbar On the desktop, select the battery status icon on the right side of the taskbar. The battery status pane shows the charging level for both batteries. Off or shut down Go to Start , and select Power > Shut down. Restart Go to Start , and select Power > Restart. Touchscreen You can use your fingers on the touchscreen just as you would on a smartphone. For example, drag your finger across the screen to scroll. There’s also a built-in on-screen keyboard you can use. Go to Start Select Start in the taskbar or press the Start key on your keyboard to open the Start menu. In the lower-left corner, you'll find quick links to File Explorer, Settings, Power (shut down, sleep, and restart), and All apps. The apps you've used most often appear at the upper left. Your name and profile picture appear at the top left. Select them to change your account settings, lock the screen, or sign out. Action center Swipe in from the right edge of the screen or select Action center in the Page 4 taskbar to open the Action center. Search Search is always ready for you. Select the search box in the taskbar. Learn more at Search for anything, anywhere on Windows.com.

C5266091_X8_Ed.1 1/1 Letter of Authorization < Uniform Industrial Corp. > Company: Uniform Industrial Corp. Address: 2901 Bayview Dr.Fremont, CA 94538 Product Name: Mobile POS Tablet Model Number: nPOS Junior FCC Identifier: TFJNPOSJUNIOR We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Robin Tang Date: 01/25/2021 Title: Director of Engineering Signature of applicant:

C5266091_X10_Ed.2 1/1 < Uniform Industrial Corp. > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-01-25 Subject: Request for Confidentiality FCC ID: TFJNPOSJUNIOR To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No Block Diagram ☐ Schematics ☐ Test Report No No Test Setup Photos No User’s Manual ☐ NOTE 1 Internal Photos ☐ NOTE 1 Parts List / Tune Up / BOM List ☐ RF Exposure Info No No Operational Description/ FCC Software Security Requirements for UNII devices ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of _180_ days from the date of the Grant of Equipment Authorization and prior to marketing. C5266091_X10_Ed.2 1/1 It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Robin Tang Title: Director of Engineering

FCC Software Configuration Control Declaration Uniform Industrial Corp. FCC Software Configuration Control Declaration Date: February 27, 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number:Mobile POS Tablet / nPOS Junior Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” W e declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Robin Tang Date: 2021/01/25 Title:Director of Engineering Signatureof applicant

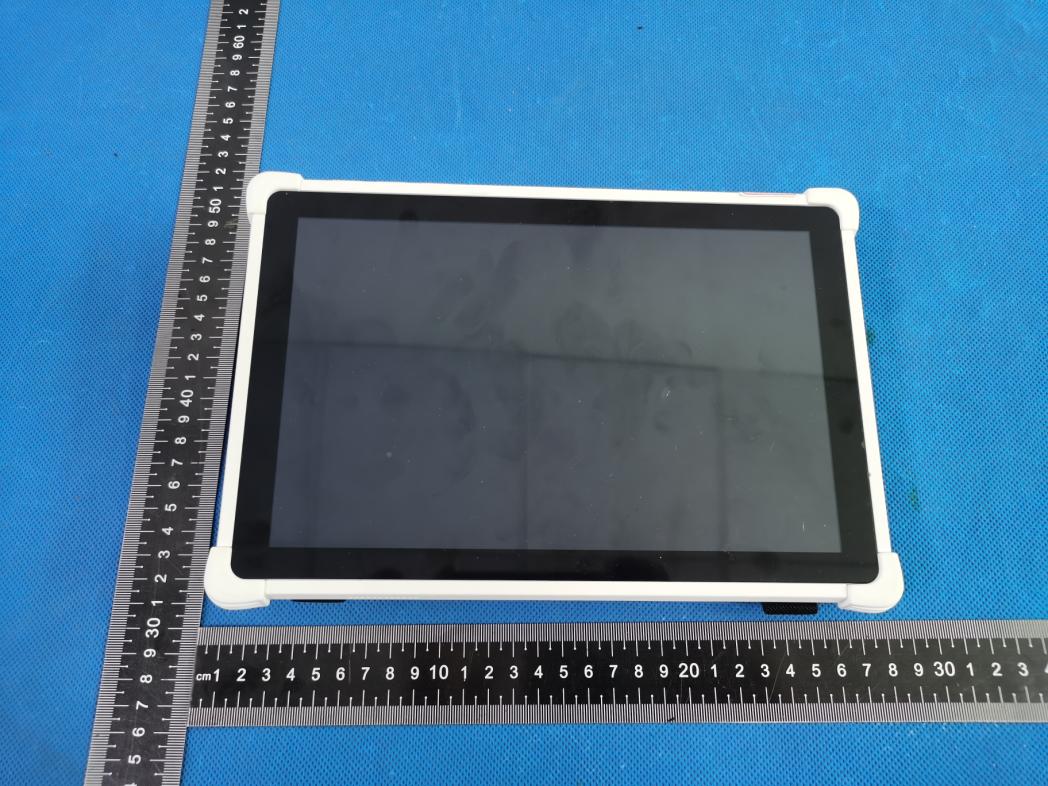

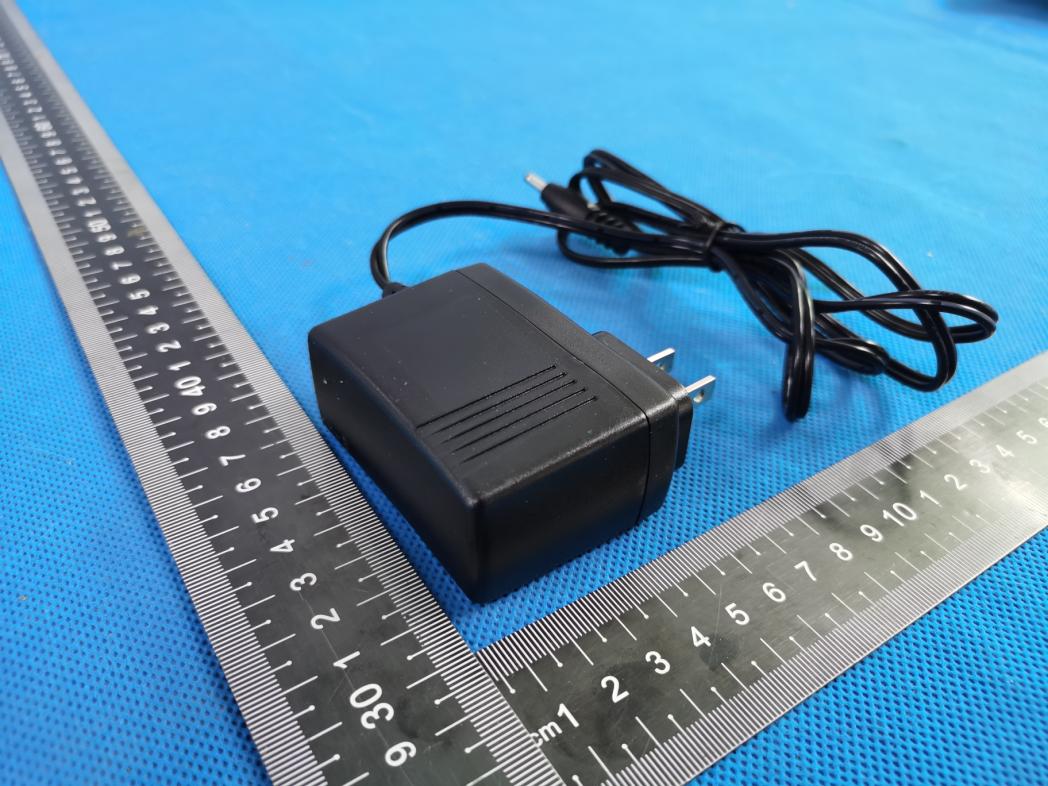

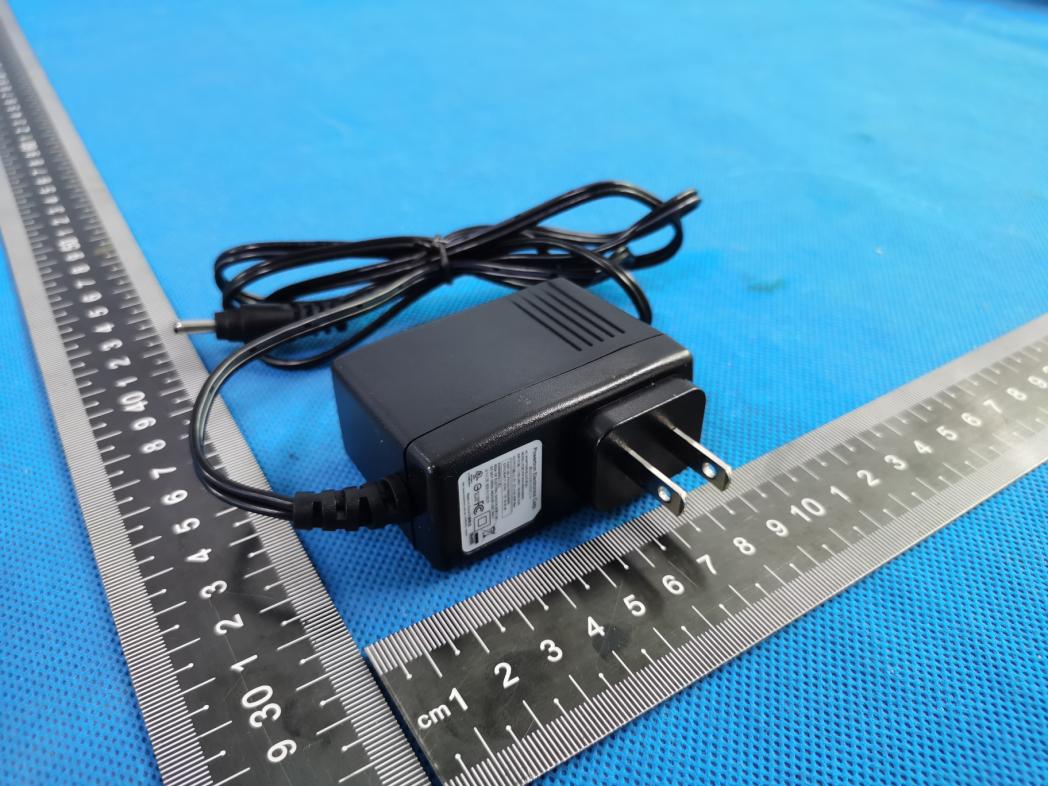

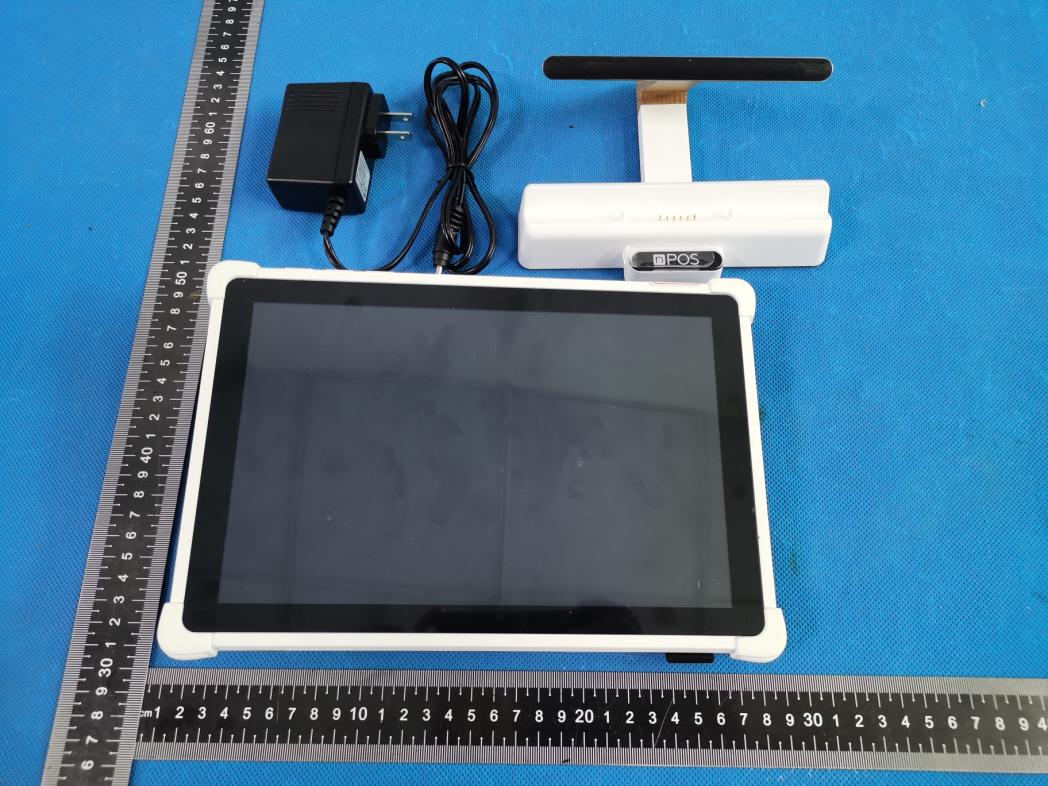

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

nPOS Jr_Label 黏貼位置 MADE IN TAIWAN HW # : XXXXXXXXXXXX Model : nPOS Junior This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference that may cause undesired operation. S/N : 289YYMMPXXXX FCC ID : TFJNPOSJUNIOR Input : DC5V 4A Product : Mobile POS Tablet

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Z8350 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 Photo 19 Photo 20 Photo 21 Photo 22 RFID ANT Photo 23 Photo 24 WIFI2.4G/5 G Main ANT Photo 25 WIFI2.4G/5G/ BT AUX ANT

Page 1 of 99 Report No.: S20102601203001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Mobile POS Tablet Trademark： UIC Model Name： nPOS Junior Family Model： N/A Report No.： S20102601203001 FCC ID： TFJNPOSJUNIOR Prepared for Uniform Industrial Corp. 2901 Bayview Dr.Fremont, CA 94538 Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel.: 400-800-6106, 0755-3699 5508 Website: http://www.ntek.org.cn Page 2 of 99 Report No.: S20102601203001 TEST RESULT CERTIFICATION Applicant’s name .................. : Uniform Industrial Corp. Address .................................. : 2901 Bayview Dr.Fremont, CA 94538 Manufacturer's Name ........... : Uniform Industrial Corp. Address .................................. : 1F.,No1,Ln.15,Ziqiang St.,TuchengDist.,New Taipei City 236,R.O.C. Product description Product name ......................... : Mobile POS Tablet Trademark ............................ : UIC Model Name ......................... : nPOS Junior Family Model .......................... : N/A Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ............. : Dec. 15, 2020 ~ Dec. 18, 2020 Date of Issue .......................................... : Jan. 06, 2021 Test Result .............................................. : Pass Prepared By (Test Engineer) : (Cheng Jiawen) Approved By (Lab Manager) : (Alex Li) Page 3 of 99 Report No.: S20102601203001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Jan. 06, 2021 Cheng Jiawen Page 4 of 99 Report No.: S20102601203001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 8 1.5. Ambient Condition ................................................................................... 8 2. SAR Measurement System ................................................................................... 9 2.1. SATIMO SAR Measurement Set-up Diagram ............................................ 9 2.2. Robot ..................................................................................................... 10 2.3. E-Field Probe .......................................................................................... 11 2.3.1. E-Field Probe Calibration ................................................................. 11 2.4. SAM phantoms ...................................................................................... 12 2.4.1. Technical Data .................................................................................. 13 2.5. Device Holder ........................................................................................ 14 2.6. Test Equipment List ................................................................................ 15 3. SAR Measurement Procedures .......................................................................... 17 3.1. Power Reference ................................................................................... 17 3.2. Area scan & Zoom scan .......................................................................... 17 3.3. Description of interpolation/extrapolation scheme .............................. 19 3.4. Volumetric Scan ..................................................................................... 19 3.5. Power Drift ............................................................................................ 19 4. System Verification Procedure .......................................................................... 20 4.1. Tissue Verification ................................................................................. 20 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 21 4.2. System Verification Procedure .............................................................. 22 4.2.1. System Verification Results .............................................................. 23 5. SAR Measurement variability and uncertainty .................................................. 24 5.1. SAR measurement variability ................................................................. 24 5.2. SAR measurement uncertainty .............................................................. 24 6. RF Exposure Positions ........................................................................................ 25 6.1. Tablet host platform exposure conditions ............................................. …

Text truncated - open the document above for the full version.

Page 71 of 99 Report No.: S20102601203001 Page 72 of 99 Report No.: S20102601203001 Page 73 of 99 Report No.: S20102601203001 Page 74 of 99 Report No.: S20102601203001 Page 75 of 99 Report No.: S20102601203001 Page 76 of 99 Report No.: S20102601203001 Page 77 of 99 Report No.: S20102601203001 Page 78 of 99 Report No.: S20102601203001 Page 79 of 99 Report No.: S20102601203001 Page 80 of 99 Report No.: S20102601203001 Page 81 of 99 Report No.: S20102601203001 Page 82 of 99 Report No.: S20102601203001 Page 83 of 99 Report No.: S20102601203001 Page 84 of 99 Report No.: S20102601203001 Page 85 of 99 Report No.: S20102601203001 Page 86 of 99 Report No.: S20102601203001 Page 87 of 99 Report No.: S20102601203001 Page 88 of 99 Report No.: S20102601203001 Page 89 of 99 Report No.: S20102601203001 <Justification of the extended calibration> If dipoles are verified in return loss (<-20dB, within 20% of prior calibration for below 3GHz, and <-8dB, within 20% of prior calibration for 5GHz to 6GHz), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Head 2450MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -28.15 - 53.9 - Apr. 19, 2018 -26.296 6.586 54.99 1.09 Apr. 18, 2019 -26.456 6.018 54.65 0.75 Apr. 17, 2020 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 90 of 99 Report No.: S20102601203001 Page 91 of 99 Report No.: S20102601203001 <Body 2450MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -22.99 - 57.6 - Apr. 19, 2018 -20.498 10.840 56.16 1.44 Apr. 18, 2019 -20.400 11.266 56.31 1.29 Apr. 17, 2020 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 92 of 99 Report No.: S20102601203001 <Head 5200MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -8.23 - 26.31 - Apr. 19, 2018 -8.317 1.057 26.673 0.363 Apr. 18, 2019 -8.200 0.365 26.412 0.102 Apr. 17, 2020 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 93 of 99 Report No.: S20102601203001 <Body 5200MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -9.40 - 97.78 - Apr. 19, 2018 -9.090 3.298 98.293 0.513 Apr. 18, 2019 -9.022 4.021 98.688 0.908 Apr. 17, 2020 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 94 of 99 Report No.: S20102601203001 <Head 5400MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -12.02 - 83.38 - Apr. 19, 2018 -12.078 0.483 82.812 0.568 Apr. 18, 2019 -12.040 0.166 82.122 1.258 Apr. 17, 2020 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 95 of 99 Report No.: S20102601203001 <Body 5400MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -12.11 - 32.53 - Apr. 19, 2018 -12.218 0.892 33.434 0.904 Apr. 18, 2019 -12.188 0.644 33.894 1.364 Apr. 17, 2020 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 96 of 99 Report No.: S20102601203001 <Head 5600MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -14.04 - 33.47 - Apr. 19, 2018 -14.081 0.292 33.566 0.096 Apr. 18, 2019 -14.201 1.147 33.646 0.176 Apr. 17, 2020 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 97 of 99 Report No.: S20102601203001 <Body 5600MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -14.73 - 67.48 - Apr. 19, 2018 -14.811 0.550 68.268 0.788 Apr. 18, 2019 -14.860 0.883 68.224 0.744 Apr. 17, 2020 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 98 of 99 Report No.: S20102601203001 <Head 5800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -12.03 - 59.85 - Apr. 19, 2018 -12.638 5.054 55.318 4.532 Apr. 18, 2019 -12.808 6.467 55.209 4.641 Apr. 17, 2020 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 99 of 99 Report No.: S20102601203001 <Body 5800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -12.37 - 36.66 - Apr. 19, 2018 -12.103 2.158 38.023 1.363 Apr. 18, 2019 -12.203 1.350 38.143 1.483 Apr. 17, 2020 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data _____________________________________ END_______________________________________

FCC ID: TFJNPOSJUNIOR Test Positions Front Side (Separation distance of 0mm) Back Side (Separation distance of 0mm) Right Side (Separation distance of 0mm) Top Side (Separation distance of 0mm) END

Report No.: S20102601202004 Version.1.2 Page 1 of 86 FCC RADIO TEST REPORT FCC ID: TFJNPOSJUNIOR Product: Mobile POS Tablet Trade Mark: N/A Model No.: nPOS Junior Family Model: N/A Report No.: S20102601202004 Issue Date: 12 Jan. 2021 Prepared for Uniform Industrial Corp. 2901 Bayview Dr.Fremont, CA 94538 Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District Shenzhen, Guangdong, China Tel.: 400-800-6106, 0755-3699 5508 Website:http://www.ntek.org.cn Report No.: S20102601202004 Version.1.2 Page 2 of 86 TEST RESULT CERTIFICATION Applicant’s name ...................... : Uniform Industrial Corp. Address ....................................... : 2901 Bayview Dr.Fremont, CA 94538 Manufacturer's Name ................ : Uniform Industrial Corp. Address ....................................... : 1F.,No1,Ln.15,Ziqiang St.,TuchengDist.,New Taipei City 236,R.O.C. Product description Product name .............................. : Mobile POS Tablet Model and/or type reference ..... : nPOS Junior Family Model ............................... : N/A Standards ................................... : FCC Part15.407 Test procedure ................................. : ANSI C63.10-2013 and KDB 789033 D02 General UNII Test Procedures New Rules v02r01 FCC KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 KDB 905462 D03 Client Without DFS New Rules v01r02 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ................................................... : Date (s) of performance of tests .................... : 15 Dec. 2020 ~ 08 Jan. 2021 Date of Issue .................................................. : 12 Jan. 2021 Test Result ...................................................... : Pass Testing Engineer : (Allen Liu) Technical Manager : (Jason Chen) Authorized Signatory : (Alex Li) Report No.: S20102601202004 Version.1.2 Page 3 of 86 Table of Contents Page 1. SUMMARY OF TEST RESULTS 7 1.1 FACILITIES AND ACCREDITATIONS 8 1.2 MEASUREMENT UNCERTAINTY 8 1 . GENERAL INFORMATION 9 1.1 GENERAL DESCRIPTION OF EUT 9 1.2 DESCRIPTION OF TEST MODES 11 1.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 1.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 13 1.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 14 2 . EMC EMISSION TEST 16 2.1 CONDUCTED EMISSION MEASUREMENT 16 2.1.1 APPLICABLE STANDARD 16 2.1.2 CONFORMANCE LIMIT 16 2.1.3 TEST CONFIGURATION 16 2.1.4 TEST PROCEDURE 16 2.2 RADIATED EMISSION MEASUREMENT 25 2.2.1 APPLICABLE STANDARD 25 2.2.2 CONFORMANCE LIMIT 25 2.2.3 MEASURING INSTRUMENTS 25 2.2.4 TEST CONFIGURATION 26 2.2.5 TEST PROCEDURE 27 2.2.6 TEST RESULTS (9KHZ – 30 MHZ) 28 2.2.7 TEST RESULTS (30MHZ – 1GHZ) 29 2.2.8 TEST RESULTS (1GHZ-18GHZ) 37 2.2.9 TEST RESULTS (18GHZ-40GHZ) 45 3 . POWER SPECTRAL DENSITY TEST 56 3.1 APPLIED PROCEDURES / LIMIT 56 3.2 TEST PROCEDURE 57 3.3 DEVIATION FROM STANDARD 57 3.4 TEST SETUP 57 3.5 EUT OPERATION CONDITIONS 57 3.6 TEST RESULTS 58 4 . 26DB & 99% EMISSION BANDWIDTH 59 4.1 APPLIED PROCEDURES / LIMIT 59 4.2 TEST PROCEDURE 59 Report No.: S20102601202004 Version.1.2 Page 4 of 86 Table of Contents Page 4.3 EUT OPERATION CONDITIONS 60 4.4 TEST RESULTS 60 5 . MINIMUM 6 DB BANDWIDTH 61 5.1 APPLIED PROCEDURES / LIMIT 61 5.2 TEST PROCEDURE 61 5.3 DEVIATION FROM STANDARD 61 5.4 TEST SETUP 61 5.5 EUT OPERATION CONDITIONS 61 5.6 TEST RESULTS 62 6 . MAXIMUM CONDUCTED OUTPUT POWER 63 6.1 PPLIED PROCEDURES / LIMIT 63 6.2 TEST PROCEDURE 63 6.3 DEVIATION FROM STANDARD 64 6.4 TEST SETUP 64 6.5 EUT OPERATION CONDITIONS 64 6.6 TEST RESULTS 65 7 . OUT OF BAND EMISSIONS 66 7.1 APPLICABLE STANDARD 66 7.2 TEST PROCEDURE 66 7.3 DEVIATION FROM STANDARD 66 7.4 TEST SETUP 67 7.5 EUT OPERATION CONDITIONS 67 7.6 TEST RESULTS 68 8. FREQUENCY STABILITY MEASUREMENT 69 8.1 LIMIT 69 8.2 TEST PROCEDURES 69 8.3 TEST SETUP LAYOUT 69 8.4 EUT OPERATION DURING TEST 69 8.5 TEST RESULTS 70 9. DYNAMIC FREQUENCY SELECTION(DFS) 82 9.1 APPLICABILITY OF DFS REQUIREMENTS 82 9.2 INTERFERENCE THRESHOLD VALUES, MASTER OR CLIENT INCORPORATING IN-SERVICE MONITORING 82 Report No.: S20102601202004 Version.1.2 Page 5 of 86 Table of Contents Page 9.3 DFS RESPONSE REQUIREMENT VALUES 83 9.4 SHORT PULSE RADAR TEST WAVEFORMS 83 9.5 CALIBRATION SETUP AND DFS TEST RESULTS 84 9.6 CONDUCTED CALIBRATION SETUP 84 9.7 RADAR WAVEFORM CALIBRATION RESULT 84 9.8 IN-SERVICE MONITORING: CHANNEL MOVE TIME, CHANNEL CLOSING TRANSMISSION TIME AND NON-OCCUPANCY PERIOD 85 9.9 RESULT OF CHANNEL MOVE TIME, CHANNEL CLOSING TRANSMISSION TIME AND NON-OCCUPANCY PERIOD FOR CLIENT BEACON TEST 85 10. ANTENNA REQUIREMENT 86 10.1 STANDARD REQUIREMENT 86 10.2 EUT ANTENNA 86 Report No.: S20102601202004 Version.1.2 Page 6 of 86 Revision History Report No. Version Description Issued Date S20102601202004 Rev.01 Initial issue of report 12 Jan. 2021 Report No.: S20102601202004 Version.1.2 Page 7 of 86 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.407) , Subpart E Standard Section Test Item Judgment Remark 15.207 AC Power Line Conducted Emissions PASS 15.209(a), 15.407 (b)(1) 15.407 (b)(2) 15.407 (b)(3) 15.407 (b)(4) 15.407 (b)(6) Spurious Radiated Emissions PASS 15.407 (a) 26 dB and 99% Emission Bandwidth PASS 15.407(e) Minimum 6 dB bandwidth PASS 15.407 (a) Maximum Conducted Output Power PASS 15.407 (b)(1) 15.407 (b)(2) 15.407 (b)(3) 15.407 (b)(4) Band Edge PASS 15.407 (a) Power Spectral Density PASS 15.407(b) Spurious Emissions at Antenna Terminals PASS 15.407(g) Frequency Stability Measurement PASS 15…

Text truncated - open the document above for the full version.

Report: S20102601202003 Page 1 of 378 5.2G: Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT a 5180 Ant1 100 0 NVNT a 5200 Ant1 100 0 NVNT a 5240 Ant1 100 0 NVNT a 5180 Ant2 100 0 NVNT a 5200 Ant2 100 0 NVNT a 5240 Ant2 100 0 NVNT ac20 5180 Ant1 99.17 0.04 NVNT ac20 5200 Ant1 99.16 0.04 NVNT ac20 5240 Ant1 99.21 0.03 NVNT ac20 5180 Ant2 94.01 0.27 NVNT ac20 5200 Ant2 94.01 0.27 NVNT ac20 5240 Ant2 93.99 0.27 NVNT ac40 5190 Ant1 98.42 0.07 NVNT ac40 5230 Ant1 98.35 0.07 NVNT ac40 5190 Ant2 90.31 0.44 NVNT ac40 5230 Ant2 90.27 0.44 NVNT ac80 5210 Ant1 96.73 0.14 NVNT ac80 5210 Ant2 96.71 0.15 NVNT n20 5180 Ant1 100 0 NVNT n20 5200 Ant1 99.18 0.04 NVNT n20 5240 Ant1 99.21 0.03 NVNT n20 5180 Ant2 100 0 NVNT n20 5200 Ant2 99.22 0.03 NVNT n20 5240 Ant2 99.23 0.03 NVNT n40 5190 Ant1 98.35 0.07 NVNT n40 5230 Ant1 98.36 0.07 NVNT n40 5190 Ant2 98.44 0.07 NVNT n40 5230 Ant2 98.45 0.07 Report: S20102601202003 Page 2 of 378 Duty Cycle NVNT a 5180MHz Ant1 Duty Cycle NVNT a 5200MHz Ant1 Report: S20102601202003 Page 3 of 378 Duty Cycle NVNT a 5240MHz Ant1 Duty Cycle NVNT a 5180MHz Ant2 Report: S20102601202003 Page 4 of 378 Duty Cycle NVNT a 5200MHz Ant2 Duty Cycle NVNT a 5240MHz Ant2 Report: S20102601202003 Page 5 of 378 Duty Cycle NVNT ac20 5180MHz Ant1 Duty Cycle NVNT ac20 5200MHz Ant1 Report: S20102601202003 Page 6 of 378 Duty Cycle NVNT ac20 5240MHz Ant1 Duty Cycle NVNT ac20 5180MHz Ant2 Report: S20102601202003 Page 7 of 378 Duty Cycle NVNT ac20 5200MHz Ant2 Duty Cycle NVNT ac20 5240MHz Ant2 Report: S20102601202003 Page 8 of 378 Duty Cycle NVNT ac40 5190MHz Ant1 Duty Cycle NVNT ac40 5230MHz Ant1 Report: S20102601202003 Page 9 of 378 Duty Cycle NVNT ac40 5190MHz Ant2 Duty Cycle NVNT ac40 5230MHz Ant2 Report: S20102601202003 Page 10 of 378 Duty Cycle NVNT ac80 5210MHz…
