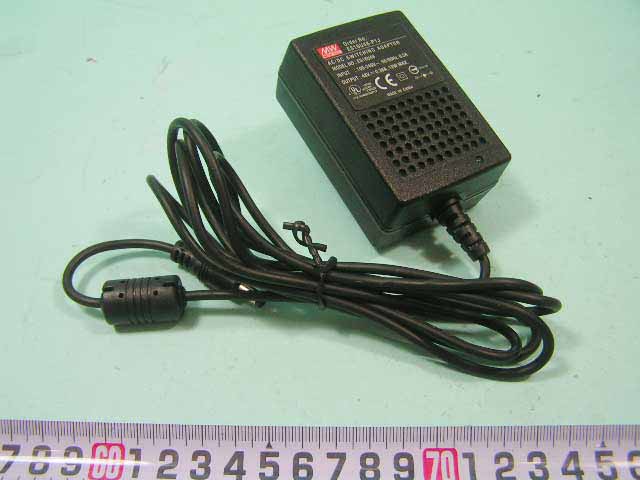

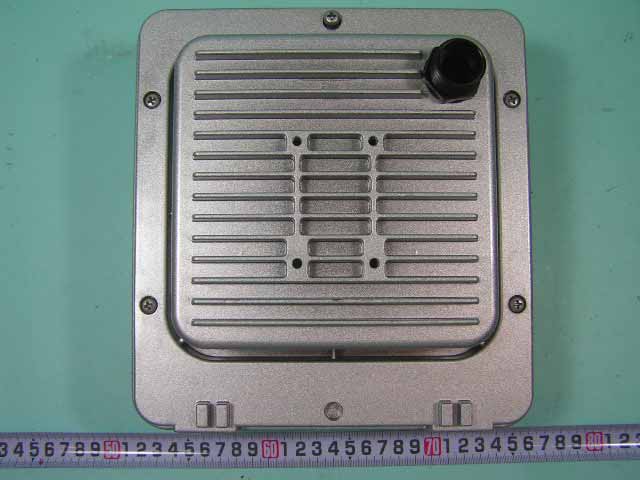

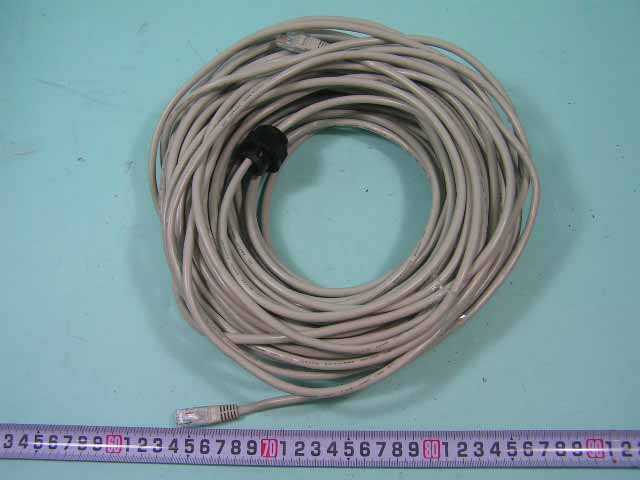

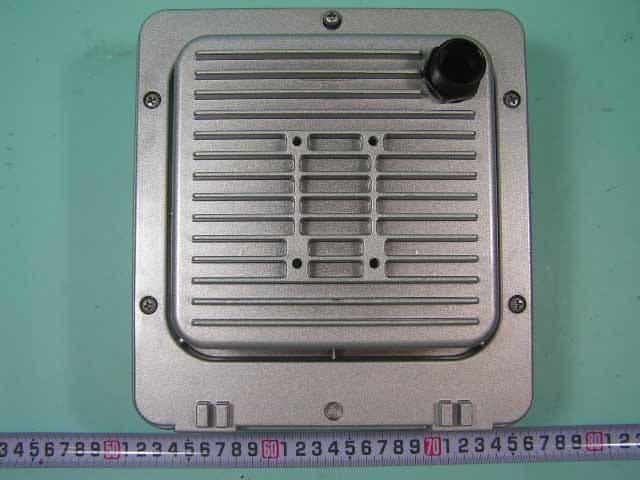

SPORTON International Inc. PAGE NUMBER : A1 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A12 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A13 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A14 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A15 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A16 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A17 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A18 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A19 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A20 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A21 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A22 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2005 FAX : 886-2-2696-2255

FCC ID: TJI-6900 Description of Operation EUT is a Wireless Bridge with 11 channels. This device provided 1/2/5.5/11/12/18/24/36/54 Mbps of transmitting speed. The device of RF carrier is DQPSK, DBPSK, CCK and OFDM. The device adapts direct sequence spread spectrum modulation. The antenna is Panel Antenna. This Wireless Bridge is 2.4GHz IEEE 802.11b/g-compliant Wireless Bridge/AP/AP Client. It is allowed to be the hard-caore of wireless LAN. The use is to transmit the high data rate of buildings to buildings or communities to communities. Operation in 2.4GHz Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplex-ing (OFDM) radio transmission, the Wireless Bridge transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm.

FCC ID: TJI-6900 Issued on Aug. 23, 2005 Report No.: FR580215 SPORTON International Inc. Page No. : 57 of 63 TEL : 886-2-2696-2468 Issued Date : Aug. 23, 2005 FAX : 886-2-2696-2255 5.8. RF Exposure 5.8.1. Limit For Maximum Permissible Exposure (MPE) This product can be classified as mobile device, so the 20cm separation distance warning is required. In this section, the power density at 20cm location is calculated to examine if it is lower than the limit. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm²) Averaging Time |E|²,|H|² or S ( minutes ) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 F = frequency in MHz *Plane-wave equivalent power density 5.8.2. MPE Calculation Method E (V/m) d GP××30 Power Density: Pd (mW/cm²) 377 2 E E Electric field (V/m) P Peak RF output power (mW) G EUT Antenna numeric gain (numeric) d Separation distance between radiator and human body ( cm) The formula can be changed to Pd 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=20cm, as well as the gain of the used antenna, the RF power density can be obtained. FCC ID: TJI-6900 Issued on Aug. 23, 2005 Report No.: FR580215 SPORTON International Inc. Page No. : 58 of 63 TEL : 886-2-2696-2468 Issued Date : Aug. 23, 2005 FAX : 886-2-2696-2255 5.8.3. Calculated Result and Limit ‚ Temperature: 25°C ‚ Relative Humidity: 60% ‚ Duty Cycle of the Equipment During the Test: 100.00% ‚ Test Engineer: Eason Lu Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) 17 50.1187 12.1800 16.5196 0.164797 1

FCC ID: TJI-6900 Issued on Aug. 23, 2005 Report No.: FR580215 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT CATEGORY : Mobile PRODUCT NAME : 2.4GHz Long Range Wireless LAN Access Point / Bridge FCC ID. : TJI-6900 FILING TYPE : Certification MODEL NAME : KW6917;KW6919 BRAND NAME : KINGWAVE APPLICANT : KINGWAVE TECHNOLOGY CO., LTD. 18F-3, No. 186, Jian-Yi Road, Chung-Ho City, Taipei, Taiwan MANUFACTURER : KINGWAVE TECHNOLOGY CO., LTD. 18F-3, No. 186, Jian-Yi Road, Chung-Ho City, Taipei, Taiwan ISSUED BY : SPORTON INTERNATIONAL INC. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. Statements: The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. Certificate or Test Report could not be used by the applicant to claim the product endorsement by NVLAP and any agency of U.S. government. The test equipment used to perform the test is calibrated and traceable to NML/ROC or NIST/USA. Lab Code: 200079-0 FCC ID: TJI-6900 Issued on Aug. 23, 2005 Report No.: FR580215 SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Issued Date : Aug. 23, 2005 FAX : 886-2-2696-2255: Table of Contents HISTORY OF THIS TEST REPORT .....................................................................................................................II CERTIFICATE OF COMPLIANCE.......................................................................................................................III 1. GENERAL DESCRIPTION OF EQUIPMENT UNDER TEST...........................................................................1 1.1. Applicant ......................................................................................................................................................................................... 1 1.2. Manufacturer ................................................................................................................................................................................... 1 1.3. Basic Description of Equipment under Test.................................................................................................................................... 1 1.4. Features of Equipment under Test ................................................................................................................................................. 1 1.5. Antenna Description........................................................................................................................................................................ 2 1.6. Table for Carrier Frequencies ......................................................................................................................................................... 2 2. TEST CONFIGURATION OF THE EQUIPMENT UNDER TEST .....................................................................3 2.1. Connection Diagram of Test System .............................................................................................................................................. 3 2.2. The Test Mode Description............................................................................................................................................................. 5 2.3. Description of Test Supporting Units .............................................................................................................................................. 5 3. GENERAL INFORMATION OF TEST ..............................................................................................................6 3.1. Test Facility ..................................................................................................................................................................................... 6 3.2. Standards for Methods of Measurement......................................................................................................................................... 6 3.3. DoC Statement ............................................................................................................................................................................... 6 3.4. Frequency Range Investigated ....................................................................................................................................................... 6 3.5. Test Distance .................................................................................................................................................................................. 6 3.6. Test Software .................................................................................................................................................................................. 6 4. LIST OF MEASUREMENTS .............................................................................................................................7 4.1. Summary of the Test Results.......................................................................................................................................................... 7 5. TEST RESULT ..................................................................................................................................................8 5.1. Test of 6dB Spectrum Bandwidth ................................................................................................................................................... 8 5.2. Test of Maximum Peak Conducted Output Power........................................................................................................................ 13 5.3. Test of Peak Power Spectral Density ........................................................................................................................................... 15 5.4. Test of Band Edges Emission.........................................…

Text truncated - open the document above for the full version.

FCC ID: TJI-6900 Issued on Aug. 23, 2005 Report No.: FR580215 SPORTON International Inc. Page No. : 36 of 63 TEL : 886-2-2696-2468 Issued Date : Aug. 23, 2005 FAX : 886-2-2696-2255 5.5.8. Photographs of Conducted Emission Test Configuration FRONT VIEW REAR VIEW FCC ID: TJI-6900 Issued on Aug. 23, 2005 Report No.: FR580215 SPORTON International Inc. Page No. : 55 of 63 TEL : 886-2-2696-2468 Issued Date : Aug. 23, 2005 FAX : 886-2-2696-2255 5.6.11. Photographs of Radiated Emission Test Configuration FRONT VIEW REAR VIEW
