TJI-KW2430SA2.4GHz Digital Transmission System

2.4GHz Digital Transmission system Manual V1.1 To prevent fire or shock hazard, do not expose this device to rain or moisture. Does not use near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool. ►To avoid electrical shock, do not open this device. ►This device should be operated to use only the power supply included with it or provided as an accessory. ►Do not overload wall outlets and extension cords as this can result in the risk of fire or electrical shock. ►Do not attempt to service this device yourself. Refer servicing to qualified personnel only.Reorient or relocate the receiving antenna. ►Increase the separation between the equipment and receiver. ►Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ►Consult the dealer or an experienced radio/TV technician for help. ■ Note: This equipment has been tested and found to comply with Part 15 of the FCC Rules, or R&TTE CE directive. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instruction, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Important-Safety Precautions Notice: The change or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirement and void user's authority to operate the device. -1- -2- Please check the following items inside the box for 2.4Ghz Digital Video Transmission System, and contact your dealer if anything is missing: 1. Products body A.What is inside the Box? and Single Receiver x 14CH Multi Transmitter x 1 2. Accessory: for multi receiver or single receiver Refer to the following photo, from left to right: Antennas x 1 AV cables x 1(1RCA plug to 1RCA plug) Power Adaptor x 1(100V ~ 240V AC, DC 12V/0.5A or 5V/1.2A in Jack) 4. This user manual 3. Accessory for digital wireless camera Refer to the following photo, from left to right: Antennas x 1 Power Adaptor x 1(100V ~ 240V AC, DC 12V/0.5A in Jack) Bracket with screws x 3 or Digital wireless camera x 1 -3- B.Introduction Thank you for purchasing this 2.4GHz Digital transmission system. This system is a digital wireless receiver/digital wireless CMOS camera that uses 2.4GHz Frequency Hopping technology and GMSK modulation, and each client has an ID for paring to protect personal privacy. Multiple receiver can get max. 4 pcs wireless cameras KW2431 to be quad display on one TV monitor, or connect to DVR BNC input.Single receiver can get only one. 1 pcs wireless cameras KW2431, and display on one TV monitor, or connect to DVR BNC input. There are over billion hopping sequences to minimize interference and deliver consistently an excellent video and audio quality up to 150 meters away (open site and line of sight) Using this 2.4GHz Digital Wireless system, you can enjoy greater convenience and security in many ways: Safety & Security Application: Connect a digital wireless camera as a wireless security system Monitor your sleeping baby, playing children, the elderly, or the disabled on TV by single or multiple receivers See who is outside the door on TV through digital wireless CMOS camera.Monitors and records the meeting from another room. -4- DC Jack for power adaptor DC Jack for power adaptor Power LED AV Jack for Output(RX) Antenna Pairing buttons Power LED Antenna C.Product Layout Front View Back View Antenna Connector For digital wireless camera Front viewBack view Pairing button inside AV Jack for output(RX) MODE PAIR CH -5- D. Multiple Receiver TV monitor 1 x RCA (Video) cables DC 12V or 5V Input Video Out(4CH) Multi Receiver Single Receiver TV Monitor 1 x RCA (Video) cable DC 12 or 5V Input DVR Video Out -6- E.Pairing the digital wireless camera and receivers When you get the digital wireless cameras or receiver, you must pair them before use it, following the instructions as below: 1.Power on the digital wireless camera and receiver by inserting the power adaptor jack. 2.Press the PAIR/CH or PAIR button of receivers and not release until the power LED begin to flash, and the monitor will reveal the picture as below, then release the PAIR/CH button. 3.Press the PAIR button of digital wireless camera once within 30 seconds . They will automatically link to each other by ID code after pairing finished. 4.Please don't turn off their power during the paring status. 5.When pairing successfully, the power LED for both will be lit directly (not flash) Pairing button Pairing button -7- F. : Operations 1.Multiple receiver：long press PAIR/CH button will get into paring mode as E; press PAIR/CH button shortly to switch the display as CAM1 → CAM2 → CAM3 → CAM4 → Quad mode → CAM1...... sequentially by each pressing. 2.Single receiver：long press PAIR button will get into paring mode as E; press PAIR button shortly to switch OSD on/off. 3.Multiple receiver：long press MODE button to get into SCAN mode, it will display CAM1 → CAM2 → CAM3 → CAM4 → CAM1...... automatically every 5 seconds, and press PAIR/CH button to stop; press MODE button shortly to switch OSD on/off. 4. Multiple receiver：long press PAIR/CH and MODE buttons until show up“Erase All Pairing Data” , it will clear the pairing content ,so that it would be quick when you repair G.U…

Text truncated - open the document above for the full version.

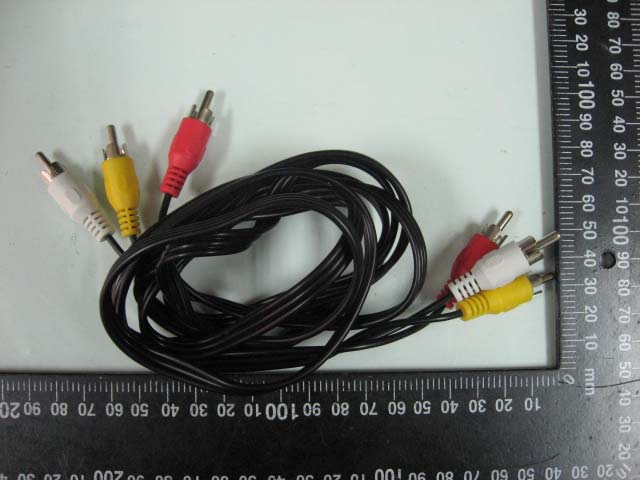

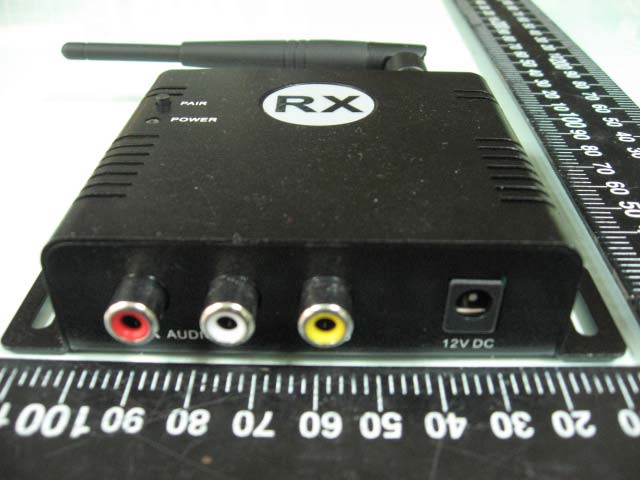

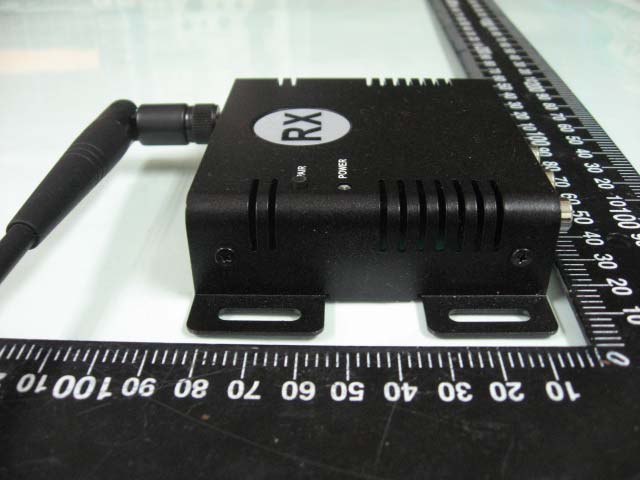

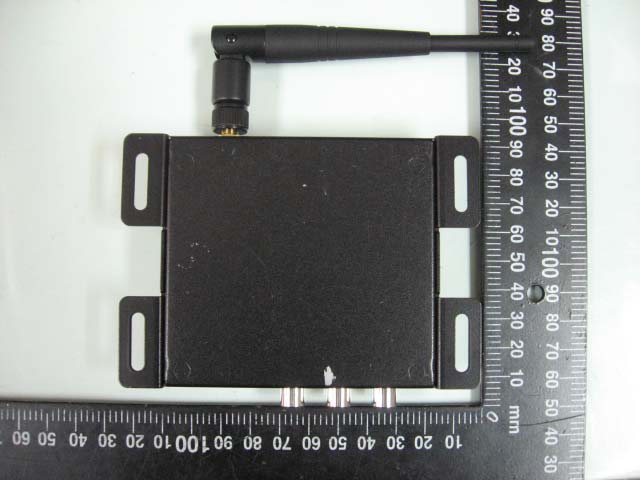

ETC Report No. : 12-01-RBF-056-05 FCC ID.: TJI-KW2430SA Sheet 1 of 8 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT A) Model: KW2430SA 1. 2. ETC Report No. : 12-01-RBF-056-05 FCC ID.: TJI-KW2430SA Sheet 2 of 8 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 3. 4. ETC Report No. : 12-01-RBF-056-05 FCC ID.: TJI-KW2430SA Sheet 3 of 8 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 5. 6. ETC Report No. : 12-01-RBF-056-05 FCC ID.: TJI-KW2430SA Sheet 4 of 8 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 7. ETC Report No. : 12-01-RBF-056-05 FCC ID.: TJI-KW2430SA Sheet 8 of 8 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Adapter 1. Top View of Adapter 2. Lable View of Adapter

50mm X 25mm

ETC Report No. : 12-01-RBF-056-05 FCC ID.: TJI-KW2430SA Sheet 5 of 8 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 8. ETC Report No. : 12-01-RBF-056-05 FCC ID.: TJI-KW2430SA Sheet 6 of 8 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 9. 10. ETC Report No. : 12-01-RBF-056-05 FCC ID.: TJI-KW2430SA Sheet 7 of 8 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 11. 12.

承 認 書 SPECIFICATION FOR APPROVAL 客 戶 CUSTOMER 日 期 DATE 品 名 DESCRIPTION 客 戶 料 號 CUSTOMER P/N 成 品 編 號 Part NO. 萬旭電業股份有限公司 WANSHIH ELECTRONIC CO., LTD. 台北縣五股鄉五工六路72號3樓 3F 72 WU KONG 6TH RD., WU KU INDUSTRIAL DISTRICT TAIPEI HSIEN, TAIWAN,R.O.C. TEL：(02) 22988066 (5 LINE) FAX：(02)22981102 晶暉科技股份有限公司 2007/12/13 YXW1016A1 WSS001 Dual Band Dipole Antenna with RP-SMA(M)(Black) A2-WSS001-F 5.8G 1 Table of Contents Table of Contents ......... 1 Specification ......... 2 Antenna Drawing ......... 3 Electrical Properties Return Loss ......... 4 V. S . W. R ......... 5 Radiation Pattern ......... 6-7 Material Data Sheet Connector/Sleeve/Rivet ......... 8-28 Coaxial Cable ......... 29-36 Housing ......... 37-43 Hinge ......... 44-49 Heat Shrink Tube ......... 50-54 2 SPECIFICATION 1. Description ：WSS001 Dual Band Dipole Antenna 2. Customer ：晶暉科技股份有限公司 3. Model No. ：WSS001 4. Part No. ：YXW1016A1 5. Standard ：IEEE 802.11a/b/g Wireless LAN 6. Antenna Profile ：137.5 mm (see Drawing) 7. Color ：Black 8. Electrical Characteristics Operating Frequency ：2.4~2.5 & 5.15~5.35 & 5.725~5.85GHz Antenna Type ：Dipole Polarization Type ：Linear Type of Radiation ：Toroidal Peak Gain ：2.0 dBi Typical Impedance ：50 Ohm nominal V.S.W.R. ：2.0:1 Max. 9. Mechanical Characteristics Connector ：RP-SMA(M) Core ：N/A 10. Raw Material Coaxial Cable ：RG-178 Housing ：TPU Hinge ：PC+ALLOY 3 X ±1.0 X.X ±0.5 X.XX ±0.2 ANGULAR ±5.0° TOLERANCES: 郭雅珍郭慧純Jason YXW1016 WSS001 Dual Band Dipole Antenna with RP-SMA(M)(Black) 作業注意： 1. 天線本體，WSW0028A、WSW0055A 天線作業標準指導書規定製作。 依據 AQ-0028A、AQ-0055A QC管理工程圖 ,執行品質管制。 銅管 銅管 A2-WSS001-F 5.8G 環材 10外套 L96<黑>ν B2WSS001L096IT @WSS001 13φ*96L 外套<黑>黑1 或同級品 9熱縮套管ν 53A405002000BC @F34 5.0 黑 L=20mm黑1 或同級品 8銅管 24Lν B248L2400000A5 @4.8φ*24L 銅管<平頭>銀1 或同級品 7銅管 22Lν B252L2200000A5 @5.2φ*22L FOR 178 銅管<平頭>銀1 或同級品 6固定鉚釘(黑鋅)ν B02892200160A5 @028922001-6 4.80*1.95φ固定鉚釘<大>(黑鋅)黑2 或同級品 5下座<黑>ν B130L02550001I @13φ下座 * 25.5L <黑> 黑1 或同級品 4上座<黑>ν B130L02800001I @13φ上座 *28L 孔15.2*7.25 <黑> 黑1 或同級品 3 RP-SMA φ12.5 連接軸 ν B0249AB00000A5 @0249A-B Connector RP-SMA(M) φ12.5 銀銀1 或同級品 2 RP-SMA φ12.5 本體 ν B0249AA00000A5 @0249A-A Body RP-SMA(M) φ12.5 Connector 黑黑1 或同級品 1 RG-178 Coaxial Cable ν 19RG17800030AE @RG-178 CABLE 105SV(萬泰)橙 54 1或同級品 NO材料名稱環材 電腦編號零件規格顏色 切斷尺寸 用量 備註 4 Electrical Properties Return Loss 5 Electrical Properties V. S . W. R 6 Electrical Properties Radiation Pattern – H Plane 7 Electrical Properties Radiation Pattern – E Plane

FCC ID: TJI-KW2430SA RF Exposure Evaluation of E.U.T. : 2.4GHz Digital Transmission system FCC ID. : TJI-KW2430SA MODEL : KW2430SA for APPLICANT : KINGWAVE TECHNOLOGY CO., LTD. ADDRESS : 18F-3, No. 186, Jian-Yi Road, Chung-Ho City, 235, Taipei, Taiwan Prepared by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 12-01-RBF-056-05-MPE FCC ID: TJI-KW2430SA Product Information: Type of EUT: 2.4GHz Digital Transmission system FCC ID: TJI-KW2430SA Manufacturer: KINGWAVE TECHNOLOGY CO., LTD. Model: KW2430SA Description: 2.4GHz Digital Transmission system Maximum conducted output power (measured): 18.08 dBm or 64.269mW The following table lists the provided authorized antennas: Antenna Gain Model Antenna Type (dBi) Numeric A2-WSS001-F 5.8G WSS001 Dual Band Dipole Antenna with RP-SMA(M)(Black) 2 1.58 Below is an example of the RF Exposure Statement: IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. FCC ID: TJI-KW2430SA Relative Requirement for Compliance According to section 1.1310 of FCC 47 CFR Part 1, limits for maximum permissible exposure (MPE) are as following: TABLE 1 – LIMITS FOR MAXIMUN PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 .................. 6141.63*(100) 6 3-30 ..................... 1842/f4.89/f *(900/f 2 ) 6 30-300 .................. 61.40.1631.0 6 300-1500 ............... ...................... ......................f/300 6 1500-100,000 ......... ...................... ......................5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 ............... 6141.63*(100) 30 1.34-30 ............... 824/f2.19/f*(180/f2) 30 30-300 .................. 27.50.0730.2 30 300-1500 ............... ...................... ......................f/1500 30 1500-100,000 ......... ...................... ......................1.0 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC ID: TJI-KW2430SA RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0 mW/cm 2 uncontrolled exposure limit. The formula shown in OET Bulletin 65 is used in the calculation. Equation from page 19 of OET Bulletin 65, Edition 97-01 is: S= PG / 4πR 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) hence R= (PG / 4πS) 1/2 For our device P = 64.269mW G = 1.58 R = 20 cm S = (64.269 * 1.58) / (4*π*20 2 ) = 0.020 mW/cm 2 < 1.0 mW/cm 2 For complying the FCC limits for general population/uncontrolled exposure, the power density limit is 1.0 mW/cm 2 . The calculation result of the power density at a distance of 20 cm of our device is less than the limit. This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5).

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : 2.4GHz Digital Transmission system Model : KW2430SA FCC ID : TJI-KW2430SA for APPLICANT : KINGWAVE TECHNOLOGY CO., LTD. ADDRESS : 18F-3, No. 186, Jian-Yi Road, Chung-Ho City, 235, Taipei, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : 12-01-RBF-056-05 ETC Report No. : 12-01-RBF-056-05 FCC ID.: TJI-KW2430SA Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : KINGWAVE TECHNOLOGY CO., LTD 18F-3, No.186, Jian-Yi Road, Chung-Ho City, Taipei, Taiwan Manufacture : KINGWAVE TECHNOLOGY CO., LTD 18F-3, No.186, Jian-Yi Road, Chung-Ho City, Taipei, Taiwan Description of Device : a) Type of EUT : 2.4GHz Digital Transmission system b) Trade Name : KINGWAVE c) Model No. : KW2430SA d) Serial Model : KW2430S e) Power Supply : Adapter: I/P: 100-240Vac, 50/60Hz, 0.2A O/P: 12Vdc, 0.5A Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Summary of Tests Test Results Radiated Emission Pass Conducted Emission Pass Hopping Channel Separation Pass Number of Hopping frequencies used Pass Hopping Channel Bandwidth Pass Dwell Time of each frequency Pass Output Power Requirement Pass 100 kHz Bandwidth of Frequency Band Edges Requirement Pass Out-of-Band Conducted Emission Requirement Pass ETC Report No. : 12-01-RBF-056-05 FCC ID.: TJI-KW2430SA Rev. No 1.0 Date Test Item Received : Jan. 10, 2012 Date Test Campaign Completed : Feb. 04, 2012 Date of Issue : Feb. 22, 2012 Test Engineer : ( Vincent Chang ) Approve & Authorized : ( Charles Wang ) ETC Report No. : 12-01-RBF-056-05 FCC ID.: TJI-KW2430SA Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ....................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Test Methodology ........................................................................................................................ 1 1.3 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE...................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 6 2.5 User Information .......................................................................................................................... 6 3 SYSTEM TEST CONFIGURATION .......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT .............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.5 Field Strength Calculation.......................................................................................................... 15 4.6 Photos of Radiation Measuring Setup........................................................................................ 16 5 CONDUCTED EMISSION MEASUREMENT ........................................................................ 17 5.1 Standard Applicable ................................................................................................................... 17 5.2 Measurement Procedure............................................................................................................. 17 5.3 Conducted Emission Data .......................................................................................................... 18 5.4 Result Data Calculation.............................................................................................................. 20 5.5 Conducted Measurement Equipment ......................................................................................... 20 5.6 Photos of Conduction Measuring Setup..................................................................................... 21 6 ANTENNA REQUIREMENT .........................................................…

Text truncated - open the document above for the full version.

ETC Report No. : 12-01-RBF-056-05 FCC ID.: TJI-KW2430SA Sheet 16 of 61 Sheets Rev. No 2.1 4.6 Photos of Radiation Measuring Setup ETC Report No. : 12-01-RBF-056-05 FCC ID.: TJI-KW2430SA Sheet 21 of 61 Sheets Rev. No 2.1 5.6 Photos of Conduction Measuring Setup
