TJI-KW2420R2.4GHz AV Sender

2.4GHz Digital AV Sender Manual with IR extender V1.0 A A A . . . Important-Safety Precautions To prevent fire or shock hazard, do not expose this device to rain or moisture. Does not use near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.  To avoid electrical shock, do not open this device.  This device should be operated to use only the power supply included with it or provided as an accessory.  Do not overload wall outlets and extension cords as this can result in the risk of fire or electrical shock.  Do not attempt to service this device yourself. Refer servicing to qualified personnel only.  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. ■ Note: This equipment has been tested and found to comply with Part 15 of the FCC Rules, or R&TTE CE directive. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instruction, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Notice: The change or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirement and void user’s authority to operate the device. B B B . . . W W W h h h a a a t t t i i i s s s i i i n n n s s s i i i d d d e e e t t t h h h e e e B B B o o o x x x ? ? ? Please check the following items inside the box for 2.4Ghz Digital AV sender with IR extender, and contact your dealer if anything is missing: 1. Products body and Receiver x 1 Transmitter x 1 2. Accessory: for receiver and transmitter Refer to the following photo, from left to right: Antennas x 2 for Transmitter and Receiver AV cables x 2(3RCA plug to 3RCA plug) Power Adaptor x 2(100V ~ 240V AC, DC 12V/1A in Jack) IR extender x 2 for Transmitter(orange color) and Receiver(black color) 3. This user manual C C C . . . I I I n n n t t t r r r o o o d d d u u u c c c t t t i i i o o o n n n Thank you for purchasing this 2.4GHz Digital AV Sender. This sender system is a digital wireless audio/video sender that uses 2.4GHz Frequency Hopping technology and GFSK modulation, and random ID codes to protect personal privacy. There are over billion hopping sequences to minimize interference and deliver consistently an excellent video and audio quality up to 150 meters away. This sender system also integrates an IR remote control extender to allow you to control the audio or video source from another room using your existing remote controller. Using this 2.4GHz Digital Wireless A/V Sender, you can enjoy greater convenience and security in many ways: General Application • Watch the movie you rent on any TV in house without moving your DVD, laser disc player or running messy cables. • Watch cable or satellite programs on any TV in house. • Listen to stereo-quality music from your receiver on any powered speakers inside or outside the house. Safety & Security Application: • Connect a camera as a wireless security system. • Monitor your sleeping baby, playing children, the elderly, or the disabled on TV using your existing camcorder. • See who is outside the door on TV through your camera or miniature CCD camera. • Monitors and records the meeting from another room. • Extend the DVR control wirelessly, connect the main out(CVBS) to the transmitter, and receiver to the TV monitor, the guard people can look at the DVR screen in the TV monitor far from DVR, and control the DVR by its remote control far way • And many more uses! D D D . . . P P P r r r o o o d d d u u u c c c t t t L L L a a a y y y o o o u u u t t t F F F r r r o o o n n n t t t V V V i i i e e e w w w B B B a a a c c c k k k V V V i i i e e e w w w AV Jack for Output(TX) or Input(RX) Pairing buttons Power LED DC Jack for power adaptor Antenna IR Extender socket for TX and RX Power On/Off Antenna Connector E E E . . . Setting Up 2.4GHz wireless A/V Link To enjoy wireless video and audio, just connect the transmitter to whatever audio/video source you want to enjoy from another location, and connect the receiver to the TV, monitor or powered speakers in that other location. A/V link system is suggested to connect to following A/V equipment use: Video sources： Audio sources： VCR Compact Disk player or Changer Cable set-top box (with A/V output) Stereo Receiver Satellite Receiver Cassette Deck Laser Disc Player Camcorder or CCD Camera DVR DVD F F F . . . Cabling AV In (Audio/Video) DC 12V Input Camera DVR VCR DVD Set Top Box ........... DVR TV Monitor ....... AV Out (Audio/Video) DC 12V Input 3 x RCA (Audio/Video) cables 3 x RCA (Audio/Video) cables IR extender IR extender Remote Control Receiver Transmitter G G G . . . U U U s s s i i i n n n g g g t t t h h h e e e R R R e e e m m m o o o t t t e e e C C C o o o n n n t t t r r r o o o l l l F F F e e e a a a t t t u u u r r r e e e This sender system not only allows you to send crisp audio/video from one area to another, it also gives you the ability to control the source using your existing remote control device. It converts the infrared (IR) signal emi…

Text truncated - open the document above for the full version.

910805 1 Federal Communications Commission FCC ID: TJI-KW2420R Product Name: 2.4GHz AV Sender Model Name: KW2420R Trade Name: KINGWAVE Dear Sir: In accordance with 47 C.F.R. Section 0.459, we would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics and Operation Description. By: By: Chan,Ming-Shan (Signature) (Printed) Title : Engineer Applicant : KINGWAVE TECHNOLOGY CO., LTD. Address : 18F-3, No. 186, Jian-Yi Road, Chung-Ho City, 235, Taipei, Taiwan Tel : +886-2-8227-1868 Fax: +886-2-8227-1878 Date : 2011/07/01

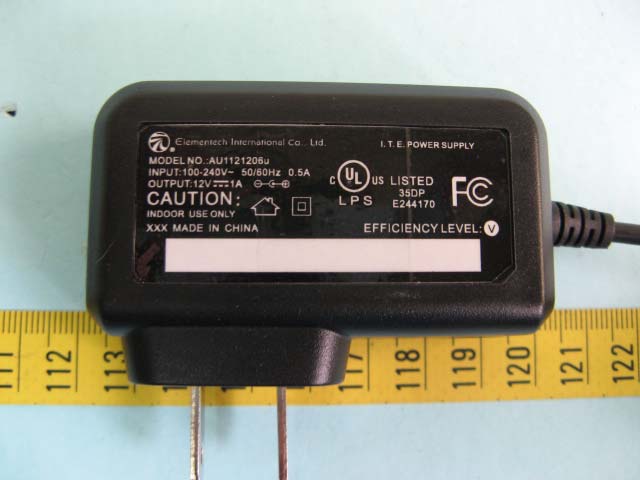

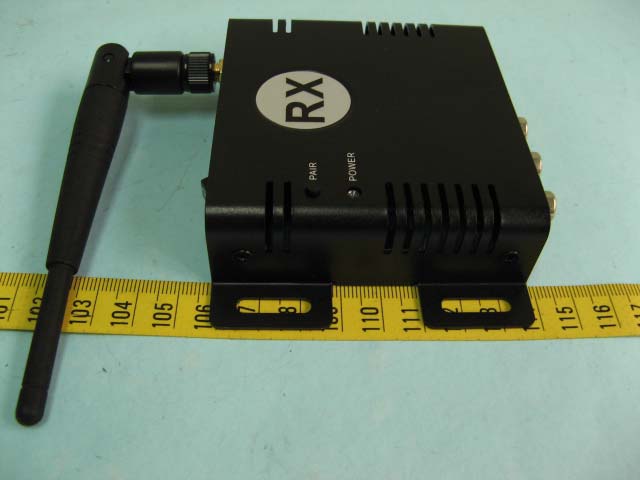

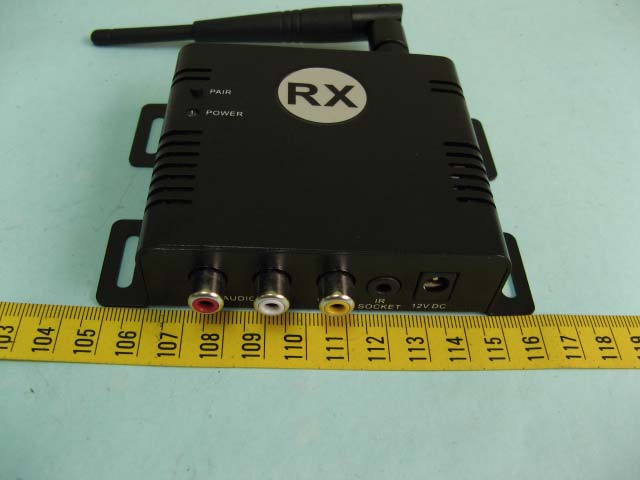

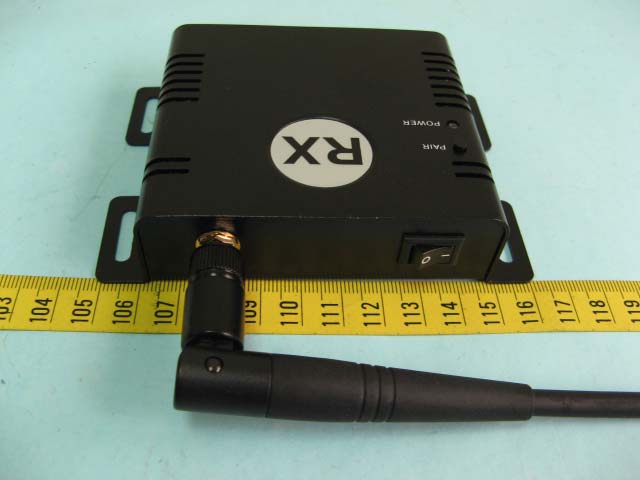

ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Sheet 1 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Bottom View of EUT ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Sheet 2 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 3. Side View of EUT 4. Rear View of EUT ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Sheet 3 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 5. Side View of EUT 6. Front View of EUT ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Sheet 7 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Adapter 1. Total View of Adapter 2. Lable View of Adapter

Model Name : KW2420R Label Size : 50 mm 25 mm

ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Sheet 4 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 7. Internal View of EUT ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Sheet 5 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 8. Component View of PCB 9. Solder View of PCB ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Sheet 6 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 10. Component View of PCB 11. Solder View of PCB

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : 2.4GHz AV Sender Model : KW2420R FCC ID : TJI-KW2420R for APPLICANT : KINGWAVE TECHNOLOGY CO., LTD. ADDRESS : 18F-3, No. 186, Jian-Yi Road, Chung-Ho City, 235, Taipei, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI COUNTY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : 11-07-RBF-011-05 ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : KINGWAVE TECHNOLOGY CO., LTD. 18F-3, No. 186, Jian-Yi Road, Chung-Ho City, 235, Taipei, Taiwan Manufacture : KINGWAVE TECHNOLOGY CO., LTD. 18F-3, No. 186, Jian-Yi Road, Chung-Ho City, 235, Taipei, Taiwan Description of Device : a) Type of EUT : 2.4GHz AV Sender b) Trade Name : KINGWAVE c) Model No. : KW2420R d) Power Supply : Adapter I/P: 100-240V,50/60Hz,0.5A O/P: 12V,1A Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Rev. No 1.0 Date Test Item Received :Jul. 01, 2011 Date Test Campaign Completed :Jul. 27, 2011 Date of Issue :Aug. 08, 2011 Test Engineer : ( Falcon Shi, Engineer ) Check By : ( Charles Wang, Supervisor ) Approve & Authorized : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ....................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Test Methodology ........................................................................................................................ 1 1.3 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE...................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 6 2.5 User Information .......................................................................................................................... 6 3 SYSTEM TEST CONFIGURATION .......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System ........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT .............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure ............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.5 Field Strength Calculation.......................................................................................................... 16 4.6 Photos of Radiation Measuring Setup........................................................................................ 17 5 CONDUCTED EMISSION MEASUREMENT ........................................................................ 18 5.1 Standard Applicable ................................................................................................................... 18 5.2 Measurement Procedure ............................................................................................................. 18 5.3 Conducted Emission Data .......................................................................................................... 19 5.4 Result Data Calculation.............................................................................................................. 21 5.5 Conducted Measurement Equipment ......................................................................................... 21 5.6 Photos of Conduction Measuring Setup..................................................................................... 22 6 ANTENNA REQUIREMENT .................................................................................................... 23 6.1 Standard Applicable ................................................................................................................... 23 6.2 Antenna Construction...................................................................................................…

Text truncated - open the document above for the full version.

ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R 1 CHANNEL BANDWIDTH Test Date : Aug. 19, 2011 Temperature : 23 °C Humidity : 62 % Test Mode:BPSK a) Channel Low : Channel Bandwidth is 4.440 MHz b) Channel Middle : Channel Bandwidth is 4.480 MHz c) Channel High : Channel Bandwidth is 4.440 MHz Note : The expanded uncertainty of channel bandwidth tests is 2dB. ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Test Mode: Channel Low Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 1 MHz/Center2.403 GHzSpan10 MHz * RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 7.67 dBm 2.402120000 GHz ndB [T1] 20.00 dB BW 4.440000000 MHz T1 Temp 1 [T1 ndB] -12.78 dBm 2.400740000 GHz T2 Temp 2 [T1 ndB] -11.84 dBm 2.405180000 GHz ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Test Mode: Channel Middle Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 1 MHz/Center2.439 GHzSpan10 MHz * RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 7.43 dBm 2.438180000 GHz ndB [T1] 20.00 dB BW 4.480000000 MHz T1 Temp 1 [T1 ndB] -12.09 dBm 2.436760000 GHz T2 Temp 2 [T1 ndB] -12.86 dBm 2.441240000 GHz ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Test Mode: Channel High Offset 31 dB A LVL Att 10 dB * Ref 30 dBm Center2.478 GHzSpan10 MHz1 MHz/ * RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 7.28 dBm 2.477120000 GHz ndB [T1] 20.00 dB BW 4.440000000 MHz T1 Temp 1 [T1 ndB] -12.36 dBm 2.475780000 GHz T2 Temp 2 [T1 ndB] -14.66 dBm 2.480220000 GHz ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R 2 OUTPUT POWER MEASUREMENT Test Date : Aug. 19, 2011 Temperature : 23 °C Humidity : 62 % Test Mode:BPSK a) Channel Low : Output Peak Power is 13.29 dBm = 21.330 mW b) Channel Middle : Output Peak Power is 13.33 dBm = 21.528 mW c) Channel High : Output Peak Power is 12.99 dBm = 19.907 mW Note : The expanded uncertainty of output power measurement tests is 2dB. ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Test Mode: Channel Low Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 2 MHz/Center2.403 GHzSpan20 MHz * RBW 1 MHz VBW 3 MHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 13.29 dBm 2.403040000 GHz ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Test Mode: Channel Middle Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 2 MHz/Center2.439 GHzSpan20 MHz * RBW 1 MHz VBW 3 MHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 13.33 dBm 2.439000000 GHz ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Test Mode: Channel High Offset 31 dB A LVL Att 10 dB * Ref 30 dBm Center2.478 GHzSpan20 MHz2 MHz/ * RBW 1 MHz VBW 3 MHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 12.99 dBm 2.478080000 GHz ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R 3 100 kHz BANDWIDTH OF BAND EDGES MEASUREMENT Test Date : Aug. 19, 2011 Temperature : 23 °C Humidity : 62 % Test Mode:BPSK a) Lower Band Edge : All emissions in this 100kHz bandwidth are attenuated more than 20dB from the carrier. b) Upper Band Edge : All emissions in this 100kHz bandwidth are attenuated more than 20dB from the carrier. Note : The expanded uncertainty of the 100 KHz bandwidth of band edges tests is 1000Hz. ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Lower Band Edge Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 5 MHz/Start2.36 GHzStop2.41 GHz * RBW 100 kHz VBW 300 kHz SWT 5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -28.18 dBm 2.399200000 GHz BAND1 ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Upper Band Edge Offset 31 dB A LVL Att 10 dB * Ref 30 dBm 5 MHz/Start2.47 GHzStop2.52 GHz * RBW 100 kHz VBW 300 kHz SWT 5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -37.92 dBm 2.484140000 GHz BAND1

ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R 1 CHANNEL BANDWIDTH Test Date : Aug. 19, 2011 Temperature : 23 °C Humidity : 62 % Test Mode: QPSK a) Channel Low : Channel Bandwidth is 4.440 MHz b) Channel Middle : Channel Bandwidth is 4.460 MHz c) Channel High : Channel Bandwidth is 4.480 MHz Note : The expanded uncertainty of channel bandwidth tests is 2dB. ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Test Mode: Channel Low Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 1 MHz/Center2.403 GHzSpan10 MHz * RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 7.74 dBm 2.402140000 GHz ndB [T1] 20.00 dB BW 4.440000000 MHz T1 Temp 1 [T1 ndB] -12.36 dBm 2.400760000 GHz T2 Temp 2 [T1 ndB] -12.76 dBm 2.405200000 GHz ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Test Mode: Channel Middle Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 1 MHz/Center2.439 GHzSpan10 MHz * RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 7.64 dBm 2.438140000 GHz ndB [T1] 20.00 dB BW 4.460000000 MHz T1 Temp 1 [T1 ndB] -12.33 dBm 2.436740000 GHz T2 Temp 2 [T1 ndB] -13.08 dBm 2.441200000 GHz ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Test Mode: Channel High Offset 31 dB A LVL Att 10 dB * Ref 30 dBm Center2.478 GHzSpan10 MHz1 MHz/ * RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 7.23 dBm 2.477140000 GHz ndB [T1] 20.00 dB BW 4.480000000 MHz T1 Temp 1 [T1 ndB] -12.42 dBm 2.475740000 GHz T2 Temp 2 [T1 ndB] -14.57 dBm 2.480220000 GHz ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R 2 OUTPUT POWER MEASUREMENT Test Date : Aug. 19, 2011 Temperature : 23 °C Humidity : 62 % Test Mode:QPSK a) Channel Low : Output Peak Power is 13.27 dBm = 21.232 mW b) Channel Middle : Output Peak Power is 13.32 dBm = 21.478 mW c) Channel High : Output Peak Power is 12.91 dBm = 19.543 mW Note : The expanded uncertainty of output power measurement tests is 2dB. ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Test Mode: Channel Low Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 2 MHz/Center2.403 GHzSpan20 MHz * RBW 1 MHz VBW 3 MHz SWT 2.5 ms PK IEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 13.27 dBm 2.403040000 GHz ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Test Mode: Channel Middle Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 2 MHz/Center2.439 GHzSpan20 MHz * RBW 1 MHz VBW 3 MHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 13.32 dBm 2.439040000 GHz ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Test Mode: Channel High Offset 31 dB A LVL Att 10 dB * Ref 30 dBm Center2.478 GHzSpan20 MHz2 MHz/ * RBW 1 MHz VBW 3 MHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 12.91 dBm 2.478000000 GHz ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R 3 100 kHz BANDWIDTH OF BAND EDGES MEASUREMENT Test Date : Aug. 19, 2011 Temperature : 23 °C Humidity : 62 % Test Mode:QPSK a) Lower Band Edge : All emissions in this 100kHz bandwidth are attenuated more than 20dB from the carrier. b) Upper Band Edge : All emissions in this 100kHz bandwidth are attenuated more than 20dB from the carrier. Note : The expanded uncertainty of the 100 KHz bandwidth of band edges tests is 1000Hz. ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Lower Band Edge Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 5 MHz/Start2.36 GHzStop2.41 GHz * RBW 100 kHz VBW 300 kHz SWT 5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -28.77 dBm 2.399200000 GHz BAND1 ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Upper Band Edge Offset 31 dB A LVL Att 10 dB * Ref 30 dBm 5 MHz/Start2.47 GHzStop2.52 GHz * RBW 100 kHz VBW 300 kHz SWT 5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -37.56 dBm 2.484800000 GHz BAND1

ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Sheet 17 of 61 Sheets Rev. No 2.1 4.6 Photos of Radiation Measuring Setup ETC Report No. : 11-07-RBF-011-05 FCC ID.: TJI-KW2420R Sheet 22 of 61 Sheets Rev. No 2.1 5.6 Photos of Conduction Measuring Setup
