910805 1 Federal Communications Commission FCC ID: TJI-KW2425R Product Name: 2.4GHz AV Sender Model Name: KW2425R Trade Name: KINGWAVE Dear Sir: In accordance with 47 C.F.R. Section 0.459, we would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics and Operation Description. By: By: Chan,Ming-Shan (Signature) (Printed) Title : Engineer Applicant : KINGWAVE TECHNOLOGY CO., LTD. Address : 18F-3, No. 186, Jian-Yi Road, Chung-Ho City, 235, Taipei, Taiwan Tel : +886-2-8227-1868 Fax: +886-2-8227-1878 Date : 2011/07/01

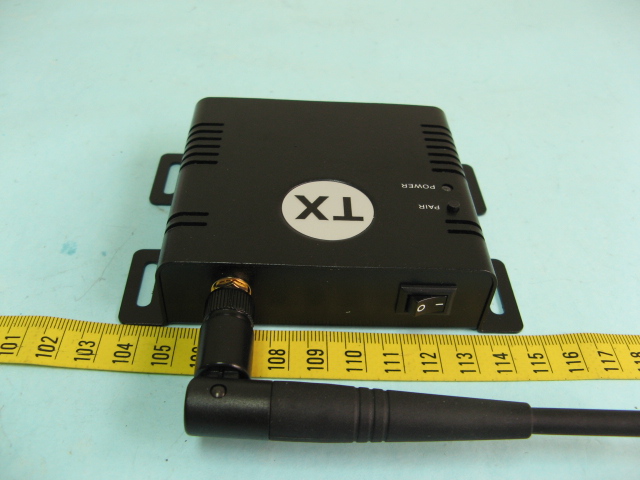

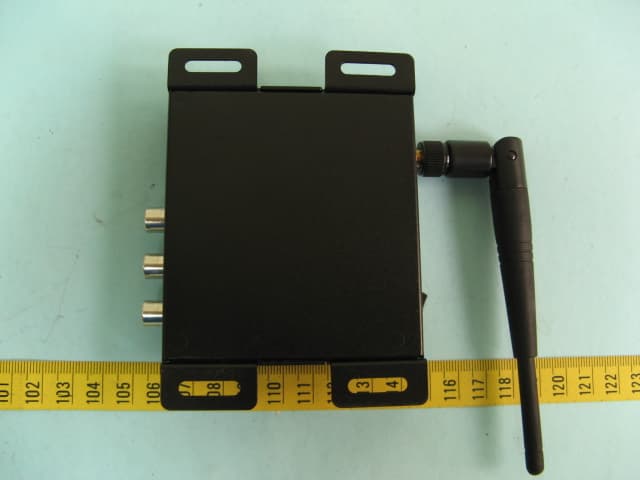

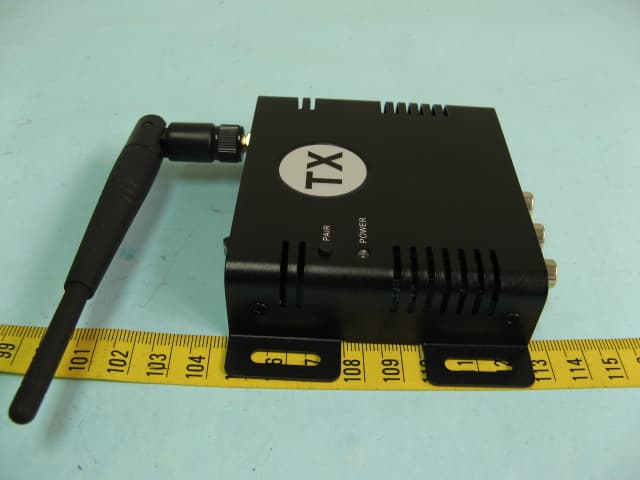

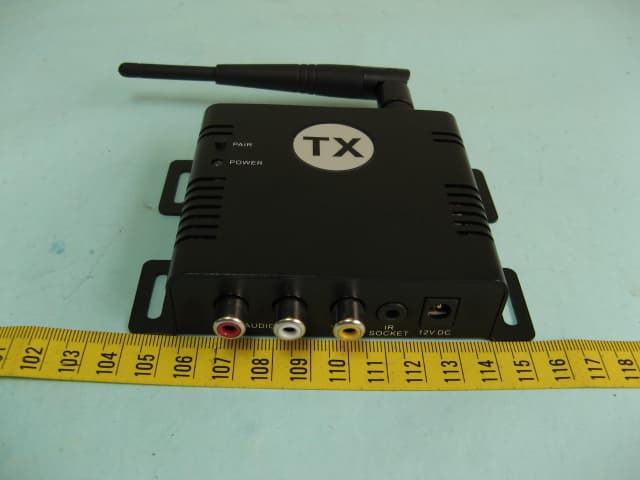

ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Sheet 1 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Bottm View of EUT ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Sheet 2 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 3. Side View of EUT 4. Rear View of EUT ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Sheet 3 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 5. Side View of EUT 6. Front View of EUT

Model Name : KW2425R Label Size : 50 mm 25 mm

ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Sheet 4 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 7. Internal View of EUT ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Sheet 5 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 8. Component View of PCB 9. Solder View of PCB ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Sheet 6 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 10. Component View of PCB 11. Solder View of PCB ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Sheet 7 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Adapter 1. Top View of Adapter 2. Lable View of Adapter

FCC ID: TJI-KW2425R RF Exposure Evaluation of E.U.T. : 2.4GHz AV Sender FCC ID. : TJI-KW2425R MODEL : KW2425R for APPLICANT : KINGWAVE TECHNOLOGY CO., LTD. ADDRESS : 18F-3, No. 186, Jian-Yi Road, Chung-Ho City, 235, Taipei, Taiwan Prepared by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI COUNTY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 11-07-RBF-011-04-MPE FCC ID: TJI-KW2425R Product Information: Type of EUT: 2.4GHz AV Sender FCC ID: TJI-KW2425R Manufacturer: KINGWAVE TECHNOLOGY CO., LTD. Model: KW2425R Description: 2.4GHz AV Sender Maximum conducted output power (measured): 15.44 dBm or 34.995mW The following table lists the provided authorized antennas: Antenna Gain Model Antenna Type (dBi) Numeric A2-WSS001-F 5.8G WSS001 Dual Band Dipole Antenna with RP-SMA(M)(Black) 2 1.58 Below is an example of the RF Exposure Statement: IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. FCC ID: TJI-KW2425R Relative Requirement for Compliance According to section 1.1310 of FCC 47 CFR Part 1, limits for maximum permissible exposure (MPE) are as following: TABLE 1 – LIMITS FOR MAXIMUN PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 .................. 6141.63*(100) 6 3-30 ..................... 1842/f4.89/f *(900/f 2 ) 6 30-300 .................. 61.40.1631.0 6 300-1500 ............... ...................... ......................f/300 6 1500-100,000 ......... ...................... ......................5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 ............... 6141.63*(100) 30 1.34-30 ............... 824/f2.19/f*(180/f2) 30 30-300 .................. 27.50.0730.2 30 300-1500 ............... ...................... ......................f/1500 30 1500-100,000 ......... ...................... ......................1.0 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC ID: TJI-KW2425R RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0 mW/cm 2 uncontrolled exposure limit. The formula shown in OET Bulletin 65 is used in the calculation. Equation from page 19 of OET Bulletin 65, Edition 97-01 is: S= PG / 4πR 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) hence R= (PG / 4πS) 1/2 For our device P = 34.995mW G = 1.58 R = 20 cm S = (34.995 * 1.58) / (4*π*20 2 ) = 0.011 mW/cm 2 < 1.0 mW/cm 2 For complying the FCC limits for general population/uncontrolled exposure, the power density limit is 1.0 mW/cm 2 . The calculation result of the power density at a distance of 20 cm of our device is less than the limit. This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5).

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : 2.4GHz AV Sender Model : KW2425R FCC ID : TJI-KW2425R for APPLICANT : KINGWAVE TECHNOLOGY CO., LTD. ADDRESS : 18F-3, No. 186, Jian-Yi Road, Chung-Ho City, 235, Taipei, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI COUNTY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : 11-07-RBF-011-04 ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : KINGWAVE TECHNOLOGY CO., LTD. 18F-3, No. 186, Jian-Yi Road, Chung-Ho City, 235, Taipei, Taiwan Manufacture : KINGWAVE TECHNOLOGY CO., LTD. 18F-3, No. 186, Jian-Yi Road, Chung-Ho City, 235, Taipei, Taiwan Description of Device : a) Type of EUT : 2.4GHz AV Sender b) Trade Name : KINGWAVE c) Model No. : KW2425R d) Power Supply : Adapter: I/P: 100-240V,50/60Hz,0.5A O/P: 12V,1A Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Rev. No 1.0 Date Test Item Received : Jul. 01, 2011 Date Test Campaign Completed : Jul. 28, 2011 Date of Issue : Aug. 08, 2011 Test Engineer : ( Falcon Shi, Engineer ) Check By : ( Charles Wang, Supervisor ) Approve & Authorized : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ....................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Test Methodology ........................................................................................................................ 1 1.3 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE...................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 6 2.5 User Information .......................................................................................................................... 6 3 SYSTEM TEST CONFIGURATION .......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT .............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.5 Field Strength Calculation.......................................................................................................... 16 4.6 Photos of Radiation Measuring Setup........................................................................................ 17 5 CONDUCTED EMISSION MEASUREMENT ........................................................................ 18 5.1 Standard Applicable ................................................................................................................... 18 5.2 Measurement Procedure............................................................................................................. 18 5.3 Conducted Emission Data .......................................................................................................... 19 5.4 Result Data Calculation.............................................................................................................. 21 5.5 Conducted Measurement Equipment ......................................................................................... 21 5.6 Photos of Conduction Measuring Setup..................................................................................... 22 6 ANTENNA REQUIREMENT .................................................................................................... 23 6.1 Standard Applicable ................................................................................................................... 23 6.2 Antenna Construction..................................................................................................…

Text truncated - open the document above for the full version.

ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R 1. CHANNEL BANDWIDTH Test Date : Aug. 19, 2011 Temperature : 23 °C Humidity : 62 % Test Mode:BPSK a) Channel Low : Channel Bandwidth is 4.460 MHz b) Channel Middle : Channel Bandwidth is 4.460 MHz c) Channel High : Channel Bandwidth is 4.480 MHz Note : The expanded uncertainty of channel bandwidth tests is 2dB. ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Test Mode: Channel Low Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 1 MHz/Center2.403 GHzSpan10 MHz * RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 7.60 dBm 2.402140000 GHz ndB [T1] 20.00 dB BW 4.460000000 MHz T1 Temp 1 [T1 ndB] -12.56 dBm 2.400780000 GHz T2 Temp 2 [T1 ndB] -11.96 dBm 2.405240000 GHz ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Test Mode: Channel Middle Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 1 MHz/Center2.439 GHzSpan10 MHz * RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 7.08 dBm 2.438100000 GHz ndB [T1] 20.00 dB BW 4.460000000 MHz T1 Temp 1 [T1 ndB] -13.93 dBm 2.436760000 GHz T2 Temp 2 [T1 ndB] -11.81 dBm 2.441220000 GHz ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Test Mode: Channel High Offset 31 dB A LVL Att 10 dB * Ref 30 dBm Center2.478 GHzSpan10 MHz1 MHz/ * RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 7.19 dBm 2.477140000 GHz ndB [T1] 20.00 dB BW 4.480000000 MHz T1 Temp 1 [T1 ndB] -12.88 dBm 2.475760000 GHz T2 Temp 2 [T1 ndB] -12.48 dBm 2.480240000 GHz ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R 2. OUTPUT POWER MEASUREMENT Test Date : Aug. 19, 2011 Temperature : 23 °C Humidity : 62 % Test Mode:BPSK a) Channel Low : Output Peak Power is 13.25 dBm = 21.135 mW b) Channel Middle : Output Peak Power is 13.31 dBm = 21.429 mW c) Channel High : Output Peak Power is 12.96 dBm = 19.770 mW Note : The expanded uncertainty of output power measurement tests is 2dB. ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Test Mode: Channel Low Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 2 MHz/Center2.403 GHzSpan20 MHz * RBW 1 MHz VBW 3 MHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 13.25 dBm 2.402960000 GHz ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Test Mode: Channel Middle Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 2 MHz/Center2.439 GHzSpan20 MHz * RBW 1 MHz VBW 3 MHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 13.31 dBm 2.439000000 GHz ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Test Mode: Channel High Offset 31 dB A LVL Att 10 dB * Ref 30 dBm Center2.478 GHzSpan20 MHz2 MHz/ * RBW 1 MHz VBW 3 MHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 12.96 dBm 2.478000000 GHz ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R 3 100 kHz BANDWIDTH OF BAND EDGES MEASUREMENT Test Date : Aug. 19, 2011 Temperature : 23 °C Humidity : 62 % Test Mode:BPSK a) Lower Band Edge : All emissions in this 100kHz bandwidth are attenuated more than 20dB from the carrier. b) Upper Band Edge : All emissions in this 100kHz bandwidth are attenuated more than 20dB from the carrier. Note : The expanded uncertainty of the 100 KHz bandwidth of band edges tests is 1000Hz. ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Lower Band Edge Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 5 MHz/Start2.36 GHzStop2.41 GHz * RBW 100 kHz VBW 300 kHz SWT 5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -28.99 dBm 2.399100000 GHz BAND1 ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Upper Band Edge Offset 31 dB A LVL Att 10 dB * Ref 30 dBm 5 MHz/Start2.47 GHzStop2.52 GHz * RBW 100 kHz VBW 300 kHz SWT 5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -38.94 dBm 2.487100000 GHz BAND1

ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R 1 CHANNEL BANDWIDTH Test Date : Aug. 19, 2011 Temperature : 23 °C Humidity : 62 % Test Mode: QPSK a) Channel Low : Channel Bandwidth is 4.480 MHz b) Channel Middle : Channel Bandwidth is 4.480 MHz c) Channel High : Channel Bandwidth is 4.460 MHz Note : The expanded uncertainty of channel bandwidth tests is 2dB. ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Test Mode: Channel Low Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 1 MHz/Center2.403 GHzSpan10 MHz * RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 7.67 dBm 2.402140000 GHz ndB [T1] 20.00 dB BW 4.480000000 MHz T1 Temp 1 [T1 ndB] -12.19 dBm 2.400760000 GHz T2 Temp 2 [T1 ndB] -11.33 dBm 2.405240000 GHz ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Test Mode: Channel Middle Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 1 MHz/Center2.439 GHzSpan10 MHz * RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 7.05 dBm 2.438120000 GHz ndB [T1] 20.00 dB BW 4.480000000 MHz T1 Temp 1 [T1 ndB] -13.04 dBm 2.436740000 GHz T2 Temp 2 [T1 ndB] -14.25 dBm 2.441220000 GHz ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Test Mode: Channel High Offset 31 dB A LVL Att 10 dB * Ref 30 dBm Center2.478 GHzSpan10 MHz1 MHz/ * RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 7.02 dBm 2.477140000 GHz ndB [T1] 20.00 dB BW 4.460000000 MHz T1 Temp 1 [T1 ndB] -13.36 dBm 2.475760000 GHz T2 Temp 2 [T1 ndB] -13.12 dBm 2.480220000 GHz ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R 2 OUTPUT POWER MEASUREMENT Test Date : Aug. 19, 2011 Temperature : 23 °C Humidity : 62 % Test Mode:QPSK a) Channel Low : Output Peak Power is 12.82 dBm = 19.143 mW b) Channel Middle : Output Peak Power is 13.27 dBm = 21.232 mW c) Channel High : Output Peak Power is 13.29 dBm = 21.330 mW Note : The expanded uncertainty of output power measurement tests is 2dB. ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Test Mode: Channel Low Offset 31 dB A LVL Att 10 dB * Ref 30 dBm Center2.478 GHzSpan20 MHz2 MHz/ * RBW 1 MHz VBW 3 MHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 12.82 dBm 2.478000000 GHz ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Test Mode: Channel Middle Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 2 MHz/Center2.403 GHzSpan20 MHz * RBW 1 MHz VBW 3 MHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 13.27 dBm 2.403040000 GHz ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Test Mode: Channel High Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 2 MHz/Center2.439 GHzSpan20 MHz * RBW 1 MHz VBW 3 MHz SWT 2.5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 13.29 dBm 2.439040000 GHz ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R 3 100 kHz BANDWIDTH OF BAND EDGES MEASUREMENT Test Date : Aug. 19, 2011 Temperature : 23 °C Humidity : 62 % Test Mode:QPSK a) Lower Band Edge : All emissions in this 100kHz bandwidth are attenuated more than 20dB from the carrier. b) Upper Band Edge : All emissions in this 100kHz bandwidth are attenuated more than 20dB from the carrier. Note : The expanded uncertainty of the 100 KHz bandwidth of band edges tests is 1000Hz. ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Lower Band Edge Ref 30 dBmAtt 10 dB * Offset 31 dB A LVL 5 MHz/Start2.36 GHzStop2.41 GHz * RBW 100 kHz VBW 300 kHz SWT 5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -28.52 dBm 2.399200000 GHz BAND1 ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Upper Band Edge Offset 31 dB A LVL Att 10 dB * Ref 30 dBm 5 MHz/Start2.47 GHzStop2.52 GHz * RBW 100 kHz VBW 300 kHz SWT 5 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -38.30 dBm 2.488700000 GHz BAND1

ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Sheet 17 of 61 Sheets Rev. No 2.1 4.6 Photos of Radiation Measuring Setup ETC Report No. : 11-07-RBF-011-04 FCC ID.: TJI-KW2425R Sheet 22 of 61 Sheets Rev. No 2.1 5.6 Photos of Conduction Measuring Setup
