TJI-KW52295.8GHz Wireless IR Color CCD Camera

1.Contents: 1. One Camera 2. One 3dBi Antenna 3. One User Manual 2.Channel Selection Each camera must be placed on a s eparate 5.8GHz wireless channel by selecting the proper DIP switch configur ation outlined in t he table below. For best results place wireless cameras on every other channel. For example, for a typical wireless ca mera setup place camera one on channel 1, camera two on channel 3, camera three on channe l 5, and so on. You can utilize up to 7 channels. There is a 4 lever DIP switch loca ted inside the wireless camera. Please unscrew the two screws located on the top of the camera casing and remove the camera sun shield. To open the ca mera housing remove the two screws on the left side of the camera casing that provide a we ather proof seal. Please be sure to properly tighten these cameras when reassembling the camera after you are done. Open the camera casing and locate t he DIP switch seated behind the board camera module and set the camera to one of the 7 available wireless channels based on the DIP switch confi guration listed in the table below. Please configure the wireless receiver to the same wireless channel by setting the same DIP switch settings as the camera you configured above. Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s auth ority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance re quirements, no change to the antenna or the device is permitted . Any change to the antenna or the device could result in the device exceeding the RF exposur e requirements and void user’s authority to operate the device .

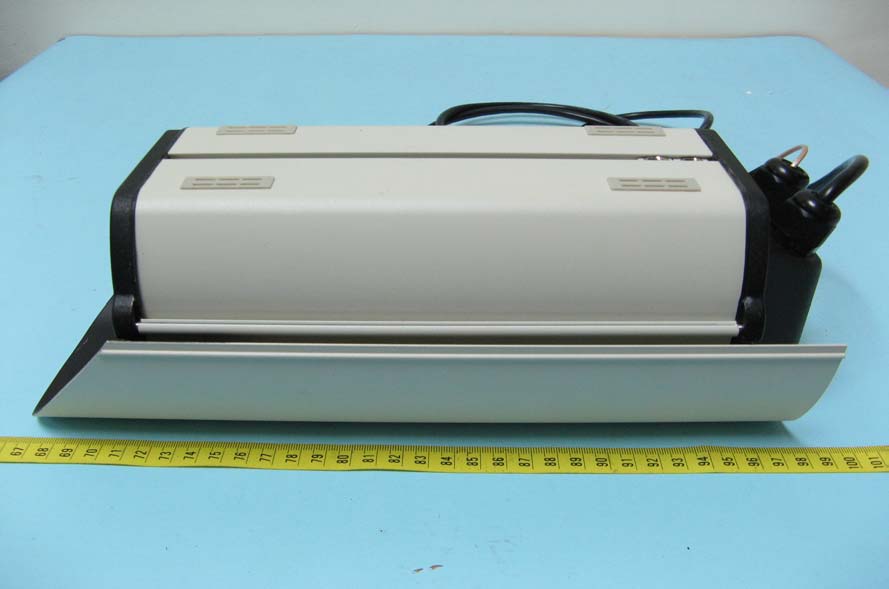

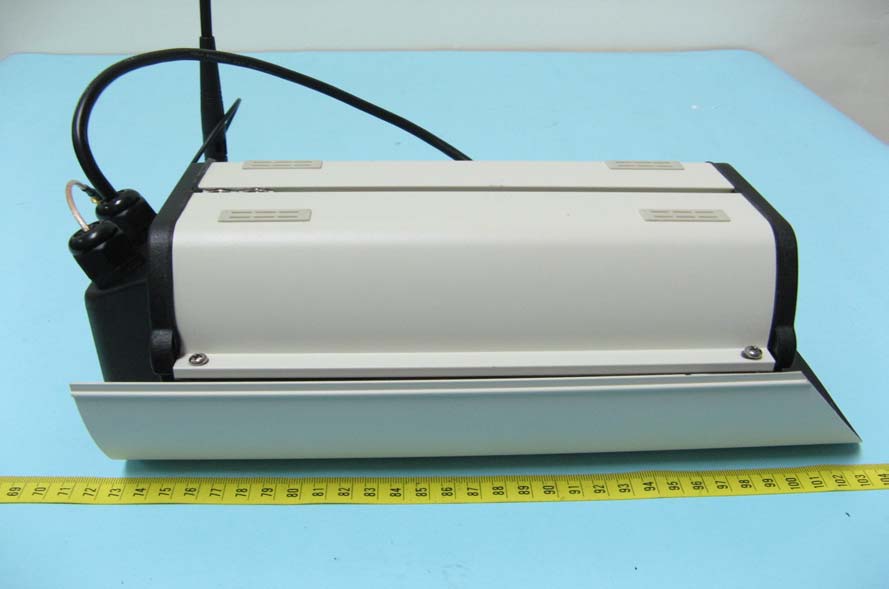

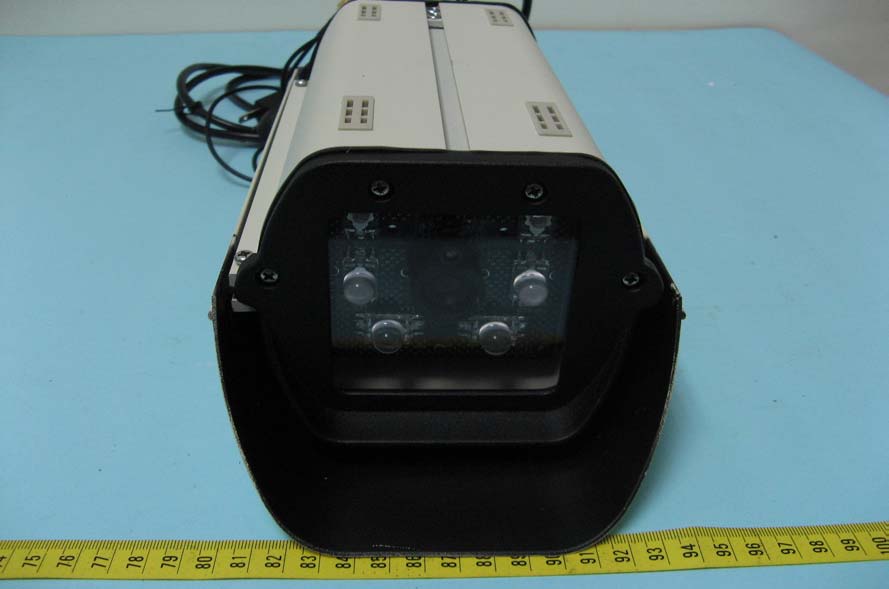

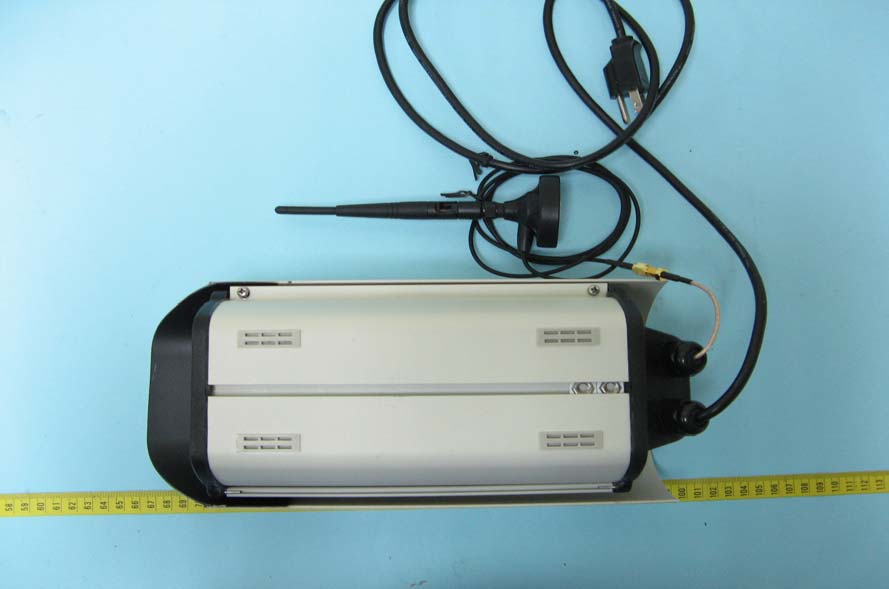

ETC Report No. : 10-07-RBF-158 Sheet 1 of 10 Sheets FCC ID.: TJI-KW5229 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Bottom View of EUT ETC Report No. : 10-07-RBF-158 Sheet 2 of 10 Sheets FCC ID.: TJI-KW5229 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 3. Side View of EUT 4. Rear View of EUT ETC Report No. : 10-07-RBF-158 Sheet 3 of 10 Sheets FCC ID.: TJI-KW5229 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 5. Side View of EUT 6. Front View of EUT

50mm 25mm

ETC Report No. : 10-07-RBF-158 Sheet 4 of 10 Sheets FCC ID.: TJI-KW5229 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 7. Internal View of EUT ETC Report No. : 10-07-RBF-158 Sheet 5 of 10 Sheets FCC ID.: TJI-KW5229 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 8. Component View of PCB 9. Component View of PCB ETC Report No. : 10-07-RBF-158 Sheet 6 of 10 Sheets FCC ID.: TJI-KW5229 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 10. Solder View of PCB 11. Component View of PCB ETC Report No. : 10-07-RBF-158 Sheet 7 of 10 Sheets FCC ID.: TJI-KW5229 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 12. Component View of PCB 13. Solder View of PCB ETC Report No. : 10-07-RBF-158 Sheet 8 of 10 Sheets FCC ID.: TJI-KW5229 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 14. Component View of PCB 15. Component View of PCB ETC Report No. : 10-07-RBF-158 Sheet 9 of 10 Sheets FCC ID.: TJI-KW5229 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 16. Component View of PCB 17. Component View of PCB ETC Report No. : 10-07-RBF-158 Sheet 10 of 10 Sheets FCC ID.: TJI-KW5229 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 18. Solder View of PCB 19. Dipole antenna

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : 5.8GHz Wireless IR Color CCD Camera MODEL : KW5229 FCC ID. : TJI-KW5229 for APPLICANT : KINGWAVE TECHNOLOGY CO., LTD. ADDRESS : 18F-3, No. 186, Jian-Yi Road, Chung-Ho City, 235, Taipei, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. TEL : (02)26023052 FAX: (02)26010910 http ： // www.etc.org.tw; e-mail ： [email protected] Report Number : 10-07-RBF-158 ETC Report No. : 10-07-RBF-158 FCC ID. : TJI-KW5229 Rev. No 2.0 TEST REPORT CERTIFICATION Applicant : KINGWAVE TECHNOLOGY CO., LTD. 18F-3, No. 186, Jian-Yi Road, Chung-Ho City, 235, Taipei, Taiwan Manufacturer : KINGWAVE TECHNOLOGY.,LTD 18F-3,No.186,Jian-Yi Road,Chung-Ho City,235,Taipei,Taiwan Description of EUT a) Type of EUT : 5.8GHz Wireless IR Color CCD Camera b) Trade Name : KINGWAVE c) Model No. : KW5229 d) Power Supply : I/P: AC 100-240V; O/P: DC 12V, 2.1A e) Frequency Range : 5745MHz-5866MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2009) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Sep. 13, 2010 Test Engineer : ( Falcon Shi ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 10-07-RBF-158 FCC ID. : TJI-KW5229 Rev. No 2.0 Table of Contents Page 1 GENERAL INFORMATION ...................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology ........................................................................................................................ 1 1.4 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE ..................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 5 2.5 User Information .......................................................................................................................... 6 3. SYSTEM TEST CONFIGURATION ......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT.............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.4.1 5.8GHz Tx Portion ............................................................................................................................ 11 4.4.2 Other Emissions ................................................................................................................................. 14 4.5 Field Strength Calculation ......................................................................................................... 14 4.6 Photos of Radiation Measuring Setup........................................................................................ 15 5 CONDUCTED EMISSION MEASUREMENT ....................................................................... 16 5.1 Standard Applicable ................................................................................................................... 16 5.2 Measurement Procedure............................................................................................................. 16 5.3 Conducted Emission Data .......................................................................................................... 17 5.4 Result Data Calculation ............................................................................................................. 19 5.5 Conducted Measurement Equipment ......................................................................................... 19 5.6 Photos of Conduction Measuring Setup..................................................................................... 20 6 ANTENNA REQUIREMENT .............................................................................…

Text truncated - open the document above for the full version.

ETC Report No. : 10-07-RBF-158 Sheet 15 of 24 Sheets FCC ID.: TJI-KW5229 Rev. No 2.0 4.6 Photos of Radiation Measuring Setup ETC Report No. : 10-07-RBF-158 Sheet 20 of 24 Sheets FCC ID.: TJI-KW5229 Rev. No 2.0 5.6 Photos of Conduction Measuring Setup
