TKZAW7615NP1WiFi5 11ac 4T4R module 1700Mbps

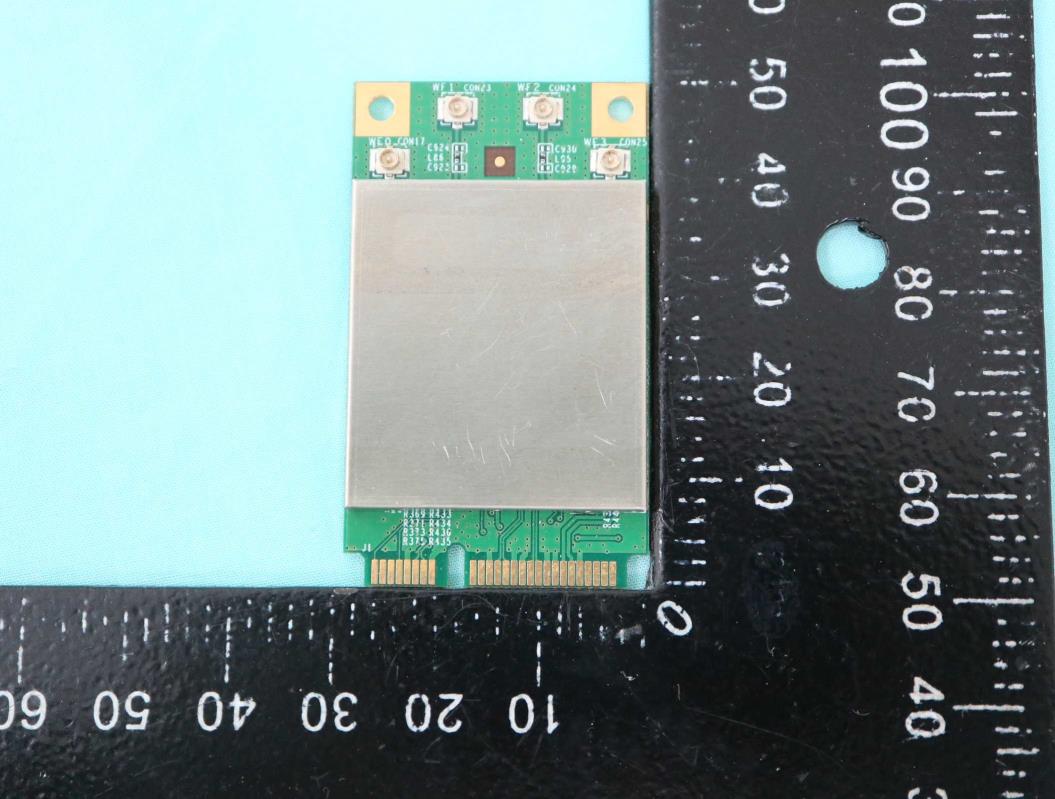

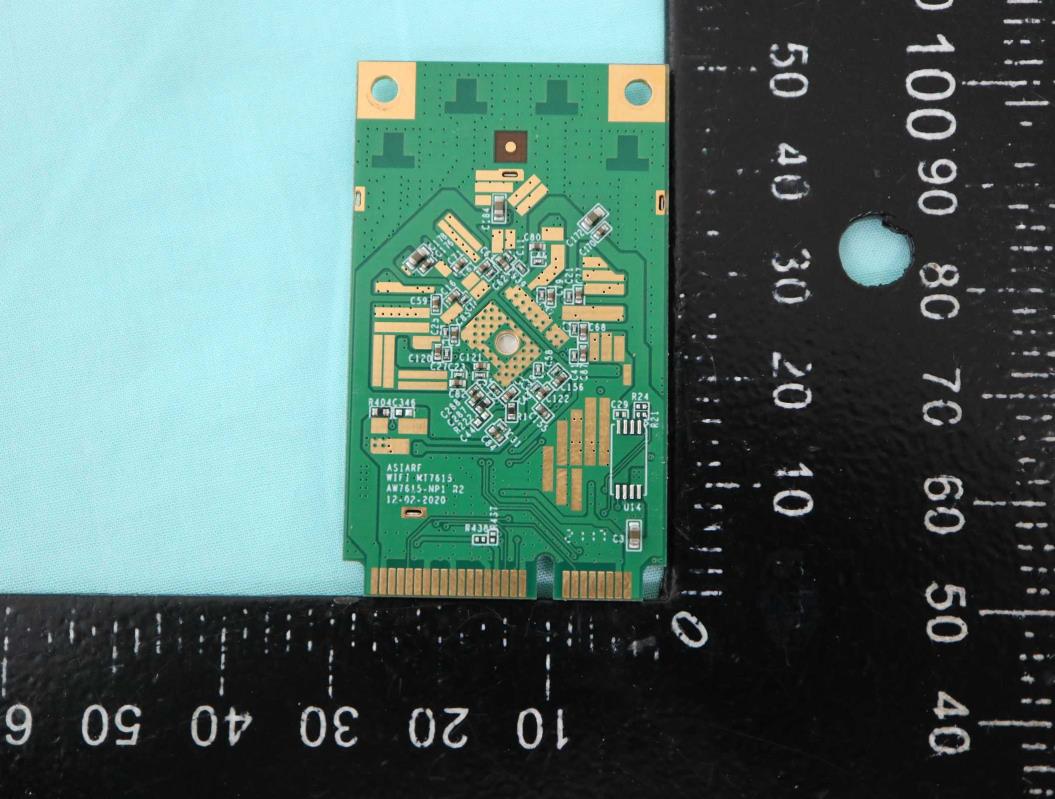

www.asiarf.com TEL: +886-2-29407880 FAX: +886-2-29407800 1F, 7, Houde Street, Younghe District, New Taipei City, Taiwan, R.O.C 1 AW7615-NP1 Dual Band 4x4 802.llac MiniPCle WiFi Module WiFi5 11ac 4T4R module 1700Mbps Introduction  Product overview It fully complies with IEEE802.11ac and IEEE802.11 a/b/g/n standards, offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective throughput from an extended distance. Optimized RF architecture and base band algorithms provide superb performance and low power consumption. Intelligent MAC design deploys a high efficient offload engine and hardware data processing accelerators which completely offloads Wi-Fi task of the host processor. MT7615 is designed to support standard based features in the areas of security, quality of service and international regulations, giving end users the greatest performance any time and in any circumstance. MT7615 supports concurrent dual-band operation at 5GHz and 2.4GHz band (DBDC, Dual-Band-Dual-Concurrent). With the advent of 802.11ac, multi-user MIMO (MU-MIMO) is defined. MT7615 supports MU-MIMO with different configurations. An AP is able to use its antenna arrays to transmit multiple frames to different clients at the same time and over the same frequency spectrum. Features:  Supports 4×4 11ac wave2 MU-MIMO  MU-MIMO configurations of  4 users: 4*1ss  3 users: 2*1ss + 1*2ss or 3*1ss  2 users: 2*2ss or 1*1ss + 1*2ss or 2*1ss  Support 80+80 channels  Embedded ARM Cortex R4 processor for full host CPU offload  Embedded 32-bit RISC microprocessor  iNIC Gen2 with full Wi-Fi offload  Highly integrated RF with 40nm low power process  4T4R with support of up to 1733Mbps PHY rate  Configurable 4×4/3×3 or 2x2n+2x2ac DBDC  Noise mitigation:  Supports background scan function for fast channel switching  Supports spectrum analysis for non-Wi-Fi signals  Intelligent power saving  Hardware-based Airtime Fairness (QoS)  Integrate high efficiency internal 2.4G/5G PAs  Intelligent Calibration (iCal) reduces the production time  Supports external PA/LNA/TRSW design  Proprietary LTE coexistence over UART  WoWLAN via GPIO (client mode), supports Host Sleep (AP mode)  Compact 12mm*12mm DRQFN118 package with PCIe Gen2 interface www.asiarf.com TEL: +886-2-29407880 FAX: +886-2-29407800 1F, 7, Houde Street, Younghe District, New Taipei City, Taiwan, R.O.C 2 Specification: Standards IEEE802.11ac/b/g/n (4Tx4R) Data Rate IEEE802.11ac 1733Mbps@TX/RX IEEE802.11a/n 600Mbps@TX/RX IEEE802.11a/g 108Mbps IEEE802.11b 22MbpsIEEE 802.11ac up to 1733Mbps Output Power 11b: 20dbm+/- 1.5dbm @ 11Mbps 11g: 18dbm+/- 1.5dbm @ 54Mbps 11g/n: 18dBm +/- 1.5dbm @MCS7,HT20 17dBm@MCS7,HT40 11a: 16dBm +/- 1.5dbm @ 54Mbps 11a/n: 15dBm+/- 1.5dbm @MCS7,HT20 13dBm@MCS7,HT40 11ac HT20: 12+/-1.5dBm@MCS8 11ac HT40: 12+/-1.5dBm@MCS9 11ac HT80: 12+/-1.5dBm@MCS9 Receiver Sensitivity 11b: -89dBm@11Mbps 11g: -76dBm@54Mbps 11g/n: -74dBm@HT20,MCS7 -66dBm@HT40,MCS7 11a: -75Bm@54Mbps 11a/n: -73dBm@HT20,MCS7 -71dBm@HT40,MCS7 11ac: -57dBm+/-2dBm @HT20 MCS8 11ac: -54dBm+/-2dBm @HT40 MCS9 11ac: -51dBm+/-2dBm @HT80 MCS9 RF connector IPEX connector Frequency Range US, Canada 2.412GHz~2.462 GHz (CH1~CH11) EU, Japan: 2.412GHz~2.472GHz (CH1~CH13) 5.150GHz~5.250GHz、5.725GHz~5.850GHz Software Security: 64/128-bit WEP Encryption, WPA, WPA2 Driver: Linux Operating Voltage DC 3.3V ± 5% Temperature Operating: 0°C ~ +70°C Storage: -20°C ~ +90°C Dimension 50.95 mm (L) x 30 mm (W) Humidity Operating Humidity: 10%~90% non-condensing Storage Humidity: 10%~90% non-condensing Mechanical Dimensions www.asiarf.com TEL: +886-2-29407880 FAX: +886-2-29407800 1F, 7, Houde Street, Younghe District, New Taipei City, Taiwan, R.O.C 3 All dimensions are in mm Pin Define TOP pins www.asiarf.com TEL: +886-2-29407880 FAX: +886-2-29407800 1F, 7, Houde Street, Younghe District, New Taipei City, Taiwan, R.O.C 4 Bottom pins Packing information Using antistatic tray. One tray for 35pcs PCBA. One carton for 23 trays=805 PCBAs One tray for 35pcs PCBA www.asiarf.com TEL: +886-2-29407880 FAX: +886-2-29407800 1F, 7, Houde Street, Younghe District, New Taipei City, Taiwan, R.O.C 5 23 trays in one carton Sealing carton www.asiarf.com TEL: +886-2-29407880 FAX: +886-2-29407800 1F, 7, Houde Street, Younghe District, New Taipei City, Taiwan, R.O.C 6 Carton label is as below: www.asiarf.com TEL: +886-2-29407880 FAX: +886-2-29407800 1F, 7, Houde Street, Younghe District, New Taipei City, Taiwan, R.O.C 7 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference tha…
