TKZAWV03S-003WiFi Router

INSTRUCTIONS As illustrated, 1､Place the device beside your existing wifi router, power it on. 2､Connect the two devices with the attached cable. Do pay attention to plug one cable head into the WAN port of the new device, and the other head to the LAN port of the existing router. 3､Find the wifi name and the password from the bottom label of the new device, connect it, and enjoy your internet. 4､RJ11 could not plug in telecom line. 5､USB type A connector is unfunctional. Configuration 1. Connect the Ethernet cable to the LAN port and your notebook/computer. 2. Power up. 3. Open Internet Explorer from your notebook/computer 4. Enter: http://10.10.10.254 5. Enter the Username and Password. If this is the first time use, than enter “admin” and “admin” on both username and password. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Country Code selection feature to be disabled for products marketed to the US/CANADA

AsiaRF Co., LTD. 3F, 215, Dehe Road, Yonghe Dist. New Taipei City Taiwan Date: April 7, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: TKZAWV03S-003 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180days ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : AsiaRF Co., LTD. Address : 3F, 215, Dehe Road, Yonghe Dist. New Taipei City Taiwan Signature : _________________________________ Name and Job Title. : Paul Lai / CEO E-mail : [email protected] <[email protected]> Tel. : 02-29407880

AsiaRF Co., LTD. 3F, 215, Dehe Road, Yonghe Dist. New Taipei City Taiwan Date: March 11, 2020 Subject: Ad Hoc Mode Function Declaration FCC ID: TKZAWV03S-003 To Whom it may concern, We, AsiaRF Co., LTD. (company name here) declare that the device does not support any non-US channels and country code selection and Channel 12 and 13 in 2.4 GHz band in all the operational mode(s). Regards, Applicant : AsiaRF Co., Ltd. Address : 3F, 215, Dehe Road, Yonghe Dist. New Taipei City Taiwan Signature : Name and Job Title. : Paul Lai / CEO E-mail [email protected] Tel. 02-29407880

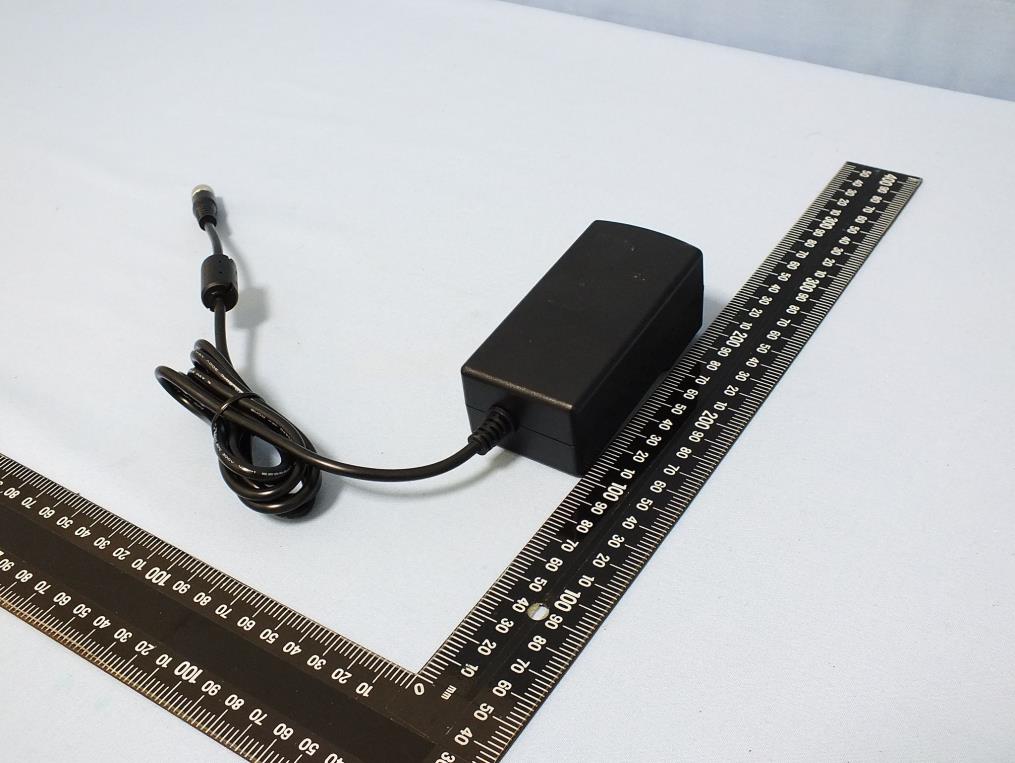

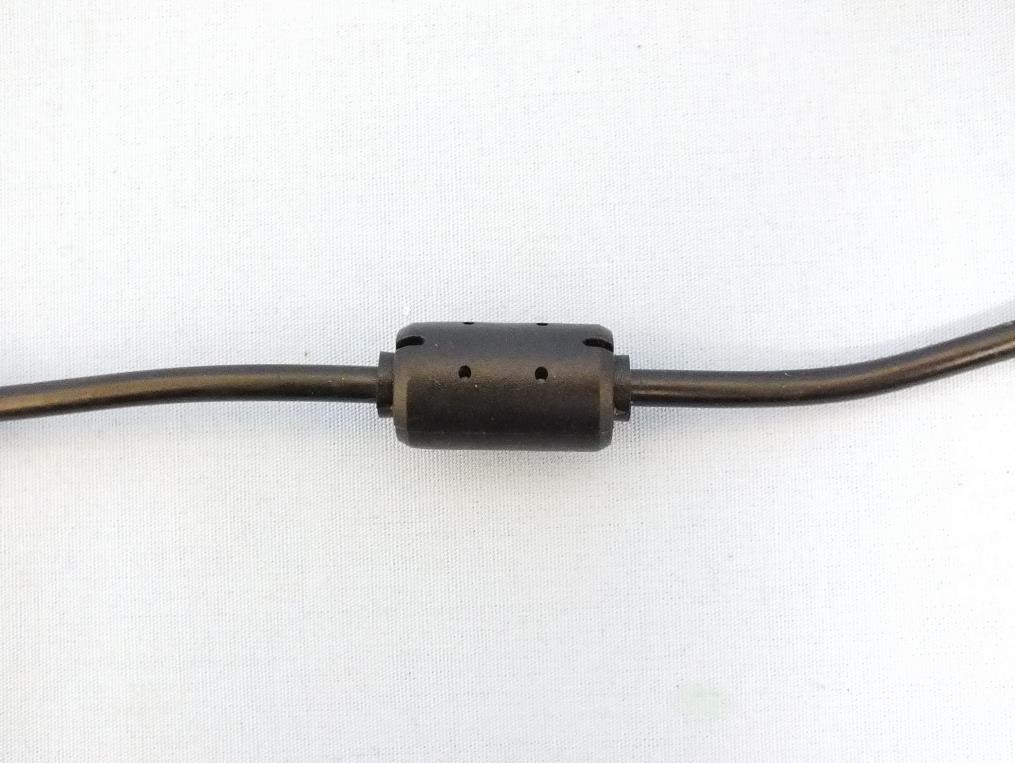

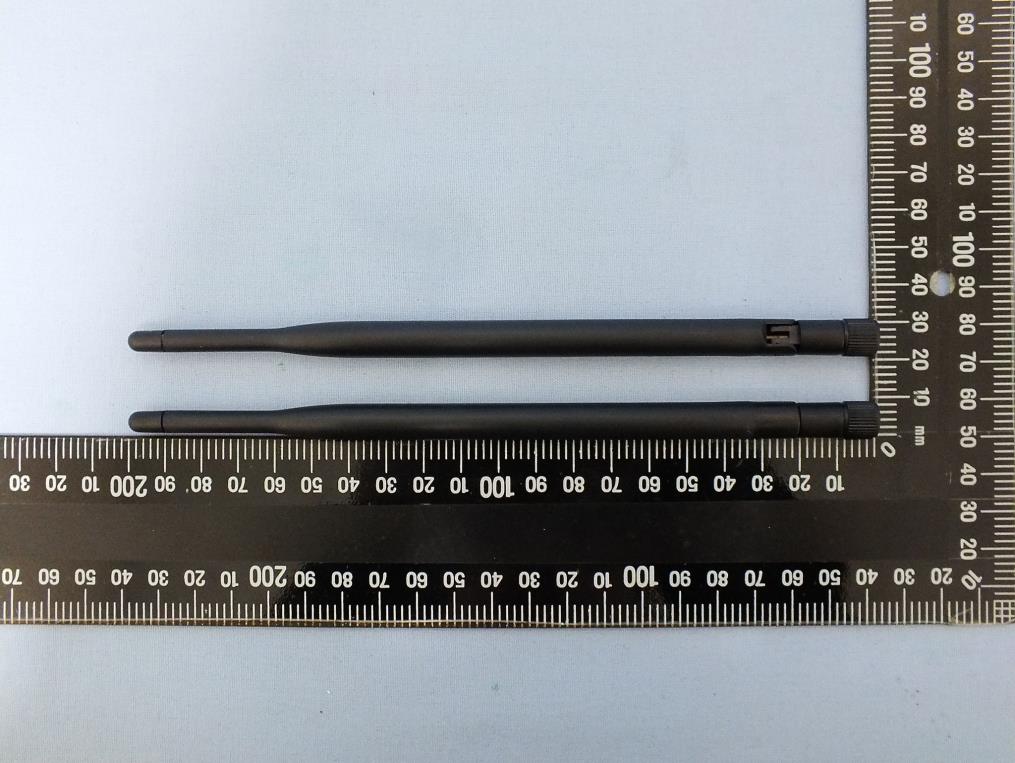

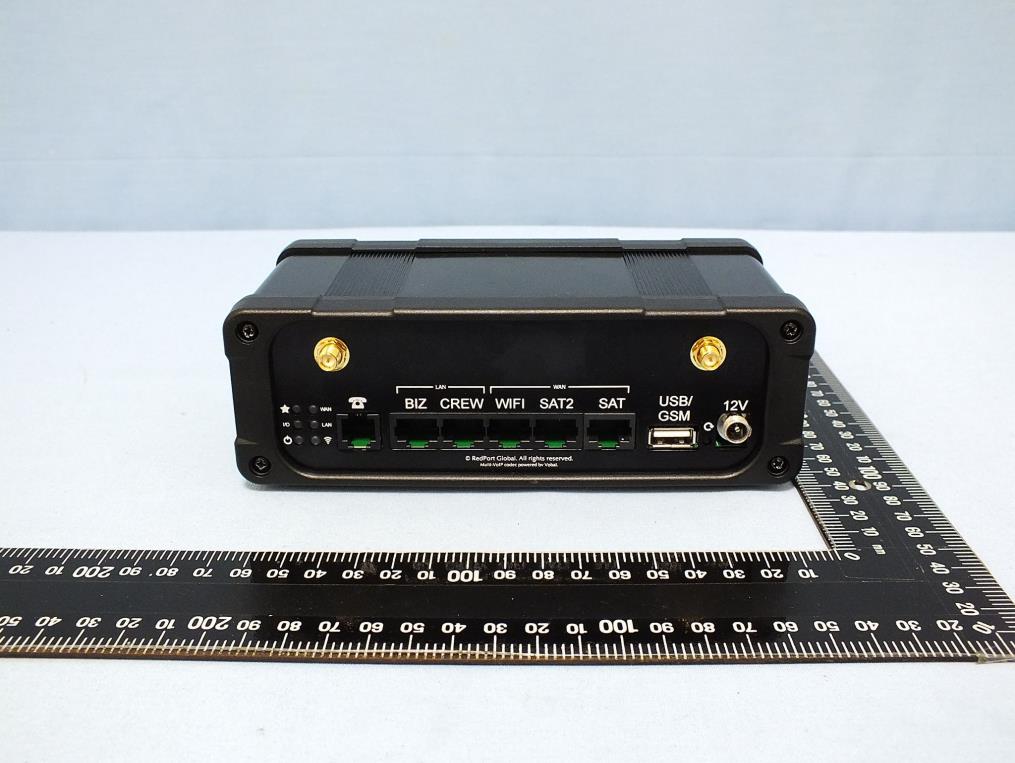

Project No.: 992701 Page No. : 1 of 11 Photographs of EUT Project No.: 992701 Page No. : 2 of 11 Project No.: 992701 Page No. : 3 of 11 Project No.: 992701 Page No. : 4 of 11 Project No.: 992701 Page No. : 5 of 11 Project No.: 992701 Page No. : 6 of 11 Project No.: 992701 Page No. : 7 of 11

Label location FCC ID: TKZAWV03S-003

Project No.: 992701 Page No. : 8 of 11 Project No.: 992701 Page No. : 9 of 11 Project No.: 992701 Page No. : 10 of 11 Project No.: 992701 Page No. : 11 of 11

Report No.: FA992701 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : TKZAWV03S-003 Equipment : WiFi Router Model No. : AWV03S-003 Applicant : AsiaRF Co., LTD. Address : 3F, 215, Dehe Road, Yonghe Dist. New Taipei City Taiwan Standard : 47 CFR FCC Part 2.1091 Received Date : Sep. 27, 2019 Tested Date : Feb. 06 ~ Mar. 12, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA992701 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 4 1.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 4 1.5 MPE EVALUATION RESULTS .............................................................................................................. 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA992701 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA992701 Rev. 01 Initial issue Apr. 06, 2020 Report No.: FA992701 Page : 4 of 6 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 1.4 MEASUREMENT UNCERTAINTY ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2) Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FA992701 Page : 5 of 6 Report Version: Rev. 01 1.5 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Rated Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Ratio* Pass / Fail 2412~2462 (Wi-Fi) 19.26 19.5 1 20 0.022 1 0.022 Pass *Ratio = Power density / Limit. Report No.: FA992701 Page : 6 of 6 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp (EMC and Wireless Communication Laboratory), it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan District. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C.. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR992701AC Page : 1 of 63 Report Version: Rev. 01 FCC Test Report FCC ID : TKZAWV03S-003 Equipment : WiFi Router Model No. : AWV03S-003 Applicant : AsiaRF Co., LTD. Address : 3F, 215, Dehe Road, Yonghe Dist. New Taipei City Taiwan Standard : 47 CFR FCC Part 15.247 Received Date : Sep. 27, 2019 Tested Date : Feb. 06 ~ Mar. 12, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR992701AC Page : 2 of 63 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Test Standards ..................................................................................................................................... 10 1.6 Deviation from Test Standard and Measurement Procedure ............................................................... 10 1.7 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Condition ................................................................................................................................. 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 11 3 TRANSMITTER TEST RESULTS ........................................................................................................ 12 3.1 Conducted Emissions ........................................................................................................................... 12 3.2 6dB and Occupied Bandwidth .............................................................................................................. 15 3.3 RF Output Power .................................................................................................................................. 21 3.4 Power Spectral Density ........................................................................................................................ 24 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 30 3.6 Emissions in Non-Restricted Frequency Bands ................................................................................... 58 4 TEST LABORATORY INFORMATION ............................................................................................... 63 Report No.: FR992701AC Page : 3 of 63 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR992701AC Rev. 01 Initial issue Apr. 06, 2020 Report No.: FR992701AC Page : 4 of 63 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.153MHz 42.98 (Margin -22.84dB) - QP Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 4824.00MHz 53.00 (Margin -1.00dB) - AV Pass 15.247(b)(3) Maximum Output Power Max Power [dBm]: 24.90 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR992701AC Page : 5 of 63 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 2400-2483.5 b 2412-2462 1-11 [11] 2 1-11 Mbps 2400-2483.5 g 2412-2462 1-11 [11] 2 6-54 Mbps 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 2 MCS 0-15 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 MCS 0-15 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Details Ant. No. Type Gain (dBi) Connector Remark 1 Dipole 1 --- --- 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 12Vdc from adapter 1.1.4 Accessories Accessories No. Equipment Description 1 AC adapter Brand: SHENZHEN YINGHUIYUAN ELECTRONICS CO.,LID Model: YHY-18003000 Power Rating: I/P: 100-240Vac, 50-60Hz, 1.5A O/P: 18Vdc, 3A Power Line: 1.48m non-shielded with one core Report No.: FR992701AC Page : 6 of 63 Report Version: Rev. 01 1.1.5 Channel…

Text truncated - open the document above for the full version.

Report No.: FR 992701 Page: : 1 of 5 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR 992701 Page: : 2 of 5 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR 992701 Page: : 3 of 5 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR 992701 Page: : 4 of 5 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR 992701 Page: : 5 of 5 Report Version: Rev. 01 Radiated Emission Above 1GHz Test
