TKZAWM688WiFi AP Router Module

www.asiarf.com TEL: +886‐2‐29407880 FAX: +886‐2‐29407800 3F, No.215, Dehe Road, Yonghe City New Taipei County 234 Taiwan, R.O.C. page: 1 DESCRIPTION AWM688 is a small-size 3.5 x 4.5cm, 802.11n AP board that achieves a data rate up to 150Mbps. with high performance MIPS CPU 580MHz speed.. By supporting 64/128-bits WEP, TKIP,WPA, WPA2,AES and WPS, helps to protect your data and privacy during transmission. This module could be mounted on system board like IPTV, STB, Media Player, Femto, XDSL, Cable Modem, Industrial PC, Ethernet Switch, Printer Server, Connected TV, Smart Phone and Portable CPE For WiMAX/LTE. Also WiFi IP camera, WiFi storage function embedded. AWM688 WiFi AP Router Module FCC ID: TKZAWM688 www.asiarf.com TEL: +886‐2‐29407880 FAX: +886‐2‐29407800 3F, No.215, Dehe Road, Yonghe City New Taipei County 234 Taiwan, R.O.C. page: 5 1. Size: 38*48 mm Double row 1.27mm pitch on the 35mm side 2. Reserved: Available for use 3. Reserved is ACTIVE LOW 4. LEDs and WPS/Reset to Default are active LOW Reset /Reset to default function is share AP/Client selection p in Dimension (unit: mil, [ ] is mm) Size: www.asiarf.com TEL: +886‐2‐29407880 FAX: +886‐2‐29407800 3F, No.215, Dehe Road, Yonghe City New Taipei County 234 Taiwan, R.O.C. page: 6 Evaluated Board (Host device): Host Name: WIFI CONTROL BOX Model No.: WCB688 Federal Communications Commission (FCC) Interference Statement THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. For additional hosts other than the specific host originally granted with a limited module, a Class II permissive change is required on the module grant to register the additional host as a specific host also approved with the module. The host must meet the necessary requirements to satisfy the module limiting conditions: shield and power supply regulation. The module is limited to OEM installation ONLY. The OEM integrator is responsible for ensuring the end user has no manual instructions to remove or install module. Regulatory Module Integration Instructions This module has been granted modular approval for mobile applications. OEM integrators for host products may use the module in their final products without additional FCC / IC (Industry Canada) certification if they meet the following conditions. Otherwise, additional FCC / IC approvals must be obtained.  The host product with the module installed must be evaluated for simultaneous transmission requirements.  The users manual for the host product must clearly indicate the operating requirements and conditions that must be observed to ensure compliance with current FCC / IC RF exposure guidelines.  To comply with FCC / IC regulations limiting both maximum RF output power and human exposure to RF radiation, the maximum antenna gain including cable loss in a mobile- only exposure condition must not exceed below. Antenna Type Model No. Manufacturer Frequency Band (MHz) Max Antenna Gain (dBi) Dipole Antenna A-2409 AsiaRF Ltd. 2412 ~ 2462 5.0 Chip Antenna ACA-5036-A2-CC-S INPAQ 2412 ~ 2462 3.0  A label must be affixed to the outside of the host product with the following statements: This device contains FCC ID: TKZAWM688 The final host / module combination may also need to be evaluated against the FCC Part 15B criteria for unintentional radiators in order to be properly authorized for operation as a Part 15 digital device. If the final host / module combination is intended for use as a portable device (see classifications below) the host manufacturer is responsible for separate approvals for the SAR requirements from FCC Part 2.1093. Device Classifications Since host devices vary widely with design features and configurations module integrators shall follow the guidelines below regarding device classification and simultaneous transmission, and seek guidance from their preferred regulatory test lab to determine how regulatory guidelines will impact the device compliance. Proactive management of the regulatory process will minimize unexpected schedule delays and costs due to unplanned testing activities. The module integrator must determine the minimum distance required between their host device and the user’s body. The FCC provides device classification definitions to assist in making the correct determination. Note that these classifications are guidelines only; strict adherence to a device classification may not satisfy the regulatory requirement as near-body device design details may vary widely. Your preferred test lab will be able to assist in determining the appropriate device category for your host product and if a KDB or PBA must be submitted to the FCC. Note, the module you are using has been granted modular approval for mobile applications. Portable applications may require further RF exposure (SAR) evaluations. It is also likely that the host / module combination will need to undergo testing for FCC Part 15 regardless of the device classification. Your preferred test lab will be able to assist in determining the exact tests which are required on the host / module combination. FCC Definitions Portable: (§2.1093) — A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is / are within 20 centimeters of the body of the user. Mobile: (§2.1091) (b) — A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating struct…

Text truncated - open the document above for the full version.

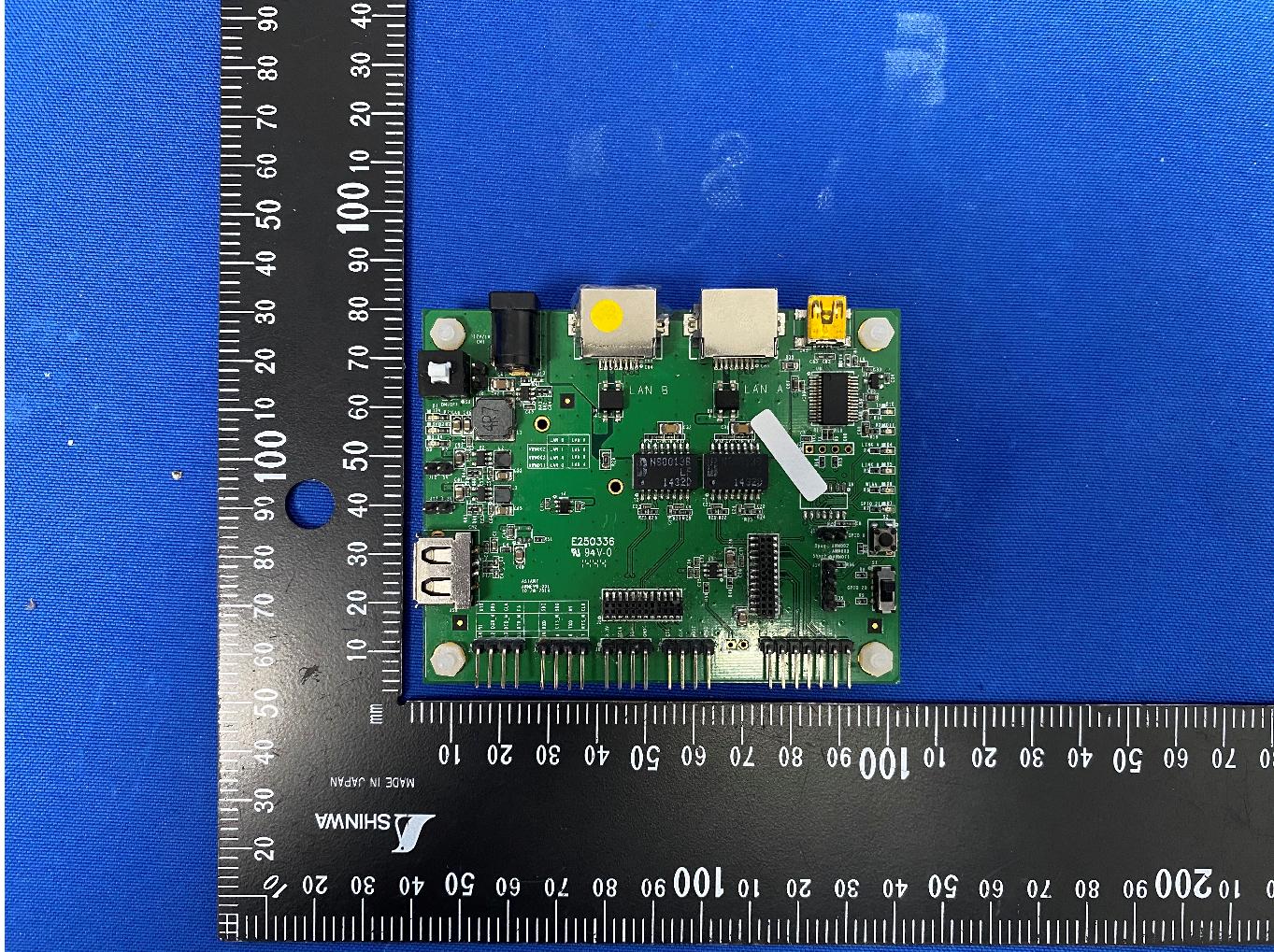

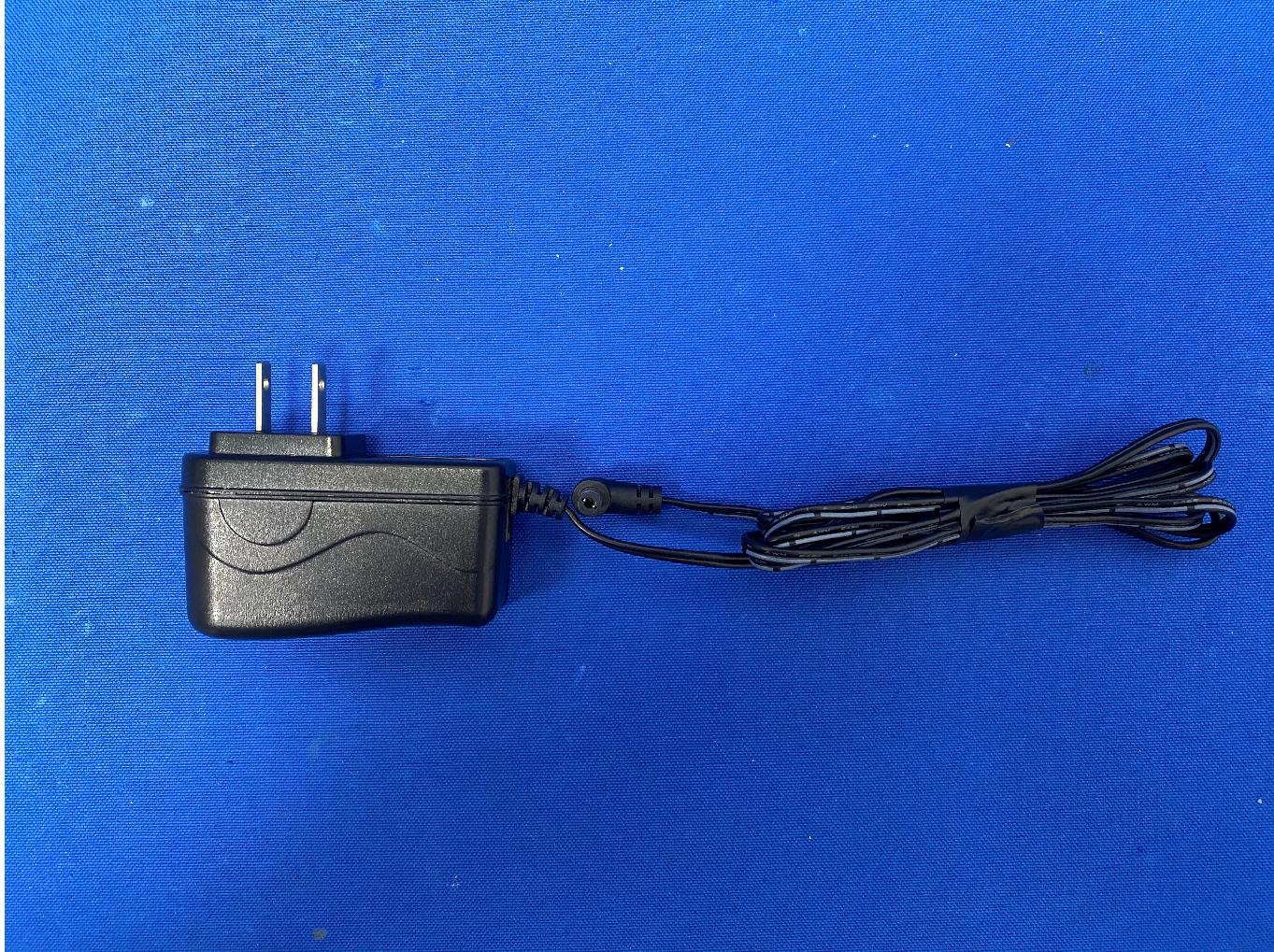

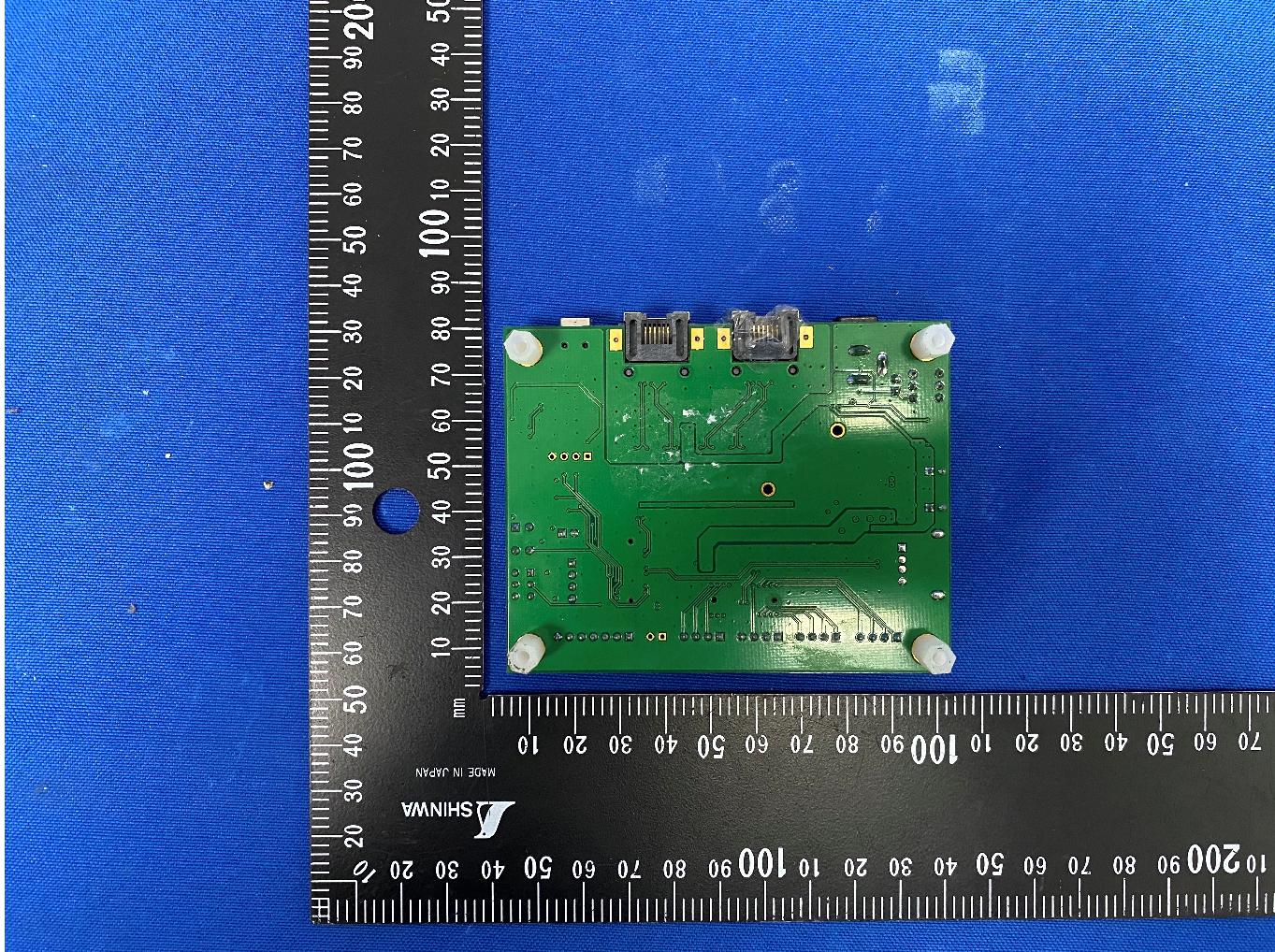

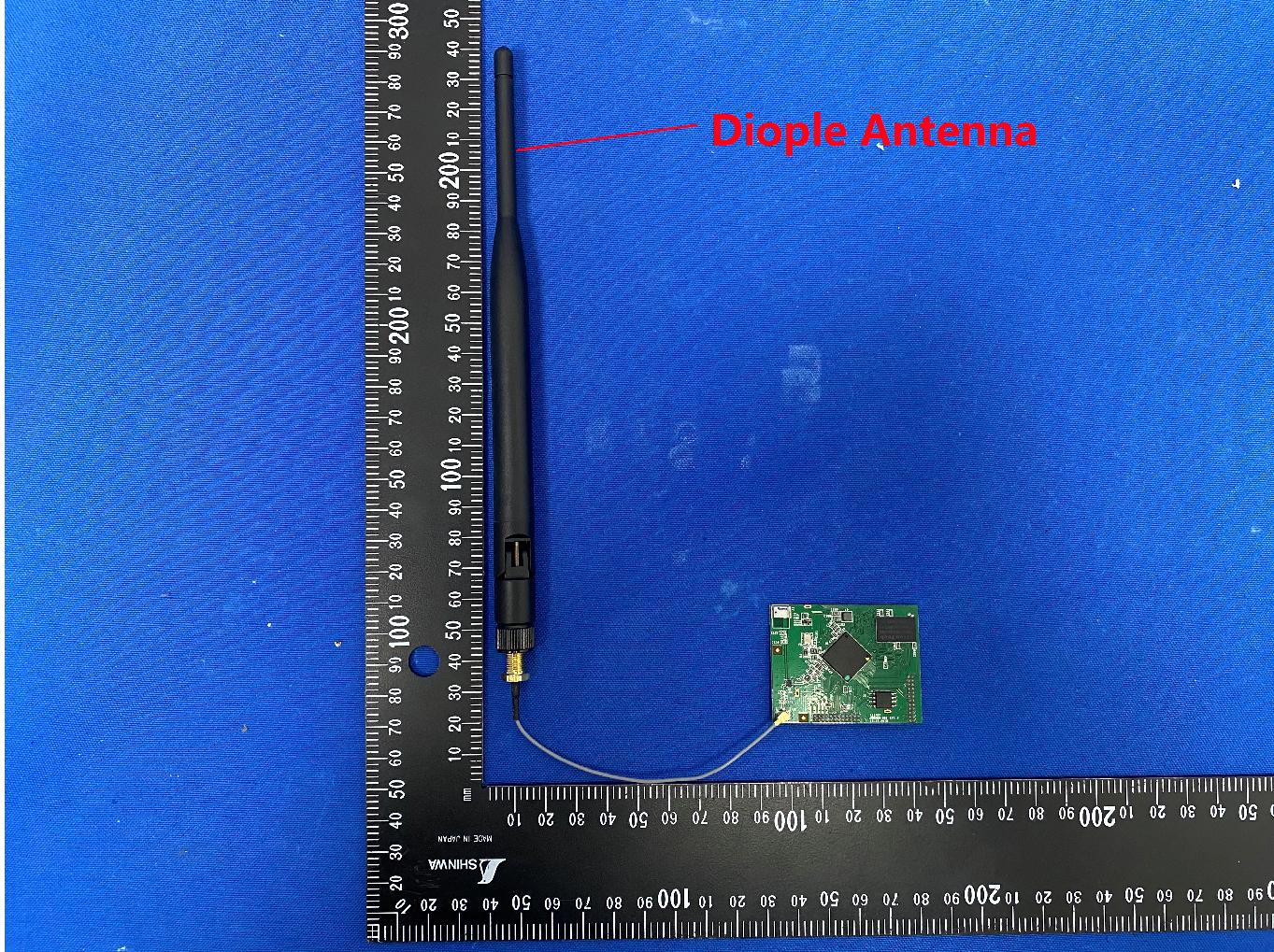

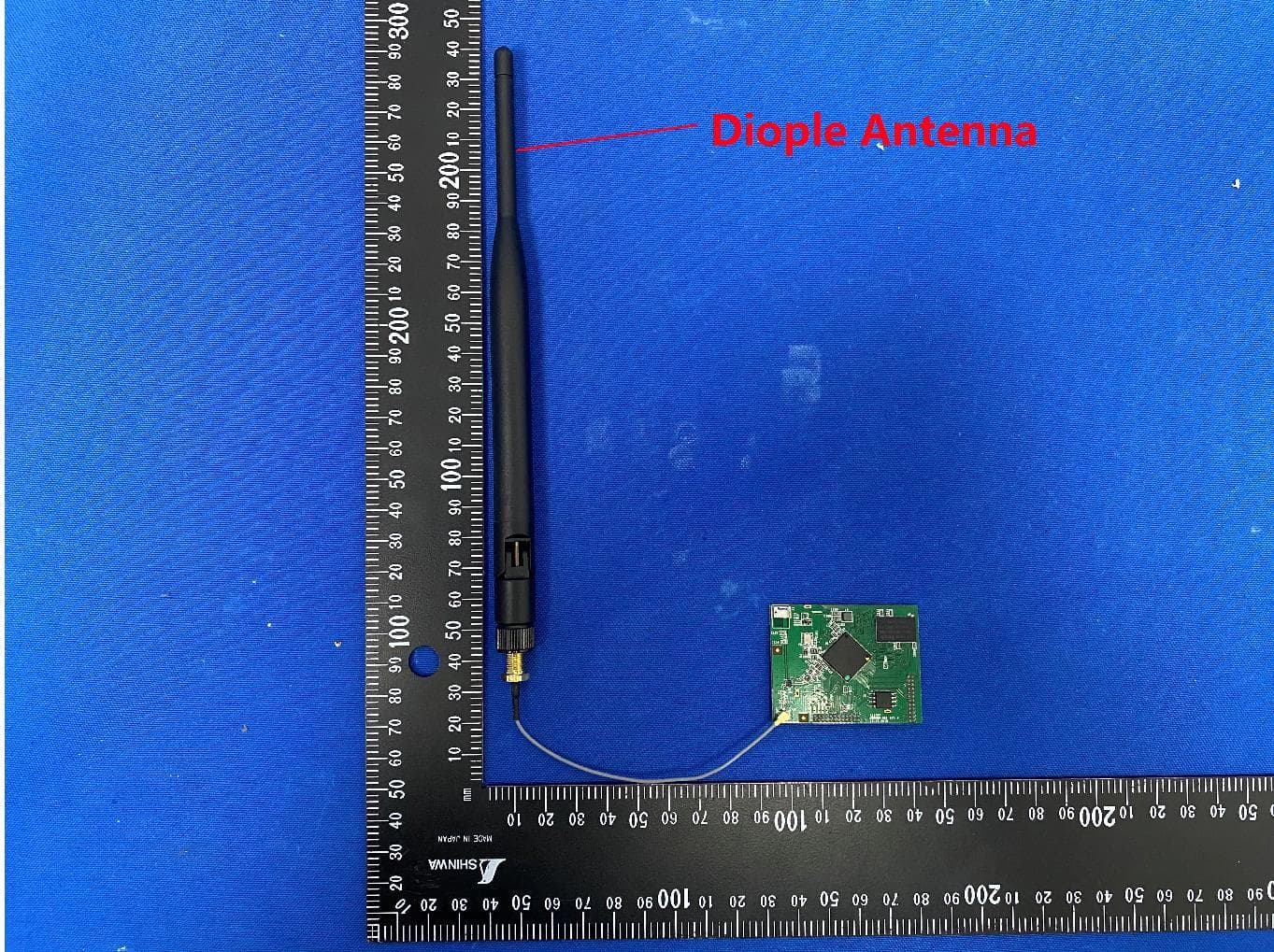

Report No.: 2006RSU029-UE 1 of 6 EUT External Photograph (1) EUT and Host Photo (2) EUT and Host Photo Report No.: 2006RSU029-UE 2 of 6 (3) EUT and Host Photo (4) EUT Photo Report No.: 2006RSU029-UE 3 of 6 (5) EUT Photo (6) EUT Photo Report No.: 2006RSU029-UE 4 of 6 (7) EUT Photo (8) Host Photo Report No.: 2006RSU029-UE 5 of 6 (9) Host Photo (10) Host Adaptor Photo Report No.: 2006RSU029-UE 6 of 6 (11) Host Adaptor Photo

Report No.: 2006RSU029-UE 1 of 2 EUT Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2006RSU029-UE 2 of 2 (3) EUT Photo (4) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2006RSU029-U2 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 07-28-2020 1 of 9 RF Exposure Evaluation Declaration FCC ID: TKZAWM688 Applicant: AsiaRF Co., Ltd. Application Type: Certification Product: WiFi AP Router Module Model No.: AWM688 FCC Classification: Digital Transmission System (DTS) Test Procedure(s): KDB 447498 D01 General RF Exposure Guidance v06 Reviewed By: ( Sunny Sun ) Approved By: (Robin Wu) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2006RSU029-U2 2 of 9 Revision History Report No. Version Description Issue Date Note 2006RSU029-U2 Rev. 01 Initial Report 07-28-2020 Valid Report No.: 2006RSU029-U2 3 of 9 CONTENTS Description Page General Information ......................................................................................................... 4 1. PRODUCT INFORMATION ........................................................................................ 5 1.1. Equipment Description ........................................................................................... 5 1.2. Working Frequencies for this report ....................................................................... 5 1.3. Antenna Description .............................................................................................. 6 1.4. Description of Antenna RF Port ............................................................................. 6 1.5. Description of Test Software .................................................................................. 6 2. RF Exposure Evaluation ........................................................................................... 7 2.1. Limits ..................................................................................................................... 7 2.2. Test Result of RF Exposure Evaluation .................................................................. 8 Appendix - EUT Photograph ........................................................................................... 9 Report No.: 2006RSU029-U2 4 of 9 General Information Applicant: AsiaRF Co., Ltd. Applicant Address: 3F, 215, Dehe Road, Yonghe Dist. New Taipei City 234, Taiwan Manufacturer: AsiaRF Co., Ltd. Manufacturer Address: 3F, 215, Dehe Road, Yonghe Dist. New Taipei City 234, Taiwan Test Site: MRT Technology (Suzhou) Co., Ltd Test Site Address: D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Test Facility / Accreditations Measurements were performed at MRT Laboratory located in Tian’edang Rd., Suzhou, China.  MRT facility is a FCC registered (MRT Designation No. CN1166) test facility with the site description report on file and has met all the requirements specified in ANSI C63.4-2014.  MRT facility is an IC registered (MRT Reg. No. 11384A-1) test laboratory with the site description on file at Industry Canada.  MRT facility is a VCCI registered (R-20025, G-20034, C-20020, T-20020) test laboratory with the site description on file at VCCI Council.  MRT Lab is accredited to ISO 17025 by the American Association for Laboratory Accreditation (A2LA) under the American Association for Laboratory Accreditation Program (A2LA Cert. No. 3628.01) in EMC, Telecommunications, Radio and SAR testing. Report No.: 2006RSU029-U2 5 of 9 1. PRODUCT INFORMATION 1.1. Equipment Description 1.2. Working Frequencies for this report 802.11b/g/n-HT20 Channel Frequency Channel Frequency Channel Frequency 01 2412 MHz 02 2417 MHz 03 2422 MHz 04 2427 MHz 05 2432 MHz 06 2437 MHz 07 2442 MHz 08 2447 MHz 09 2452 MHz 10 2457 MHz 11 2462 MHz -- -- 802.11n-HT40 Channel Frequency Channel Frequency Channel Frequency 03 2422 MHz 04 2427 MHz 05 2432 MHz 06 2437 MHz 07 2442 MHz 08 2447 MHz 09 2452 MHz -- -- -- -- Product Name: WiFi AP Router Module Model No.: AWM688 Wi-Fi Specification: 802.11b/g/n Frequency Range: 802.11b/g/n-HT20: 2412 ~ 2462MHz 802.11n-HT40: 2422 ~ 2452MHz Channel Number: 802.11b/g/n-HT20: 11 802.11n-HT40: 7 Type of Modulation: 802.11b: DSSS 802.11g/n: OFDM Data Rate: 802.11b: 1/2/5.5/11Mbps 802.11g: 6/9/12/18/24/36/48/54Mbps 802.11n: up to 150Mbps Report No.: 2006RSU029-U2 6 of 9 1.3. Antenna Description Antenna Type Model No. Manufacturer Frequency Band (MHz) Max Antenna Gain (dBi) Dipole Antenna (Ant 1) A-2409 AsiaRF Co., Ltd. 2412 ~ 2462 5.0 Chip Antenna (Ant 2) ACA-5036-A2-CC-S INPAQ 2412 ~ 2462 3.0 Note: This device only supports SISO mode, and two antennas of this device cannot transmit simultaneously. 1.4. Description of Antenna RF Port Software Control Port 2.4GHz RF Port Dipole Antenna (Ant 1) Chip Antenna (Ant 2) 1.5. Description of Test Software The test utility software used during testing was “MT7628 QA 0.0.0.96”, and the version was “0.0.0.96”. The power parameter values of this device refer to “Operation Description” file.. Report No.: 2006RSU029-U2 7 of 9 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) (A) Limits for Occupational/ Control Exposures 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f2 6 30-300 61.4 0.163 1.0 6 300-1,500 -- -- f/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f2 30 30-300 27.5 0.073 0.2 30 300-1,500 -- -- f/1500 30 1,500-100,000 -- -- 1.0 30 f= Frequency in…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 2006RSU029-U1 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 07-28-2020 1 of 166 FCC ID: TKZAWM688 Applicant: AsiaRF Co., Ltd. Application Type: Certification Product: WiFi AP Router Module Model No.: AWM688 FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part15 Subpart C (Section 15.247) Test Procedure(s): ANSI C63.10-2013 Test Date: June 20 ~ 30, 2020 MEASUREMENT REPORT FCC PART 15 Subpart C / WLAN 802.11b/g/n The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Reviewed By: ( Sunny Sun ) Approved By: ( Robin Wu ) Report No.: 2006RSU029-U1 2 of 166 Revision History Report No. Version Description Issue Date Note 2006RSU029-U1 Rev. 01 Initial Report 07-28-2020 Valid Report No.: 2006RSU029-U1 3 of 166 CONTENTS Description Page General Information ........................................................................................................................ 5 1. INTRODUCTION ...................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ...................................................................................................... 7 2.1. Feature of Equipment under Test ................................................................................. 7 2.2. Working Frequencies for this report .............................................................................. 7 2.3. Description of Available Antennas ................................................................................. 8 2.4. Description of Antenna RF Port .................................................................................... 8 2.5. Test Mode .................................................................................................................... 9 2.6. Description of Test Software ......................................................................................... 9 2.7. Duty Cycle .................................................................................................................... 9 2.8. Labeling Requirements ............................................................................................... 10 2.9. Test Environment Condition ....................................................................................... 10 3. DESCRIPTION of TEST ......................................................................................................... 11 3.1. Evaluation Procedure .................................................................................................. 11 3.2. AC Line Conducted Emissions .................................................................................... 11 3.3. Radiated Emissions .................................................................................................... 12 4. ANTENNA REQUIREMENTS................................................................................................. 13 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................. 14 6. MEASUREMENT UNCERTAINTY ......................................................................................... 16 7. TEST RESULT ....................................................................................................................... 17 7.1. Summary .................................................................................................................... 17 7.2. 6dB Bandwidth Measurement ..................................................................................... 18 7.2.1. Test Limit ................................................................................................................ 18 7.2.2. Test Procedure Used .............................................................................................. 18 7.2.3. Test Setting ............................................................................................................. 18 7.2.4. Test Setup .............................................................................................................. 18 7.2.5. Test Result .............................................................................................................. 19 7.3. Output Power Measurement ....................................................................................... 28 7.3.1. Test Limit ................................................................................................................ 28 7.3.2. Test Procedure Used .............................................................................................. 28 7.3.3. Test Setting ............................................................................................................. 28 Report No.: 2006RSU029-U1 4 of 166 7.3.4. Test Setup .............................................................................................................. 29 7.3.5. Test Result .............................................................................................................. 30 7.4. Power Spectral Density Measurement ........................................................................ 32 7.4.1. Test Limit ................................................................................…

Text truncated - open the document above for the full version.

Report No.: 2006RSU029-U1 49 of 166 802.11n-HT20 Out-of-Band Emissions - Ant 1 Channel 01 (2412MHz) 100kHz PSD reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD reference Level Spurious Emission Report No.: 2006RSU029-U1 50 of 166 802.11n-HT20 Out-of-Band Emissions - Ant 1 Channel 11 (2462MHz) 100kHz PSD reference Level High Band Edge Spurious Emission Report No.: 2006RSU029-U1 51 of 166 802.11n-HT40 Out-of-Band Emissions - Ant 1 Channel 03 (2422MHz) 100kHz PSD reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD reference Level Spurious Emission Report No.: 2006RSU029-U1 52 of 166 802.11n-HT40 Out-of-Band Emissions - Ant 1 Channel 09 (2452MHz) 100kHz PSD reference Level High Band Edge Spurious Emission Report No.: 2006RSU029-U1 53 of 166 802.11b Out-of-Band Emissions - Ant 2 Channel 01 (2412MHz) 100kHz PSD reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD reference Level Spurious Emission Report No.: 2006RSU029-U1 54 of 166 802.11b Out-of-Band Emissions - Ant 2 Channel 11 (2462MHz) 100kHz PSD reference Level High Band Edge Spurious Emission Report No.: 2006RSU029-U1 55 of 166 802.11g Out-of-Band Emissions - Ant 2 Channel 01 (2412MHz) 100kHz PSD reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD reference Level Spurious Emission Report No.: 2006RSU029-U1 56 of 166 802.11g Out-of-Band Emissions - Ant 2 Channel 11 (2462MHz) 100kHz PSD reference Level High Band Edge Spurious Emission Report No.: 2006RSU029-U1 57 of 166 802.11n-HT20 Out-of-Band Emissions - Ant 2 Channel 01 (2412MHz) 100kHz PSD reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD reference Level Spurious Emission Report No.: 2006RSU029-U1 58 of 166 802.11n-HT20 Out-of-Band Emissions - Ant 2 Channel 11 (2462MHz) 100kHz PSD reference Level High Band Edge Spurious Emission Report No.: 2006RSU029-U1 59 of 166 802.11n-HT40 Out-of-Band Emissions - Ant 2 Channel 03 (2422MHz) 100kHz PSD reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD reference Level Spurious Emission Report No.: 2006RSU029-U1 60 of 166 802.11n-HT40 Out-of-Band Emissions - Ant 2 Channel 09 (2452MHz) 100kHz PSD reference Level High Band Edge Spurious Emission Report No.: 2006RSU029-U1 61 of 166 7.6. Radiated Spurious Emission Measurement 7.6.1.Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph 15.209 Frequency [MHz] Field Strength [uV/m] Measured Distance [Meters] 0.009 - 0.490 2400/F (kHz) 300 0.490 - 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 7.6.2.Test Procedure Used ANSI C63.10-2013 Section 6.3 ANSI C63.10-2013 Section 6.4 ANSI C63.10-2013 Section 6.5 ANSI C63.10-2013 Section 6.6 7.6.3.Test Setting Table 1 - RBW as a function of frequency Frequency RBW 9 ~ 150 kHz 200 ~ 300 Hz 0.15 ~ 30 MHz 9 ~ 10 kHz 30 ~ 1000 MHz 100 ~ 120 kHz > 1000MHz 1MHz Report No.: 2006RSU029-U1 62 of 166 Quasi-Peak Measurements below 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. Span was set greater than 1MHz 3. RBW = as specified in Table 1 4. Detector = CISPR quasi-peak 5. Sweep time = auto couple 6. Trace was allowed to stabilize Peak Measurements above 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW = 3MHz 4. Detector = peak 5. Sweep time = auto couple 6. Trace mode = max hold 7. Trace was allowed to stabilize Average Measurements above 1GHz (Method VB) 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW; If the EUT is configured to transmit with duty cycle ≥ 98%, set VBW = 10 Hz. If the EUT duty cycle is < 98%, set VBW ≥ 1/T. T is the minimum transmission duration. 4. Detector = peak 5. Sweep time = auto 6. Trace mode = max hold 7. Trace was allowed to stabilize Report No.: 2006RSU029-U1 63 of 166 7.6.4.Test Setup Below 1GHz Test Setup: Above 1GHz Test Setup: Report No.: 2006RSU029-U1 64 of 166 7.6.5.Test Result Product WiFi AP Router Module Test Engineer Dandy Li Test Site AC1 Test Date 2020/06/26 Test Mode 802.11b - Ant 1 Test Channel 01 Note 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 4578.5 34.8 5.1 39.9 74.0 -34.1 Peak Horizontal * 6321.0 33.2 8.5 41.7 74.0 -32.3 Peak Horizontal 7477.0 33.6 11.8 45.4 74.0 -28.6 Peak Horizontal * 9959.0 31.2 16.8 48.0 74.0 -26.0 Peak Horizontal 4876.0 33.6 5.9 39.5 74.0 -34.5 Peak Vertical * 6584.5 33.6 9.8 43.4 74.0 -30.6 Peak Vertical 7434.5 34.1 11.9 46.0 74.0 -28.0 Peak Vertical * 10239.5 31.7 17.1 48.8 74.0 -25.2 Peak Vertical Note 1: “*” means that the frequency is not in restricted band. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 2006RSU029-U1 65 of 166 Product WiFi AP Router Module Test Engineer Dandy Li Test Site AC1 Test Date 2020/06/26 Test Mode 802.11b - Ant 1 Test Channel 06 Note 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 4876.0 37.5 5.9 43.4 74.0 -30.6 Peak Horizontal * 5879.0 33.2 7.6 40.8 74.0 -33.2 Peak Horizontal 7307.0 39.8 11.7 51.5 74.0 -22.5 Peak Horizontal * 10231.0 31.6 17.2 48.8 74.0 -25.2 Peak Horizontal 4876.0 …

Text truncated - open the document above for the full version.

Report No.: 2006RSU029-U1 122 of 166 Site: AC1 Time: 2020/06/26 - 13:34 Limit: FCC_Part15.209_RE(3m) Engineer: Dandy Li Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: WiFi AP Router Module Power: AC 120V/60Hz Test Mode: Transmit by 802.11n-HT40 at channel 2422MHz Ant 1 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 50.553 18.481 -3.447 54.000 32.072 AV 2 * 2423.388 90.077 57.964 N/A N/A 32.114 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2006RSU029-U1 123 of 166 Site: AC1 Time: 2020/06/26 - 13:40 Limit: FCC_Part15.209_RE(3m) Engineer: Dandy Li Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: WiFi AP Router Module Power: AC 120V/60Hz Test Mode: Transmit by 802.11n-HT40 at channel 2452MHz Ant 1 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2450.122 84.682 52.606 N/A N/A 32.076 PK 2 2483.500 56.700 24.663 -17.300 74.000 32.037 PK 3 2491.976 59.394 27.373 -14.606 74.000 32.021 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2006RSU029-U1 124 of 166 Site: AC1 Time: 2020/06/26 - 13:43 Limit: FCC_Part15.209_RE(3m) Engineer: Dandy Li Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: WiFi AP Router Module Power: AC 120V/60Hz Test Mode: Transmit by 802.11n-HT40 at channel 2452MHz Ant 1 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2450.632 74.718 42.642 N/A N/A 32.076 AV 2 2483.500 44.588 12.551 -9.412 54.000 32.037 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2006RSU029-U1 125 of 166 Site: AC1 Time: 2020/06/26 - 13:44 Limit: FCC_Part15.209_RE(3m) Engineer: Dandy Li Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: WiFi AP Router Module Power: AC 120V/60Hz Test Mode: Transmit by 802.11n-HT40 at channel 2452MHz Ant 1 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2449.986 100.519 68.443 N/A N/A 32.076 PK 2 2483.500 58.040 26.003 -15.960 74.000 32.037 PK 3 2485.754 58.807 26.774 -15.193 74.000 32.032 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2006RSU029-U1 126 of 166 Site: AC1 Time: 2020/06/26 - 13:47 Limit: FCC_Part15.209_RE(3m) Engineer: Dandy Li Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: WiFi AP Router Module Power: AC 120V/60Hz Test Mode: Transmit by 802.11n-HT40 at channel 2452MHz Ant 1 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2450.632 91.041 58.965 N/A N/A 32.076 AV 2 2483.500 47.043 15.006 -6.957 54.000 32.037 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2006RSU029-U1 127 of 166 Site: AC1 Time: 2020/06/26 - 14:22 Limit: FCC_Part15.209_RE(3m) Engineer: Dandy Li Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: WiFi AP Router Module Power: AC 120V/60Hz Test Mode: Transmit by 802.11b at channel 2412MHz Ant 2 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2387.560 58.568 26.495 -15.432 74.000 32.072 PK 2 2390.000 57.301 25.229 -16.699 74.000 32.072 PK 3 * 2410.688 88.824 56.743 N/A N/A 32.081 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2006RSU029-U1 128 of 166 Site: AC1 Time: 2020/06/26 - 14:29 Limit: FCC_Part15.209_RE(3m) Engineer: Dandy Li Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: WiFi AP Router Module Power: AC 120V/60Hz Test Mode: Transmit by 802.11b at channel 2412MHz Ant 2 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 43.473 11.401 -10.527 54.000 32.072 AV 2 * 2411.248 84.951 52.870 N/A N/A 32.082 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2006RSU029-U1 129 of 166 Site: AC1 Time: 2020/06/26 - 14:31 Limit: FCC_Part15.209_RE(3m) Engineer: Dandy Li Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: WiFi AP Router Module Power: AC 120V/60Hz Test Mode: Transmit by 802.11b at channel 2412MHz Ant 2 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2361.688 58.826 26.708 -15.174 74.000 32.117 PK 2 2390.000 56.595 24.523 -17.405 74.000 32.072 PK 3 * 2410.632 85.121 53.040 N/A N/A 32.081 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2006RSU029-U1 130 of 166 Site: AC1 Time: 2020/06/26 - 14:34 Limit: FCC_Part15.209_RE(3m) Engineer: Dandy Li Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: WiFi AP Router Module Power: AC 120V/60Hz Test Mode: Transmit by 802.11b at channel 2412MHz Ant 2 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 43.501 11.429…
