TKZAWV03SR3WiFi Router

AsiaRF Co., LTD. 3F, 215, Dehe Road, Yonghe Dist. New Taipei City, Taiwan 234 Date: 2020/11/5 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: TKZAWV03SR3 Product name: WiFi Router To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model AWV03S-ATA R3 to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., TaoYuan City 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Paul Lai / General Manager AsiaRF Co., LTD.. Tel: 02-29407880 E-mail: [email protected]

AsiaRF Co., LTD. 3F, 215, Dehe Road, Yonghe Dist. New Taipei City, Taiwan 234 Date: 2020/11/5 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: TKZAWV03SR3 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180days ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Paul Lai / General Manager AsiaRF Co., LTD.. Tel: 02-29407880 E-mail: [email protected]

AsiaRF Co., LTD. 3F, 215, Dehe Road, Yonghe Dist. New Taipei City, Taiwan 234 Subject: Ad Hoc Mode Function Declaration FCC ID: TKZAWV03SR3 Date: 2020/11/5 To Whom it may concern, We, AsiaRF Co., LTD. declare that the device does not support any non-US channels and country code selection and Channel 12 and 13 in 2.4 GHz band in all the operational mode(s). Regards, Paul Lai / General Manager AsiaRF Co., LTD.. Tel: 02-29407880 E-mail: [email protected]

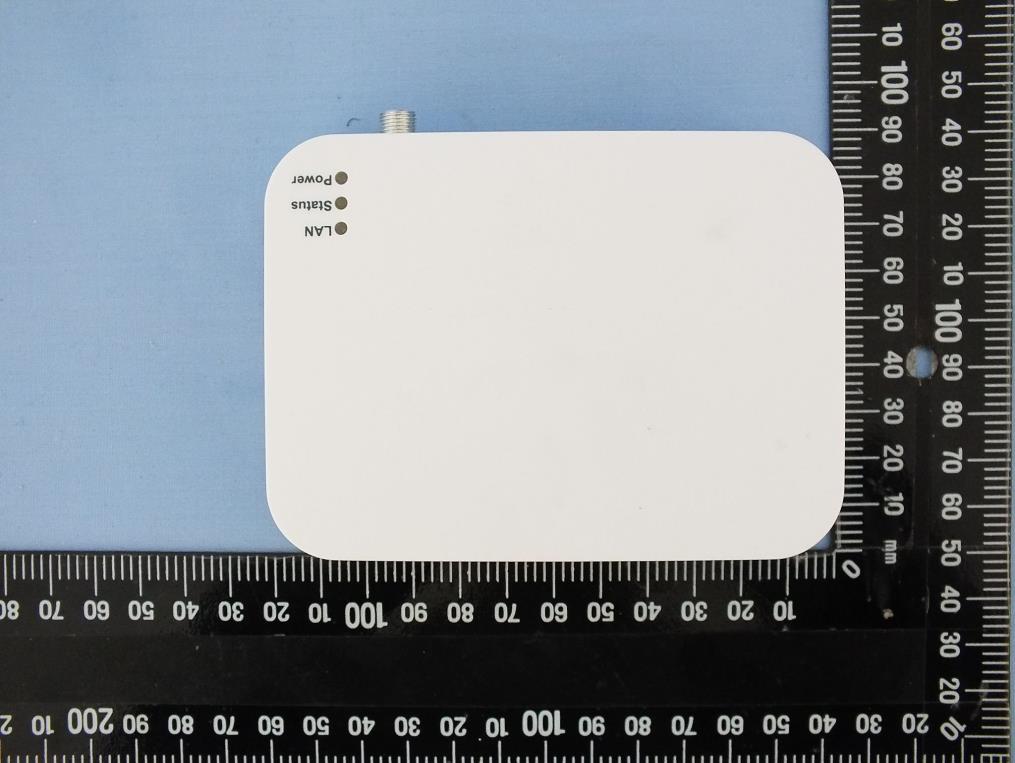

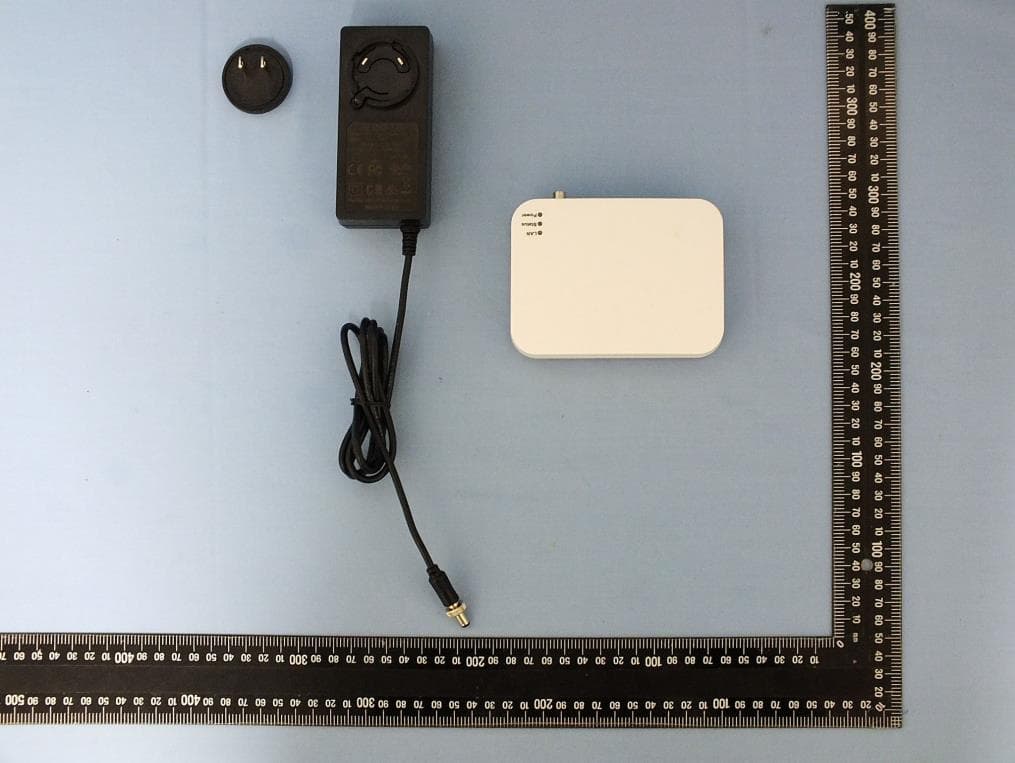

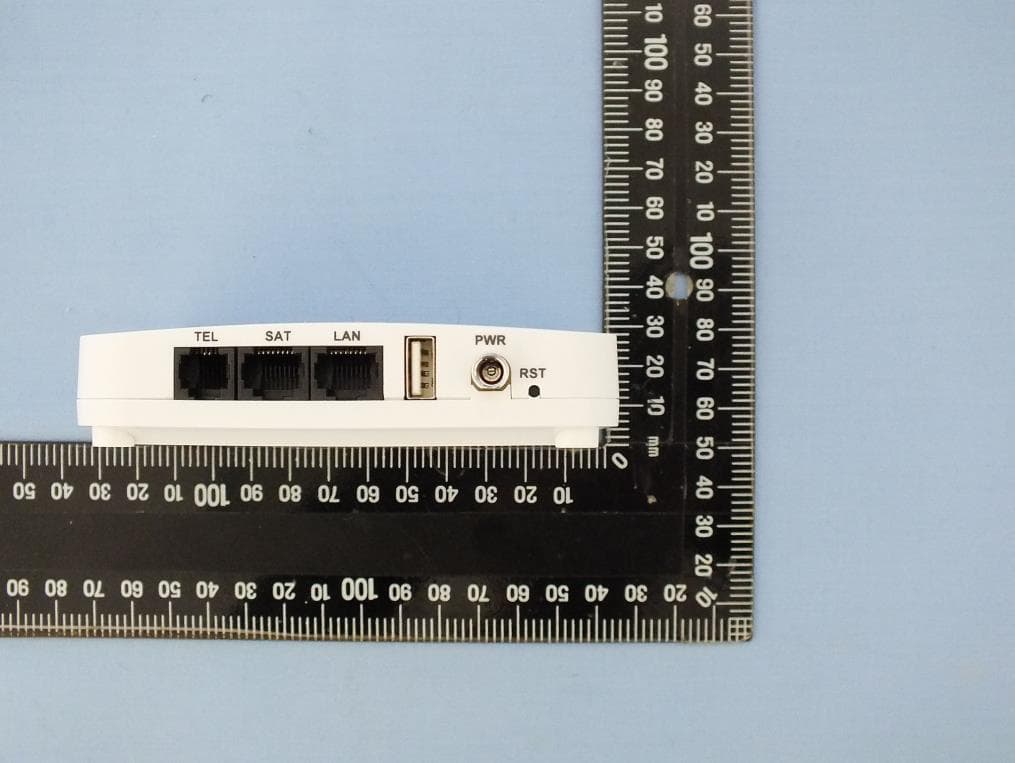

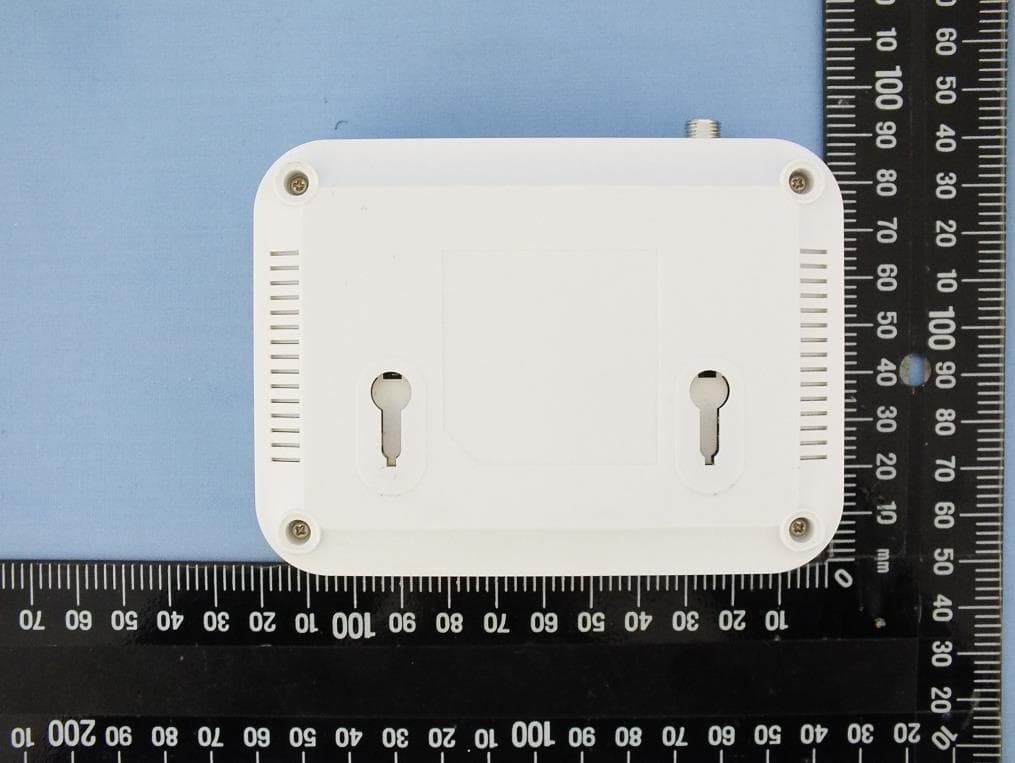

Project No.: 010702 Page No. : 1 of 8 Photographs of EUT Project No.: 010702 Page No. : 2 of 8 Project No.: 010702 Page No. : 3 of 8 Project No.: 010702 Page No. : 4 of 8 Project No.: 010702 Page No. : 5 of 8 Project No.: 010702 Page No. : 6 of 8

FCC ID: TKZAWV03SR3

Project No.: 010702 Page No. : 7 of 8 Project No.: 010702 Page No. : 8 of 8

Report No.: FA010702 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : TKZAWV03SR3 Equipment : WiFi Router Model No. : AWV03S-ATA R3 Brand Name : ASIARF Applicant : AsiaRF Co., LTD. Address : 3F, 215, Dehe Road, Yonghe Dist. New Taipei City, Taiwan 234 Standard : 47 CFR FCC Part 2.1091 Received Date : Jan. 07, 2020 Tested Date : Oct. 20 ~ Oct. 26, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA010702 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 4 1.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 4 1.5 MPE EVALUATION RESULTS .............................................................................................................. 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA010702 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA010702 Rev. 01 Initial issue Nov. 10, 2020 Report No.: FA010702 Page : 4 of 6 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 1.4 MEASUREMENT UNCERTAINTY The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)). Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FA010702 Page : 5 of 6 Report Version: Rev. 01 1.5 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Rated Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) *Ratio Pass / Fail 2412~2462 21.44 21.5 2 20 0.045 1 0.045 Pass *Ratio = Power density / Limit. Report No.: FA010702 Page : 6 of 6 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp (EMC and Wireless Communication Laboratory), it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan District. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C.. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR010702AC Page : 1 of 63 Report Version: Rev. 01 FCC Test Report FCC ID : TKZAWV03SR3 Equipment : WiFi Router Model No. : AWV03S-ATA R3 Brand Name : ASIARF Applicant : AsiaRF Co., LTD. Address : 3F, 215, Dehe Road, Yonghe Dist. New Taipei City, Taiwan 234 Standard : 47 CFR FCC Part 15.247 Received Date : Jan. 07, 2020 Tested Date : Oct. 20 ~ Oct. 26, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR010702AC Page : 2 of 63 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Test Standards ..................................................................................................................................... 10 1.6 Reference Guidance ............................................................................................................................ 10 1.7 Deviation from Test Standard and Measurement Procedure ............................................................... 10 1.8 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Facility...................................................................................................................................... 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 11 3 TRANSMITTER TEST RESULTS ........................................................................................................ 12 3.1 Conducted Emissions ........................................................................................................................... 12 3.2 6dB and Occupied Bandwidth .............................................................................................................. 15 3.3 RF Output Power .................................................................................................................................. 21 3.4 Power Spectral Density ........................................................................................................................ 24 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 30 3.6 Emissions in Non-Restricted Frequency Bands ................................................................................... 58 4 TEST LABORATORY INFORMATION ............................................................................................... 63 Report No.: FR010702AC Page : 3 of 63 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR010702AC Rev. 01 Initial issue Nov. 10, 2020 Report No.: FR010702AC Page : 4 of 63 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.549MHz 30.37 (Margin -15.63dB) - AV Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 2483.50MHz 53.11 (Margin -0.89dB) - AV Pass 15.247(b)(3) Maximum Output Power Max Power [dBm]: 27.23 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR010702AC Page : 5 of 63 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 2400-2483.5 b 2412-2462 1-11 [11] 2 1-11 Mbps 2400-2483.5 g 2412-2462 1-11 [11] 2 6-54 Mbps 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 2 MCS 0-15 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 MCS 0-15 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Details Ant. No. Model Type Gain (dBi) Connector Remark 1 NA PCB 2 NA --- 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 12Vdc from adapter 1.1.4 Accessories Accessories No. Equipment Description 1 AC adapter Brand: ShenZhen Cenwell Technology Co., Ltd. Model: CW1204000 P…

Text truncated - open the document above for the full version.

Report No.: FR010702 Page: : 1 of 5 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR010702 Page: : 2 of 5 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR010702 Page: : 3 of 5 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR010702 Page: : 4 of 5 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR010702 Page: : 5 of 5 Report Version: Rev. 01 Radiated Emission Above 1GHz Test
