TKZAWBRG2415WIFI ROUTER

User’s Manual Version: 2.0 Wireless LAN Broadband Router Trademarks Copyright @2006 Contents are subject to change without notice. All trademarks belong to their respective proprietors. Copyright Statement THIS DOCUMENT CONTAINS OF PROPRIETARY TECHNICAL INFORMATION THAT IS THE PROPERTY OF THIS COMPANY. AND NO PART OF THIS DOCUMENTATION MAY BE REPRODUCED, STORED IN A RETRIEVAL SYSTEM OR TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELECTRICAL OR MECHANICAL, BY PHOTOCOPYING, RECORDING, OR OTHERWISE, WITHOUT THE PRIOR WRITTEN CONSENT OF THIS COMPANY. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 2.0 i Table of Contents REVISION HISTORY .....................................................................................................................I TERMINOLOGY ........................................................................................................................... II 1 INTRODUCTION....................................................................................................................1 1.1 PACKAGE CONTENTS............................................................................................................ 1 1.2 PRODUCT SPECIFICATIONS................................................................................................... 1 1.3 PRODUCT FEATURES............................................................................................................ 2 1.4 UPPER PANEL DESCRIPTION................................................................................................. 3 1.5 REAR PANEL DESCRIPTION................................................................................................... 4 2 INSTALLATION ..................................................................................................................... 7 2.1 HARDWARE INSTALLATION.................................................................................................. 7 2.2 SOFTWARE INSTALLATION.................................................................................................... 7 3 SOFTWARE CONFIGURATION ......................................................................................... 8 3.1 PREPARE YOUR PC TO CONFIGURE THE WLAN BROADBAND ROUTER................................ 8 3.2 CONNECT TO THE WLAN BROADBAND ROUTER............................................................... 10 3.3 MANAGEMENT AND CONFIGURATION ON THE WLAN BROADBAND ROUTER..................... 10 3.3.1 Status........................................................................................................................ 10 3.3.2 Setup Wizard ............................................................................................................ 12 I Operation Mode ........................................................................................................... 12 II Time Zone Setting........................................................................................................ 13 III LAN Interface Setup ................................................................................................ 13 IV WAN Interface Setup ............................................................................................... 14 V Wireless Basic Settings ................................................................................................ 14 VI Wireless Security Setup ........................................................................................... 15 3.3.3 Operation Mode ....................................................................................................... 15 3.3.4 Wireless - Basic Settings.......................................................................................... 16 3.3.5 Wireless - Advanced Settings .................................................................................. 17 3.3.6 Wireless - Security Setup ......................................................................................... 19 I WEP Key Setup ...........................................................................…

Text truncated - open the document above for the full version.

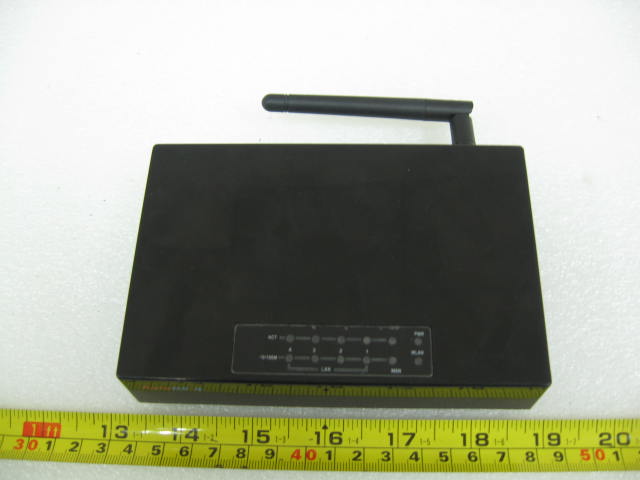

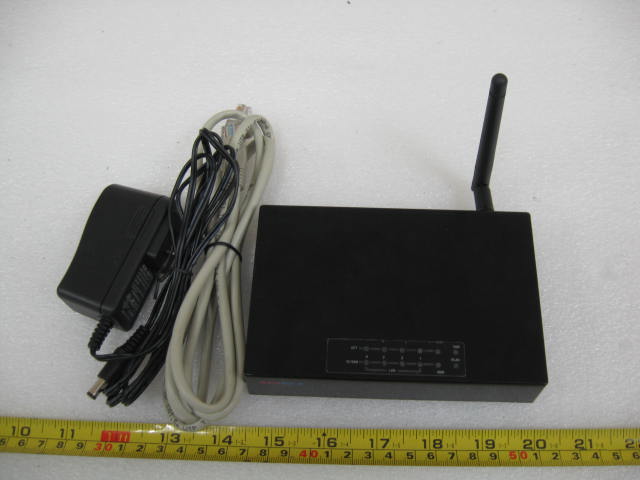

ASIARF LTD MODEL: AWBRG2415 REPORT NO.: STR07128123I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 ASIARF LTD MODEL: AWBRG2415 REPORT NO.: STR07128123I FCC PART 15.247 EUT View 3

ASIARF LTD MODEL: AWBRG2415 REPORT NO.: STR07128123I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: TKZAWBRG2415 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

ASIARF LTD MODEL: AWBRG2415 REPORT NO.: STR07128123I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: TKZAWBRG2415 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

ASIARF LTD MODEL: AWBRG2415 REPORT NO.: STR07128123I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 ASIARF LTD MODEL: AWBRG2415 REPORT NO.: STR07128123I FCC PART 15.247 Solder Board-Component View 2 Solder Board-Component View 3

Product Number: R-AN2400-5703RS Product Name: 2.4 GHz External Antenna Page 1 Version: 3.0 Issue Date: 2006-09-26 Index: 1. Mechanical Dimension Drawing 2. Technical Specification 3. S11 Return Loss / S.W.R. / Impedance Testing Result 4. Antenna Radiation Pattern 5. Plastic Parts Material Datasheet 6. Metal Parts Material Datasheet 7. Coaxial Cable Datasheet 8. Reliability Testing 9. SGS Test Report 1. Mechanical Dimension Drawing Product Number: R-AN2400-5703RS Product Name: 2.4 GHz External Antenna Page 2 Version: 3.0 Issue Date: 2006-09-26 2. Technical Specification A. Electrical Characteristics Working Frequency Range 2400 ~ 2500 MHz S.W.R. <= 2.0 Antenna Gain 2.0 ± 0.5 dBi Antenna Radiation Pattern Omni-directional Impedance 50 ohm B. Material Color of Outer Cover White Material of Outer Cover TPE Material of Hinge PA-6 Material of Base PA-6 Connector Spec 50 Ohm Tube Copper (C3604) Total Length 109 mm C. Environmental Operation Temperature - 30 ̊C ~ + 85 ̊C Storage Temperature - 30 ̊C ~ + 85 ̊C Product Number: R-AN2400-5703RS Product Name: 2.4 GHz External Antenna Page 3 Version: 3.0 Issue Date: 2006-09-26 3. S11 Return Loss / S.W.R. / Impedance Testing Result Antenna Hinge is 90 degree Product Number: R-AN2400-5703RS Product Name: 2.4 GHz External Antenna Page 4 Version: 3.0 Issue Date: 2006-09-26 Antenna Hinge is 180 degree Product Number: R-AN2400-5703RS Product Name: 2.4 GHz External Antenna Page 5 Version: 3.0 Issue Date: 2006-09-26 4. Antenna Radiation Pattern Testing Equipment Specification: Antenna Anechoic Chamber Dimension: 8 x 4 x 4 m Quite Zone: 600mm @1 GHz Isolation: >100dB @ 1 MHz ~ 10 GHz Testing Equipment: Agilent 8720D Received Antenna: 0.7~6.0 GHz for Gain Calibration Double Ridged Horn Antenna Product Number: R-AN2400-5703RS Product Name: 2.4 GHz External Antenna Page 6 Version: 3.0 Issue Date: 2006-09-26 5. Plastic Parts Material Datasheet TPE Datasheet Product Number: R-AN2400-5703RS Product Name: 2.4 GHz External Antenna Page 7 Version: 3.0 Issue Date: 2006-09-26 PA-6 Datasheet Product Number: R-AN2400-5703RS Product Name: 2.4 GHz External Antenna Page 8 Version: 3.0 Issue Date: 2006-09-26 6. Metal Parts Material Datasheet Product Number: R-AN2400-5703RS Product Name: 2.4 GHz External Antenna Page 9 Version: 3.0 Issue Date: 2006-09-26 7. Coaxial Cable Datasheet RG-178 Coaxial Cable Specification 1. Cable Type MIL – C – 17 / RG-178 2. Impedance 50 ± 3 ohm Material silver-coated copper Conductor Numbers 7 Conductor Size 0.102 mm 3. Inner Conductor Outer Diameter 0.3 mm Material FEP Color Clear Average Thickness 0.28 mm 4. Dielectric Layer Diameter 0.86 mm Material silver-coated copper Construction 16-3-0.1 mm 5. Braid (Shielding) Coverage 95 % Material FEP Color Brown Average Thickness 0.25 mm 6. Outer Cover Diameter 1.80 ± 0.05 mm 7. V.S.W.R Testing < 1.3 (DC ~ 6.0 GHz) 100 MHz 46 900 MHz 155 1800 MHz 295 2400 MHz 340 5200 MHz 505 8. Attenuation (dB / 100 meter ) 6000 MHz 550 9. Capacitance 97 ± 3 ( pF / meter) 10. Maximum Power 30 dBm 11. Spark Test 2.0 KV 12. Rating Temp. and Volt. 200 ̊C / 30V 13. Conductor Resistance 335 ohm / KM / 20 ̊C max. 14. Dielectric Resistance 3 G ohm / KM / 20 ̊C min. Product Number: R-AN2400-5703RS Product Name: 2.4 GHz External Antenna Page 10 Version: 3.0 Issue Date: 2006-09-26 8. Reliability Testing Test Item Procedure Requirement 1. Visual inspection and Dimension Check Applicable methods using x5 magnification follow specification 2. Rapid Changing of Temperature -40 ̊C (30minutes) to 90 ̊C (30minutes); 120 cycles After 2 hours recovery: 1. no visible damage 2. bandwidth tolerance < ±5% 3. Damp Heat 500 hours at 60 ̊C; 90 ~ 95% RH After 2 hours recovery: 1. no visible damage 2. bandwidth tolerance < ±5% 4. Endurance 500 hours at 90 ̊C After 2 hours recovery: 1. no visible damage 2. bandwidth tolerance < ±5% 9. SGS Test Report

ASIARF LTD Model: AWBRG2415 Report No.: STR07128123I Page 1 of 34 FCC PART 15.247 FCC Part 15C Measurement and Test Report For AsiaRF Ltd 3F, 26, Lane 70, Wu Kong 3rd Road, Wu-Ku Industry, Taipei County, Taiwei FCC ID: TKZAWBRG2415 Report Concerns: Original Report Equipment Type: WiFi Router Model: AWBRG2415 Report No.: STR07128123I Test/Witness Engineer: Lahm Peng Test Date: 2008-01-05 to 2008-01-16 Prepared By: Shenzhen SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Approved & Authorized By: Jandy So / PSQ Manager Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . ASIARF LTD Model: AWBRG2415 Report No.: STR07128123I Page 2 of 34 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................4 1.2 TEST STANDARDS..................................................................................................................................................4 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................4 1.4 TEST METHODOLOGY............................................................................................................................................5 1.5 TEST FACILITY.......................................................................................................................................................5 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................5 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................5 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................5 2. SUMMARY OF TEST RESULTS ...........................................................................................................................6 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................7 3.1 STANDARD APPLICABLE........................................................................................................................................7 3.2 TEST RESULT.........................................................................................................................................................7 4. CONDUCTED EMISSIONS ....................................................................................................................................8 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................8 4.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.3 TEST PROCEDURE...................................................................................................................................................8 4.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................8 4.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................9 4.6 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 4.7 CONDUCTED EMISSIONS TEST DATA......................................................................................................................9 5. POWER SPECTRAL DENSITY ...........................................................................................................................12 5.1 STANDARD APPLICABLE......................................................................................................................................12 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................12 5.3 TEST PROCEDURE.................................................................................................................................................12 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................12 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................13 6. 6-DB BANDWIDTH ................................................................................................................................................17 6.1 STANDARD APPLICABLE......................................................................................................................................17 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................17 6.3 TEST PROCEDURE.................................................................................................................................................17 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................17 6.5 SUMMARY OF TEST RESULTS/PLOTS.........................................................…

Text truncated - open the document above for the full version.

ASIARF LTD MODEL: AWBRG2415 REPORT NO.: STR07128123I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
