TKZAWM002WiFi AP Router Module

AsiaRF Co., Ltd.
WiFi AP Router Module - FCC ID TKZAWM002 - AsiaRF Co., Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Apr 25, 2013
Application Purpose
Original Equipment
Date of Application
Apr 25, 2013
Equipment Note
WiFi AP Router Module
Frequency Range
2422.00000000 - 2452.00000000
Company
AsiaRF Co., Ltd.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

AsiaRF AWM002 1 www.asiarf.com User’s Manual Version: 1.0 WiFi AP Router Module AsiaRF AWM002 2 www.asiarf.com Copyright Statement Trademarks Copyright @2013 Contents are subject to change without notice. All trademarks belong to their respective proprietors. Copyright Statement THIS DOCUMENT CONTAINS OF PROPRIETARY TECHNICAL INFORMATION THAT IS THE PROPERTY OF THIS COMPANY. AND NO PART OF THIS DOCUMENTATION MAY BE REPRODUCED, STORED IN A RETRIEVAL SYSTEM OR TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELECTRICAL OR MECHANICAL, BY PHOTOCOPYING, RECORDING, OR OTHERWISE, WITHOUT THE PRIOR WRITTEN CONSENT OF THIS COMPANY. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. AsiaRF AWM002 3 www.asiarf.com - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. AsiaRF AWM002 4 www.asiarf.com Contents CHAPTER 1 INTRODUCTION 1.1 INTRODUCTION .............................................................. 1 1.2 HARDWARE FEATURES ................................................... 3 1.3 SOFTWARE FEATURES .................................................... 5 1.4 PACKAGE CONTENTS ...................................................... 6 CHAPTER 2 HARDWARE INSTALLATION 2.1 HOW TO START .............................................................. 7 2.2 LED INDICATOR AND PORT DESCRIPTION ...................... 9 2.3 POSITION SLIDE SWITCH ................................................ 9 2.4 RESET BUTTON .............................................................. 9 2.5 PIN DEFINITION ............................................................. 9 CHAPTER 3 FIRMWARE SETUP 3.1 DEFAULT CONFIGURATION ........................................... 12 3.2 CONFIGURE AWM002 ................................................. 13 3.2.1 STATUS ..................................................................... 14 3.4.1.2 BREAK-DETECTION ............................................... 17 3.4.1.3 MAC-CLONE ......................................................... 17 3.4.1.4 DDNS ................................................................... 17 3.4.2 LAN ......................................................................... 17 3.4.2.1 SETUP .................................................................... 17 3.4.2.2 BINDING ................................................................ 18 3.4.2.3 DHCP-TABLE ........................................................ 19 3.4.3 WIRELESS ................................................................. 19 AsiaRF AWM002 5 www.asiarf.com 3.4.3.1 BASIC .................................................................... 20 3.4.3.2 SECURITY .............................................................. 20 3.4.3.3 ADVANCED ............................................................ 20 3.4.3.4 WDS ..................................................................... 20 3.4.3.4 WPS ...................................................................... 21 3.4.3.5 STATION LIST ........................................................ 21 3.4.3.6 MAC ACCESS ........................................................ 21 3.4.4 MEDIA ...................................................................... 21 3.4.5 SECURITY ................................................................. 21 3.4.5.1 FIREWALL .............................................................. 22 3.4.5.2 WEBSITE-BLOCK ................................................... 22 3.4.5.3 MAC-FILTER ......................................................... 22 3.4.5.4 ACCESS-RESTRICTIONS ......................................... 22 3.4.5.5 PORT-TRIGGERING ................................................ 23 3.4.5.6 DOS ....................................................................... 24 3.4.6.1 VISUAL SERVER..................................................... 26 3.4.6.2 APPLICATION ......................................................... 26 3.4.6.3 DMZ ..................................................................... 27 3.4.6.4 NAT ...................................................................... 27 3.4.7 ROUTING .................................................................. 27 3.4.7.1 TABLE ....................…

Text truncated - open the document above for the full version.

Cover Letter(s)

AsiaRF Ltd. 3F, No.176, Yongzhen Road, Yonghe District, New Taipei City 234, Taiwan (FCC ID:TKZAWM002) Gentlemen: Regarding to the FCC 15.212, AsiaRF Ltd. would like to request limited modular approval for the submission FCC ID: TKZAWM002. AsiaRF Ltd. confirms that the product complies with numbered requirements identified below: 1. “The limited modular transmitter must have its own RF Shielding” The radio portion of this module has not been shielded, please see exhibition External Photo, and this module to apply as a Limited Single Modular Approval. 2. “The limited modular transmitter must have buffered modulation/data inputs” The EUT has buffered data inputs; it is integrated in chip RT5350. 3. “The limited modular transmitter must have its own power supply regulation” The EUT interface provides 3.3 VDC, and have its own VCO inside. 4. “The limited modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c) ” The EUT meets the antenna requirements. It is unique antenna connector, and with a internal PCB antenna. Refer to the photo of antennas are shown in the test report. 5. “The limited modular transmitter must be tested in a stand-alone configuration.” The EUT is tested in a Eyes configuration via specific socket. Please see the photo of test setup photo of the report. This device will only installed in this host (Manufacturer: Venitek Ltd. , Product Name: WiFi IP Camera & Storage AP Router, Model: AWAPN2411). 6. “The limited modular transmitter must be labeled with it’s own FCC ID number.” The EUT has it’s own FCC ID and the label is visible. 7. “The limited modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instructions along with module to explain any such requirement.” The EUT is comply with all applicable FCC Rules. Warning detail refer to the user manual. 8. “The limited modular transmitter must comply with any applicable RF exposure requirements.” The EUT is comply with all applicable RF exposure requirements. See this RF exposure report. Sincerely, AsiaRF Ltd. ----------------------------------------- (Paul Lai / Manager)

External Photos

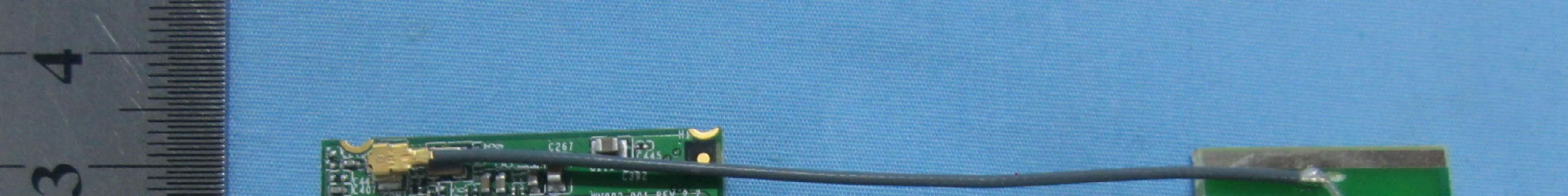

AsiaRF Co., Ltd. Model: AWM002 REPORT NO.: STR13038470I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 Host Device View 1 (Model: AWAPN2411): AsiaRF Co., Ltd. Model: AWM002 REPORT NO.: STR13038470I FCC PART 15.247 Host Device View 2 Host Device View 3 AsiaRF Co., Ltd. Model: AWM002 REPORT NO.: STR13038470I FCC PART 15.247 Host Device View 4 Host Device View 5 AsiaRF Co., Ltd. Model: AWM002 REPORT NO.: STR13038470I FCC PART 15.247 Host Device View 6 Host Device View 7

ID Label/Location Info

AsiaRF Co., Ltd. Model: AWM002 REPORT NO.: STR13038470I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: TKZAWM002 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT’s operating instructions or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

ID Label/Location Info

AsiaRF Co., Ltd. Model: AWM002 REPORT NO.: STR13038470I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: TKZAWM002 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT’s operating instructions or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Internal Photos

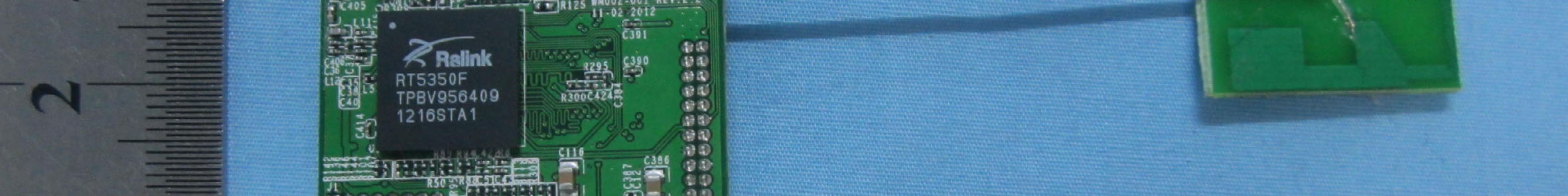

AsiaRF Co., Ltd. Model: AWM002 REPORT NO.: STR13038470I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS Solder Board-Component View 1 Solder Board-Component View 2

RF Exposure Info

RF Exposure Requirements Product Description: WiFi AP Router Module Model No.: AWM002 FCC ID: TKZAWM002 Acorrding to the KDB-447498 D01 V05, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Wi-Fi (802.11b/g/n) Tx frequency range: 2412~2462MHz Device category: Mobile device (Distance: 20cm and >190mm) Maximum Conducted Output Power: 14.63 dBm Maximum Antenna Gain: 2.0 dBi Maximum EIRP Output Power: 46.0257 mW (16.63 dBm) Limit: 1496mW Source-based time-averaged EIRP output power is 46.0257 mW < 1496 mW So the transmitter complies with the RF exposure requirements and the SAR is not required.

Test Report

AsiaRF Co., Ltd. Model: AWM002 REPORT NO.: STR13038470I PAGE 1 OF 94 FCC PART 15.247 FCC Part 15C Measurement and Test Report For AsiaRF Co., Ltd. 3F, No.176, Yongzhen Road, Yonghe District, New Taipei City 234, Taiwan FCC ID: TKZAWM002 FCC Rules: FCC Part 15C Product Description: WiFi AP Router Module Tested Model: AWM002 Report No.: STR13038470I Tested Date: 2013-03-18 to 2013-03-27 Issued Date: 2013-04-22 Tested By: Jack Li / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.(518101) Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd AsiaRF Co., Ltd. Model: AWM002 REPORT NO.: STR13038470I PAGE 2 OF 94 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................4 1.2 TEST STANDARDS...................................................................................................................................................5 1.3 TEST METHODOLOGY.............................................................................................................................................5 1.4 TEST FACILITY.......................................................................................................................................................5 1.5 EUT SETUP AND TEST MODE.................................................................................................................................6 2. SUMMARY OF TEST RESULTS ...........................................................................................................................7 3. RF EXPOSURE .........................................................................................................................................................8 3.1 STANDARD APPLICABLE.........................................................................................................................................8 3.2 TEST RESULT..........................................................................................................................................................8 4. ANTENNA REQUIREMENT ..................................................................................................................................9 4.1 STANDARD APPLICABLE.........................................................................................................................................9 4.2 EVALUATION INFORMATION..................................................................................................................................9 5. POWER SPECTRAL DENSITY ...........................................................................................................................10 5.1 STANDARD APPLICABLE.......................................................................................................................................10 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................10 5.3 TEST PROCEDURE.................................................................................................................................................10 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................10 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 6. 6DB BANDWIDTH .................................................................................................................................................18 6.1 STANDARD APPLICABLE.......................................................................................................................................18 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................18 6.3 TEST PROCEDURE.................................................................................................................................................18 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................18 6.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................19 7. RF OUTPUT POWER ............................................................................................................................................26 7.1 STANDARD APPLICABLE.......................................................................................................................................26 7.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................26 7.3 TEST PROCEDURE.................................................................................................................................................26 7.4 ENVIRONMENTAL CONDITIONS............................................................................................................................26 7.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................27 8. FIELD STRENGTH OF SPURIOUS EMISSIONS .............…

Text truncated - open the document above for the full version.

Test Setup Photos

AsiaRF Co., Ltd. Model: AWM002 REPORT NO.: STR13038470I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (30MHz to 1GHz) AsiaRF Co., Ltd. Model: AWM002 REPORT NO.: STR13038470I FCC PART 15.247 Radiation Emission Test Setup (Above 1GHz) Test Setup View:

Contact Information

Applicant

Paul Lai(General Manager)
[email protected]886229407880Fax: 886229407800

Test Firm

SEM.Test Compliance Service Co., Ltd.Jandy So
[email protected]086-755-33663308Fax: 086-755-33663309

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz12.00 mW
Modular Type
Limited Single Modular Approval
Confidentiality
Long Term
Grant Notes
Limited Modular Approval. Power listed is conducted. Limited Modular Approval of this Transmitting device with antenna(s) as shown in this filing is allowed for Venitek Ltd. WiFi IP Camera &amp; Storage AP Router Model: AWAPN2411. OEM integration of this device into a host product is not allowed per this application. Third-party Class II applications cannot be used for integrating this device with different host products and/or antenna(s). Alternatively, a separate FCC equipment authorization for new antenna(s) or host devices may be obtained; otherwise, any new host devices will be considered unauthorized equipment. Compliance of this device in any final configuration is the responsibility of the Grantee. The grantee must ensure that the end-user has no manual instructions to remove or install the device. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. This device has a 20 MHz and 40 MHz bandwidth mode. Modular approval
