TKZAWUG2407Wireless LAN USB Dongle

Wireless LAN USB Dongle USER’S GUIDE VERSION 1.4 2006/12/30 © All rights reserved. All trade names are registered trademarks of respective manufacturers listed. This manual may not be copied in any media or form without the written consent of original maker. Information To User .......................................................... I 1. Introduction .............................................................. 1 2. Wireless LAN Basics ........................................................3 3. IP ADDRESS ..................................................................4 4. Install Driver/Utility .......................................................5 5. Wireless Network Configuration ......................................... 7 5.1 General Connection Setting ..................................... 8 5.2 WEP Encryption Key Setting ...................................... 9 5.3 WPA Encryption Setting ...........................................10 5.4 Profile ...............................................................11 5.5 Advanced Setting ...................................................12 5.6 System Information ................................................13 6. Technical Specifications ................................................14 7. Troubleshooting ...........................................................15 8. Glossary ...................................................................16 INFORMATION TO USER Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. * Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: * This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. * This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. REGULATORY INFORMATION WLAN Mini USB Dongle must be installed and used in strict accordance with the instructions. This device complies with the following radio frequency and safety standards. USA - Federal Communications Commission (FCC) This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference that may cause undesired operation. Europe - R&TTE Directive This device complies with the specifications listed below • ETS 300-826 General EMC requirements for Radio equipment. • ETS 300-328 Technical requirements for Radio equipment. • EN60950 Safety Requirements for Radio equipment The channel identifiers, channel center frequencies, and regulatory domains of each 22-MHz-wide channel are shown in following Table. Regulatory Domains Channel Identifier Center Frequency (MHZ) Japan ETSI North America Israel France Mexico 1 2412 ˇ ˇ ˇ 2 2417 ˇ ˇ ˇ 3 2422 ˇ ˇ ˇ ˇ 4 2427 ˇ ˇ ˇ ˇ 5 2432 ˇ ˇ ˇ ˇ 6 2437 ˇ ˇ ˇ ˇ 7 2442 ˇ ˇ ˇ ˇ 8 2447 ˇ ˇ ˇ ˇ 9 2452 ˇ ˇ ˇ ˇ 10 2457 ˇ ˇ ˇ ˇ ˇ 11 2462 ˇ ˇ ˇ ˇ ˇ 12 2467 ˇ ˇ ˇ 13 2472 ˇ ˇ ˇ 14 2484 ˇ Thank you for your purchase of the WLAN Mini USB Dongle. Featuring wireless technology, this wireless networking solution has been designed for both large and small businesses, and it is scalable so that you can easily add more users and new network features depending on your business scale. FEATURES Support Microsoft Windows 98SE, Me, 2000 and XP. Operating distance of up to 300 meters in free space. 54/48/36/24/18/12/11/9/6/5.5/2/1 Mbps selectable Data Rate. Support USB 2.0 interface. 64-bit, 128-bit or 256-bit WEP (Wired Equivalent Privacy); WPA (Wi-Fi Protected Access),WPA2 2.400GHz ~ 2.4835GHz unlicensed ISM Frequency Band. Modulation Method : IEEE 802.11b : DSSS (Direct Sequence Spread Spectrum). IEEE 802.11g : OFDM (Orthogonal Frequency Division Multiplexing). Easy operation and setting up. SYSTEM REQUIREMENTS Windows System : Windows 98SE, Me, 2000 or XP. PCs must have a device driver installed. It allows you to communicate with WLAN Mini USB Dongle. BEFORE YOU START 1. Confirm Box Contents CONNECTING YOUR WLAN USB DONGLE TO PC Quick Start Guide  Connect your WLAN USB dongle to your PC.  Install driver. GETTING TO KNOW WIRELESS LAN USB DONGLE LED  LED turns on when POWER is applied to the WLAN Mini USB Dongle. LED is blinking when PC is sending data through WLAN Mini USB Adapter. Wireless LAN network defined by IEEE 802.11b/g standard committee could be configured as :  Ad Hoc wireless LAN, or  Infrastructure wir…

Text truncated - open the document above for the full version.

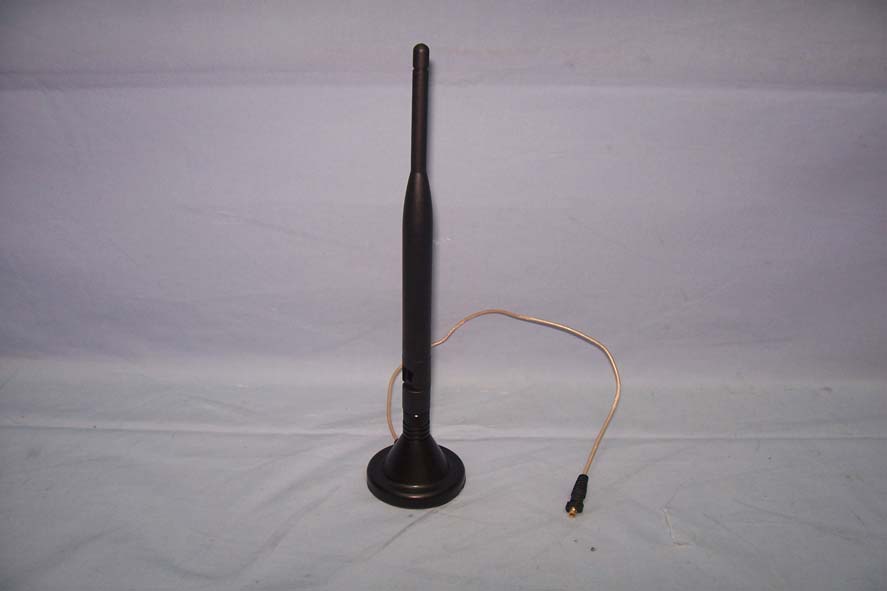

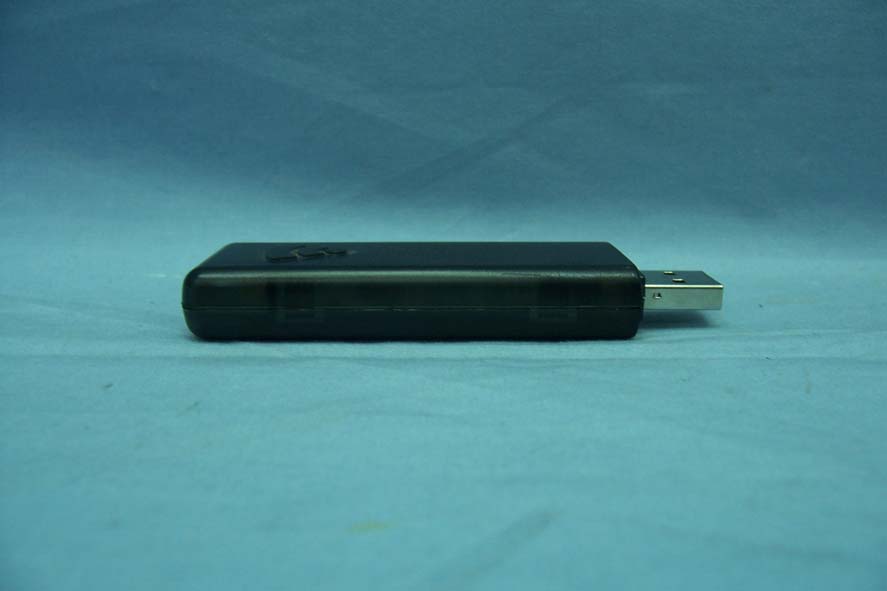

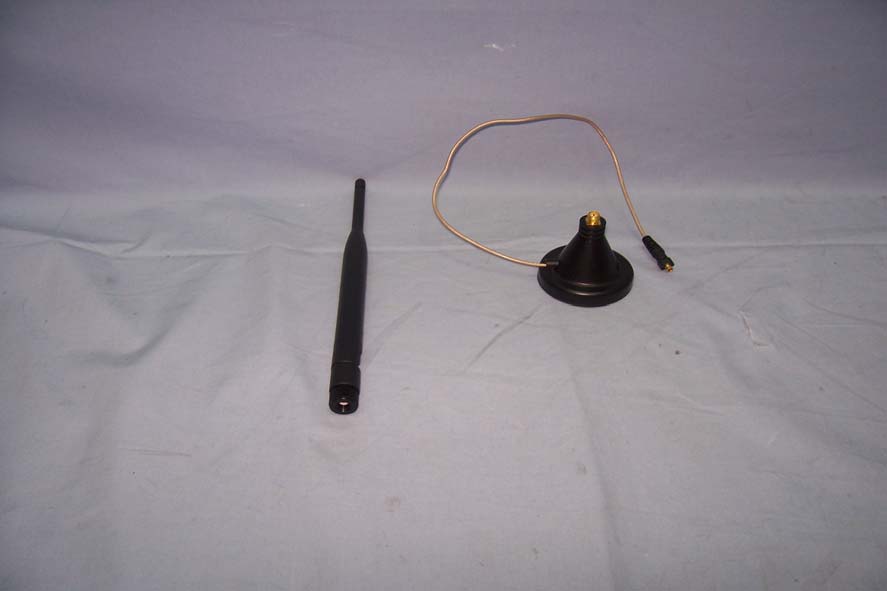

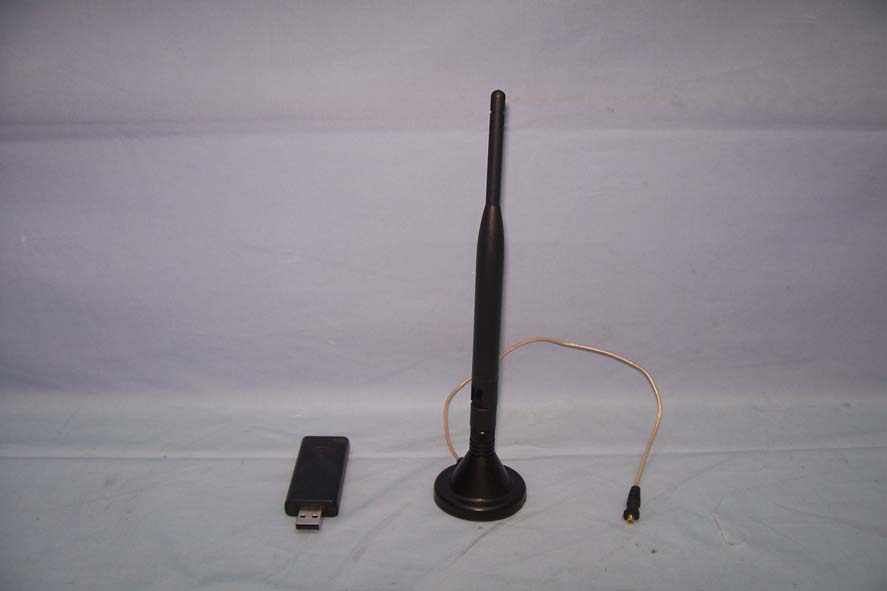

Compliance Certification Services Inc. Report No.: 60726103 Date of Issue: February 6, 2007 Page 1 Total Page: 3 Rev. 00 PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 60726103 Date of Issue: February 6, 2007 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 60726103 Date of Issue: February 6, 2007 Page 3 Rev. 00

Compliance Certification Services Inc. Report No.: 60726103 Date of Issue: February 6, 2007 Page 1 Total Page: 5 Rev. 00 PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 60726103 Date of Issue: February 6, 2007 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 60726103 Date of Issue: February 6, 2007 Page 3 Rev. 00 Compliance Certification Services Inc. Report No.: 60726103 Date of Issue: February 6, 2007 Page 4 Rev. 00 Compliance Certification Services Inc. Report No.: 60726103 Date of Issue: February 6, 2007 Page 5 Rev. 00

Product Number: R-AN2400-9404SK Product Name: 2.4 GHz Antenna Page 2 Version: 2.0 Issue Date: 2006-09-15 2. Technical Specification A. Electrical Characteristics Working Frequency Range 2400 ~ 2500 MHz S.W.R. <= 2.0 Antenna Gain 5 ± 0.5 dBi Antenna Radiation Pattern Omni-directional Impedance 50 ohm B. Material Color of Outer Cover Black Material of Outer Cover TPE Connector Type 50 Ohm SMK Plug for RG-178 Au Plated Coaxial Cable RG-178 // 300 mm Tube Copper // Sn Plated C. Environmental Operation Temperature - 30 ̊C ~ + 85 ̊C Storage Temperature - 30 ̊C ~ + 85 ̊C Product Number: R-AN2400-9404SK Product Name: 2.4 GHz Antenna Page 3 Version: 2.0 Issue Date: 2006-09-15 3. S11 Return Loss / S.W.R. / Impedance Testing Result Antenna Hinge is 90 degree Product Number: R-AN2400-9404SK Product Name: 2.4 GHz Antenna Page 4 Version: 2.0 Issue Date: 2006-09-15 Antenna Hinge is 180 degree Product Number: R-AN2400-9404SK Product Name: 2.4 GHz Antenna Page 5 Version: 2.0 Issue Date: 2006-09-15 4. Antenna Radiation Pattern Testing Equipment Specification: Antenna Anechoic Chamber Dimension: 8 x 4 x 4 m Quite Zone: 600mm @1 GHz Isolation: >100dB @ 1 MHz ~ 10 GHz Testing Equipment: Agilent 8720D Received Antenna: 0.7~6.0 GHz for Gain Calibration Double Ridged Horn Antenna

Compliance Certification Services Inc. Report No.: 60726103-RP1 FCC ID: TKZAWUG2407 Date of Issue: February 6, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 68 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless LAN USB Dongle Model: AWUG2407 Trade Name: AsiaRF Issued to AsiaRF Ltd. 4F., No. 2, Lane 560, Zhongzheng Rd., Xindian City, Taipei County 231, Taiwan Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 60726103-RP1 FCC ID: TKZAWUG2407 Date of Issue: February 6, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES 9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................17 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................34 7.5 SPURIOUS EMISSIONS ................................................................................................................39 7.6 POWERLINE CONDUCTED EMISSIONS...............................................................................................60 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................63 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................65 Compliance Certification Services Inc. Report No.: 60726103-RP1 FCC ID: TKZAWUG2407 Date of Issue: February 6, 2007 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: AsiaRF Ltd. 4F., No. 2, Lane 560, Zhongzheng Rd., Xindian City, Taipei County 231, Taiwan Equipment Under Test: Wireless LAN USB Dongle Trade Name: AsiaRF Model: AWUG2407 Date of Test: July 31 ~ August 1, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Jim Chang Susan Su Deputy Manager of Linkou Laboratory Section Manager of Linkou Laboratory Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 60726103-RP1 FCC ID: TKZAWUG2407 Date of Issue: February 6, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product Wireless LAN USB Dongle Trade Name AsiaRF Model Number AWUG2407 Model Discrepancy N/A Power Supply Powered from host device. Frequency Range 2412 ~ 2462 MHz Transmit Power IEEE 802.11b: 16.54 dBm IEEE 802.11g: 13.67 dBm …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 60726103-RP1 FCC ID: TKZAWUG2407 Date of Issue: February 6, 2007 Page 65 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Report No.: 60726103-RP1 FCC ID: TKZAWUG2407 Date of Issue: February 6, 2007 Page 66 Rev. 00 Radiated Emissions Setup Photos ADD ANT Compliance Certification Services Inc. Report No.: 60726103-RP1 FCC ID: TKZAWUG2407 Date of Issue: February 6, 2007 Page 67 Rev. 00 WITHOUT ANT Compliance Certification Services Inc. Report No.: 60726103-RP1 FCC ID: TKZAWUG2407 Date of Issue: February 6, 2007 Page 68 Rev. 00 Powerline Conducted Emissions Setup Photos
