TKZAWUHG2402High Radio Power USB Adapter

High Radio Power USB Adaptor AWUHG2402 User’s Manual www.asiarf.com 0 USER’S MANUAL Version 1.0 High Radio Power USB Adaptor AWUHG2402 High Radio Power USB Adaptor AWUHG2402 User’s Manual www.asiarf.com 1 Trademarks Copyright @2006 Contents are subject to change without notice. All trademarks belong to their respective proprietors. Copyright Statement THIS DOCUMENT CONTAINS OF PROPRIETARY TECHNICAL INFORMATION THAT IS THE PROPERTY OF THIS COMPANY. AND NO PART OF THIS DOCUMENTATION MAY BE REPRODUCED, STORED IN A RETRIEVAL SYSTEM OR TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELECTRICAL OR MECHANICAL, BY PHOTOCOPYING, RECORDING, OR OTHERWISE, WITHOUT THE PRIOR WRITTEN CONSENT OF THIS COMPANY. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. High Radio Power USB Adaptor AWUHG2402 User’s Manual www.asiarf.com 2 Features: IEEE 802.11b/g Compliant USB 1.1/2.0 Interface and USB Bus Power 4 dBi high gain Omni-directional antenna High Radio Power: 17dBm for 802.11g, 20dBm for 802.11b Compatible with Windows 2000/XP Plug-and-Play Works with all standard internet applications Window Mounting/Desktop Mounting Benefits: Long-range through higher gain antenna and higher RF power, typical twice distance compared with traditional client devices Easy wireless connection through USB Port High-Speed Data Rate of Up to 54Mbps Reduces networking costs Automatic Fall-Back Specification: Model No AWUHG2402 Standard IEEE 802.11b / IEEE 802.11g Signal Type DSSS (Direct Sequence Spread Spectrum) / OFDM Modulation BPSK / QPSK / CCK / QAM Host Interface MINI USB 1.1/2.0 Antenna 4 dBi Omin-directional antenna Data Encryption 64 / 128 bit WEP/ WPA Frequency band 2.4 GHz ~ 2.4835 GHz Channel 11 Channels (US, Canada) 13 Channels (Europe) 14 Channels (Japan) Data Rate Up to 54Mbps(with Automatic Scale Back) Transmit Power Output 11b: 20 dBm , 11g: 17dBm (Typical) Receive Sensitivity 11b: -85 dBm@11Mbps, 11g: -72 dBm@54Mpbs (Typical) Range 11b: 2km, 11g: 1km (Line-of-sight) Compatibility Windows 2000/XP LED Indicators Power, Link Status Power 5V DC, 450mA Tx, 370mA Rx, 30mA Power-saving Mode Temperature Operating : 0 to 55 °C°C Storage : -20 to 70 °C°C Humidity 95% Non-Condensing Certification FCC, CE USB Cable 4M High Radio Power USB Adaptor AWUHG2402 User’s Manual www.asiarf.com 3 Installation Step: 1. Insert Product CD-ROM, the menu appears automatically. 2. Click “DRIVER” to install. 3. The main installation page is showed up. Click “Next” to next step. 4. Takes few minutes during the installation. 5. When the installation page come out “The installation is done.”. Click “Finish” button and then connect High Radio Power USB Adaptor AWUHG2402 to USB port of your computer. 6. The computer desktop shows Wireless Application icon after the driver installed. 7. The small icon will be showed “On-line” on the desktop in the situation line when AWUHG2402 connected to the USB port of your computer. 8. The small icon will be showed “Off-line” on the desktop in the situation line when AWUHG2402 was removed from your computer. Utility Program Once the driver installed, the utility program installed in the same time is ready for further management of AWUHG2402. To execute the program, there are two ways. 1. Click the Wireless Application small icon on the desktop in the situation line. 2. Click Start / Programs / 802.11g USB Wireless LAN / 802.11g USB / RAConfig2500.exe. 3. In the management page, click “Status” button to browse the wireless network information. 4. Click “Wireless AP” to browse the active AP. 5. Click “Statistic” to realize more information of data transferring.

Helen Zhao Subject: FW: Re : RE: Re : FW: AsiaRF Ltd., FCC ID: TKZAWUHG2402, Assessment NO.: AN06T5703, Notice#1 4/27/2006 -----Original Message----- Sent: Monday, April 24, 2006 3:38 PM Subject: AsiaRF Ltd., FCC ID: TKZAWUHG2402, Assessment NO.: AN06T5703, Notice#1 Question #1: Based on antenna specification, the polarization that yields highest antenna gain is linear, vertical. The user manual also indicates the device should be either window mounted or desktop mounted. However, the test setup photos does not show the worst case has been investigated. Please retest radiated emisson test and restricted bandedge test when the device is placed in vertical position. Ans: Please refer to the revised the test report and test setup photos as attachment. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

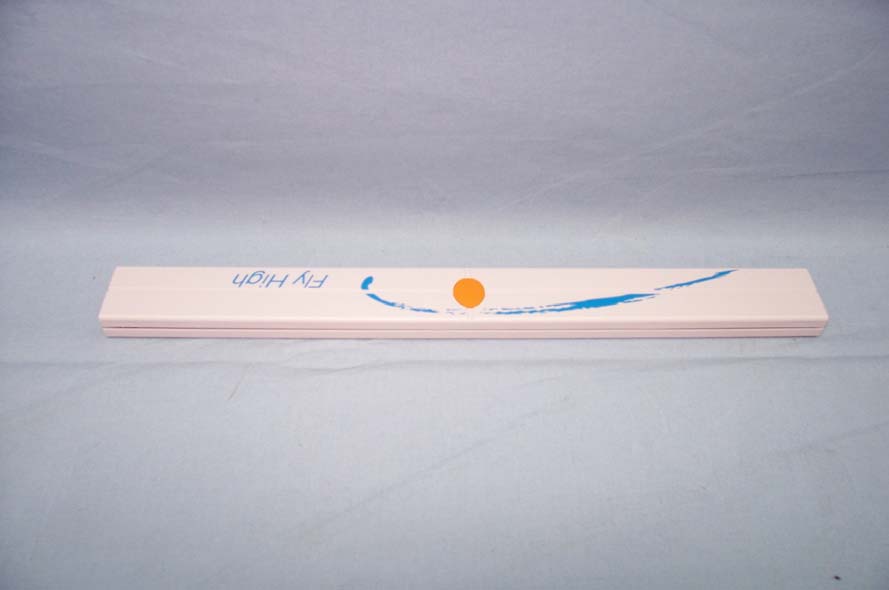

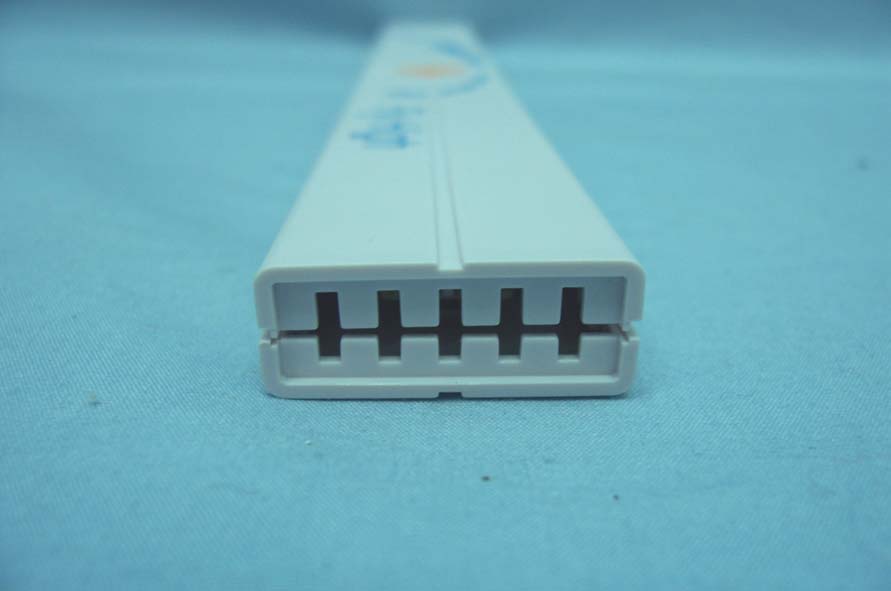

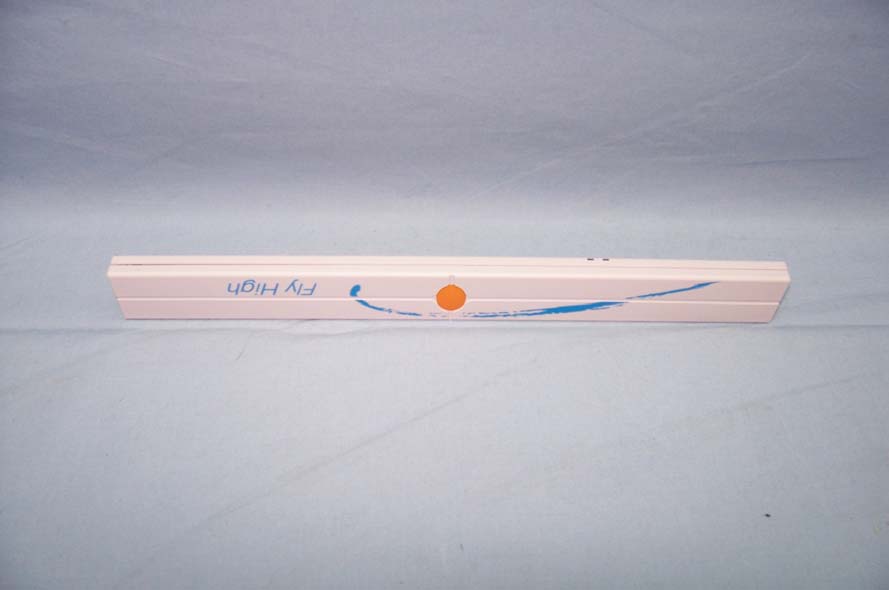

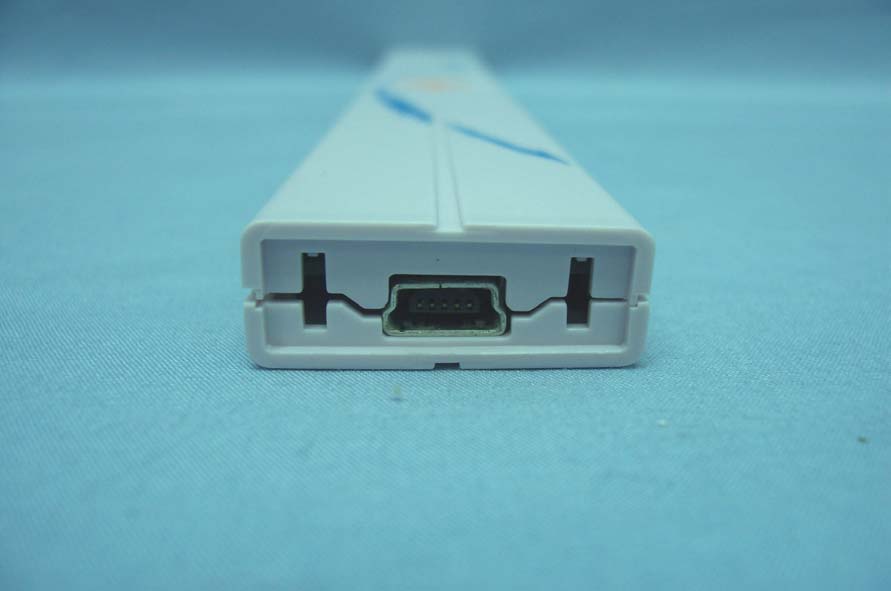

Compliance Certification Services Inc. Report No: 60410121 Date of Issue: April 19, 2006 Page 1 Total Page: 8 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60410121 Date of Issue: April 19, 2006 Page 2 Rev. 00 Compliance Certification Services Inc. Report No: 60410121 Date of Issue: April 19, 2006 Page 3 Rev. 00 Compliance Certification Services Inc. Report No: 60410121 Date of Issue: April 19, 2006 Page 4 Rev. 00

Hi Radio Power USB Adapter AWUHG2402 FCC ID: TKZAWUHG2402 MAC: 000A52XXXXXX S/N: XXXXXXXX

Compliance Certification Services Inc. Report No: 60410121 Date of Issue: April 19, 2006 Page 5 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60410121 Date of Issue: April 19, 2006 Page 6 Rev.00 Compliance Certification Services Inc. Report No: 60410121 Date of Issue: April 19, 2006 Page 7 Rev.00 Compliance Certification Services Inc. Report No: 60410121 Date of Issue: April 19, 2006 Page 8 Rev.00

PortableOmniDirectionalAntenna for2.4GHz NCI05-050150 ElectricalSpecification Frequencyrange2400MHz-2500MHz Gain4.0dBi VSWR2.0:1Max. PolarizationLinear,vertical HPBW/horizontal360 o HPBW/vertical40 o Impedance50Ohms CableCable 1.13 H-planeCo-polarizationPattern 90 o 180 o 150 o 120 o 60 o 30 o -150 o -90 o -120 o -60 o -30 o -3 -10 -20 -30 V-planeCo-polarizationPattern 90 o 180 o 150 o 120 o 60 o 30 o -150 o -90 o -120 o -60 o -30 o -3 -10 -20 -30 0 o Version2 0 o Environmental&MechanicalCharacteristics Temperature-10 o Cto+55 o C Humidity95%@55 o C Dimensions220x25x10mm SA2-05008 http://www.smartant.comTEL:+886(0)3583-6000FAX:+886(0)3583-7000E-mail:[email protected] AllrightreservedbySmartAntTelecomCo.,Ltd. P1 Pat.NO:TW082740

Compliance Certification Services Inc. Report No.: 60410121-RP1 FCC ID: TKZAWUHG2402 Date of Issue: April 27, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 58 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Hi Radio Power USB Adapter Model: AWUHG2402 Trade Name: AsiaRF Issued to AsiaRF Ltd. No. 103, Xinhe Street, Xindian City, Taipei 231, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 60410121-RP1 FCC ID: TKZAWUHG2402 Date of Issue: April 27, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................20 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................29 7.5 SPURIOUS EMISSIONS ................................................................................................................34 7.6 POWERLINE CONDUCTED EMISSIONS...............................................................................................51 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................54 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................56 Compliance Certification Services Inc. Report No.: 60410121-RP1 FCC ID: TKZAWUHG2402 Date of Issue: April 27, 2006 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: AsiaRF Ltd. No. 103, Xinhe Street, Xindian City, Taipei 231, Taiwan, R.O.C. Equipment Under Test: Hi Radio Power USB Adapter Trade Name: AsiaRF Model: AWUHG2402 Date of Test: April 10 ~ 26, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Gavin Lim Amanda Wu Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 60410121-RP1 FCC ID: TKZAWUHG2402 Date of Issue: April 27, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product Hi Radio Power USB Adapter Trade Name AsiaRF Model Number AWUHG2402 Model Discrepancy N/A Power Supply Powered from host device. Frequency Range 2412 ~ …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 60410121-RP1 FCC ID: TKZAWUHG2402 Date of Issue: April 27, 2006 Page 56 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Report No.: 60410121-RP1 FCC ID: TKZAWUHG2402 Date of Issue: April 27, 2006 Page 57 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Report No.: 60410121-RP1 FCC ID: TKZAWUHG2402 Date of Issue: April 27, 2006 Page 58 Rev. 00 Powerline Conducted Emissions Setup Photos
