TKZAWUHN2405WIFI USB DONGLE

1/64 Wireless LAN USB Adapter User Manual 1.0 © 2010 2/64 Contents 1. Windows Wireless Utility ......................................................................................4 1.1 Windows Zero Configuration for XP.............................................................4 1.1.1 Ralink Wireless Utility and Windows Zero Configuration................4 1.1.2 Windows Zero Configuration (WZC)................................................5 1.2 Windows AutoConfig Service for Vista.......................................................10 1.2.1 Ralink Wireless Utility and Windows AutoConfig Service .............10 1.2.2 Windows AutoConfig Service ......................................................... 11 2. Ralink Wireless Utility (RaUI) ............................................................................18 2.1 Start ..............................................................................................................18 2.1.1 Start RaUI ........................................................................................18 2.2 Profile...........................................................................................................21 2.2.1 Profile...............................................................................................21 2.2.2 Add/Edit Profile ...............................................................................22 2.2.3 Example to Add Profile in Profile....................................................25 2.2.4 Pre-logon Connect ...........................................................................27 2.3 Network........................................................................................................27 2.3.1 Network............................................................................................27 2.3.2 Example on Adding Profile in Network...........................................30 2.4 Advanced .....................................................................................................31 2.4.1 Advanced .........................................................................................31 2.4.2 Certificate Management...................................................................32 2.5 Link Information ..........................................................................................33 2.5.1 Link Status .......................................................................................33 2.5.2 Throughput.......................................................................................34 2.5.3 Statistics ...........................................................................................34 2.6 About............................................................................................................35 2.6.1 About................................................................................................35 2.7 WPS .............................................................................................................36 2.7.1 WPS .................................................................................................36 2.7.2 Example to Add to Registrar Using PIN Method ............................38 2.7.3 Example to Add to Registrar Using PBC Method ...........................41 2.7.4 Example to Configure a Network/AP Using PIN or PBC Method..45 3. Security ................................................................................................................47 3.1 Auth.\ Encry. Setting – WEP/TKIP/AES.....................................................47 3.2 802.1x Setting ..............................................................................................48 3.3 Example to Configure Connection with WEP on ........................................51 3.4 Example to Configure Connection with WPA-PSK ....................................53 3/64 3.5 Example to Configure Connection with WPA .............................................55 4. Appendix..............................................................................................................60 4.1 Country Channel List ...................................................................................60 4.2 Acknowledgements......................................................................................62 5. FAQ ......................................................................................................................63 5.1 FAQ ..............................................................................................................63 6. Hardware Installations .........................................................................................63 4/64 1. Windows Wireless Utility 1.1 Windows Zero Configuration for XP 1.1.1 Ralink Wireless Utility and Windows Zero Configuration Windows XP includes a wireless configuration utility named "Windows Zero configuration" (WZC) which provides basic configuration functions to the Ralink Wireless NIC. Ralink's utility (RaUI) additionally provides WPA functionality. To make it easier for the user to select the correct utility. RaUI will let users make a selection when it first runs after windows XP boots. Right-clicking the icon will bring up the selection window and allow the user to make a selection. Figure 1-1 RaUI.exe RaUI can co-exist with WZC . When coexisting with WZC, RaUI only provides monitoring functions, such as surveying the link status, network status, statistic counters, advanced feature status, WMM status and WPS status. It won't interfere with WZC's configuration or profile functions. It is shown as Figure 1-2. Figure 1-2 Select WZC or RaUI If "Use RaConfig as Configuration utility" is selected, please jump to Section 2 on running RaUI. If "Use Zero Configuration as Configuration utility" is selected, please continue. We will explain the difference between RaUI and WZC. Figure 1-3 shows the RaUI status when WZC is activated as the main control utility. Figure 1-3 RaUI status with…

Text truncated - open the document above for the full version.

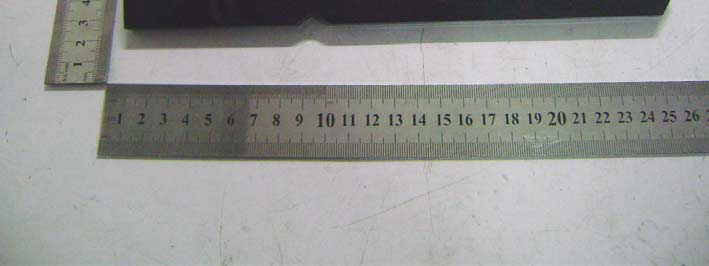

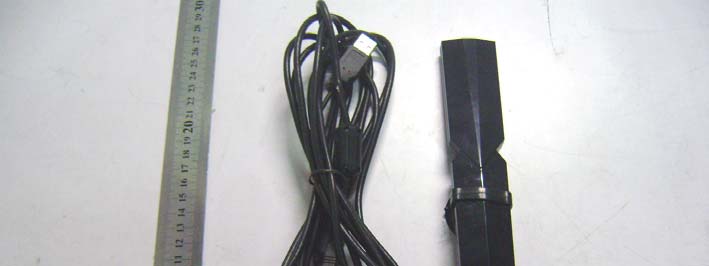

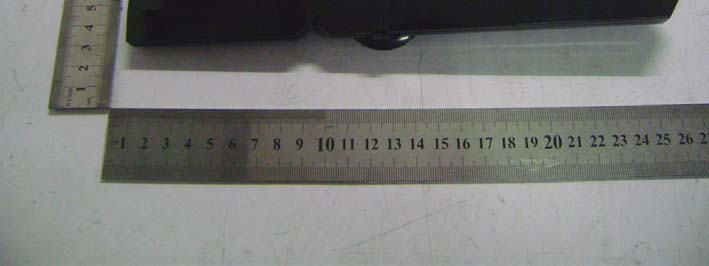

AsiaRF Ltd. Model: AWUHN2405 REPORT NO.: STR10128231I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 AsiaRF Ltd. Model: AWUHN2405 REPORT NO.: STR10128231I FCC PART 15.247 EUT View 3

AsiaRF Ltd. Model: AWUHN2405 REPORT NO.: STR10128231I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: TKZAWUHN2405 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

AsiaRF Ltd. Model: AWUHN2405 REPORT NO.: STR10128231I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: TKZAWUHN2405 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

AsiaRF Ltd. Model: AWUHN2405 REPORT NO.: STR10128231I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 AsiaRF Ltd. Model: AWUHN2405 REPORT NO.: STR10128231I FCC PART 15.247 Solder Board-Component View 2 Solder Board-Component View 3 AsiaRF Ltd. Model: AWUHN2405 REPORT NO.: STR10128231I FCC PART 15.247 Solder Board-Component View 4

AsiaRF Ltd. Model: AWUHN2405 REPORT NO.: STR10128231I-2 PAGE 1 OF 14 FCC PART 15B FCC PART 15B MEASUREMENT AND TEST REPORT FOR AsiaRF Ltd. 1F., No.2, Lane45, Shuiyuan Street., Yonghe City, Taipei County 234, Taiwan FCC ID: TKZAWUHN2405 Report Concerns: Original Report Equipment Type: WiFi USB Dongle Model: AWUHN2405 Report No.: STR10128231I-2 Test Date: 2010-12-29 to 2011-01-11 Issue Date: 2011-01-13 Tested By: Seven Song / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . AsiaRF Ltd. Model: AWUHN2405 REPORT NO.: STR10128231I-2 PAGE 2 OF 14 FCC PART 15B TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................3 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.107 (A)- CONDUCTED EMISSION .................................................................................................................6 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................6 3.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................6 3.3 TEST PROCEDURE...................................................................................................................................................6 3.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................6 3.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................7 3.6 TEST RECEIVER SETUP...........................................................................................................................................7 3.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................7 3.8 CONDUCTED EMISSIONS TEST DATA......................................................................................................................7 4. §15.109(A)- RADIATED EMISSION ....................................................................................................................11 4.1 MEASUREMENT UNCERTAINTY............................................................................................................................11 4.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 4.3 TEST PROCEDURE.................................................................................................................................................11 4.4 TEST RECEIVER SETUP.........................................................................................................................................12 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................12 4.6 ENVIRONMENTAL CONDITIONS............................................................................................................................12 4.7 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 AsiaRF Ltd. Model: AWUHN2405 REPORT NO.: STR10128231I-2 PAGE 3 OF 14 FCC PART 15B 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: AsiaRF Ltd. Address of applicant: 1F., No.2, Lane45, Shuiyuan Street., Yonghe City, Taipei County 234, Taiwan Manufacturer: AsiaRF Ltd. Address of manufacturer: 1F., No.2, Lane45, Shuiyuan Street., Yonghe City, Taipei County 234, Taiwan General Description of E.U.T Items Description EUT Description: WiFi USB Dongle Trade Name: / Model No.: AWUHN2405 Rated Voltage: DC 5V USB Rated Current: / Size: 25.2X3.5X0.9cm For more information refer to the circuit diagram form and the user’s manual. The test data is gathered from a production sample, provided by the manufacturer. 1.2 Test Standards The following report is prepared on behalf of the AsiaRF Ltd. in accordance with Part 2, Subpart J, and Part 15, Subparts A and B of the Federal Comm…

Text truncated - open the document above for the full version.

AsiaRF Ltd. Model: AWUHN2405 REPORT NO.: STR10128231I-2 FCC PART 15B EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conduction Emission Test Setup Radiation Emission Test Setup (30MHz to 1GHz)
