1/64 Wireless LAN USB Adapter User Manual 1.0 © 2010 2/64 Contents 1. Windows Wireless Utility ......................................................................................4 1.1 Windows Zero Configuration for XP.............................................................4 1.1.1 Ralink Wireless Utility and Windows Zero Configuration................4 1.1.2 Windows Zero Configuration (WZC)................................................5 1.2 Windows AutoConfig Service for Vista.......................................................10 1.2.1 Ralink Wireless Utility and Windows AutoConfig Service .............10 1.2.2 Windows AutoConfig Service ......................................................... 11 2. Ralink Wireless Utility (RaUI) ............................................................................18 2.1 Start ..............................................................................................................18 2.1.1 Start RaUI ........................................................................................18 2.2 Profile...........................................................................................................21 2.2.1 Profile...............................................................................................21 2.2.2 Add/Edit Profile ...............................................................................22 2.2.3 Example to Add Profile in Profile....................................................25 2.2.4 Pre-logon Connect ...........................................................................27 2.3 Network........................................................................................................27 2.3.1 Network............................................................................................27 2.3.2 Example on Adding Profile in Network...........................................30 2.4 Advanced .....................................................................................................31 2.4.1 Advanced .........................................................................................31 2.4.2 Certificate Management...................................................................32 2.5 Link Information ..........................................................................................33 2.5.1 Link Status .......................................................................................33 2.5.2 Throughput.......................................................................................34 2.5.3 Statistics ...........................................................................................34 2.6 About............................................................................................................35 2.6.1 About................................................................................................35 2.7 WPS .............................................................................................................36 2.7.1 WPS .................................................................................................36 2.7.2 Example to Add to Registrar Using PIN Method ............................38 2.7.3 Example to Add to Registrar Using PBC Method ...........................41 2.7.4 Example to Configure a Network/AP Using PIN or PBC Method..45 3. Security ................................................................................................................47 3.1 Auth.\ Encry. Setting – WEP/TKIP/AES.....................................................47 3.2 802.1x Setting ..............................................................................................48 3.3 Example to Configure Connection with WEP on ........................................51 3.4 Example to Configure Connection with WPA-PSK ....................................53 3/64 3.5 Example to Configure Connection with WPA .............................................55 4. Appendix..............................................................................................................60 4.1 Country Channel List ...................................................................................60 4.2 Acknowledgements......................................................................................62 5. FAQ ......................................................................................................................63 5.1 FAQ ..............................................................................................................63 6. Installation............................................................................................................63 4/64 1. Windows Wireless Utility 1.1 Windows Zero Configuration for XP 1.1.1 Ralink Wireless Utility and Windows Zero Configuration Windows XP includes a wireless configuration utility named "Windows Zero configuration" (WZC) which provides basic configuration functions to the Ralink Wireless NIC. Ralink's utility (RaUI) additionally provides WPA functionality. To make it easier for the user to select the correct utility. RaUI will let users make a selection when it first runs after windows XP boots. Right-clicking the icon will bring up the selection window and allow the user to make a selection. Figure 1-1 RaUI.exe RaUI can co-exist with WZC . When coexisting with WZC, RaUI only provides monitoring functions, such as surveying the link status, network status, statistic counters, advanced feature status, WMM status and WPS status. It won't interfere with WZC's configuration or profile functions. It is shown as Figure 1-2. Figure 1-2 Select WZC or RaUI If "Use RaConfig as Configuration utility" is selected, please jump to Section 2 on running RaUI. If "Use Zero Configuration as Configuration utility" is selected, please continue. We will explain the difference between RaUI and WZC. Figure 1-3 shows the RaUI status when WZC is activated as the main control utility. Figure 1-3 RaUI sta…

Text truncated - open the document above for the full version.

AsiaRF Co., Ltd. 1F., No.2, Lane45, Shuiyuan Street., Yonghe Dist, New Taipei City 234, Taiwan ------------------------------------------------------------------------------------------------------- Date: 2012-05-28 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD Product Name: Top Catcher CC Tactical FCC ID: TKZAWUHN2408 Model: AWUHN2408 To Whom It May Concern: We, AsiaRF Co., Ltd. stating that supplied USB cable will have the ferrite core permanently attached to the cable when the above device are sold. Sincerely, ------------------------------ (Paul Lai / Manager) E-mail: [email protected]

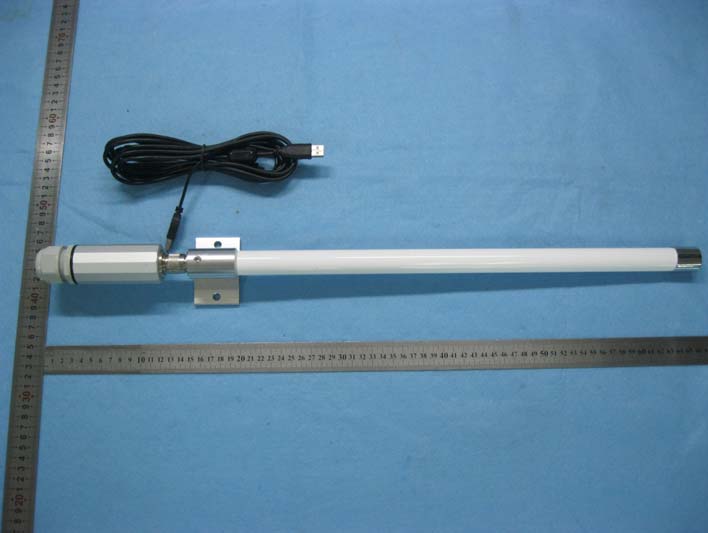

AsiaRF Co., Ltd. Model: AWUHN2408 REPORT NO.: STR12048085I-1 FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1（with Antenna 1: 15dBi） EUT View 2（with Antenna 1: 15dBi） AsiaRF Co., Ltd. Model: AWUHN2408 REPORT NO.: STR12048085I-1 FCC PART 15.247 EUT View 3（with Antenna 2: 8dBi） EUT View 4（with Antenna 2: 8dBi） AsiaRF Co., Ltd. Model: AWUHN2408 REPORT NO.: STR12048085I-1 FCC PART 15.247 EUT View 5: Antenna Connector (Reverse whorl)

AsiaRF Co., Ltd. Model: AWUHN2408 REPORT NO.: STR12048085I-1 FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: TKZAWUHN2408 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

AsiaRF Co., Ltd. Model: AWUHN2408 REPORT NO.: STR12048085I-1 FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: TKZAWUHN2408 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

AsiaRF Ltd. 4F., No.2, Lane 560, Zhongzheng Rd., Xindian City, Taipei County 231, Taiwan http://www.asiarf.com Mail:[email protected] Tel: +886-2-22180680 Fax:+886-2-22180122 Omni Directional Antenna AO—24008.1 Horizontal Pattern Vertical Pattern （2450MHz） （2450MHz） Model AO-24008.1 Frequency Range 2400--2500MHz VSWR ≤2.0 Gain 8dBi Rated power 50W Polarization Type Vertical Polarization 3dB Beam Width E-plan 20(degree) H-plan 360(degree) Dimension Phi x L 24 x 560 mm Input Impedance 50Ω Lightning Protection Direct Ground Connector Type Specificed Weight 400g Mount Hanged on pole Ambient temperature -20°C-+80°C

AsiaRF Ltd. 4F., No.2, Lane 560, Zhongzheng Rd., Xindian City, Taipei County 231, Taiwan http://www.asiarf.com Mail:[email protected] Tel: +886-2-22180680 Fax:+886-2-22180122 Omni Directional Antenna AO--24015 Horizontal Pattern Vertical Pattern （2055MHz） （2055MHz） Model No. AO-24015 Frequency GHz 2.4 - 2.5GHz DB gain 15 dBi Power output 50 W Polarization Vertical VSWR <= 2.0 3dB Beam Width E-plan 9(degree) H-plan 360(degree) Dimension Phi x L 50 x 1030 mm Weight 700 g Pigtail N Connector Specificed Temperature -20 to +80(degree) Humidity 40% - 60% RH Mount Hanged on pole Directional N

1. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Standard Applicable According to §1.1307(b)(1), system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. (a) Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 / / F/300 6 1500-100000 / / 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-100000 / / 1 30 Note: f = frequency in MHz: * = Plane-wave equivalents power density 1.2 MPE Calculation Method S = (30*P*G) / (377*R 2 ) S = power density (in appropriate units, e.g., mw/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mw) G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor is normally numeric gain. R = distance to the center of radiation of the antenna (in appropriate units, e.g., cm) 1.3 MPE Calculation Result Product Description: AsiaRF Co., Ltd. Model No.: AWUHN2408 FCC ID: TKZAWUHN2408 Device Category: Mobile Device Antenna-to-tissue separation: >= 20 cm Acorrding to the KDB-447498, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Calculation result based on maximum output power mode: Tx Freq. Power Power Gain Gain Mobile S Limit Result MHz dBm mW dBi Num cm mW/cm2 mW/cm2 802.11b 2412 20.44 110.66 15.0 31.62 20.00 0.6962 1.0 PASS 2437 20.42 110.15 15.0 31.62 20.00 0.6930 1.0 PASS 2462 20.66 116.41 15.0 31.62 20.00 0.7324 1.0 PASS 802.11n (HT40) 2422 17.45 55.59 15.0 31.62 20.00 0.3497 1.0 PASS 2437 17.25 53.09 15.0 31.62 20.00 0.3340 1.0 PASS 2452 17.61 57.68 15.0 31.62 20.00 0.3628 1.0 PASS Therefore, the antenna of this device must be installed to provide a separation distance of at least 20 cm from all persons, to ensure satisfy the requirement of the RF Exposure.

AsiaRF Co., Ltd. Model: AWUHN2408 REPORT NO.: STR12048085I-1 PAGE 1 OF 119 FCC PART 15.247 FCC Part 15C Measurement and Test Report For AsiaRF Co., Ltd. 1F., No.2, Lane45, Shuiyuan Street., Yonghe Dist, New Taipei City 234, Taiwan FCC ID: TKZAWUHN2408 Report Concerns: Original Report Equipment Type: Top Catcher CC Tactical Model: AWUHN2408 Report No.: STR12048085I-1 Test Date: 2012-04-17 to 2012-05-22 Issue Date: 2012-05-23 Tested By: Seven Song / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . AsiaRF Co., Ltd. Model: AWUHN2408 REPORT NO.: STR12048085I-1 PAGE 2 OF 119 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................4 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. ANTENNA REQUIREMENT ..................................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. POWER SPECTRAL DENSITY .............................................................................................................................7 4.1 STANDARD APPLICABLE.........................................................................................................................................7 4.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.3 TEST PROCEDURE...................................................................................................................................................7 4.4 ENVIRONMENTAL CONDITIONS..............................................................................................................................7 4.5 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 5. 6-DB BANDWIDTH ................................................................................................................................................15 5.1 STANDARD APPLICABLE.......................................................................................................................................15 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................15 5.3 TEST PROCEDURE.................................................................................................................................................15 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................15 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................16 6. POWER OUTPUT...................................................................................................................................................23 6.1 STANDARD APPLICABLE.......................................................................................................................................23 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................23 6.3 TEST PROCEDURE.................................................................................................................................................23 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................23 6.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................24 7. FIELD STRENGTH OF SPURIOUS EMISSIONS .............................................................................................37 7.1 MEASUREMENT UNCERTAINTY.......................................…

Text truncated - open the document above for the full version.

AsiaRF Co., Ltd. Model: AWUHN2408 REPORT NO.: STR12048085I-1 FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Antenna 1:15dBi Antenna 2:8dBi AsiaRF Co., Ltd. Model: AWUHN2408 REPORT NO.: STR12048085I-1 FCC PART 15.247 Radiation Emission Test Setup (30MHz to 1GHz) Antenna 1:15dBi Antenna 2:8dBi AsiaRF Co., Ltd. Model: AWUHN2408 REPORT NO.: STR12048085I-1 FCC PART 15.247 Radiation Emission Test Setup (Above 1GHz) Antenna 1:15dBi Antenna 2:8dBi
