TL4095208Wireless Optical Mouse

095208 Wireless Optical Mouse User Manual Welcome Thank you for selecting this product! This mouse is one kind of newly developed wireless serials mice in our company, and it uses the global-used frequency of 27MHz. The comfortable and perfect shape is designed according to somatology. With it, You can get rid of the bondage of wires and enjoy your beautiful life from the high technology. Product Features 1. Radio frequency 27MHz,It has 256 ID code, there is no interference even many mice being used at the same time. 2. With receiver hidden inside and the whole design looks more ntimate and scientific. 3. Automatically save power sleeping functions, battery life be prolonged. 4. With charge and regular circuit, it can use the attached retraceable line to charge for the mouse. Even if there is no battery in the mouse, you can use the mouse directly, thus it resolve the problem of lack the battery. Systems Compatibility IBM PC and Windows Me/2000/XP Push Receiver Dig it with finger from the push side then the receiver is emerged.( Please see the picture) The Steps of Install Emitter Battery 1. Please prepare for two new AAA chargeable batteries and take 2. the battery cover ( please see the picture) Please insert the batteries correctly according to the polarity marks of the battery grooves., And Install the battery cover. Receiver Installation 1. We suggest that you use the prolonged cable and place the receiver on your desk, which is good for you to get better work capability. 2. If you use PS/2 connector, please use the USB to PS/2 adaptor and connect with the connector before your computer start-up. 3. For laptop, you may connect the receiver directly with the USB connector. ID Setup 1. Please move the mouse near to the receiver 2. Press the ID button of the receiver by your hand, the receiver light begin to flash. Press the ID button of the mouse bottom with some hard and acuate object within 10 seconds, the receiver light will flash very fast, a few seconds later it will be on which shows it is successfully to finish the digital transmission between the mouse and the receiver. You may start to use it. 3. Working distance: within 0.8-1.5 meters. Charge Function When using mouse, if the red led of the low battery beside the wheel flashes, please change batteries or charge them. The mouse can use USB line to charge, connect one side of USB line to the connector of the board, and the other side to USB connector before the mouse, thus it can successfully charge the battery. It can charge while you use the mouse. It is full within about 3-4 hours, and then unplug the connector to stop the charge. Please note that the time of charge may vary when the degree of discharge is different. Attention Please 1. Please don’t make the mouse far away from the receiver in order to work more smoothly. 2. You’d better use the mouse on the white desk, in this way the batteries can be used longer time. Please remove the batteries if the mouse will not be used for a long time or if you travel outside. 3. This mouse with save power sleeping functions, please press any key or scroll the wheel to wake up the mouse when it is sleeping. 4. If you want to take off the mouse power,please continue to press the ID switch of the mouse bottom over 3 secons.If you want to take on the power,please click the ID switch once again. 5. The optical mouse will not work freely on a smooth desk ,glass, any reflecting surface, 3D mouse pad. 6. When you move the mouse, if the light of the battery before the receiver flashes, which shows that the power is nearly finished. Please change the proper-sized new battery or charge it immediately. 7. You can place the receiver in the mouse when you want to carry the mouse on business, and press the switch of ID for a long time so as to switch off the power. Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer- ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

095208 TX Block Diagram Antenna FM Modulator 27.045MHZ±3KHZ MCU X1 oscillatio n 76.8KHZ DC-DC Setup Optical sensor X3 oscillatio n 18MHZ Key &Encoder C A B TX 27.045MHZ RF Amplifier RF Generator X2 27.042MHZ

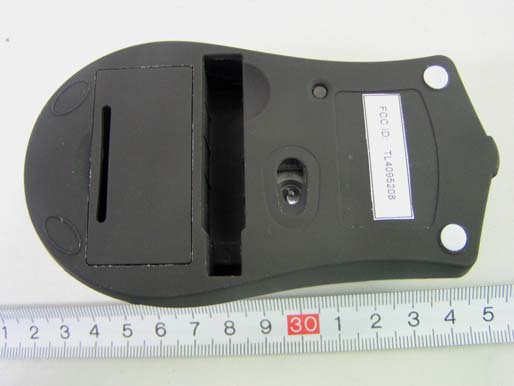

External Photos EUT-Front View EUT-Rear View

ID Label Label FCC ID: TL4095208

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Location

Internal Photos EUT-Uncovered View EUT-PCB Top View EUT-PCB Bottom View

ET TECH BOM MODEL ： 095208 TX VER ： A0 DATE ： 2005-05-21 No： ET-05212201T By:yuheping QR-098 No component name model quartity remark 1 PCB 1.6 × 45 × 52mm 1 2123-A TX REV04 2 IC A2051 DIP16pin 1 U1 3 IC MA6221-S7K SSOP28pin 1 U2 4 IC TP301A SOT-89 1 U3 5 IC TP361A SOT-89 1 U4 6 LED HLMP-ED80-KP000 1 D4 7 LENSE HDNS-2100 1 8 Switch 6 × 6 × 7.35mm 70 ± 15gf 3 SWR ， SWM ， SWL 9 Switch 100gf 6 × 6 × 4.3mm 1 SWID 10 Encoder H=9mm 1 SWEN 11 DIODE MA729 0805 2 D1 ， D2 12 LED 3mm 1 D3 13 crystal 76 ． 8KHZ DIP 1 X1 14 crystal 27 ． 042MHZ 16pF 49S 1 X2 15 crystal 18.00MHz DIP 1 X3 16 inductance 220uH RL0406-221K 2 L1 ， L2 17 inductance 0.82uH 1/4W 1 L3 18 Resistance 15K 0603 1 R2 19 Resistance 4M7 0603 1 R3 20 Resistance 1K 0603 1 R4 21 Resistance 560R 0603 1 R5 22 capacitance 100uF 5 × 6 3 C1 ， C2 ， C17 23 capacitance 1pF 0603 1 C4 24 capacitance 15pF 0603 1 C5 25 capacitance 22pF 0603 2 C6 ， C7 26 capacitance 75pF 0603 2 C9 ， C10 27 capacitance 100nF 0603 2 C11 ， C15 ET TECH BOM MODEL ： 095208 TX VER ： A0 DATE ： 2005-05-21 No： ET-05212201T By:yuheping QR-098 28 capacitance 1000pF 0603 1 C12 29 capacitance 30pF 0603 1 C13 30 capacitance 10uF 1206 1 C16 31 Resistance 1K 0603 1 R6 32 Resistance 51K 0603 1 R8 33 Resistance 10K 0603 1 R9 34 Dynatron 2S8050 β =100~200 EBC DIP 1 Q1 35 Dynatron TL431 DIP 1 Q3 36 connector Mini USB 1 JP1

095208 TX 1 2 34 A B C D 4 3 2 1 D C B A Title Number Revision Size A4 Date: 10-Aug-2005 Sheet of File: F:\yuheping\RD\2123\2123.Ddb Drawn By: PCBANT SWEN R3 L3 D1 C6C7 C11 SW_ID C10 C12 C8 X1 C9 PD SW_RSW_MSW_L + C17 SCLK SDIO C15 R2 + C16 X3 D4 PD VDD REFB 8 REFA 7 XY_LED 6 YA 5 YB 4 XB 3 XA 2 SCLK 1 OSC_IN 9 GND 10 OSC_OUT 11 GND 12 VDD 13 R_BIN 14 PD 15 SDIO 16 U1 SDIO SCLK LBUT 7 MBUT 6 RBUT 5 VDD 4 OSC2 3 VSS 2 OSC1 1 RFOUT 8 ORFIN0 9 ORFIN1 10 ORFO 11 TXD 12 PD 13 WA 14 WB 15 Z1IN 16 Z2IN 17 SDIO 18 SCLK 19 BATL 20 TYPE 21 TXCB 22 BBUT 23 FBUT 24 SVD_IN 25 DCVR 26 VL 27 VL_NM 28 U2 C13 C4 X2 C5 -+ VBAT L1 L2 VSS 1 OUT 2 LX 3 U4 VDD D2 + C2 VSS 1 OUT 2 LX 3 U3 R1 VDD VBT vcc U1 Add Remove A2030A2051 R1 U4,L2,D2 R1 R5 D3 Q3 Q1 R9R8 R6 VCC 1 D- 2 D+ 3 GND 4 JP1 +C1 R4

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.227 EMI MEASUREMENT AND TEST REPORT For Verbatim 1200 West W.T. Harris Blvd.Charlotte, NC 28262, USA FCC ID: TL4095208 August 26, 2005 This Report Concerns: Original Report Equipment Type: Transmitter, Wireless optical mouse Test Engineer: Louise Lu Report No.: RSZ05071501 Test Date: August 16-25, 2005 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: 86-755-33320018 Fax: 86-755-33320008 Verbatim FCC ID: TL4095208 Report # B0509097Rpt Page 2 of 15 FCC PART 15.227 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 SPECIAL ACCESSORIES.................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS ...............................................................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 §15.205, §15.209, §15.227(A) - RADIATED EMISSIONS TEST ..............................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 EMI TEST RECEIVER SETUP........................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 TEST PROCEDURE........................................................................................................................................................8 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST RESULTS SUMMARY............................................................................................................................................9 TEST DATA................................................................................................................................................................10 PLOT(S) OF TEST DATA..............................................................................................................................................10 §15.227(B) - OUT OF BAND EMISSION .................................................................................................................13 EMI TEST RECEIVER SETUP......................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST DATA................................................................................................................................................................13 Verbatim FCC ID: TL4095208 Report # B0509097Rpt …

Text truncated - open the document above for the full version.

Test Setup Photos Transmitting Mode: Radiated Emissions-Front View Transmitting Mode: Radiated Emissions-Rear View
