TLZ-CM689AW-CM689

1 FORM NO.: FR2-015_ A Responsible Department：WBU Expiry Date: Forever The information contained herein is the exclusive property of AzureWave and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of AzureWave. AW-CM689 IEEE 802.11 n Wi-Fi with ac friendly + Bluetooth 5.4 Combo LGA Module Datasheet Rev. B DF (For Standard) 2 FORM NO.: FR2-015_ A Responsible Department：WBU Expiry Date: Forever The information contained herein is the exclusive property of AzureWave and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of AzureWave. Features WLAN  Full IEEE 802.11a/b/g/n compatibility with enhanced performance:  802.11ac friendly, MCS8 (256-QAM) for 20 MHz channels in 5 GHz band.  Single spatial stream with PHY data rates of up to 72.2 Mbps with 802.11n (MCS7) and 78 Mbps with 802.11ac (MCS8).  20 MHz channels with optional SGI support for MCS0-MCS7.  IEEE 802.11ac explicit beamformer support.  TX and RX low-density parity check (LDPC) support for improved range and power efficiency.  Receive space-time block coding (STBC)  On-chip power amplifier/low-noise amplifier for both bands. Bluetooth  All optional Bluetooth 5.4 features supported.  Bluetooth Class 1 or Class 2 transmitter operation.  Supports BDR (1Mbps), EDR (2/3Mbps), BLE (1/2Mbps).  Host controller interface (HCI) using a high- speed UART interface.  PCM for audio data.  Bluetooth 5.4 compliant with 2 Mbps GFSK data rate for BLE. 3 FORM NO.: FR2-015_ A Responsible Department：WBU Expiry Date: Forever The information contained herein is the exclusive property of AzureWave and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of AzureWave. Revision History Document NO: R2-2689-DST-01 Version Revision Date DCN NO. Description Initials Approved A 2025/02/06 DCN033402  Initial Version Ashley Lin N.C Chen B 2025/05/29 DCN034527  Specifications Table update Barry Tsai N.C Chen 4 FORM NO.: FR2-015_ A Responsible Department：WBU Expiry Date: Forever The information contained herein is the exclusive property of AzureWave and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of AzureWave. Table of Contents Revision History .............................................................................................................................. 3 1. Introduction ................................................................................................................................. 5 1.1 Product Overview .......................................................................................................................... 5 1.2 Specifications Table ...................................................................................................................... 6 1.2.1 General ................................................................................................................................. 6 1.2.2 WLAN ................................................................................................................................... 6 1.2.3 Bluetooth ............................................................................................................................... 8 1.3.4 Operating Conditions............................................................................................................. 9 1.3 External Frequency Reference.................................................................................................... 10 1.3.1 External 37.4 MHz Crystal ................................................................................................... 10 1.3.2 External 32.768 kHz Low-Power Oscillator .......................................................................... 11 2. Pin Definition ............................................................................................................................. 12 2.1 Pin Map ......................................................................................................................................... 12 2.2 Pin Table ....................................................................................................................................... 13 3. Electrical Characteristics ......................................................................................................... 16 3.1 Absolute Maximum Ratings ........................................................................................................ 16 3.2 Recommended Operating Conditions ........................................................................................ 16 3.3 Digital IO Pin DC Characteristics ................................................................................................ 16 3.4 Host Interface ............................................................................................................................... 17 3.4.1 SDIO Host Interface ............................................................................................................ 17 3.4.2 UART Interface ................................................................................................................... 22 3.5 Power up Timing Sequence ........................................................................................................ 24 3.5.1 Description of Control Signals ............................................................................................. 24 3.5.2 Control Signal Timing diagrams .......................................................................................... 25 3.6 Power Consumption .................................................................................................................... 27 3.6.1 WLAN ................................................................................................................................. 27 3.6.2 Blue…

Text truncated - open the document above for the full version.

AzureWave Technologies, Inc. 8F., No.94, Baozhong Rd., Xindian Dist., New Taipei City 23144, Taiwan TEL: +886-2-55995599 FAX: +886-2-66289666 Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: April 13, 2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: TLZ-CM689 [AzureWaveTechnologies, Inc.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [AzureWaveTechnologies, Inc.] (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) Patrick Lin / Director AzureWave Technologies, Inc. 8F., No.94, Baozhong Rd., Xindian Dist., New Taipei City 23144, Taiwan TEL: +886-2-55995599 FAX: +886-2-66289666 Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: April 13, 2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: TLZ-CM689 [AzureWaveTechnologies, Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) Patrick Lin / Director

Certification designating a U.S. Agent for service of process: As required by section 2.911(d)(7), the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. In either scenario, the designation of the U.S. agent for service of process should be provided as an attachment to the equipment authorization application. The applicant must provide a written certification, which must: i. Be signed by both the applicant and designated agent for service of process, if the agent is different from the applicant. ii. Acknowledge the applicant’s consent and the designated agent’s obligation to accept service of process. iii. Provide a physical U.S. address and email for the designated agent. iv. Acknowledge the applicant’s acceptance to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Unofficial information provided by FCC personnel on February 14, 2023, via the monthly call with the TCB Council: The Agent for Process of Service:  cannot be a TCB or affiliated with a TCB (e.g. could not be a person who works for a TCB or a company that owns or is owned by the TCB)  cannot be a [FCC recognised] Lab or affiliated with a test lab (e.g. could not be a person who works for a Lab or a company that owns or is owned by the Lab)  Agent can be Individual Entity or a Company Entity  Agent Entity must be located in US, US address/phone  Entity acting as Agent must have FRN (best practice, put FRN on Agent Letter)  Agent letter does not have to be FCC ID specific, can be general Agent for Grantee For devices being marketed or for which marketing has ceased for less than 1 year, if the Agent for Process of Service changes, then for every TC Number the TCB must request the FCC to put application into Audit Mode and Agent Letter needs to be updated (superseded). NOTE: The U.S. Agent for Service of Process should not be confused with the authorized agent used for signing the 731 form, other cover letters within the application, and/or the agent who may interface with the TCB. AzureWave Technologies, Inc. 8F., No.94, Baozhong Rd. , Xindian Dist., New Taipei City , Taiwan 231 U.S. Agent Designation for Service of Process ATTENTION: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA REGARDING: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Approve-IT, Inc. Contact Name: Nathan Grinager Street Address: 8011 34 th Ave South, Suite 342 City/Province/Zip: Bloomington, MN 55425 Telephone No: 651-247-1678 Email: [email protected] FRN #: 0027533835 This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: April 24, 2026 Signed by (Printed Name/Title): Nathan Grinager / Co-President The Applicant confirms its explicit consent and acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: AzureWave Technologies, Inc. Service Type: original application, class 2 permissive change Grantee Code: TLZ Grantee FRN: 0013946611 Module type: (single-modular transmitter) Contact Name: Patrick Lin Street Address: 8F., No.94, Baozhong Rd. , Xindian Dist. City/Province/Zip: New Taipei City , Taiwan 231 Telephone No: 02-55995599 *5580 Email: [email protected] Applicant Signature: Date: April 17, 2026 Signed by (Printed Name/Title): Patrick Lin/ Director *By signing this letter, the client declares and agrees that the service provided by Approve-IT, Inc. will only be applicable for the module models described above. The client also declares and accepts that the service won’t be applicable in any way to any host devices that could contain the modules for which the service has been contracted.

AzureWave Technologies, Inc. 8F., No.94, Baozhong Rd., Xindian Dist., New Taipei City 23144, Taiwan TEL: +886-2-55995599 FAX: +886-2-66289666 Declaration of Authorization We Name: AzureWaveTechnologies, Inc. Address: 8F., No.94,Baozhong Rd.,.Xindian Dist., New Taipei City 23144, Taiwan Declare that: Name Representative of agent: Ms. Riley Wei Agent Company name: BTL Inc. Address: No. 29, Jintang Road, Tangzhen Industry Park Pudong New Area City: Shanghai Country: China is authorized to apply for Certification of the following product(s), including the singing of the related documents such as IC application form(s)/ 731 forms: Product description: AW-CM689 Type designation: AW-CM689 Trademark: AzureWave. FCC ID: TLZ-CM689 on our behalf. Date: April 15, 2026 City: Taipei Name: Patrick Lin Function: Director Signature:

AzureWave Technologies, Inc. 8F., No.94, Baozhong Rd., Xindian Dist., New Taipei City 23144, Taiwan TEL: +886-2-55995599 FAX: +886-2-66289666 Date: 2026-04-24 Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: TLZ-CM689 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operational Description PCB BOM Software Security Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------------- Grantee Contact’s Signature Patrick Lin / Director

Modular Approval Letter AzureWaveTechnologies, Inc. FCC ID:TLZ-CM689 is seeking FCC Authorization as a Single Modular Transmitter Single Limited Modular Transmitter The EUT meets the requirements for: Single Modular Approval Single Limited Modular Approval as detailed in KDB 996369. Compliance to each of the requirements is described below: Modular Approval Requirement Yes No Explanation (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Please provide a detailed explanation if the answer is “No.” (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. Please provide a detailed explanation if the answer is “No.” (iii) The modular transmitter must have its own power supply regulation. Please provide a detailed explanation if the answer is “No.” (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘p rofessional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Please provide a detailed explanation if the answer is “No.” (v) The modular transmitter must be tested in a stand-alone configuration Please provide a detailed explanation if the answer is “No.” (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. Please provide a detailed explanation if the answer is “No.” (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Please provide a detailed explanation if the answer is “No.” (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Please provide a detailed explanation if the answer is “No.” Client’s signature: Client’s name & title:Patrick Lin / Director Contact information / address: 02-55995599/8F., No.94, Baozhong Rd., Xindian Dist., New Taipei City 23144 Taiwan

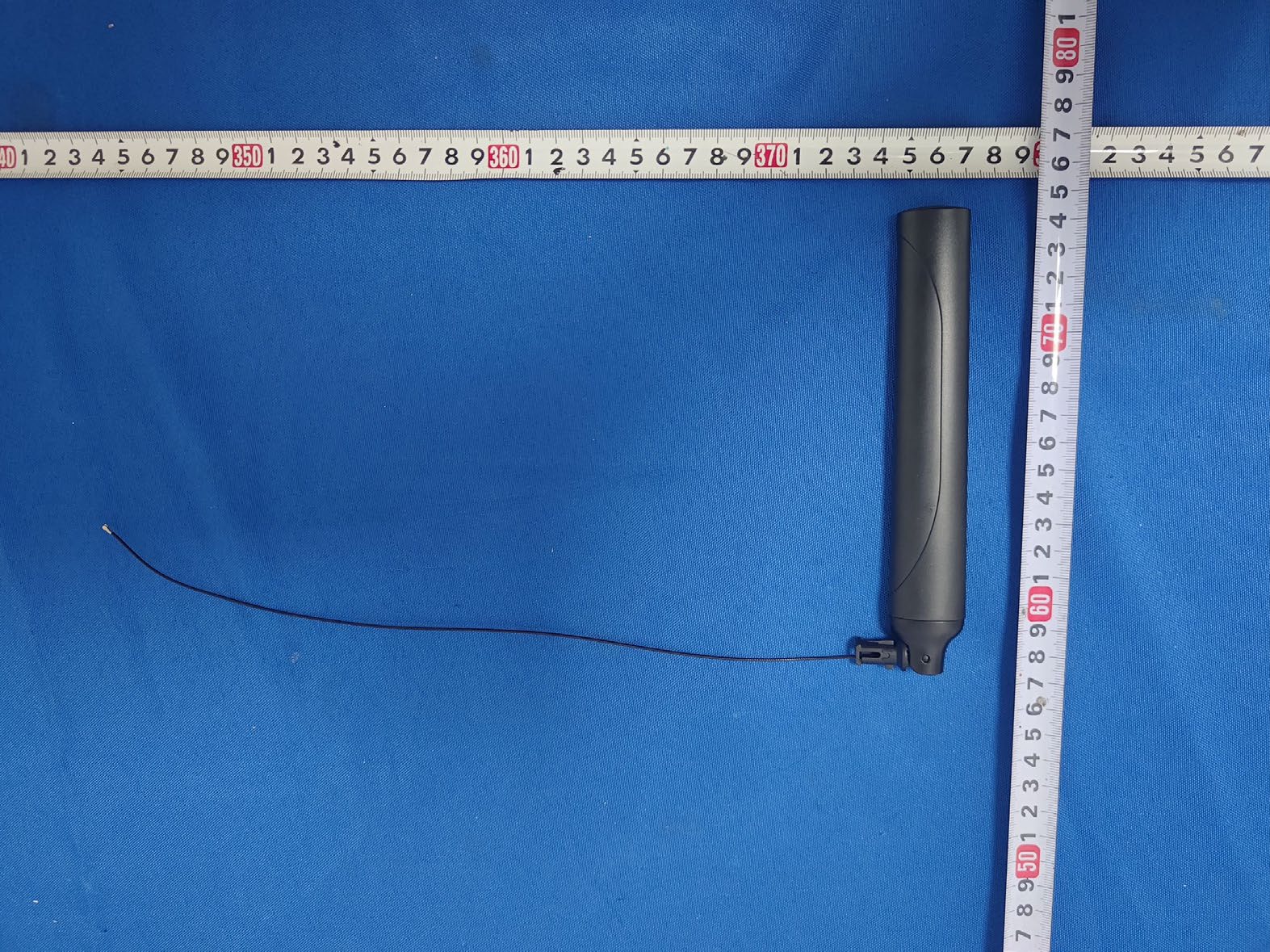

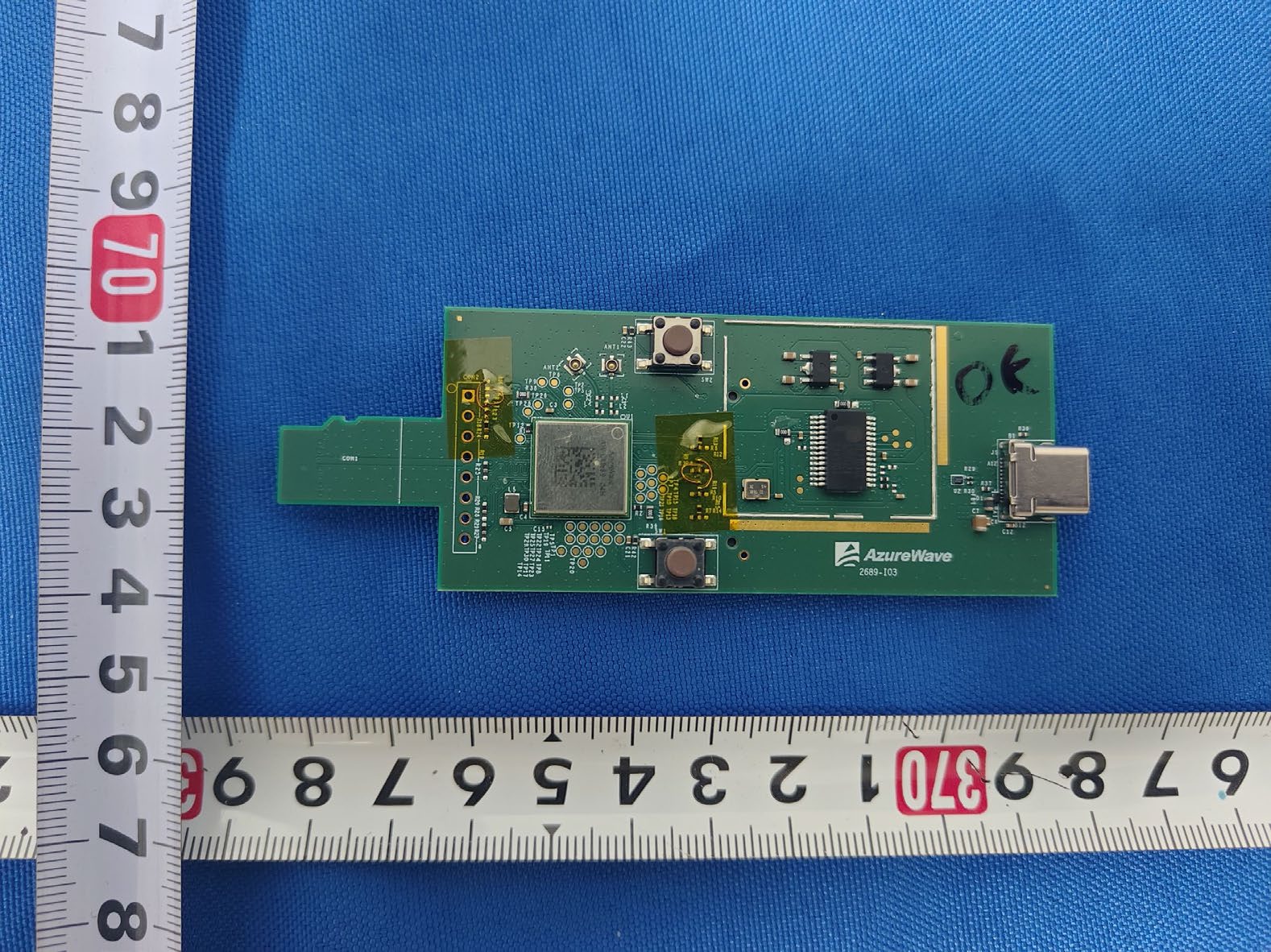

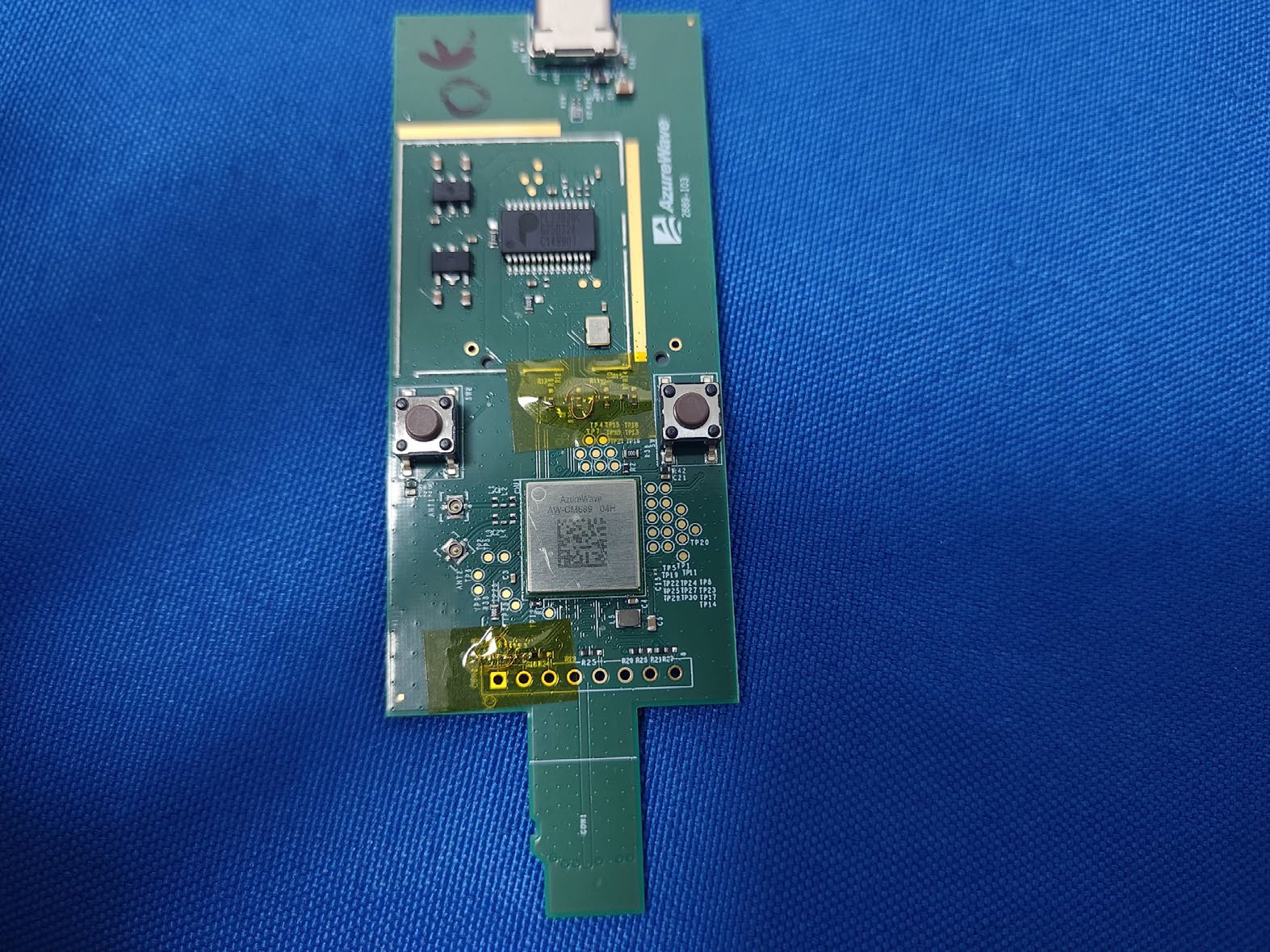

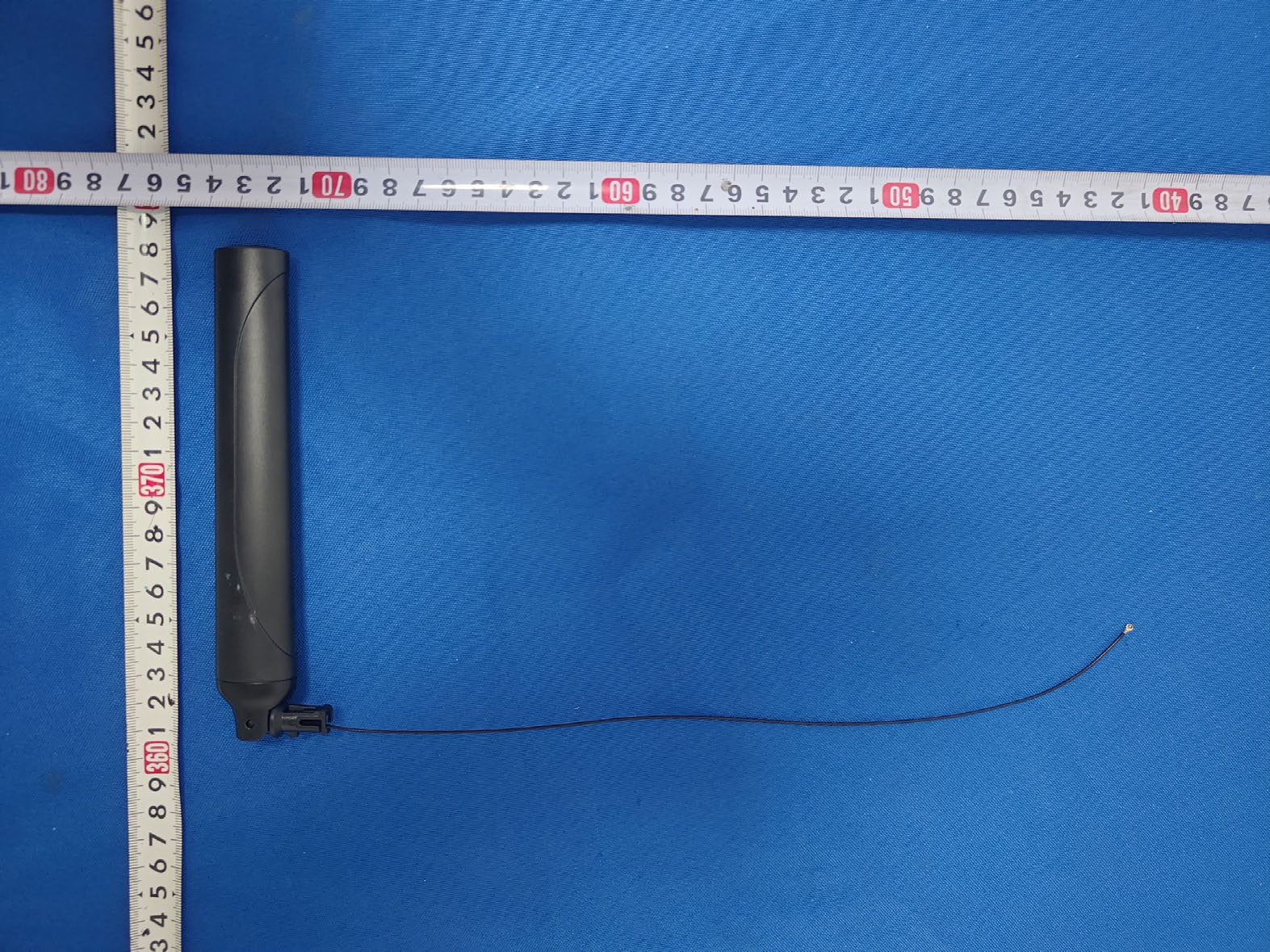

Project No.: 2602H011 Page 1 of 11 ATTACHMENT PHOTOGRAPHS OF EUT Project No.: 2602H011 Page 2 of 11 This large board serves as a fixture. Project No.: 2602H011 Page 3 of 11 This small board serves as the base. Project No.: 2602H011 Page 4 of 11 Project No.: 2602H011 Page 5 of 11 Project No.: 2602H011 Page 6 of 11 Model Name : RFA-27-C38H1MHF4C198 WiFi&BT Ant. Project No.: 2602H011 Page 7 of 11 Model Name : RFA-27-JP326MHF4C198 WiFi&BT Ant. Project No.: 2602H011 Page 8 of 11 Project No.: 2602H011 Page 9 of 11 Project No.: 2602H011 Page 10 of 11

1 字體：Arial 第一行：AzureWave (固定信息) 第二行：Model: AW-CM689 (固定信息) 第三行 : FCC ID: TLZ-CM689 第四行：2D Barcode，12 碼 WIFI MAC 信息 Barcode Size: 5*5 mm Type: Data Matrix 備註：屏蔽蓋上的全部鐳射印字信息不能超出屏蔽蓋 AzureWave Model: AW-CM689 FCC ID: TLZ-CM689 AW- CM689 雷雕示意圖

Project No.: 2602H011 Page 11 of 11

Report No.: BTL-FCCP-6-2602H011 Report Version:R00 Page 1 of 7 FCC RF EXPOSURE REPORT FCC ID: TLZ-CM689 Project No. : 2602H011 Equipment : AW-CM689 Brand Name : AzureWave Test Model : AW-CM689 Series Model : N/A Applicant : AzureWave Technologies, Inc. Address : 8F., No.94,Baozhong Rd.Xindi Taipei 231 Taiwan Date of Receipt : Feb. 03, 2026 Date of Test : Feb. 24, 2026~Mar. 10, 2026 Issued Date : Apr. 08, 2026 Test Sample : Engineering Sample No.: SH92026020367 Standard(s) : KDB 447498 D04 Interim General RF Exposure Guidance v01 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. (Shanghai) Prepared by : Grani Zhou Approved by : Riley Wei Add: No. 29, Jintang Road, Tangzhen Industry Park, Pudong New Area, Shanghai 201210, People’s Republic of China. Tel: +86-021-61765666 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-6-2602H011 Report Version:R00 Page 2 of 7 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025: 2017 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-6-2602H011 Report Version:R00 Page 3 of 7 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note BTL-FCCP-6-2602H011 R00 Original Report. Apr. 08, 2026 Val id Report No.: BTL-FCCP-6-2602H011 Report Version:R00 Page 4 of 7 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No. 29, Jintang Road, Tangzhen Industry Park, Pudong New Area, Shanghai 201210,China 2. GENERAL CONCULUSION According to FCC §§1.1307 and KDB 447498 D04, the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW). 1) Option A. 1-mW Test Exemption Per § 1.1307(b)(3)(i)(A), a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless of fixed, mobile, or portable device exposure conditions. This is a standalone exemption, and it cannot be applied in conjunction with any other test exemption. 2) Option B. SAR-Based Exemption A more comprehensive exemption, considering a variable power threshold that depends on both the separation distance and power, is provided in § 1.1307(b)(3)(i)(B). This exemption is applicable to the frequency range between 300 MHz and 6 GHz, with test separation distances between 0.5 cm and 40 cm, and for all RF sources in fixed, mobile, and portable device exposure conditions. Accordingly, a RF source is considered an RF exempt device if its available maximum time-averaged (matched conducted) power or its effective radiated power (ERP), whichever is greater, are below a specified threshold. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: Report No.: BTL-FCCP-6-2602H011 Report Version:R00 Page 5 of 7 Table B2-Example Power Thresholds (mW) Frequency (MHz) Distance(mm) mW 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 3) Option C MPE-Based Exemption An alternative to the SAR-based exemption is provided in § 1.1307(b)(3)(i)(C), for a much wider frequency range, from 300 kHz to 100 GHz, applicable for separation distances greater or equal to λ/2π, where λ is the free-space operating wavelength in meters. The MPE-based test exemption condition is in terms of ERP, defined as the product of the maximum antenna gain and the delivered maximum time-averaged power. For this case, a RF source is an RF exempt device if its ERP (watts) is no more than a frequency-dependent value, …
