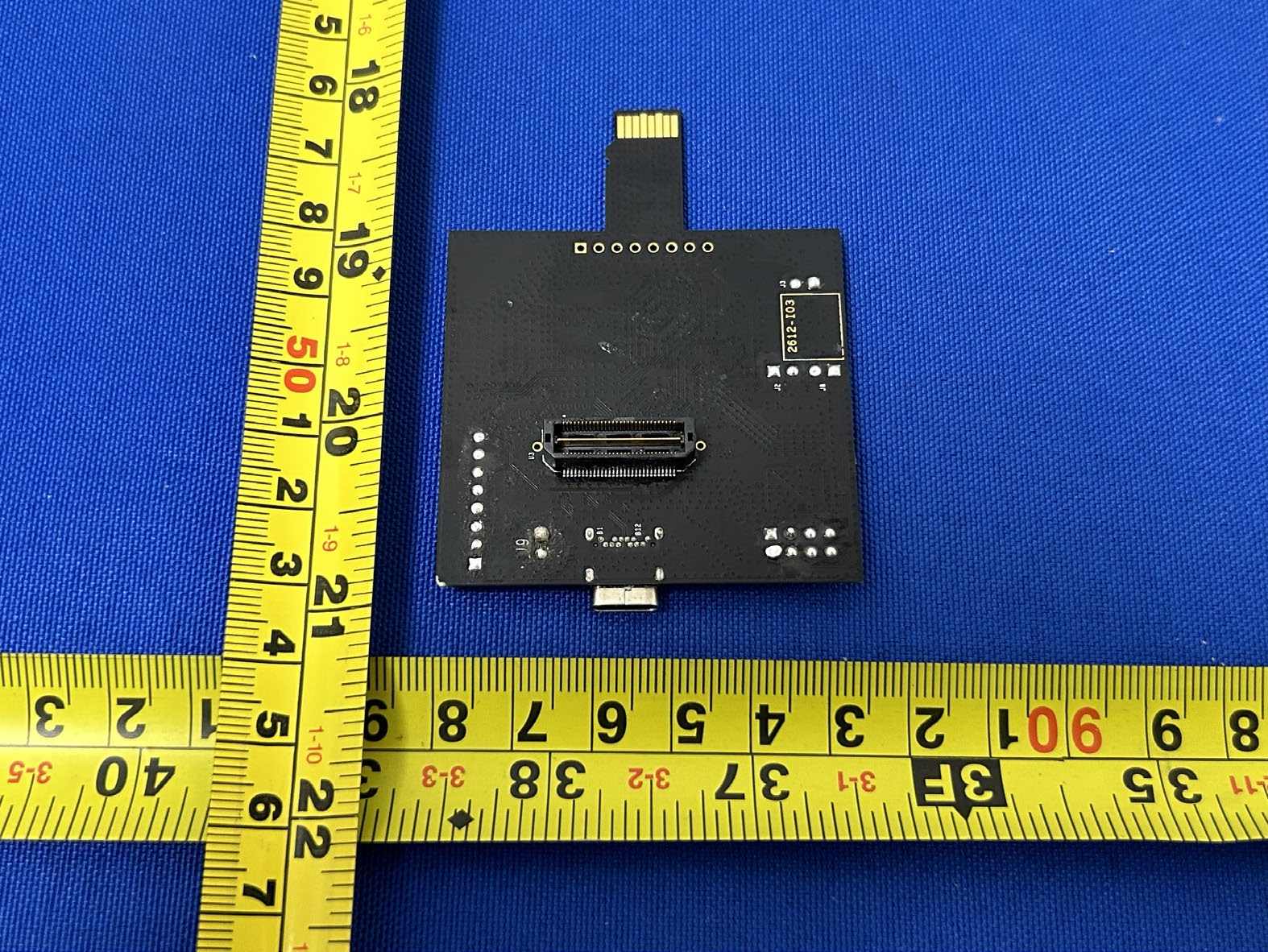

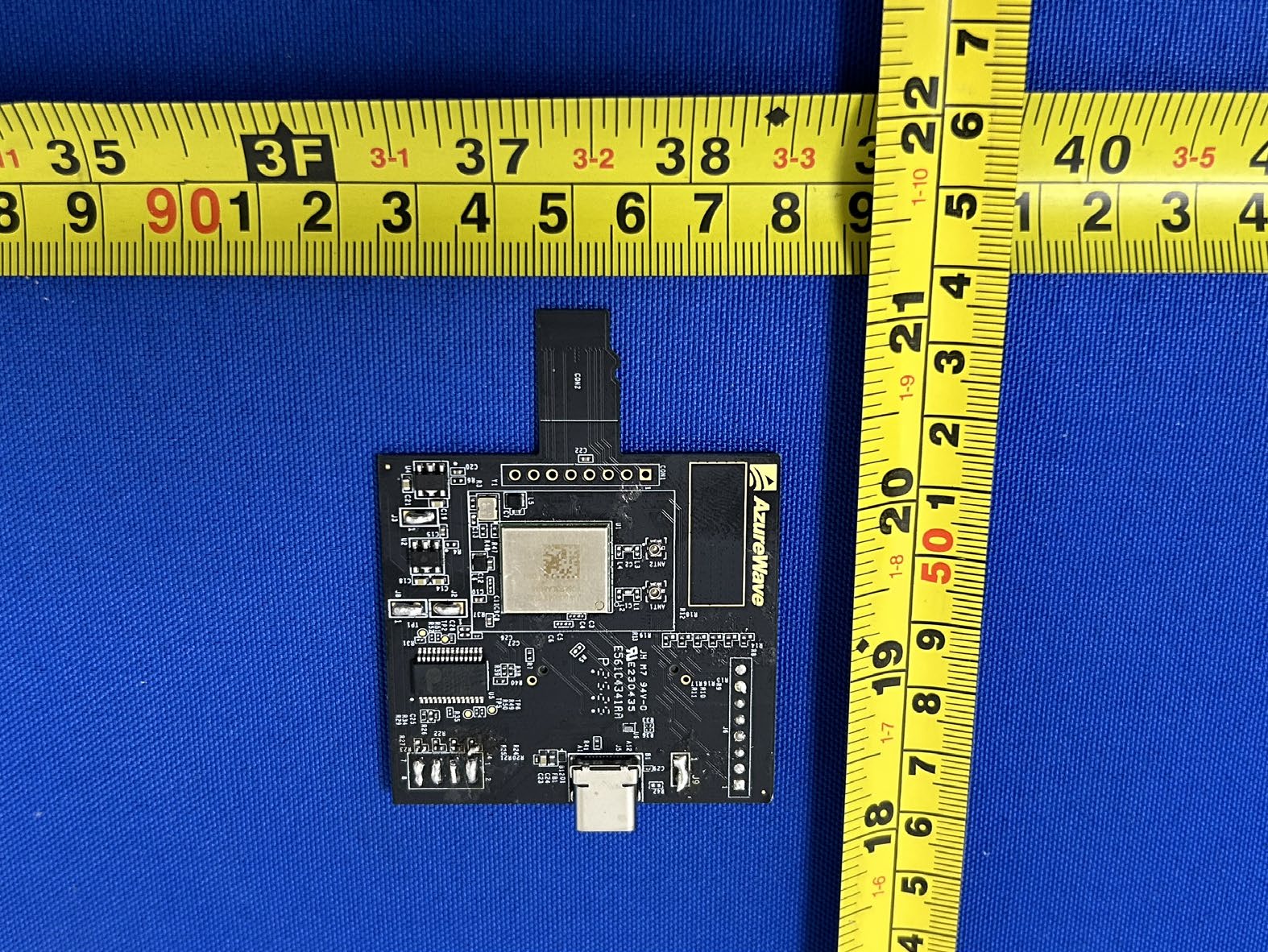

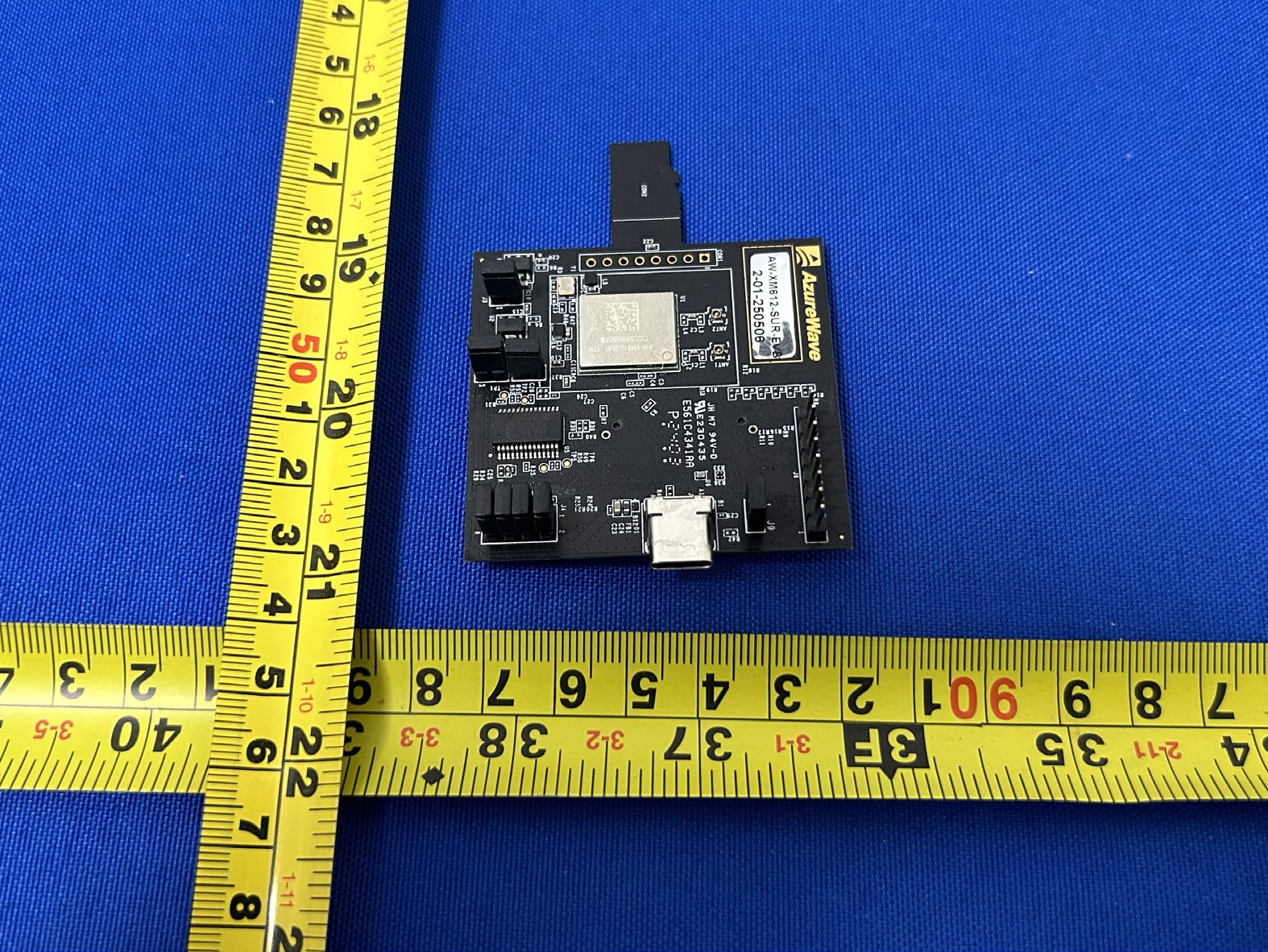

TLZ-XM643SURIEEE 802.11 a/b/g/n/ac/ax Wi-Fi +Bluetooth 6.0 Combo LGA Module

1 The information contained herein is the exclusive property of AzureWave and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of AzureWave. AW-XM643-SUR IEEE 802.11 a/b/g/n/ac/ax Wi-Fi 6E + Bluetooth 6.0 Combo Module User Guide Rev. 0.2 (For Standard) 2 The information contained herein is the exclusive property of AzureWave and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of AzureWave. Revision History Version Revision Date Description Initials Approved A 2024/10/30 ⚫ Initial Version YuFu Chen NC Chen B 2026/06/30 ⚫ integration instructions Tom Hsieh NC Chen 3 The information contained herein is the exclusive property of AzureWave and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of AzureWave. Table of Contents Revision History .............................................................................................................................. 2 Table of Contents ............................................................................................................................ 3 1. Overview ...................................................................................................................................... 5 1.1. Device supported .............................................................................................................. 5 2. System Setup .............................................................................................................................. 5 2.1. Hardware Requirements ................................................................................................... 5 2.2. Software Requirements .................................................................................................... 5 2.3. RF Transmit Test Setup .................................................................................................... 6 2.4. RF Receive Test Setup ..................................................................................................... 6 3. WLAN Basic Test ........................................................................................................................ 7 3.1. Setup Throughput Test .................................................................................................... 7 3.2. RF Tx/Rx WL Command Test ......................................................................................... 10 3.2.1 802.11b/g Tx in 2.4G 20MHz ............................................................................................... 10 3.2.2 802.11n HT20 Tx in 2.4G 20MHz ........................................................................................ 11 3.2.3 802.11ax HE20 Tx in 2G ..................................................................................................... 12 3.2.4 802.11a Tx in 5G ................................................................................................................. 13 3.2.5 802.11n HT20 Tx in 5G ....................................................................................................... 14 3.2.6 802.11n HT40 Tx in 5G ....................................................................................................... 15 3.2.7 802.11ac VHT20 Tx in 5G ................................................................................................... 16 3.2.8 802.11ac VHT40 Tx in 5G ................................................................................................... 17 3.2.9 802.11ac VHT80 Tx in 5G ................................................................................................... 18 3.2.10 802.11ax HE20 Tx in 5G ................................................................................................... 19 3.2.11 802.11ax HE40 Tx in 5G ................................................................................................... 20 3.2.12 802.11ax HE80 Tx in 5G ................................................................................................... 21 3.2.13 802.11ax HE20 Tx in 6G ................................................................................................... 22 3.2.14 802.11ax HE40 Tx in 6G ................................................................................................... 23 3.2.15 802.11ax HE80 Tx in 6G ................................................................................................... 24 3.2.16 802.11b/g/n/ax Rx in 2.4G ................................................................................................. 25 3.2.17 802.11a/n/ac/ax Rx in 5G .................................................................................................. 26 3.2.18 802.11ax Rx in 6G............................................................................................................. 27 4. BT Basic Test ............................................................................................................................ 28 4.1 Driver Installation and enter test mode ................................................................................... 28 4.2 Setup RF Performance Test ................................................................................................... 30 4.3 BT Download Timing ............................................................................................................... 31 5. EVB Attachment ........................................................................................................................ 32 6. integration instructions ............................................................................................................ 35 6.1. FCC .................................................................................................................................. 35 6.1.1 RF exposure ..........................................................................…

Text truncated - open the document above for the full version.

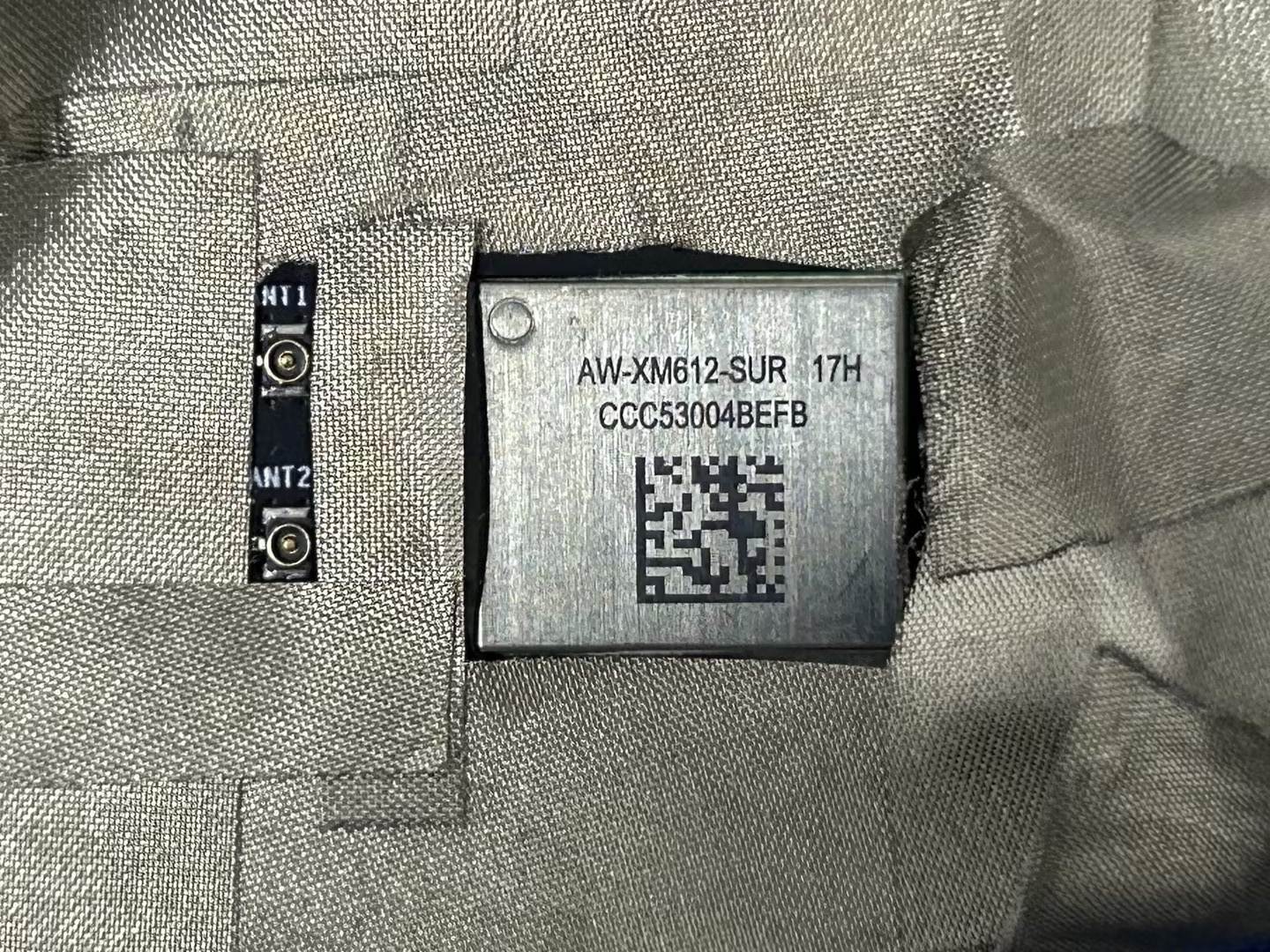

Report No.: BTL-FCCP-7-2603H007 Report Version:R01 Page 1 of 7 FCC RF EXPOSURE REPORT FCC ID: TLZ-XM643SUR Project No. : 2603H007 Equipment : IEEE 802.11 a/b/g/n/ac/ax Wi-Fi + Bluetooth 6.0 Combo LGA Module Brand Name : AzureWave Test Model : AW-XM643-SUR Series Model : AW-XM612-SUR Applicant : AzureWave Technologies, Inc. Address : 8F., No.94, Baozhong Rd., Xindian Dist., New Taipei City 23144, Taiwan Manufacturer : AzureWave Technologies, Inc. Address : 8F., No.94, Baozhong Rd., Xindian Dist., New Taipei City 23144, Taiwan Date of Receipt : Mar. 09, 2026 Date of Test : Mar. 09, 2026 ~ Jul. 03, 2026 Issued Date : Jul. 21, 2026 Test Sample : Engineering Sample No.: SH920260306220 for conducted. Standard(s) : KDB 447498 D04 Interim General RF Exposure Guidance v01 FCC Part 2.1091 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. (Shanghai) Prepared by : Grani Zhou Approved by : Riley Wei Add: No. 29, Jintang Road, Tangzhen Industry Park, Pudong New Area, Shanghai 201210, People’s Republic of China. Tel: +86-021-61765666 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-7-2603H007 Report Version:R01 Page 2 of 7 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacturer's responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025: 2017 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-7-2603H007 Report Version:R01 Page 3 of 7 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note BTL-FCCP-7-2603H007 R00 Original Report. Jun. 24, 2026 Invalid BTL-FCCP-7-2603H007 R01 This report has supplemented standard(s) and simultaneous transmission descriptions. It is a revision of the report with serial number BTL-FCCP-7-2603H007 R00. This is a newly released report, replacing the BTL-FCCP-7-2603H007 R00 report. Jul. 03, 2026 Invalid BTL-FCCP-7-2603H007 R02 This report has updated calculated result. It is a revision of the report with serial number BTL-FCCP-7-2603H007 R00. This is a newly released report, replacing the BTL-FCCP-7-2603H007 R00 report. Jul. 21, 2026 Val id Report No.: BTL-FCCP-7-2603H007 Report Version:R01 Page 4 of 7 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No. 29, Jintang Road, Tangzhen Industry Park, Pudong New Area, Shanghai 201210, People’s Republic of China. 2. GENERAL CONCULUSION According to FCC §§1.1307 and KDB 447498 D04, the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW). 1) Option A. 1-mW Test Exemption Per § 1.1307(b)(3)(i)(A), a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless of fixed, mobile, or portable device exposure conditions. This is a standalone exemption, and it cannot be applied in conjunction with any other test exemption. 2) Option B. SAR-Based Exemption A more comprehensive exemption, considering a variable power threshold that depends on both the separation distance and power, is provided in § 1.1307(b)(3)(i)(B). This exemption is applicable to the frequency range between 300 MHz and 6 GHz, with test separation distances between 0.5 cm and 40 cm, and for all RF sources in fixed, mobile, and portable device exposure conditions. Accordingly, a RF source is considered an RF exempt device if its available maximum time-averaged (matched conducted) power or its effective radiated power (ERP), whichever is greater, are below a specified threshold. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: Report No.: BTL-FCCP-7-2603H007 Report Version:R01 Page 5 of 7 Table B2-Example Power Thresholds (mW) Frequency (MHz) Distance(mm) mW 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 …

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-3-2603H007 Report Version:R01 Page 23 of 23 10. EUT TEST PHOTO End of Test Report Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 35 of 243 10. EUT TEST PHOTOS AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 36 of 243 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 37 of 243 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 38 of 243 Radiated Emissions Test Photos 1 GHz to 18 GHz Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 39 of 243 Radiated Emissions Test Photos 18 GHz to 40 GHz

Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 228 of 243 Test Mode UNII-2A_TX AX(HE40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 54 5270 4.01 1.22 5.23 8.99 Complies 62 5310 4.09 1.22 5.31 8.99 Complies CH54 CH62 Test Mode UNII-2A_TX AX(HE40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 54 5270 3.50 1.22 4.72 8.99 Complies 62 5310 3.94 1.22 5.16 8.99 Complies CH54 CH62 Test Mode UNII-2A_TX AX(HE40) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 54 5270 8.00 8.99 Complies 62 5310 8.25 8.99 Complies Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 229 of 243 Test Mode UNII-2A_TX AX(HE80) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 58 5290 -0.33 1.99 1.66 8.99 Complies CH58 Test Mode UNII-2A_TX AX(HE80) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 58 5290 -0.62 1.99 1.37 8.99 Complies CH58 Test Mode UNII-2A_TX AX(HE80) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 58 5290 4.52 8.99 Complies Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 230 of 243 Test Mode UNII-2C_TX A Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 100 5500 4.75 0.29 5.04 8.99 Complies 116 5580 4.59 0.29 4.88 8.99 Complies 140 5700 5.12 0.29 5.41 8.99 Complies CH100 CH116 CH140 Test Mode UNII-2C_TX A Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 100 5500 5.06 0.29 5.35 8.99 Complies 116 5580 4.88 0.29 5.17 8.99 Complies 140 5700 4.99 0.29 5.28 8.99 Complies CH100 CH116 CH140 Test Mode UNII-2C_TX A Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 100 5500 8.21 8.99 Complies 116 5580 8.04 8.99 Complies 140 5700 8.36 8.99 Complies Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 231 of 243 Test Mode UNII-2C_TX AC(VHT20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 100 5500 4.44 0.31 4.75 8.99 Complies 116 5580 4.46 0.31 4.77 8.99 Complies 140 5700 5.38 0.31 5.69 8.99 Complies CH100 CH116 CH140 Test Mode UNII-2C_TX AC(VHT20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 100 5500 4.52 0.31 4.83 8.99 Complies 116 5580 4.52 0.31 4.83 8.99 Complies 140 5700 5.53 0.31 5.84 8.99 Complies CH100 CH116 CH140 Test Mode UNII-2C_TX AC(VHT20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 100 5500 7.80 8.99 Complies 116 5580 7.81 8.99 Complies 140 5700 8.77 8.99 Complies Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 232 of 243 Test Mode UNII-2C_TX AC(VHT40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 102 5510 4.75 0.61 5.36 8.99 Complies 110 5550 4.58 0.61 5.19 8.99 Complies 134 5670 4.35 0.61 4.96 8.99 Complies CH102 CH110 CH134 Test Mode UNII-2C_TX AC(VHT40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 102 5510 4.70 0.61 5.31 8.99 Complies 110 5550 4.34 0.61 4.95 8.99 Complies 134 5670 4.31 0.61 4.92 8.99 Complies CH102 CH110 CH134 Test Mode UNII-2C_TX AC(VHT40) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 102 5510 8.35 8.99 Complies 110 5550 8.09 8.99 Complies 134 5670 7.96 8.99 Complies Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 233 of 243 Test Mode UNII-2C_TX AC(VHT80) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 106 5530 1.74 1.26 3.00 8.99 Complies 122 5610 2.81 1.26 4.07 8.99 Complies CH106 CH122 Test Mode UNII-2C_TX AC(VHT80) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 106 5530 1.91 1.26 3.17 8.99 Complies 122 5610 2.78 1.26 4.04 8.99 Complies CH106 CH122 Test Mode UNII-2C_TX AC(VHT80) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 106 5530 6.09 8.99 Complies 122 5610 7.06 8.99 Complies Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 234 of 243 Test Mode UNII-2C_TX AX(HE20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 100 5500 3.71 1.19 4.90 8.99 Complies 116 5580 3.69 1.19 4.88 8.99 Complies 140 5700 4.43 1.19 5.62 8.99 Complies CH100 CH116 CH140 Test Mode UNII-2C_TX AX(HE20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 100 5500 3.54 1.19 4.73 8.99 Complies 116 5580 3.44 1.19 4.63 8.99 Complies 140 5700 4.02 1.19 5.21 8.99 Complies CH100 CH116 CH140 Test Mode UNII-2C_TX AX(HE20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 100 5500 7.82 8.99 Complies 116 5580 7.76 8.99 Complies 140 5700 8.43 8.99 Complies Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 235 of 243 Test Mode UNII-2C_TX AX…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 178 of 243 Test Mode UNII-2C_TX AX(HE80) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 106 5530 152.000 77.623 122 5610 154.900 77.782 CH106 CH122 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 179 of 243 Test Mode UNII-3_TX A Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 149 5745 16.340 17.276 0.5 Complies 157 5785 16.040 16.849 0.5 Complies 165 5825 15.080 16.936 0.5 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 180 of 243 Test Mode UNII-3_TX AC(VHT20) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 149 5745 16.750 17.880 0.5 Complies 157 5785 17.550 17.921 0.5 Complies 165 5825 16.310 17.984 0.5 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 181 of 243 Test Mode UNII-3_TX AC(VHT40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 151 5755 35.700 36.462 0.5 Complies 159 5795 35.810 36.503 0.5 Complies CH151 CH159 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 182 of 243 Test Mode UNII-3_TX AC(VHT80) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 155 5775 75.460 75.869 0.5 Complies CH155 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 183 of 243 Test Mode UNII-3_TX AX(HE20) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 149 5745 18.770 19.194 0.5 Complies 157 5785 18.710 19.239 0.5 Complies 165 5825 18.390 19.197 0.5 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 184 of 243 Test Mode UNII-3_TX AX(HE40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 151 5755 37.600 37.952 0.5 Complies 159 5795 36.010 37.827 0.5 Complies CH151 CH159 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 185 of 243 Test Mode UNII-3_TX AX(HE80) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 155 5775 75.490 77.163 0.5 Complies CH155 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 186 of 243 APPENDIX F - MAXIMUM OUTPUT POWER Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 187 of 243 Test Mode UNII-1_TX A Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 15.63 0.29 15.92 23.98 0.2500 Complies 40 5200 15.78 0.29 16.07 23.98 0.2500 Complies 48 5240 15.09 0.29 15.38 23.98 0.2500 Complies Test Mode UNII-1_TX A Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 15.52 0.29 15.81 23.98 0.2500 Complies 40 5200 15.83 0.29 16.12 23.98 0.2500 Complies 48 5240 14.93 0.29 15.22 23.98 0.2500 Complies Test Mode UNII-1_TX A Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 18.88 23.98 0.2500 Complies 40 5200 19.11 23.98 0.2500 Complies 48 5240 18.31 23.98 0.2500 Complies Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 188 of 243 Test Mode UNII-1_TX AC(VHT20) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 15.62 0.31 15.93 23.98 0.2500 Complies 40 5200 15.86 0.31 16.17 23.98 0.2500 Complies 48 5240 16.03 0.31 16.34 23.98 0.2500 Complies Test Mode UNII-1_TX AC(VHT20) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 15.71 0.31 16.02 23.98 0.2500 Complies 40 5200 15.77 0.31 16.08 23.98 0.2500 Complies 48 5240 16.01 0.31 16.32 23.98 0.2500 Complies Test Mode UNII-1_TX AC(VHT20) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 18.98 23.98 0.2500 Complies 40 5200 19.13 23.98 0.2500 Complies 48 5240 19.34 23.98 0.2500 Complies Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 189 of 243 Test Mode UNII-1_TX AC(VHT40) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 14.97 0.61 15.58 23.98 0.2500 Complies 46 5230 18.33 0.61 18.94 23.98 0.2500 Complies Test Mode UNII-1_TX AC(VHT40) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 15.10 0.61 15.71 23.98 0.2500 Complies 46 5230 18.25 0.61 18.86 23.98 0.2500 Complies Test Mode UNII-1_TX AC(VHT40) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 18.66 23.98 0.2500 Complies 46 5230 21.92 23.98 0.2500 Complies Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 190 of 243 Test Mode UNII-1_TX AC(VHT80) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 42 5210 14.15 1.26 15.41 23.98 0.2500 Complies Test Mode UNII-1_TX AC(VHT80) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 42 5210 14.34 1.26 15.60 23.98 0.2500 Complies Test Mode UNII-1_TX AC(VHT80) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max.…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 140 of 243 Test Mode UNII-3_TX AC(VHT40) Mode 5795 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 141 of 243 Test Mode UNII-3_TX AC(VHT40) Mode 5795 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 142 of 243 Test Mode UNII-3_TX AC(VHT80) Mode 5775 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 143 of 243 Te s t Mode UNII-3_TX AC(VHT80) Mode 5775 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 144 of 243 Test Mode UNII-3_TX AX(HE20) Mode 5745 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 145 of 243 Test Mode UNII-3_TX AX(HE20) Mode 5745 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 146 of 243 Test Mode UNII-3_TX AX(HE20) Mode 5785 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 147 of 243 Test Mode UNII-3_TX AX(HE20) Mode 5825 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 148 of 243 Te s t Mode UNII-3_TX AX(HE20) Mode 5825 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 149 of 243 Test Mode UNII-3_TX AX(HE40) Mode 5755 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 150 of 243 Test Mode UNII-3_TX AX(HE40) Mode 5755 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 151 of 243 Test Mode UNII-3_TX AX(HE40) Mode 5795 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 152 of 243 Test Mode UNII-3_TX AX(HE40) Mode 5795 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 153 of 243 Te s t Mode UNII-3_TX AX(HE80) Mode 5775 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 154 of 243 Test Mode UNII-3_TX AX(HE80) Mode 5775 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 155 of 243 Test Mode UNII-3_TX AX(HE80) Mode 5775 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 156 of 243 Test Mode UNII-3_TX AC(VHT20) Mode 5785 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 157 of 243 APPENDIX E - BANDWIDTH Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 158 of 243 Test Mode UNII-1_TX A Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 36 5180 49.860 16.820 40 5200 35.760 16.927 48 5240 21.530 16.892 CH36 CH40 CH48 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 159 of 243 Test Mode UNII-1_TX AC(VHT20) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 36 5180 32.110 17.967 40 5200 27.390 17.979 48 5240 21.500 17.937 CH36 CH40 CH48 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page 160 of 243 Test Mode UNII-1_TX AC(VHT40) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 38 5190 41.380 36.626 46 5230 39.750 36.744 CH38 CH46 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2603H007 Report Version: R02 Page …

Text truncated - open the document above for the full version.
